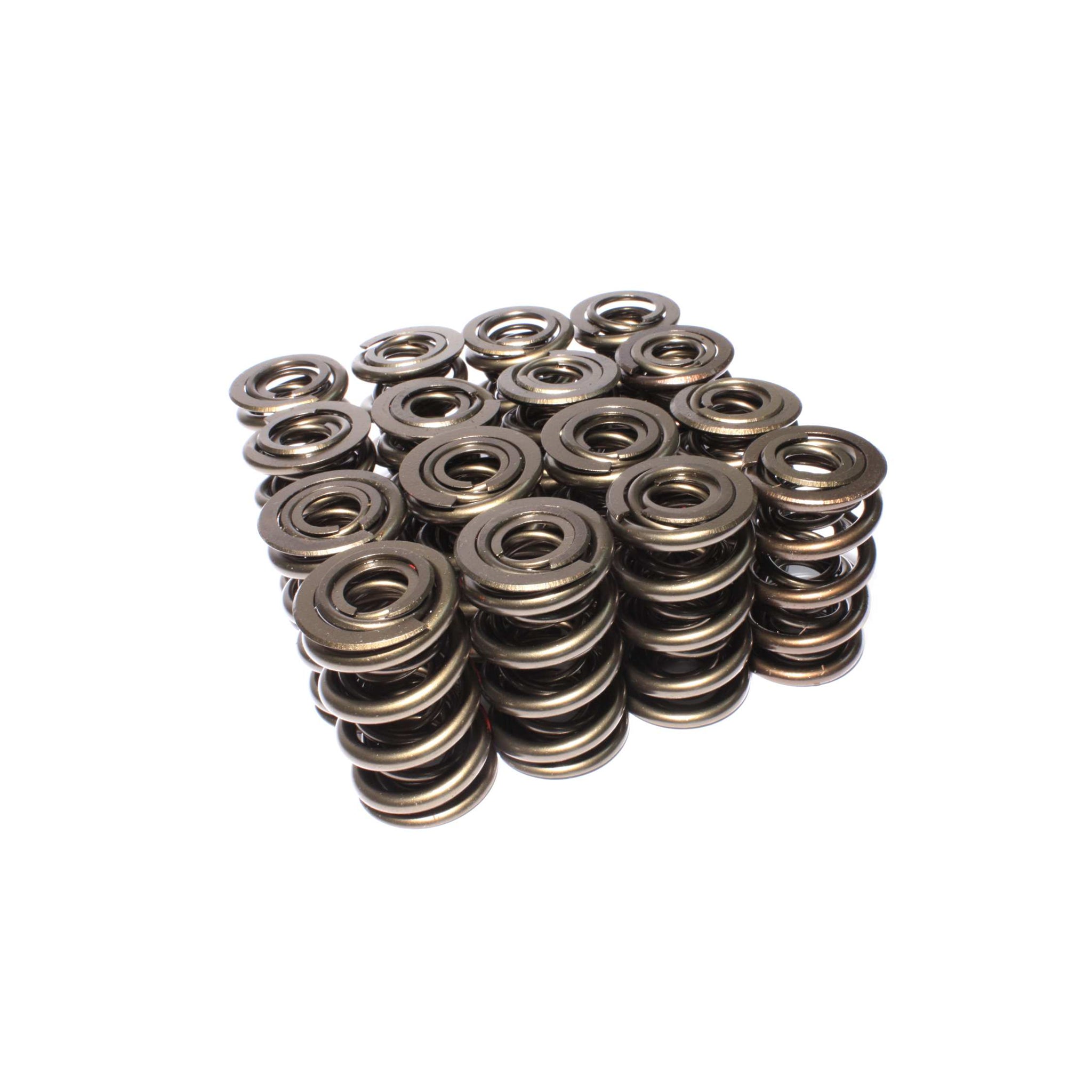

COMP Cams 26028-16 Race Extreme 1.686" OD Triple Springs

2 sold in last 8 days
COMP Cams
ds_BDQQ_26028-16
Engine Valve Spring Kit
$1,369.51
$1,369.51
customers are viewing this product
COMP Cams 26925CS-KIT GM LS Dual Valve Spring Kit w/ Chromemoly Steel Retainers
COMP Cams 26925CS-KIT GM LS Dual Valve Spring Kit w/ Chromemoly Steel Retainers
$993.95
COMP Cams 26125-32 Race Street 1.101
COMP Cams 26125-32 Race Street 1.101" OD Beehive Springs
$873.93
COMP Cams 26028-16 Race Extreme 1.686" OD Triple Springs
Details

Specifications:

Description_DEF Engine Valve Spring Kit
Description_DES Race Extreme 1.686" OD Triple Springs
Description_DES 2.200" Installed Height
Description_DES 16 Springs
Description_KEY Valve Springs
Description_KEY Dual Valve Springs
Description_KEY Single Valve Springs
Description_KEY Beehive Springs
Description_KEY Conical Springs
Description_KEY Valve Lift
Description_KEY Max Lift
Description_KEY Spring Kit
Description_INV Race Ext 1.686" Tripl Sprngs 2.2" Ins Ht
Description_SHP None
Description_SHO Engine Valve Spring
Seat Height 2.2
Coil Bind Height 1.161
Compatible Shims 4756
Title Race Extreme 1.686" OD Triple Springs; 2.200" Installed Height; 16 Springs
Compatible .570" Guide Diameter Spring Seats 4786-16
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? Yes, but must meet tailpipe emission standards for year of vehicle.
Inner Spring Inside Diameter 0.864/0.624
Valve Spring Series Race Extreme
Spring Rate 712
California Proposition 65 WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Outer Spring Outside Diameter 1.686
Outer Spring Inside Diameter 1.203
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? Yes, but must meet tailpipe emission standards for year of vehicle.
Number of Springs 3
Compatible Retainer 739-16
C.A.R.B. E.O. Number N/A
Compatible Spring Cup (O.D. Locator) 4708-16
Seat Pressure 342
C.A.R.B. Exemption Reason No impact on pollution output of vehicle.
Amazon ASIN B000P595PQ
C.A.R.B. Exempt for On-Road Vehicles? Yes
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? Yes, but must meet tailpipe emission standards for year of vehicle.
Damper No
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? Yes, but must be a race/competition only vehicle.
Length 3.0000
Width 4.0000
Height 13.0000
Weight 7.0000
