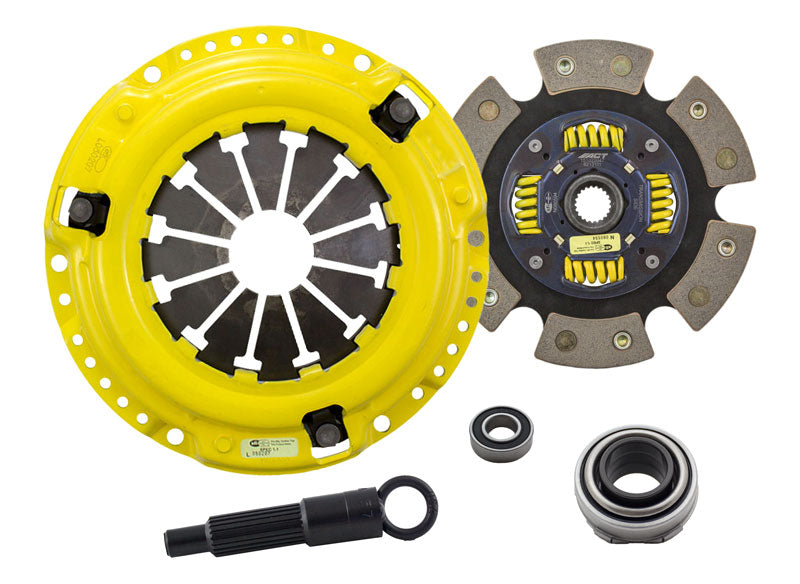

HC6-XXG6 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Specifications:
| Description_ASC |
Heavy to very heavy pedal effort, aggressive engagement, quick shifts, mild to moderate gear rattle; Moderate friction life, extended by ACT's exclusive diaphragm design; Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance; Recommended for high horsepower street or race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability |
| Description_ASM |
HC6-XXG6 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat. |
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
MaXX/Race Sprung 6 Pad |
| Description_INV |
ACT MaXX/Race Sprung 6 Pad Kit |
| Description_KEY |
clutch kit;pressure plate;max xtreme;spring-centered;race disc;6 pad;sprung disc;sprung hub;6 puck |
| Description_LAB |
MaXX/Race Sprung 6 Pad |
| Description_KSW |
clutch kit;max xtreme;spring-centered;race disc;6 pad;sprung disc;6 puck |
| Description_EXT |
MaXX/Race Sprung 6 Pad |
| Description_FAB |
Excellence in Performance, backed by the best one-year warranty in the industry! |
| Description_MKT |
HC6-XXG6 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat. |
| Description_SHO |
Clutch Kit |
| Title |
ACT MaXX/Race Sprung 6 Pad Kit |
| Torque Capacity (ft/lbs.) |
420 |
| California Proposition 65 |
Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov |
| Part Fitment Requirement |
Must be used with 90-01 SOHC flywheel. |
| Product Weight (lbs.) |
11.2 |
| Torque Capacity Over OE |
173% |
| Length |
5.0000 |
| Width |
14.0000 |
| Height |
14.0000 |
| Weight |
14.7000 |
