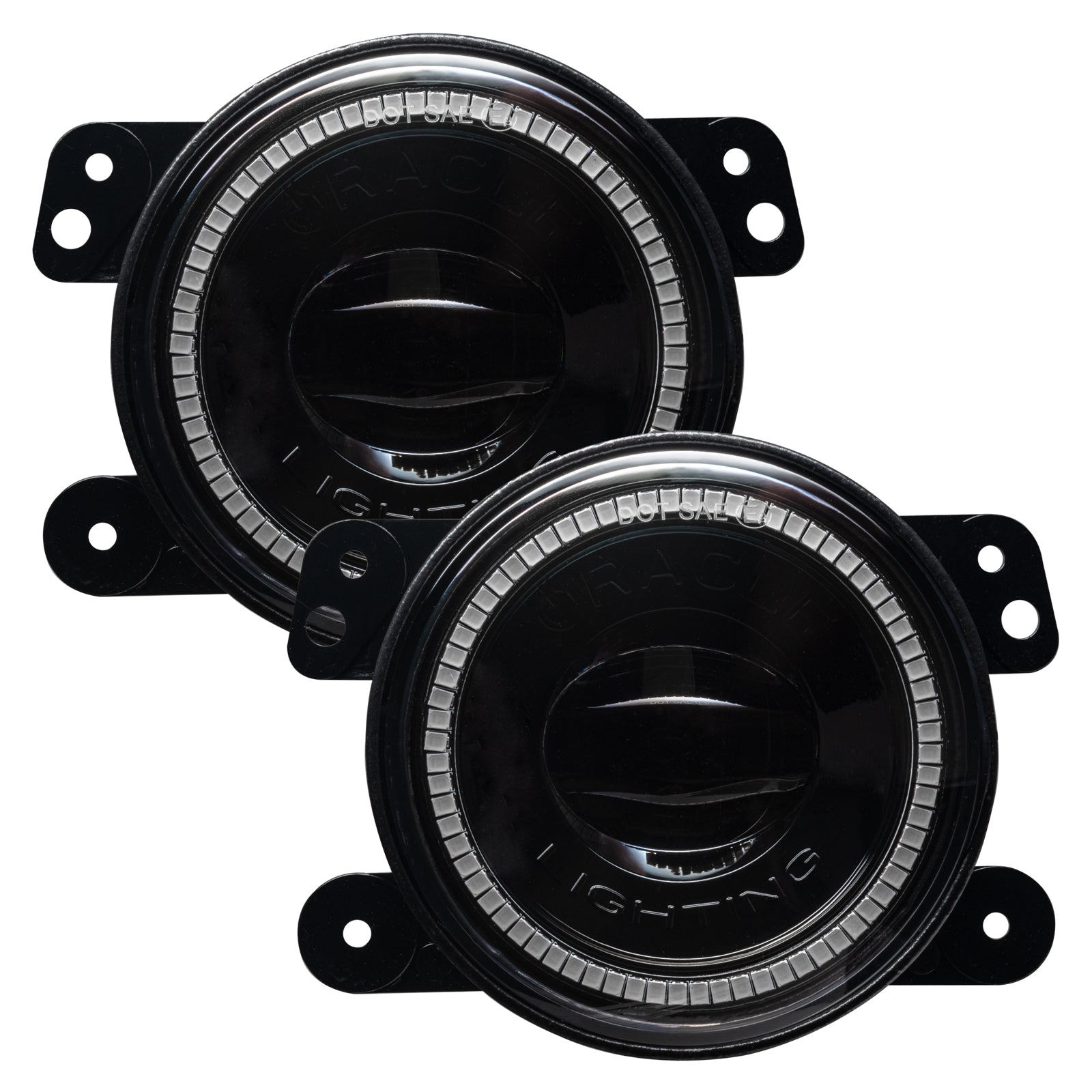

A complete High-Powered LED Fog Light replacement for the Wrangler JK, Jeep Gladiator, JL Sport & Sahara vehicle applications. This direct-fit fog light features plug-and-play wiring for easy installation. These amazing LED units push out approximately 3000 raw lumens which is guaranteed to light up the night on road or off road! This rugged design can operate in the worst possible conditions. Each light utilizes a rugged Polycarbonate lamp housing to withstand impact and a Solid-State luminaire design for vibration resistance. The epoxy-sealed electronics avoid moisture and corrosion. Perfect for the off-road adventurer who wants to cover new ground on the trail that never ends. Latest Product Improvement: Improvements in brightness and reliability by adding a constant current LED driver to the main circuit board inside of the lamp to control the halos. Increased Reliability by conditioning the power going into the LEDs this prevents degradation which can shorten the overall lifespan of the product. Wider Input Voltage Range. The new SMD Halos can operate on a very wide voltage range from 12V-24V so that voltage spike can not damage the LEDs. Brighter/ More Even Light, by moving the heat load of the resistors off the PCB we are able to increase the number of LEDs on the circuit board without thermal issues. LED chips upgraded from a Cree LED to a Phillips Luxeon ZES chip. They deliver a very high efficacy 130LM/W ratio while having lower thermal output. Horizontal and Vertical Adjustability.
Specifications:
| Description_ASM |
2007 thru 2018 Jeep Wrangler |
| Description_DEF |
Fog Light Assembly |
| Description_DES |
High Performance Fog Lights, Red |
| Description_EXT |
This High Performance Fog Light comes with an amber Halo pre-installed. Fog light is made from a polycarbonate housing and epoxy sealed electronics. This provides for a waterproof and impact resistant design. Includes new Luxeon ZES chip. |
| Description_INV |
Oracle - Fog Lights - 5846-003 |
| Description_FAB |
Uses H10/9145/5202 plug |
| Description_MKT |
A complete High-Powered LED Fog Light replacement for the Wrangler JK, Jeep Gladiator, JL Sport & Sahara vehicle applications. This direct-fit fog light features plug-and-play wiring for easy installation. These amazing LED units push out approximately 3000 raw lumens which is guaranteed to light up the night on road or off road! This rugged design can operate in the worst possible conditions. Each light utilizes a rugged Polycarbonate lamp housing to withstand impact and a Solid-State luminaire design for vibration resistance. The epoxy-sealed electronics avoid moisture and corrosion. Perfect for the off-road adventurer who wants to cover new ground on the trail that never ends. Latest Product Improvement: Improvements in brightness and reliability by adding a constant current LED driver to the main circuit board inside of the lamp to control the halos. Increased Reliability by conditioning the power going into the LEDs this prevents degradation which can shorten the overall lifespan of the product. Wider Input Voltage Range. The new SMD Halos can operate on a very wide voltage range from 12V-24V so that voltage spike can not damage the LEDs. Brighter/ More Even Light, by moving the heat load of the resistors off the PCB we are able to increase the number of LEDs on the circuit board without thermal issues. LED chips upgraded from a Cree LED to a Phillips Luxeon ZES chip. They deliver a very high efficacy 130LM/W ratio while having lower thermal output. Horizontal and Vertical Adjustability. |
| Description_SHO |
Fog Lights |
| Prop 65 - Long Label |
Warning: This product contains chemicals known to the State of California to cause cancer or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov |
| Warranty |
2 Year |
| Title |
5846-003 - Fog Light Assembly |

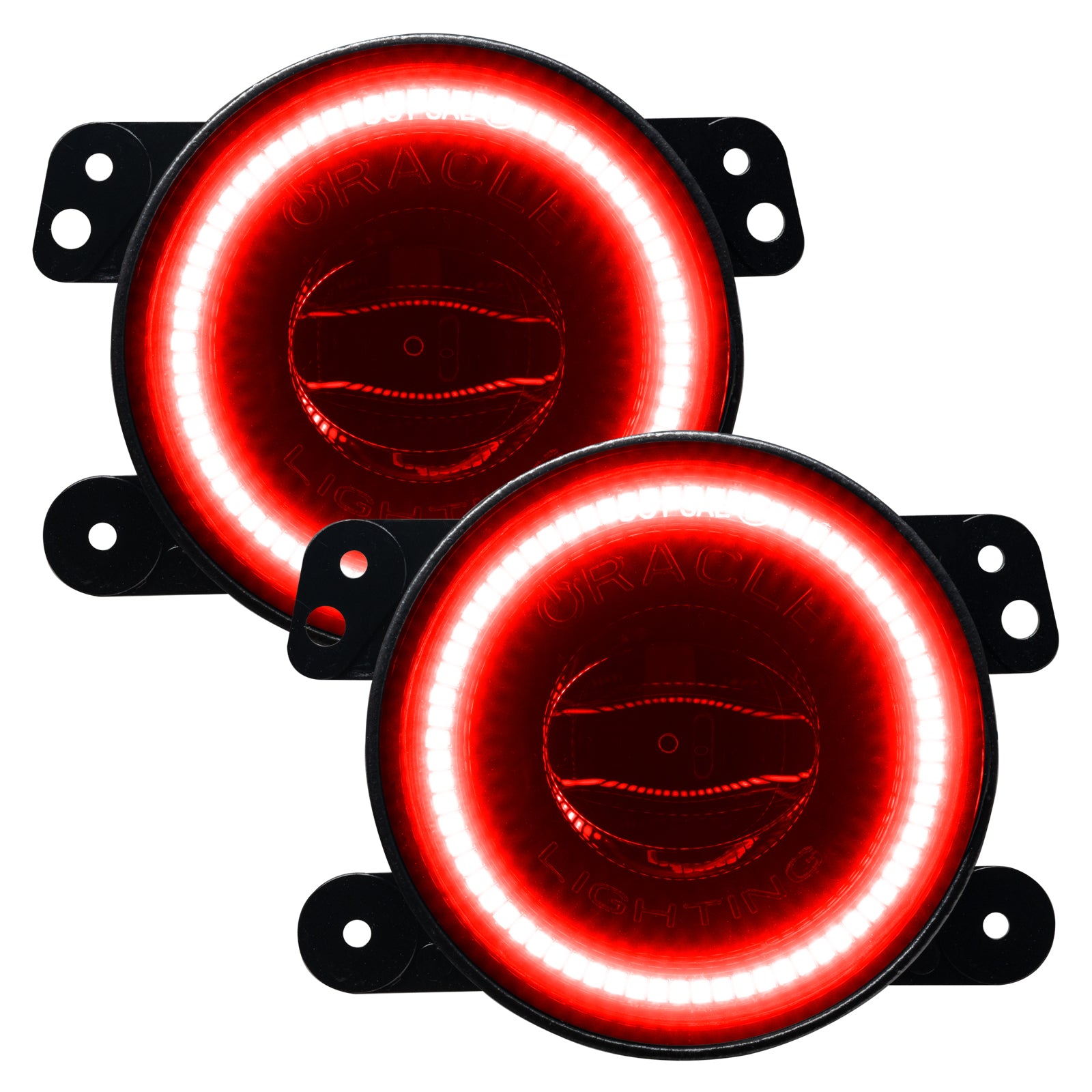

| LED Color |
Red |
| Add-On |
N/A |
| Prop 65 - Short Label |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Prop 65 (C, R or CR) |
CR |
| Contents |

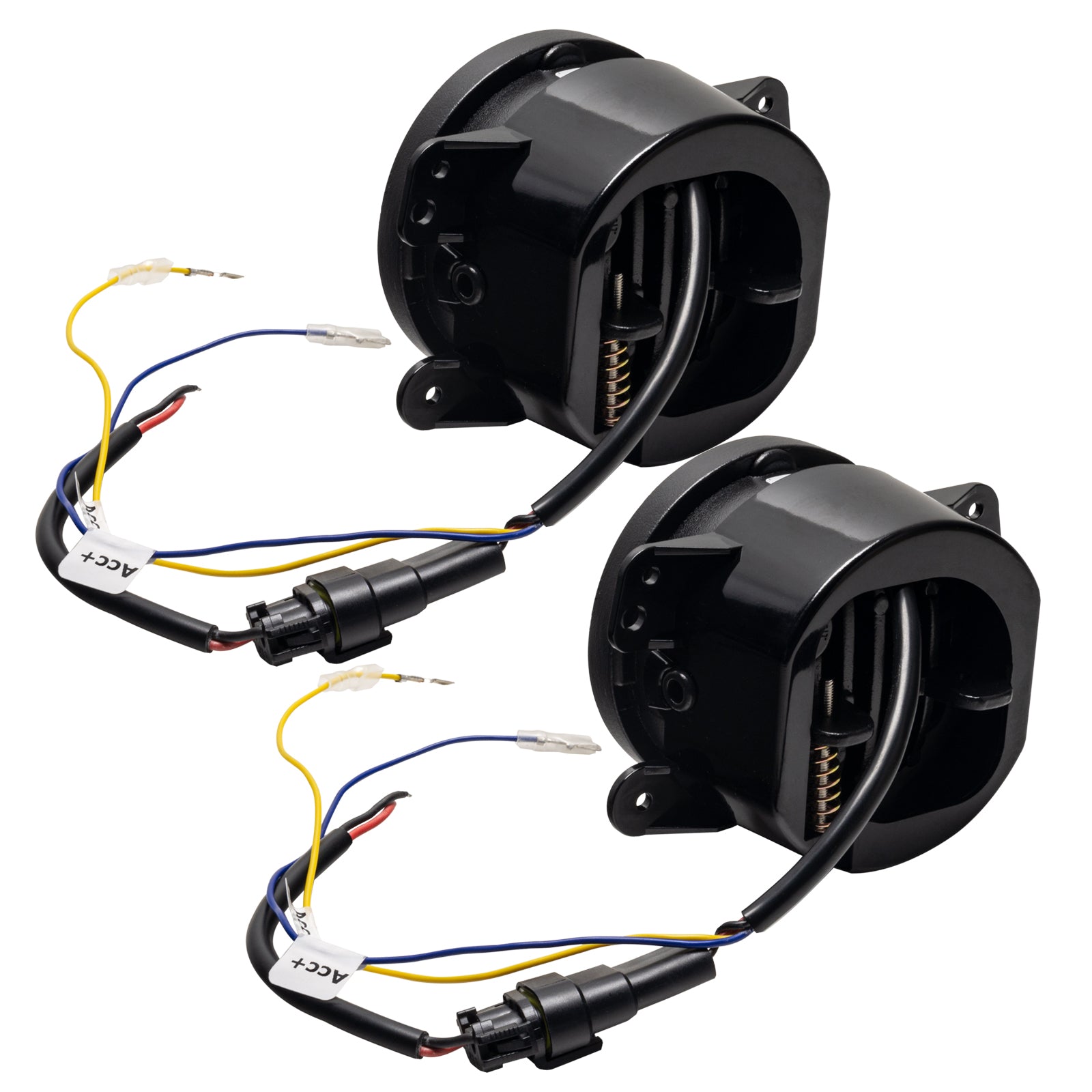

(2x) ORACLE Jeep Wrangler JK High Performance 20W LED Fog Lights, (2x) Wiring Adapters |
| Input Voltage of halo |
12V DC |
| Prop 65 Yes/No |
Yes |
| Power Draw |
2.0 A at 12V |
| Prop 65 - Warning |
Warning - Both Cancer and Reproduction.JPG |
| Waterproof Rating |
IP67 |

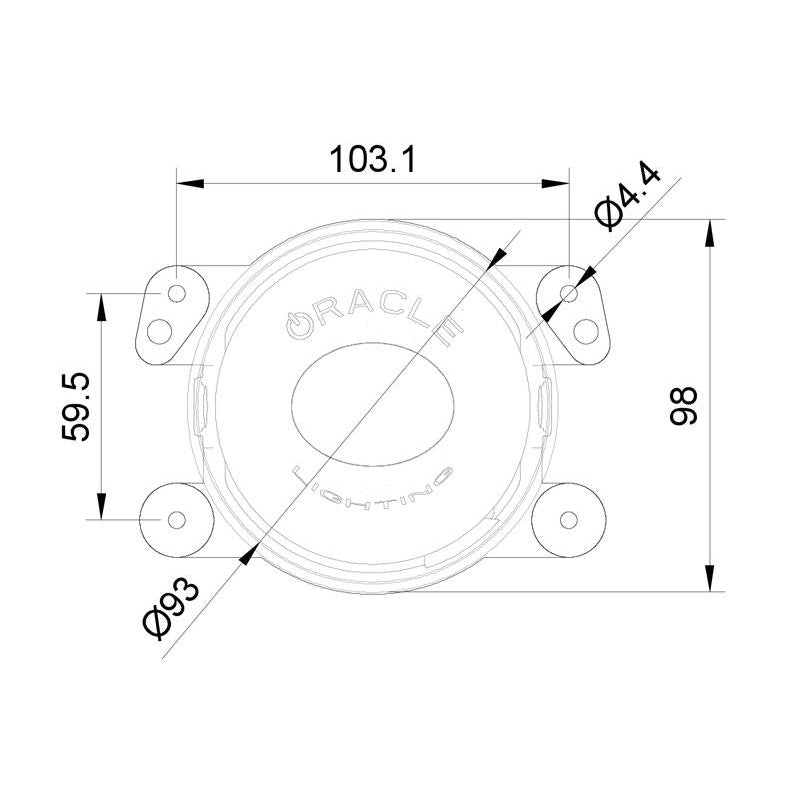

| Length |
9.0000 |
| Width |
5.0000 |
| Height |
6.0000 |
| Weight |
3.0000 |
