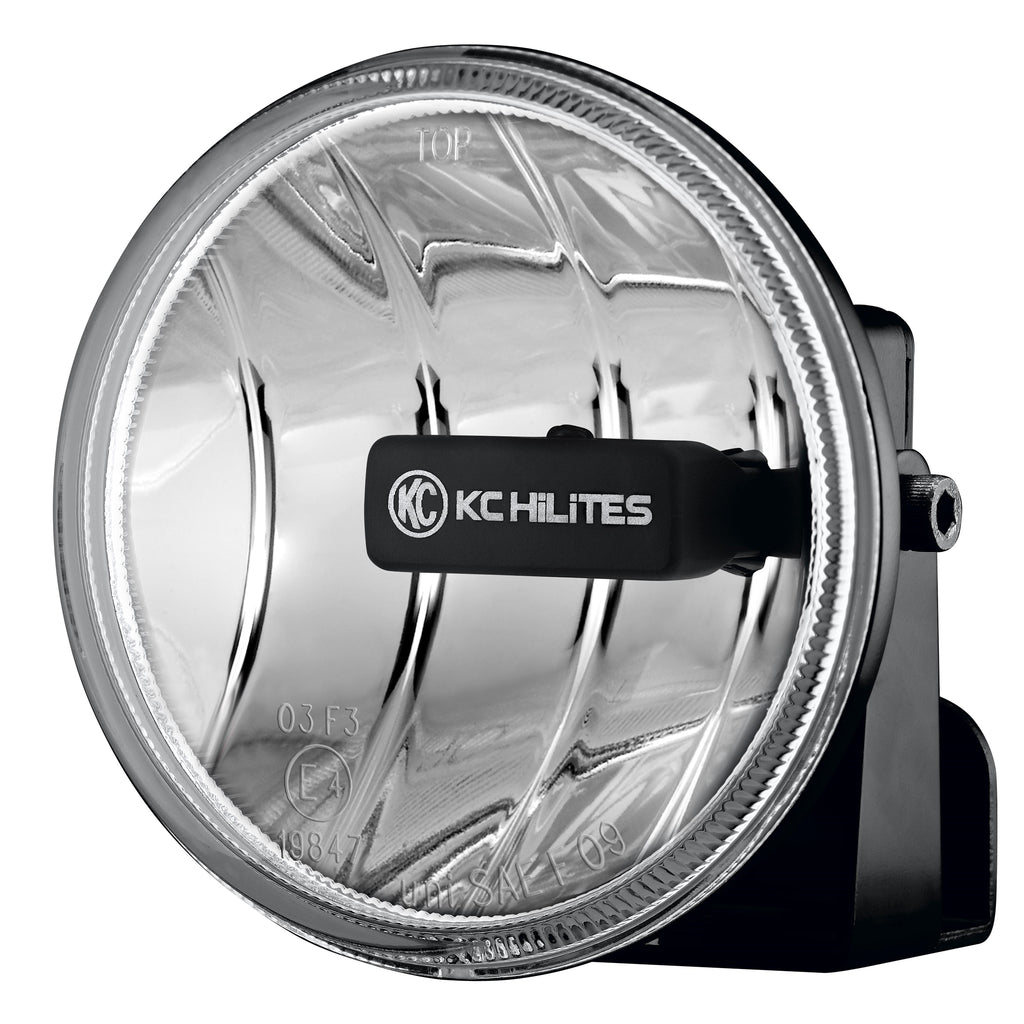

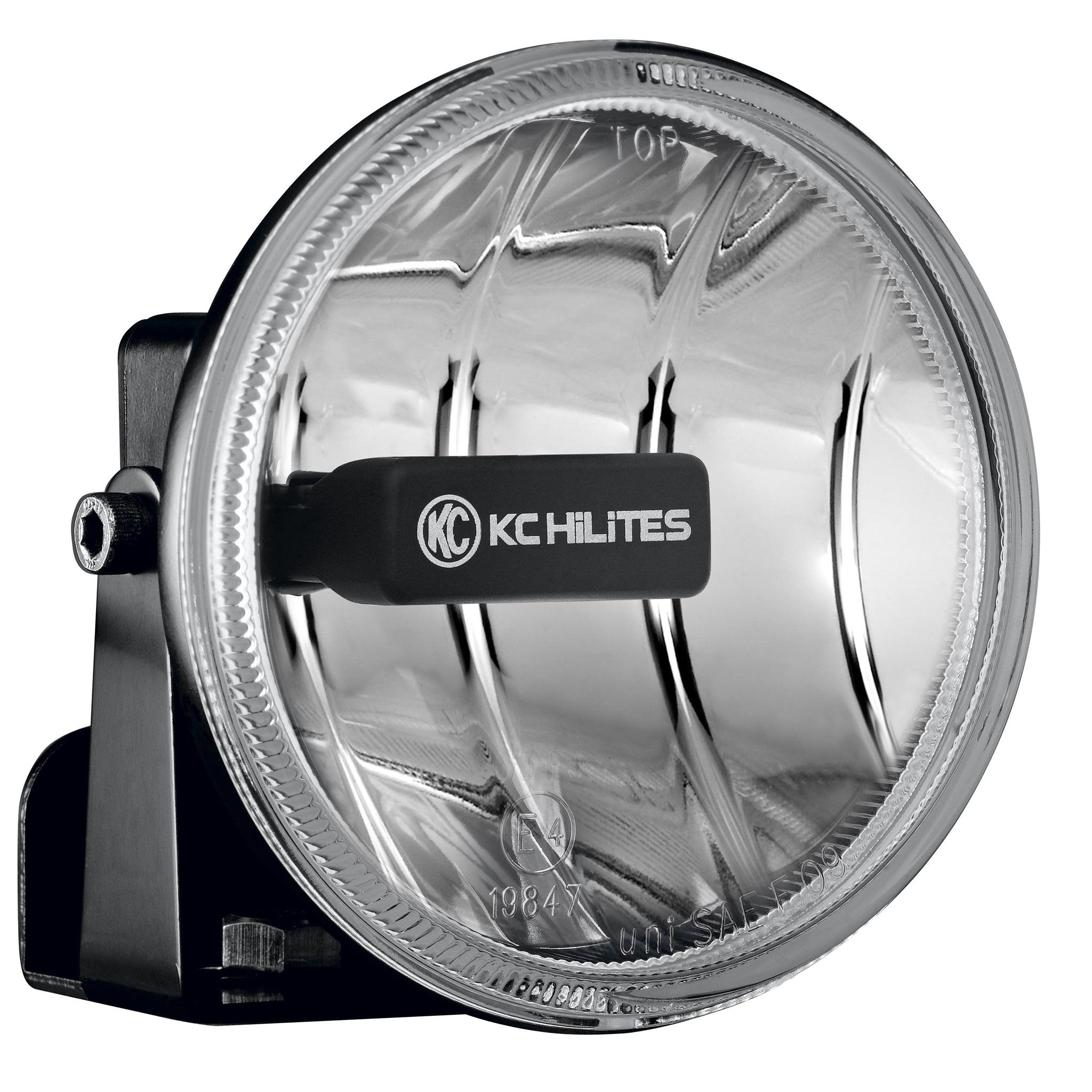

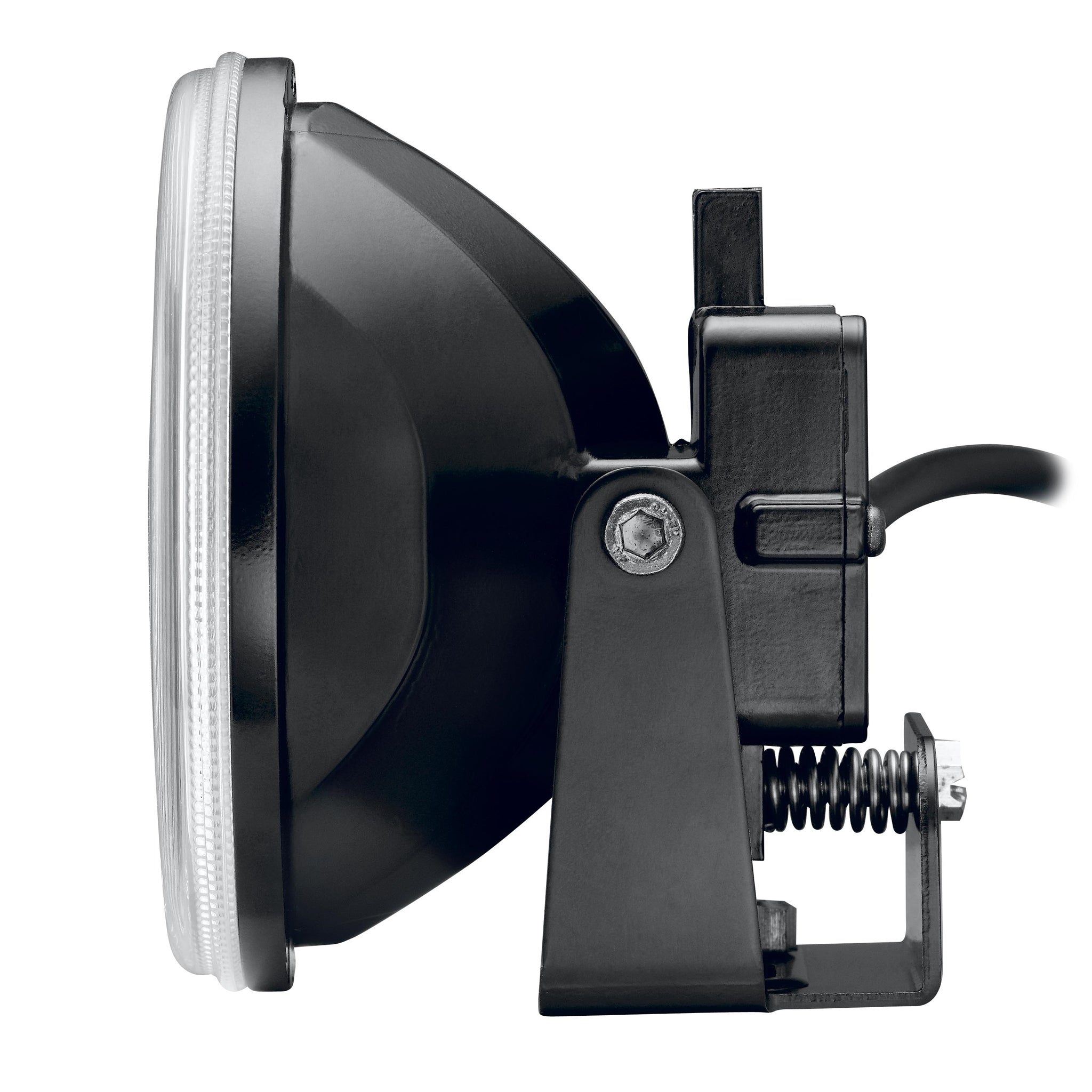

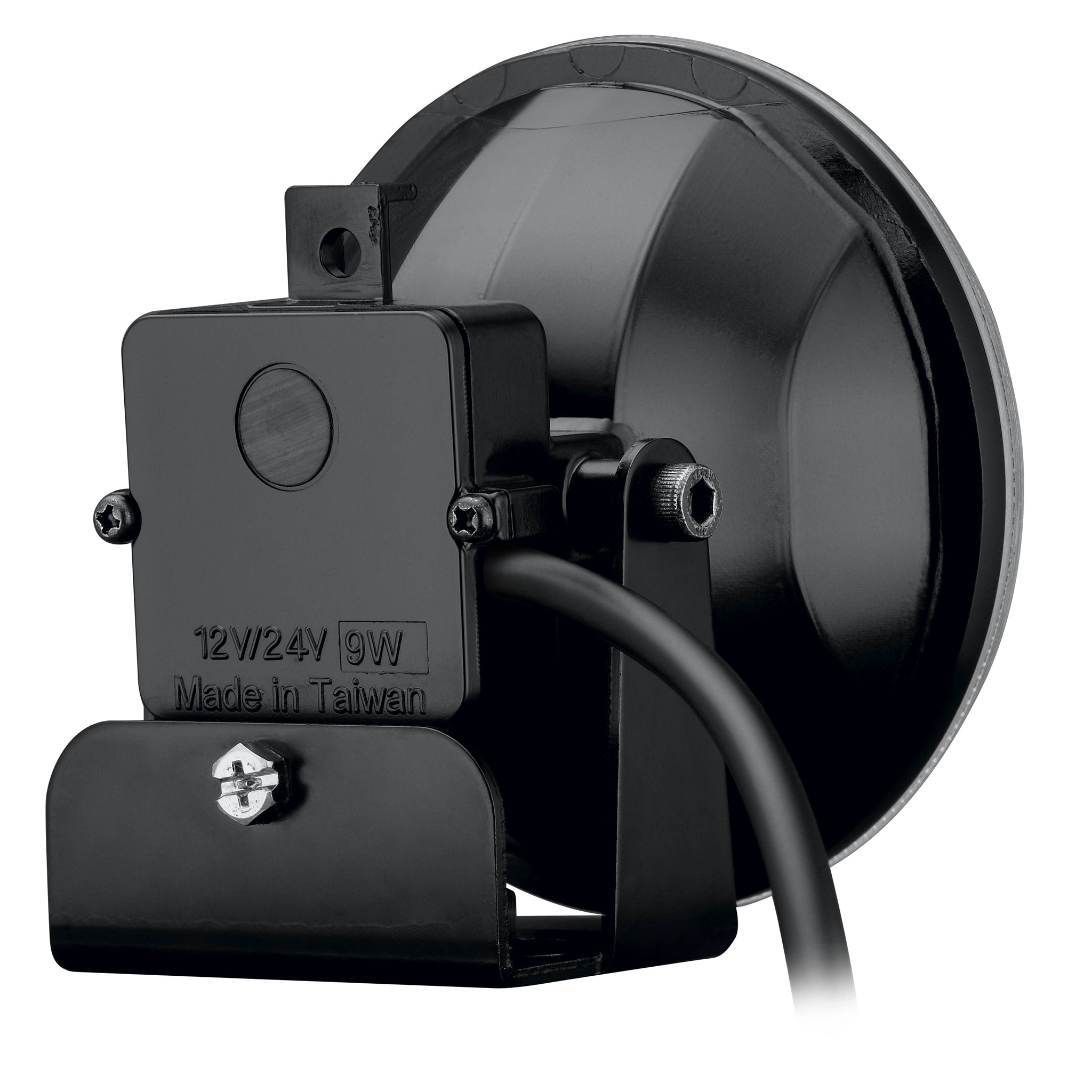

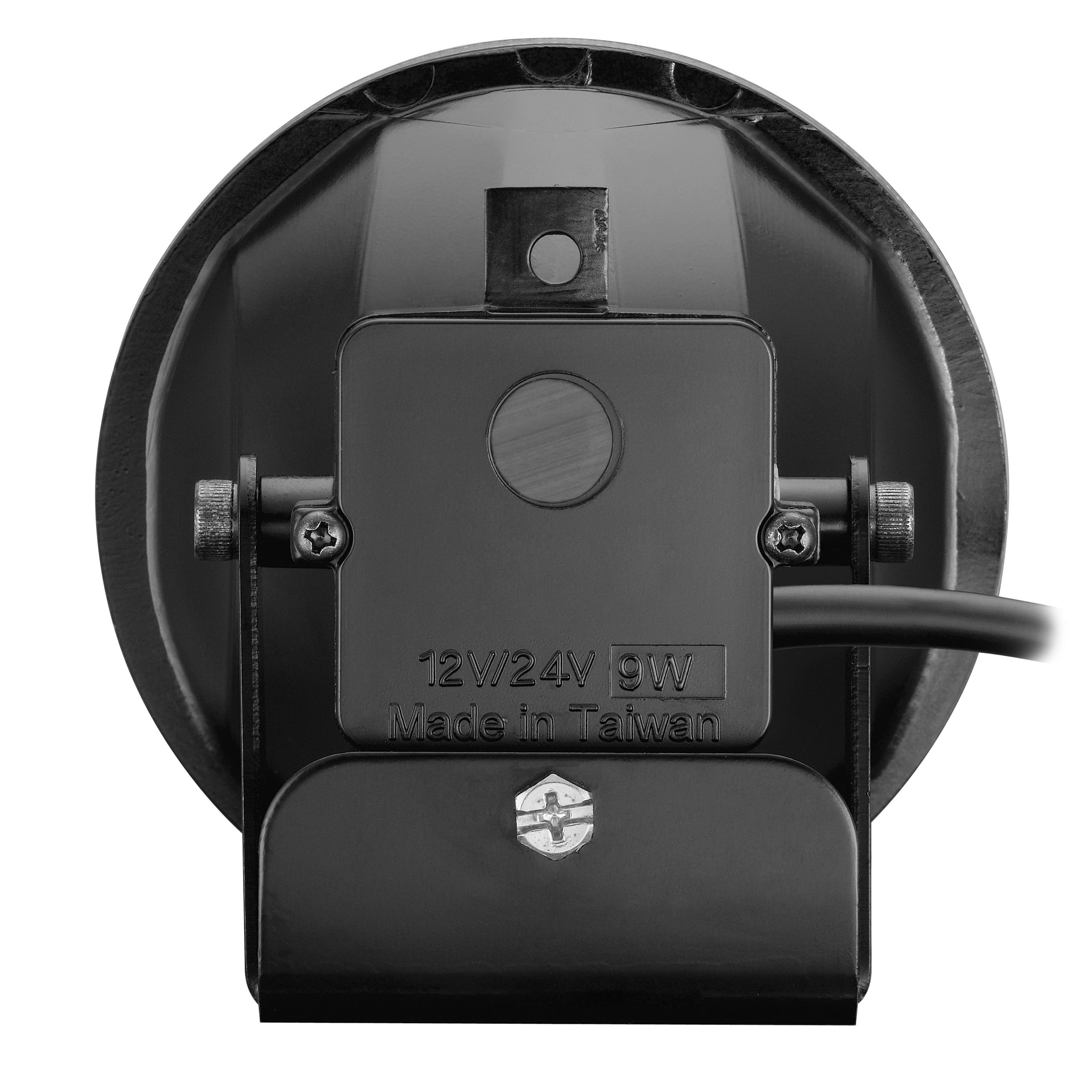

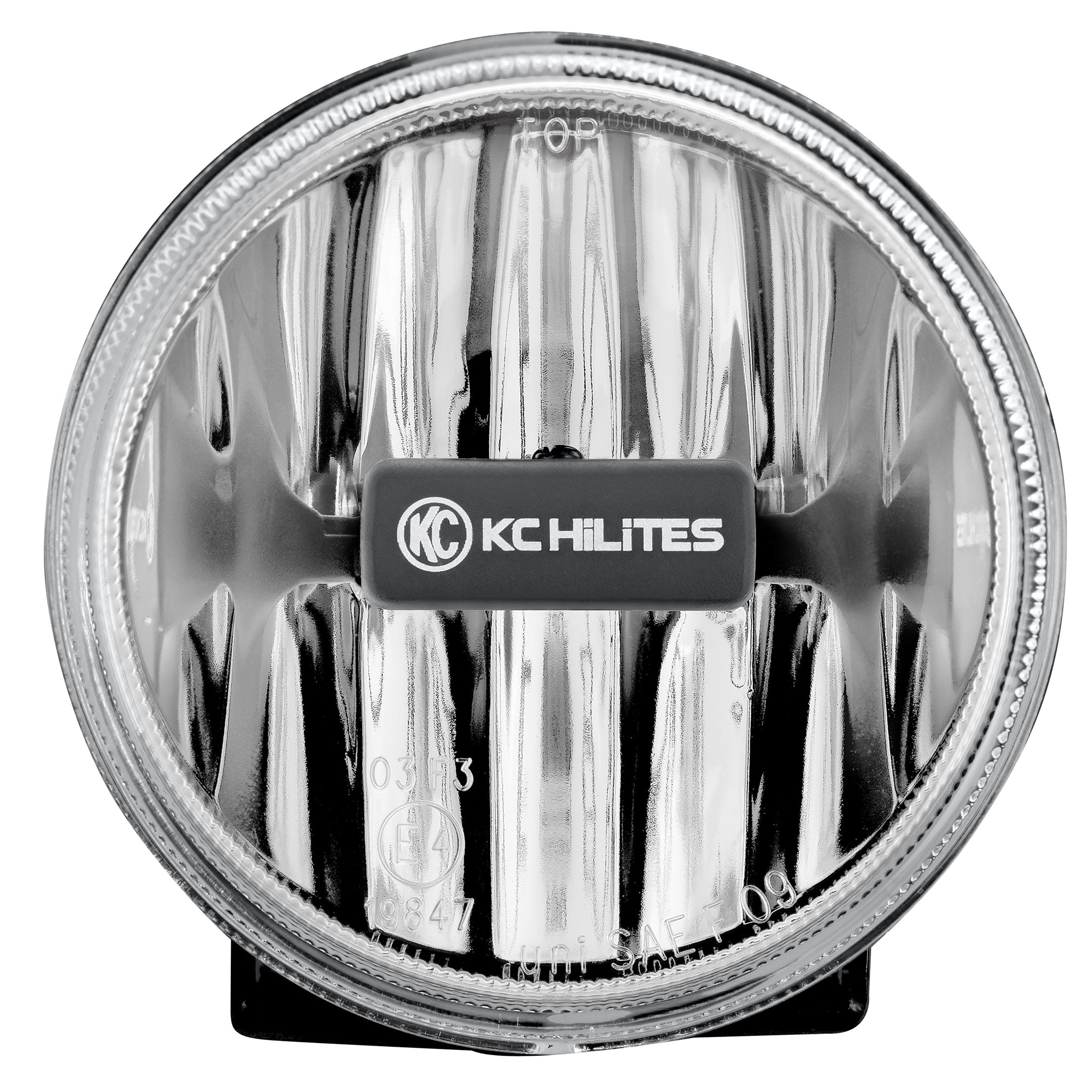

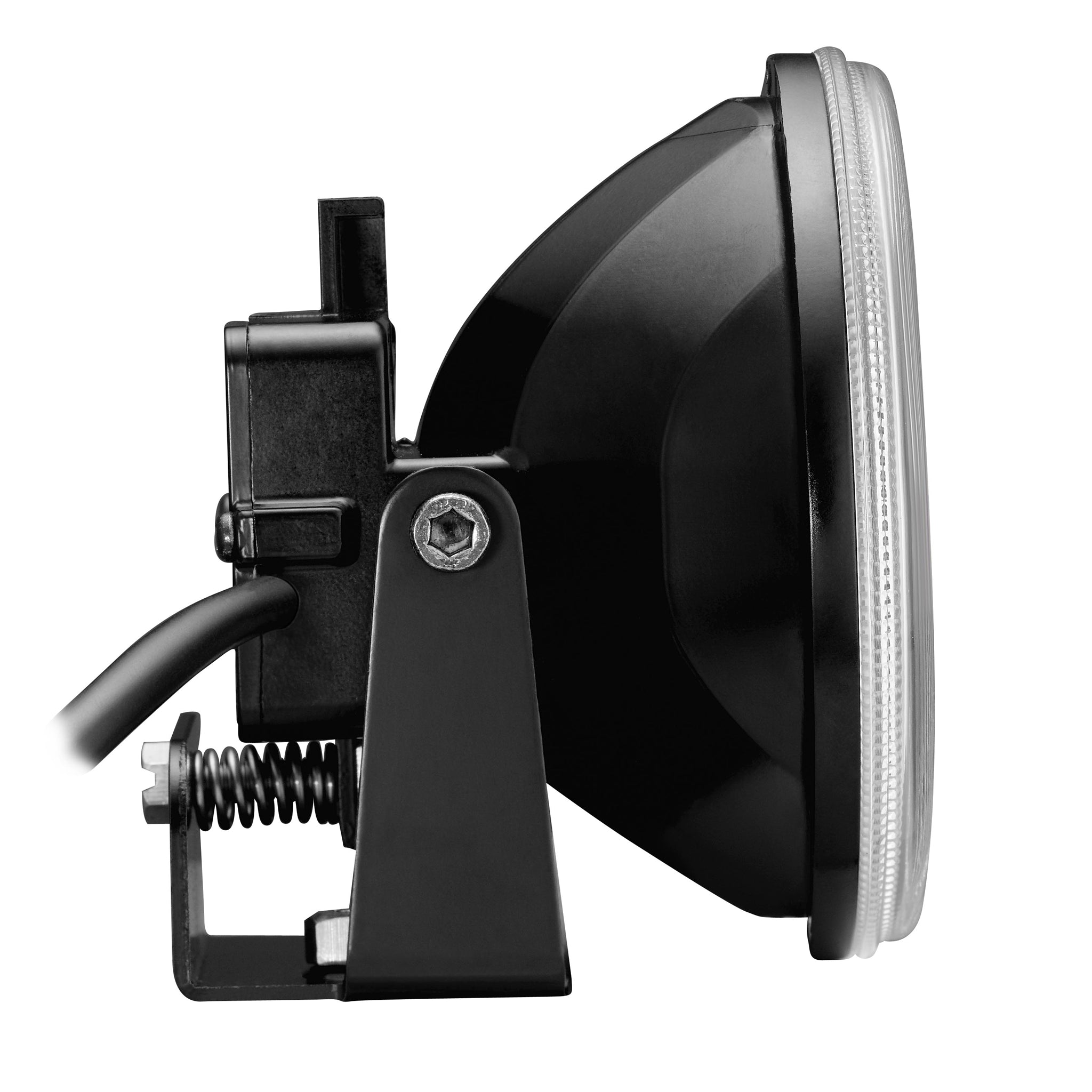

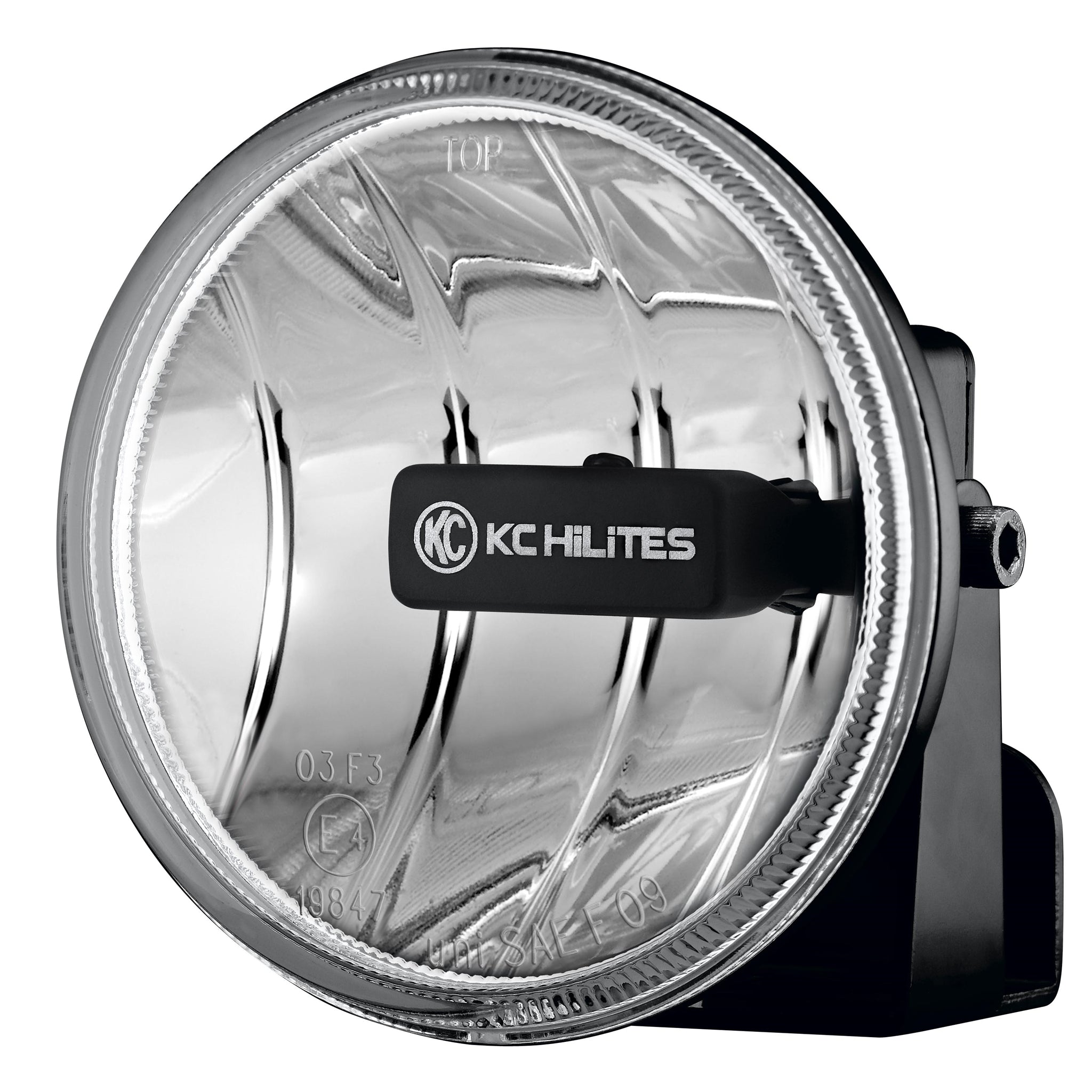

Constructed from an IP68 rated magnesium housing and polycarbonate lens creating a fully self contained LED light housing. Fog Beam- Provides a low, wide angle light pattern that increases short-range visibility. Ideal pattern for lighting pathways close to ground in low visibility conditions like dust, fog, snow and rain. KC's Innovative adjustable mount allows users to easily adjust the aiming of lights horizontally for an optimum and consistent beam angle. 4 in Gravity(R) LED Fog Lights are powered by KC's patented Gravity(R) Reflective Diode (GRD) and optical reflectors to deliver an incredible 150 lx at 10m using only .74A per light. KC's patented Gravity(R) Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.
Specifications:
| Description_DEF |
Fog Light |
| Description_DES |
KC G4 Gravity LED 4in SAE ECE 2-Light System Universal |
| Description_EXT |
KC HiLiTES 4 in Gravity LED G4 Universal LED Fog Light feature powerful CREE LEDs in a street legal fog beam pattern sealed magnesium housing with polycarbonate lens. System includes (2) Lights with universal bracket for easy mounting. |
| Description_INV |
KC Gravity LED |
| Description_FAB |
Fog Beam Pattern (SAE ECE Street Legal) |
| Description_FAB |
Lightweight Magnesium Housing for Maximum Heat Dissipation |
| Description_FAB |
Universal Adjustable Bracket |
| Description_SHO |
Fog Light |
| Description_MKT |
Constructed from an IP68 rated magnesium housing and polycarbonate lens creating a fully self contained LED light housing. Fog Beam- Provides a low, wide angle light pattern that increases short-range visibility. Ideal pattern for lighting pathways close to ground in low visibility conditions like dust, fog, snow and rain. KC's Innovative adjustable mount allows users to easily adjust the aiming of lights horizontally for an optimum and consistent beam angle. 4 in Gravity(R) LED Fog Lights are powered by KC's patented Gravity(R) Reflective Diode (GRD) and optical reflectors to deliver an incredible 150 lx at 10m using only .74A per light. KC's patented Gravity(R) Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward. |
| Product Dimensions |
W 3.94 in x H 3.94 in x D 3.23 in |
| Add-On |
N/A |
| LED Source |
CREE LED |
| Title |
KC Hilites 4 in Gravity LED G4 - 2-Light System - SAE/ECE - 10W Fog Beam |
| Beam Pattern |
Fog |
| Voltage |
9V-32V |
| Wattage |
10W |
| Prop 65 Yes/No |
No |
| Lux at 10 Meters |
150 lx |
| Lux at 10 Meters |
150 lx |
| Parts Included |
(2) 10W 4 in Gravity(R) G4 LED Fog lights, 2 x 10W 4 in Gravity(R) LED Fog Lights, Performance Wiring Harness w/ 2-Pin weatherproof connectors and Illuminated LED Light Switch |
| Candela |
15,000 cd |
| Compliance |
SAE J583 ECE-R19 Street Legal |
| Light Temp |
5000K |
| Lumens |
866 |
| Amp Draw |
.74A |
| Beam Distance (Meters) |
245m |
| Lux |
150 |
| Raw Lumens |
866 lm |
| IP Rating |
IP68 |
| Color Temperature |
5000K |
| Length |
6.0000 |
| Width |
7.0000 |
| Height |
12.0000 |
| Weight |
3.0000 |
