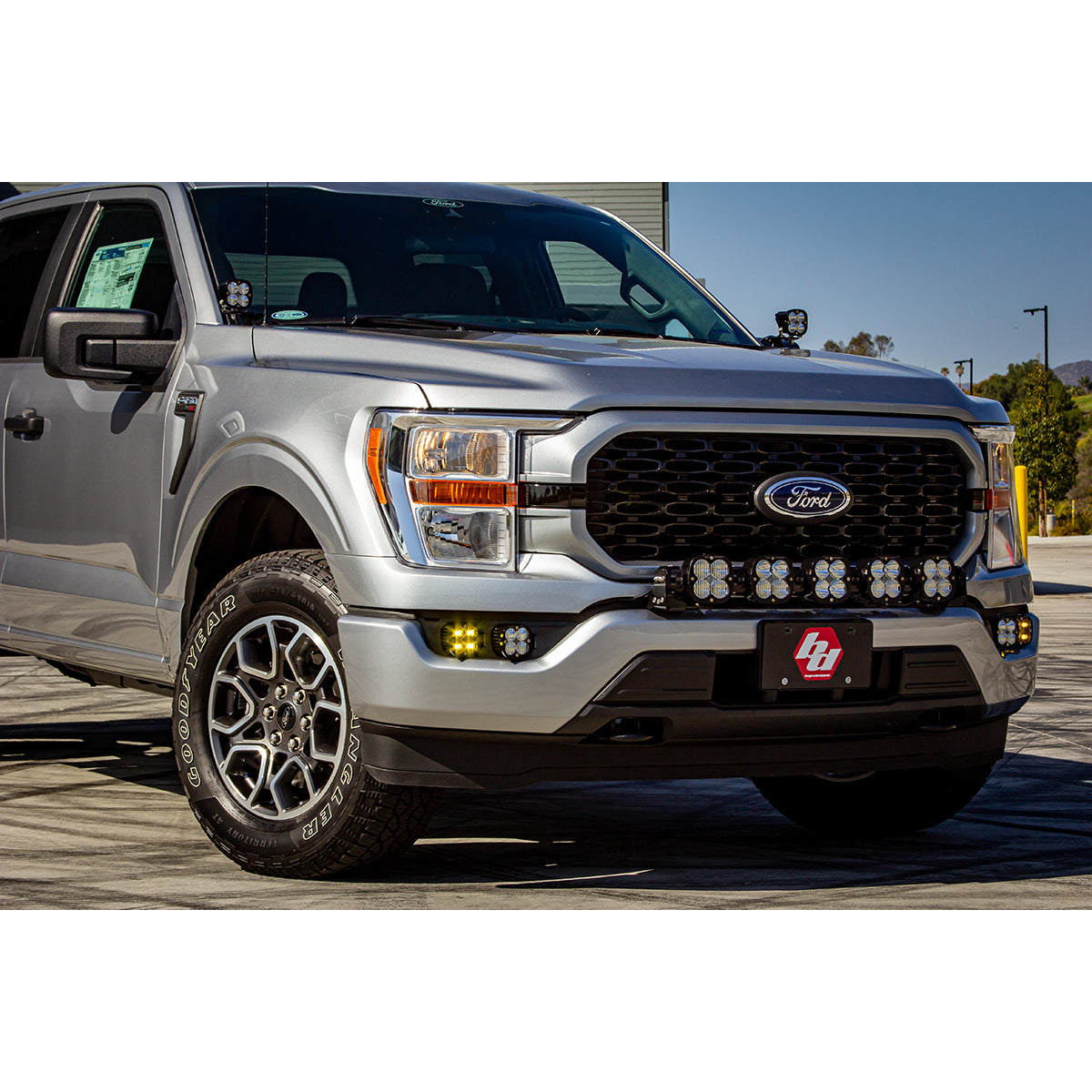

This kit is perfect if you are looking to spice up your brand new 2021 Ford, F150 with a premium lighting kit. This kit specifically utilizes a set of Squadron Clear SAE and a set of Squadron Pros in driving combo lens pattern.This kit also includes powder coated fog pocket brackets, stainless-steel hardware as well as our custom harness. One pair of Squadrons will be operable off your OEM fog light switch, and both pairs of Squadrons can be turned on with our provided toggle switch harness.Specifications (Per SAE):Lumens:2,480 Utilizing 4 LEDsWattage/Amps:22W / 1.6ADimensions:3.07 Inch x 2.77 Inch x 3.07 InchWeight:12 ouncesLED Life Expectancy:49,930 HoursFront Lens:Hard Coated PolycarbonateHousing:Powder Coated Cast AluminumBezel:Billet Machined AluminumHardware and Bracket Material:Stainless SteelExceeds MIL-STD810G (Mil-Spec Testing)Built-In Overvoltage ProtectionIP69K (Waterproof, Submersible to 9ft)IK10 Compliant (Mechanical Impact Testing)Specifications (Squadron Pro):Lumens:4,600 Utilizing 2 types of Cree LEDsWattage/Amps:40W / 2.90ADimensions:3.07 Inch x 2.77 Inch x 3.07 InchWeight:12 ouncesLED Life Expectancy:49,930 HoursFront Lens:Hard Coated PolycarbonateHousing:Hard Anodized and Powder Coated Cast AluminumBezel:Billet Machined AluminumHardware and Bracket Material:Stainless SteelExceeds MIL-STD810G (Mil-Spec Testing)Built-In Overvoltage ProtectionIP69K (Waterproof, Submersible to 9ft)IK10 Compliant (Mechanical Impact Testing)Baja Designs Features:Satisfactions Guarantee:30 Day Money Back GuaranteeLimited Lifetime Warranty:Complete Purchase ProtectionuService:Replaceable Lenses And OpticsClearView:All The Light, Right Where You Need It.MoistureBlock Waterproof, Rain Proof, SubmersibleCopperDrive:Only LED Driven At 100 Percent5000K Daylight:Less Driver Fatigue, Natural ColorApplication:Ford F150 (21 - On)Included:Squadron Pro, Driving/Combo PairSquadron SAE, Clear Wide Cornering Pairx2Fog Pocket Bracketsx2 Wire Adaptersx1 Toggle Switch Harnessx2 55 Inch Splittersx2 small SplittersPatterns:Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 Degree ) and spot (8 Degree ) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)Wide Cornering:BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 Degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)
Specifications:
| Description_ASC |
Four Light Pods, Mounts, Upfitter Wiring Harness/Splitter |
| Description_ASM |
Ford 2021-2022 F-150; NOTE: w/ Daytime Running Lights (DRL) |
| Description_DEF |
Fog Light Kit |
| Description_DES |
Squadron SAE/Pro Fog Pocket Light Kit |
| Description_INV |
Baja Designs Fog Pocket Light Kit |
| Description_FAB |
Satisfaction Guarantee -30-Day Money Back Guarantee |
| Description_FAB |
Limited Lifetime Warranty -Complete Purchase Protection |
| Description_FAB |
uService -Replaceable Lenses And Optics |
| Description_FAB |
ClearView -All The Light, Right Where You Need It |
| Description_FAB |
MoistureBlock -Waterproof, Rain Proof, Submersible |
| Description_FAB |
CopperDrive -Only LED Driven At 100 Percent |
| Description_FAB |
5000K Daylight -Less Driver Fatigue, Natural Color |
| Description_EXT |
Squadron SAE/Pro Fog Pocket Kit - '21-22 F-150 w/ DRL (Multi-Pattern; Clear; Upfitter Wiring) |
| Description_MKT |
This kit is perfect if you are looking to spice up your brand new 2021 Ford, F150 with a premium lighting kit. This kit specifically utilizes a set of Squadron Clear SAE and a set of Squadron Pros in driving combo lens pattern.This kit also includes powder coated fog pocket brackets, stainless-steel hardware as well as our custom harness. One pair of Squadrons will be operable off your OEM fog light switch, and both pairs of Squadrons can be turned on with our provided toggle switch harness.Specifications (Per SAE):Lumens:2,480 Utilizing 4 LEDsWattage/Amps:22W / 1.6ADimensions:3.07 Inch x 2.77 Inch x 3.07 InchWeight:12 ouncesLED Life Expectancy:49,930 HoursFront Lens:Hard Coated PolycarbonateHousing:Powder Coated Cast AluminumBezel:Billet Machined AluminumHardware and Bracket Material:Stainless SteelExceeds MIL-STD810G (Mil-Spec Testing)Built-In Overvoltage ProtectionIP69K (Waterproof, Submersible to 9ft)IK10 Compliant (Mechanical Impact Testing)Specifications (Squadron Pro):Lumens:4,600 Utilizing 2 types of Cree LEDsWattage/Amps:40W / 2.90ADimensions:3.07 Inch x 2.77 Inch x 3.07 InchWeight:12 ouncesLED Life Expectancy:49,930 HoursFront Lens:Hard Coated PolycarbonateHousing:Hard Anodized and Powder Coated Cast AluminumBezel:Billet Machined AluminumHardware and Bracket Material:Stainless SteelExceeds MIL-STD810G (Mil-Spec Testing)Built-In Overvoltage ProtectionIP69K (Waterproof, Submersible to 9ft)IK10 Compliant (Mechanical Impact Testing)Baja Designs Features:Satisfactions Guarantee:30 Day Money Back GuaranteeLimited Lifetime Warranty:Complete Purchase ProtectionuService:Replaceable Lenses And OpticsClearView:All The Light, Right Where You Need It.MoistureBlock Waterproof, Rain Proof, SubmersibleCopperDrive:Only LED Driven At 100 Percent5000K Daylight:Less Driver Fatigue, Natural ColorApplication:Ford F150 (21 - On)Included:Squadron Pro, Driving/Combo PairSquadron SAE, Clear Wide Cornering Pairx2Fog Pocket Bracketsx2 Wire Adaptersx1 Toggle Switch Harnessx2 55 Inch Splittersx2 small SplittersPatterns:Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 Degree ) and spot (8 Degree ) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)Wide Cornering:BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 Degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2) |
| Description_SHO |
Ford, F150, (21-On), FPK, SAE Clear/Pro DC, Up w/ DRL Baja Designs |
| series |
Squadron Series |
| Prop 65 Warning Label |
Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| Title |
Baja Designs - 447870UP - Squadron SAE/Pro Fog Pocket Light Kit |
| Add-On |

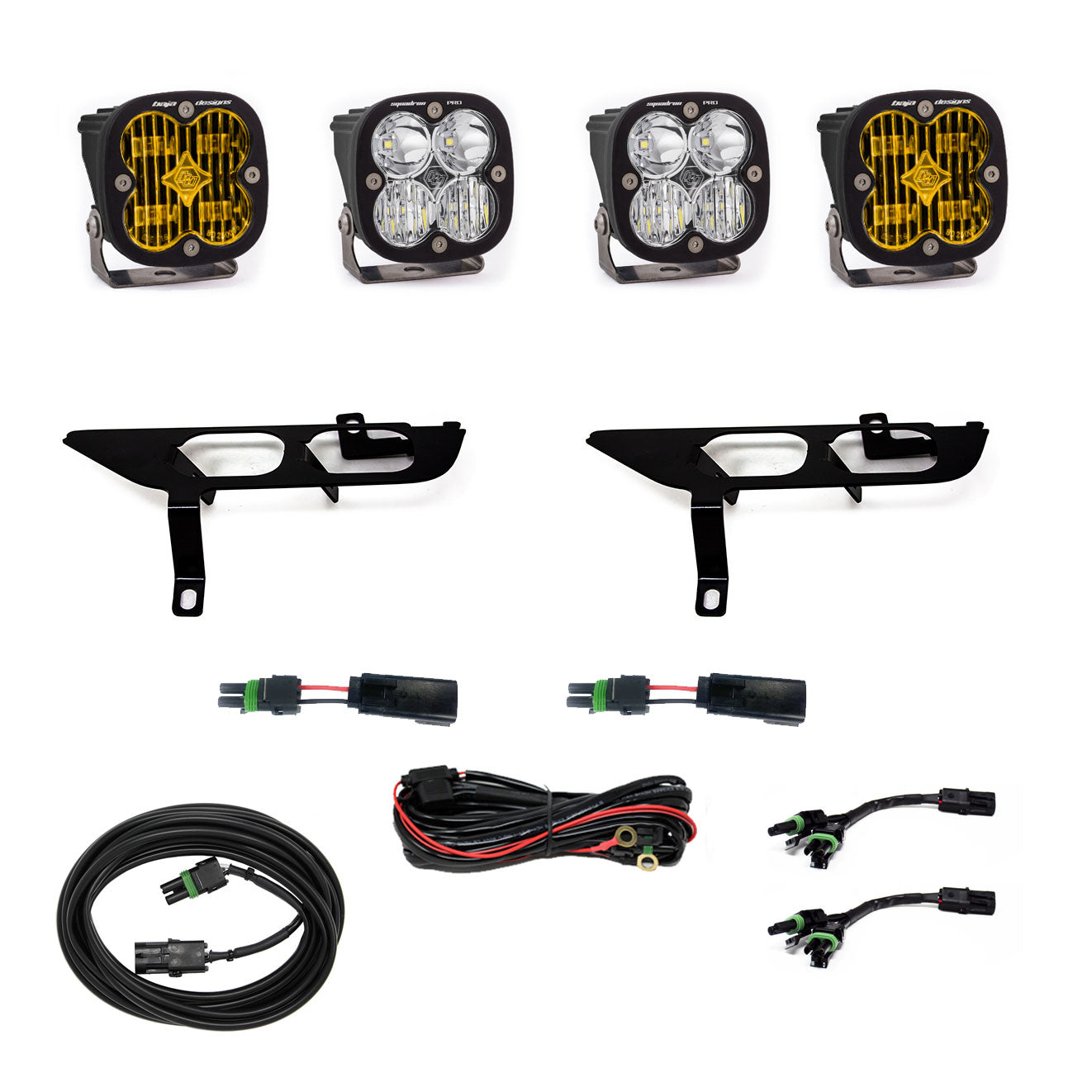

Kit Contents-247805-Squadron SAE (Wide Cornering; Clear) x 2 |
| Add-On |
Kit Contents-490003-Squadron Pro (Driving/Combo; Clear) x 2 |
| Prop 65 - Short Label |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Length |
12.0000 |
| Width |
12.0000 |
| Height |
12.0000 |
| Weight |
13.0000 |
