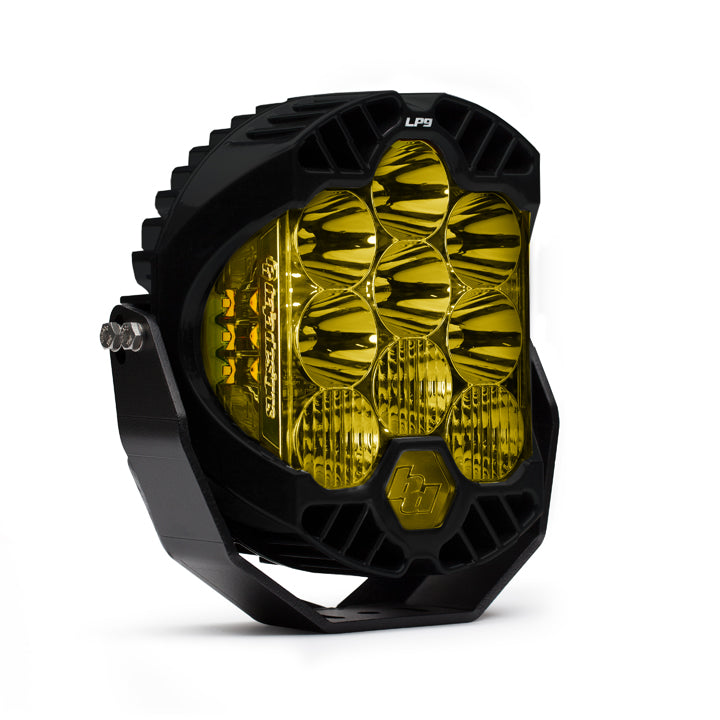

Baja Designs 350013 LP9 Sport LED Auxiliary Light Pod
Guaranteed Fitment
Always the correct part
Added Value
Performance matched parts
In-House Experts
We know our products
Nationwide Delivery
Economy shipping
LP9 Sport is perfect for enthusiasts that want the look and features of our successful LP9, but with a little less output intensity and price. The Sport model still includes all of the technology that makes the LP9 series so popular, from Direct Ducted Cooling - that keeps your light cool under stress - to the Integrated Peripheral Technology (IPT), which produces an incredible 200 degree spread of usable light. The LP9 Sport utilizes 9 forward projecting LEDS to produce 6,500 Lumens at 61 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 2,550 lumens at 24 watts.The housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs.As with all of our LED offerings, this light features uService technology - allowing customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens.Baja Designs Features:Satisfactions Guarantee 30 Day Money BackGuaranteeLimited Lifetime Warranty Complete Purchase ProtectionuService Replaceable Lenses And OpticsClearView All The Light, Right Where You Need It.MoistureBlock Waterproof, Rain Proof, SubmersibleCopperDrive Only LED Driven At 100 percent5000K Daylight Less Driver Fatigue, Natural ColorSpecifications:Forward Projecting Lumens: 6,500 Utilizing 9 LEDsForward Projecting Wattage/Amps: 61W / 4.6AIPT Lumens: 2,550 Utilizing 6 LEDsIPT Wattage/Amps: 24W / 1.8ADimensions: 8 inch Diameter/ 3.25 inch DepthWeight: 6.5lbsLED Life Expectancy: 49,930 HoursFront Lens: Hardcoated PolycarbonateHousing: Hard Anodized Machined AluminumBezel: Billet Machined AluminumHardware and Bracket Material: Stainless SteelExceeds MIL-STD810G (Mil-Spec Testing)Built-In Overvoltage ProtectionIP69K (Waterproof up to 9ft and Pressure Washable)IK10 Compliant (Mechanical Impact Testing)Patterns:Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42 degree) and the spot (6 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)High Speed Spot: A longer and narrower 6 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
Specifications:
Description_ASC | One Light Pod |
Description_DEF | Auxiliary Light |
Description_ASM | Universal |
Description_DES | LP9 Sport LED Auxiliary Light Pod |
Description_EXT | LP9 Sport LED Light Pod (Driving/Combo; Amber) |
Description_INV | Baja Designs Light Pod |
Description_FAB | Satisfaction Guarantee -30-Day Money Back Guarantee |
Description_FAB | Limited Lifetime Warranty -Complete Purchase Protection |
Description_FAB | uService -Replaceable Lenses And Optics |
Description_FAB | ClearView -All The Light, Right Where You Need It |
Description_FAB | MoistureBlock -Waterproof, Rain Proof, Submersible |
Description_FAB | CopperDrive -Only LED Driven At 100 Percent |
Description_FAB | 5000K Daylight -Less Driver Fatigue, Natural Color |
Description_MKT | LP9 Sport is perfect for enthusiasts that want the look and features of our successful LP9, but with a little less output intensity and price. The Sport model still includes all of the technology that makes the LP9 series so popular, from Direct Ducted Cooling - that keeps your light cool under stress - to the Integrated Peripheral Technology (IPT), which produces an incredible 200 degree spread of usable light. The LP9 Sport utilizes 9 forward projecting LEDS to produce 6,500 Lumens at 61 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 2,550 lumens at 24 watts.The housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs.As with all of our LED offerings, this light features uService technology - allowing customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens.Baja Designs Features:Satisfactions Guarantee 30 Day Money BackGuaranteeLimited Lifetime Warranty Complete Purchase ProtectionuService Replaceable Lenses And OpticsClearView All The Light, Right Where You Need It.MoistureBlock Waterproof, Rain Proof, SubmersibleCopperDrive Only LED Driven At 100 percent5000K Daylight Less Driver Fatigue, Natural ColorSpecifications:Forward Projecting Lumens: 6,500 Utilizing 9 LEDsForward Projecting Wattage/Amps: 61W / 4.6AIPT Lumens: 2,550 Utilizing 6 LEDsIPT Wattage/Amps: 24W / 1.8ADimensions: 8 inch Diameter/ 3.25 inch DepthWeight: 6.5lbsLED Life Expectancy: 49,930 HoursFront Lens: Hardcoated PolycarbonateHousing: Hard Anodized Machined AluminumBezel: Billet Machined AluminumHardware and Bracket Material: Stainless SteelExceeds MIL-STD810G (Mil-Spec Testing)Built-In Overvoltage ProtectionIP69K (Waterproof up to 9ft and Pressure Washable)IK10 Compliant (Mechanical Impact Testing)Patterns:Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42 degree) and the spot (6 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)High Speed Spot: A longer and narrower 6 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5) |
Description_SHO | LP9 Sport LED Pod Driving/Combo Amber Baja Designs |
Add-On | Accessories-328002-Rock Guard (Amber) |
Add-On | Accessories-328001-Rock Guard (Black) |
Add-On | Accessories-328003-Rock Guard (Clear) |
Add-On | Accessories-668613-Lens Kit (Driving/Combo; Amber) |
Add-On | Accessories-668603-Lens Kit (Driving/Combo; Clear) |
Add-On | Accessories-668611-Lens Kit (Spot; Amber) |
Add-On | Accessories-668601-Lens Kit (Spot; Clear) |
Add-On | Associated Products-660302-Anti Theft Hardware Kit - 1/4-20x1/2 Socket Pin Head Bolts |
Add-On | Associated Products-660303-Anti Theft Hardware Kit - 3/8 in. Tamperproof Nuts |
Add-On | Compatible Products-640168-Controller Module Harness |
Add-On | Compatible Products-640175-Splitter Harness (2-Light Max) |
Add-On | Compatible Products-640189-Splitter Harness (4-Light Max) |
Add-On | Compatible Products-640167-Upfitter Lock Out Harness |
Amperage Rating (A) | 4.6 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Driving/Combo |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 6,500 |
Depth (in.) | 3.25 |
Description | Driving/Combo; Amber |
Height (in.) | 8 |
Housing Color | Black |
Housing Material | Powder Coated Cast Aluminum |
Length (in.) | 8 |
Lens Color | Amber |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 1 |
Lighting Modes | Beam |
Lighting Quantity | 9 |
Lighting Technology | LED |
Lighting Type | Forward Projecting |
material | Aircraft Grade Aluminum |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Patent No. | 5,504,603 |
Product Type | LP9 Sport LED Light Pod |
Prop 65 - Short Label | WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
Prop 65 (C, R or CR) | CR |
Prop 65 Warning Label | Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
Prop 65 Yes/No | Yes |
Secondary Amperage Rating (A) | 1.52 |
Secondary Brightness (Lumens) | 2,280 |
Secondary Light Quantity | 6 LEDs |
Secondary Lighting Technology | LED |
Secondary Lighting Type | Integrated Peripheral Technology (IPT) |
Secondary Wattage (W) | 21 |
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Terminal Connector | DT06-4S Deutsch |
Terminal Type | Mating Connector |
Title | Baja Designs - 350013 - LP9 Sport LED Auxiliary Light Pod |
Universal or Specific | Universal |
Wattage (W) | 61 |
Weight (lbs.) | 6.5 |
Wiring Harness Included | No |
series | LP9 Series |
Length | 8.0000 |
Width | 10.0000 |
Height | 12.0000 |
Weight | 7.0000 |
