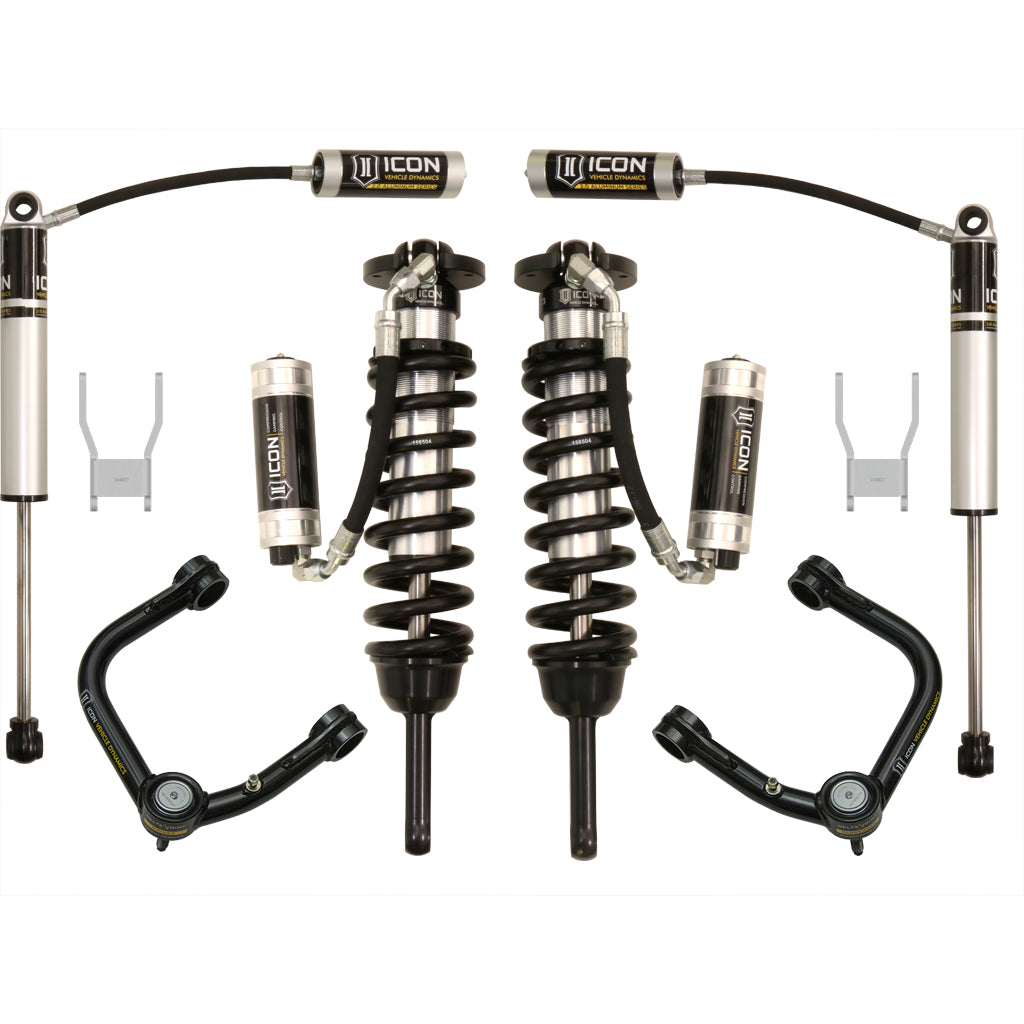

ICON Vehicle Dynamics' Toyota Hilux suspension systems have been designed with maximum performance and the serious driver in mind. The varying uses of this vehicle worldwide were acknowledged and catered to in ICON's research and development process. The Hilux Stage 5 system provides a level of performance that will drastically improve on and off-road vehicle ride characteristics. ICON's Vehicle-specific tuned 2.5" remote reservoir w/ CDCV coilover shocks and ICON 2.0 Aluminum Series in this system provide exceptional cooling properties, with the coilovers utilizing ICON-engineered Eibach coil springs for superior vehicle ΓÇ£feel" throughout the range of travel. Remote reservoirs front and rear ensure optimum performance by increasing the duration of consistent damping, keeping the shocks at a cooler operating temperature during extended off-road use. These 2.5" remote reservoir w/ CDCV coilovers are also height adjustable from 0-3" allowing the use of larger, more aggressive wheel and tire combinations when desired. ICON has taken into account the stiffer chassis of the Hilux, realizing a much more robust overall shock tune was required for sufficient damping ability across varying terrains and differing vehicle payloads. By using a shackle to lift the rear of the Hilux when the front is set to 3", factory payload rating is retained while allowing more suspension up-travel. Billet uniball upper control arms on the Hilux not only add strength and durability, but help retain factory alignment spec range allowing on vehicle adjustability. This attention to detail is why ICON Vehicle Dynamics performance suspension systems are the ultimate solution for the Toyota Hilux.
Specifications:
| Description_ASC |
OEM Wheels & Tires Fitment: Yes |
| Description_ASC |
Recommended Aftermarket Tires: 33" x 11.25" (Larger tires may fit but fender trimming and modifications will be required.) |
| Description_ASC |
APPLICATION NOTE #47: 700LB/IN EXPEDITION COIL AVAILABLE FOR HEAVIER EQUIPPED VEHICLES |
| Description_ASC |
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC |
APPLICATION NOTE #82: REAR SPRINGS CAN BE ADDED FOR ADDITIONAL REAR LIFT HEIGHT UP TO 2'" TO MATCH THE FRONT 3" LIFT HEIGHT ADJUSTMENT |
| Description_ASC |
Ships in multiple boxes |
| Description_DEF |
Suspension Lift Kit |
| Description_DES |
05-11 HILUX 0-3" STAGE 5 SUSPENSION SYSTEM W TUBULAR UCA |
| Description_FAB |
Increased wheel travel and ride quality over stock with no change in towing capacity |
| Description_FAB |
Vehicle specific tuned front and rear remote reservoir shocks for superior shock damping and control |
| Description_FAB |
ICON CDCV equipped shocks front coilovers for fully adjustable tuneability of your shocks |
| Description_FAB |
Adjustable coilovers from 0-3" of lift height |
| Description_FAB |
6061 Aircraft grade aluminum CNC machined components |
| Description_FAB |
Corrosion resistant CAD plated coilover shock body with 7/8" shaft |
| Description_FAB |
FK rod end bearings for extended longevity and minimal deflection |
| Description_FAB |
2.0 aluminum body rear shock with 5/8" shaft |
| Description_FAB |
100% Bolt-on system - no drilling, cutting, or welding necessary for install |
| Description_EXT |
2005-2011 TOYOTA HILUX 0-3" LIFT STAGE 5 SUSPENSION SYSTEM WITH TUBULAR UCA |
| Description_INV |
05-11 HILUX STAGE 5 SUSP SYSTEM TUBULAR |
| Description_SHO |
SUSPENSION SYSTEM |
| Description_TLE |
ICON 2005-11 Toyota Hilux, 0-3" Lift, Stage 5 Suspension System, Tubular UCA |
| Description_MKT |
ICON Vehicle Dynamics' Toyota Hilux suspension systems have been designed with maximum performance and the serious driver in mind. The varying uses of this vehicle worldwide were acknowledged and catered to in ICON's research and development process. The Hilux Stage 5 system provides a level of performance that will drastically improve on and off-road vehicle ride characteristics. ICON's Vehicle-specific tuned 2.5" remote reservoir w/ CDCV coilover shocks and ICON 2.0 Aluminum Series in this system provide exceptional cooling properties, with the coilovers utilizing ICON-engineered Eibach coil springs for superior vehicle ΓÇ£feel" throughout the range of travel. Remote reservoirs front and rear ensure optimum performance by increasing the duration of consistent damping, keeping the shocks at a cooler operating temperature during extended off-road use. These 2.5" remote reservoir w/ CDCV coilovers are also height adjustable from 0-3" allowing the use of larger, more aggressive wheel and tire combinations when desired. ICON has taken into account the stiffer chassis of the Hilux, realizing a much more robust overall shock tune was required for sufficient damping ability across varying terrains and differing vehicle payloads. By using a shackle to lift the rear of the Hilux when the front is set to 3", factory payload rating is retained while allowing more suspension up-travel. Billet uniball upper control arms on the Hilux not only add strength and durability, but help retain factory alignment spec range allowing on vehicle adjustability. This attention to detail is why ICON Vehicle Dynamics performance suspension systems are the ultimate solution for the Toyota Hilux. |
| Description_TRA |
ICON 2005-11 Toyota Hilux, 0-3" Lift, Stage 5 Suspension System, Tubular UCA, K53140T |
| Add-On Part |
198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Recommended Aftermarket Tires |
33" x 11.25" (Larger tires may fit but fender trimming and modifications will be required.) |
| Recommended Aftermarket Wheels |
ICON Alloys |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| OEM Wheels & Tires Fitment |
Yes |
| Title |
05-11 HILUX 0-3" STAGE 5 SUSPENSION SYSTEM W TUBULAR UCA |
| Length |
8.0000 |
| Width |
12.0000 |
| Height |
27.0000 |
| Weight |
98.0000 |
