| Description_ASC |
Factory Wheels & Tires Fitment: No |
| Description_ASC |
Recommended Aftermarket Tires: 37" x 12.50" |
| Description_ASC |
TECH NOTE: Not compatible with Bronco Raptor |
| Description_ASC |
Recommended Aftermarket Tires: 37" x 12.50" |
| Description_ASC |
TECH NOTE: Not compatible with Bronco Raptor |
| Description_ASM |
ICON 21-UP BRONCO BILLET UCA DJ PRO KIT |
| Description_DEF |
Suspension Control Arm Kit |
| Description_DES |
21-23 BRONCO BILLET UCA DJ PRO KIT |
| Description_FAB |
CNC machined 6061 billet aluminum construction with satin anodized finish |
| Description_FAB |
Corrects suspension geometry and allows increased travel on lifted or stock height Broncos |
| Description_FAB |
Quick, precise, on-vehicle adjustment for both caster and camber |
| Description_FAB |
Delta Joint PRO allows maximum articulation without binding |
| Description_FAB |
Delta Joint PRO is 100% serviceable and rebuildable |
| Description_FAB |
FK Rod Ends at chassis pivots for strength and precision driving characteristics |
| Description_FAB |
Built in O-ring sealed dust cover cap |
| Description_EXT |
ICON billet UCAs are made from CNC machined 6061 aluminum and feature PTFE-lined rod ends and ICON's Delta Joint PRO, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a uniball. |
| Description_INV |
48500DJ |
| Description_SHO |
UCA KIT |
| Description_MKT |

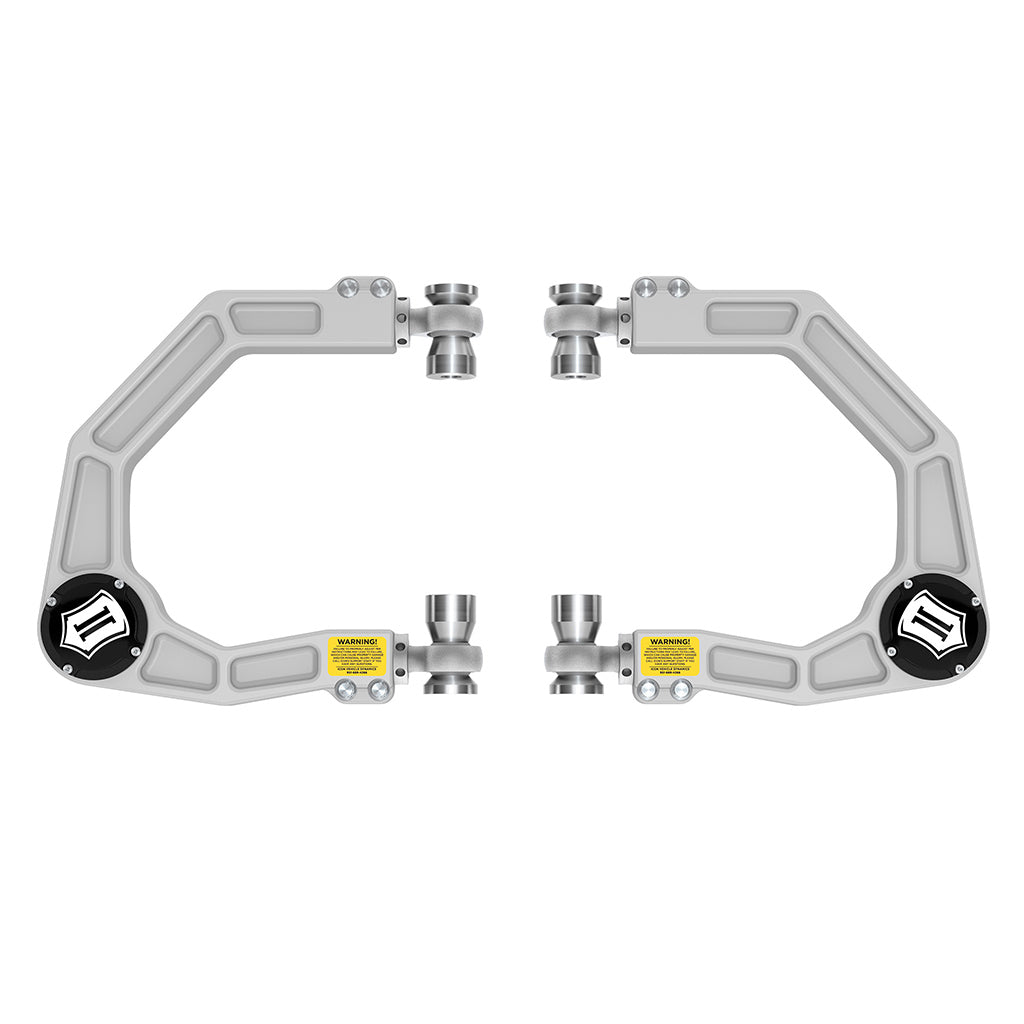

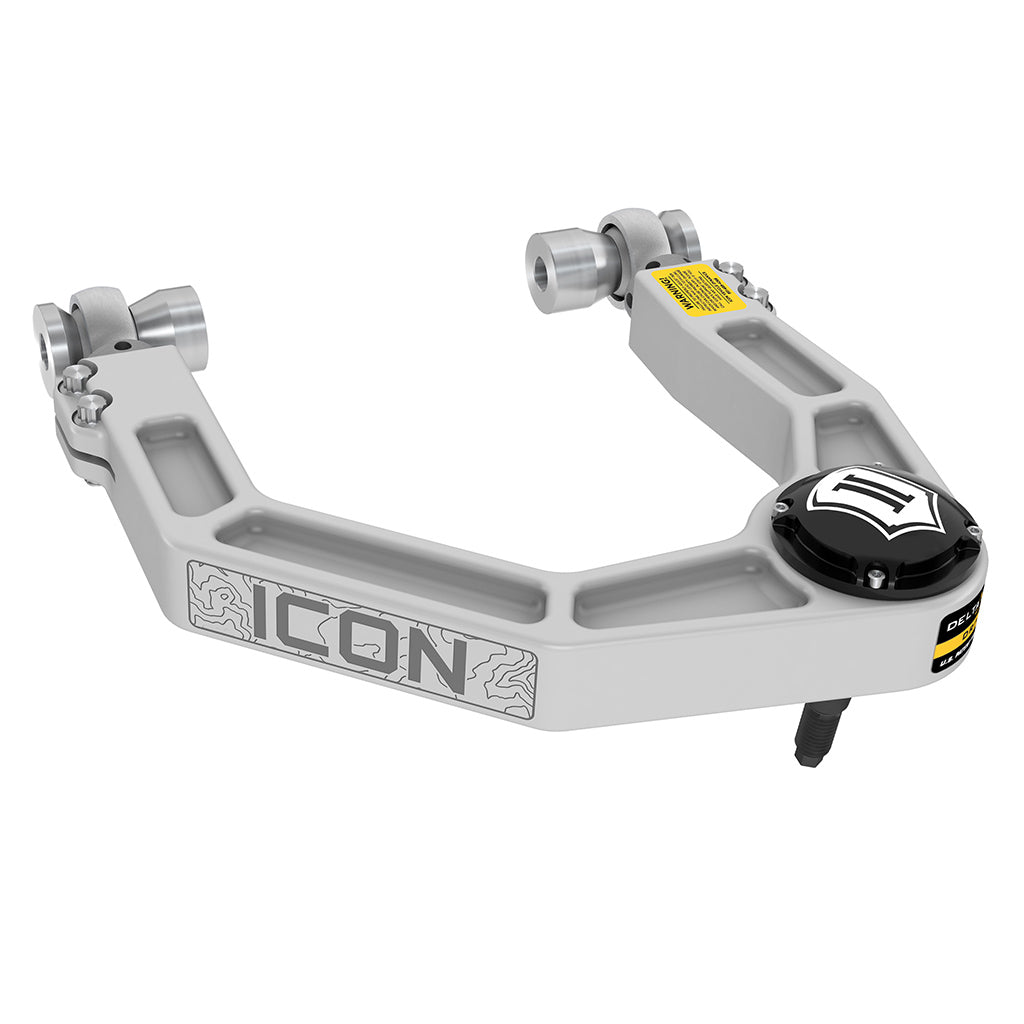

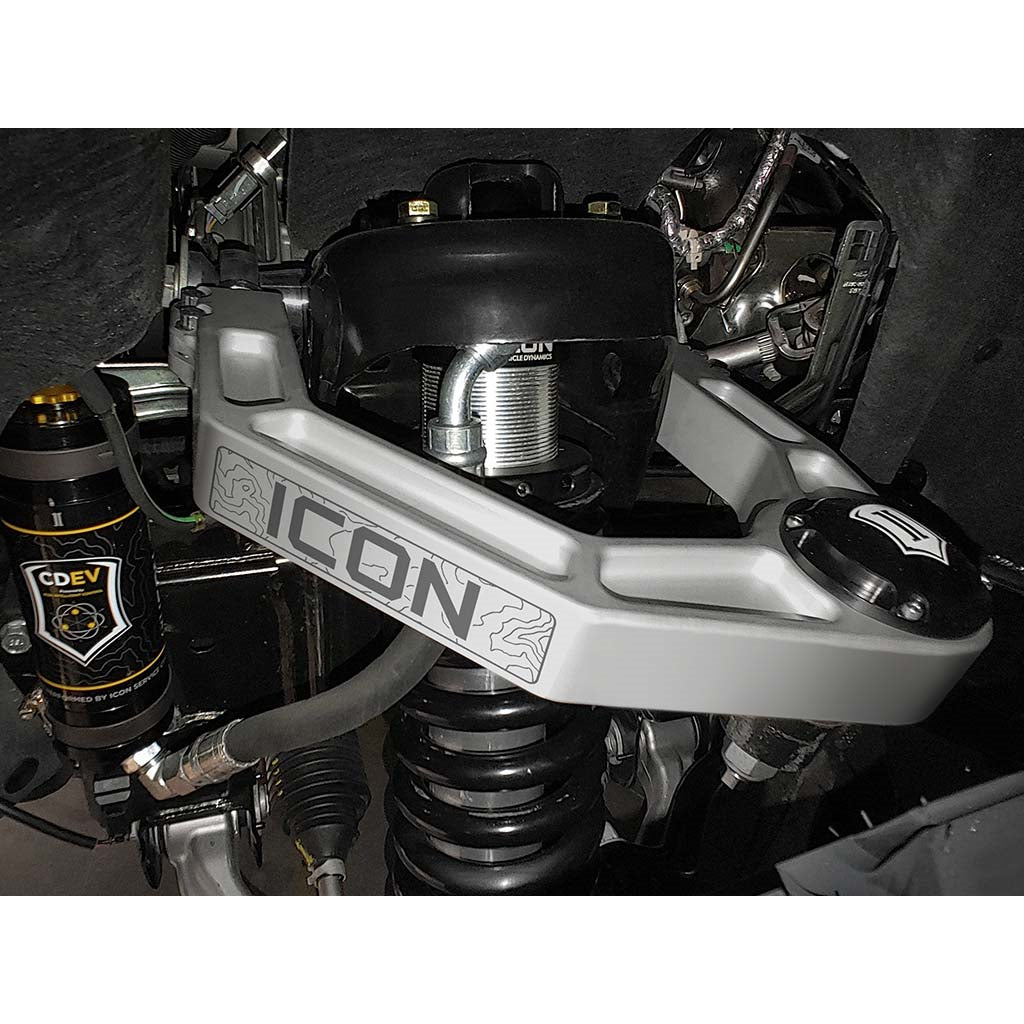

This ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new 2021-23 Ford Bronco with corrected front-end geometry, increased camber and caster adjustment, and improved suspension component clearance. Constructed of CNC machined 6061 billet aluminum utilizing a hybrid H-beam cross-section that is light-weight and resists bending forces better than tubular arms. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End 3/4" heim joints provide precise and smooth function throughout the range of travel while ICON's signature double adjuster sleeve allows for on-vehicle camber and caster adjustment. |
| Description_MKT |
Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal. |
| Description_TRA |
ICON 2021-2022 Ford Bronco, Billet Upper Control Arm/Delta Joint Pro Kit, 48500DJ |
| Description_TLE |
ICON 2021-2023 Ford Bronco, Billet Upper Control Arm/Delta Joint Pro Kit |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Control Arm Construction |
Billet |
| Finish |
Anodized |
| OEM Wheels & Tires Fitment |
Yes |
| Title |
ICON 2021-2022 Ford Bronco, Billet Upper Control Arm/Delta Joint Pro Kit |
| Recommended Aftermarket Wheels |
ICON Alloys |
| Bushing Color |
Silver |
| Recommended Aftermarket Tires |
35" x 12.50" |
| Length |
6.0000 |
| Width |
15.0000 |
| Height |
16.0000 |
| Weight |
19.0000 |
