Serious street use or mild road racing. Strong mid-range with good top end.
Specifications:
| Description_ASC |
Available individually under 8413-1 |
| Description_DEF |
Engine Camshaft |
| Description_DES |

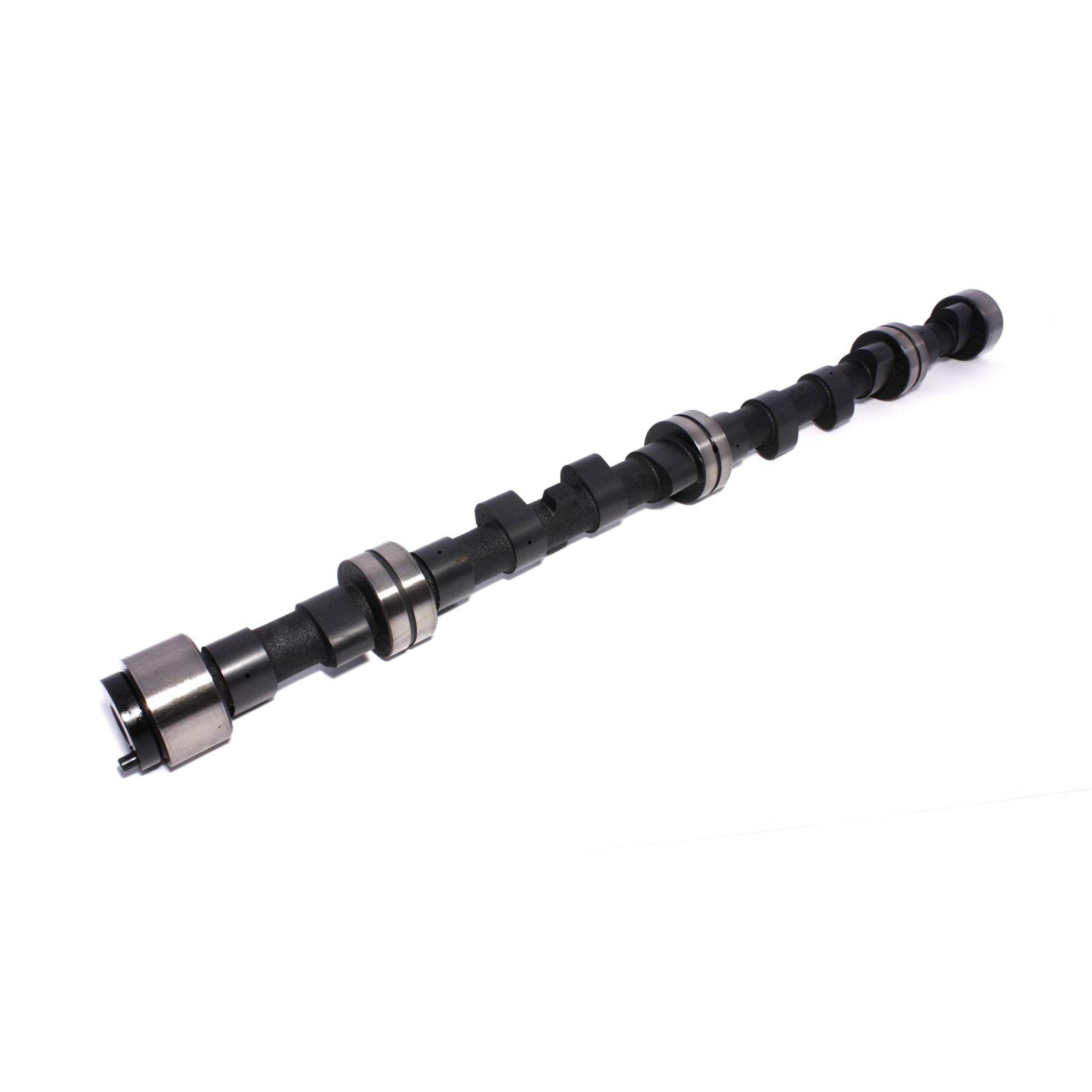

Magnum 236/236 Solid Cam for Nissan 2400-2800cc 6 Cylinder |
| Description_INV |
Mag 236/236 Solid Cam Nissan 2400-2800cc |
| Description_EXT |
Serious street use or mild road racing. Strong mid-range with good top end. |
| Description_KEY |
Nissan |
| Description_KEY |
2400 |
| Description_KEY |
2800 |
| Description_KEY |
1 Piece Pushrod |
| Description_KEY |
Ball Pushrod |
| Description_KEY |
5/16" Pushrod |
| Description_KEY |
.080" Wall Pushrod |
| Description_KEY |

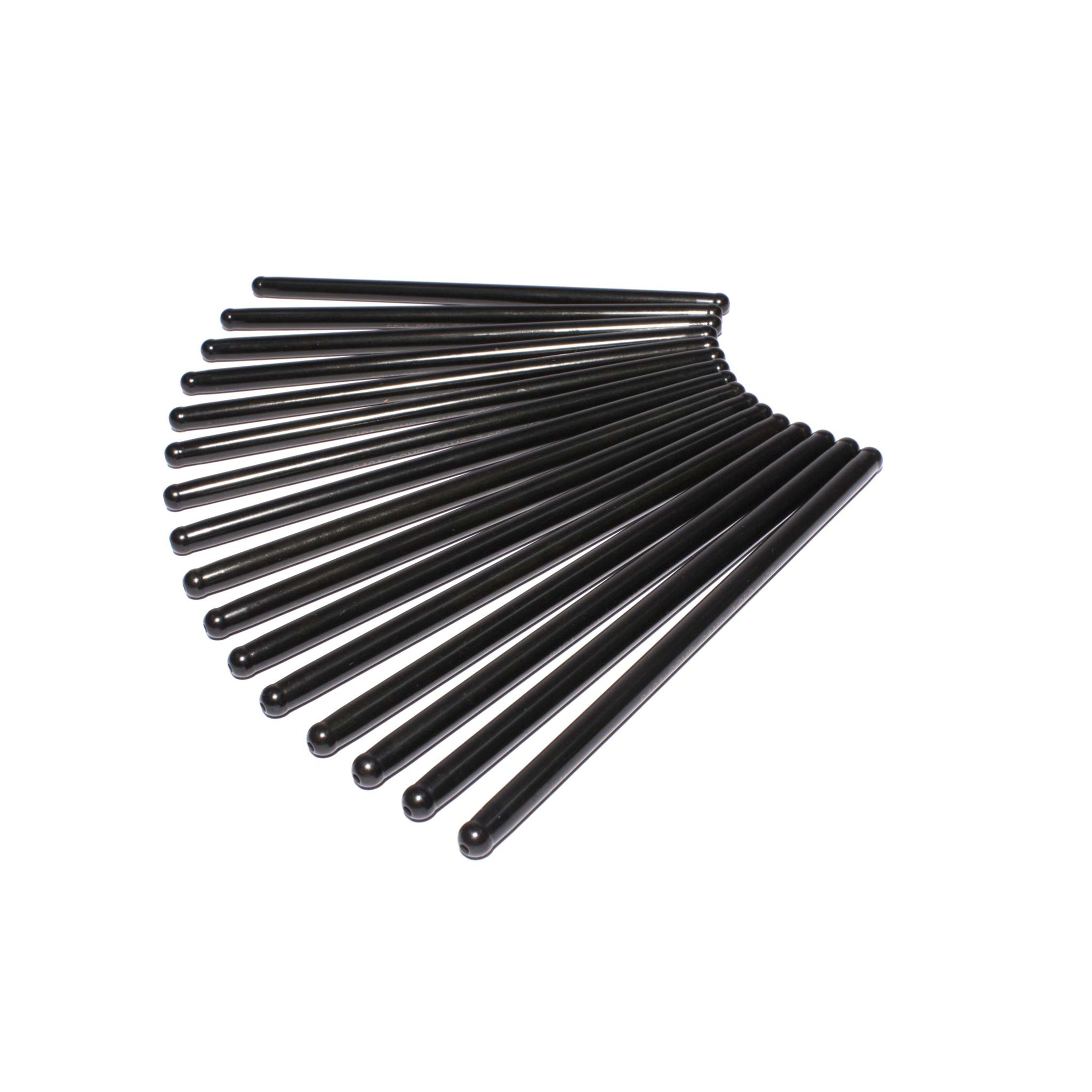

Pushrods |
| Description_KEY |
OHV Pushrods |
| Description_KEY |
Replacement Pushrods |
| Description_SHO |
Mag 236/236Nis2.42.8 |
| Description_SHP |
None |
| Valve Springs Required |
Yes |
| Engine Family |
Nissan 2400-2800 cc 6 Cylinder (1970-1984) |
| Amazon ASIN |
B005H89W04 |
| Length |
7.9 |
| Basic Operating RPM Range |
2,000-6,000 |
| Diameter |
5/16 |
| Assembly Lubricant Included |
Yes |
| C.A.R.B. Exempt for On-Road Vehicles? |
No |
| Advertised Intake Duration |
280 |
| Camshaft Material |
Cast Iron |
| Cam Type |
Solid Swinging Follower |
| Exhaust Duration at .050 inch Lift |
236 |
| Title |
Magnum 236/236 Solid Cam for Nissan 2400-2800cc 6 Cylinder |
| Pushrod Series |
Hi-Tech .105" Wall |
| Advertised Exhaust Duration |
280 |
| Intake Valve Lift |
0.46 |
| Grind Number |
280S |
| Intake Duration at .050 Inch Lift |
236 |
| Camshaft Series |
Magnum |
| Usage |
Street/Performance |
| Lobe Separation |
110 |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Lifters Included |
No |
| C.A.R.B. E.O. Number |
N/A |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Guide Plate Compatible |
Yes |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Rocker End Style |
5/16 Oil Through One-Piece Construction Ball |
| C.A.R.B. Exemption Reason |
N/A |
| Lifter End Style |
5/16 Oil Through One-Piece Construction Ball |
| Wall Thickness |
0.105 |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? |
Yes, but must be a race/competition only vehicle. |
| Exhaust Valve Lift |
0.46 |
| Lifter Type |
Solid Swinging Follower |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
30.0000 |
| Weight |
9.0000 |
