| Description_ASC |
Tuning is not supported with Terminator X ECU's.
Not compatible with Sniper 2. |
| Description_DEF |
Electronic Multi-Purpose Gauge |
| Description_DES |
Holley EFI 7" Digital Dash |
| Description_FAB |
Plug and play connection to all Holley EFI systems via CAN bus (Not compatible with Sniper 2) |
| Description_FAB |
Compact, customizable 7" dash for use in a variety of motorsports applications |
| Description_FAB |
7" low glare, high brightness, high contrast, full color touch screen for easy viewing even in full sun |
| Description_FAB |
800x480 resolution with auto brightness |
| Description_FAB |
Operating voltage min 8V - 20V |
| Description_FAB |
Weather proof aluminum housing featuring flexible mounting options |
| Description_FAB |

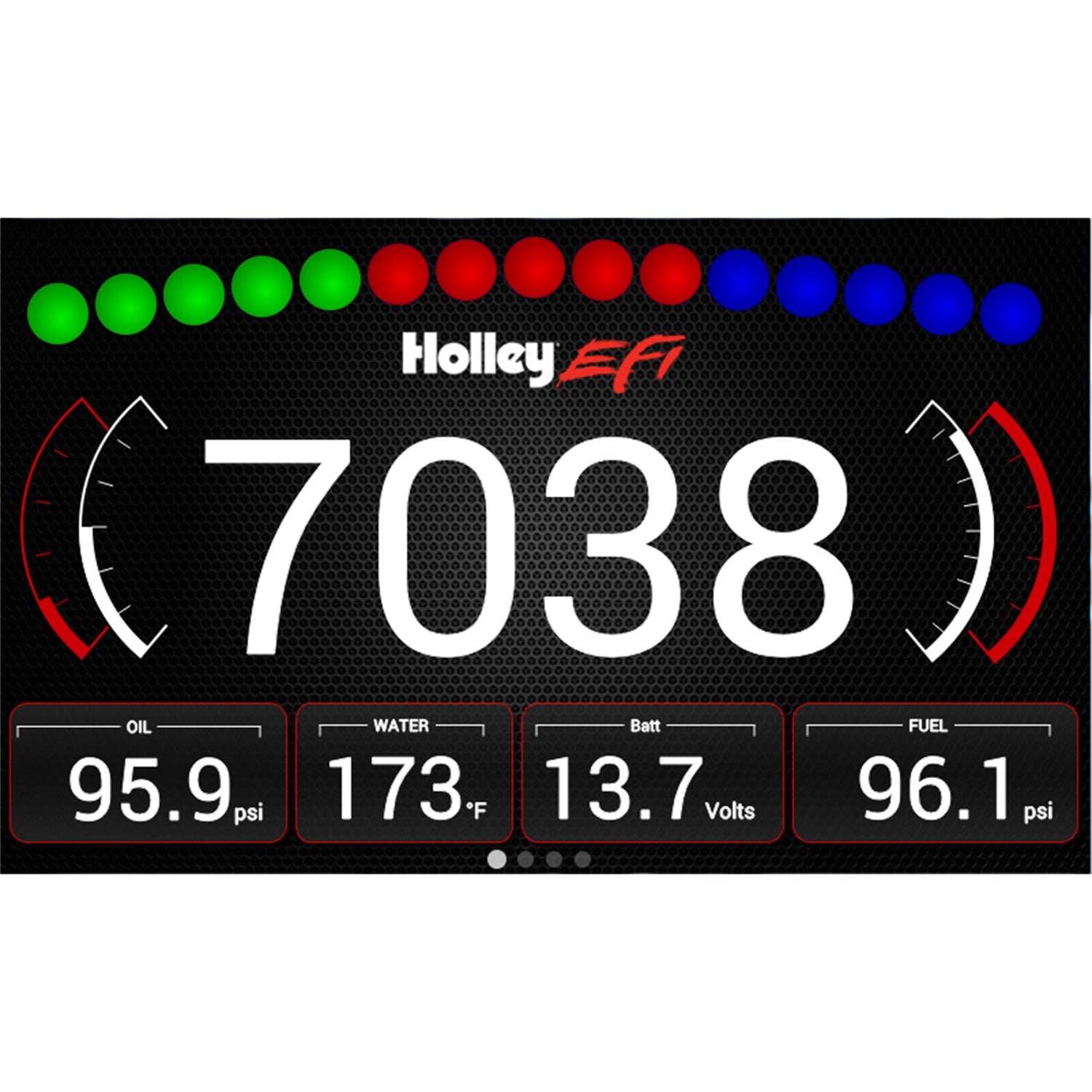

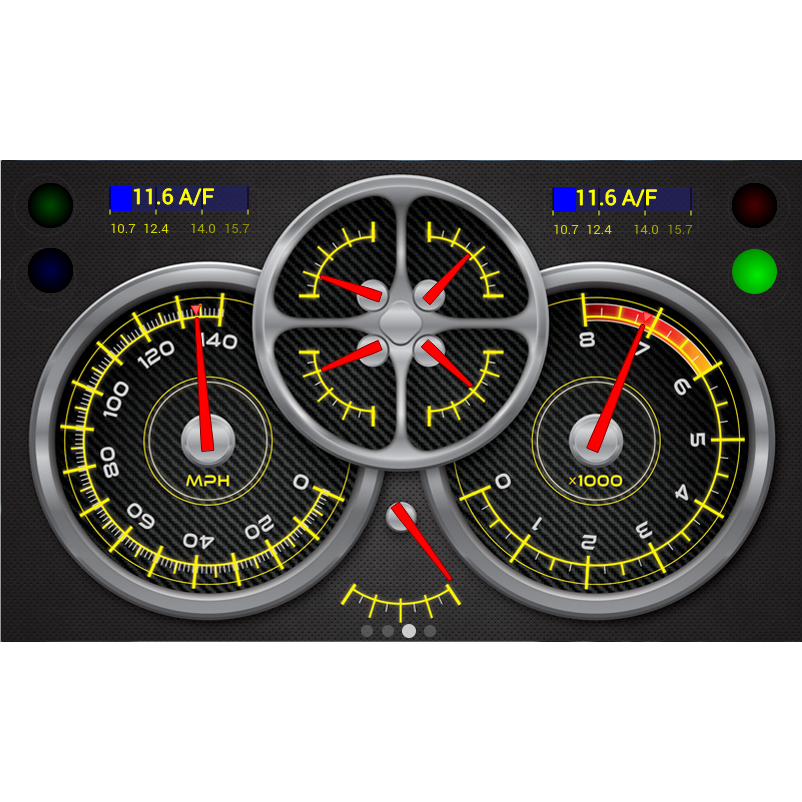

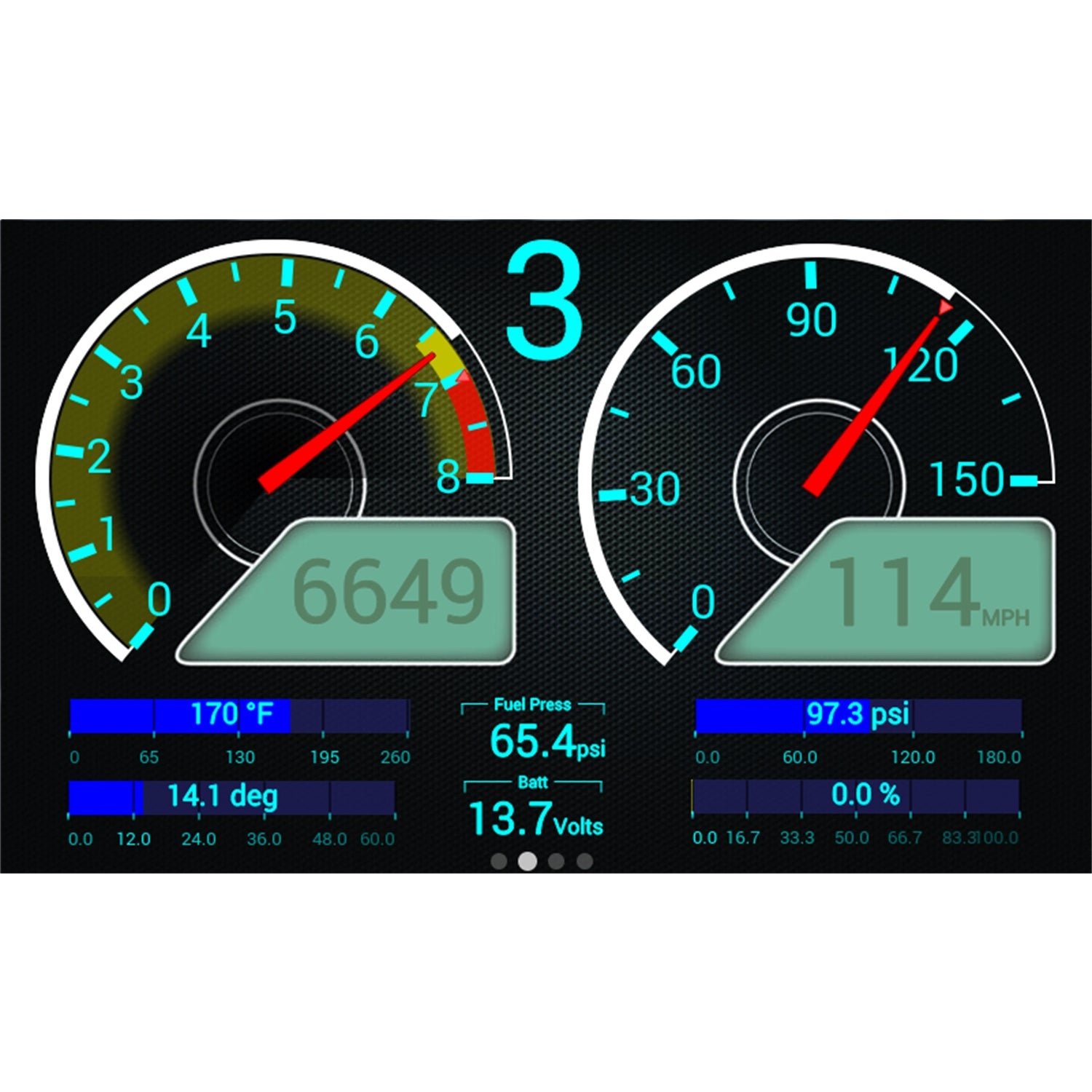

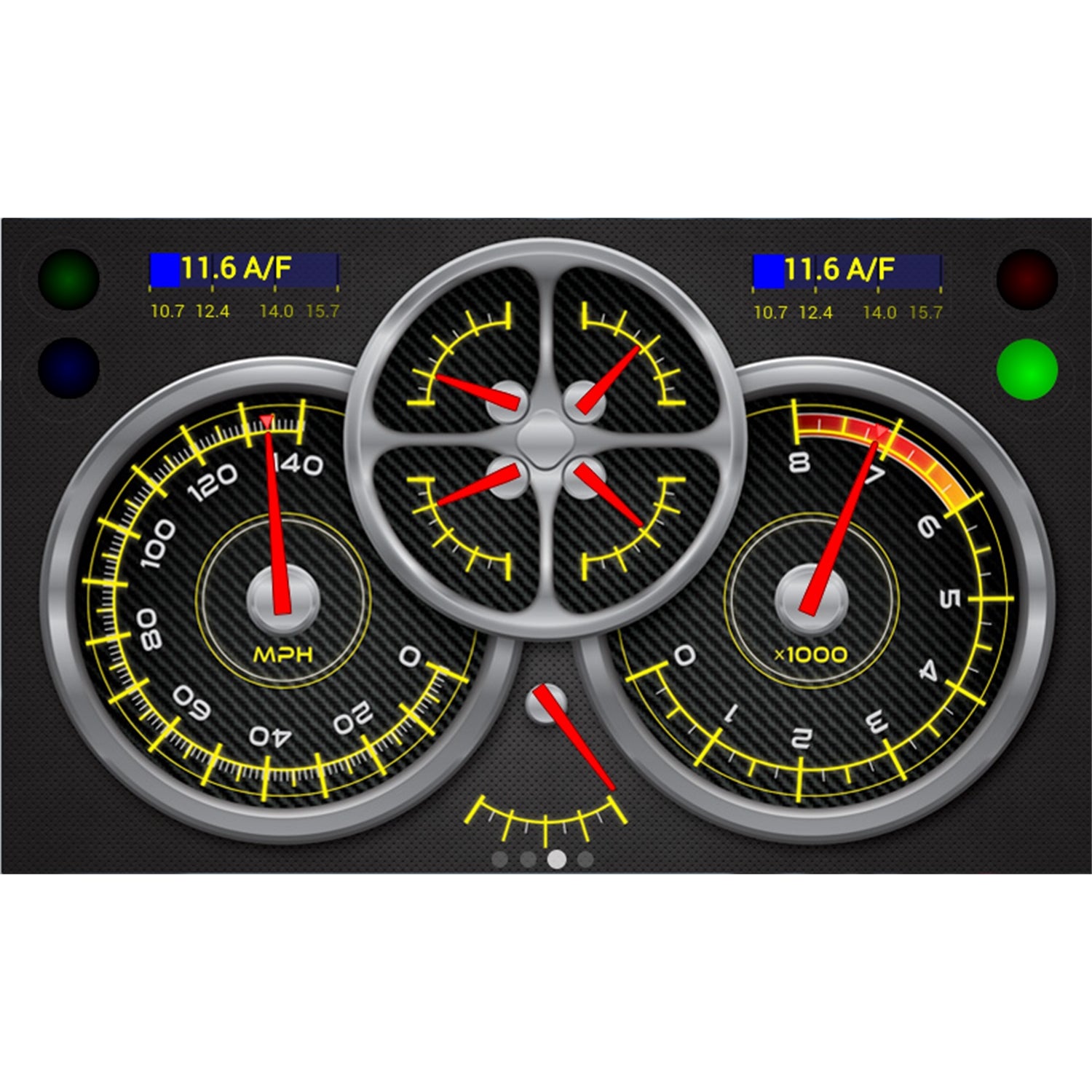

Completely customizable display of all EFI parameters including every user configurable input and output available |
| Description_FAB |
Multiple gauge and indicator types with limitless customization options |
| Description_FAB |
Quickly toggle between multiple active screens (tune, warm-up, race, drive, etc.) |
| Description_FAB |
Virtual Switch Panel (replaces the need for physical switches) |
| Description_FAB |
User defined alarms for any input |
| Description_FAB |
Configurable progressive shift lights and light bar |
| Description_FAB |
Control and on screen playback of EFI data logs |
| Description_FAB |
Download and save Holley EFI data logs to external USB memory stick |
| Description_FAB |
Expandable internal storage on micro SD card |
| Description_FAB |
Support for future USB devices |
| Description_FAB |
Upgradable with future software enhancements |
| Description_FAB |
Optional harness available to add physical inputs and outputs to the dash that can be used to perform multiple operations |
| Description_FAB |
Integrated 3 Axis Accelerometer |
| Description_EXT |
Fully customizable 7" Dash, with a huge array of gauge and indicator screens. Compatible with Holley EFI, Sniper EFI, and Terminator X systems. |
| Description_INV |
HOLLEY EFI DIGITAL DASH |
| Description_SHO |
ElecMultiPurposeGg |
| Description_MKT |

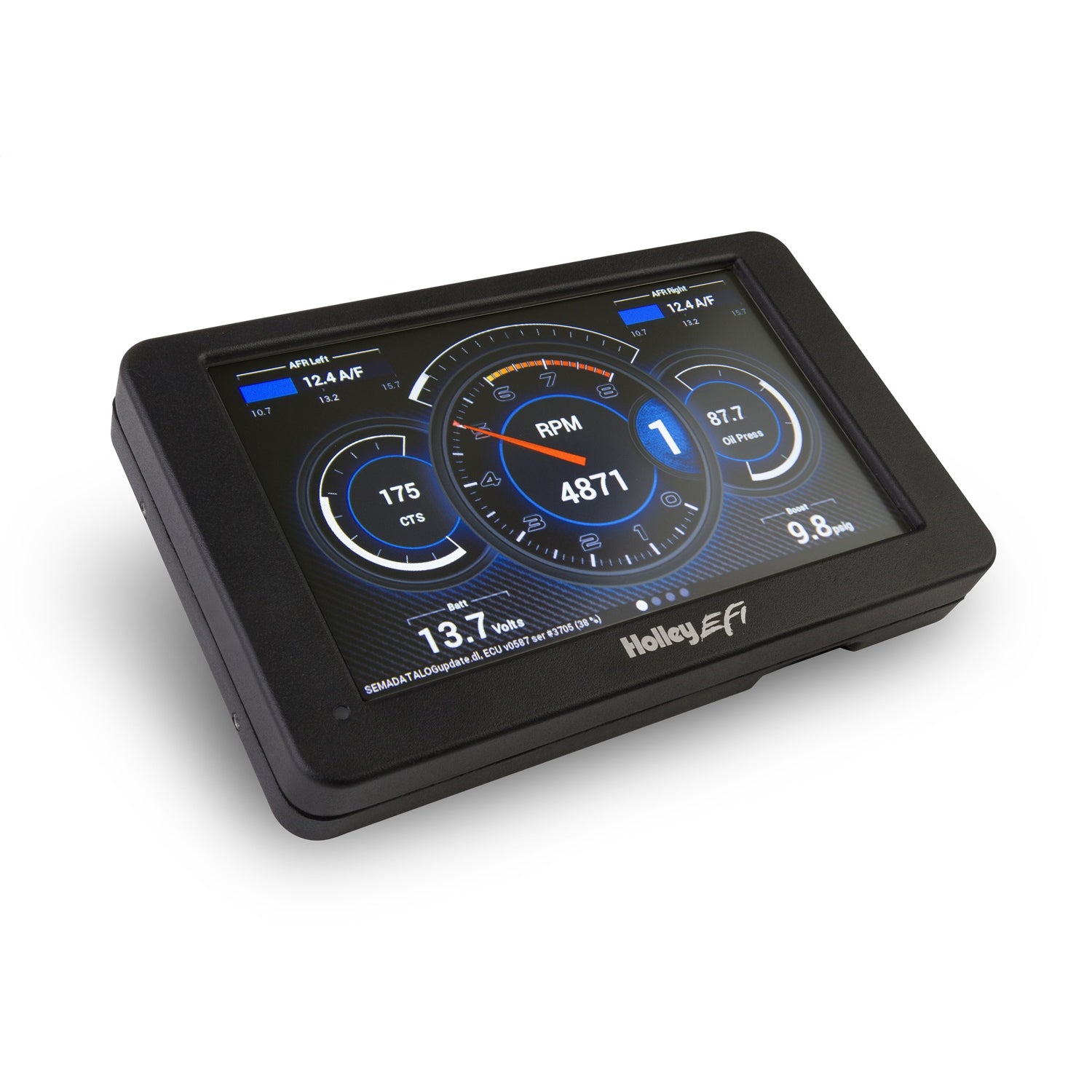

The Holley EFI Digital Dash is completely customizable with a variety of gauge and indicator screens that can be programmed to display any parameter you need. The dash also offers a virtual switch panel, user-defined alarms, configurable shift lights, and can control on-screen playback of your EFI data logs. The Holley EFI Digital Dash measures 7.5 in. wide, 4.625 in. tall, and 1 in. deep which makes it a compact, customizable dash for use in a variety of motorsports applications. The Dash features a 7 in. low glare, high brightness, high contrast, full-color touch screen for easy viewing even in full sun, plug and plays connection to all Holley EFI systems as well as a weather proof aluminum housing featuring flexible mounting options. Monitor the power of your Holley EFI system at a glance! |
| Description_KEY |
touch screen;touchscreen;touch-screen;race dash; racedash; race-dash; race dash; EFI Dash; fuel injection dash; Holley EFI Dash; Holley Dash; holley; fuel injection parts; fi parts; digital dash; race dash; efi; holley efi; Haltech IC-7; IC7; Haltech Dash;IC7 Dash; IC-7 Dash;7" Dash;7" |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Brand |
Holley EFI |
| Warning |
California Proposition 65 |
| Sale Category |
Gauges and Gauge Accessories |
| Width |
7.500 in. |
| Item Height |
4.625 in. |
| WARNING CA Proposition 65 |
Yes |
| Product Type |
7" Digital Dash |
| Depth |
1.000 in. |
| Emission Code |
5 |
| Height |
4.625" |
| Screen Type |
Resistive Touch Screen |
| Screen Size |
7" Diagonal |
| Length |
4.2000 |
| Width |
9.4000 |
| Height |
10.3000 |
| Weight |
2.5000 |
