| Description_DEF |
Gauge Set |
| Description_DES |

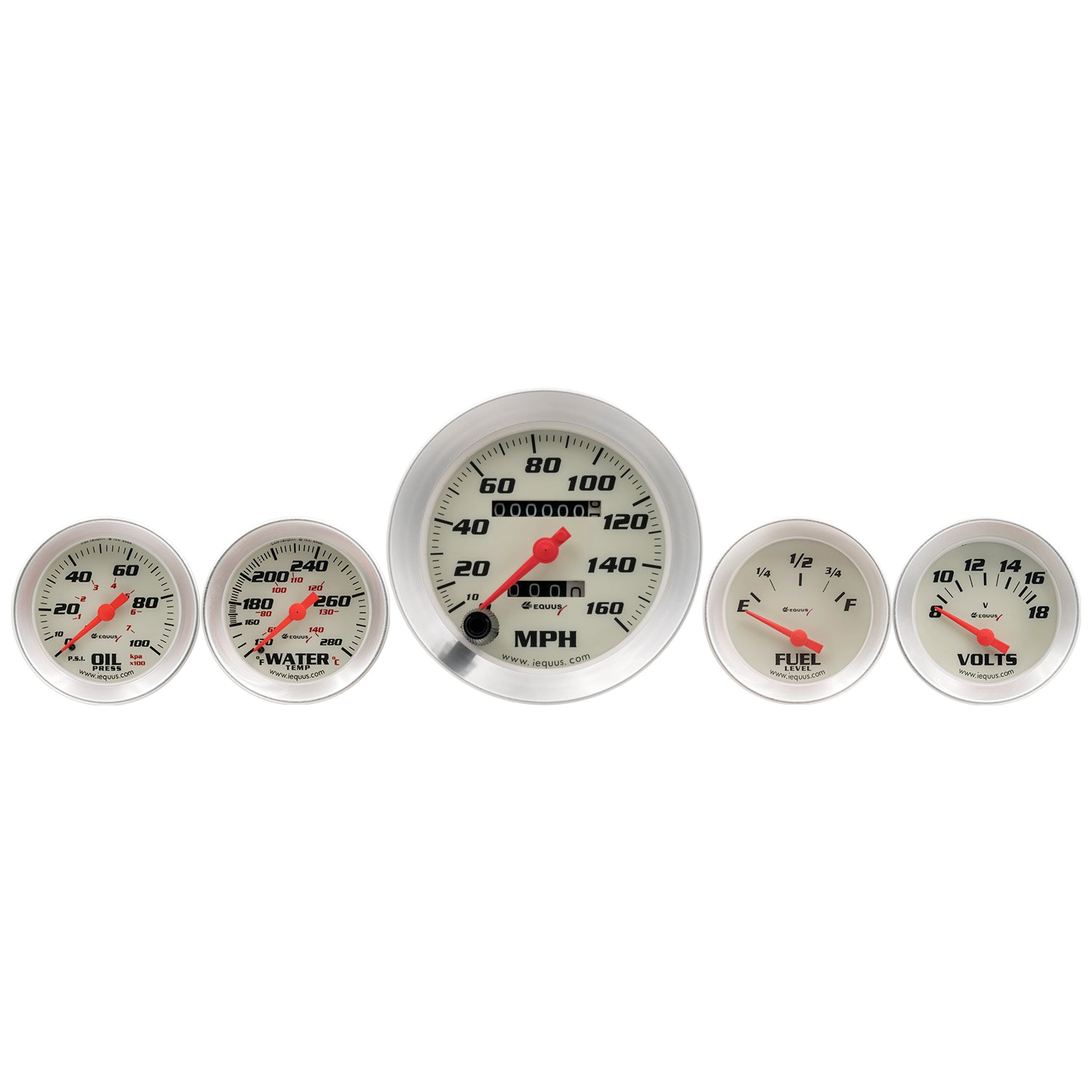

Gauge Set, 3-3/8" Mech Speedo, 2" OILP/WTEMP/FUEL/VOLT, Wht, Slvr, 8000 Series |
| Description_FAB |

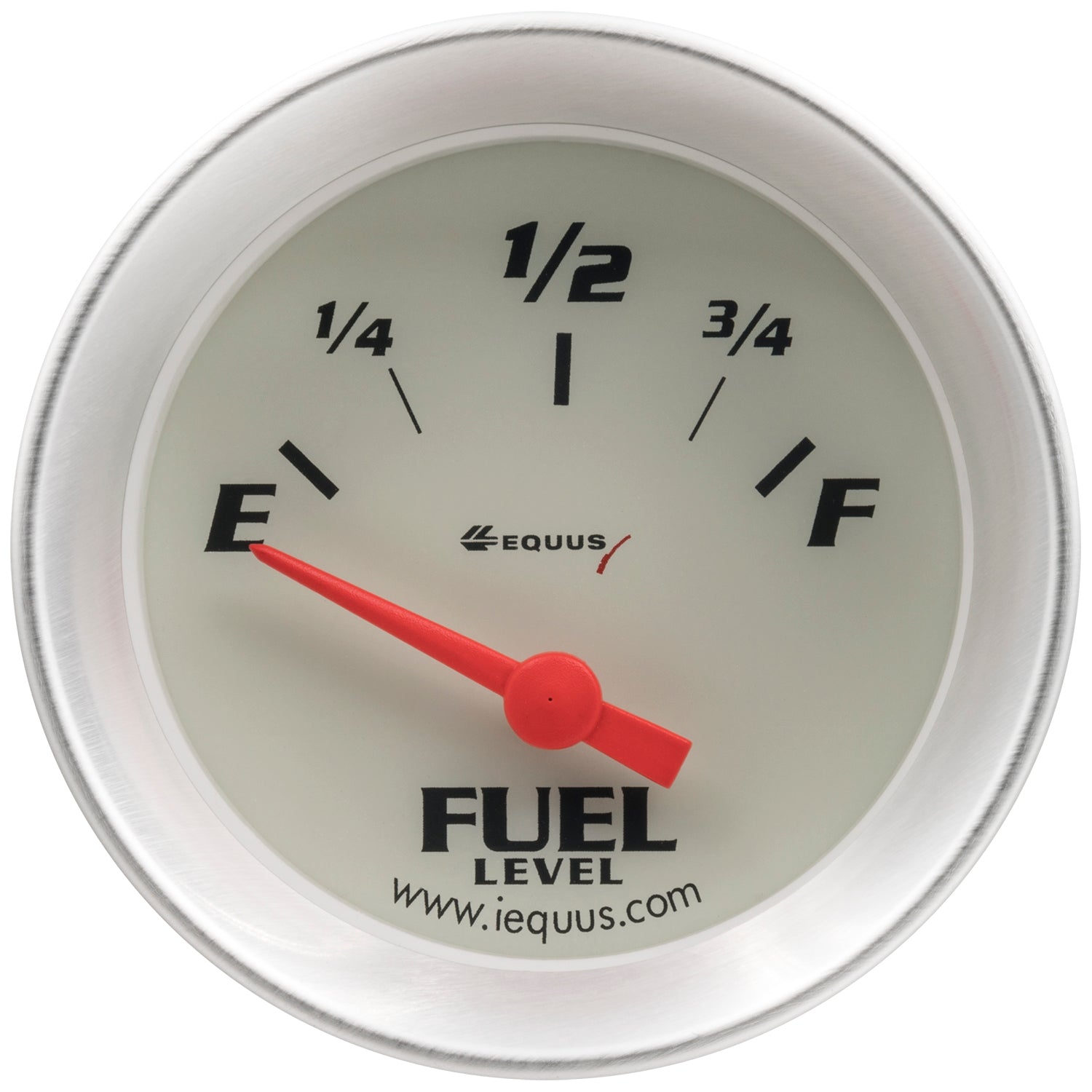

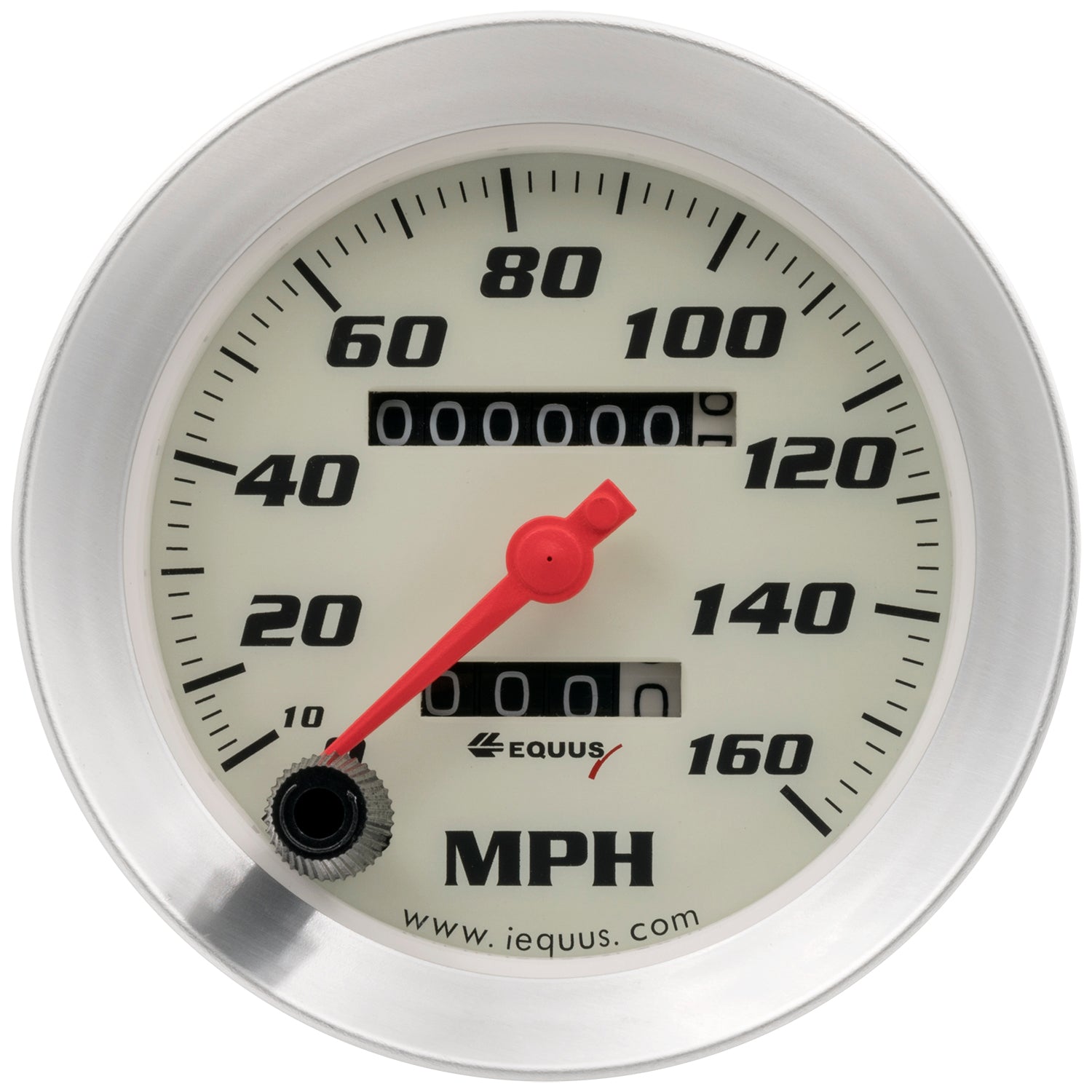

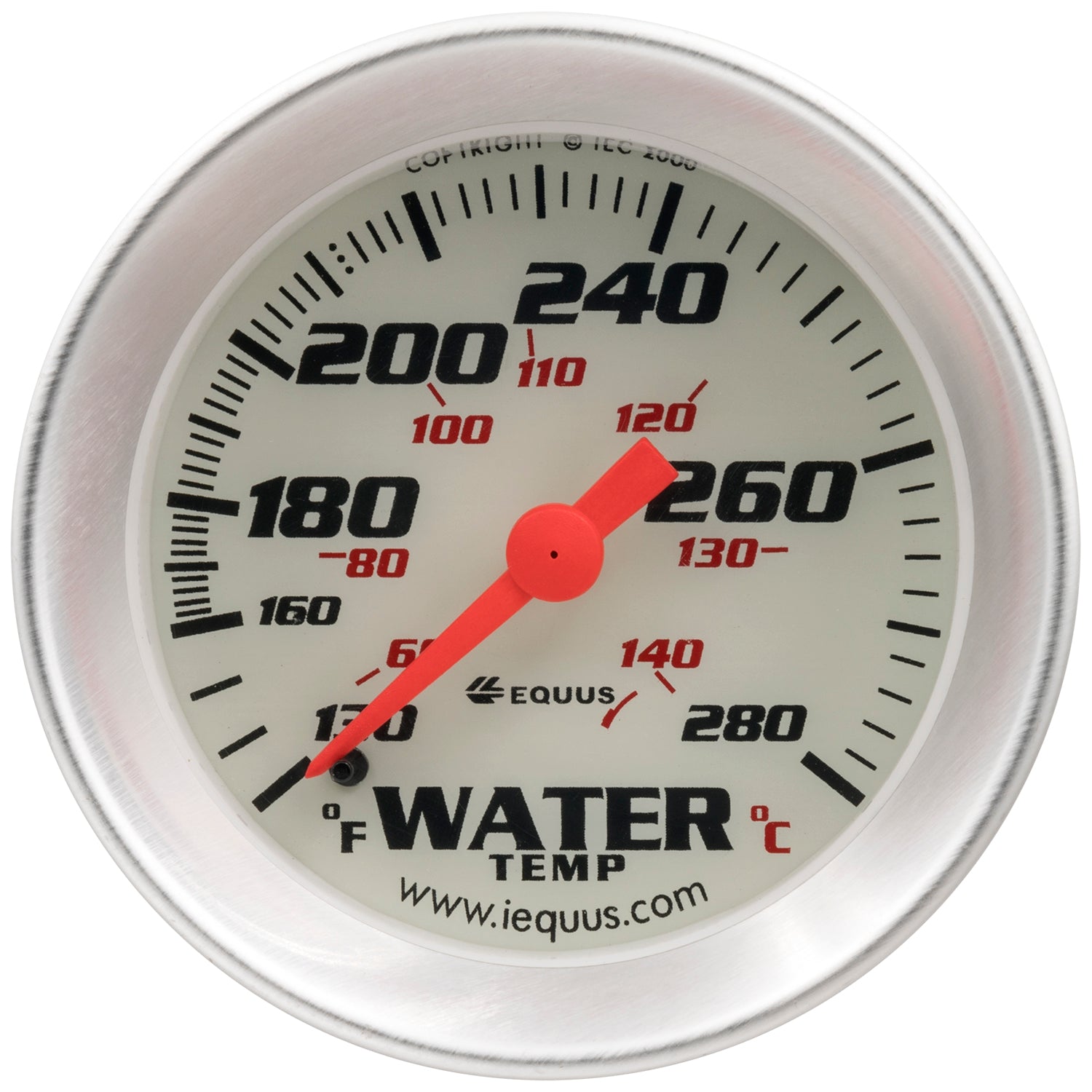

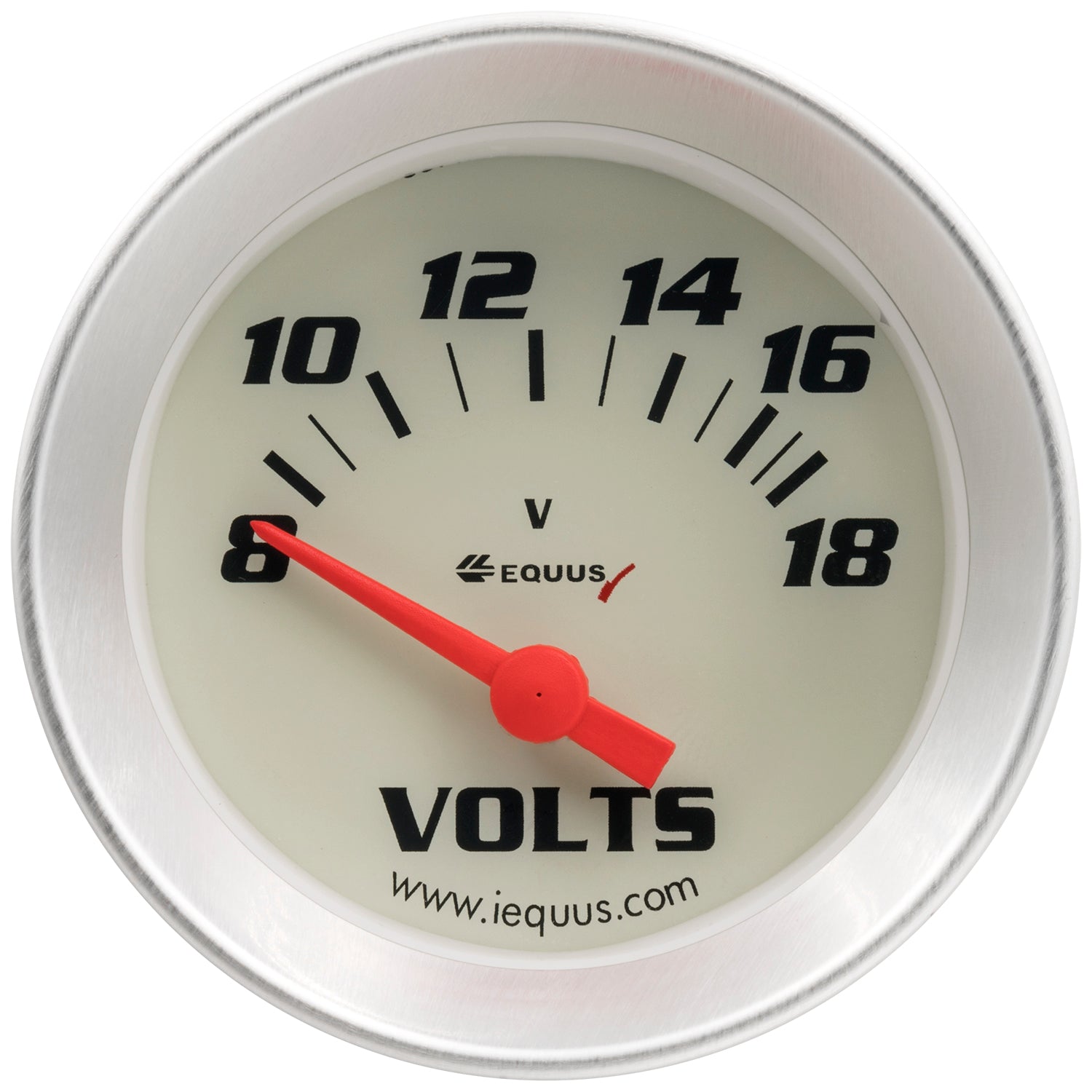

Includes 3 3/8 In. 160 Mph Mechanical Speedometer, 2 In. 100 Psi / 70 Kpa Mechanical Oil Pressure, 2 In. 280 Degree F / 140 Degree C Mechanical Water Temperature, 2 In. 18V Electric Voltmeter, And 2 In. Electric 0-90 Ohm Fuel Level Gauges |
| Description_FAB |
Back-Lit illumination for night use. Includes red, green, blue and yellow bulb covers. |
| Description_FAB |
Includes the following installation hardware: 3/8 in. & 1/2 in. NPT brass adapter fittings for temperature gauge, 6 ft. nylon tubing with 1/8 compression fittings and 1/8 in. NPT female to 1/4 in. |
| Description_FAB |
One million mile odometer with one thousand mile resettable trip meter. |
| Description_FAB |
Configured for 1:1 Drive Ratio (1,000 cable RPM at 60 MPH) |
| Description_FAB |
5/8 x 18 male thread attachment point for 0.104" square drive speedometer cables. Additional adapters sold separately. |
| Description_FAB |
Matching tachometer is available in Equus model 8068 |
| Description_FAB |
Includes installation instructions in English, French, and Spanish. |
| Description_FAB |

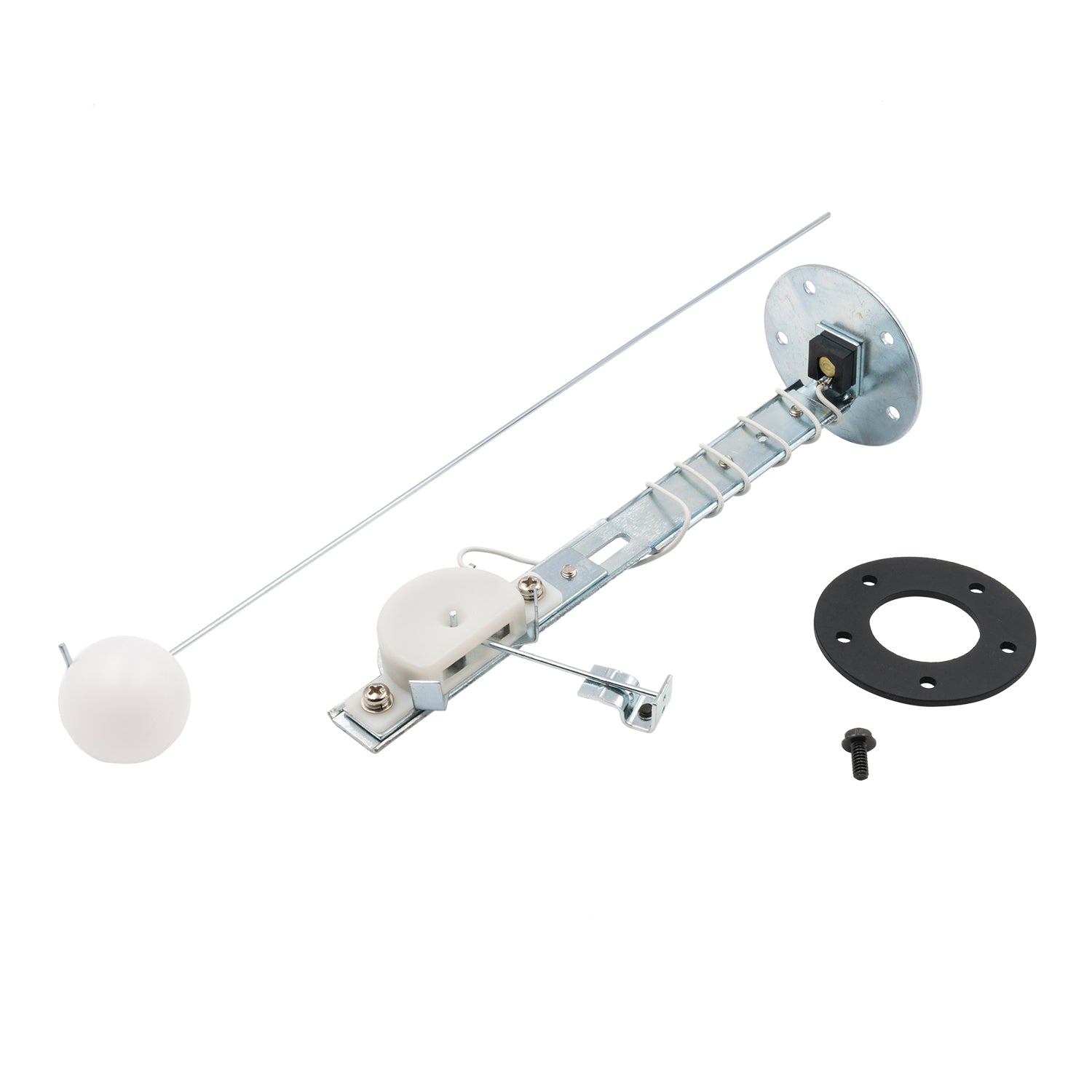

Includes the following installation hardware: NPT male brass adapter for pressure gauge, 1/4 female spade terminals for voltmeter, and universal 5 bolt fuel level sensor which is adjustable for 5-24 inches of tank depth. |
| Description_KEY |
Speedometer, speedo, vehicle speed, mechanical, analog, odometer, trip reset, MPH, KPH, KM/H, miles per hour, kilometers per hour, kilometers, kilometers/hr, miles/hr, miles, gauge, guage, instrument, insturment, fuel, fuel level, oil, oil pressure, oil psi, water, water temperature, water temp, volts, volt, voltmeter, kit, set, |
| Description_MKT |
This accurate, durable, and simple to install iEquus 8000 Performance series five piece mechanical gauge set features white dial, satin silver aluminum bezel, backlit instruments using super lightweight construction and race inspired styling for monitoring speed, oil pressure, water temperature, voltage and fuel level. Installation hardware included. Additional adapters sold separately. Perfect for a variety of applications from hot rods to trucks and off road vehicles. |
| Description_INV |
EQUUS 8000 SER 5 PC. KIT, 3-3/8" SPEEDO |
| Description_SHO |
WHT 5PC KIT 3.4" SPD |
| Add-On |
8000 |
| Bezel Color |
Aluminum |
| Bezel Style |
Equus V |
| Dial Color |
White |
| Gauge Type |
Speedo, Fuel, Oil, Water, Volt |
| Includes Adapter/Fitting |
Yes |
| Includes Mounting Hardware |
Yes |
| Includes Sensor Unit |
Yes |
| Includes Tubing |
Yes |
| Lens Style |
Flat, Clear |
| Lighting Color |
Red, Green, Blue, Yellow Incandescent |
| Lighting Type |
Incandescent |
| Mounting- Direct or Universal |
Set includes 3 3/8 in. 160 MPH mechanical speedometer, 2 in. 100 PSI / 70 kPA mechanical oil pressure, 2 in. 280 degree F / 140 degree C mechanical water temperature, 2 in. 18V electric voltmeter, and 2 in. electric 0-90 ohm fuel level gauges |
| Movement |
Mechanical and Air-Core |
| Pointer Color |
Orange |
| Product Type |
Gauge Set |
| Prop 65 - Long Label |
Warning: This product can expose you to chemicals including DiNP, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov. |
| Prop 65 - Short Label |
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer. For more information, visit www.p65warnings.ca.gov. |
| Prop 65 (C, R or CR) |
C |
| Prop 65 Yes/No |
Y |
| Range |
0-160 MPH, E-F, 0-100 PSI, 100-280 F, 8-18V |
| Title |
8000 Series 5 Piece Gauge Kit |
| Upsell |
E7500 |
