Introducing Coyote Twin Independent Variable Cam Timing Control from Holley EFI! Do you have a coyote crate engine going in your dream car Is your weekend road race warrior powered by a coyote junkyard engine with locked cams Unlock the full potential of your high revving power plant with the Holley EFI Plug and Play Coyote Ti-VCT Control Module.
Specifications:
| Description_ASC |
Requires the use of Main Power Harness (558-319)
Requires one of the follow Main Engine Harnesses:
558-110 or 558-122
Requires one of the following Ti-VCT Sub Harnesses:
558-124 or 558-125 |
| Description_DEF |
Ignition Performance Module |
| Description_DES |

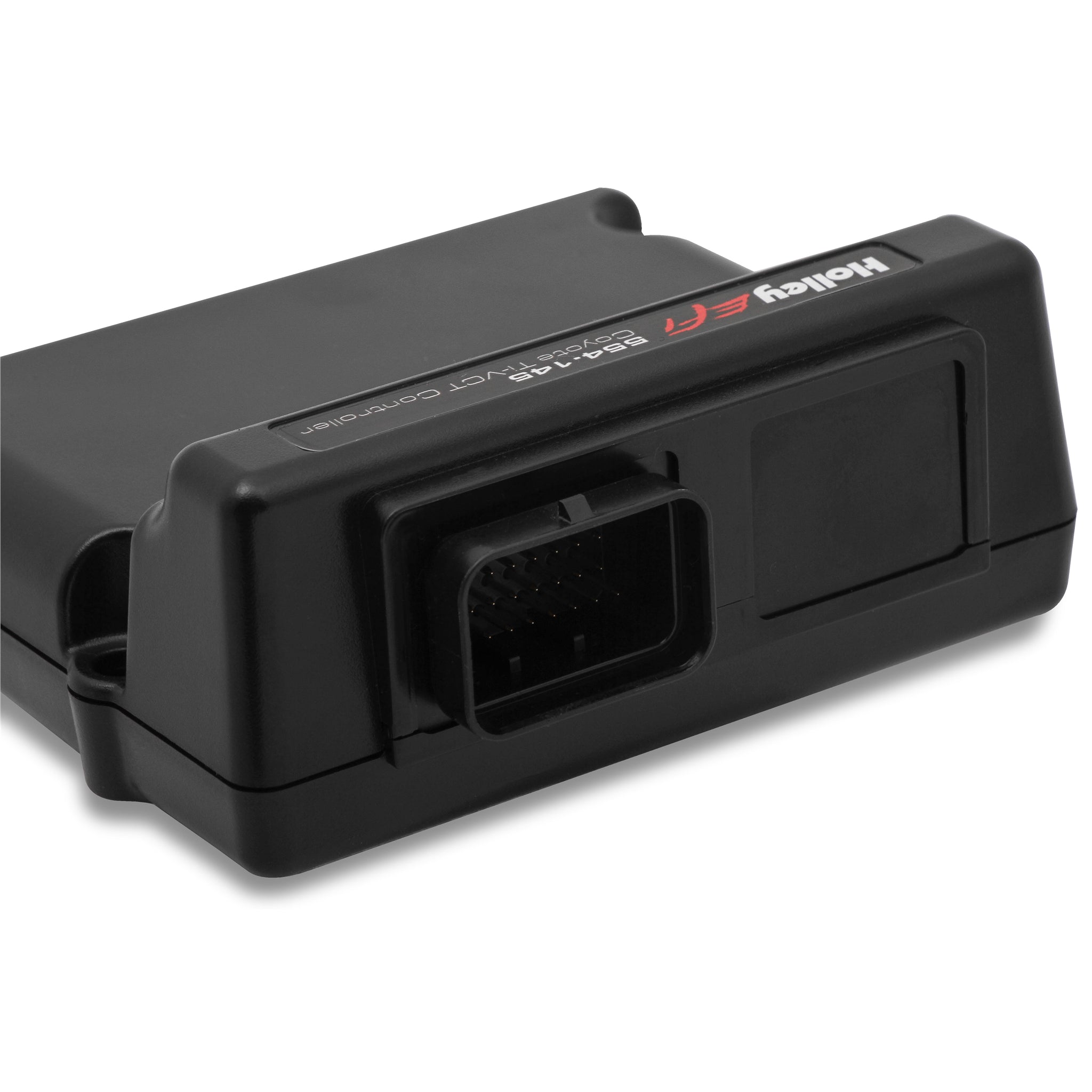

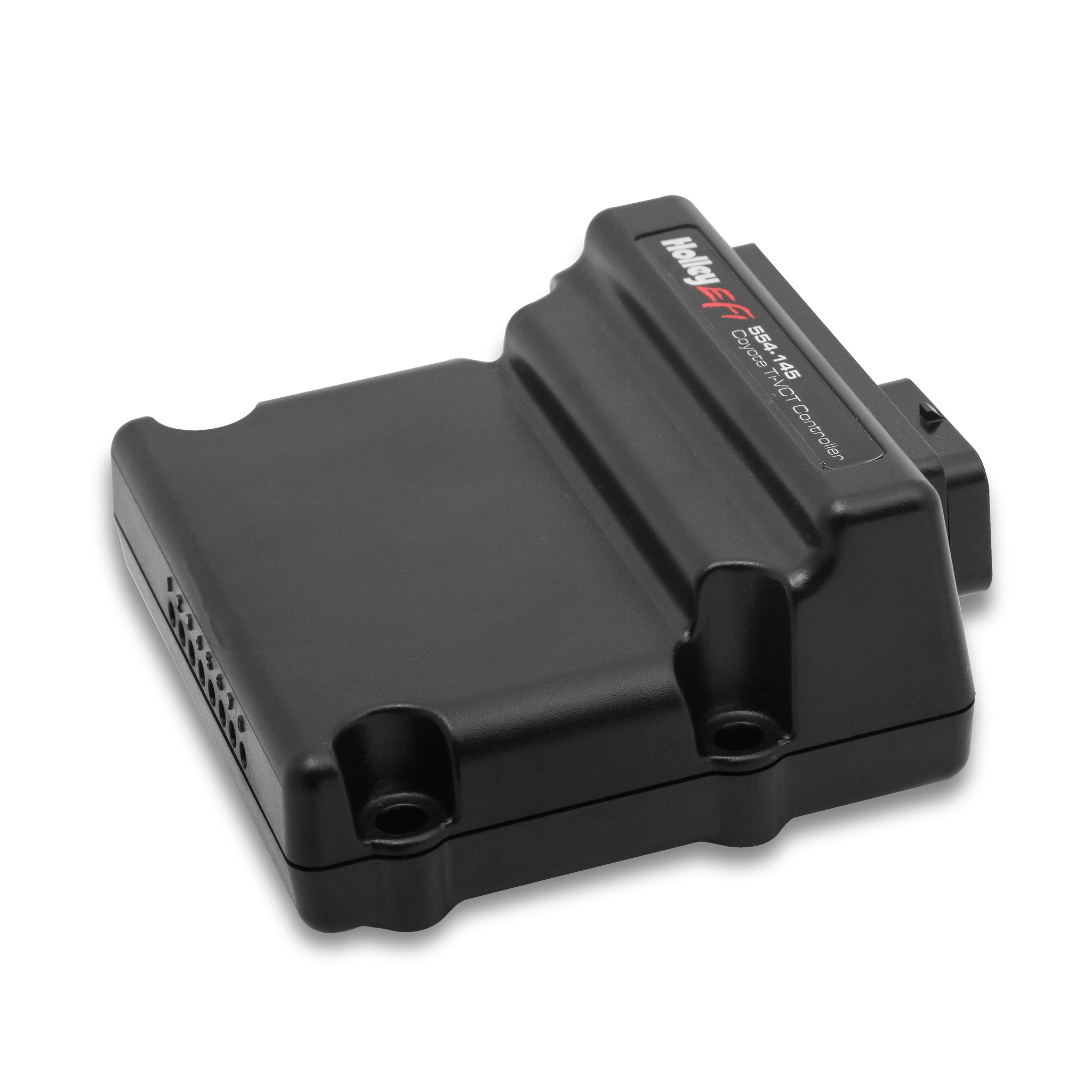

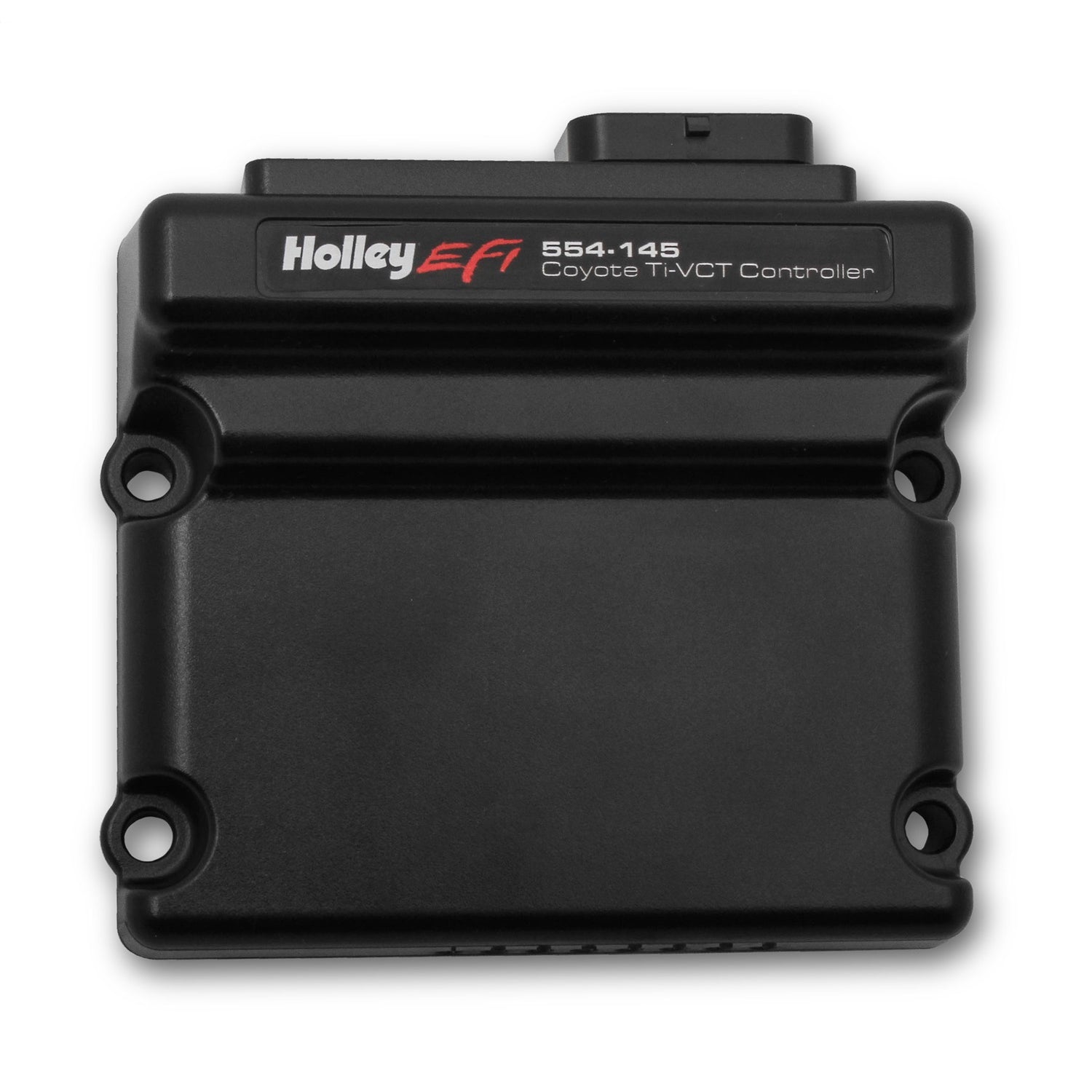

Holley EFI Ford Coyote Ti-VCT Control Module |
| Description_FAB |
Compatible with HP or Dominator EFI |
| Description_FAB |
Ti-VCT Cam control down to 400 RPM |
| Description_FAB |
User programmable tables enable the end user to fine tune aftermarket Ti-VCT compatible camshafts |
| Description_FAB |
Commanded Timing matched within 1 degree |
| Description_FAB |

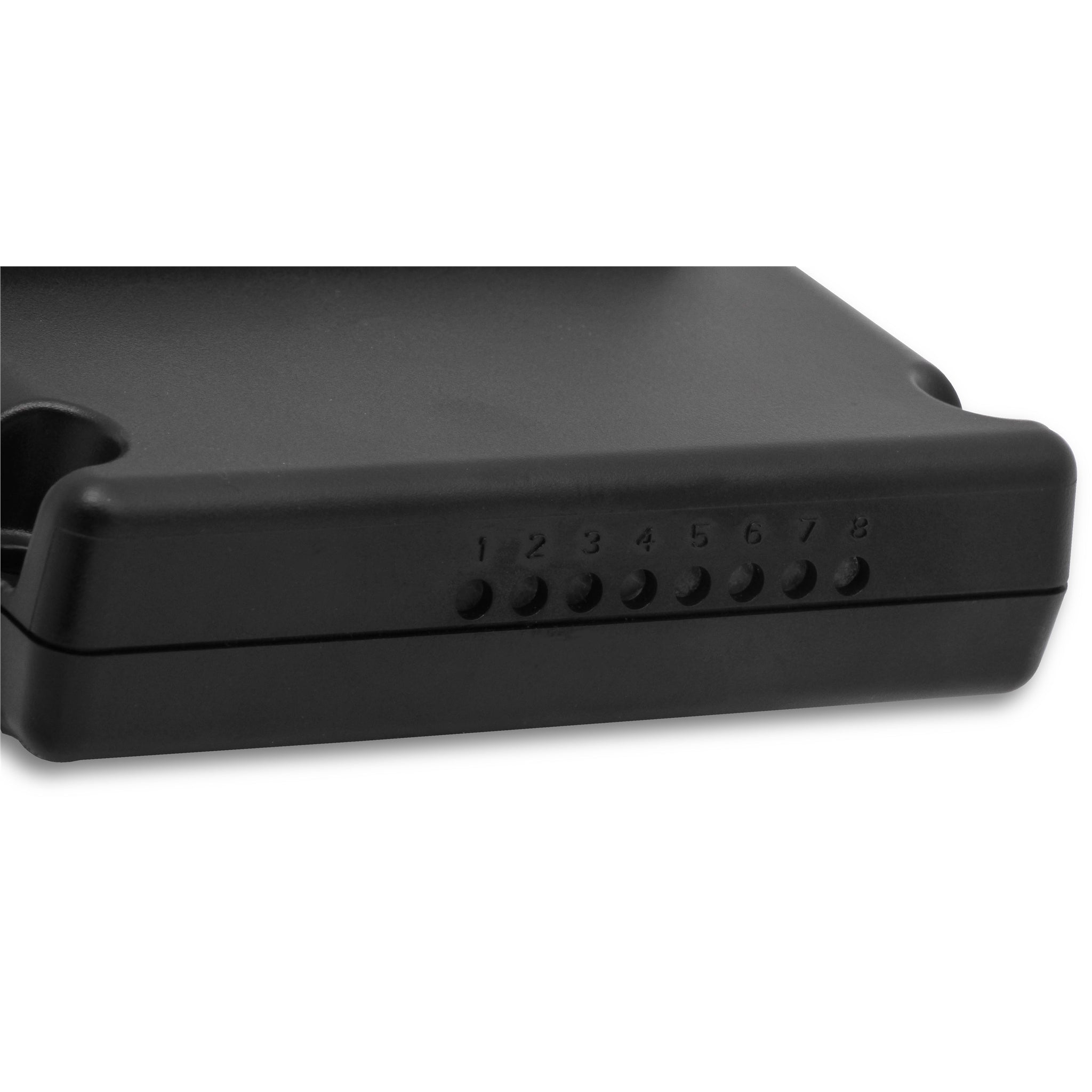

4 Built in Diagnostic LEDS make diagnostics easy in the event of a cam or crank sensor failure |
| Description_FAB |
Integrated Stock Cam Position Tables - eliminate tuning guess work, optimal drive-ability and power right out of the box |
| Description_FAB |
Main Harnesses come terminated with Ford TPS and IAC Connectors, making it easy to convert from a DBW Throttle Body to a Manual Throttle Body, if desired |
| Description_FAB |
Installation of an external MAP sensor is required, we recommend part number 538-13 for N/A applications |
| Description_FAB |
Main Harnesses includes a Power Tap Connector, as a convenient source for power and grounds when adding additional sensors or actuators |
| Description_FAB |
CANBus communication between Coyote Ti-VCT and Holley EFI ECU for high speed data transfer and diagnostics |
| Description_FAB |
Pre-calibrated Ford sensor drop downs in the Holley EFI Software |
| Description_FAB |
Plug and Play Main Harness for 2011-2017 Coyote engines w/ Stock Camshafts using Stock Coils (558-110) |
| Description_FAB |
Plug and Play Main Harness for 2011-2017 Coyote engines w/ Stock Camshafts using Holley EFI Smart Coils (558-122) |
| Description_KEY |
Coyote; VVT; Ti-VCT; Cam Control; Variable Cam Timing; Variable Valve Timing; Twin Independent variable cam timing; Holley EFI VVT; Variable Camshaft; Variable Valve; |
| Description_INV |
Coyote TI-VCT Control Module |
| Description_EXT |
EFI Coyote TI-VCT Control Module; For Stock Camshafts; +90 ft. lbs at 3700 rpm vs. Locked Cams; |
| Description_SHO |
Performance Module |
| Description_MKT |
Introducing Coyote Twin Independent Variable Cam Timing Control from Holley EFI! Do you have a coyote crate engine going in your dream car? Is your weekend road race warrior powered by a coyote junkyard engine with locked cams? Unlock the full potential of your high revving power plant with the Holley EFI Plug and Play Coyote Ti-VCT Control Module. |
| Emission Code |
4 |
| WARNING CA Proposition 65 |
No |
| Brand |
Holley EFI |
| Product Type |
ECU Assembly |
| Length |
4.0000 |
| Width |
8.0000 |
| Height |
10.0000 |
| Weight |
2.0000 |
