| Description_ASC |
Terminator X ECU's are designed to be mounted with the LED's facing up.
Designed to work with GM Throttle body P/N's - 12570790 and 12580760
Designed to work with GM Throttle Pedal P/N - 10379038 |
| Description_DEF |
Fuel Injection System |
| Description_DES |

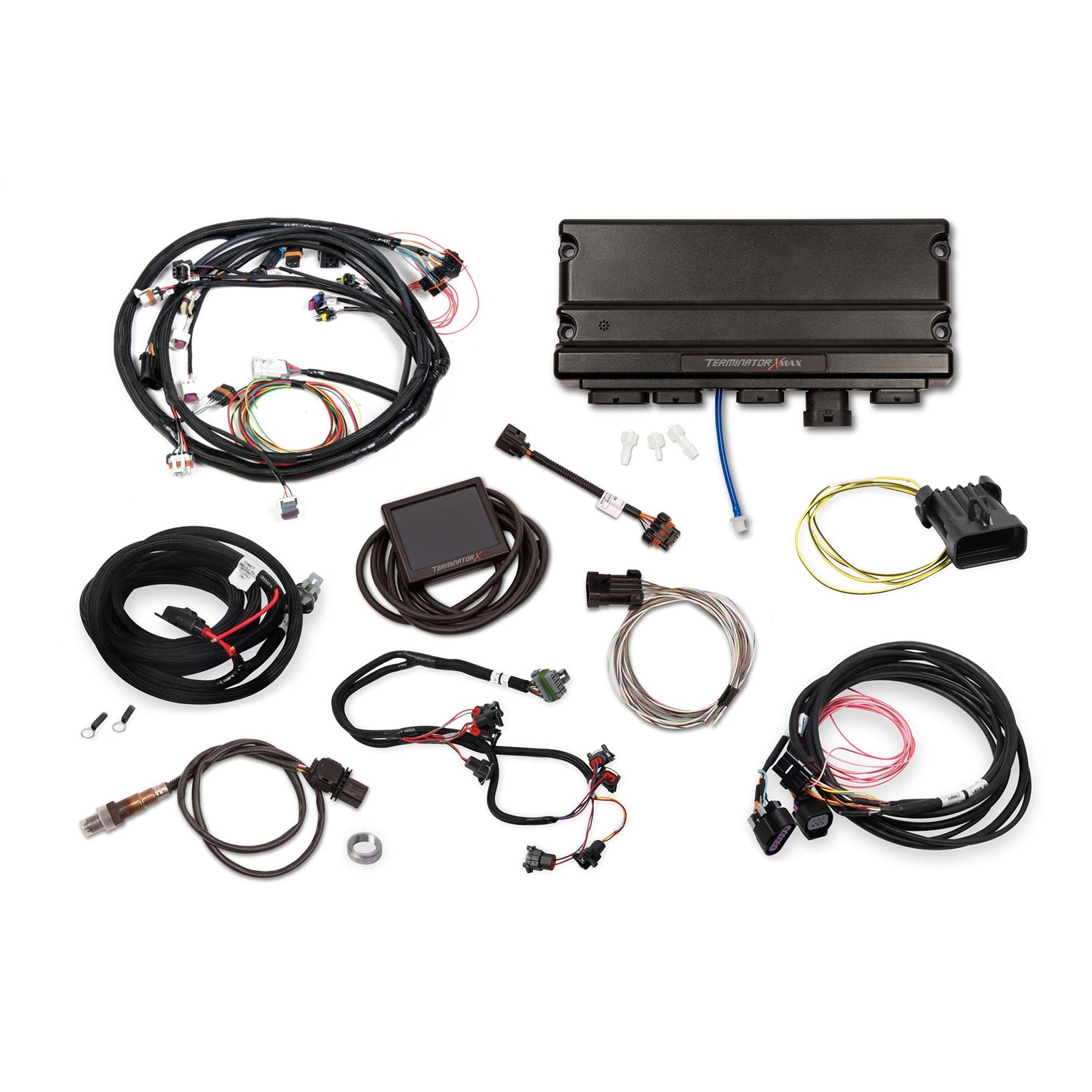

Holley EFI Terminator X Max - Universal MPFI Kit |
| Description_FAB |
Plug and play Domestic V8 engine control, such as conventional push rod Chevrolet and Chrysler engines. |
| Description_FAB |
Includes EV1 Injector Harness |
| Description_FAB |
GM DBW Throttle Body Control Harness (Terminator X Max Only) |
| Description_FAB |
High Impedance Injector Drivers will safely power most Stock injectors, and Holley EFI Injectors. Injector support chart provided in the instructions (Will not control Low Impedance Injectors) |
| Description_FAB |
Bosch LSU 4.9 wideband to relay AFR information to the ECU for accurate reading and precise tuning control. |
| Description_FAB |
Built in 1bar MAP Sensor, vacuum hose adapters included (1/8th - ┬╝ and 3/16ths) - or for Boosted applications, you can disable the internal MAP sensor, and utilize an external MAP Sensor, the harness comes with the connector terminated, making the install |
| Description_FAB |
MAP Sensor vacuum hose adapters (1/8th - ┬╝ and 3/16ths) |
| Description_FAB |
Plug and plug ignition capability with Dual Sync and HyperSpark Distributors, adapter 558-323 required for HyperSpark Distributors. |
| Description_FAB |
4 Inputs - 12v, Ground, 5v, and Frequency, for things such as additional pressure sensors, or activation triggers for nitrous activation, or a trans brake |
| Description_FAB |
Boost Control - Boost vs Time, Boost vs Gear, Boost vs RPM, Boost vs Speed, Boost Safeties |
| Description_FAB |
Nitrous Control - Single Channel of Wet or Dry, Progressive or Non-Progressive, Rich/Lean Safeties, and target Closed Loop AFR |
| Description_FAB |
Advanced Tables - 4x 1D Tables, 1x 1D per Gear Table, 4x 2D Tables, 1x 2D per Gear Table, can be used for any custom tables you can dream up, such as Flex Fuel Sensor Offset Table, or a custom fuel or oil pressure safety! |
| Description_FAB |
On-Board Diagnostic LEDS for: ECU Power - Engine Run - Wideband Status - TPS Calibration - Crank Signal -Cam Signal. Allow you to identify any Critical engine issues at a glance |
| Description_FAB |
The included 3.5" Touchscreen Handheld contains a calibration wizard, that allows you to quickly build a base tune for any LS engine. Additionally the handheld provides internal data-logging and a fully customizable gauge display. |
| Description_FAB |
The compact ECU size allows you to mount it virtually anywhere. Remember, diagnostic LEDS must face up! |
| Description_FAB |
Plug and play compatible with more Holley EFI accessories such as; analog style gauges, shift lights, various modules, and coming soon, 12.3" digital dash support! |
| Description_FAB |
Free EFI Tuning Software for complete control of your Terminator X power plant |
| Description_KEY |
Ford MPFI; Ford EFI; Ford Terminator X; Terminator X Ford EFI; SEFI; sbc terminator x; bbc terminator x; universal terminator x |
| Description_EXT |
Terminator X Max MPFI System; Universal MPFI; w/Drive By Wire Control; w/EV1 Spaced EV1 Injector Harness; |
| Description_INV |
TERMINATOR X MAX MPFI UNIVERSAL W/DBW |
| Description_SHO |
FuelInjSystm |
| Description_MKT |
Take control of your engine with Terminator X! Dont settle for a factory ECU with a cumbersome tuning interface when you can have complete control of your engine, self-learning fuel strategies and the proven, race-winning technology of Holley EFI at a budget-friendly price! Terminator X features real-time fuel learn, high impedance injector drivers, an integrated 1bar MAP sensor, and 4 programmable inputs and outputs. The inputs and outputs are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more. Terminator X comes fully loaded with base maps for common V8 engine combinations to get you out of the garage and on the road/track fast. The 3.5 in. touch screen LCD handheld contains an easy to use calibration wizard as well as tuning and gauge display functions. Also included is Holley EFIs industry-leading, easy to use software suite that allows full laptop access for advanced users. Whether you are building a budget beater or a boosted race car, Terminator X has the features and technology you need at a price that wont break the bank! |
| Product Type |
EFI System |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |

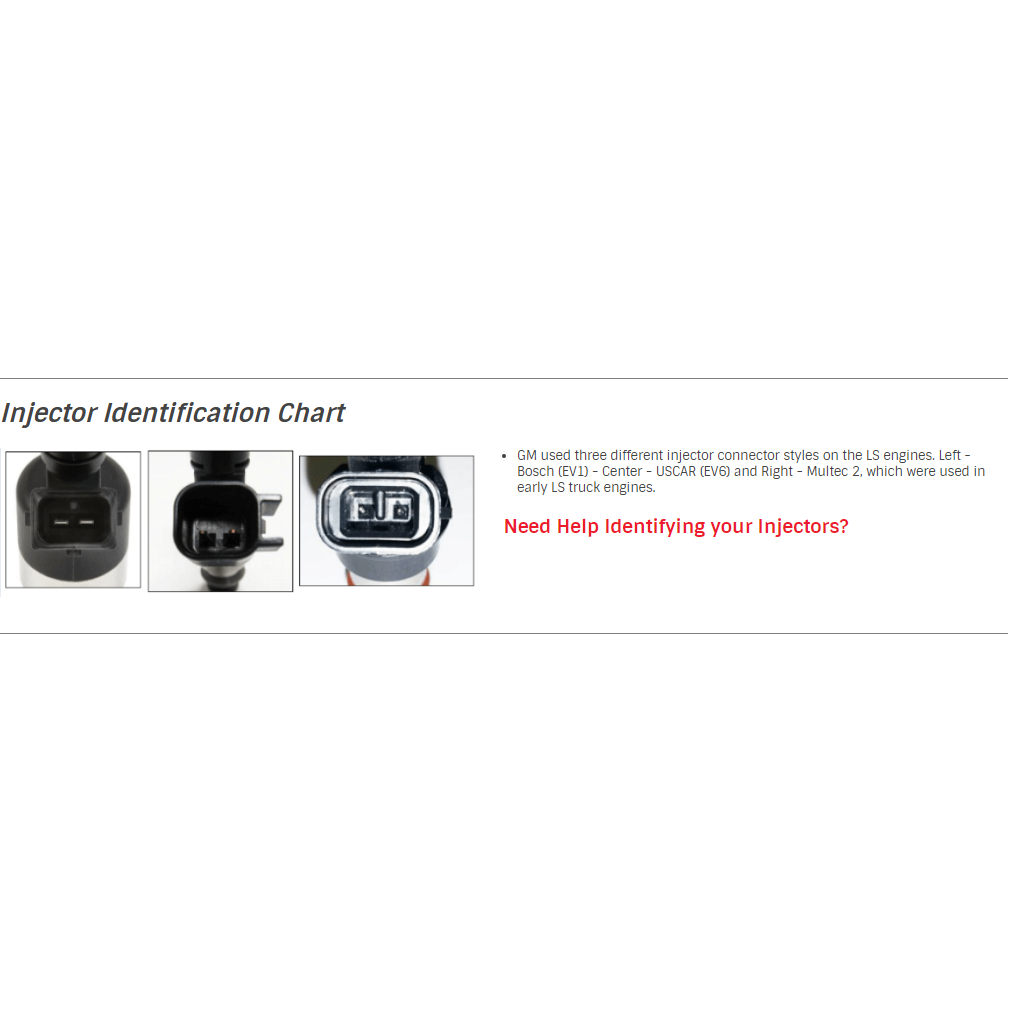

| Injector Connector |
Jetronic/Minitimer (Bosch EV1) |
| WARNING CA Proposition 65 |
Yes |
| Engine Make/Size |
Universal |
| Warning |
California Proposition 65 |
| Emission Code |
3 |
| Transmission |
None |
| Cylinder Head Type |
Standard |
| Brand |
Holley EFI |
| Ignition Type |
Universal |
| Handheld Included |
Yes |
| Length |
9.3000 |
| Width |
12.6000 |
| Height |
14.3000 |
| Weight |
8.5500 |
