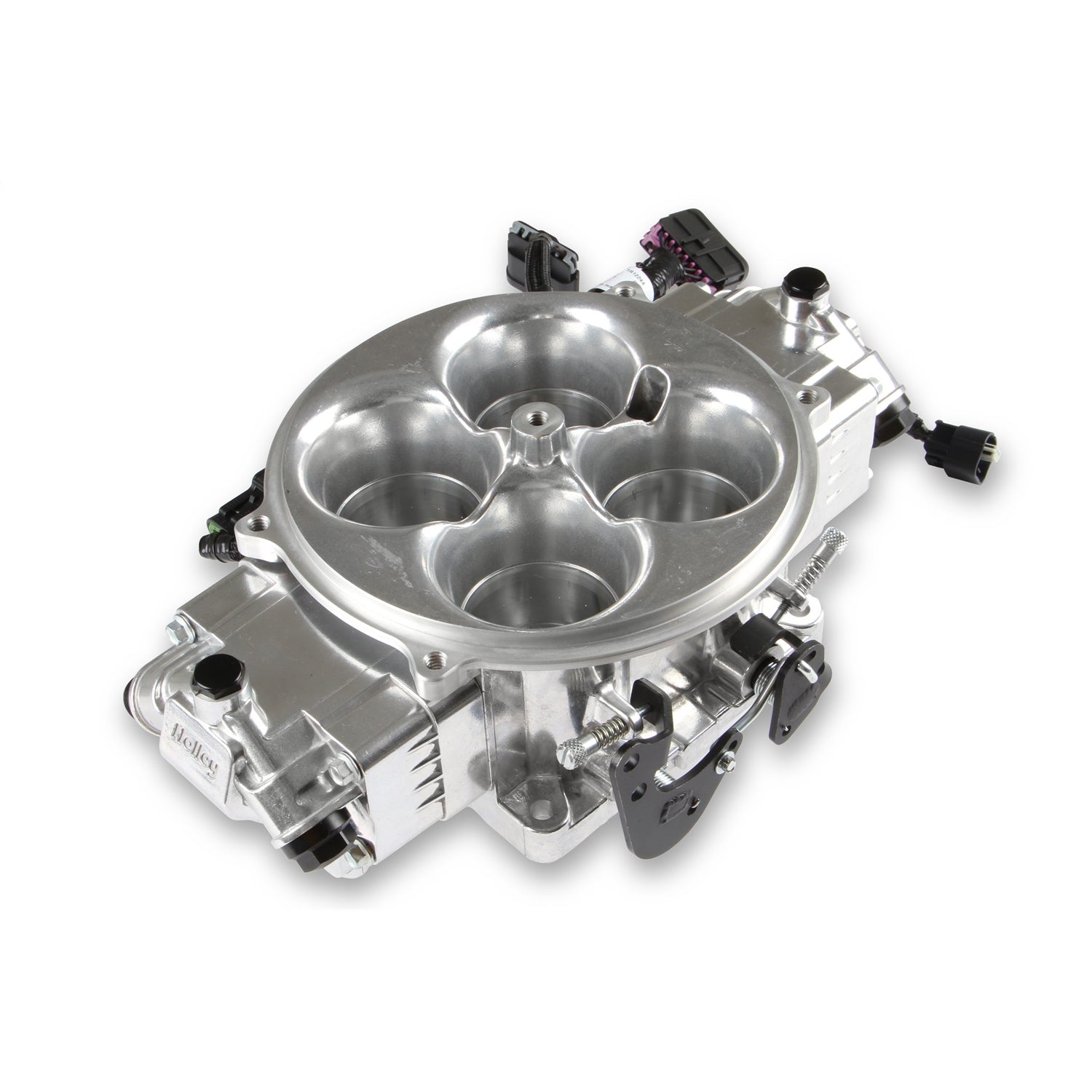

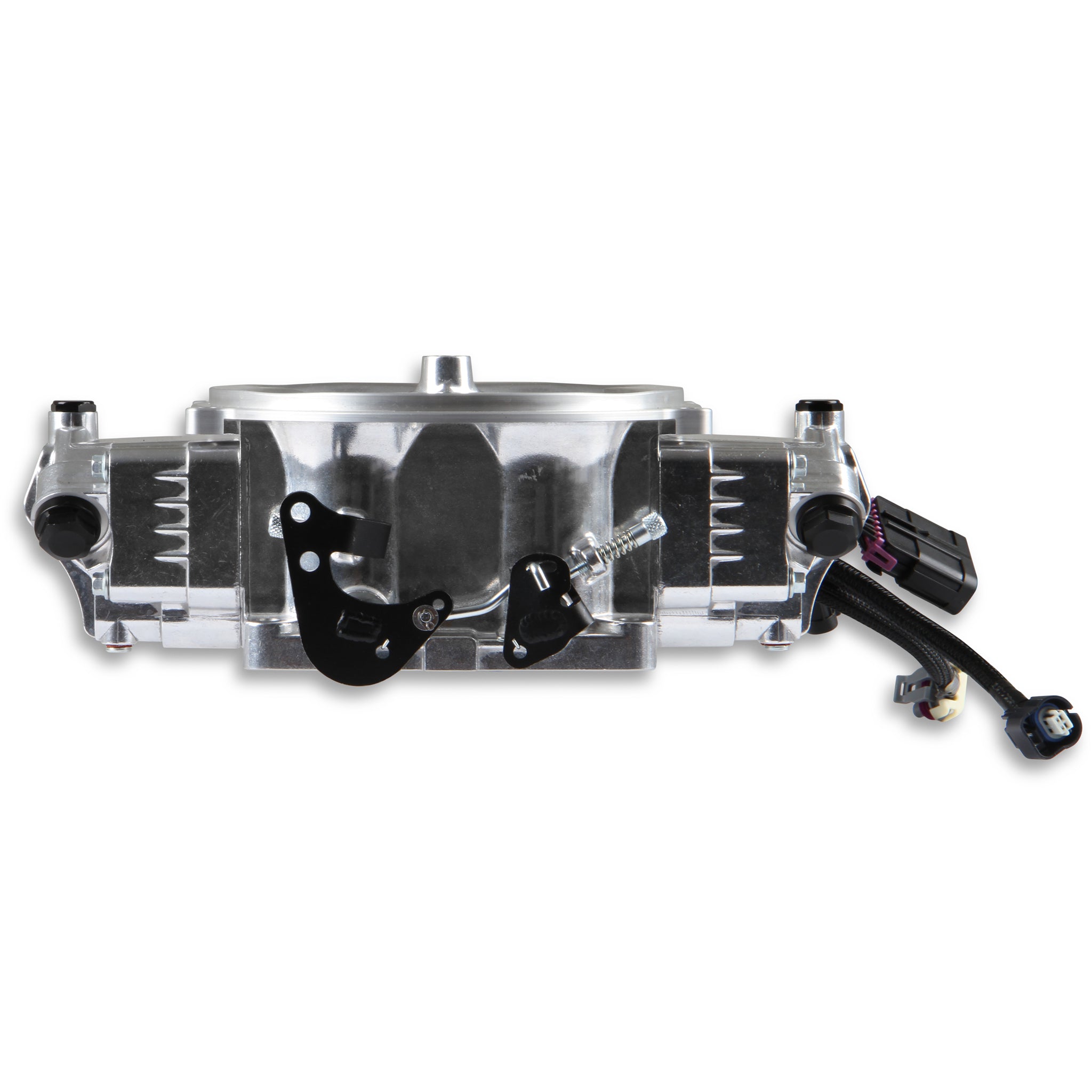

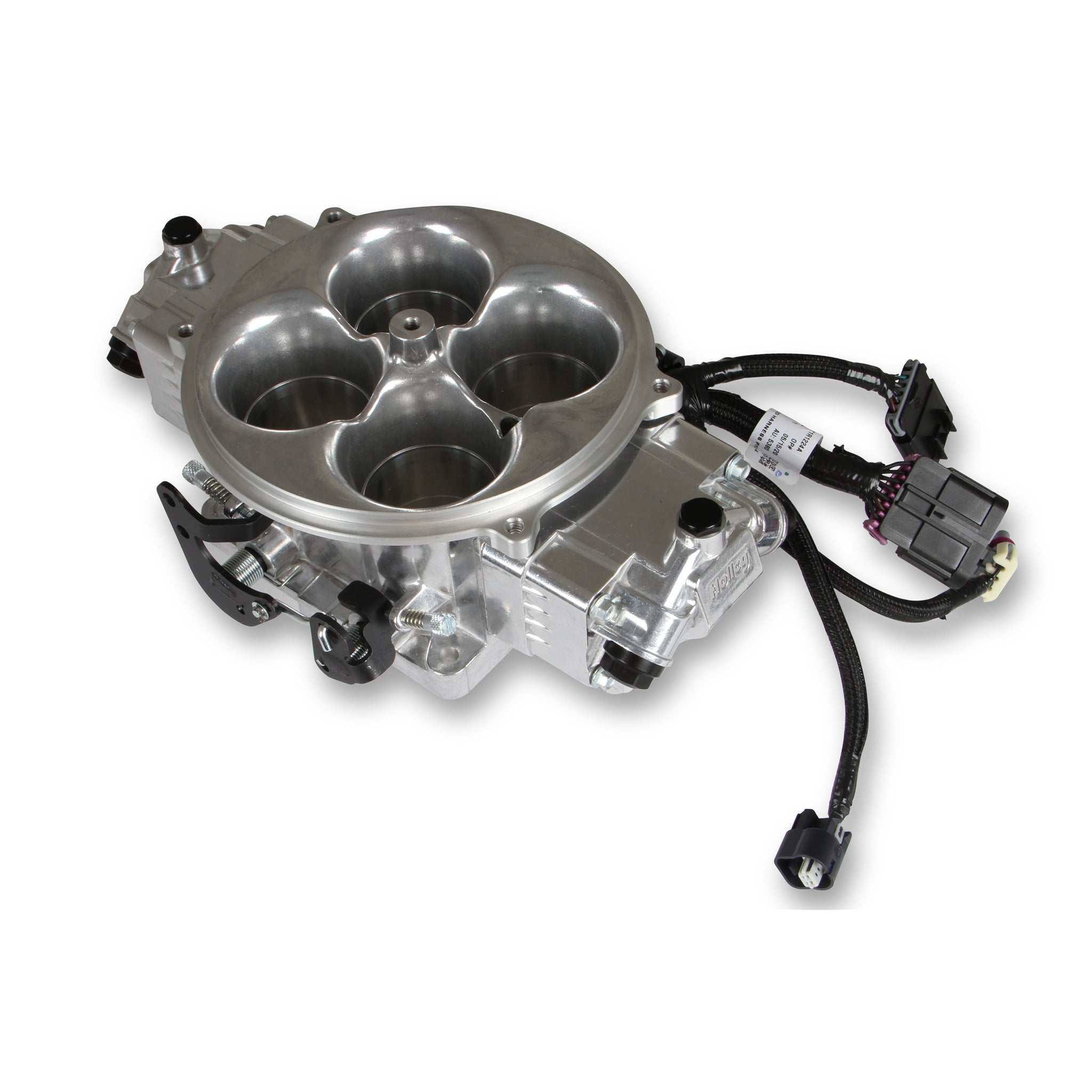

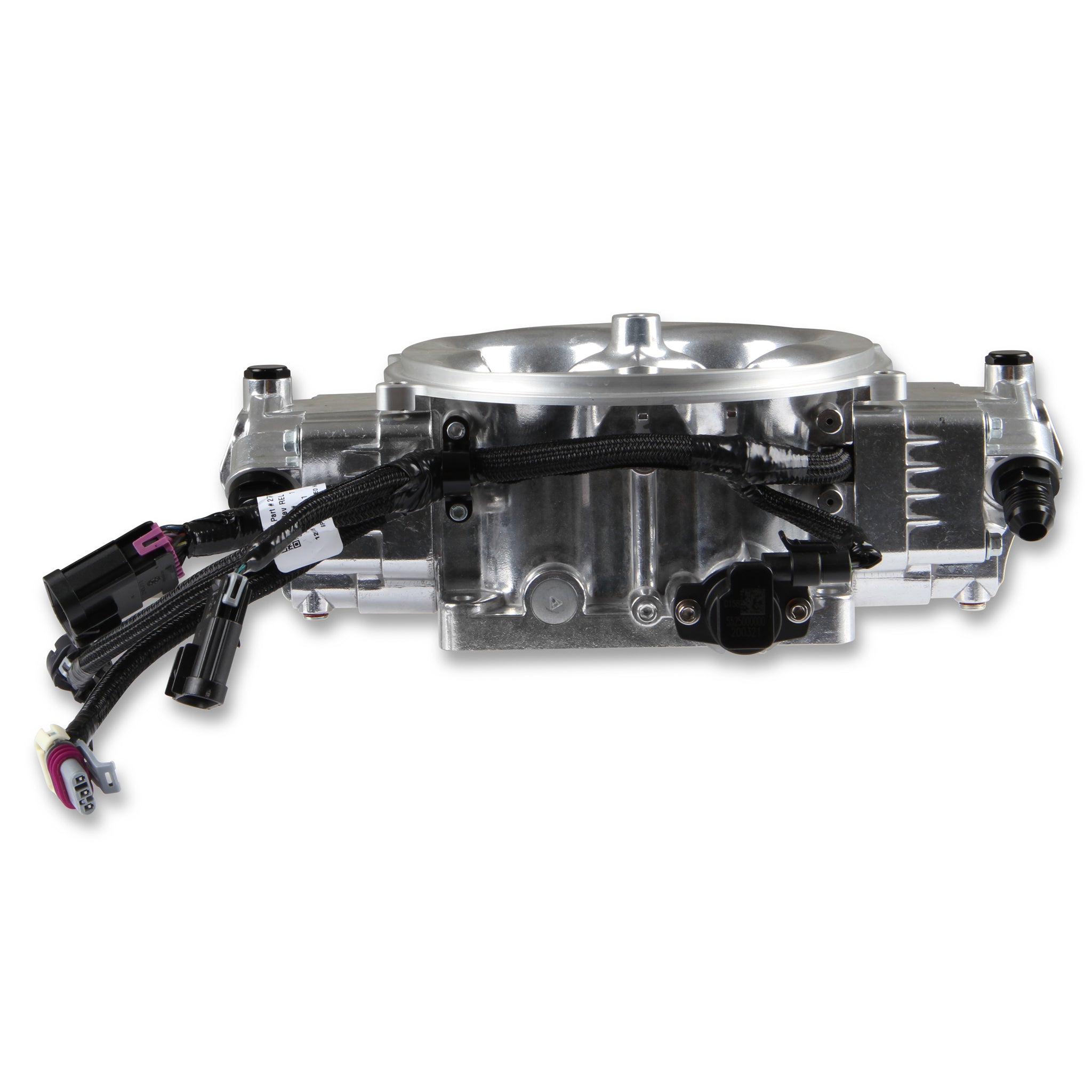

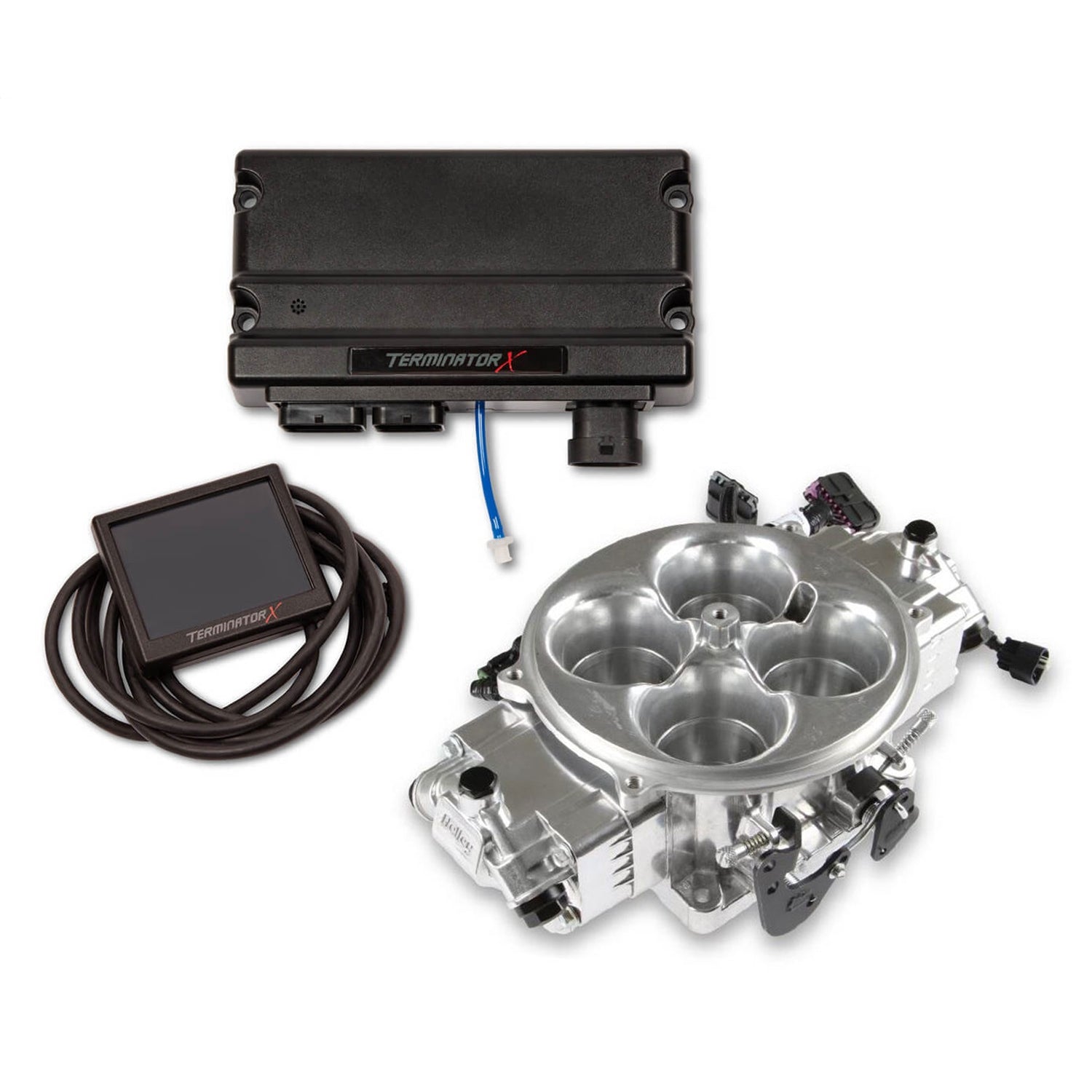

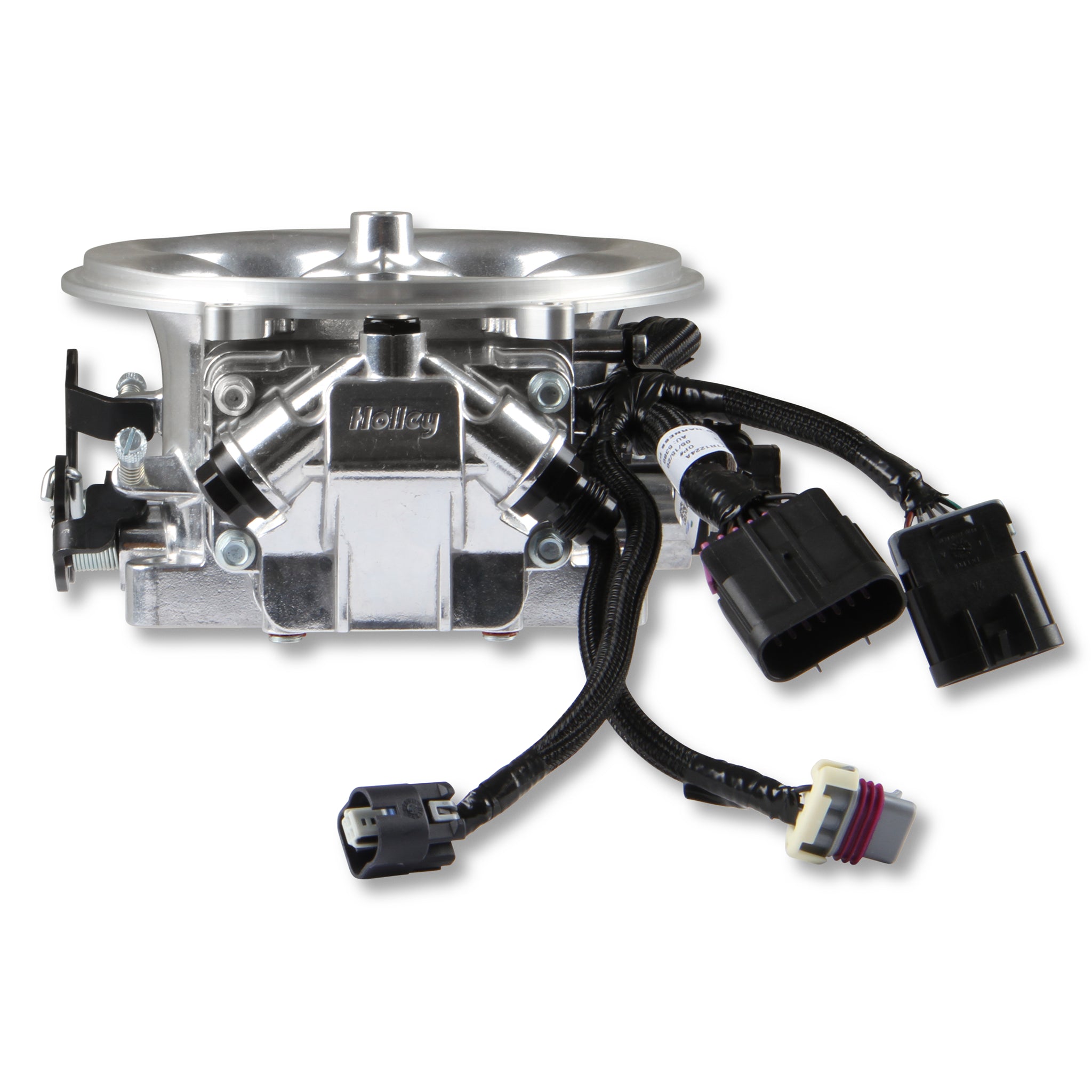

The Terminator X Stealth 4500 EFI system from Holley features 8, 100LB/HR Fuel Injectors capable of supporting up to 1500 HP naturally aspirated or 1250 HP on forced induction applications. The Terminator X ECU is capable of fuel map self-learning and ignition timing control, improving idle stability, drivability, and wide-open throttle horsepower! Designed to fit with Gen 3 Ultra Dominator air cleaners and fuel crossovers, allowing you to easily convert your 4500 equipped 800+ horsepower dragster or door car!
Specifications:
| Description_DEF |
Fuel Injection System |
| Description_DES |
Holley EFI Terminator X Stealth 4500 - Shiny |
| Description_EXT |
Terminator X Stealth 4500 System; 4500 Flange Carburetor Replacement; 8 100LB/HR Fuel Injectors; Shiny; |
| Description_INV |
TERMINATOR X STEALTH 4500, 8 INJ, SHINY |
| Description_FAB |
Bolt on 4500 Flange Carburetor Replacement |
| Description_FAB |
Supports up to 1500 HP Naturally Aspirated or 1250 HP Forced Induction with Eight 100 Lb/Hr Injectors |
| Description_FAB |

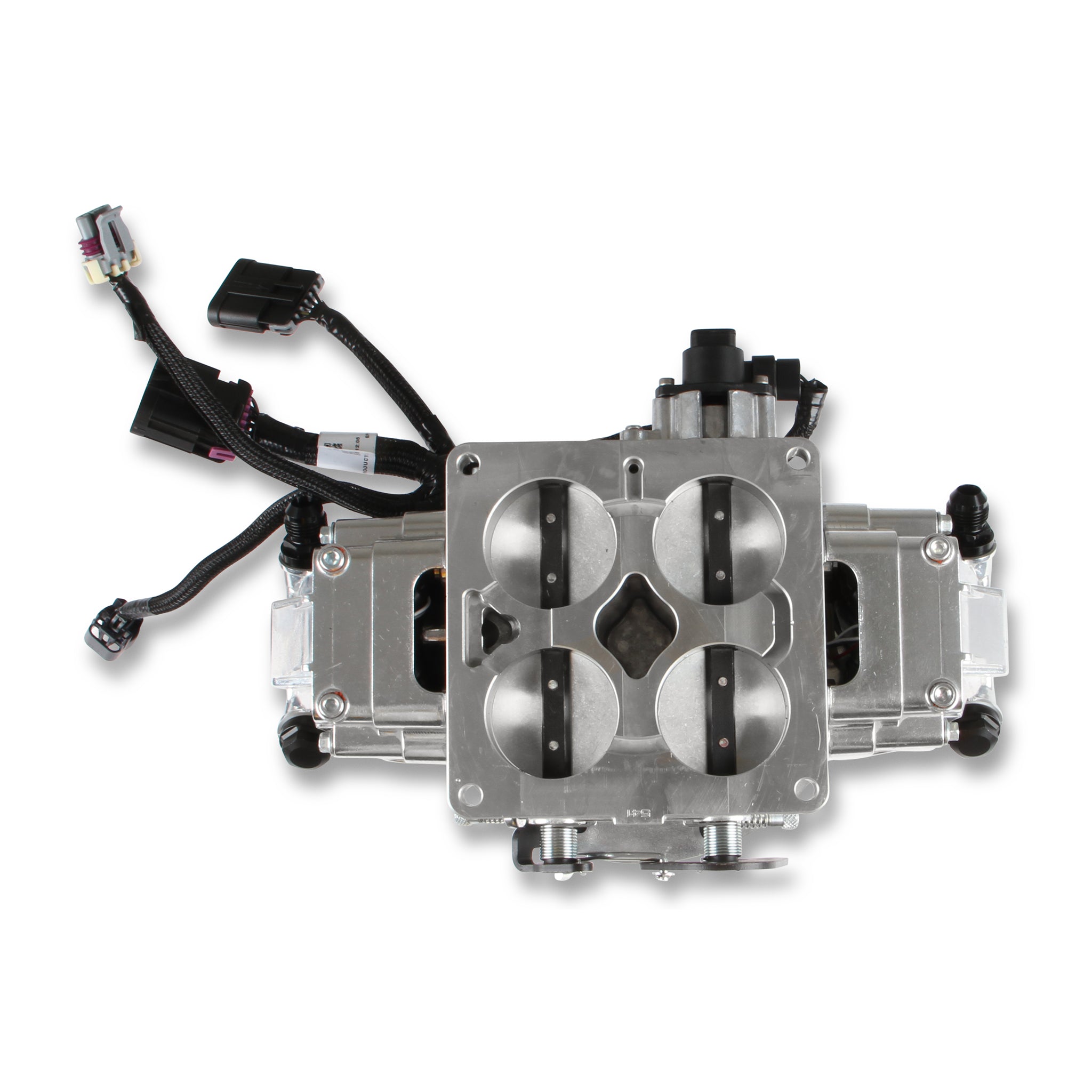

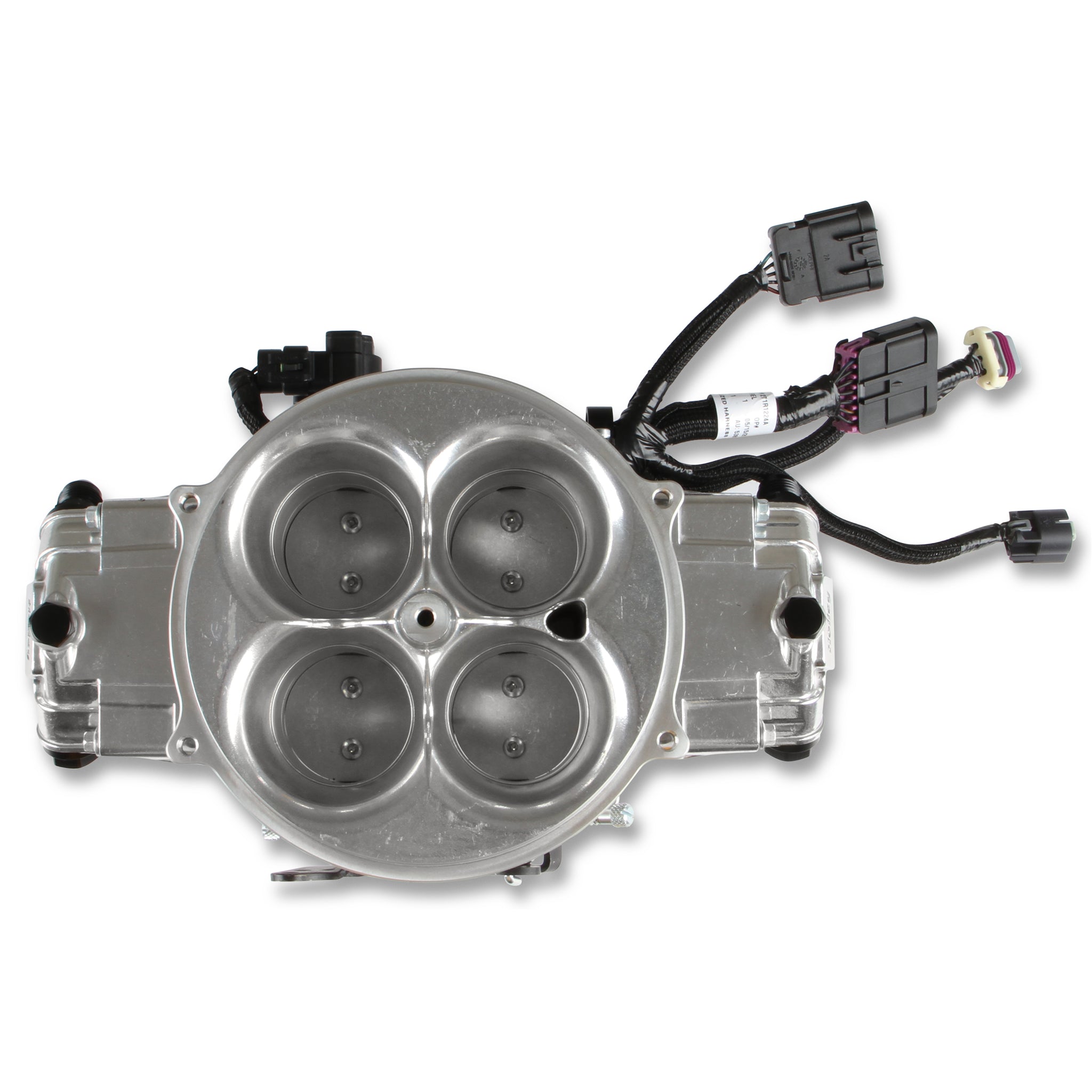

2.125" Throttle Plates, Flow 1440 CFM for large cubic inch engines |
| Description_FAB |
Gen 3 Ultra Dominator Style 4 Bolt Air Cleaner Flange offering a variety of air cleaner options |
| Description_FAB |
External fuel pressure regulator required, such as 12-848 |
| Description_FAB |
Integrated ignition timing control |
| Description_FAB |
High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays |
| Description_FAB |
Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required! |
| Description_FAB |
Self-tuning ECU means you don't have to be a computer/tuning wiz to have EFI! |
| Description_FAB |

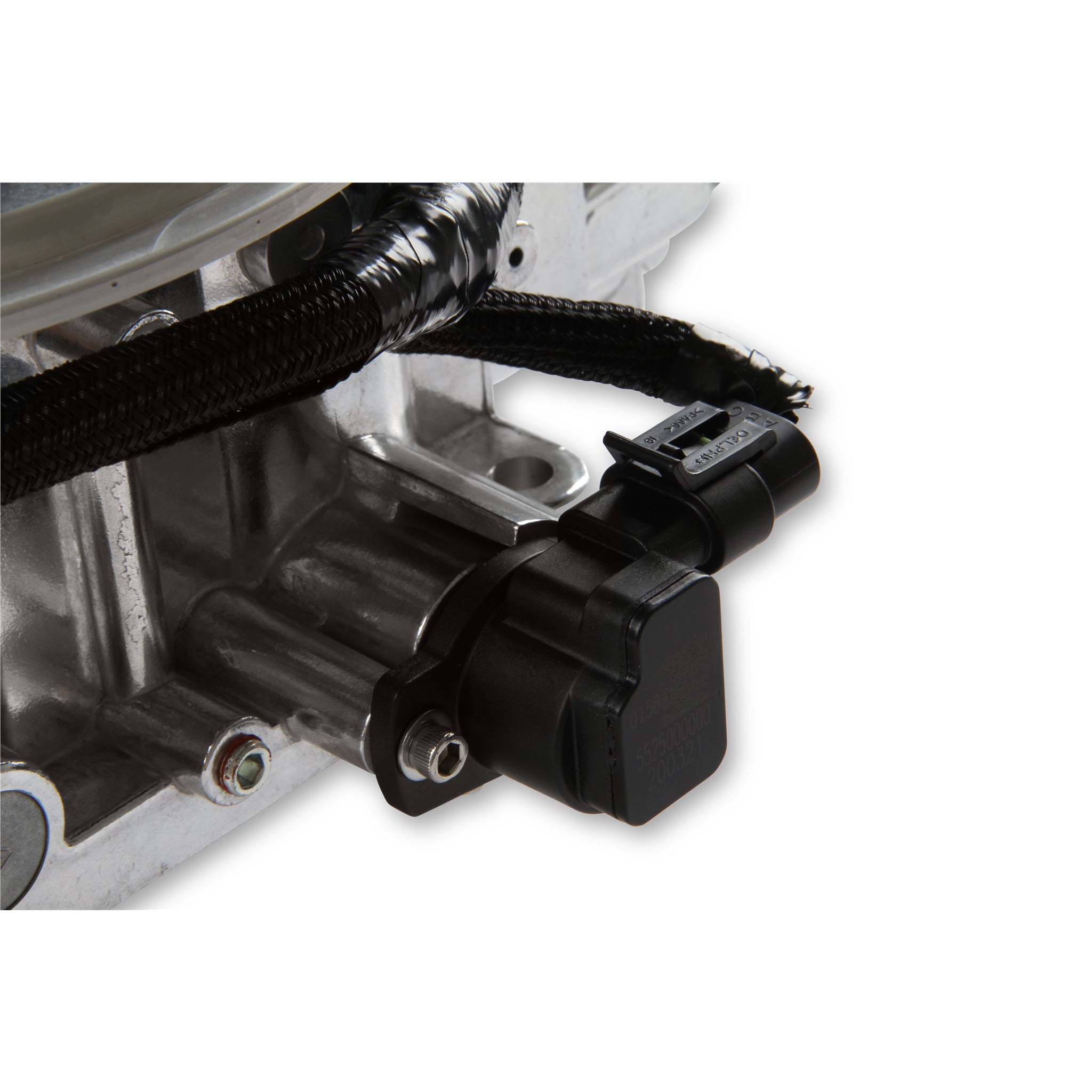

OEM Style TPS/IAC, for years of dependable service. |
| Description_FAB |
Included weld-in O2 sensor bung for the exhaust ensures a leak free oxygen sensor installation |
| Description_FAB |

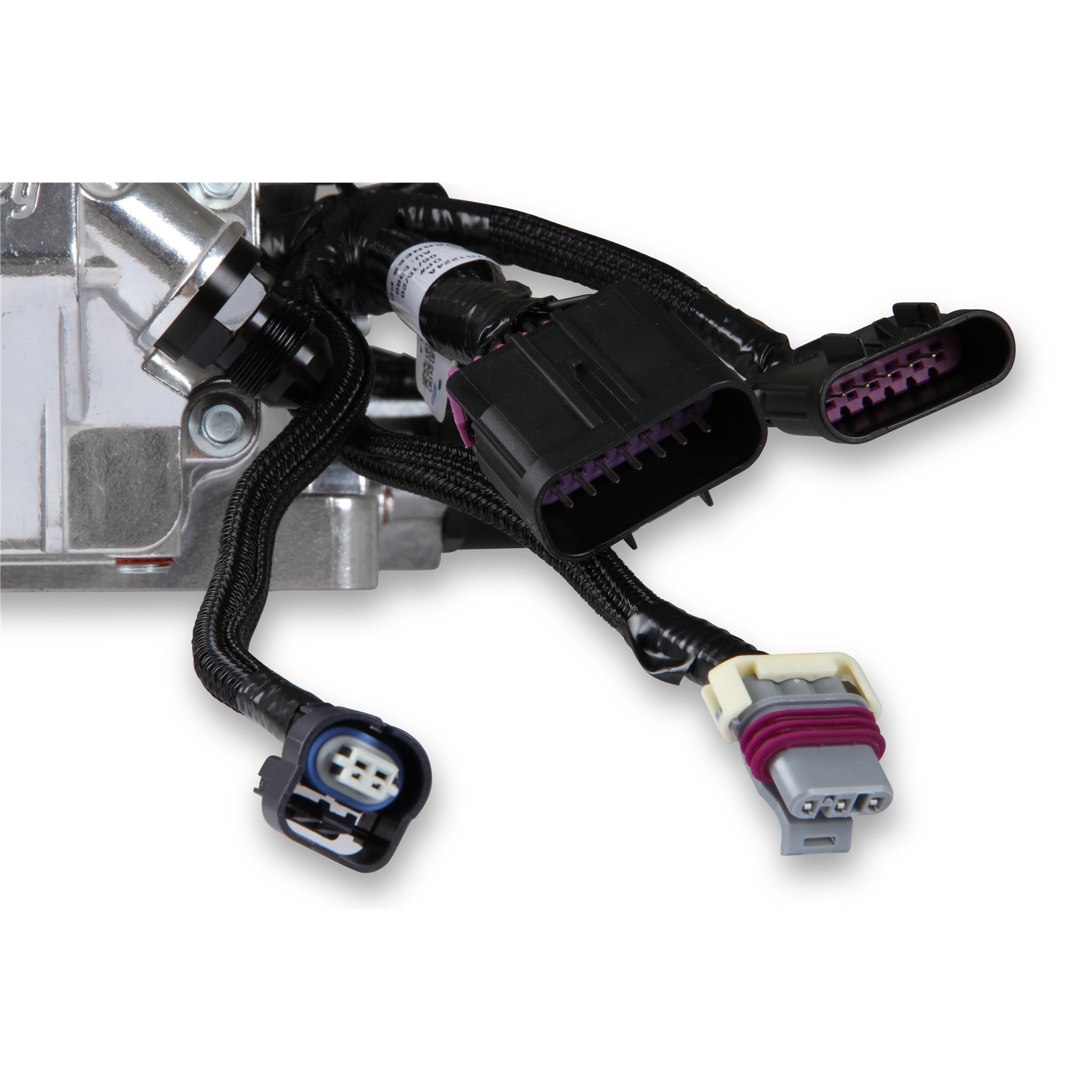

Built in 1bar MAP Sensor, vacuum hose adapters included (1/8th - ┬╝ and 3/16ths) - or for Boosted applications, you can disable the internal MAP sensor, and utilize an external MAP Sensor, the harness comes with the connector terminated, making the install |
| Description_FAB |
Plug and play with Holley EFI Accessories, such as the 12.3" and 6.86" Pro Dash; CAN EGT; and Digital Analog style EFI gauges |
| Description_FAB |
Available in 2 finishes, Shiny and Black |
| Description_MKT |
The Terminator X Stealth 4500 EFI system from Holley features 8, 100LB/HR Fuel Injectors capable of supporting up to 1500 HP naturally aspirated or 1250 HP on forced induction applications. The Terminator X ECU is capable of fuel map self-learning and ignition timing control, improving idle stability, drivability, and wide-open throttle horsepower! Designed to fit with Gen 3 Ultra Dominator air cleaners and fuel crossovers, allowing you to easily convert your 4500 equipped 800+ horsepower dragster or door car! |
| Description_SHO |
FuelInjSystm |
| Injector Size |
100 lb/hr @ 58.5 PSI |
| Inlet / Outlet Size |

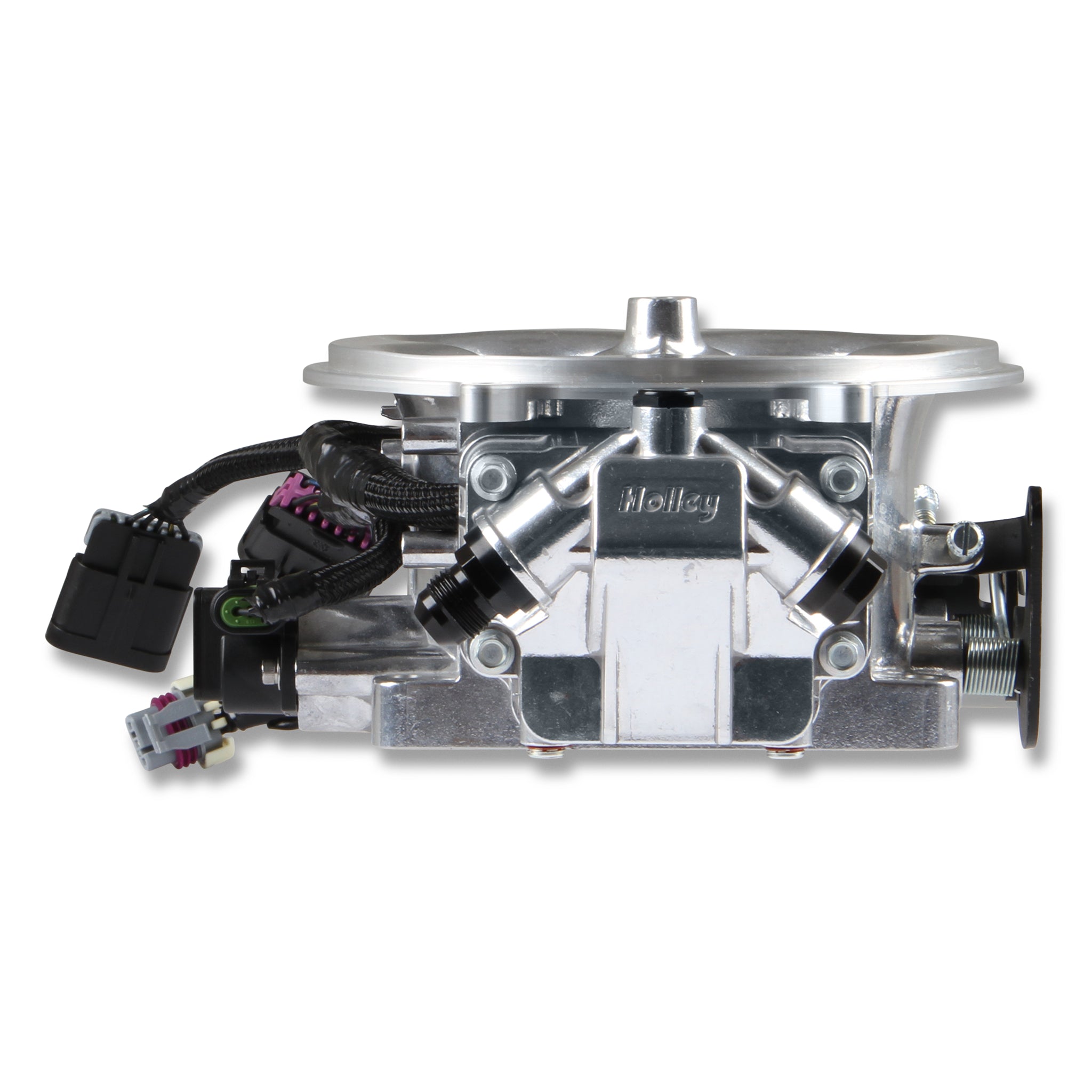

8AN |
| Flange Style |
Dominator |
| WARNING CA Proposition 65 |
Yes |
| CFM |
1440 |
| Brand |
Holley EFI |
| Warning |
California Proposition 65 |
| Handheld Included |
Yes |
| MAP Sensor |
1bar |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Finish |
Shiny |
| Fuel Rate |
100 lbs./hr |
| Emission Code |
3 |
| Product Type |
EFI System |
| Color |
Shiny |
| Flange Size |
4500 |
| Fuel Pressure |
58.5 PSI |
| Ignition Type |
Universal |
| Max Horsepower Rating |
1500 |
| Terminator LS Options |
Fuel, Spark |
| Throttle Bore |
2.125 in. |
| Length |
10.0000 |
| Width |
15.0000 |
| Height |
27.0000 |
| Weight |
23.0000 |
