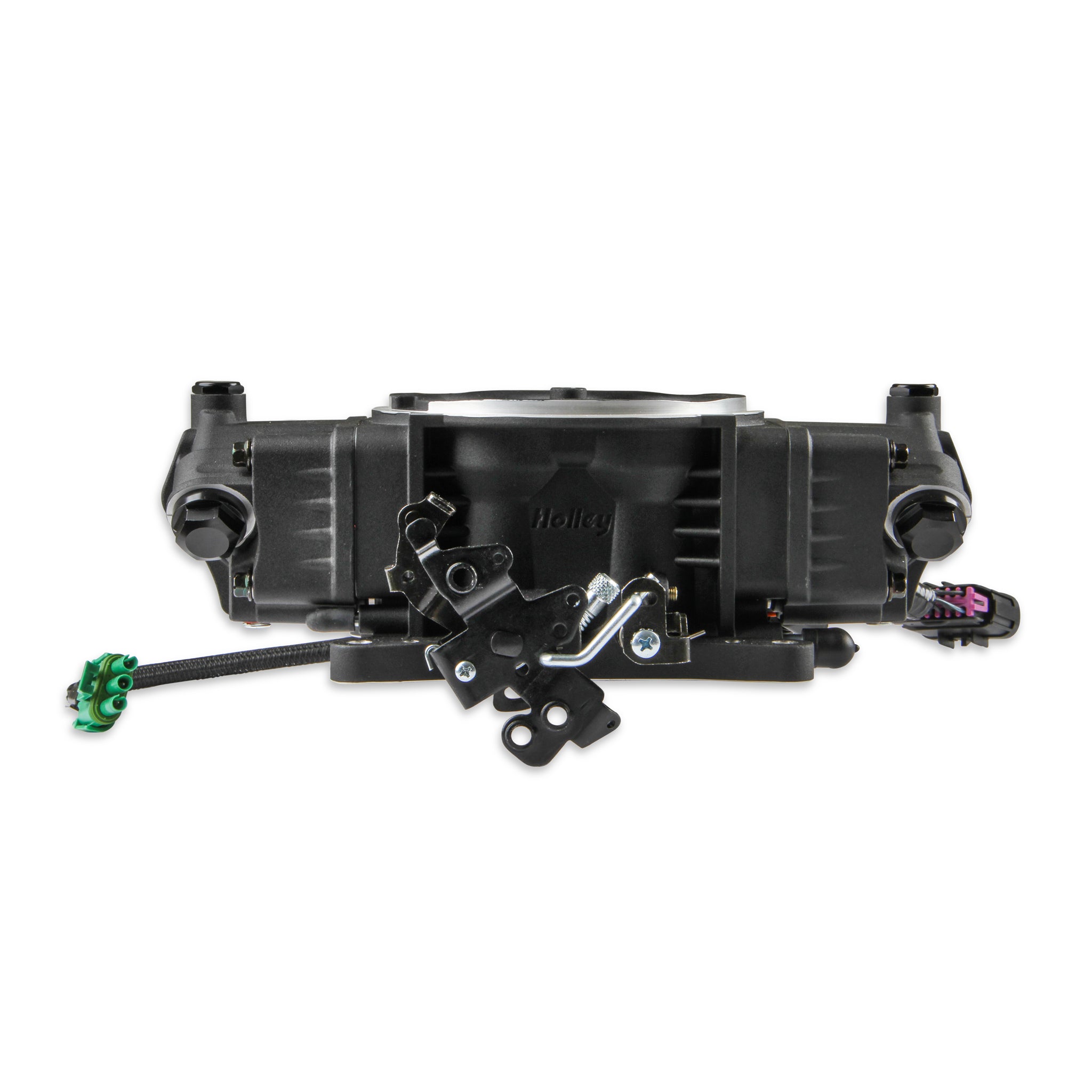

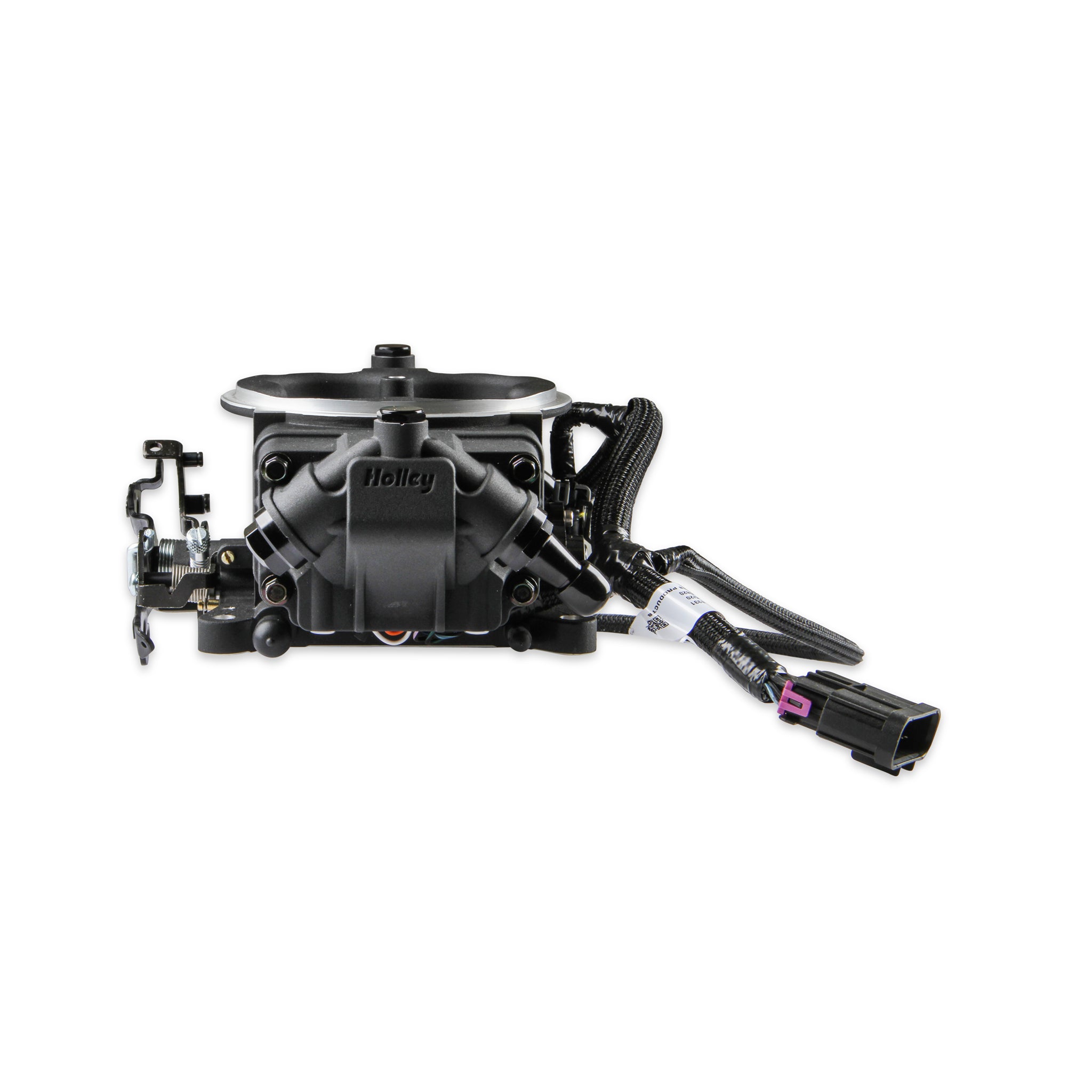

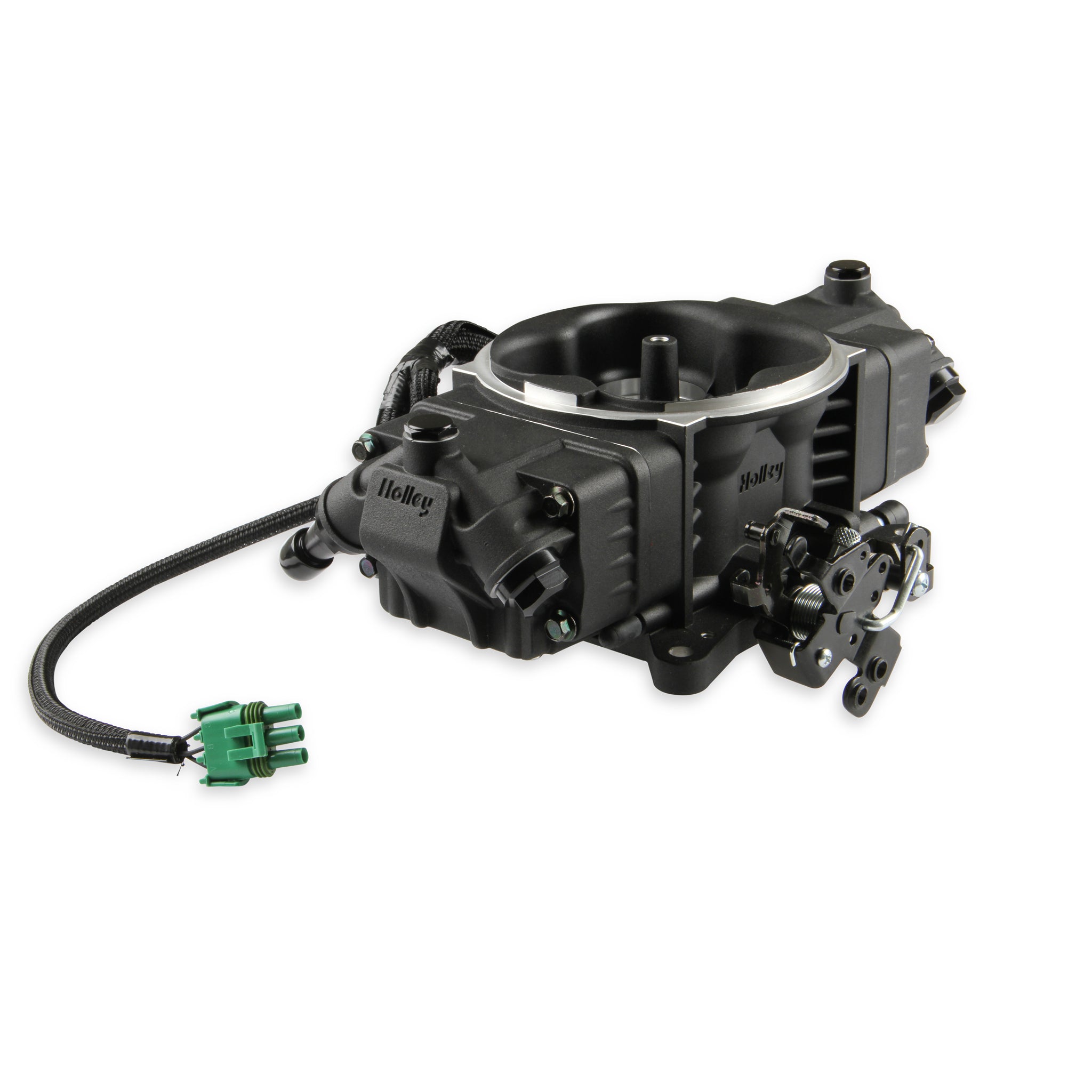

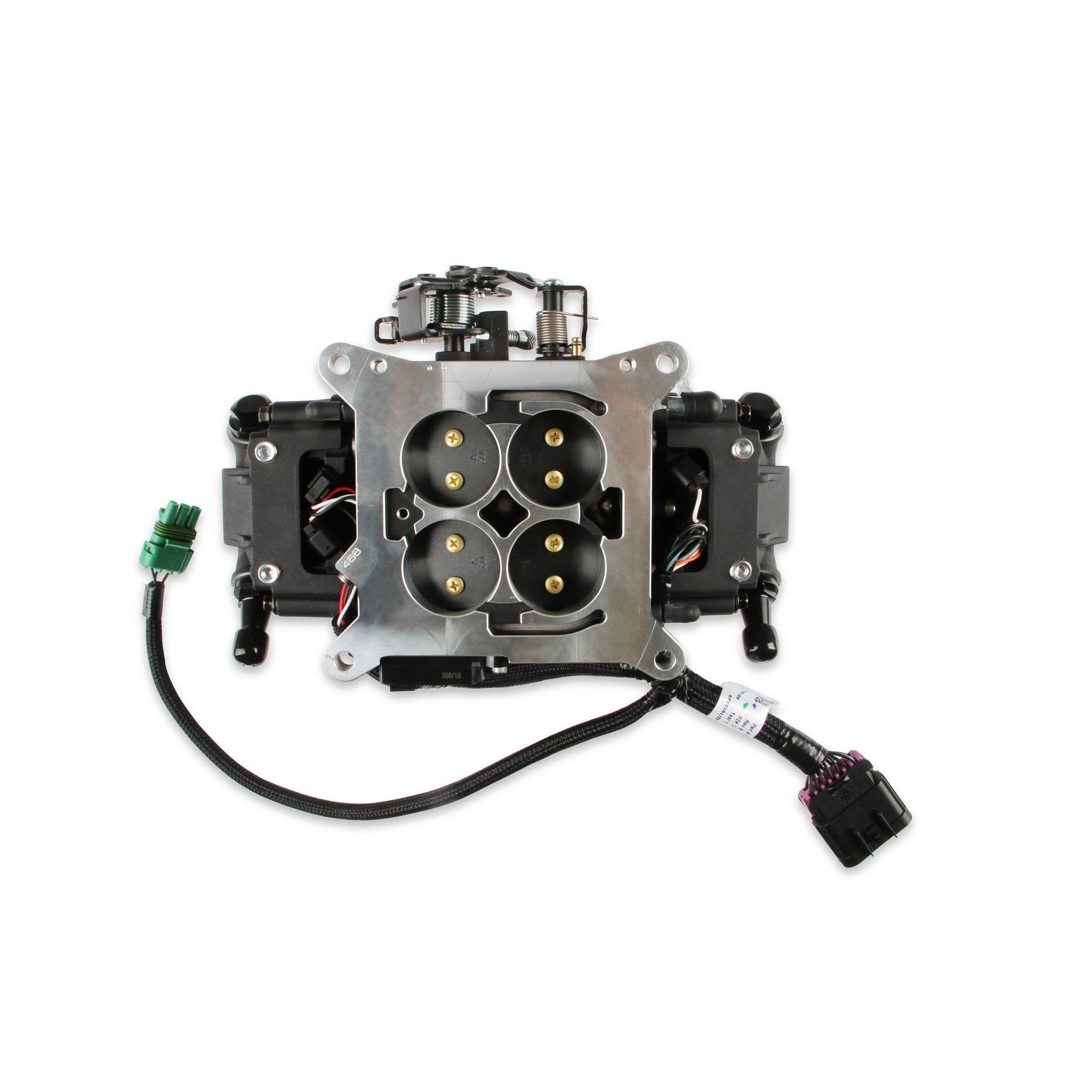

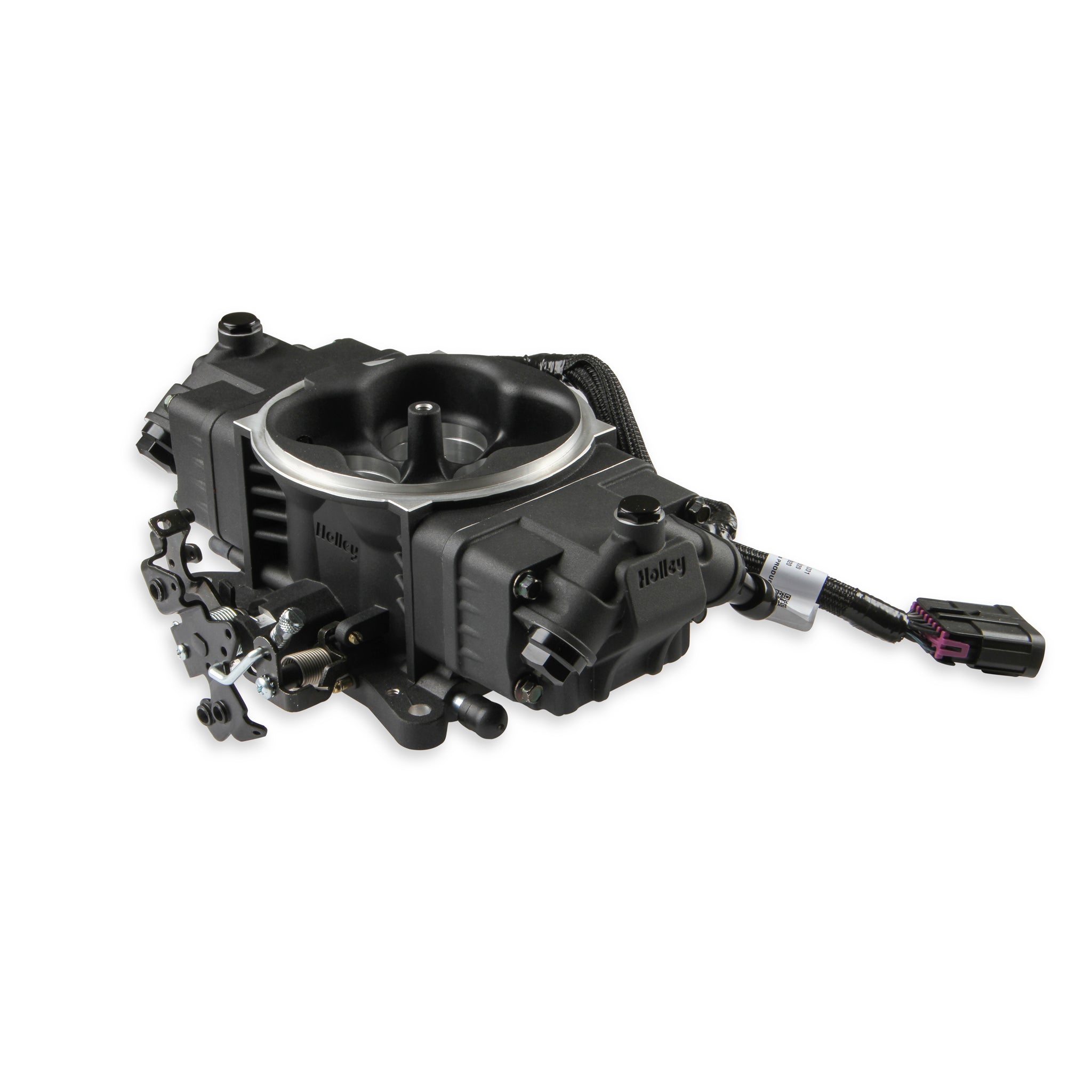

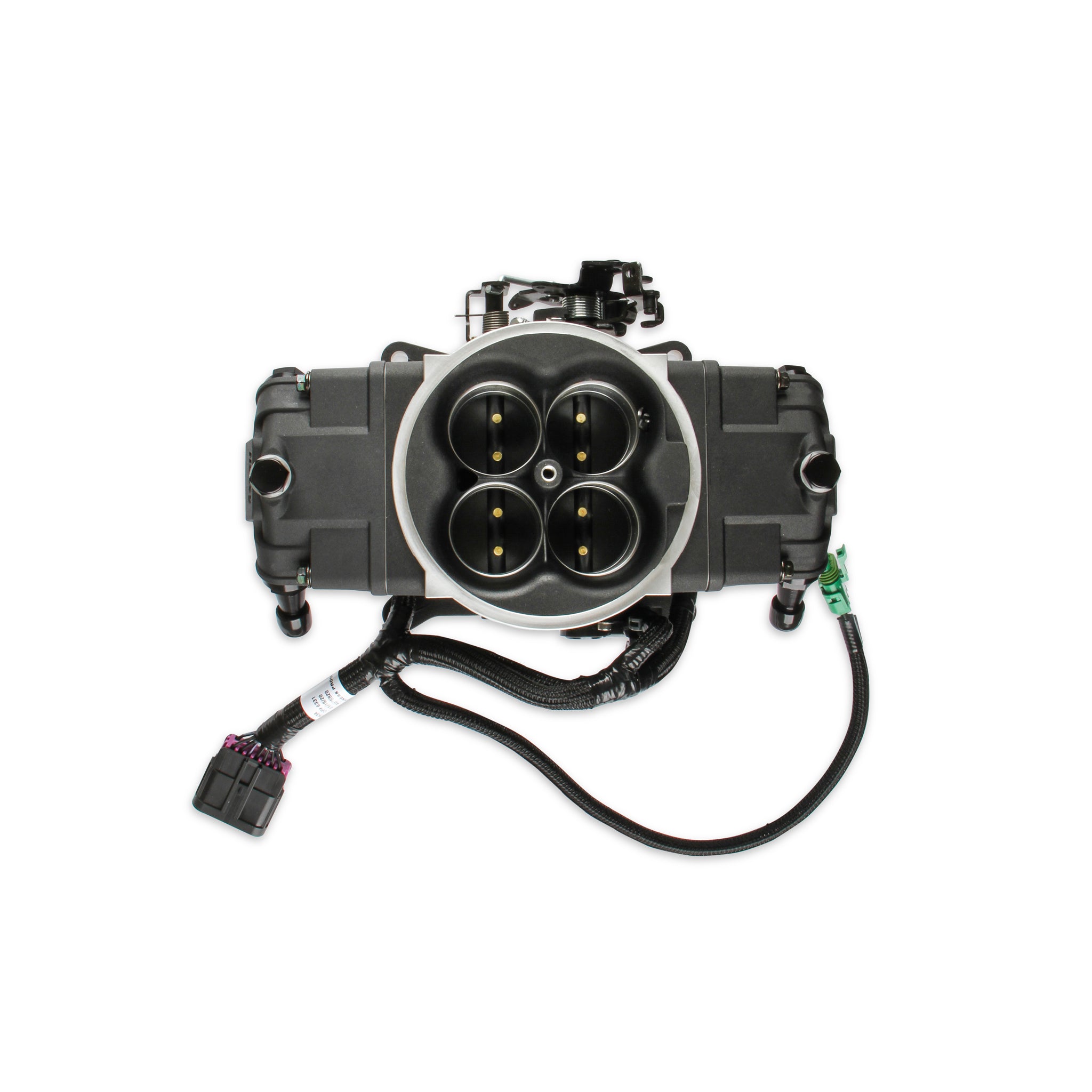

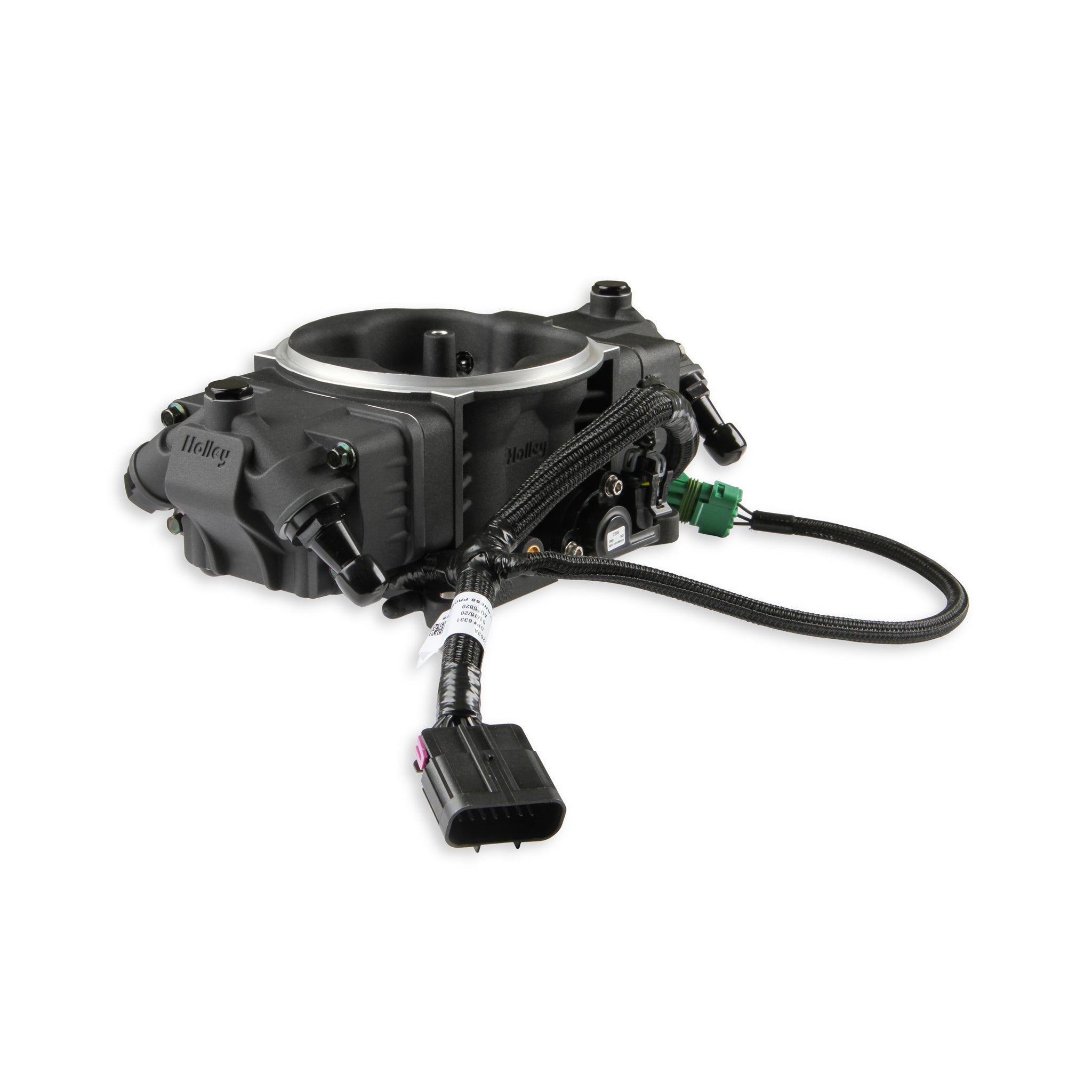

The Terminator X Stealth 4150 1250HP EFI system from Holley features 8, 100LB/HR Fuel Injectors capable of supporting up to 650 HP naturally aspirated or 1250 HP on forced induction applications. The Terminator X ECU is capable of fuel map self-learning and ignition timing control, improving idle stability, drivability, and wide-open throttle horsepower! Did we mention that the Stealth 4150 also includes transmission kick down provisions for GM TH350/400, 200R4/700R4 and Ford C4/C6 applications Terminator X Max Stealth 4150 kits provide transmission control for Pre-2009 GM 4L60E/4L80E Transmissions (Part numbers 550-1014, 550-1015, 550-1016)
Specifications:
| Description_ASC |
Not recommended for 4x4 applications with electronic transfer cases. Not compatible with 4L6X transmissions from model year 1995 or before due to year-by-year changes in converter lockup and downshift strategy. |
| Description_DEF |
Fuel Injection System |
| Description_DES |
Holley EFI Terminator X Max Stealth 4150 - Black |
| Description_FAB |
Bolt on 4150 Flange Carburetor Replacement |
| Description_FAB |
Supports up to 1250HP with eight 100lb/hr Injectors |
| Description_FAB |
Terminator X Max Stealth 4150 kits provide transmission control for Pre-2009 GM 4L60E/4L80E Transmissions (Part numbers 550-1014, 550-1015,550-1016) |
| Description_FAB |
Internal 1bar MAP sensor, built into the Terminator X ECU. |
| Description_FAB |

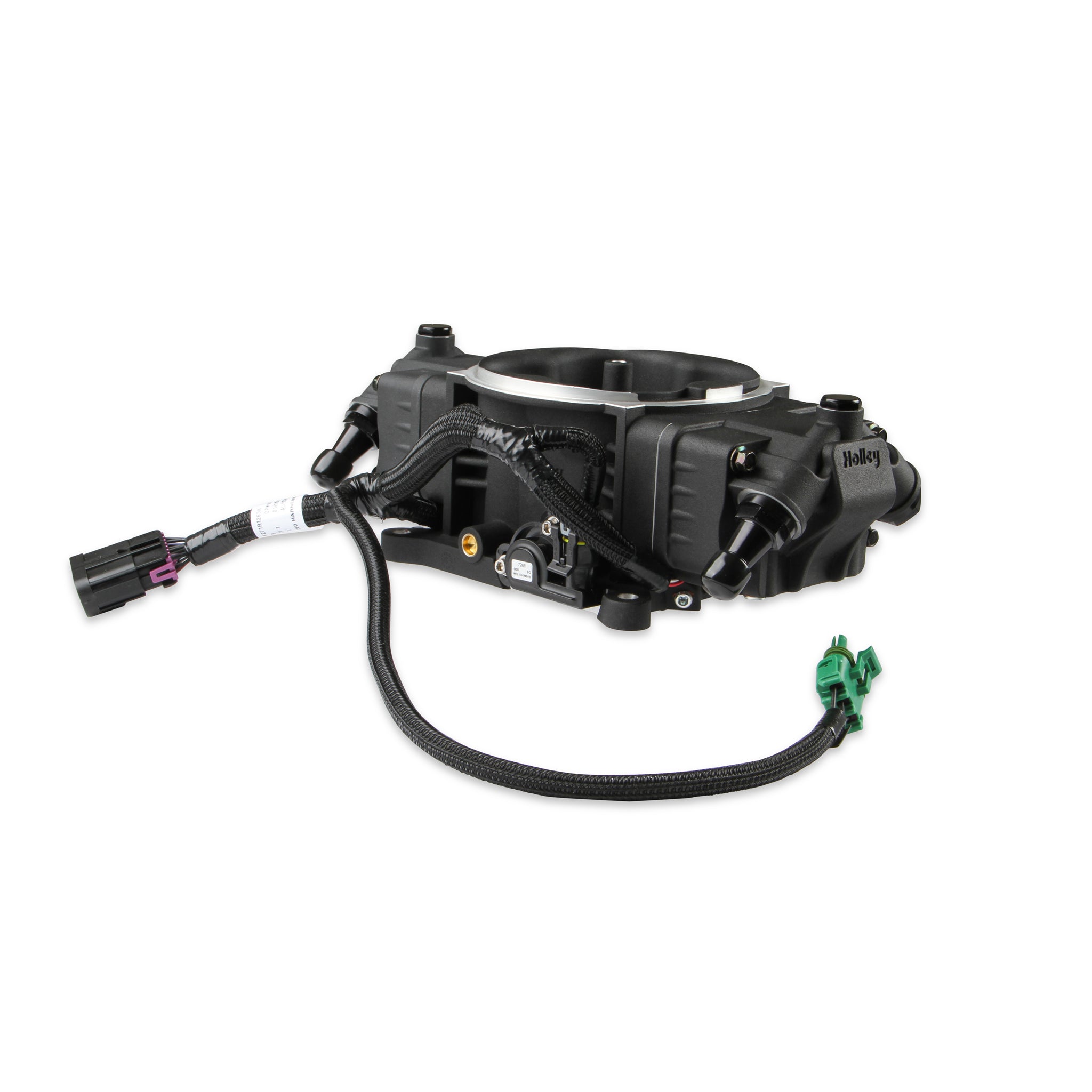

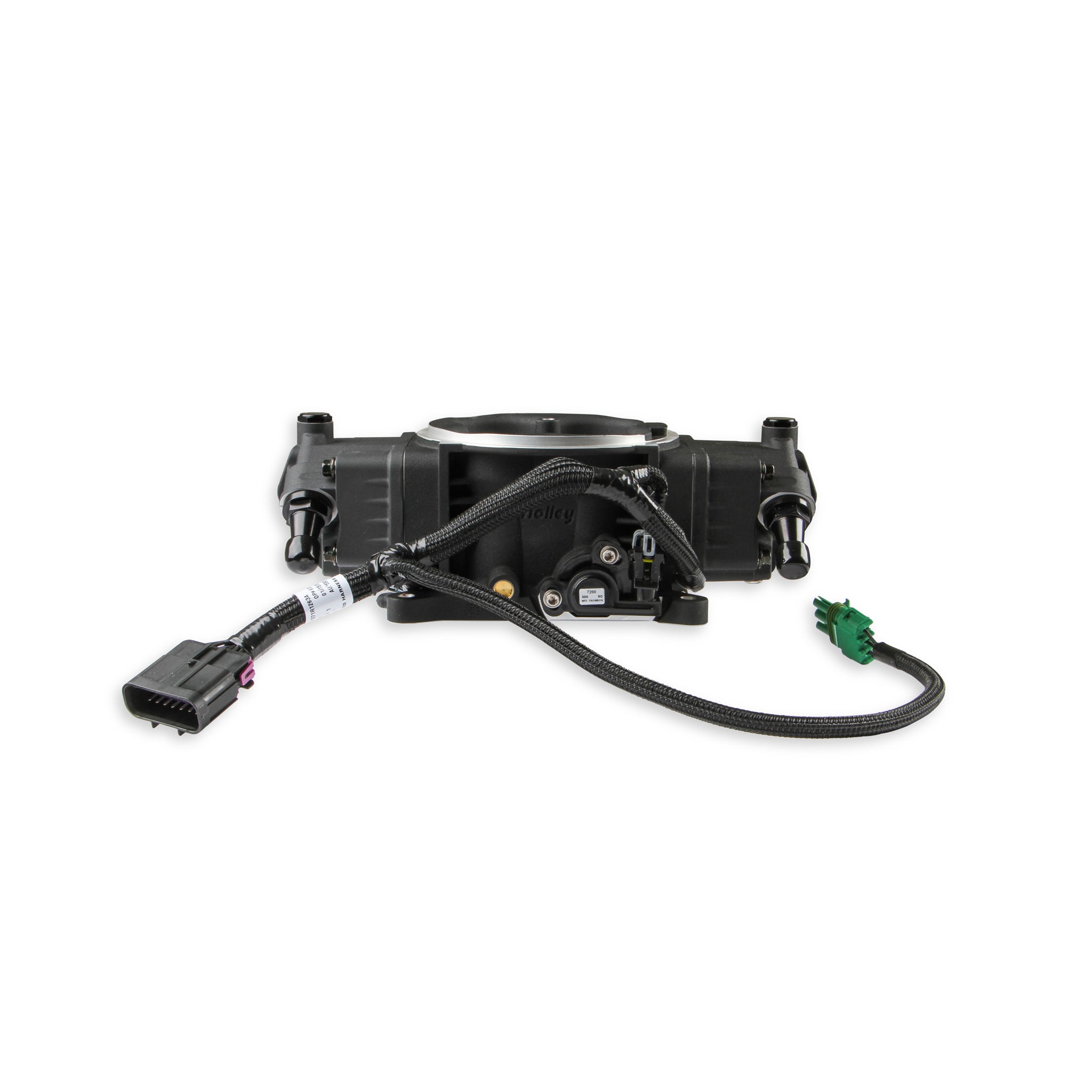

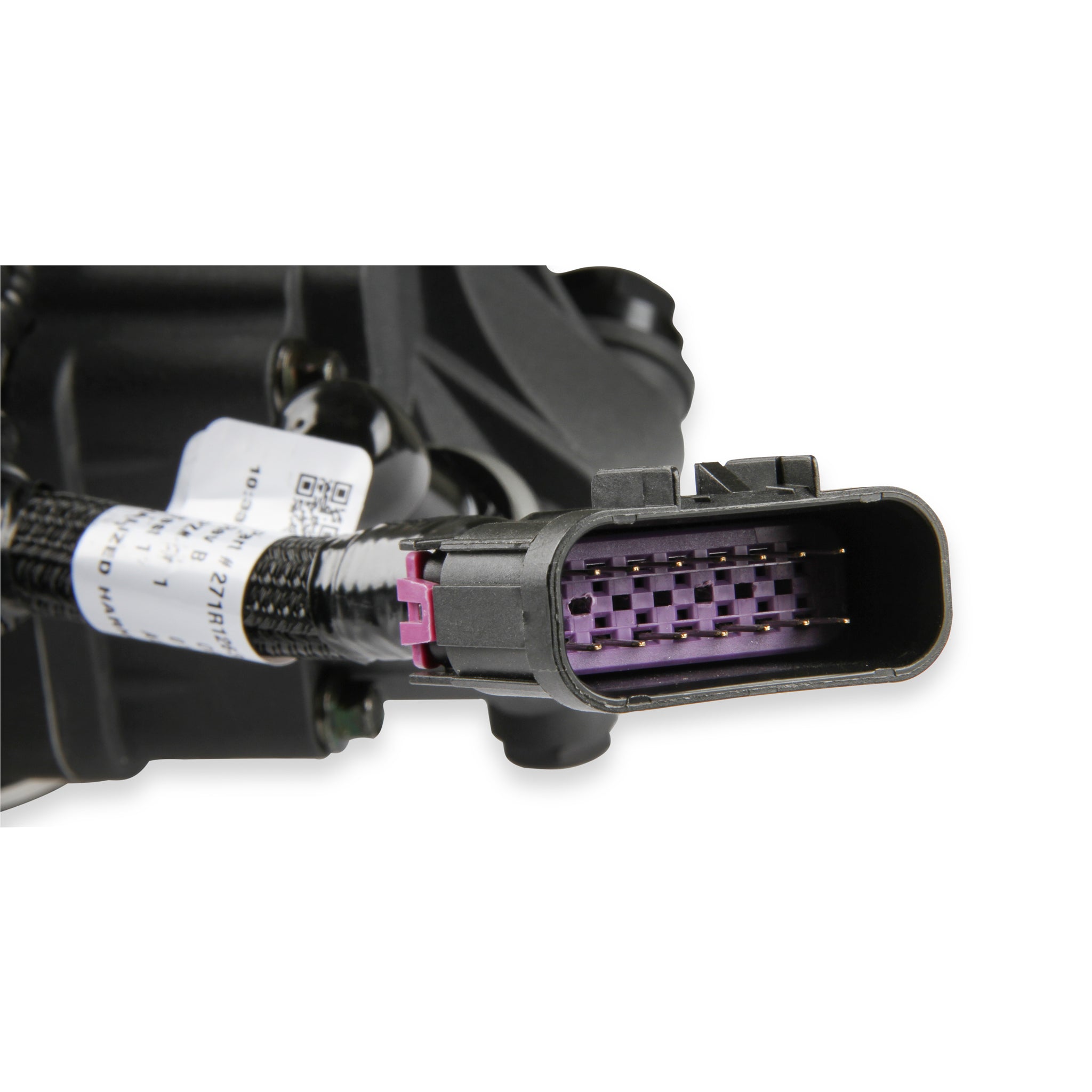

All of the wiring exits below the rear fuel injector cover, for a completely stealth installation |
| Description_FAB |
Timed spark part for vacuum advanced distributors located under the front fuel bowl, for easy access to the distributor |
| Description_FAB |
Air entry is machined to fit most stock style air cleaners with air cleaner locator provisions |
| Description_FAB |
External fuel pressure regulator required, set to a base pressure of 58.5 PSI, such as Holley part # 12-886 |
| Description_FAB |
Integrated ignition timing control improves idle stability, fuel economy, and wide open throttle performance |
| Description_FAB |

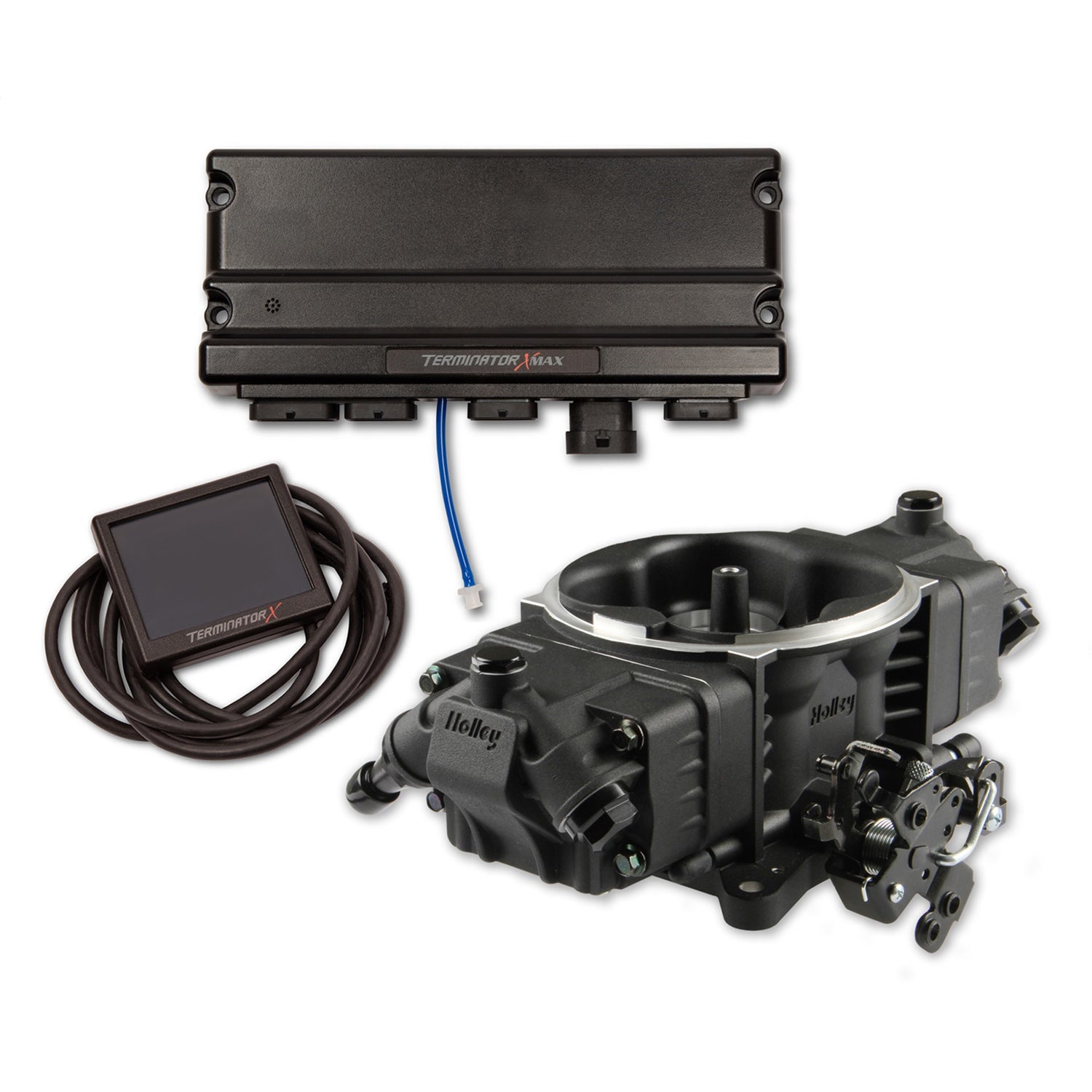

High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays |
| Description_FAB |
Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required |
| Description_FAB |
The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real-time Fuel Map Learn |
| Description_FAB |
OEM Style TPS/IAC for years of dependable service |
| Description_FAB |
Available in 3 finishes: Shiny, Black, and Gold |
| Description_MKT |
The Terminator X Stealth 4150 1250HP EFI system from Holley features 8, 100LB/HR Fuel Injectors capable of supporting up to 650 HP naturally aspirated or 1250 HP on forced induction applications. The Terminator X ECU is capable of fuel map self-learning and ignition timing control, improving idle stability, drivability, and wide-open throttle horsepower! Did we mention that the Stealth 4150 also includes transmission kick down provisions for GM TH350/400, 200R4/700R4 and Ford C4/C6 applications? Terminator X Max Stealth 4150 kits provide transmission control for Pre-2009 GM 4L60E/4L80E Transmissions (Part numbers 550-1014, 550-1015, 550-1016) |
| Description_EXT |
Terminator X Max Stealth 4150 System; Fits w/GM TH350/400/200R4/700R4 Trans And Control For Pre-2009 GM 4L60E/4L80E; 8 100LB/HR Fuel Injectors; Black; |
| Description_INV |
TERM X MAX STEALTH 4150,8INJ,BLACK,TRANS |
| Description_SHO |
FuelInjSystm |
| Emission Code |
3 |
| CFM |
950 |
| Handheld Included |
Yes |
| Ignition Type |
Universal |
| Fuel Rate |
100 lbs./hr |
| Finish |
Black |
| Brand |
Holley EFI |
| Color |
Black |
| Fuel Pressure |
58.5 PSI |
| Max Horsepower Rating |
1250 |
| Product Type |
EFI System |
| Terminator LS Options |
Fuel, Spark, Transmission |
| Throttle Bore |
1.75 in. |
| Transmission Model |
700R4/200R4 |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| WARNING CA Proposition 65 |
Yes |
| Flange Size |
4150 |
| Flange Style |
Squarebore |
| Injector Size |
100 lb/hr @ 58.5 PSI |
| Inlet / Outlet Size |
6AN |
| MAP Sensor |
1bar |
| Sale Category |
Air and Fuel Delivery |
| Transmission |
4L60E/4L80E |
| Warning |
California Proposition 65 |
| Length |
10.0000 |
| Width |
16.0000 |
| Height |
26.0000 |
| Weight |
22.0000 |
