Dress up and open up your ZL1, CTS-V, or ZR-1 with Holley Hi-Flow Fuel rails. The bright dip, black anodized rails come with laser etched EFI logo for long-lasting good looks and are a direct replacement for the rails on the factory blower or any other supercharger that was designed to use OEM rails. For perfect sealing, the 534-285 kit has been machined to accept -8 (3/4-16) ORB ports which use O-ring fittings. But, to utilize your factory fuel line quick-connect, just add P/N 534-211 adapter kit for a quick and easy install.
Specifications:
| Description_ASC |
NOTE: System fuel pressure must be relieved before proceeding with disassembly. Refer to the vehicle service manual for procedures and precautions.
SPECIAL TOOL REQUIRED: 3/8" Quick-Connect Release Tool to disconnect the factory fuel line (these are inexpensive and available at the local auto parts store). |
| Description_DES |

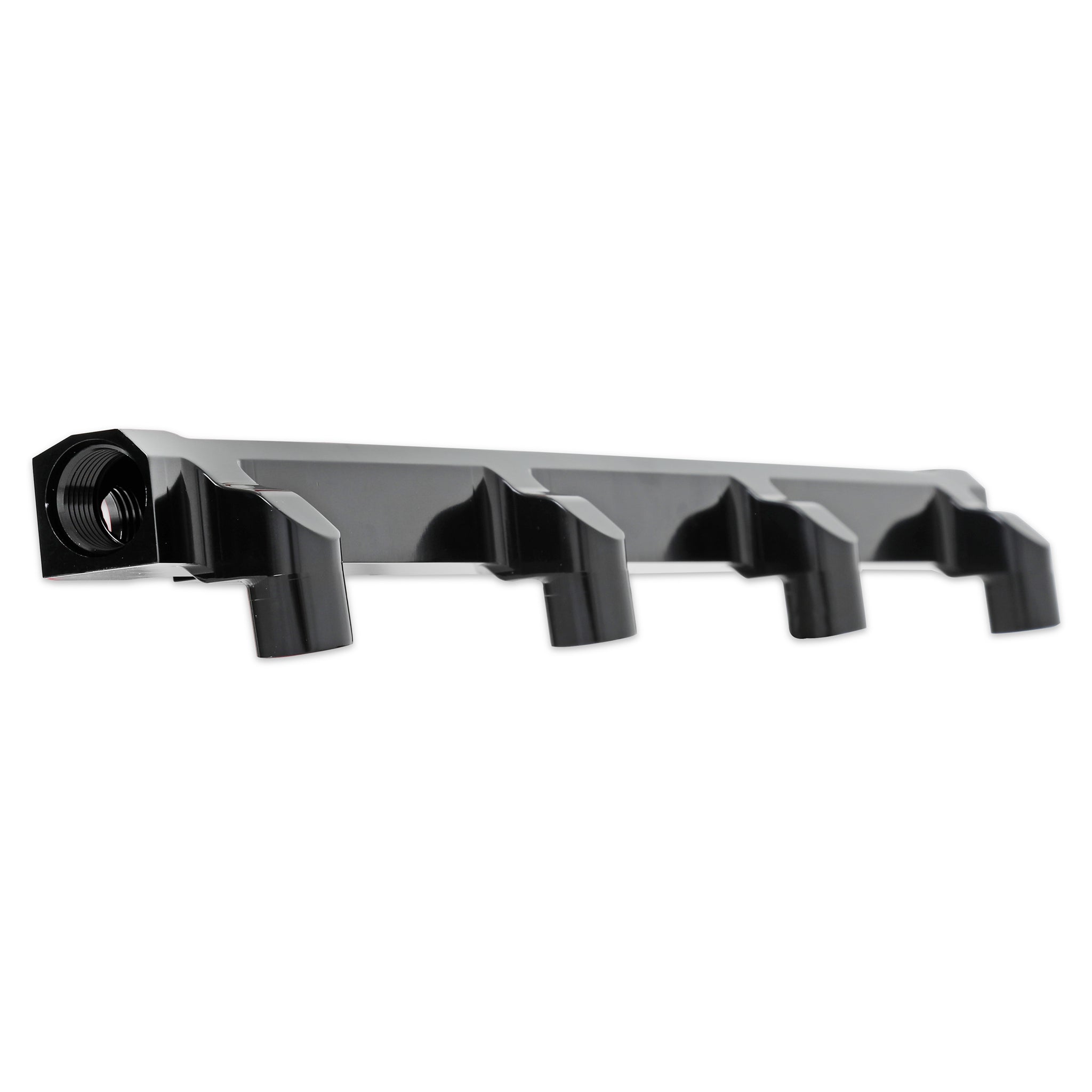

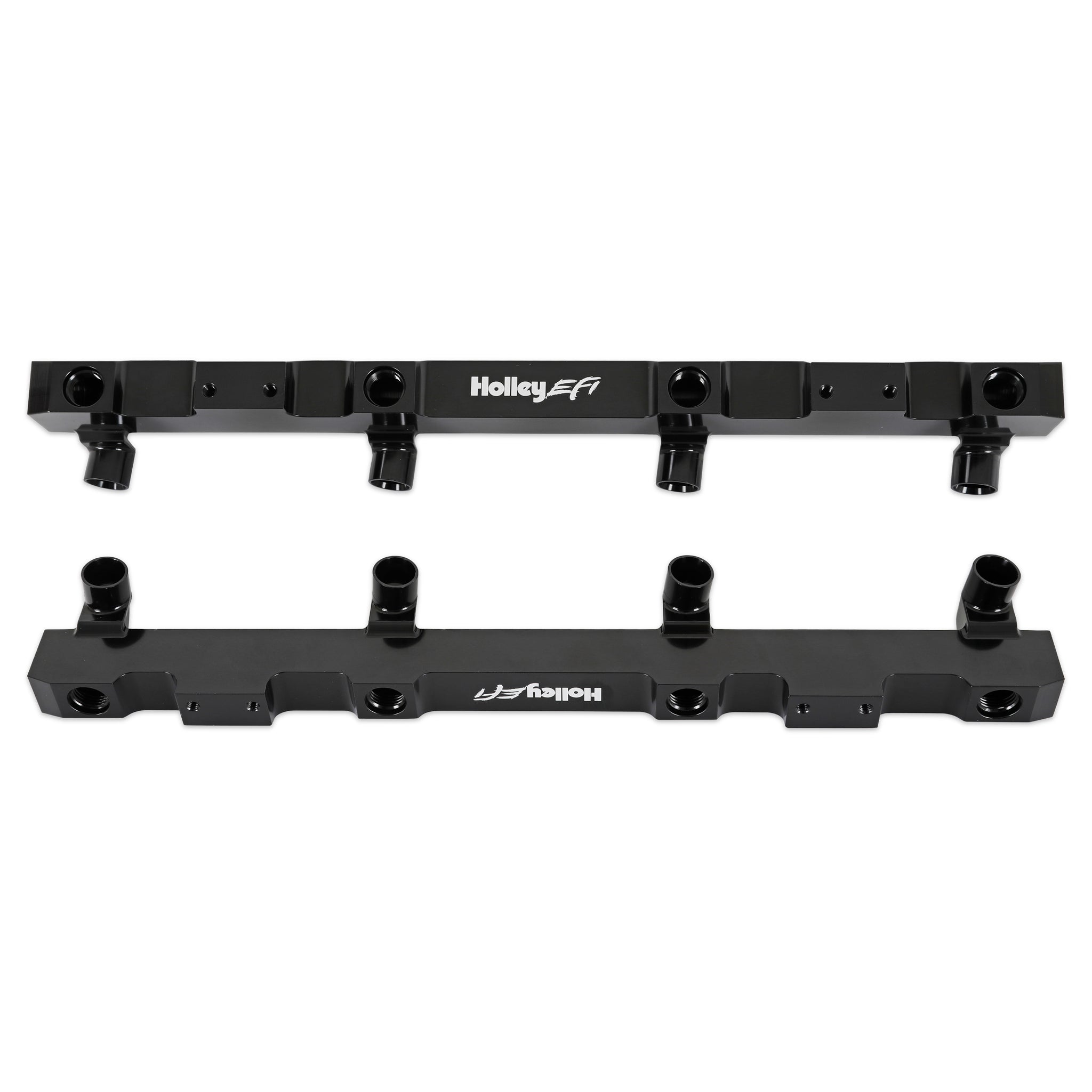

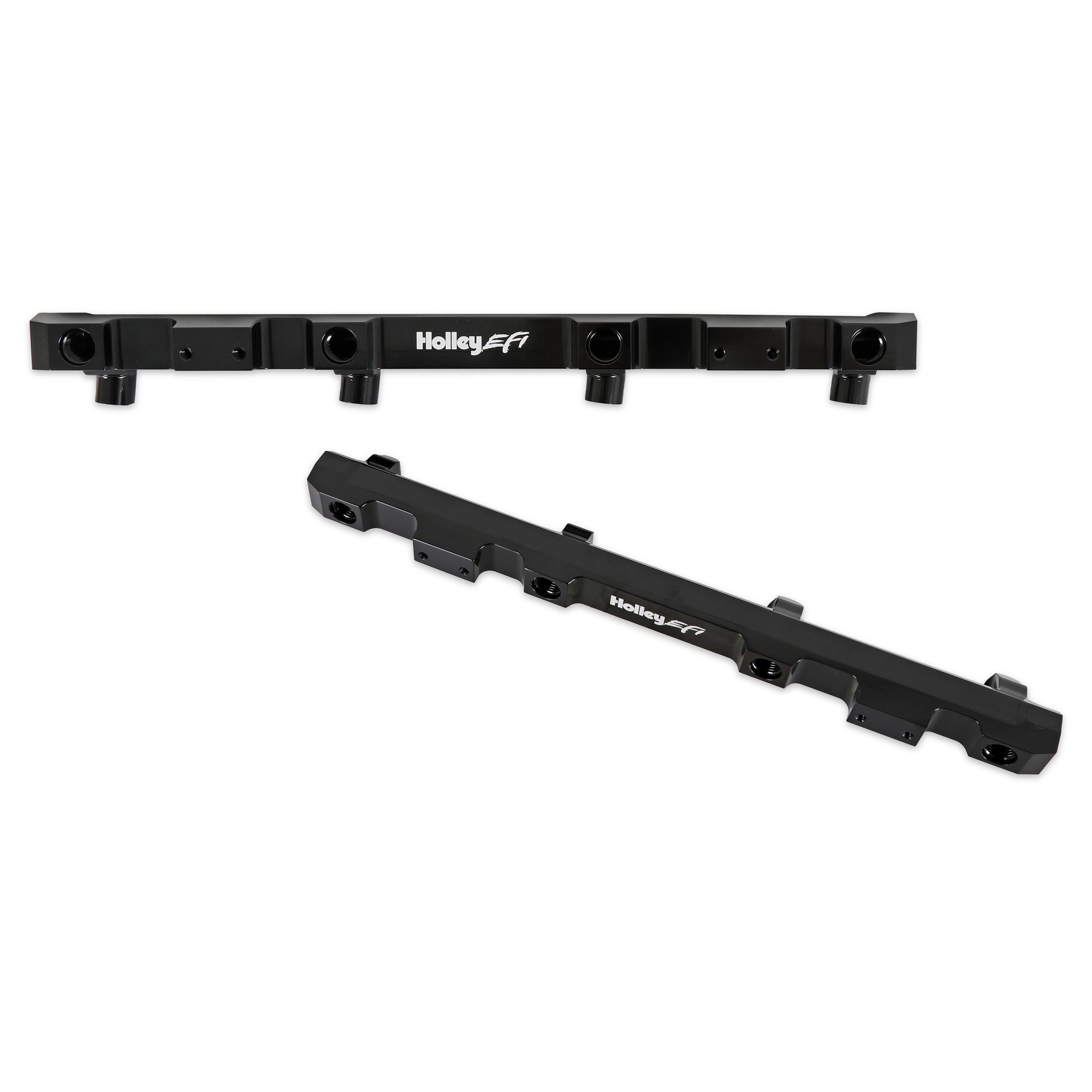

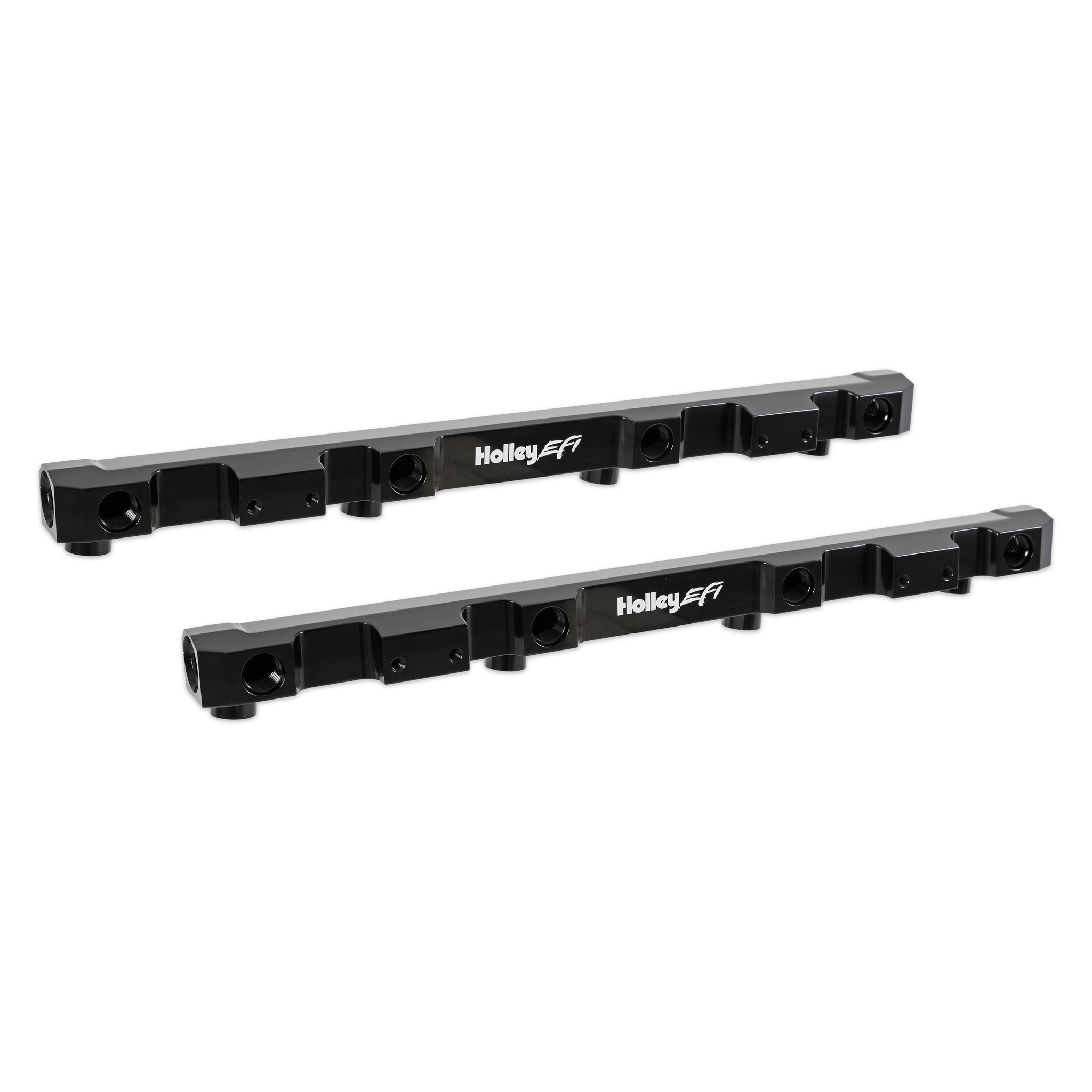

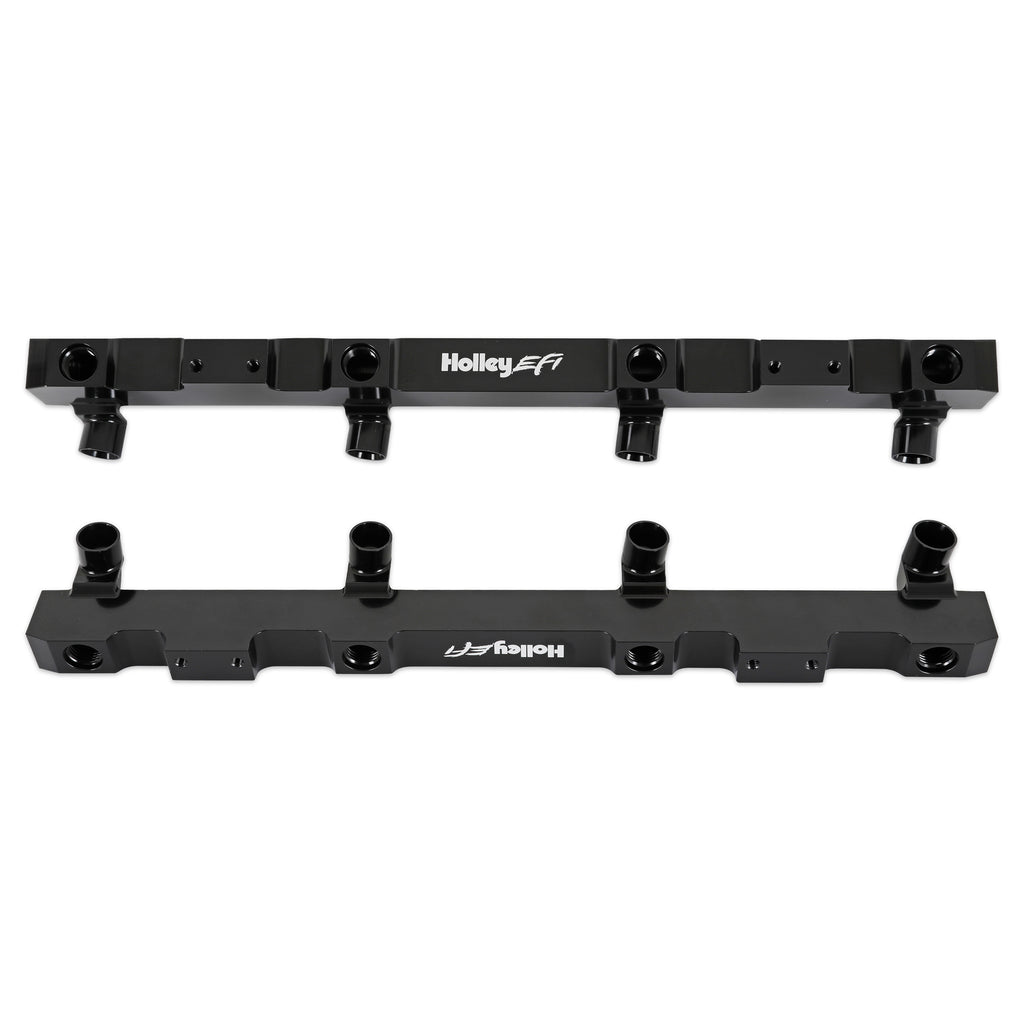

Billet Fuel Rail Kit - LSA and LS9 |
| Description_INV |
BILLET FUEL RAILS LSA/LS9 |
| Description_EXT |
Fits LSA and LS9 Engines |
| Description_FAB |
Direct replacement for the OEM rails on the factory blower or any other supercharger that was designed to use OEM rails |
| Description_FAB |
Bright dip, black anodized finish with laser etched EFI logo for long-lasting good looks |
| Description_FAB |
Fuel rails are machined to accept -8 (3/4-16) ORB ports which use O-ring fittings |
| Description_FAB |

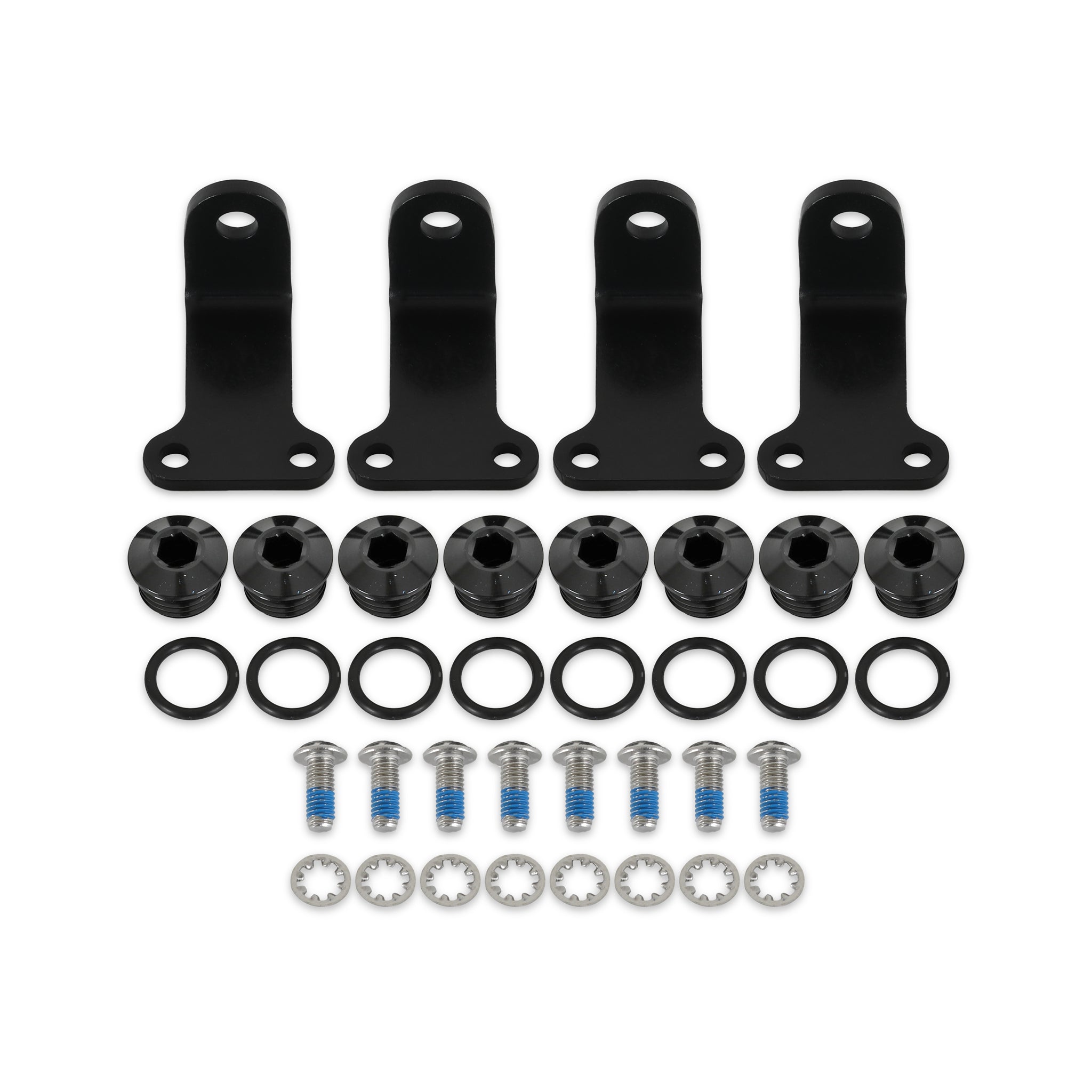

Fuel rails are also machined in the center with four -6 (9/16-18) ORB ports to accept O-ring fittings (sold separately). Qty. 8 -6 ORB port plus also included to seal unused ports |
| Description_FAB |
-6 (9/16-18) ORB ports can be used as fuel gauge/sensor locations by using a -6 ORB to 1/8 NPT adapter (sold separately). Can also be used for fuel pulse damper (sold separately) mounting locations |
| Description_FAB |
21/32" (0.656") diameter fuel passage provides the flow capacity for high horsepower applications |
| Description_FAB |
┬╝" (0.25") diameter fuel passage feeding each injector |
| Description_FAB |
Brackets are included for factory height injectors (33.60mm) |
| Description_FAB |
Compatible with factory fuel line quick-connect by using P/N 534-211 adapter kit (sold separately) |
| Description_KEY |
Fuel Rail; LS Fuel Rail; lsa; ls9; zr1 fuel rails; lsa fuel rails; ls9 fuel rail; |
| Description_MKT |
Dress up and open up your ZL1, CTS-V, or ZR-1 with Holley Hi-Flow Fuel rails. The bright dip, black anodized rails come with laser etched EFI logo for long-lasting good looks and are a direct replacement for the rails on the factory blower or any other supercharger that was designed to use OEM rails. For perfect sealing, the 534-285 kit has been machined to accept -8 (3/4-16) ORB ports which use O-ring fittings. But, to utilize your factory fuel line quick-connect, just add P/N 534-211 adapter kit for a quick and easy install. |
| Description_MKT |
The included brackets are for factory-height injectors (33.60mm). |
| Product Type |
Fuel Rail Kit |
| Material |
Aluminum |
| Brand |
Holley EFI |
| Emission Code |
5 |
| Engine |
GM LSA/LS9 |
| Length |
3.6500 |
| Width |
7.4500 |
| Height |
18.1500 |
| Weight |
2.6500 |
