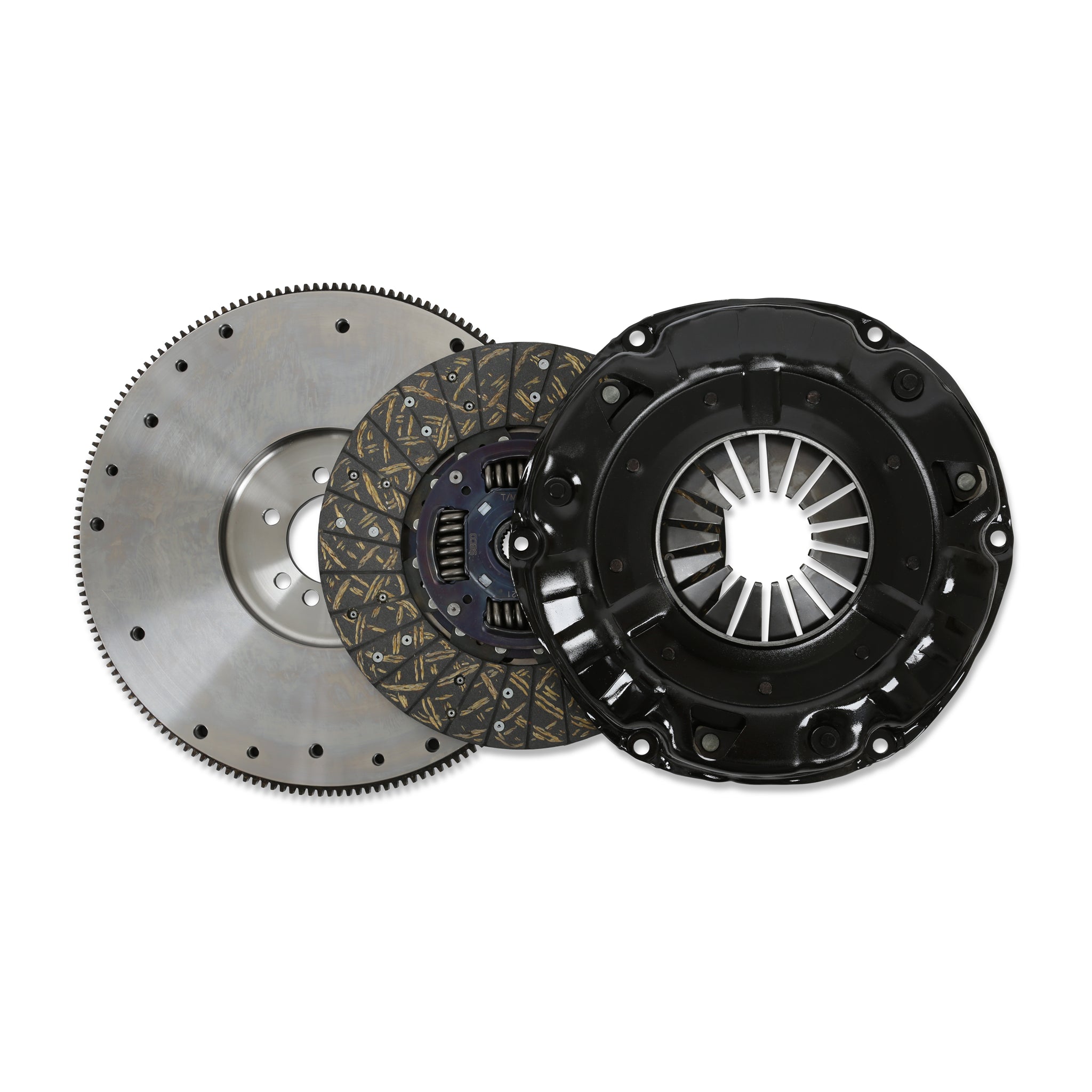

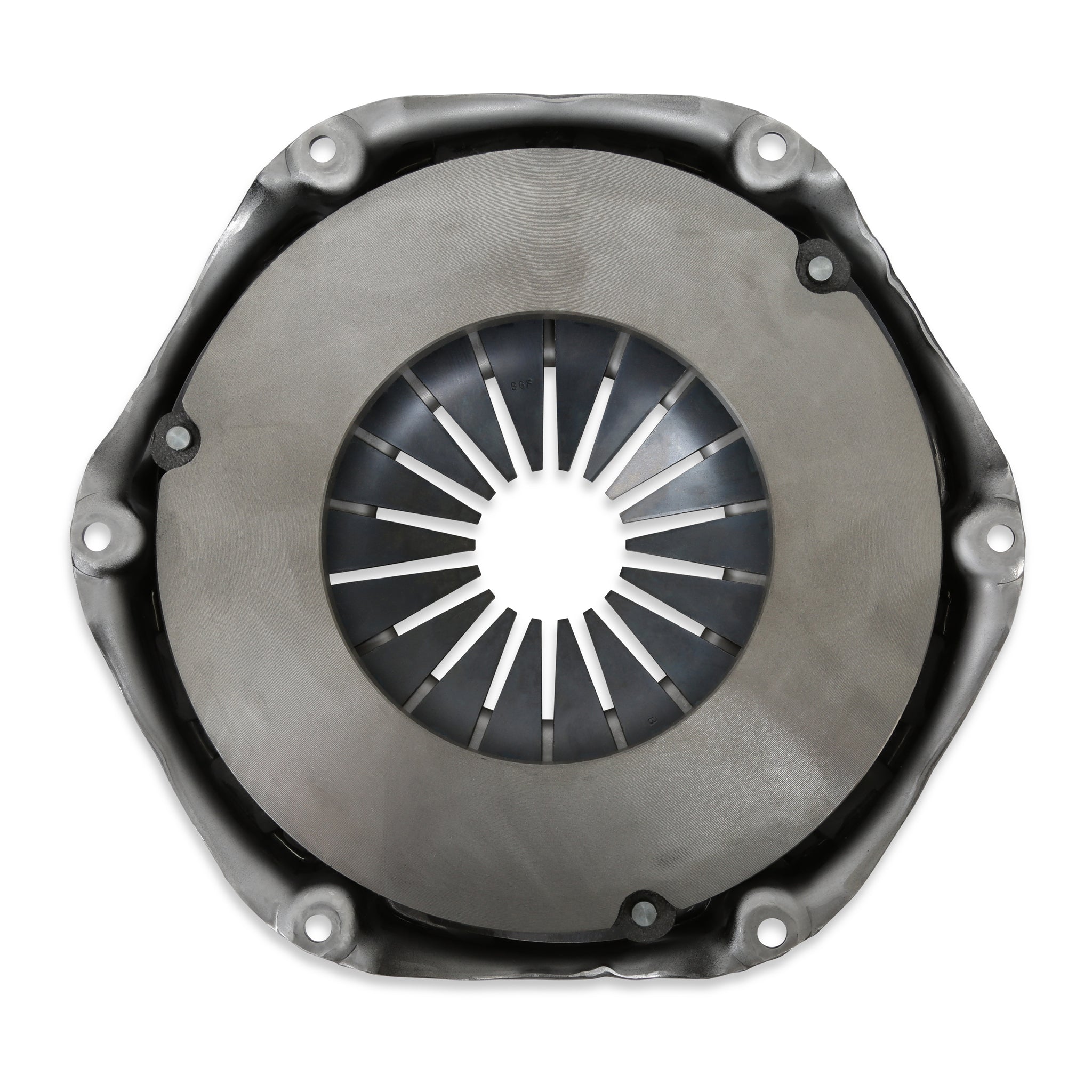

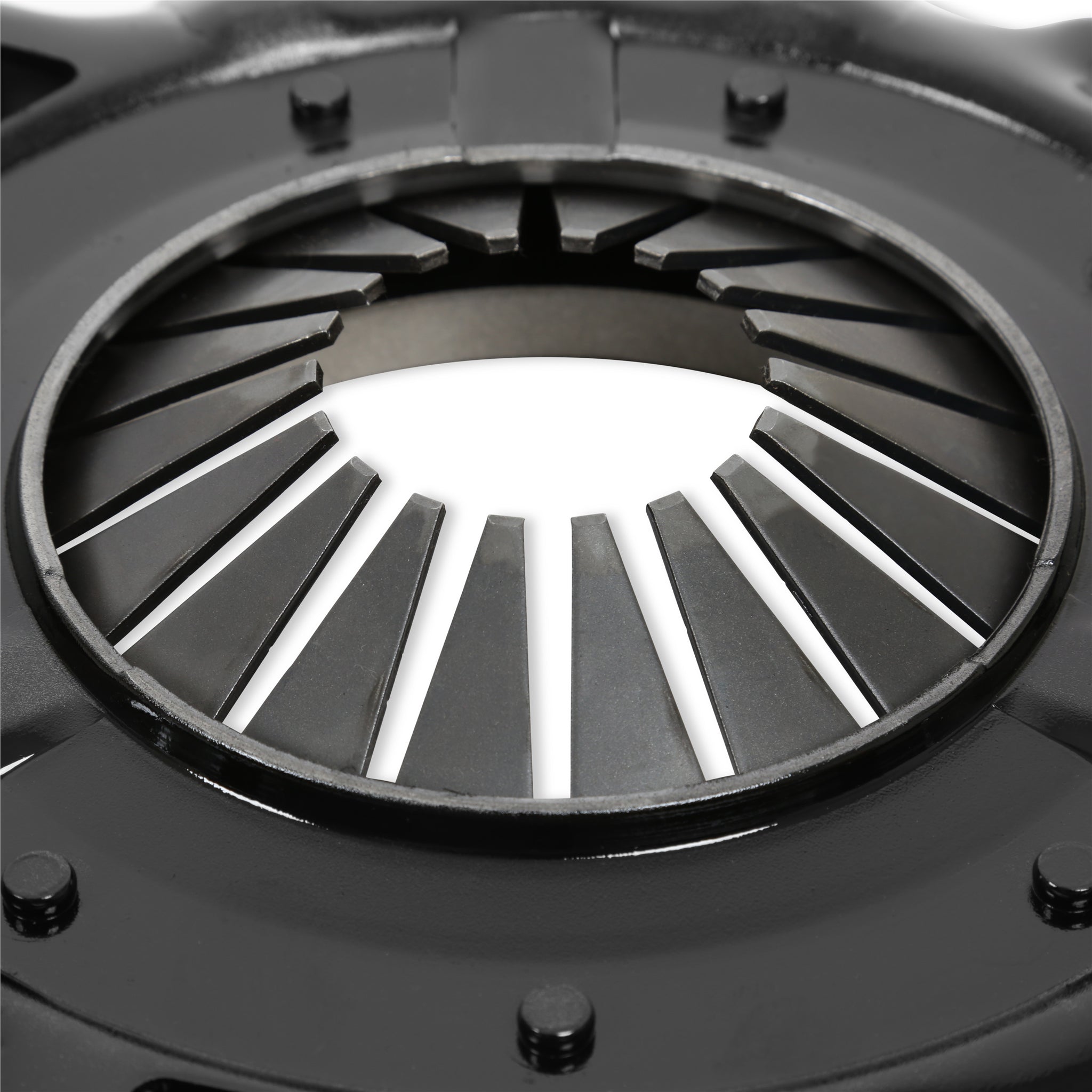

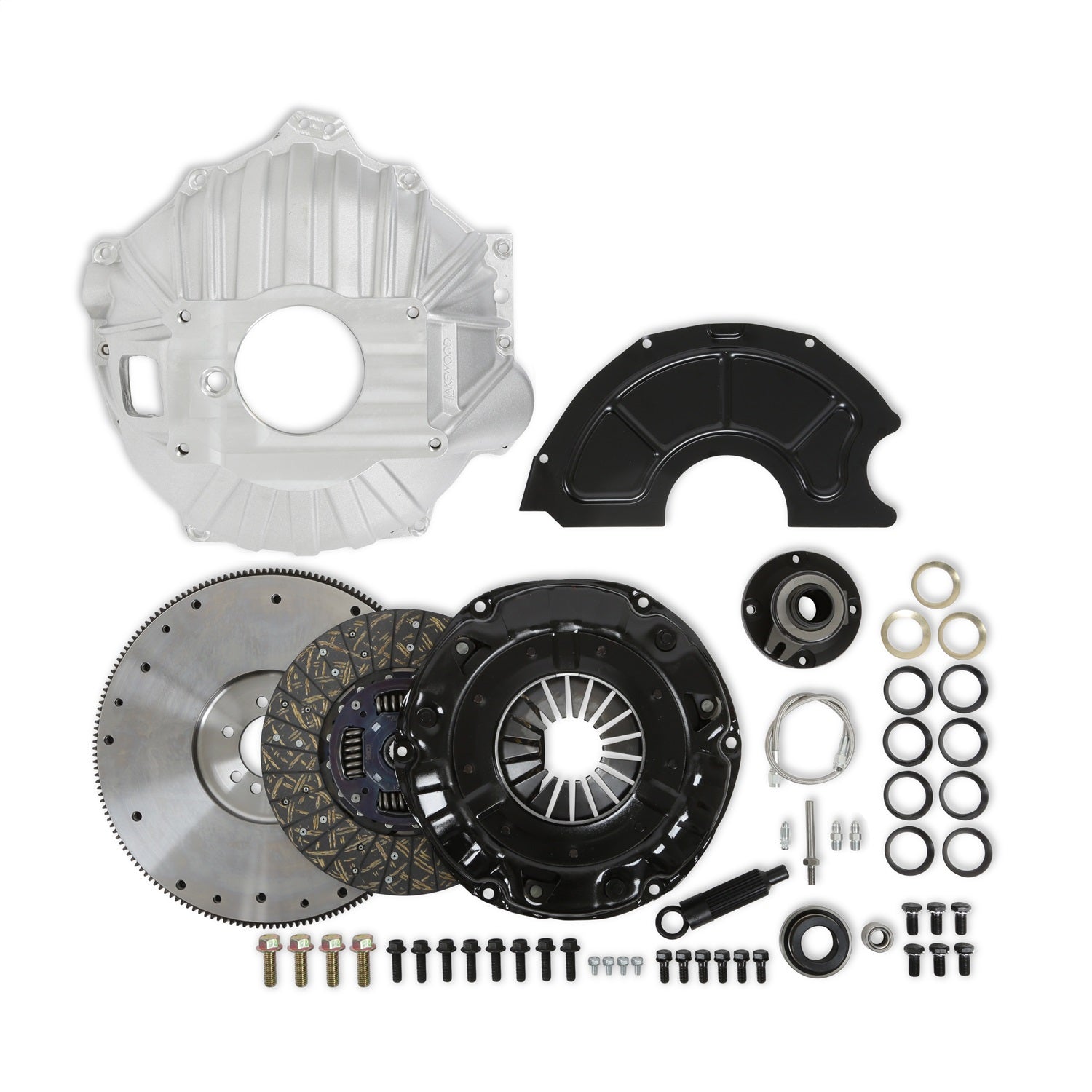

These Holley Transmission Installation Kits come complete with everything you need to bolt a TKX or TKO transmission to a 1955-1985 small or big-block Chevrolet engine. Built with a mixture of our best brands including Lakewood, Hays and Mr. Gasket. Kit includes: A roller pilot bearing, bellhousing with dust shield, billet steel flywheel, clutch and pressure plate, hydraulic release bearing, and all hardware needed to install these components.
Specifications:
| Description_ASC |
Designed for internally balanced small block Chevy or big block Chevy engines with 2-pc rear main seal and a 2.485-inch crank register diameter. |
| Description_DEF |
Manual Transmission Shifter Lever Kit |
| Description_DES |
Complete Transmission Installation Kit |
| Description_FAB |
Designed for 1955-1985 Small and Big Block Chevrolet Engines using a TKX or TKO transmission |
| Description_FAB |

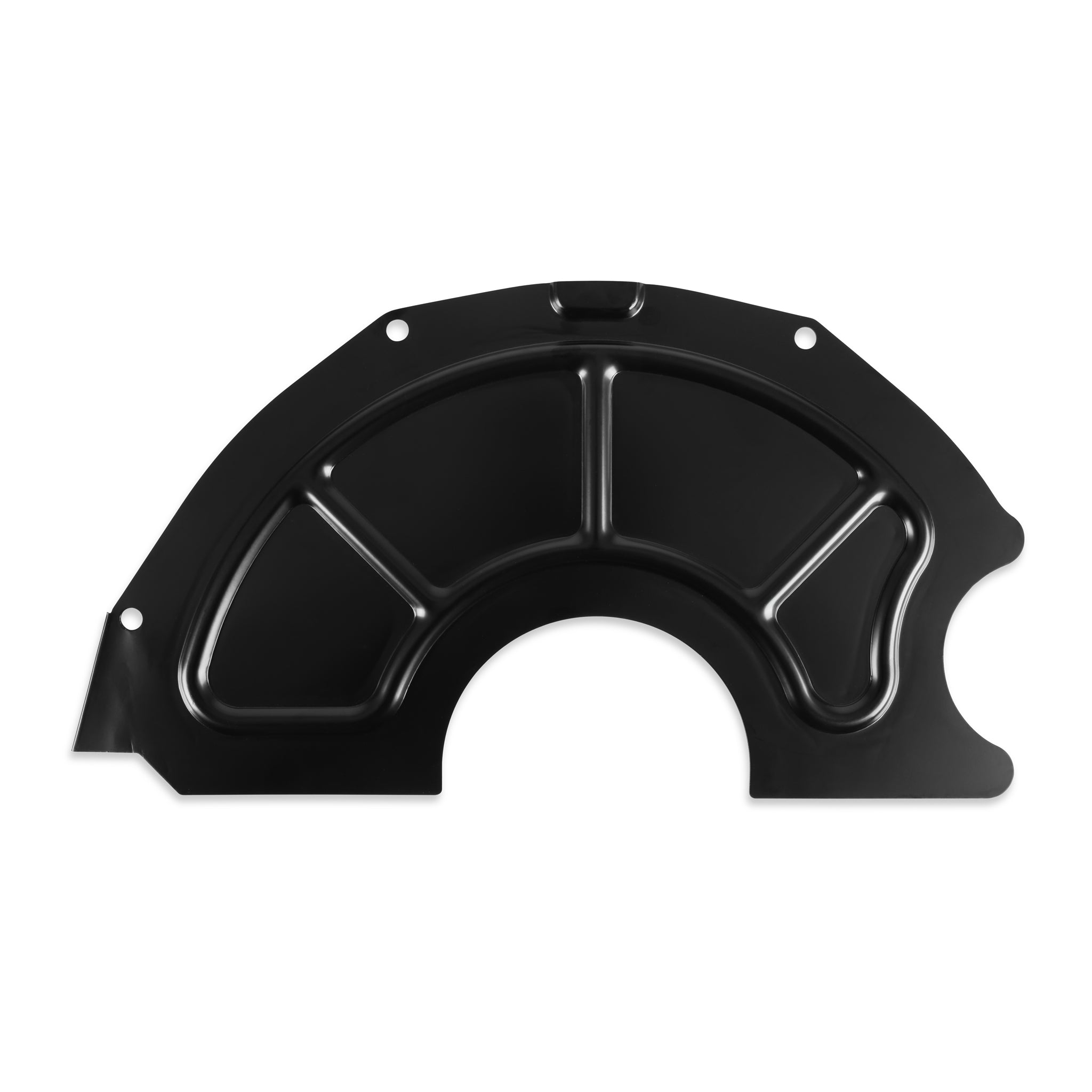

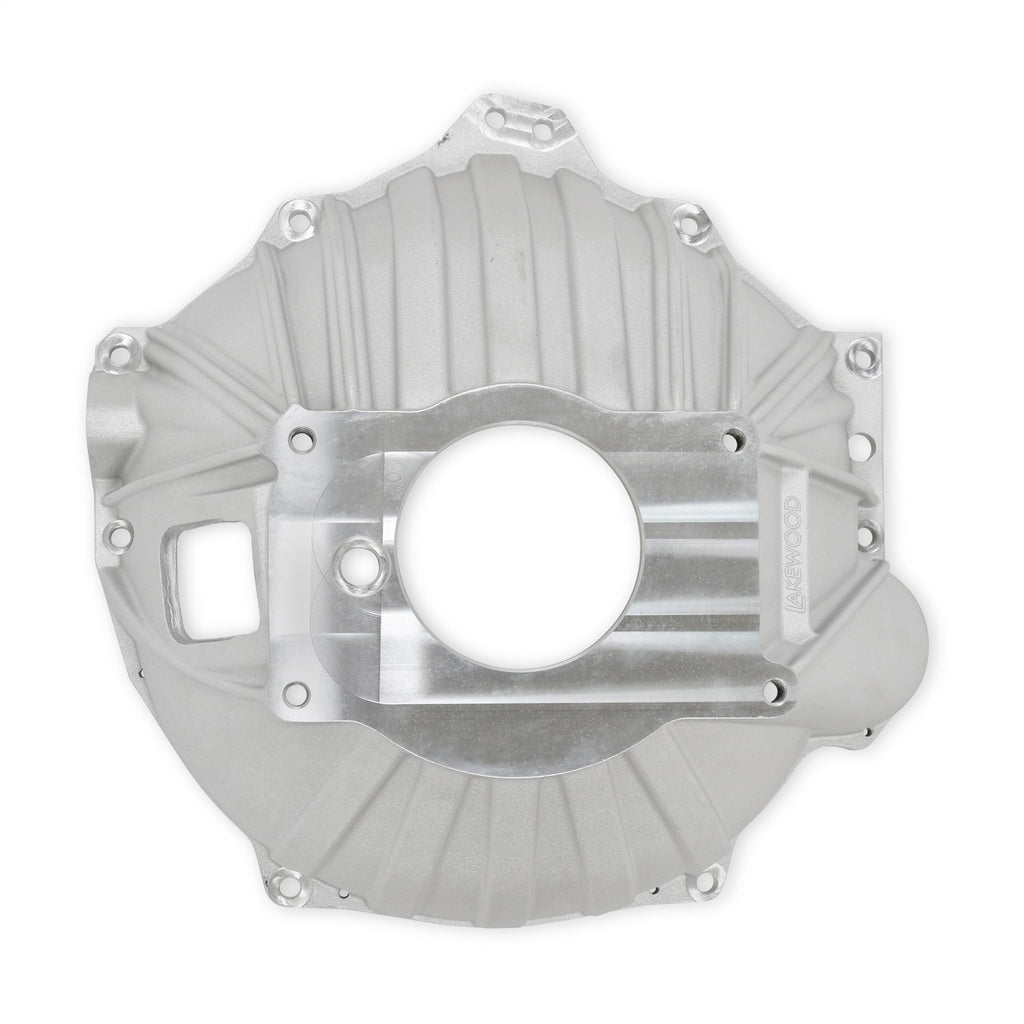

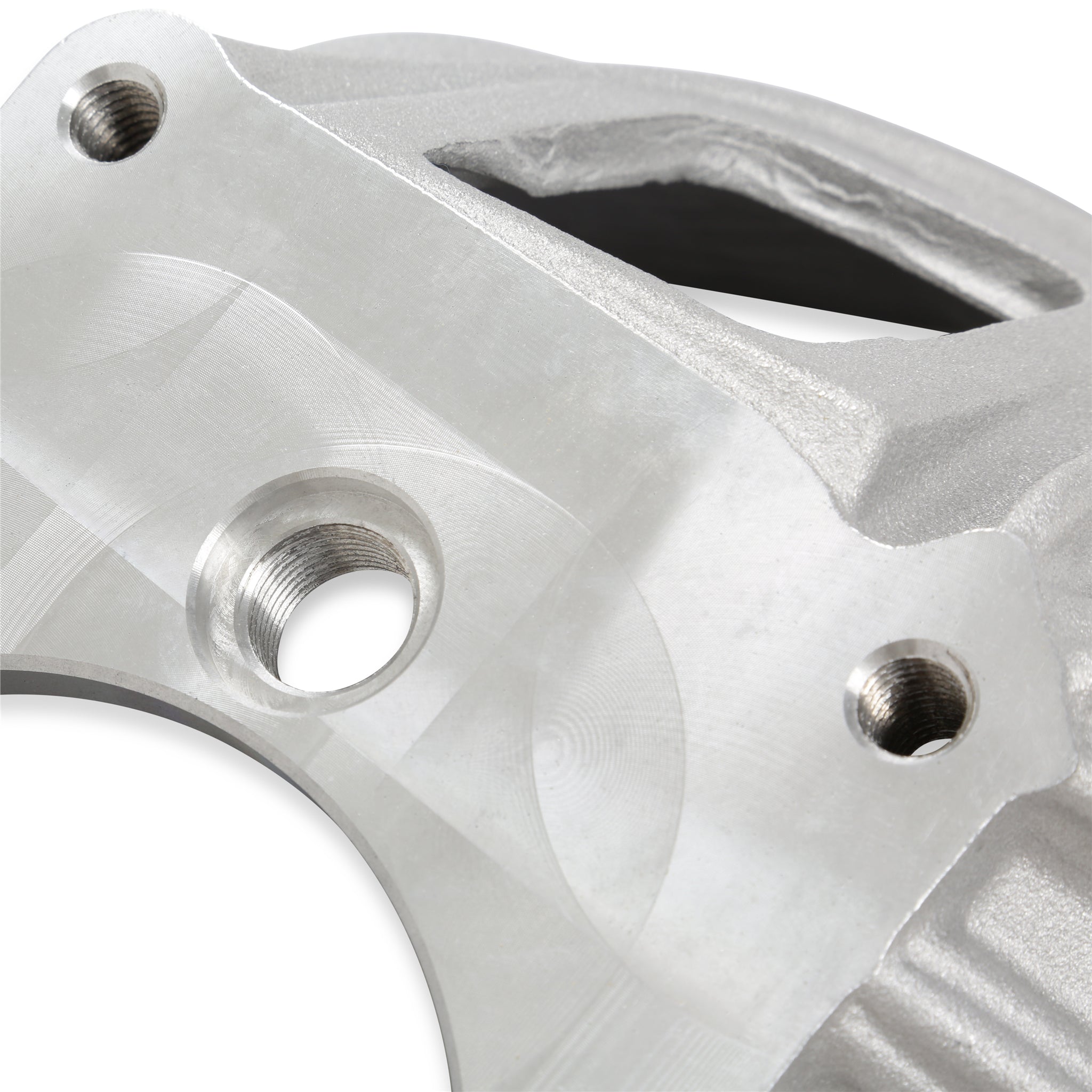

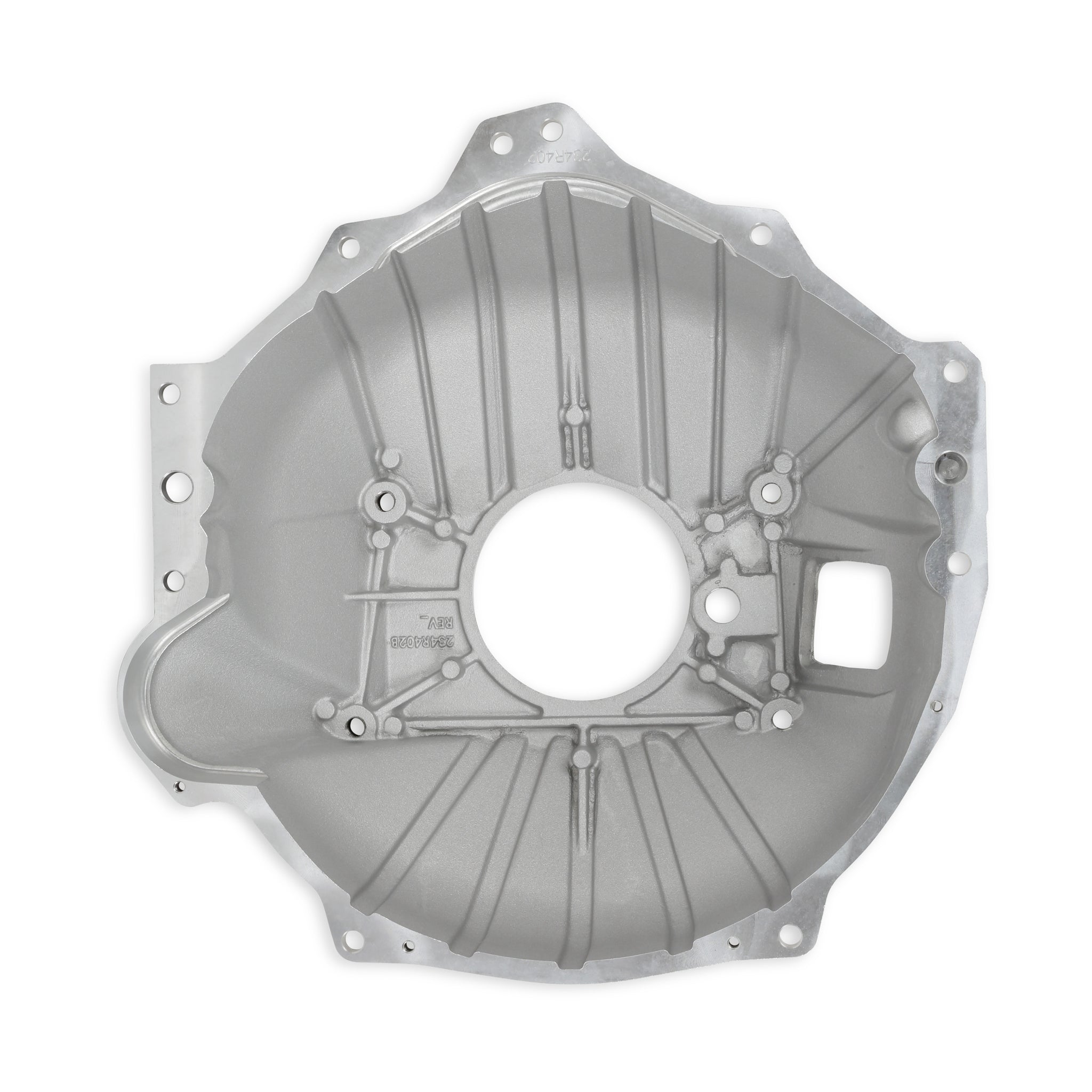

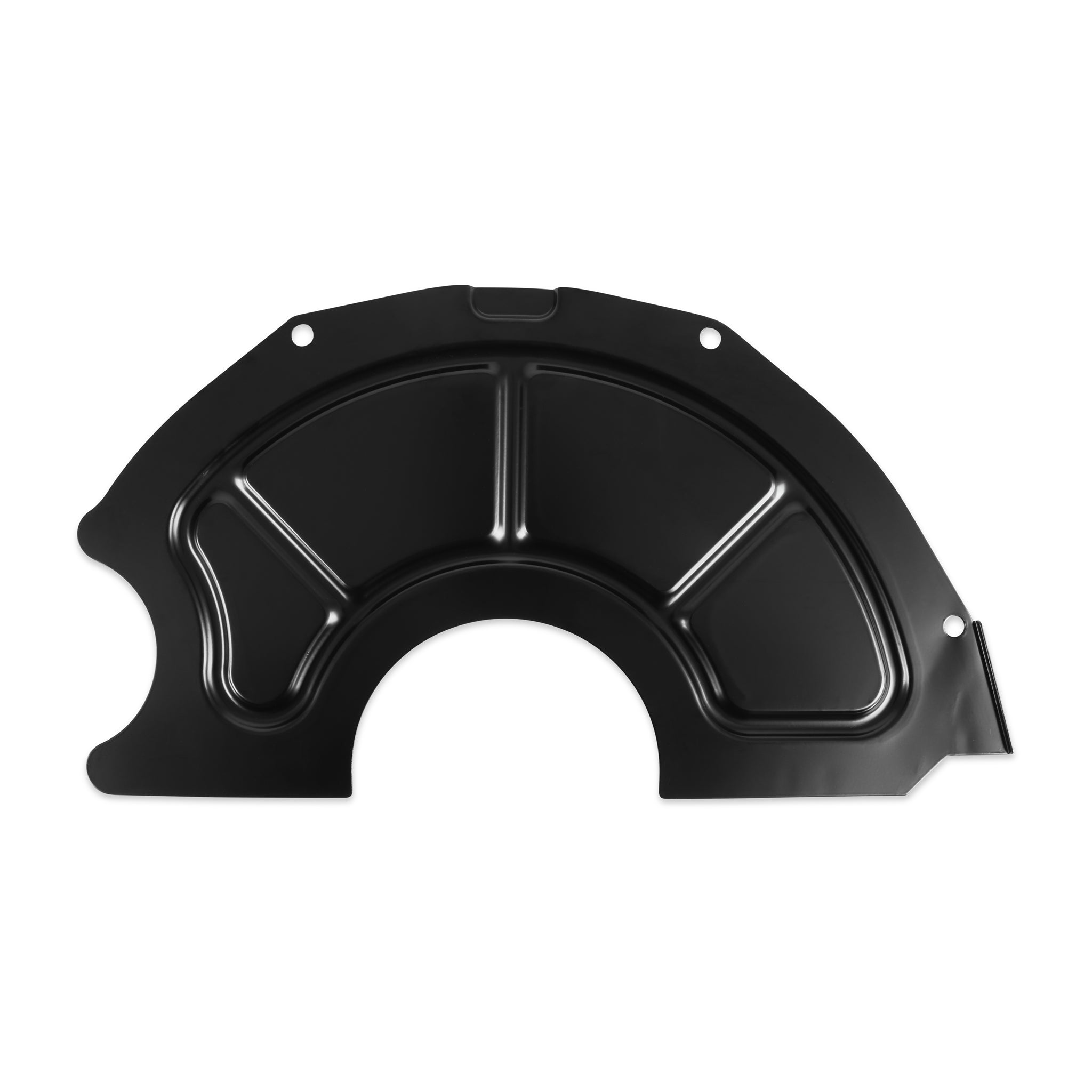

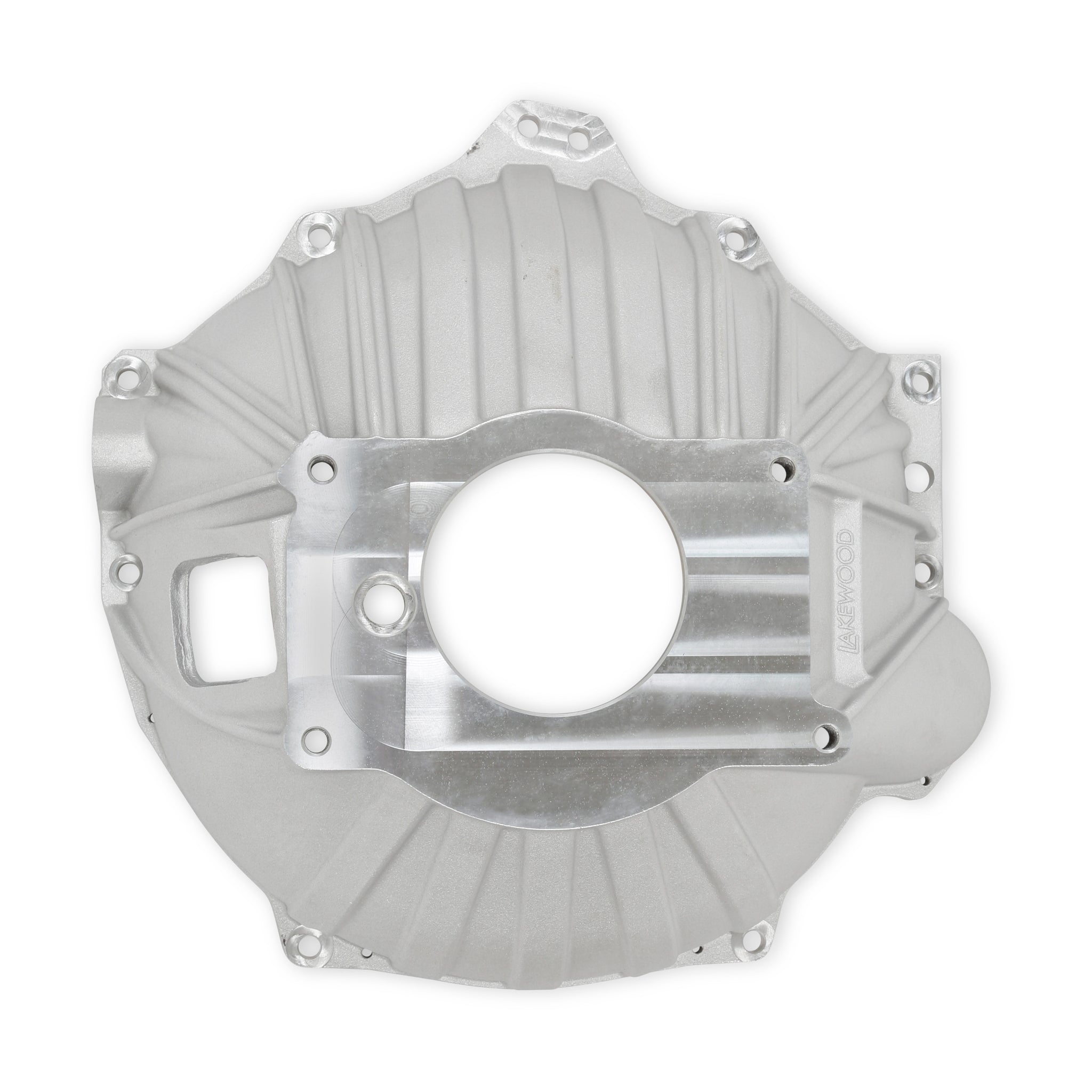

Light weight cast aluminum bellhousing and stamped steel dust cover provides factory-like installation and appearance |
| Description_FAB |

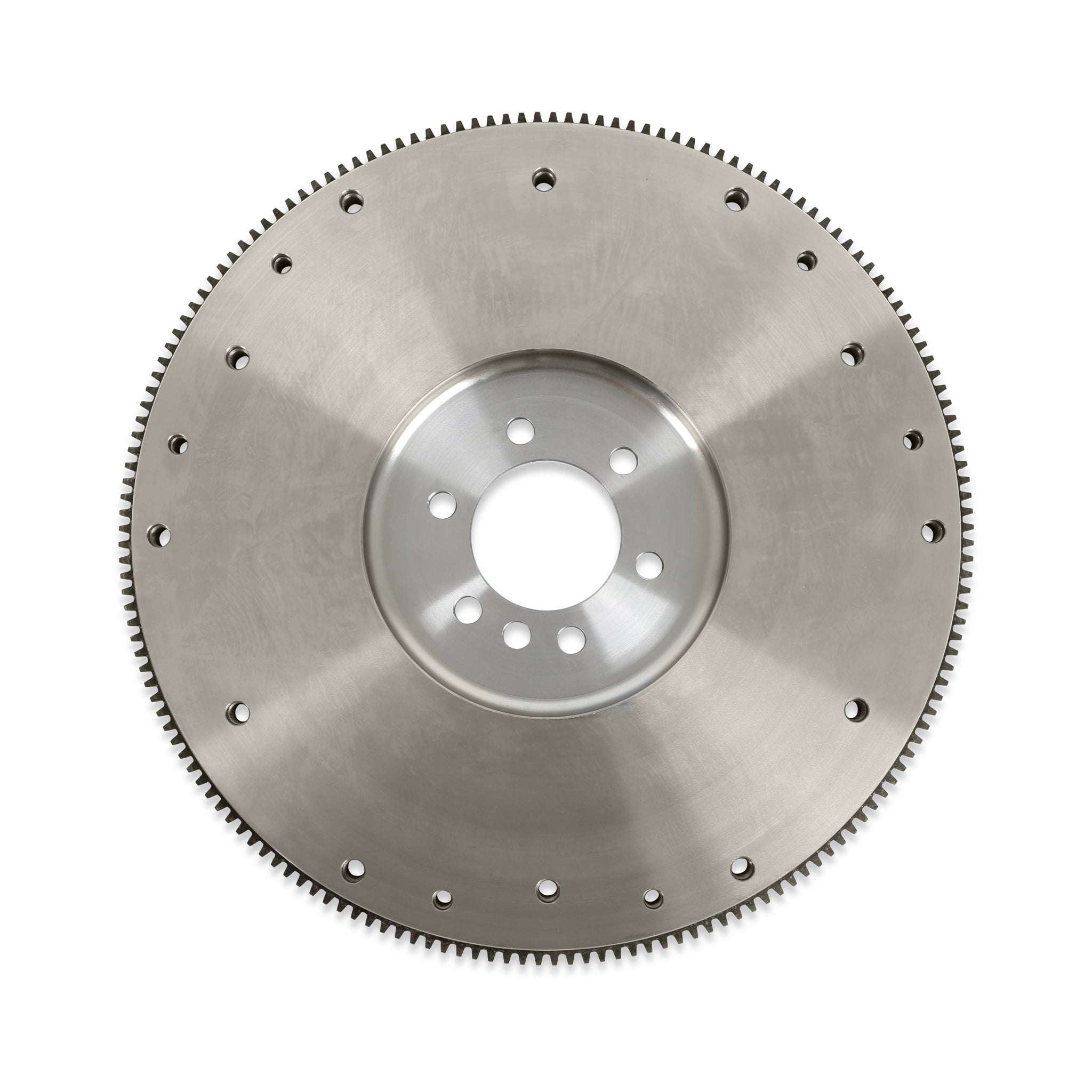

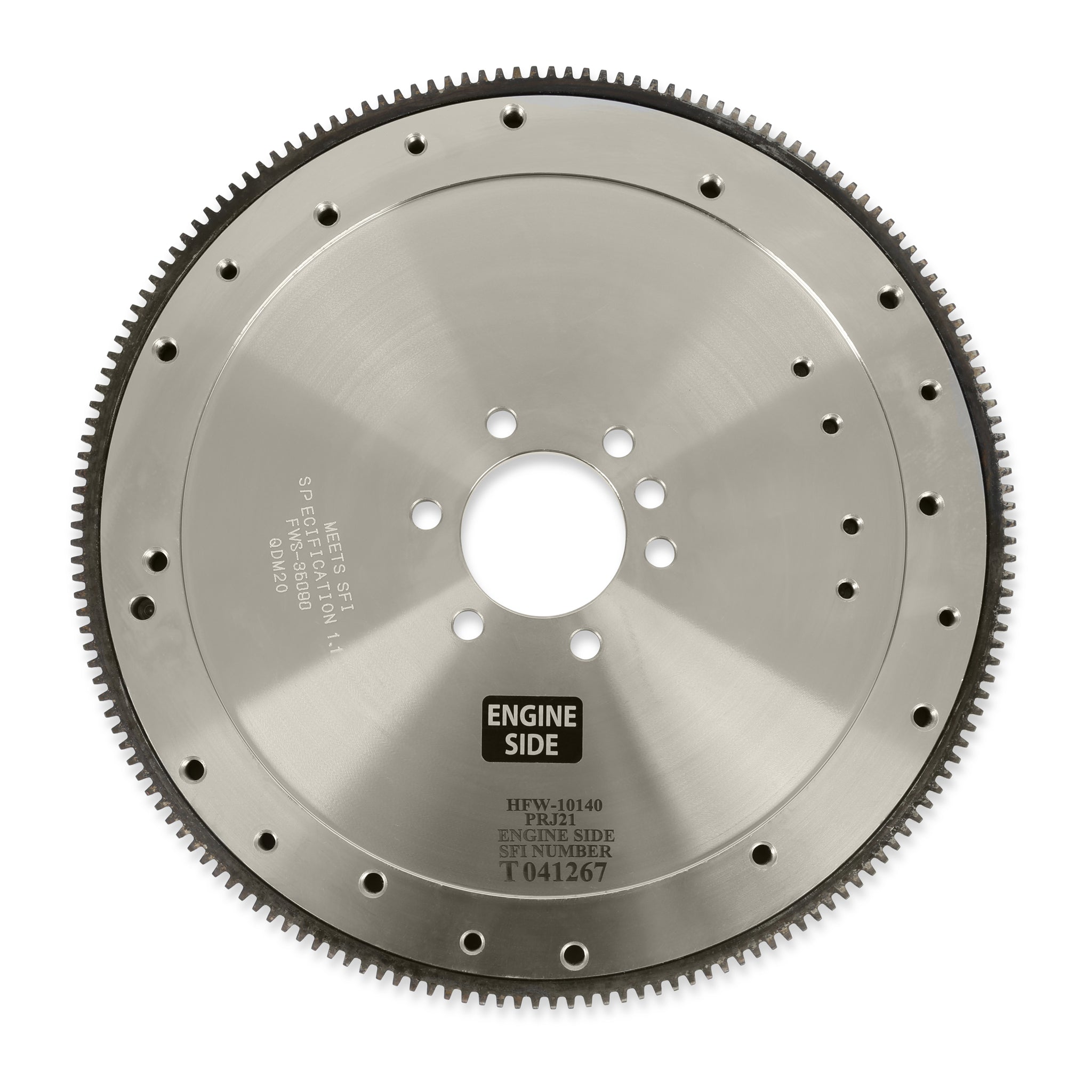

Billet steel 36 lb, 168 tooth neutral balanced flywheel for light weight and strength |
| Description_FAB |
Roller style pilot bearing offers improved shifting by reducing parasitic drag and transmission wear |
| Description_FAB |

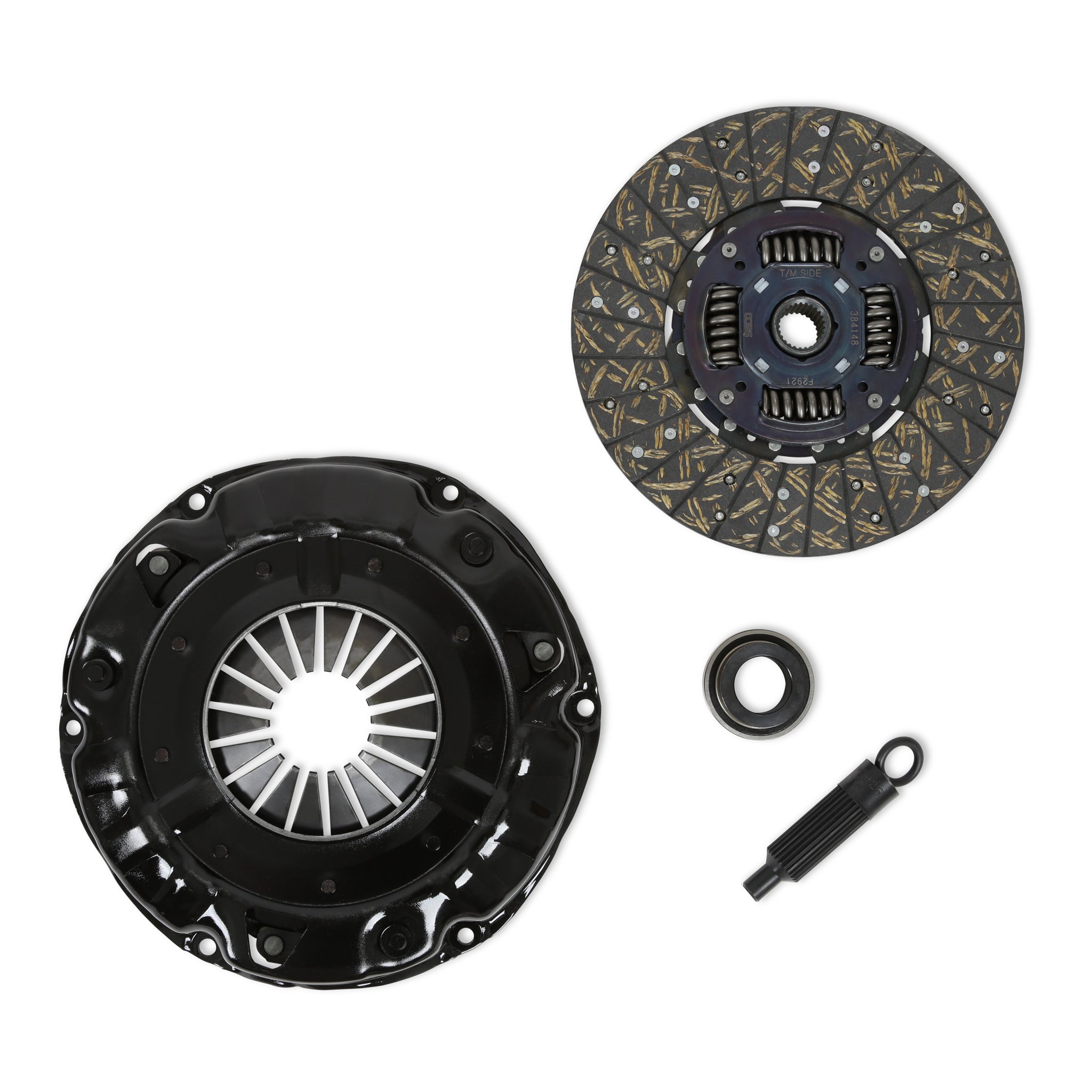

26 spline, 11-inch clutch disk offers superior clamping force for engines up to 500 hp |
| Description_FAB |

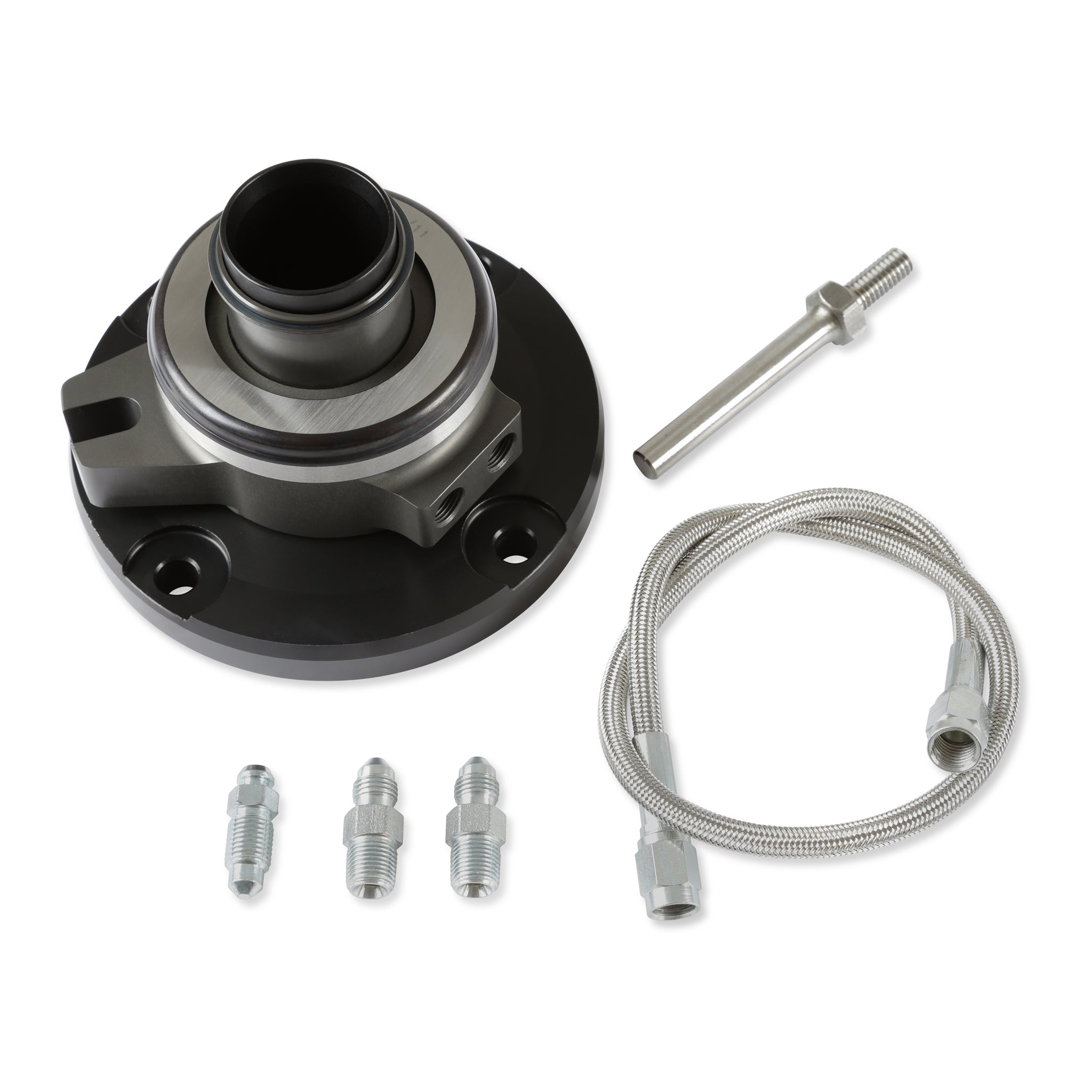

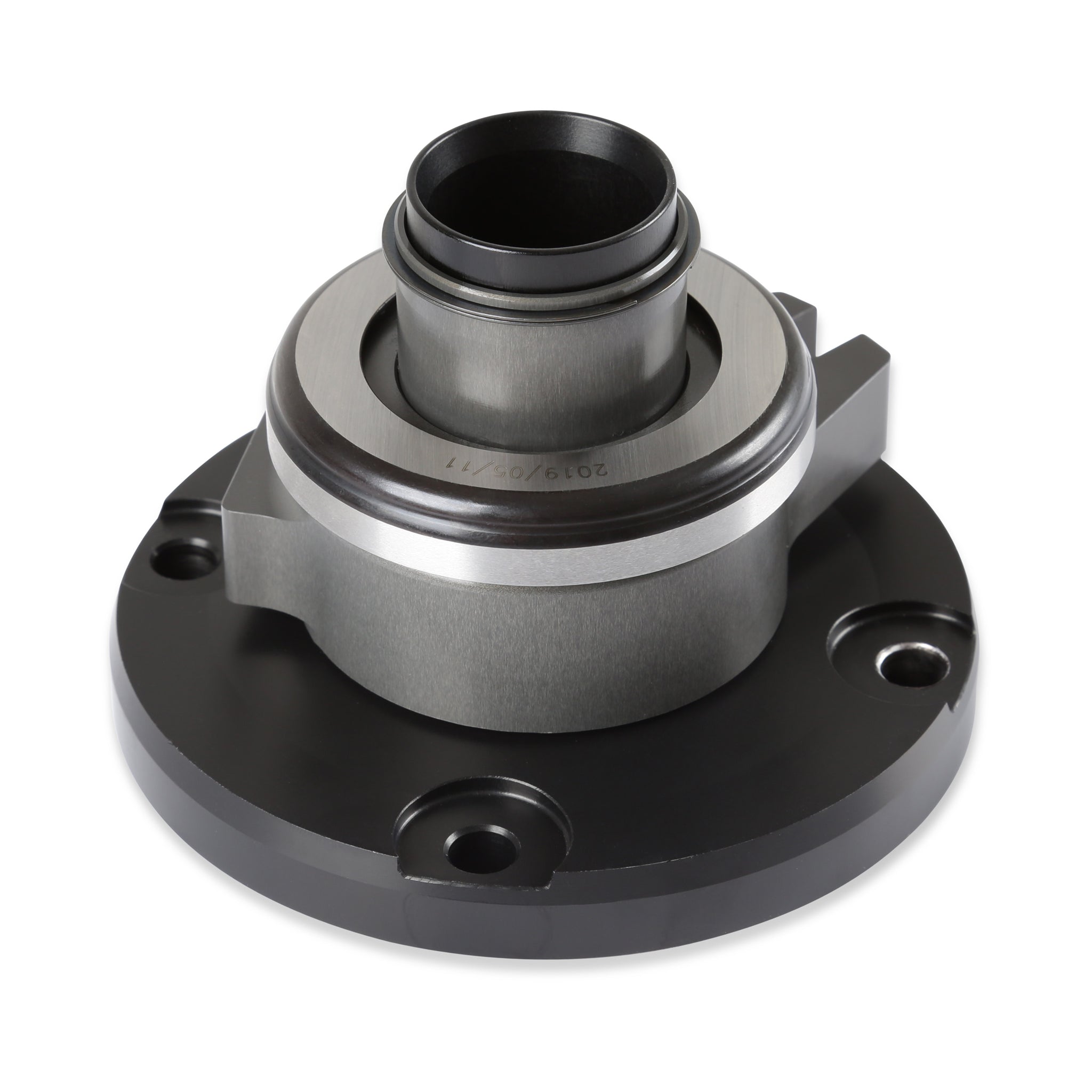

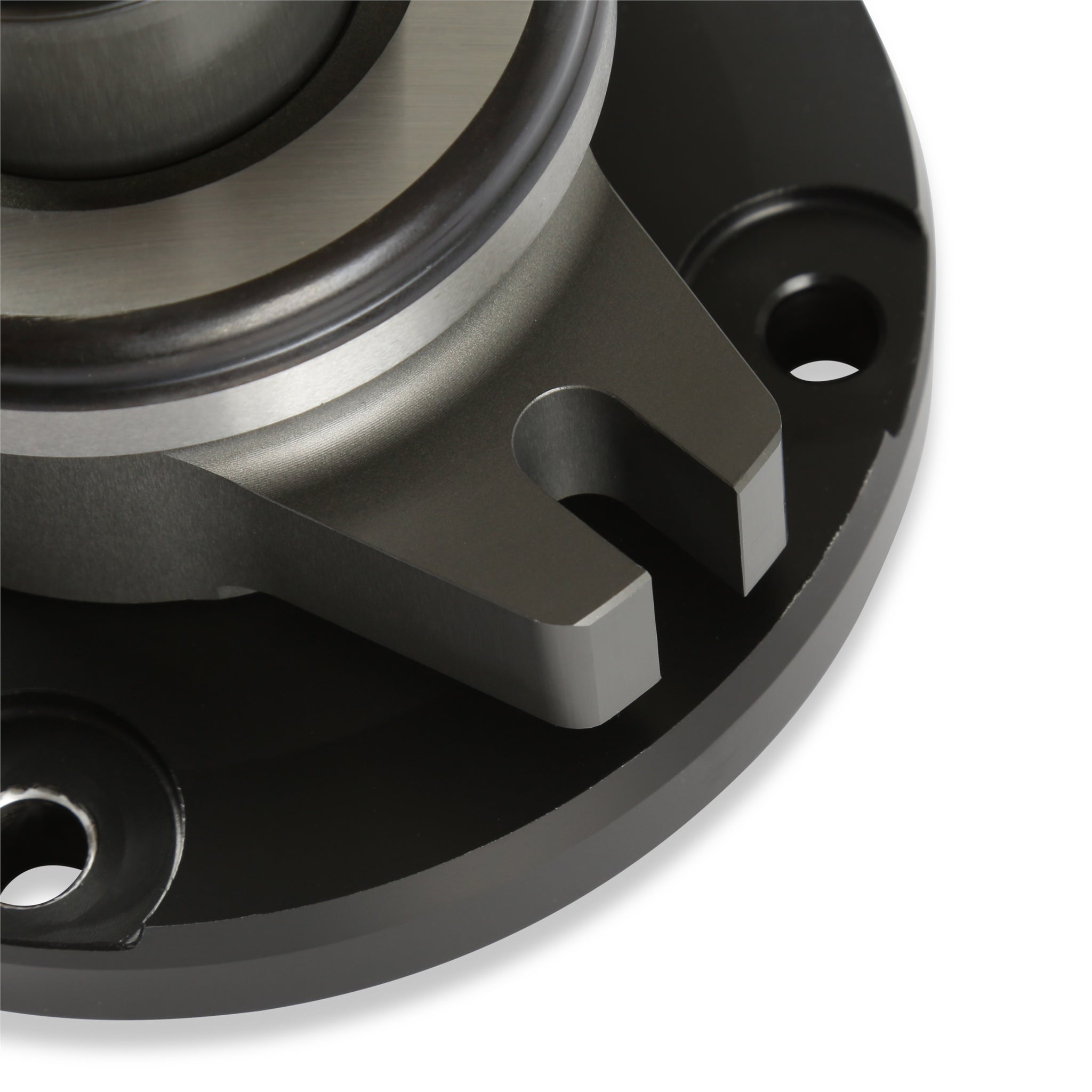

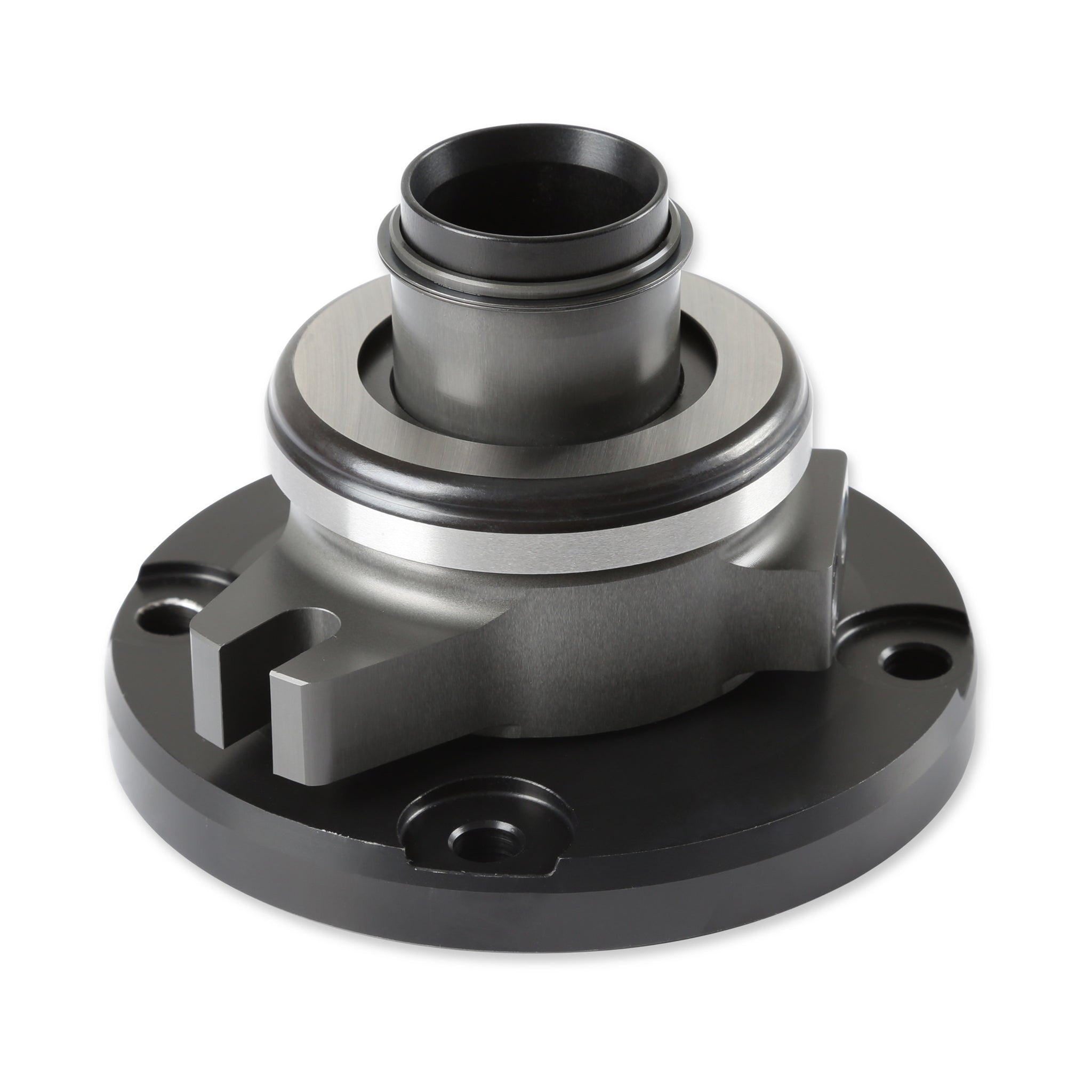

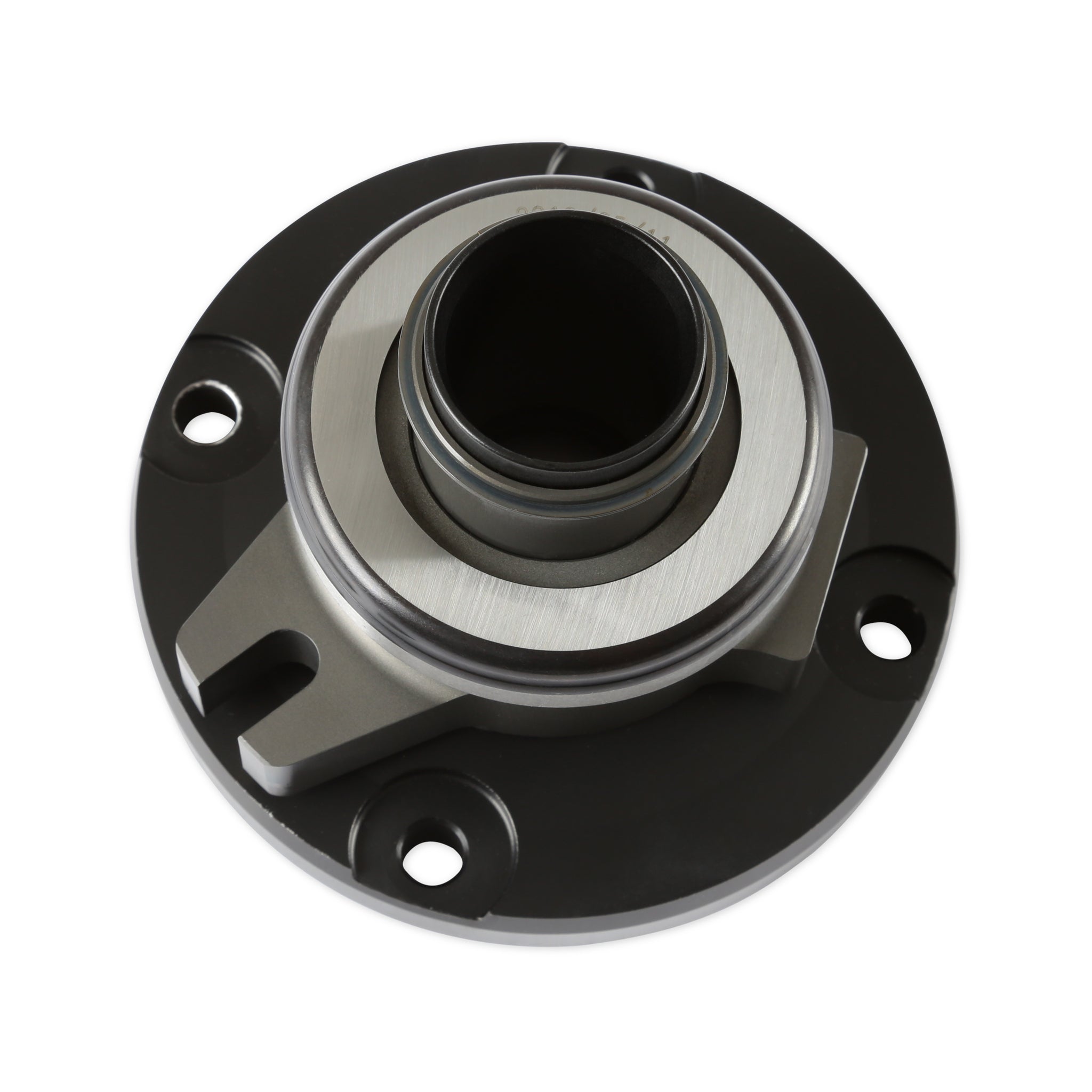

Adjustable Hydraulic Release Bearing offers reduced pedal effort and easy installation |
| Description_FAB |

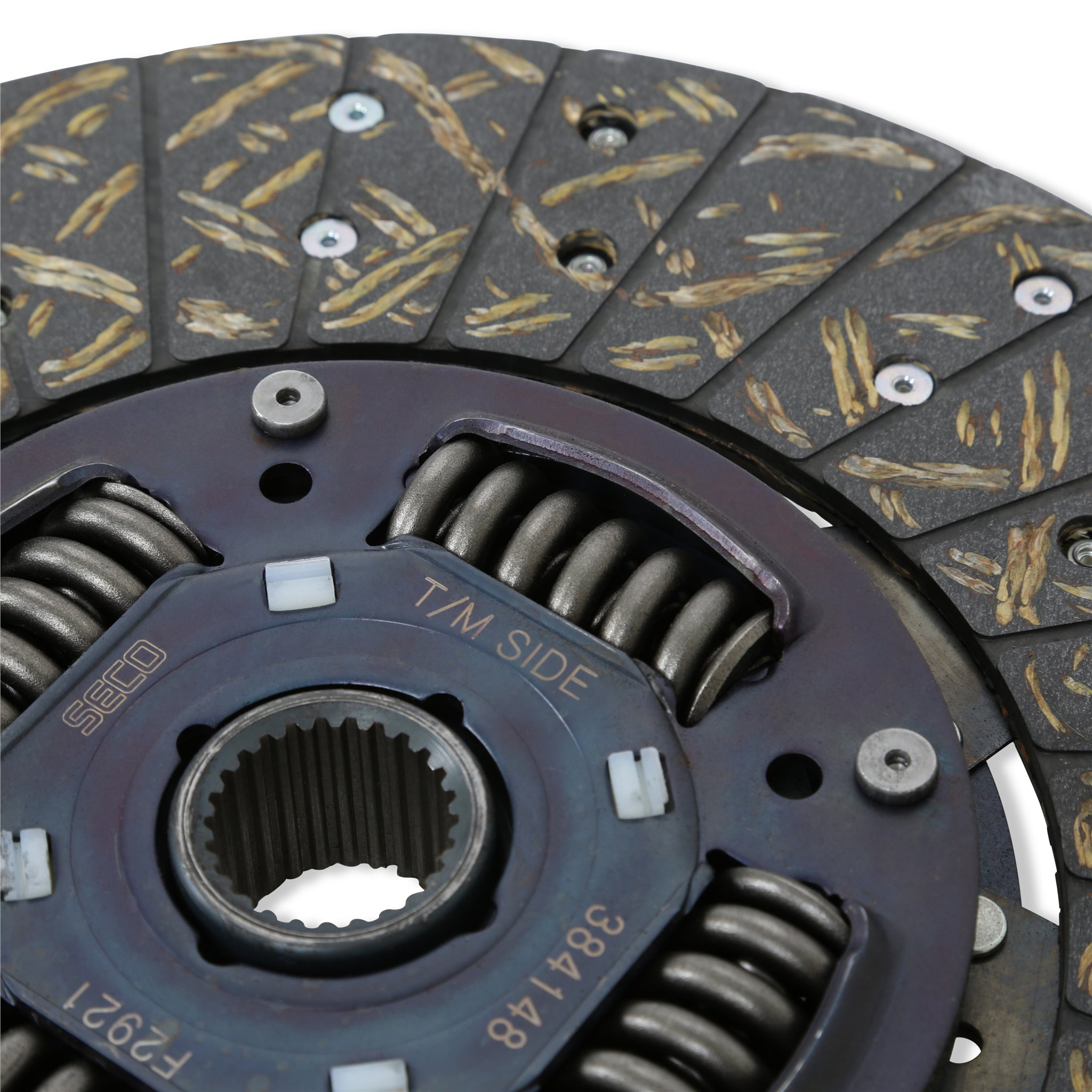

Organic clutch disc features heavy-duty hub spring assembly for increased load capacity |
| Description_FAB |
Works with OE (original equipment) or MSD High Torque starters |
| Description_FAB |
All hardware included |
| Description_EXT |
Complete Transmission Installation Kit; Fits w/1955-1985 Small/Big Block Chevrolet w/TKX/TKO Transmission; |
| Description_INV |
GM TKX/TKO INSTALLATION KIT SBC-BBC |
| Description_KEY |
Gm; clutch; flywheel; chevy; tkx; tko; transmission; sbc; bbc; Chevrolet; |
| Description_MKT |
These Holley Transmission Installation Kits come complete with everything you need to bolt a TKX or TKO transmission to a 1955-1985 small or big-block Chevrolet engine. Built with a mixture of our best brands including Lakewood, Hays and Mr. Gasket. Kit includes: A roller pilot bearing, bellhousing with dust shield, billet steel flywheel, clutch and pressure plate, hydraulic release bearing, and all hardware needed to install these components. |
| Description_SHO |
M/TShftInstlKt |
| Bellhousing Material |
Aluminum |
| Brand |
Holley |
| Disc Diameter |
11 |
| Disc Material |
Organic |
| Disc Style |
Spring Hub |
| Emission Code |
5, 6 |
| Engine |
Chevrolet Small Block Gen I, GM Big Block |
| Engine Balance |
Internal |
| Engine Make |
GM |
| Flywheel Balance |
Neutral |
| Flywheel Material |
Billet Steel |
| Hardware |
Steel |
| Input Shaft Diameter |
1-1/8 in. |
| Input Spline |
26 |
| PILOT BEARING |
Roller |
| Pressure Plate Style |
Diaphragm |
| Product Type |
Installation Kit |
| RELEASE BEARING |
Hydraulic |
| WARNING CA Proposition 65 |
No |
| Transmission |
TKO GM, TKX GM |
| Length |
17.0000 |
| Width |
20.0000 |
| Height |
21.0000 |
| Weight |
74.0000 |
