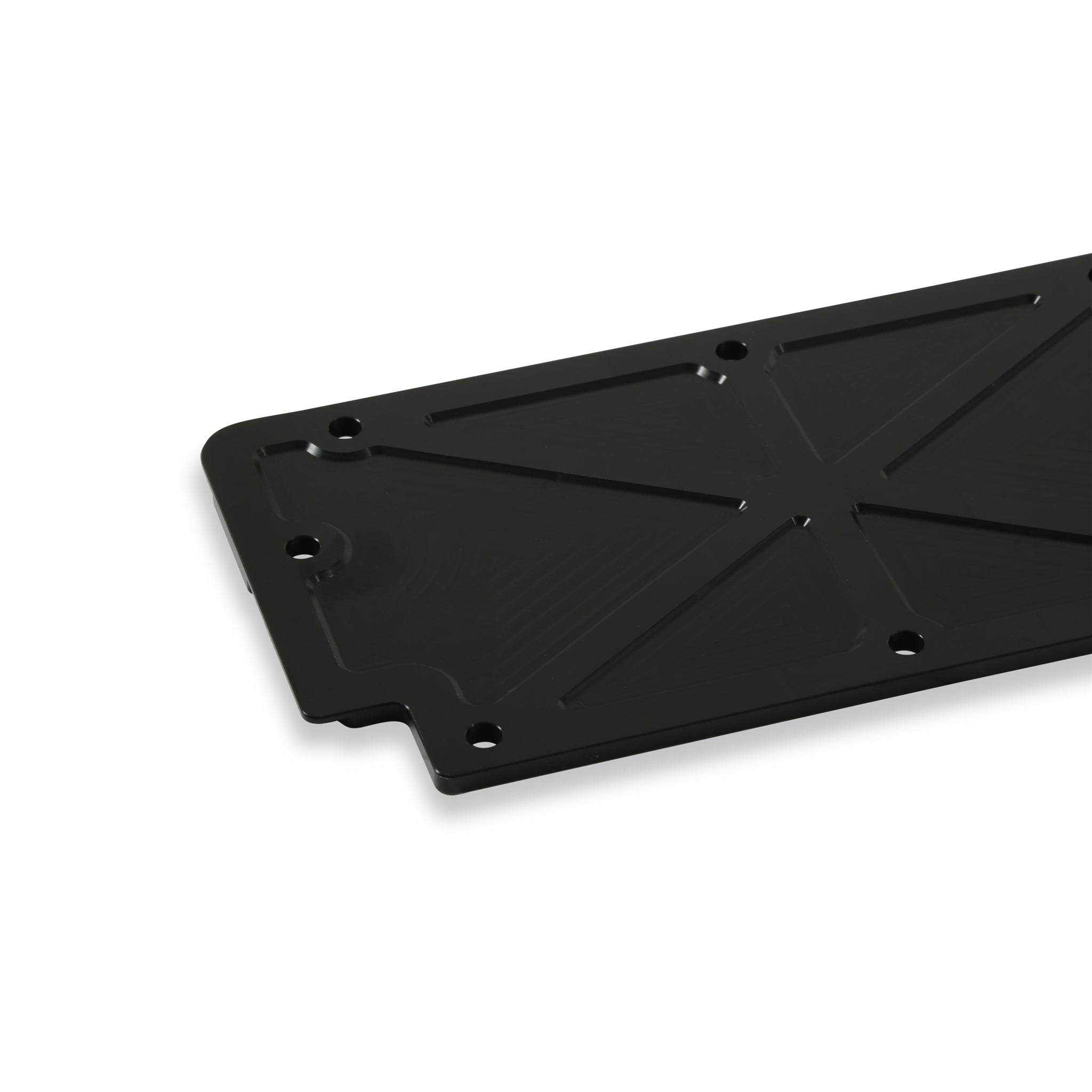

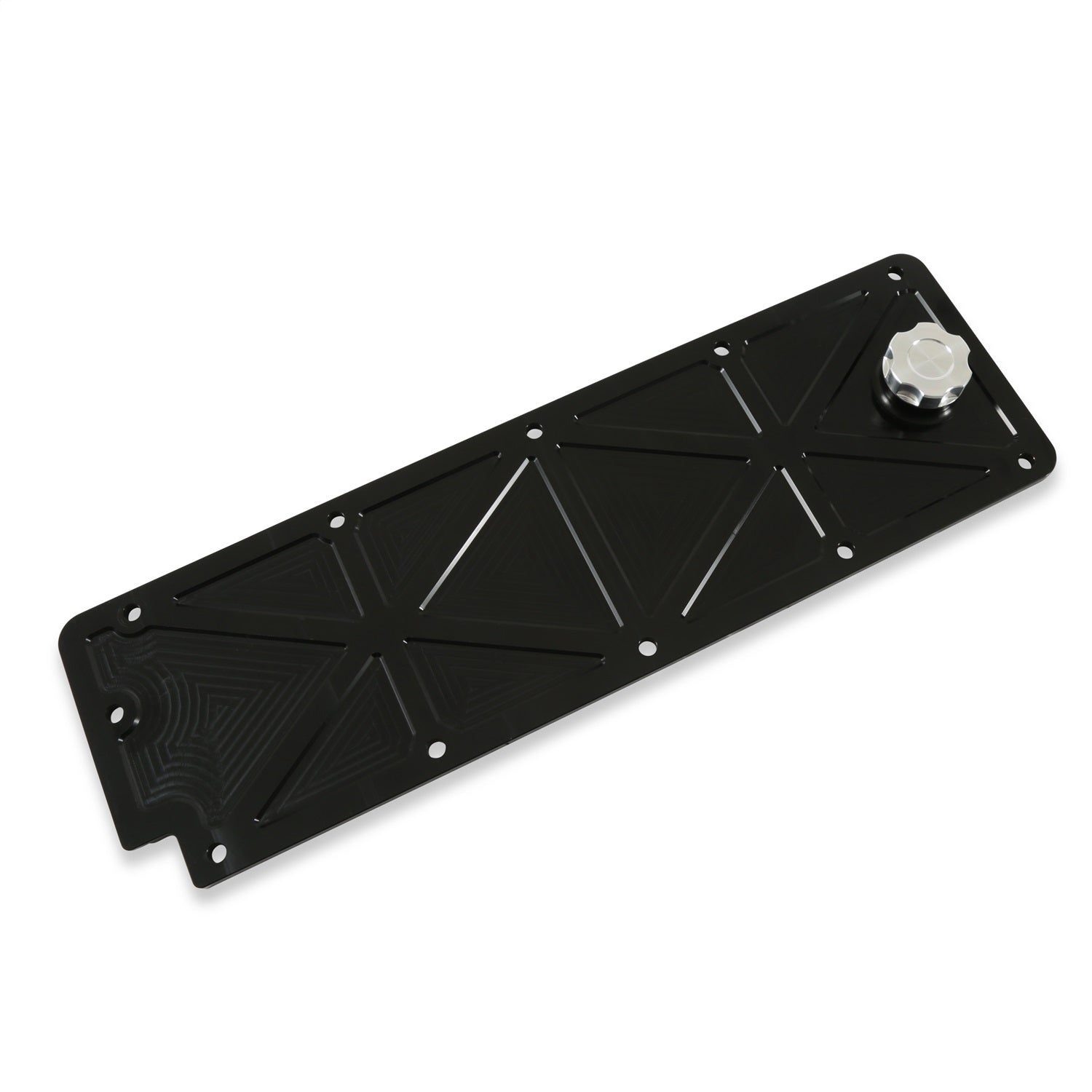

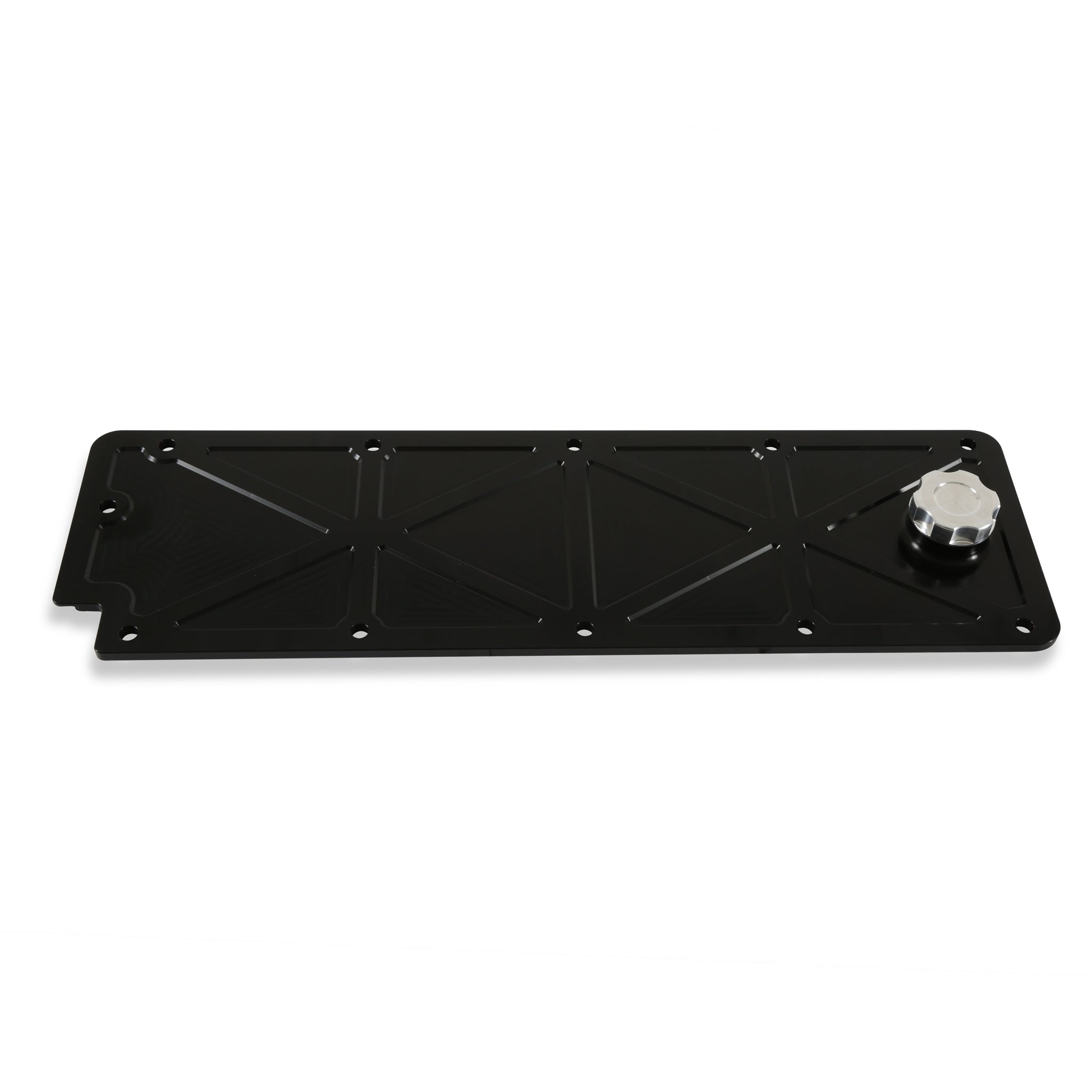

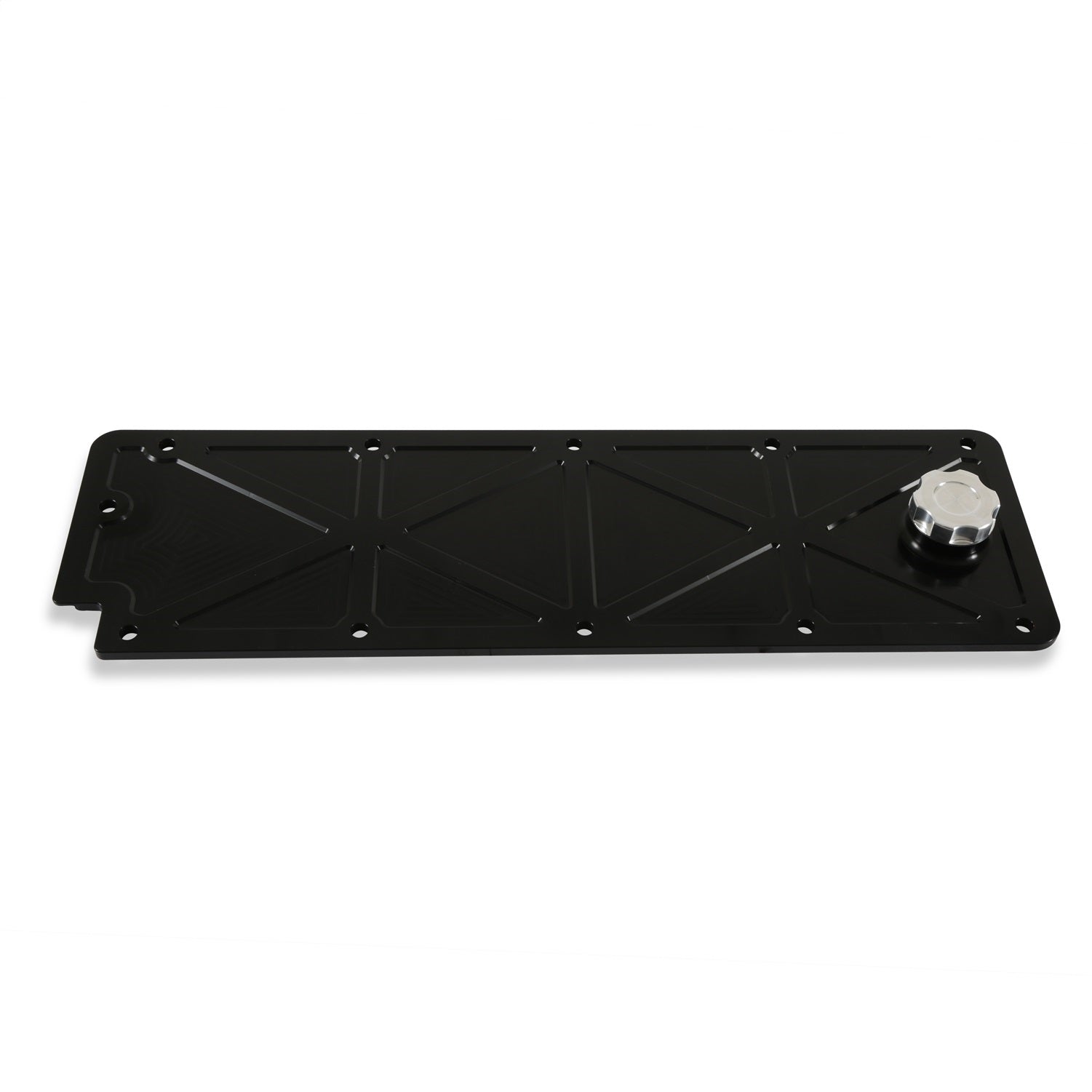

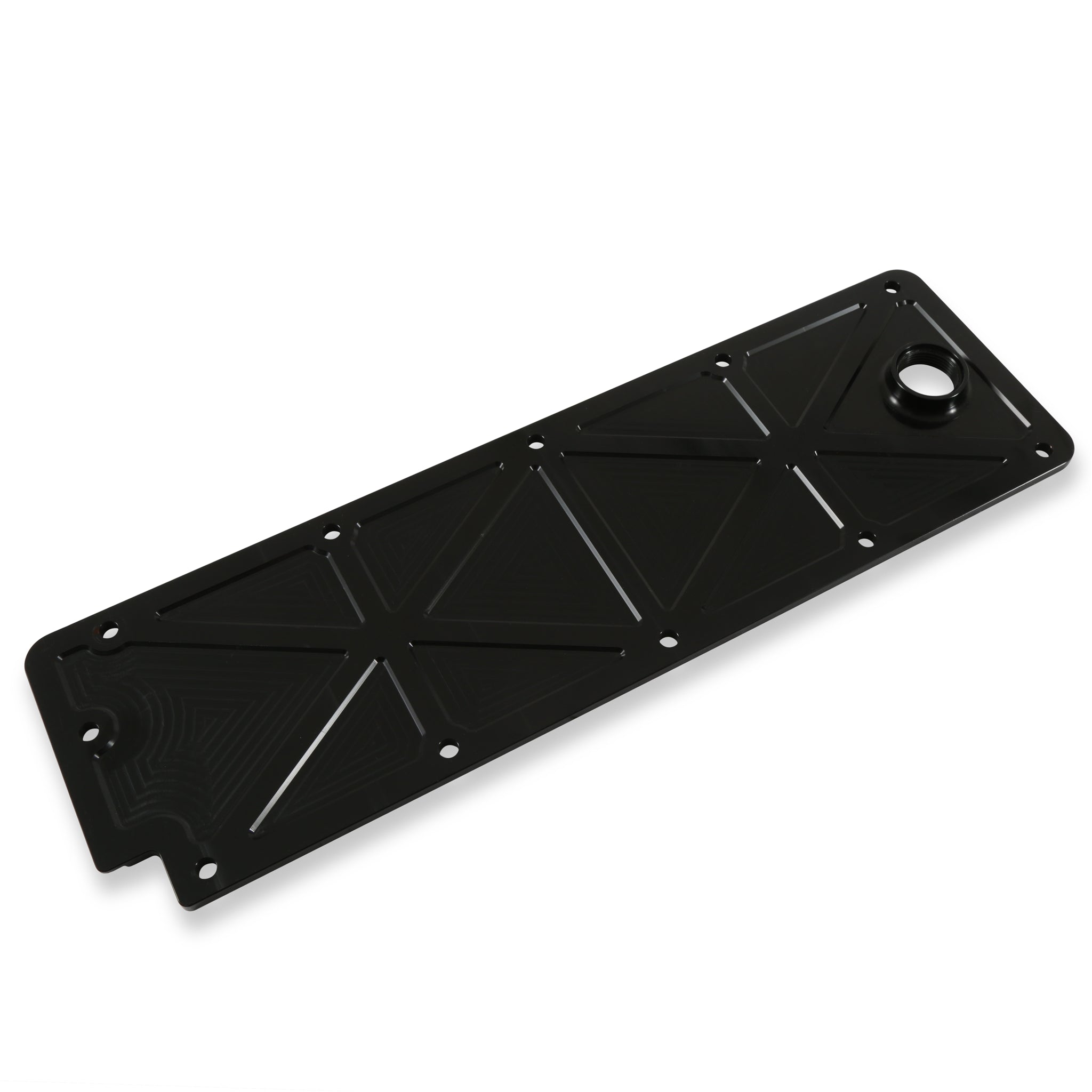

Holley's LS valley covers with oil fill provisions are the latest addition to our expansive lineup of LS engine dress up products. Machined from billet aluminum and featuring a modern, trussed design with an integrated oil fill neck and billet oil fill cap, these LS valley covers are the perfect upgrade for your LS engine if you are looking for a subtly custom touch. These valley covers are machined smooth on the underside, allowing for the elimination of Displacement-On-Demand (DOD), and instead features an ample gasket sealing surface and provisions for re-installing the oil pressure sensor if necessary.
Specifications:
| Description_ASC |
If it is your intent to use the top mounted factory oil pressure sensor on LS2/LS3/LS7/LSX engines, you will need to carefully drill and tap the oil pressure sensor provision using the pre-located pilot hole on the bottom of the valley cover. The hole should be drilled and tapped to accept an M16 x 1.5 male NPT fitting.
*If using for DOD Delete you must drill and tap all 8 oil port holes 1/8-NPT and install plugs in the oil ports or loss of oil pressure will occur. |
| Description_DEF |
Valley Pan Cover |
| Description_DES |
Holley LS Valley Cover with Oil Fill - Black Billet |
| Description_EXT |
LS Valley Cover; Black Billet Aluminum; w/Oil Fill; Trussed Design; 11 Bolt Pattern; Incl. Oil Fill Cap; |
| Description_INV |
VALLEY COVER TRUSSED SATN BLK W/OIL FILL |
| Description_KEY |
Valley; valley; LS; ls; LS1; ls1; LS2; ls2; LS3; ls3; LS6; ls6; LS7; ls7; LSX; lsx; billet; Billet; trussed; Trussed; oil fill; Oil Fill; Cover; cover; Provision; provision; cap; Cap |
| Description_FAB |
Precision manufactured from billet aluminum with a modern, race inspired, trussed design |
| Description_FAB |
Available for GM LS1/LS6 (10 bolt) and LS2/LS3/LS7/LSX (11 bolt) engine applications |
| Description_FAB |

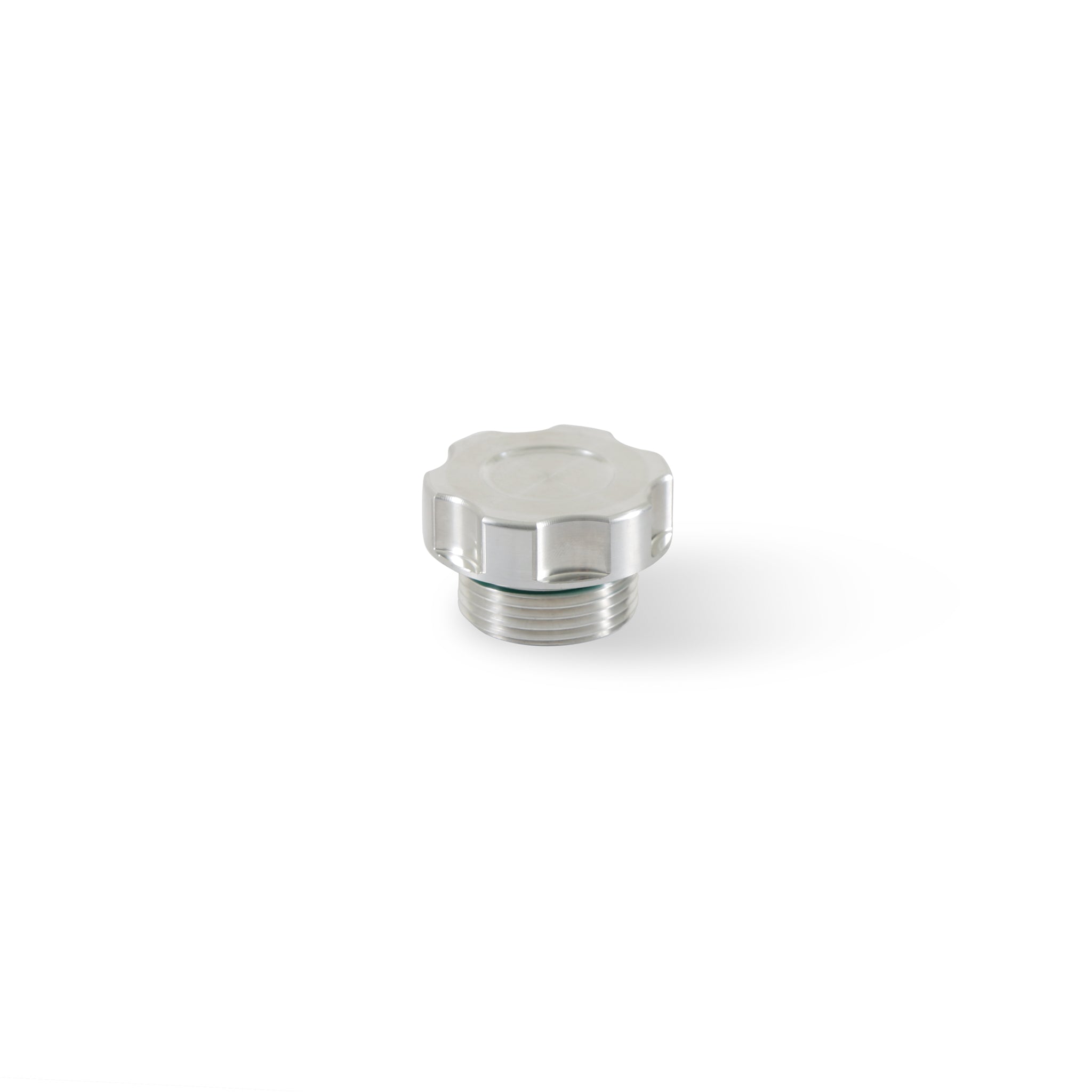

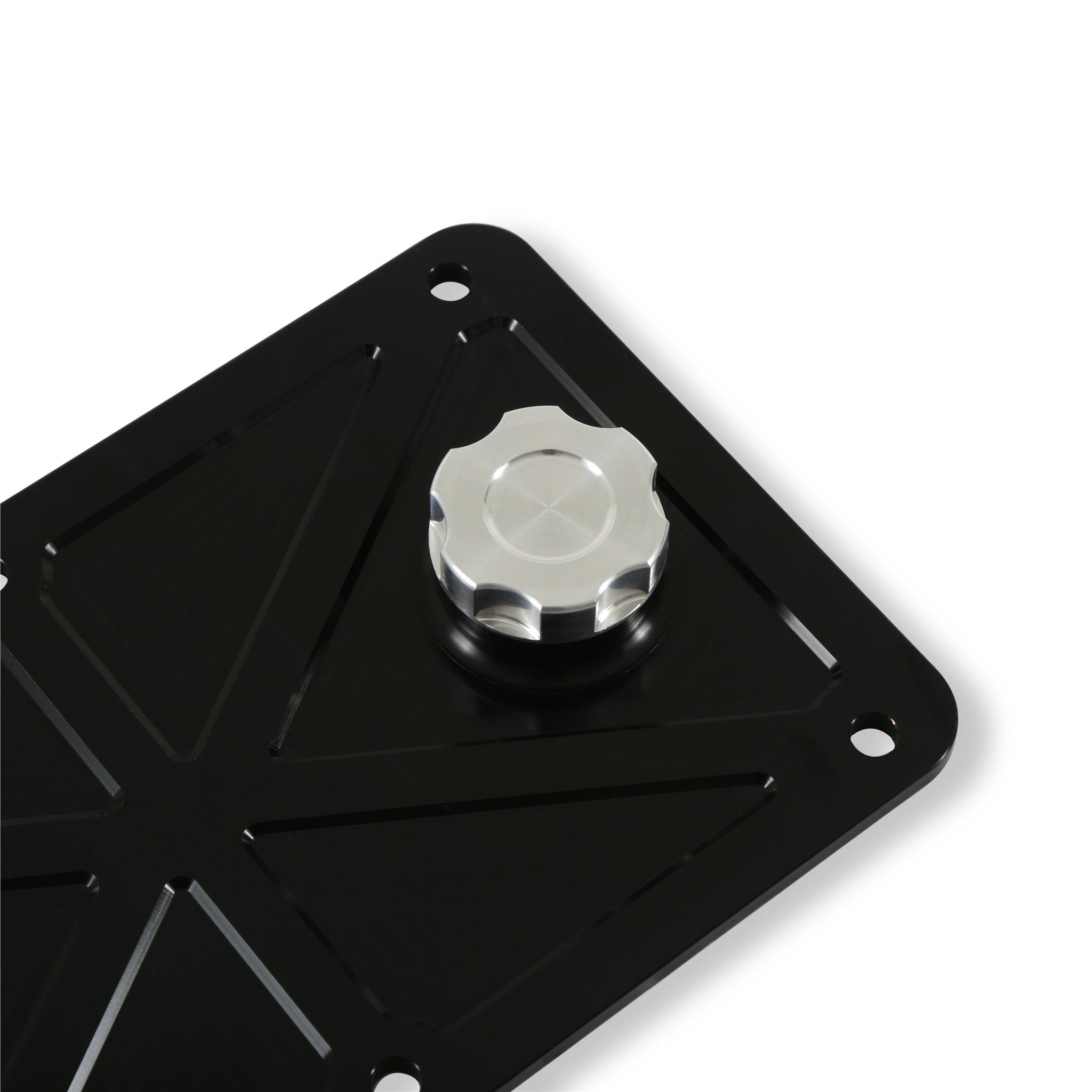

Features integrated oil fill neck with included billet aluminum oil fill cap (Holley P/N 241-225) |
| Description_FAB |
Smooth underside allows for elimination of Displacement-On-Demand (DOD)* and offers ample gasket sealing surface |
| Description_FAB |
All necessary gaskets and upgraded mounting hardware sold separately |
| Description_FAB |
Available in three unique finishes: natural billet (clear anodized for protection), polished billet, and black anodized billet |
| Description_SHO |
Valley Pan Cover |
| Description_MKT |
Holley's LS valley covers with oil fill provisions are the latest addition to our expansive lineup of LS engine dress up products. Machined from billet aluminum and featuring a modern, trussed design with an integrated oil fill neck and billet oil fill cap, these LS valley covers are the perfect upgrade for your LS engine if you are looking for a subtly custom touch. These valley covers are machined smooth on the underside, allowing for the elimination of Displacement-On-Demand (DOD), and instead features an ample gasket sealing surface and provisions for re-installing the oil pressure sensor if necessary. |
| Description_MKT |
Each valley cover is custom machined for either LS1/LS6 (10 bolt) or LS2/LS3/LS7/LSX (11 bolt) patterns and Holley / Mr. Gasket offers all the necessary gaskets and upgraded hardware options to complete your installation. The new LS valley covers with oil fill provisions are available in three unique finishes: natural billet (clear anodized for protection), polished billet, and black anodized billet. |
| Baffle Included |
No |
| Application |
LS2/LS3/LS7/LSX |
| Material |
Billet Aluminum |
| Oil Filler Cap Included |
Yes |
| WARNING CA Proposition 65 |
No |
| Logo |
Trussed, No Logo |
| Gasket Or Seal Included |
No |
| Gaskets Included |
No |
| Product Type |
Valley Covers |
| Warning |
California Proposition 65 |
| Warranty |
Limited 90 Day |
| Bolt Pattern |
11 |
| Finish |
Black Anodized |
| Brand |
Holley |
| Emission Code |
4 |
| Oil Fill Cap Included |
Yes |
| Mounting Hardware Included |
No |
| Style |
Trussed |
| Length |
2.0000 |
| Width |
7.0000 |
| Height |
11.0000 |
| Weight |
2.0000 |
