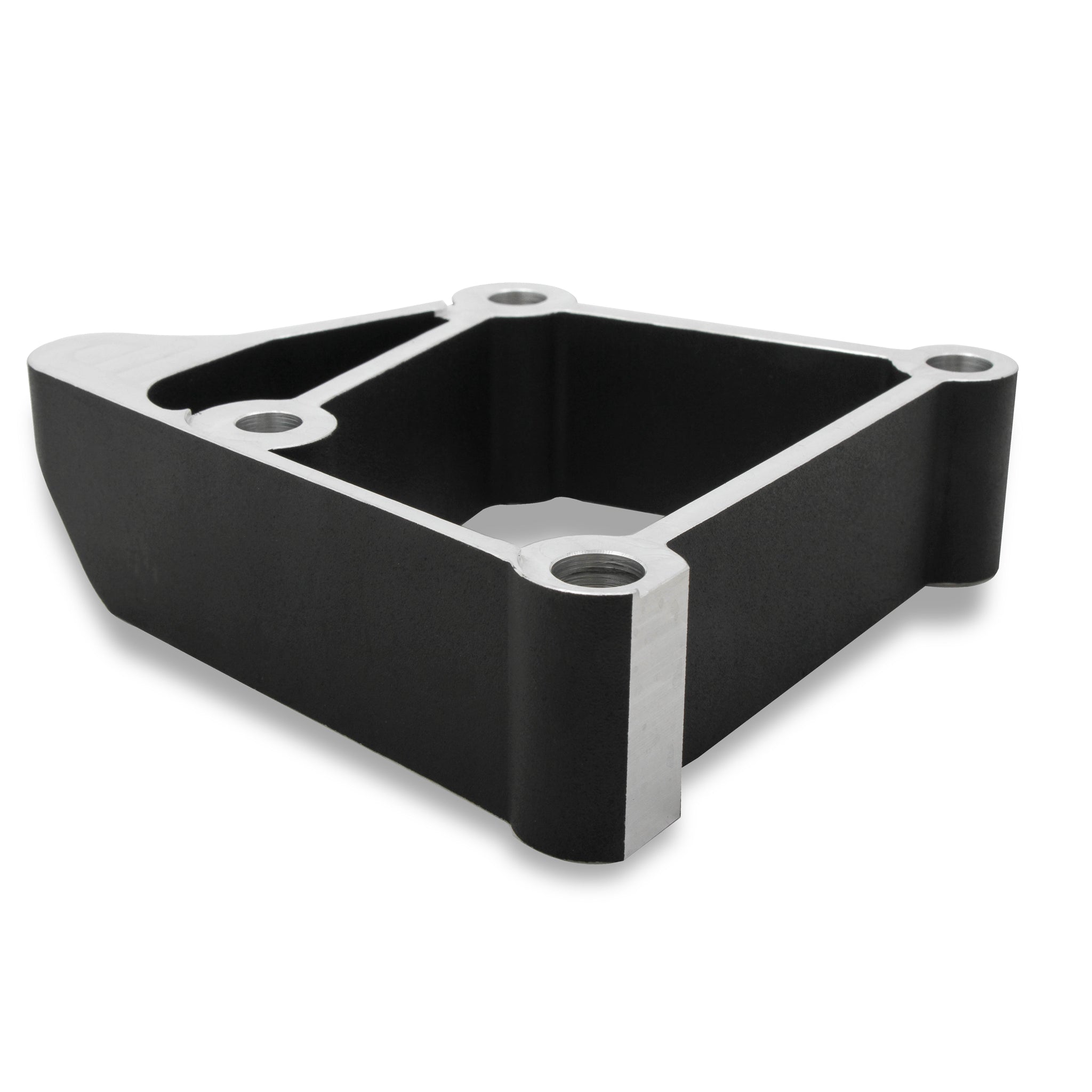

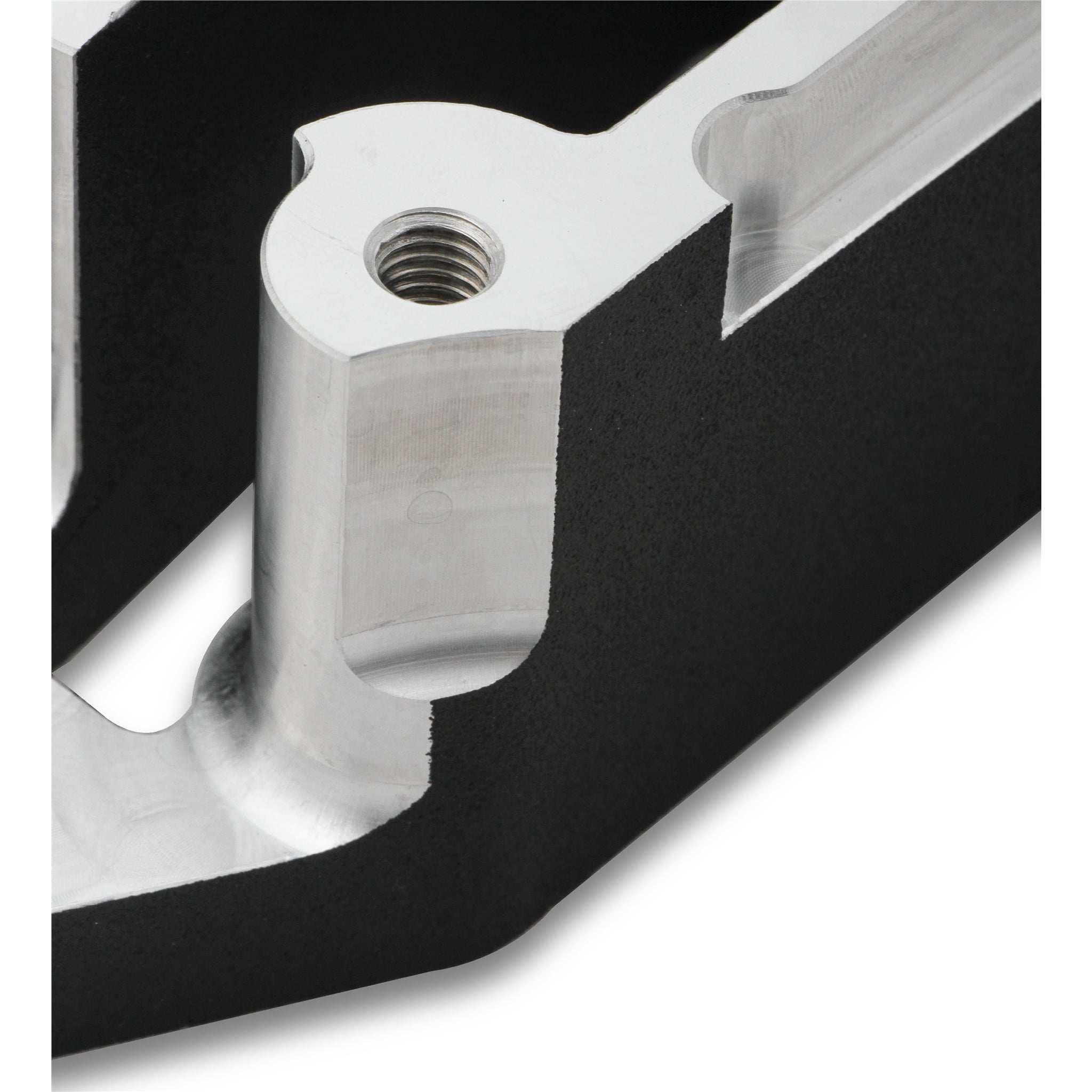

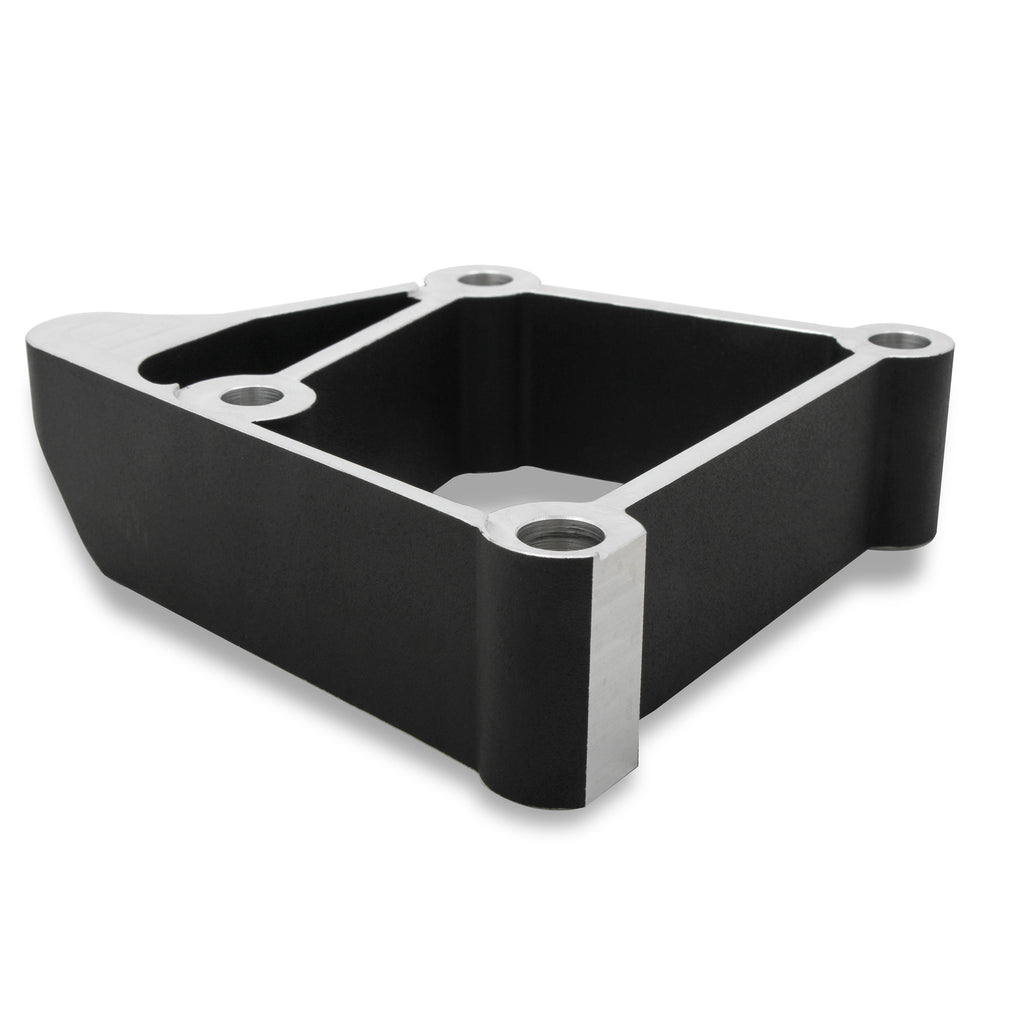

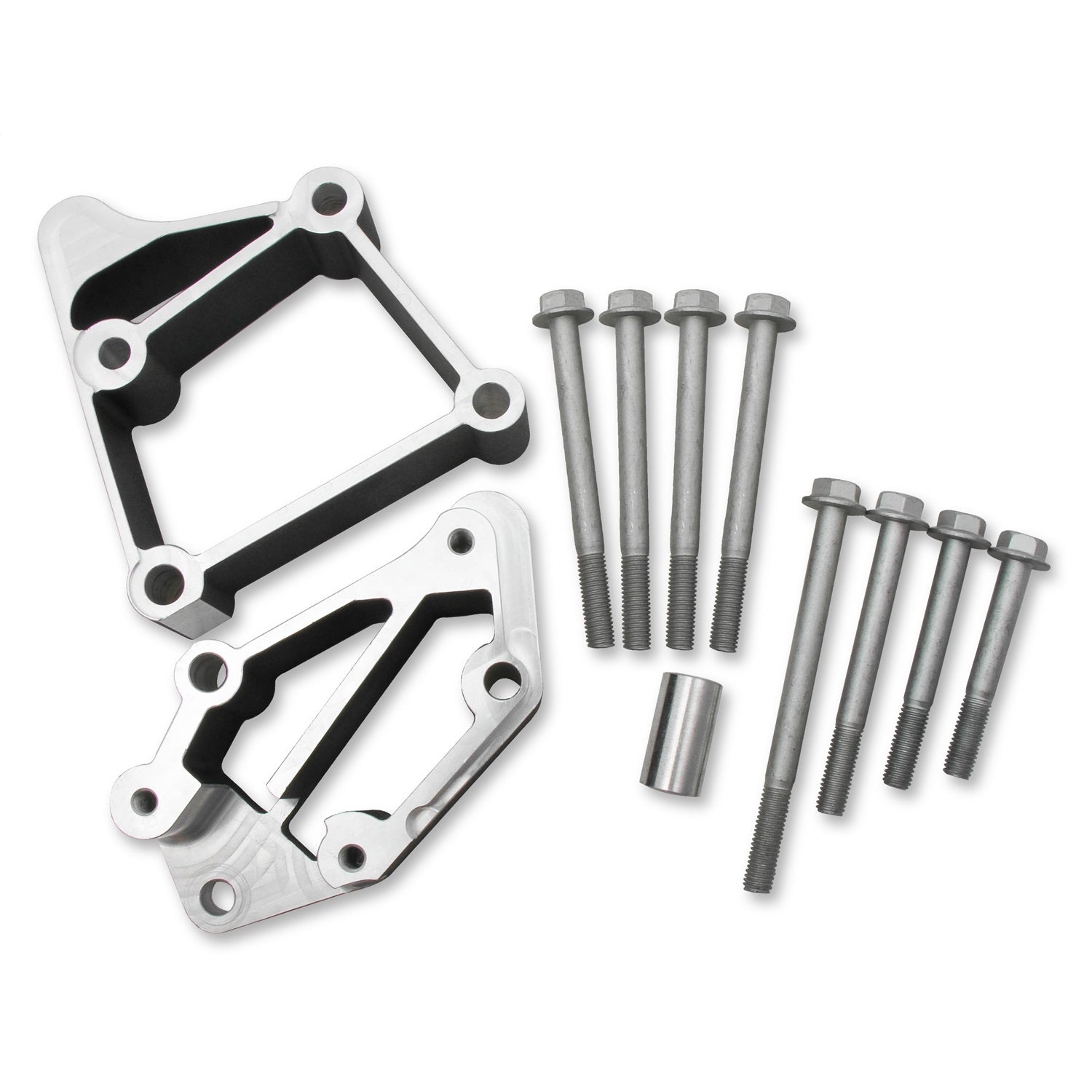

Installation Kit, LS Acc. Drive Brackets, use with LONG belt alignment (alignment common on Trucks & '10-UP Camaro)
Specifications:
| Description_DEF |
Accessory Drive Component Mount Set |
| Description_DES |
LS Accessory Drive Bracket - Installation Kit for Long Alignment |
| Description_EXT |
Black Installation Kit, LS Acc. Drive Brackets, use with LONG belt alignment (alignment common on Trucks & '10-UP Camaro) |
| Description_INV |
HI ACC BKT INSTALL KIT, LS LONG-BLAC |
| Description_FAB |
LS Accessory Drive Bracket Kit |
| Description_FAB |
For Use w/Applications w/o A/C Or Using Factory A/C Bracket |
| Description_FAB |
Cast Aluminum |
| Description_MKT |
Installation Kit, LS Acc. Drive Brackets, use with LONG belt alignment (alignment common on Trucks & '10-UP Camaro) |
| Description_MKT |
Holley accessory drive installation kits provide proper spacing for Holley A/C, P/S & Alt accessory drive brackets, so belts ride at the perfect distance on your particular engine. |
| Description_MKT |
A Fitment And Required Components Guide helps you locate and source components and provides other notes and helpful hints to figure your distance. Three easy steps will get you going. Step one is to determine your belt alignment based on your crank pulley position on the engine you have. Step two is to choose the Holley accessory drive brackets that you need (A/C, Alt & P/S or both). Step three is to see which Holley installation kit your set-up requires to line up your accessories with your crank pulley position. An application specific installation kit (part # 21-1, 21-2, or 21-3) is REQUIRED for most applications. |
| Description_KEY |
Bolts that come with the spacer kits (21-1; 21-2; & 21-3) are not sold separately. |
| Description_SHO |
AccessoryDriveCmpSet |
| WARNING CA Proposition 65 |
No |
| Engine Make/Size |
GM LS |
| Product Type |
Accessory Bracket |
| Warranty |
Limited 90 Day |
| Material |
Aluminum |
| Accessory Drive Style |
High Mount |
| Belt Alignment |
Long |
| Brand |
Holley |
| Thickness |
1.589" Drivers Side, 2.119" Passenger Side |
| Emission Code |
5 |
| Engine |
GM Gen III/IV (LS) |
| Finish |
Black |
| Length |
3.1000 |
| Width |
7.2000 |
| Height |
16.1000 |
| Weight |
3.7000 |
