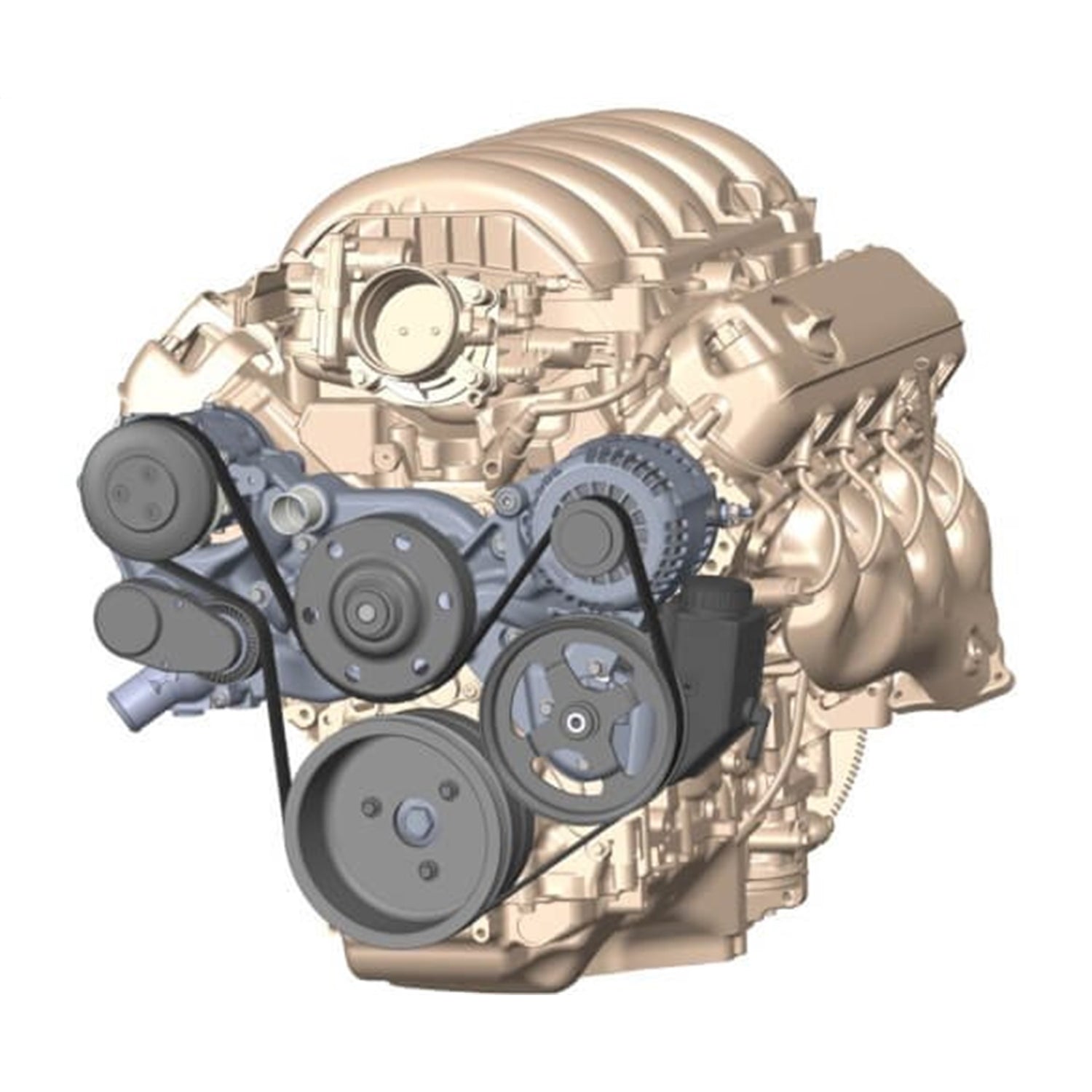

Holley's Mid-Mount complete accessory system has all accessories pulled in tighter than other accessory drives. At the heart of the system is a "bracketless" design, where the accessories bolt directly to the water pump for a clean, integrated form. The design offers superb engine visibility to show off your horsepower, not your accessories. Among the many swap-friendly features are bottom heater outlets for clearance in tight applications. The Holley-designed alternator is just as innovative. This premium alternator utilizes 6-phase technology as found on the C7 Corvette. The water pump also shares its design efficiencies with the C7 Corvette. The compact and reliable SD7 A/C compressor and Type II P/S pump with a baffled reservoir.
Specifications:
| Description_ASC |
Fits: GM Gen-V LT Engines (wet-sump), LV3/LV1 (V6 version of Gen-V LT engine), dry-sump LT engines converted to wet-sump (except LT2 and any supercharged). |
| Description_DEF |
Accessory Drive Component Mount Set |
| Description_DES |
Holley Mid-Mount Complete Accessory Drive System - Gen V LT Engines - Standard Damper - Natural |
| Description_FAB |

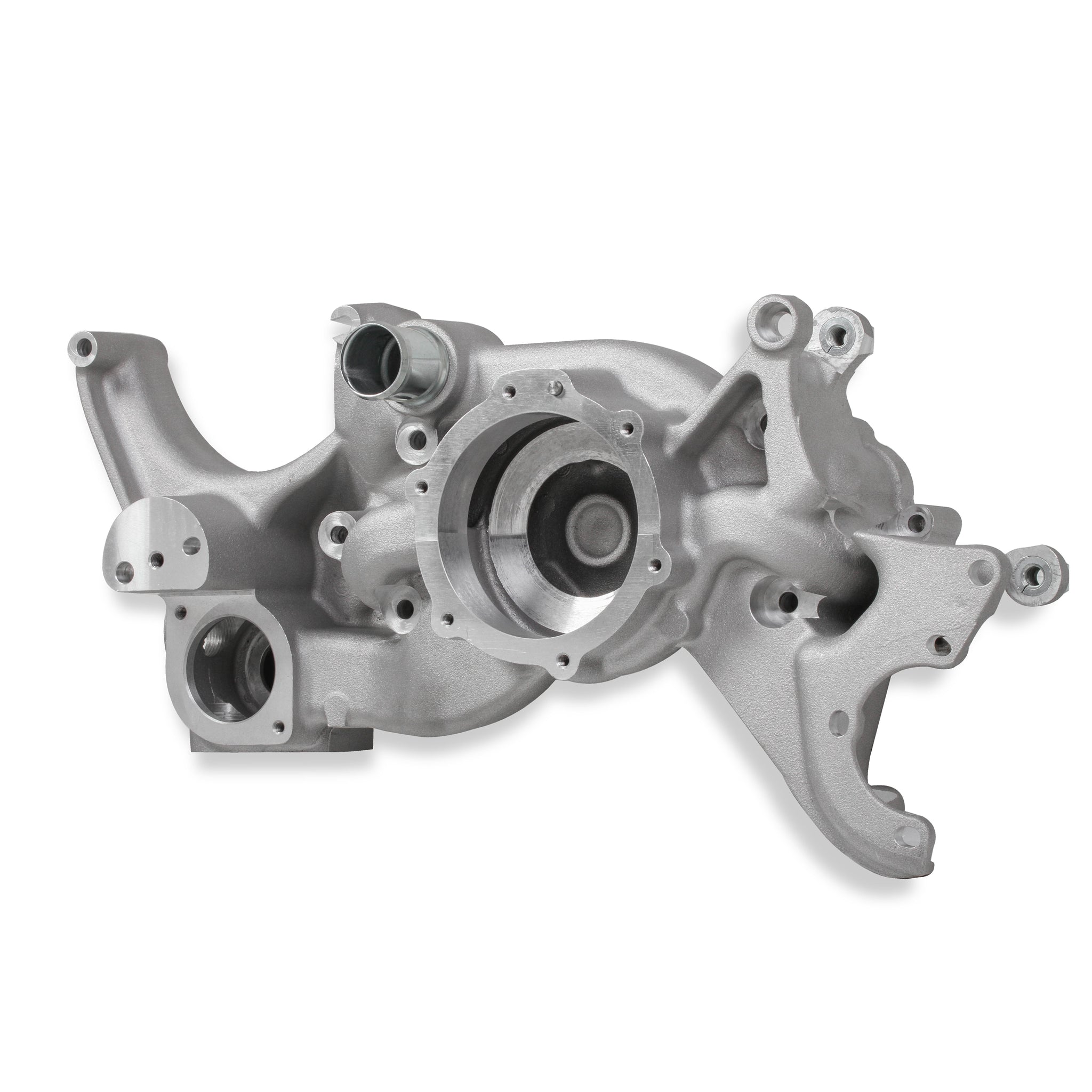

Bracketless accessory mounting with ultra-easy assembly |
| Description_FAB |

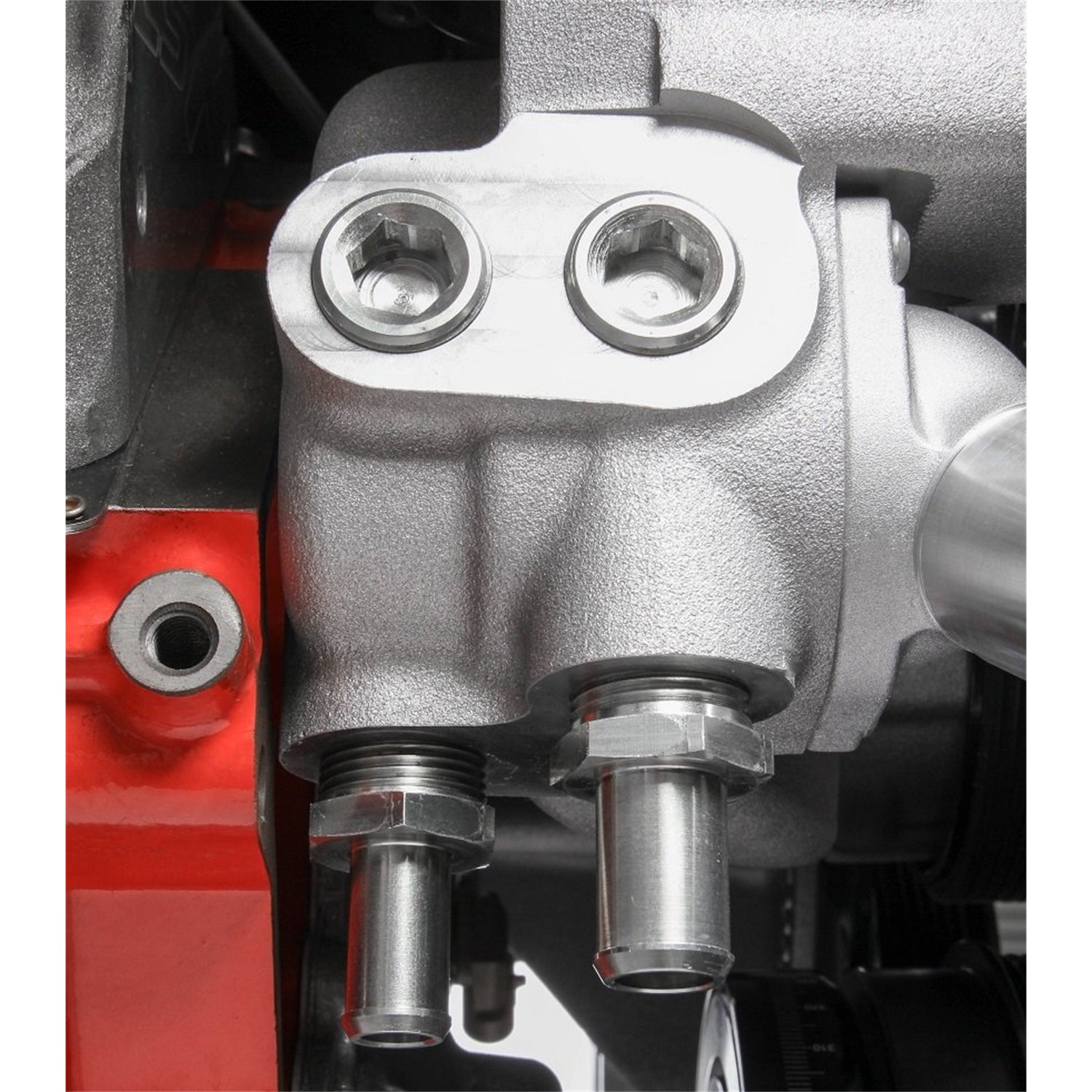

Bottom outlet heater hose options for swap application clearance |
| Description_FAB |

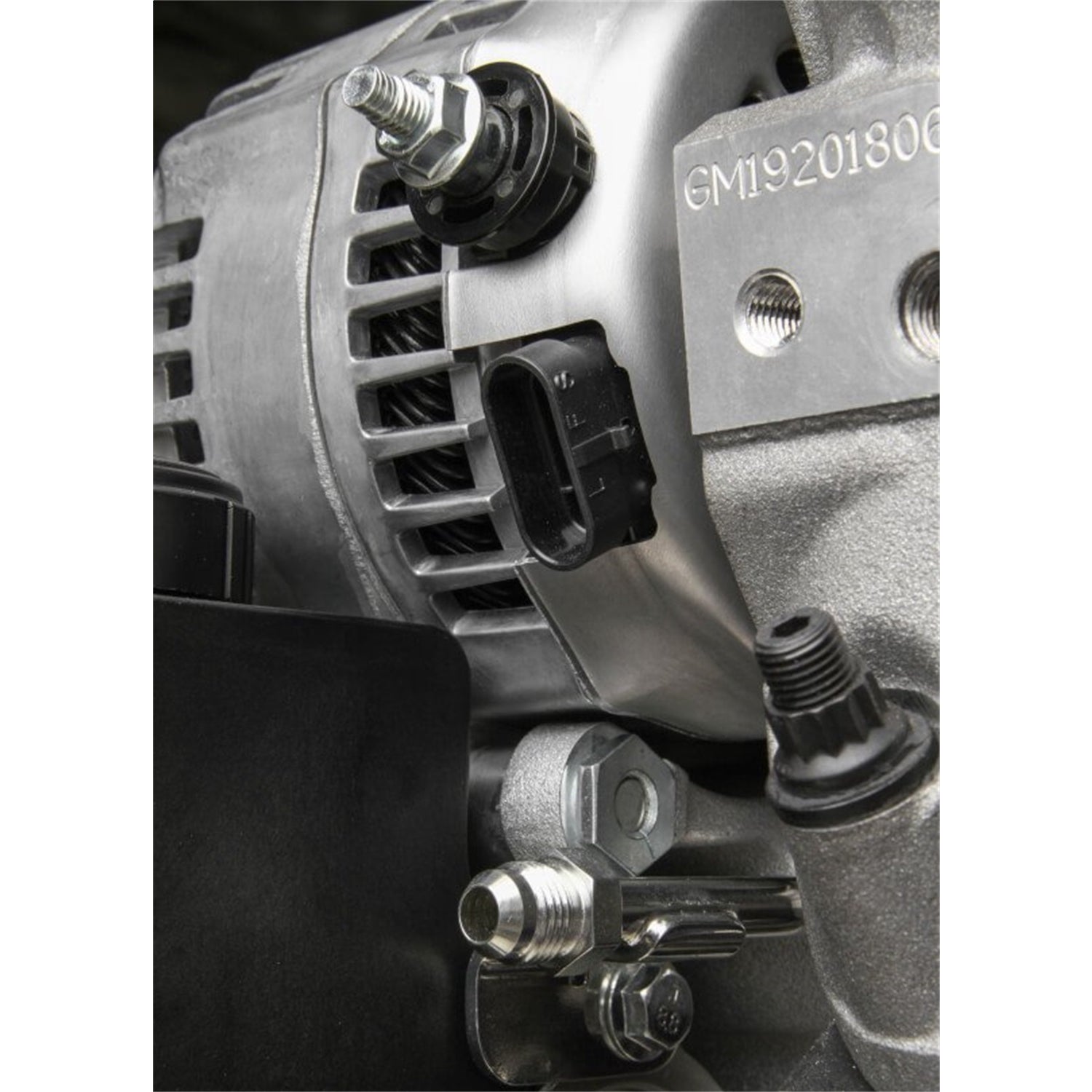

LT1 style premium alternator |
| Description_FAB |

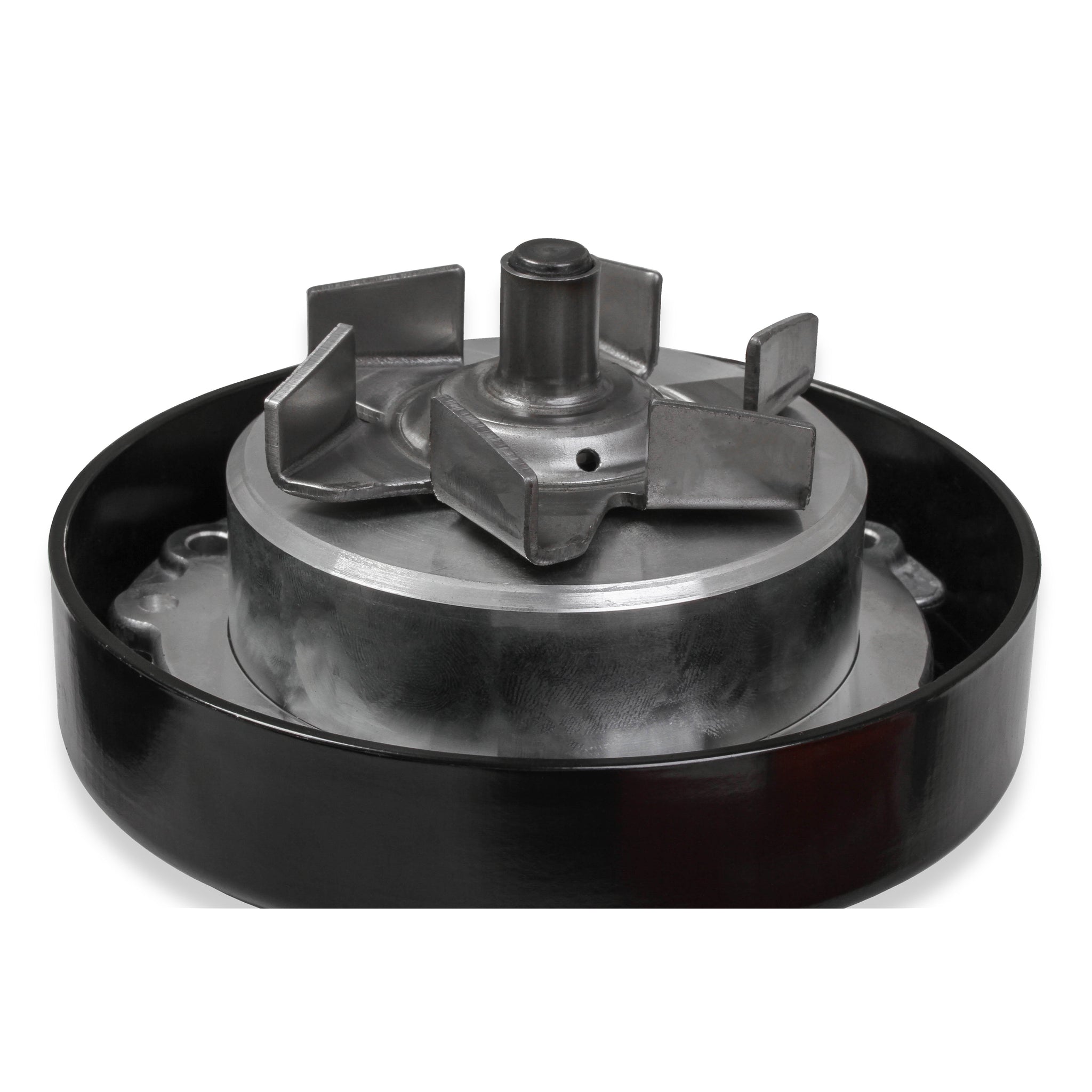

LT1 style water pump design |
| Description_FAB |
Compact SD7 A/C compressor |
| Description_FAB |
Type II power steering pump with baffled reservoir |
| Description_FAB |

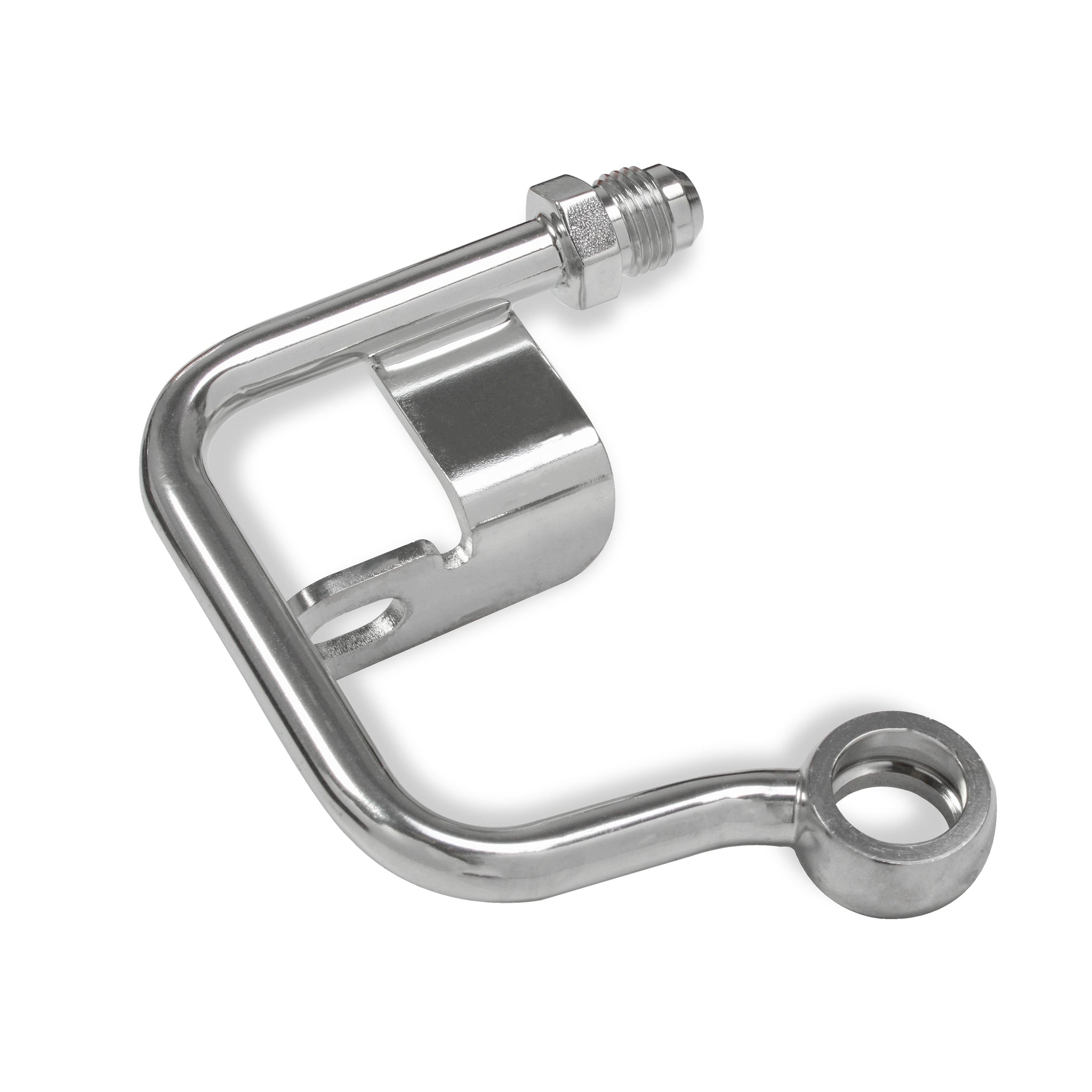

P/S, A/C adapter hardline to AN -6 adapter included |
| Description_FAB |
Shortened top outlet nipple for more radiator hose turns and routing room |
| Description_FAB |
OE pulley ratios for optimal accessory performance |
| Description_FAB |
No adapters/spacers are required |
| Description_FAB |
Works with all common aftermarket and factory throttle bodies and intakes |
| Description_FAB |
Works with Hooker turbo manifolds |
| Description_FAB |
All accessories are included; the water pump, A/C compressor, Alternator, P/S pump with reservoir, and the crank damper |
| Description_FAB |
LT Mid-Mount drives fit ALL wet-sump LT V6 & V8 engines (except LT2 and any supercharged). Also, will fit dry sump LT engines converted to wet-sump (except LT2 and any supercharged) |
| Description_INV |
COMP MID-MT ACC SYSTEM, LT-NATURAL |
| Description_MKT |
Holley's Mid-Mount complete accessory system has all accessories pulled in tighter than other accessory drives. At the heart of the system is a "bracketless" design, where the accessories bolt directly to the water pump for a clean, integrated form. The design offers superb engine visibility to show off your horsepower, not your accessories. Among the many swap-friendly features are bottom heater outlets for clearance in tight applications. The Holley-designed alternator is just as innovative. This premium alternator utilizes 6-phase technology as found on the C7 Corvette. The water pump also shares its design efficiencies with the C7 Corvette. The compact and reliable SD7 A/C compressor and Type II P/S pump with a baffled reservoir. |
| Description_MKT |

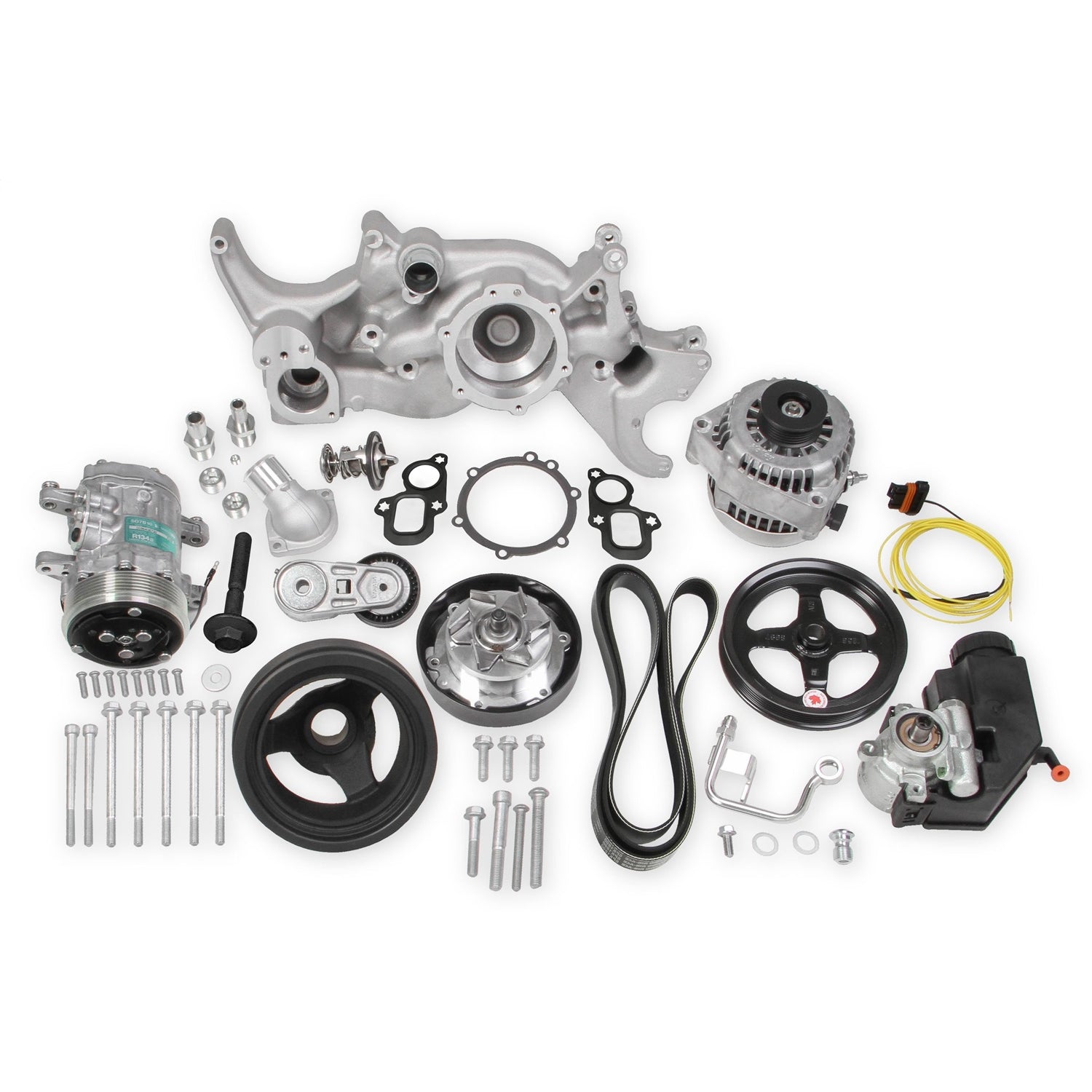

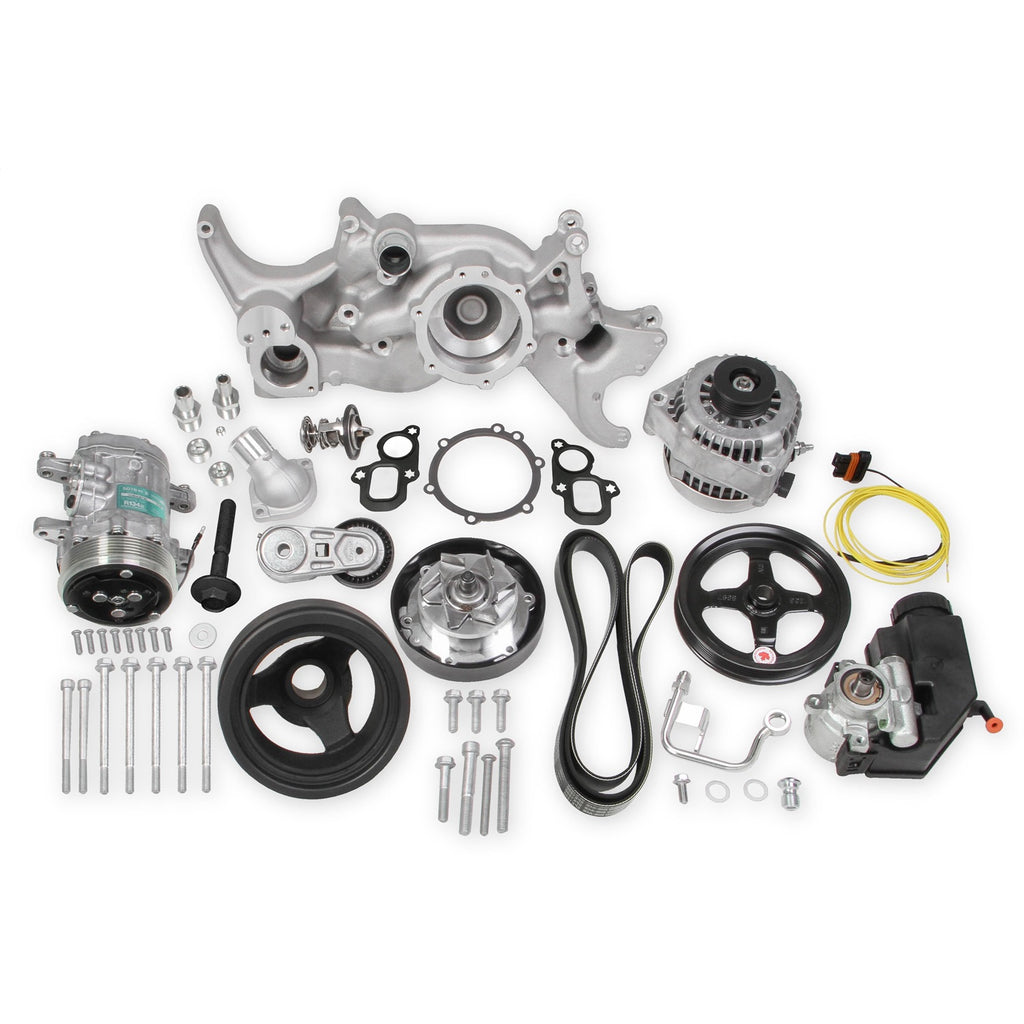

When we say "complete," we mean complete. The Mid-Mount system comes with everything you need. All accessories are included; the water pump, A/C compressor, Alternator, P/S pump with reservoir, and the crank damper. All pulleys and the belt are supplied along with heater hose adapters, a power steering hardline, and the alternator pigtail harness. Ultra easy assembly with color graphic instructions to walk you through the installation. |
| Description_MKT |
Patent - www.holley.com/patents/ |
| Description_EXT |
Mid-Mount Complete Accessory Drive System; For Use w/GM Gen V LT Engine; Incl. LT1 Alternator/LT1 Style Water Pump/Compact SD7 A/C Compressor; |
| Description_SHO |
AccessoryDriveCmpKit |
| Emission Code |
5 |
| Choose Your Part |
Accessory Drive Kits |
| Finish |
Natural Cast |
| Damper Style |

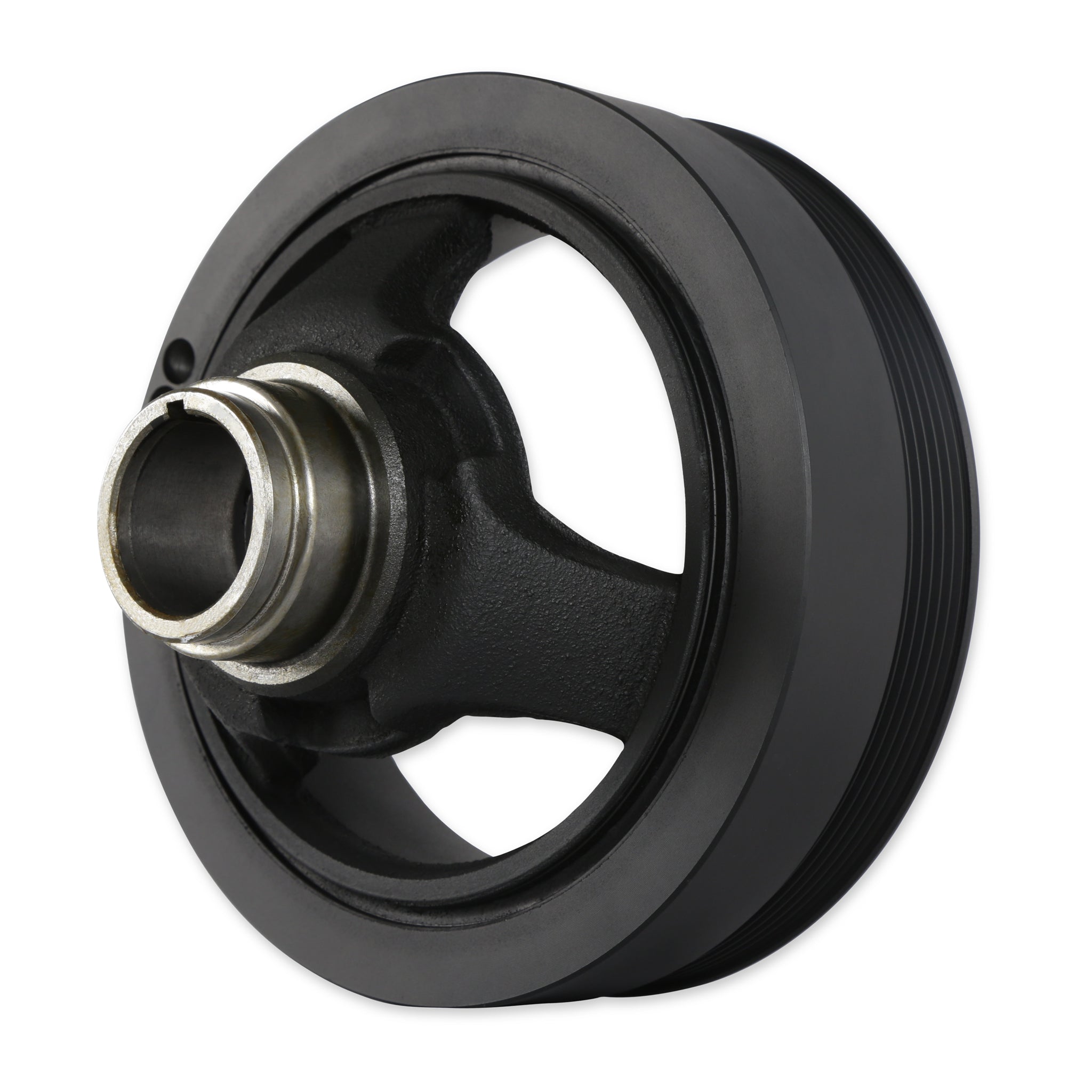

Cast Damper |
| Damper Included |
Yes |
| Material |
Cast Aluminum |
| Power Steering Pulley Included |
Yes |
| Water Neck Included |
Yes |
| Water Pump Included |
Yes |
| A/C Compressor Included |
Yes |
| A/C Compressor Type |
SD7 |
| Alternator Amperage |
150 |
| Alternator Included |
Yes |
| Application |
GM Gen V LT |
| Inlet Size |
35.4mm/1.4" |
| Output |
150 Amps |
| Power Steering Pump Included |
Yes |
| WARNING CA Proposition 65 |
No |
| Accessory Drive Style |
Mid-Mount |
| Belt Included |
Yes |
| Brand |
Holley |
| Engine |
GM Gen V LT1 |
| Oil System Type |
Wet Sump |
| Power Steering Hardline Included |
Yes |
| Power Steering Reservoir Included |
Yes |
| Product Type |
Accessory Drive Kits |
| Pulley Style |
Serpentine |
| Tensioner Included |
Yes |
| Thermostat Included |
Yes |
| Warranty |
Limited 90 Day |
| Water Pump Pulley Included |
Yes |
| Sale Category |
Engine |
| Length |
17.0000 |
| Width |
19.0000 |
| Height |
24.0000 |
| Weight |
53.0000 |
