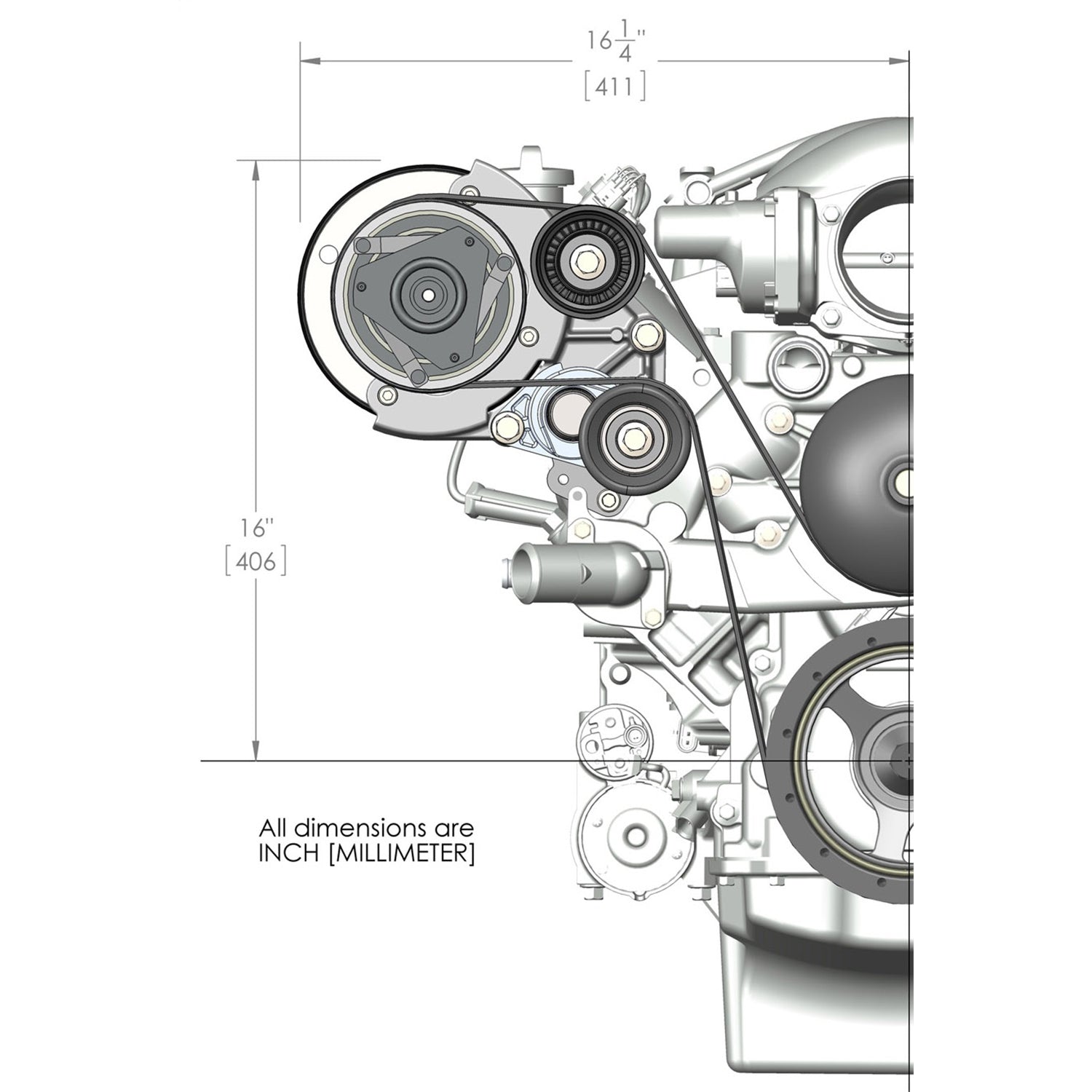

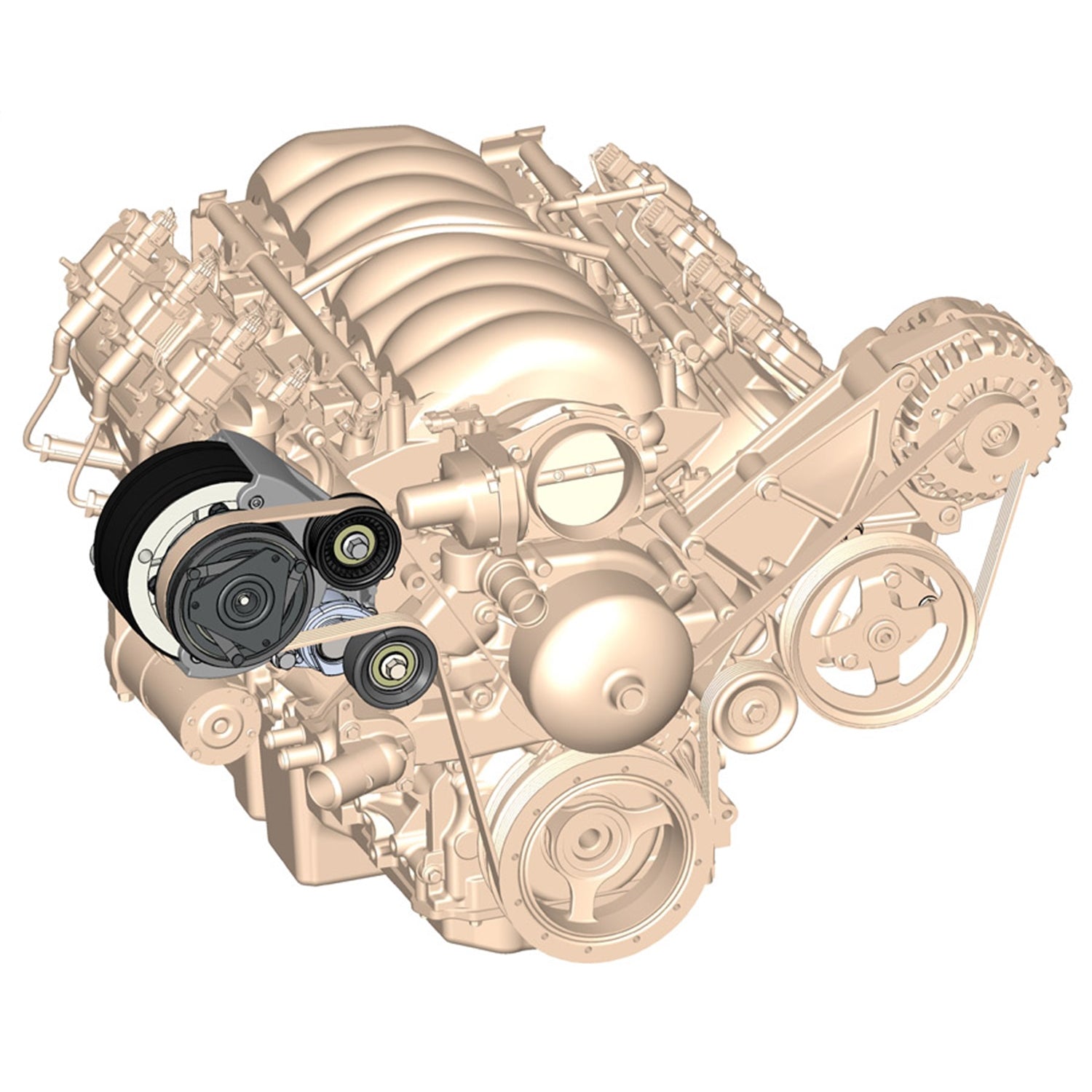

Now available from Holley are complete A/C kits that have everything needed for the application. Already have the P/S pump and alternator system from the donor truck or car engine These complete A/C brackets kits move the compressor up high and away from the frame rail (no more notching!). Included are compressor, pulleys, and tensioner that are manufactured by OE part suppliers many of which are on production cars today.
Specifications:
| Description_ASC |

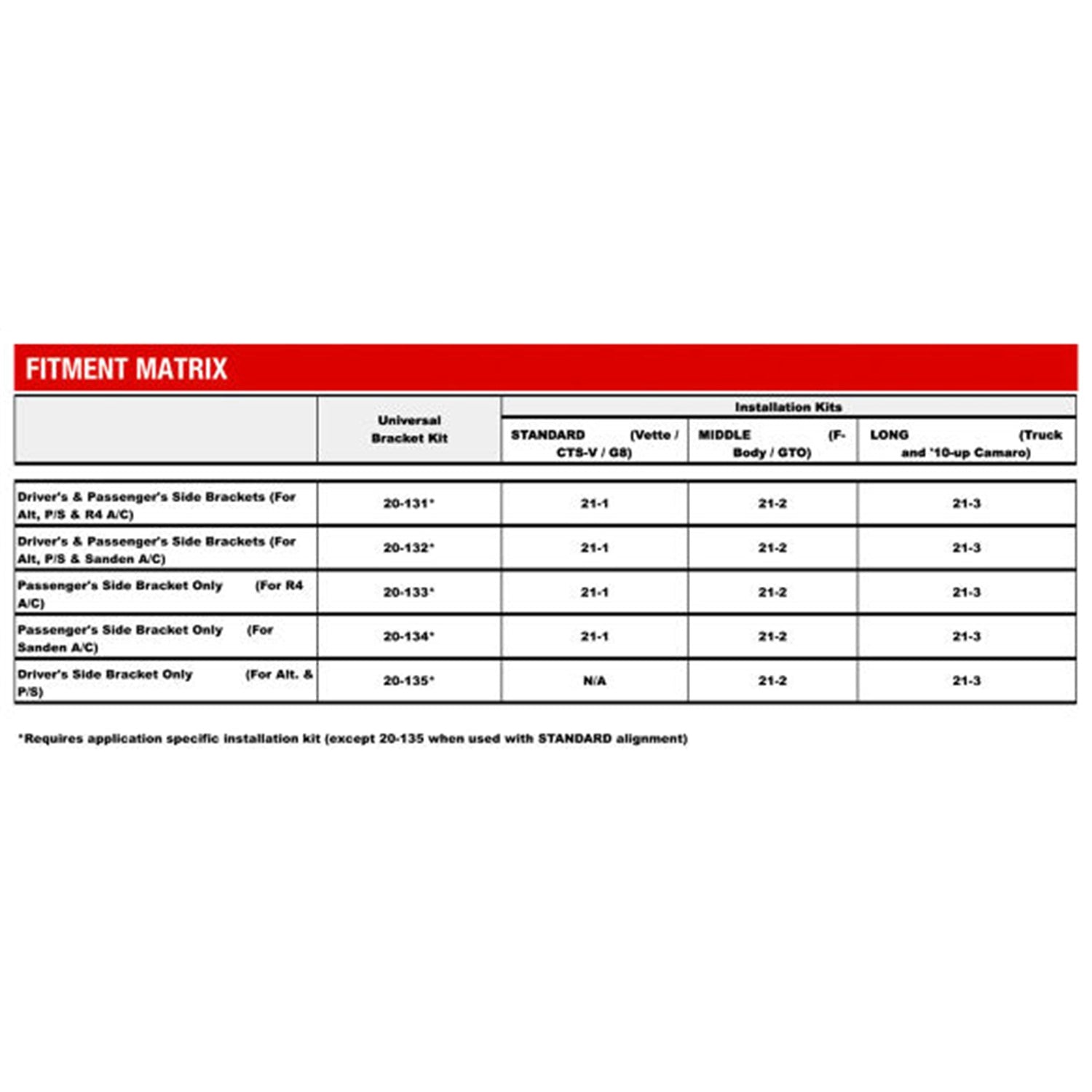

NOTE: This bracket REQUIRES an installation kit for assembly (Part 21-1, 21-2, OR 21-3, see instruction sheet below for the correct installation kit for your application).***For all LS Engine Swaps-Please refer to your specific body style engine mount kits for additional modification and fitment requirements. |
| Description_DEF |
Accessory Drive Component Mount Set |
| Description_EXT |
Accessory Drive Kit; GM LS; Passengers Side; Includes R4 A/C Compressor/Tensioner/Pulleys; Black; |
| Description_DES |
Accessory Drive Kit |
| Description_FAB |
The most cost effective LS bracket solution on the market! |
| Description_FAB |
Universal brackets fit virtually all common LS engines regardless of water pump and harmonic balancer offsets reducing cost and complexity compared to competitive products |
| Description_FAB |
Simple, dedicated installation kits allow easy fitment to Corvette, F-Body or Truck drive offsets |
| Description_FAB |
Accessories, tensioner, and pulleys are manufactured by OEM suppliers many of which are on production vehicles today. |
| Description_FAB |
OEM quality natural finish die castings for clean looks and durability. Can be polished, coated, painted or plated. |
| Description_FAB |
OEM spec flanged head hardware included to match your factory LS engine hardware |
| Description_FAB |
Ideal for crate engines, take out motors and engine builders |
| Description_FAB |

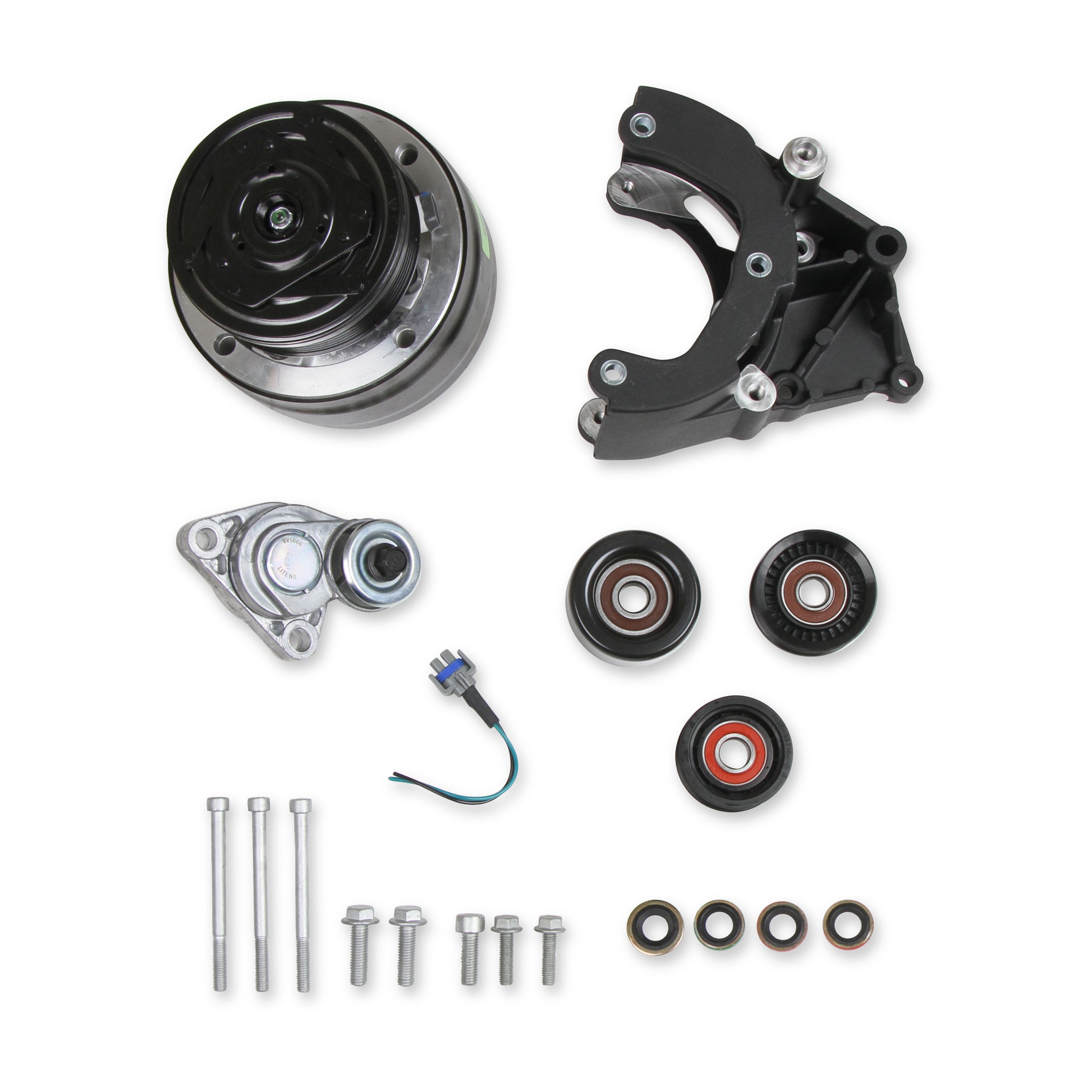

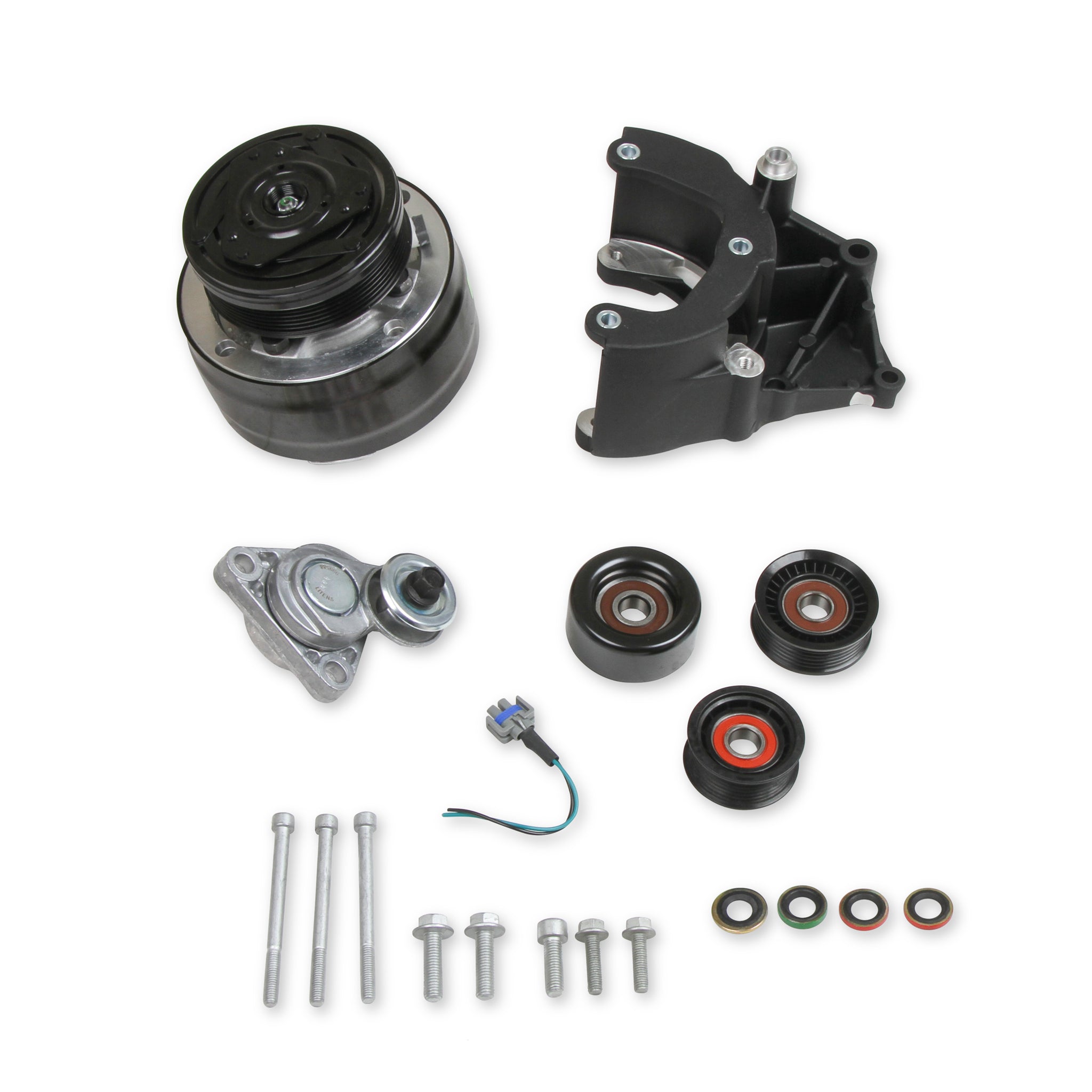

INCLUDES THE FOLLOWING ITEMS |
| Description_FAB |

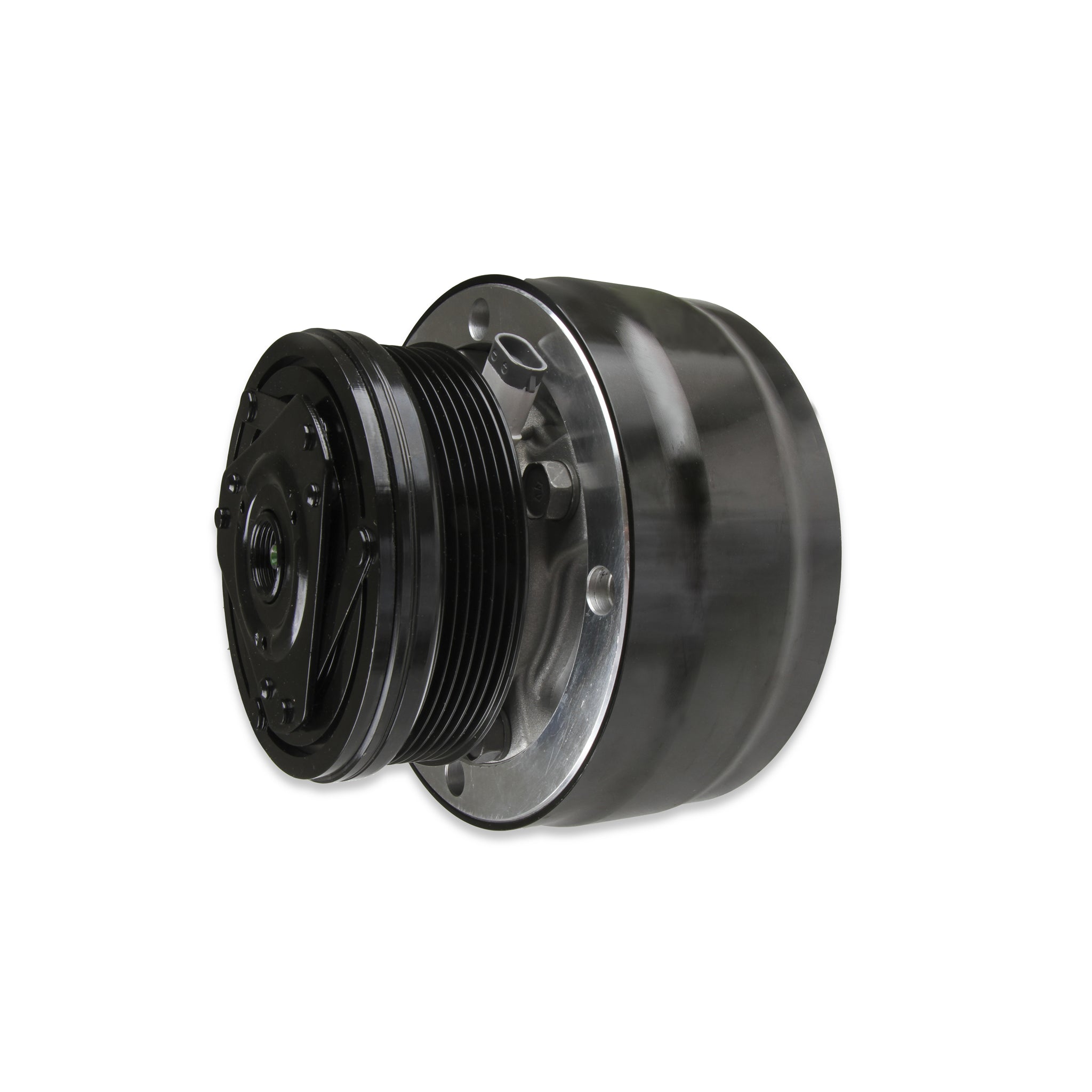

199-100 - AC R4 COMPRESSOR, 8mm PIN, R-134a |
| Description_FAB |
199-200 - HARNESS PIGTAIL, 8mm PIN, R4 COMPRESSOR |
| Description_FAB |
97-150 - IDLER PULLEY, SMOOTH, 2.75" DIAMETER |
| Description_FAB |
97-151 - TENSIONER ASSEMBLEY, LS |
| Description_FAB |
97-153 - IDLER PULLEY, GROOVED, 59mm DIAMETER |
| Description_FAB |

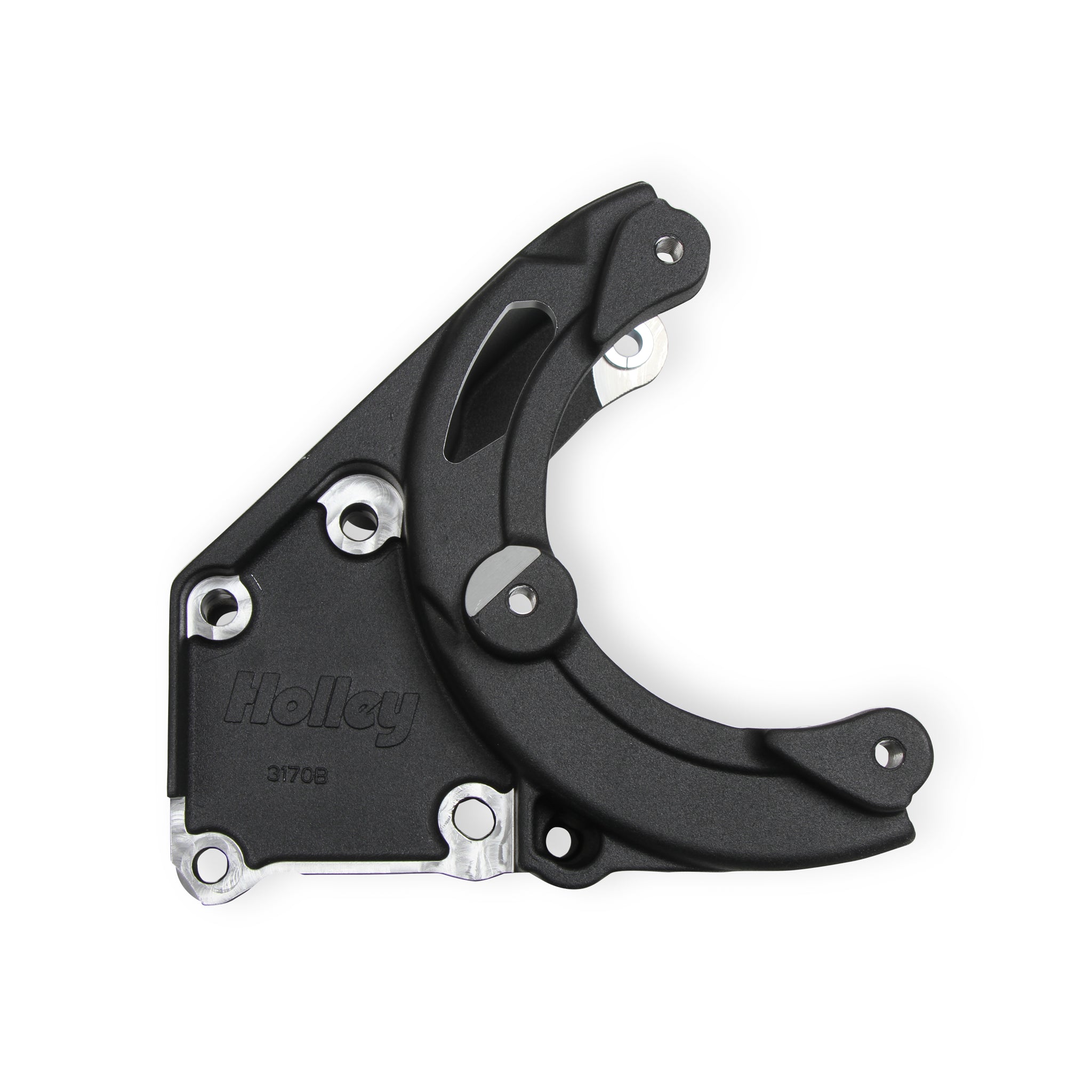

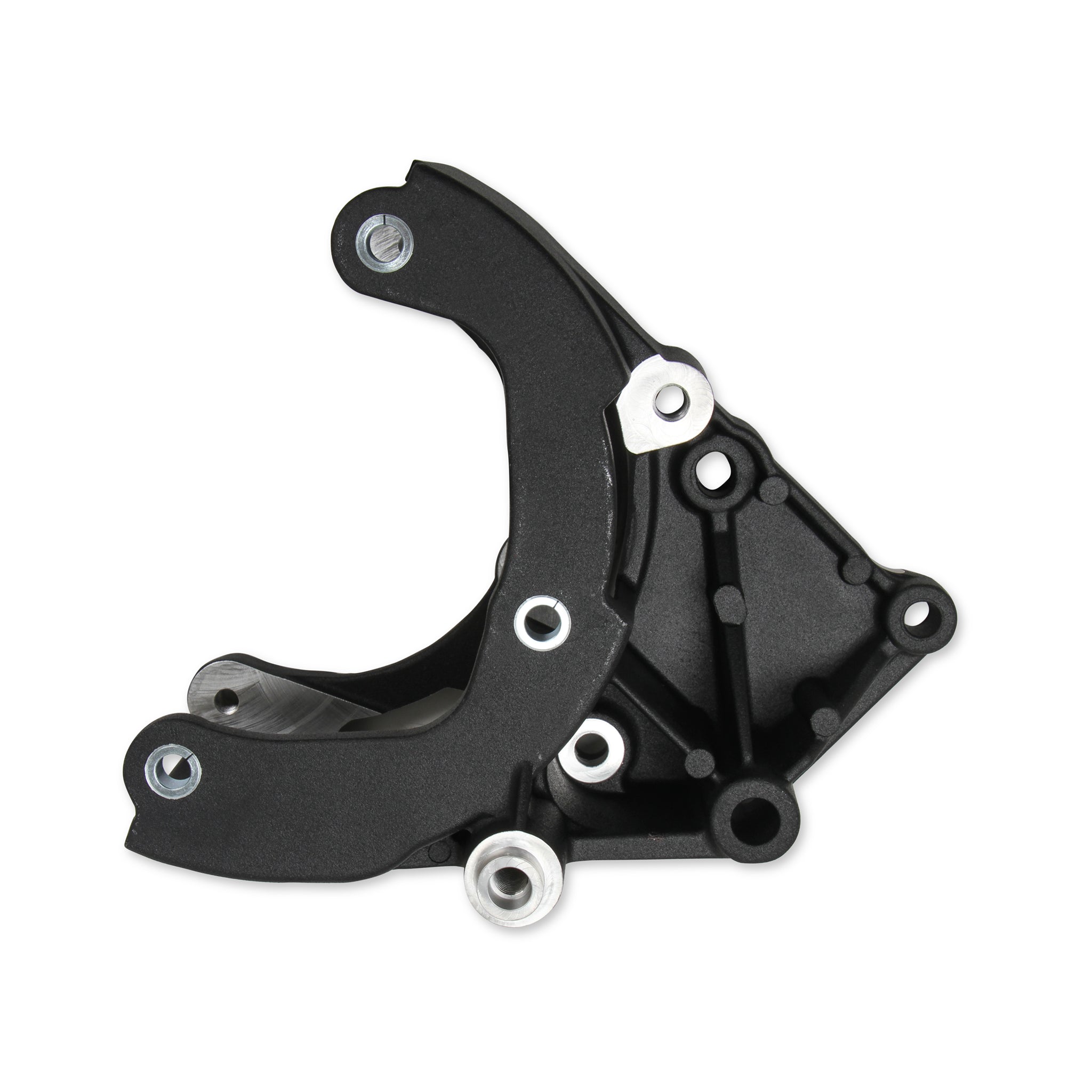

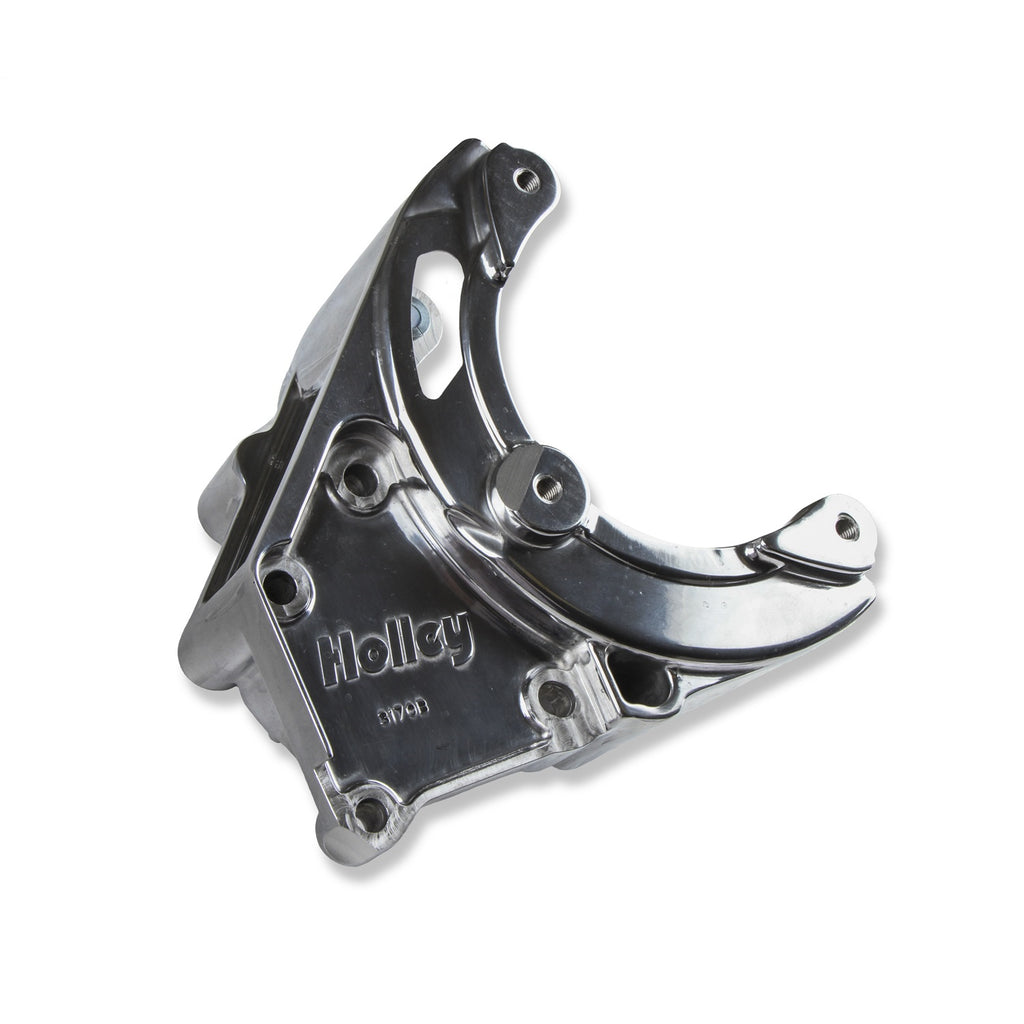

20-133 - LS A/C BRACKET KIT PASSENGER SIDE |
| Description_INV |
COMP HI PASS BKT KIT, LS/LT, W/R4-BLACK |
| Description_MKT |
Now available from Holley are complete A/C kits that have everything needed for the application. Already have the P/S pump and alternator system from the donor truck or car engine? These complete A/C brackets kits move the compressor up high and away from the frame rail (no more notching!). Included are compressor, pulleys, and tensioner that are manufactured by OE part suppliers many of which are on production cars today. |
| Description_SHO |
AccessoryDriveCmpKit |
| Accessory Drive Style |

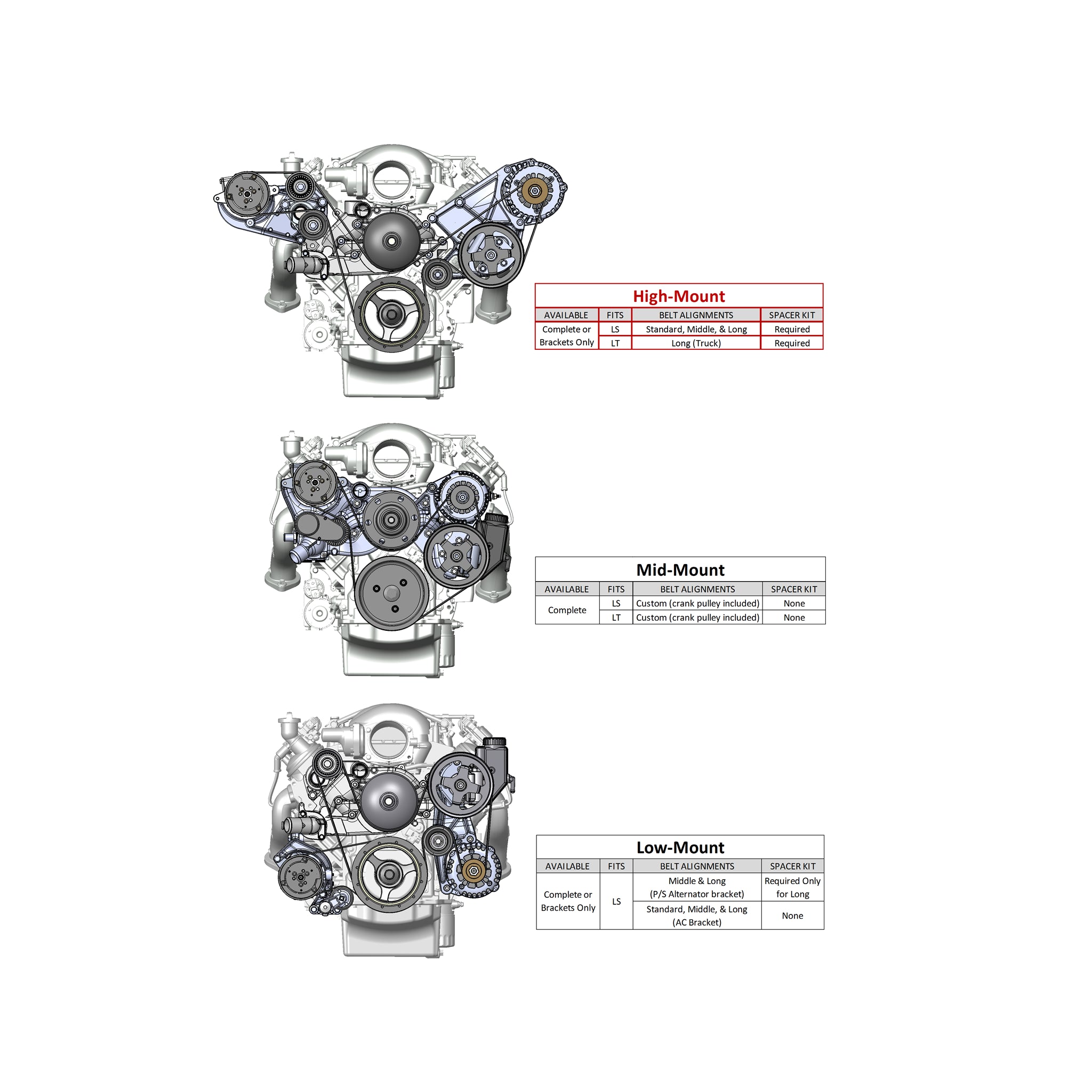

High-Mount |
| A/C Compressor Type |
R4 |
| Thermostat Included |
No |
| Engine |
GM Gen III/IV (LS) |
| Brand |
Holley |
| Power Steering Reservoir Included |
No |
| Tensioner Included |
Yes |
| Water Pump Pulley Included |
No |
| Belt Included |
No |
| Choose Your Part |
A/C Drive Kit |
| Damper Included |
No |
| Damper Style |

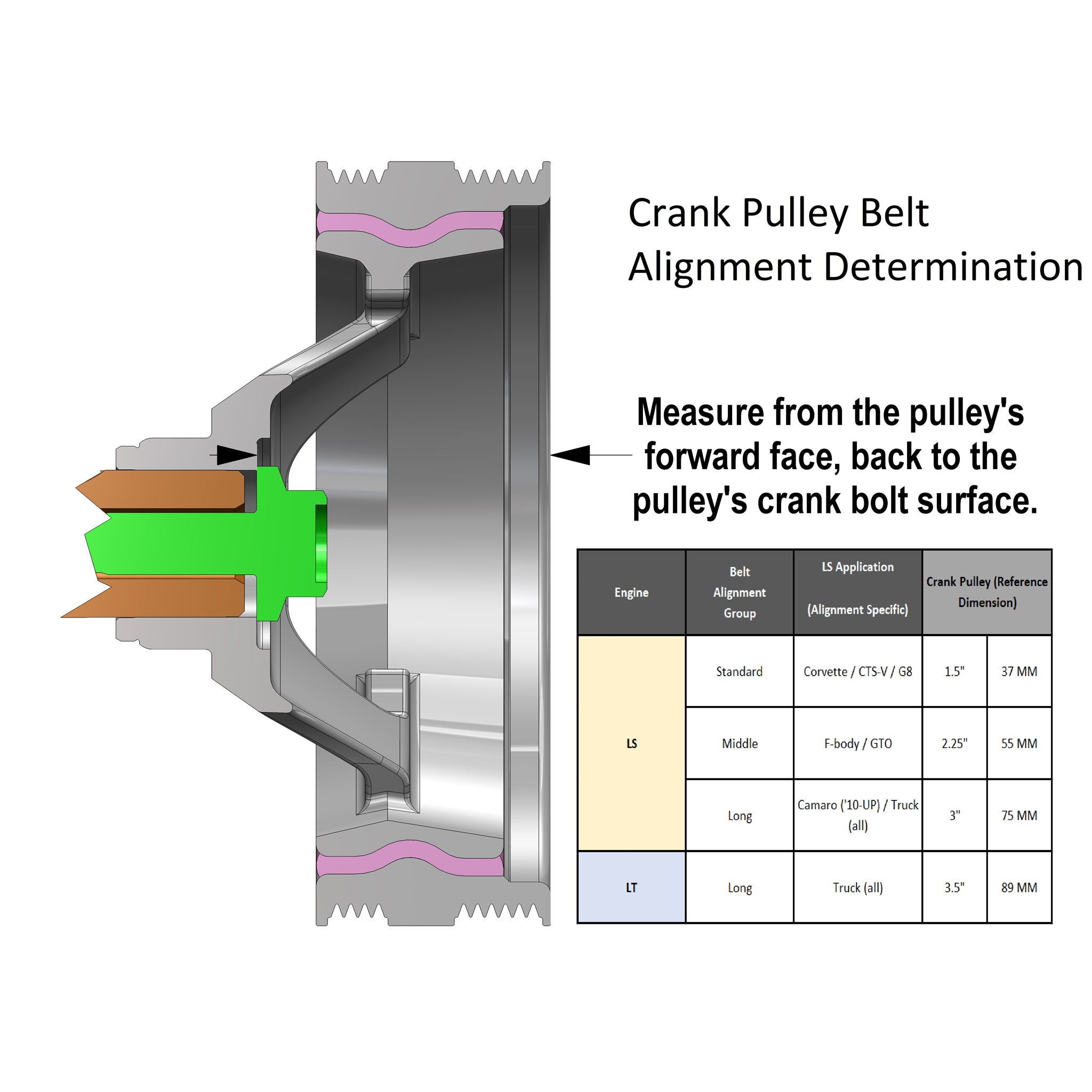

Factory Standard Middle or Long |
| Emission Code |
5 |
| Finish |
Black |
| Power Steering Pump Included |
No |
| Product Type |
Accessory Bracket |
| Pulley Style |
Serpentine |
| Warranty |
Limited 90 Day |
| Water Neck Included |
No |
| WARNING CA Proposition 65 |
No |
| A/C Compressor Included |
Yes |
| Alternator Included |
No |
| Application |
GM LS |
| Material |
Cast Aluminum |
| Power Steering Hardline Included |
No |
| Power Steering Pulley Included |
No |
| Water Pump Included |
No |
| Length |
11.0000 |
| Width |
16.0000 |
| Height |
23.0000 |
| Weight |
25.0000 |
