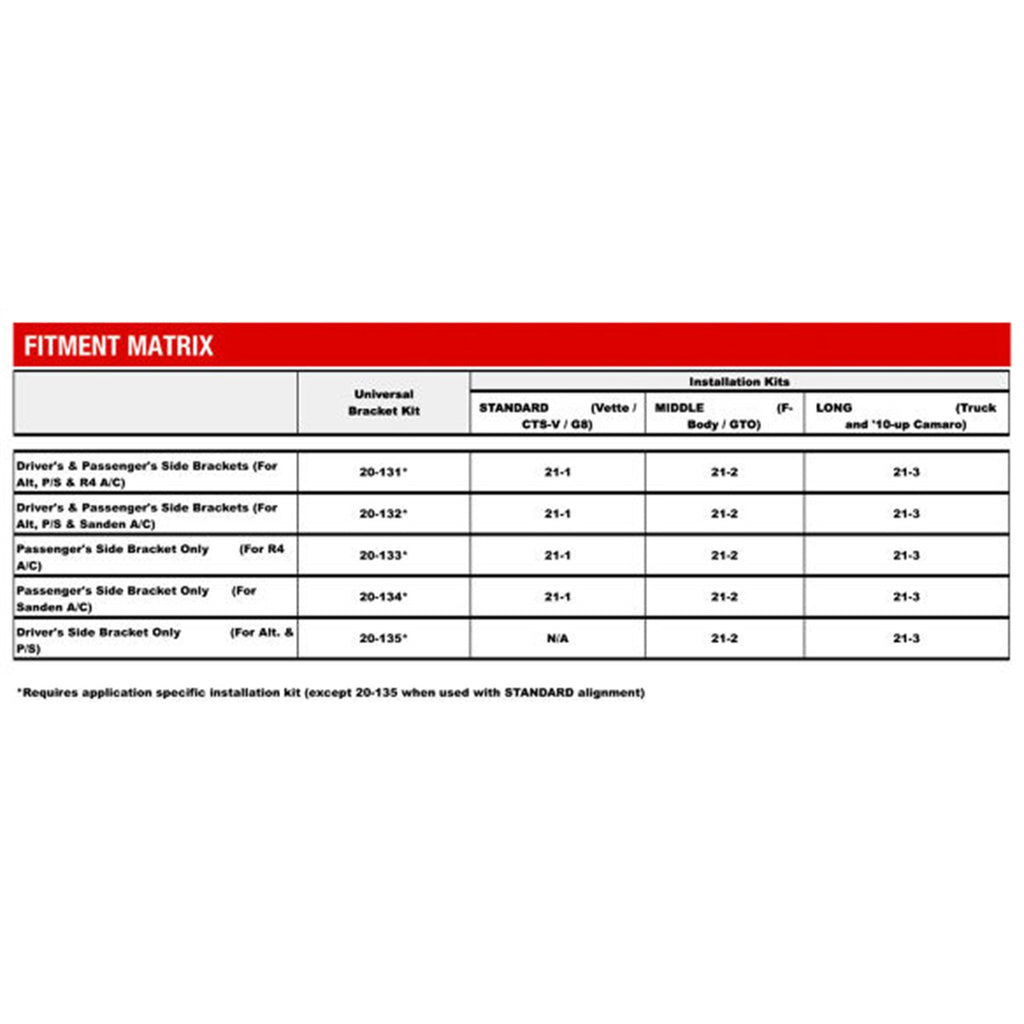

NOTE: This bracket REQUIRES an installation kit for assembly (Part 21-1, 21-2, OR 21-3, see Fitment Guide below for the correct installation kit for your application).
Specifications:
| Description_ASC |
Works with R4 A/C compressor and Corvette driver's side bracket; Requires application specific installation kit
***For all LS Engine Swaps-Please refer to your specific body style engine mount kits for additional modification and fitment requirements. |
| Description_DEF |
Accessory Drive Component Mount Set |
| Description_DES |

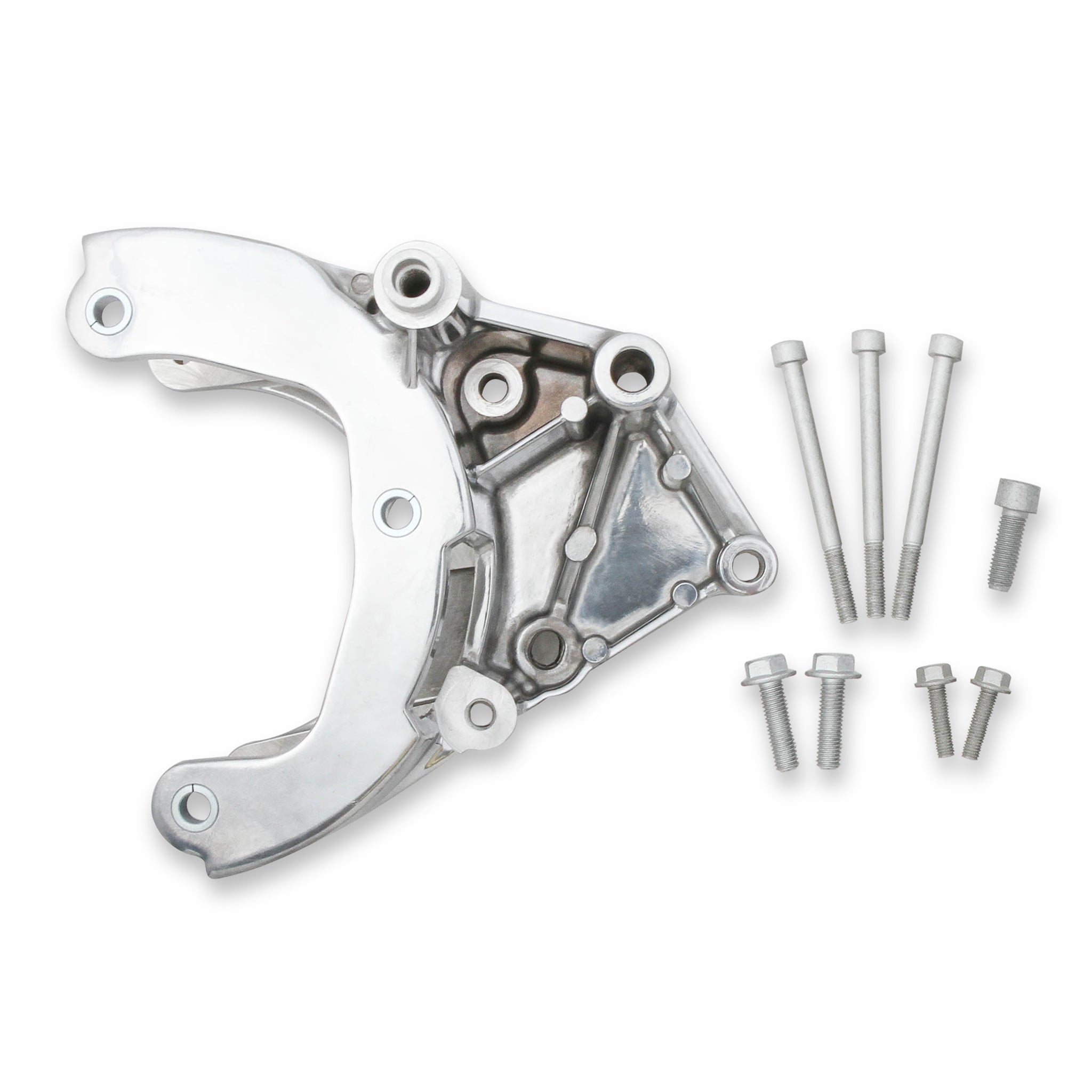

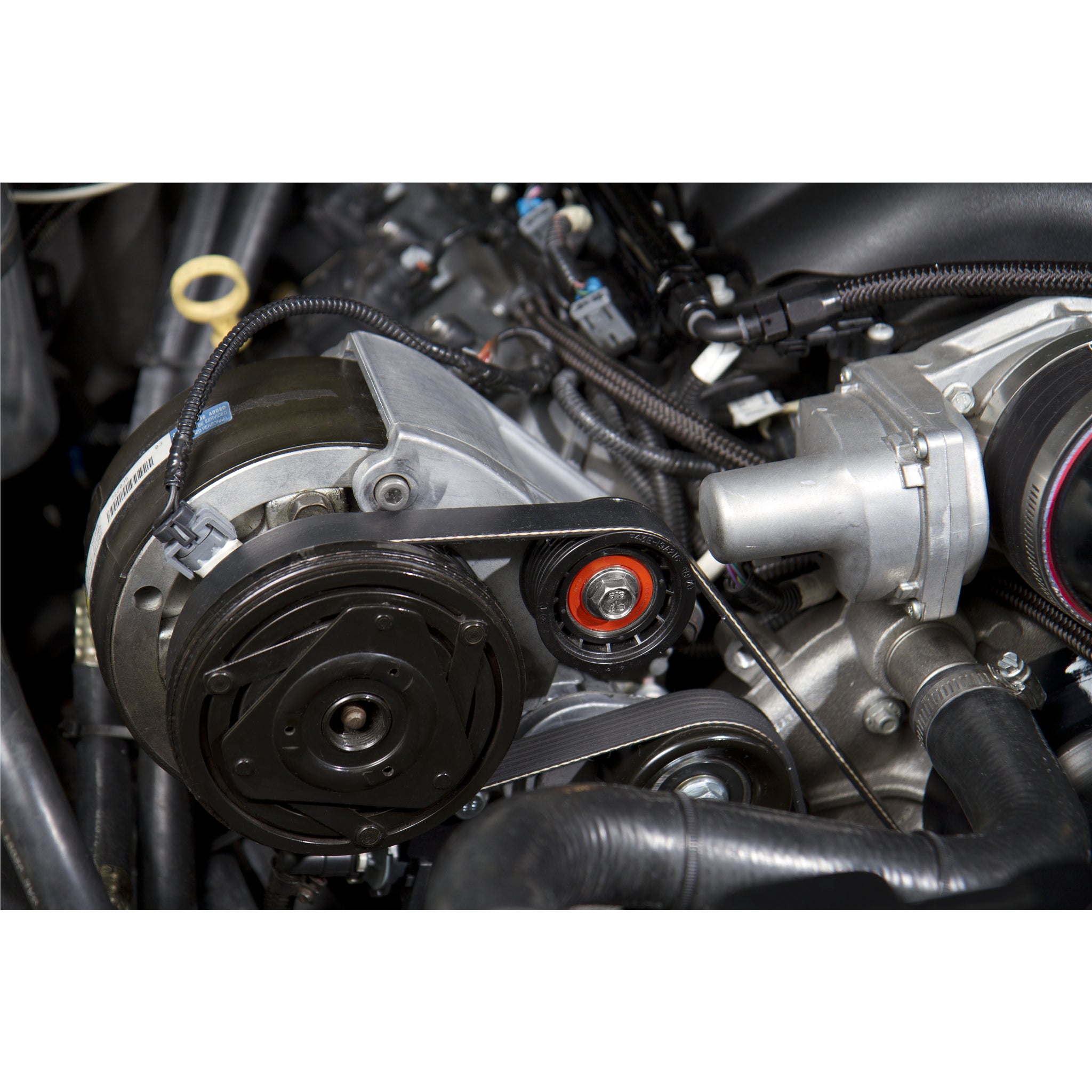

LS High-Mount A/C Accessory Drive Bracket - Passenger's Side A/C Bracket - works with R4 compressor |
| Description_EXT |
Accessory Drive Bracket; Polished; GM LS; A/C Bracket; Passenger Side; Works w/R4 Compressor; |
| Description_FAB |
LS Accessory Drive Bracket Kit |
| Description_FAB |
For Extreme Hydraulic Maneuvers/For Flood Free Operation |
| Description_FAB |
Cast Aluminum |
| Description_MKT |
NOTE: This bracket REQUIRES an installation kit for assembly (Part 21-1, 21-2, OR 21-3, see Fitment Guide below for the correct installation kit for your application). |
| Description_MKT |
Holley is pleased to offer simple, clean, cost effective solutions that solve the accessory drive challenges encountered when swapping a GM LS engine into a muscle car, truck, hot rod or other vehicle. These brackets were designed to deliver a factory style appearance, correct belt alignment and factory stability. |
| Description_MKT |
Key Features: |
| Description_MKT |
ΓÇó The most cost effective LS bracket solution on the market! |
| Description_MKT |
ΓÇó Universal bracket, fits virtually all common LS engines regardless of water pump and harmonic balancer offsets reducing cost and complexity compared to competitive products |
| Description_MKT |
ΓÇó Simple, dedicated installation kits allow easy fitment to Corvette, F-Body or Truck drive offsets |
| Description_MKT |
ΓÇó Utilizes commonly available and affordable GM A/C compressors |
| Description_MKT |
ΓÇó Positions the compressor high above the cross-member but below the hood line for easy installation and great looks |
| Description_MKT |
ΓÇó Bolt-on solution to relocate A/C compressor on engines using a GM Corvette accessory drive system |
| Description_MKT |
ΓÇó Accepts GM R4 compressor (Sanden version now available) |
| Description_MKT |
ΓÇó Factory spec flanged head hardware included to match your factory LS engine hardware |
| Description_MKT |
ΓÇó Complete accessory drive kits include all components and accessories are also available |
| Description_MKT |
ΓÇó Ideal for crate engines, take out motors and engine builders! |
| Description_MKT |
Holley's kits supply the required brackets and hardware needed for installation, but allow you to choose the source for supplemental accessories and components that are often already on the donor engine or host vehicle. Whether sourcing from the salvage yard, the local auto parts store, your GM parts dealer, or Holley, you pick the accessories that match your needs and budget! |
| Description_MKT |

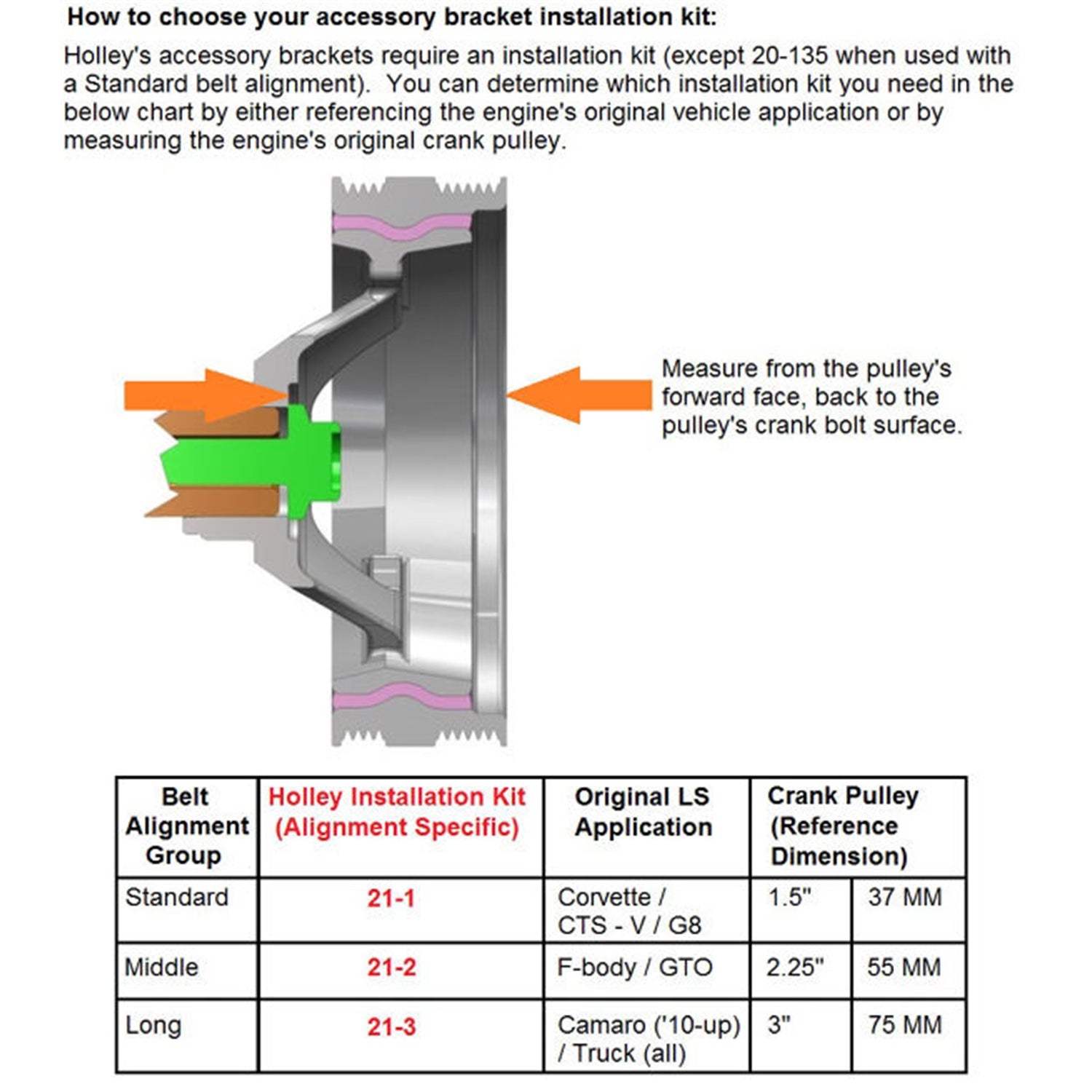

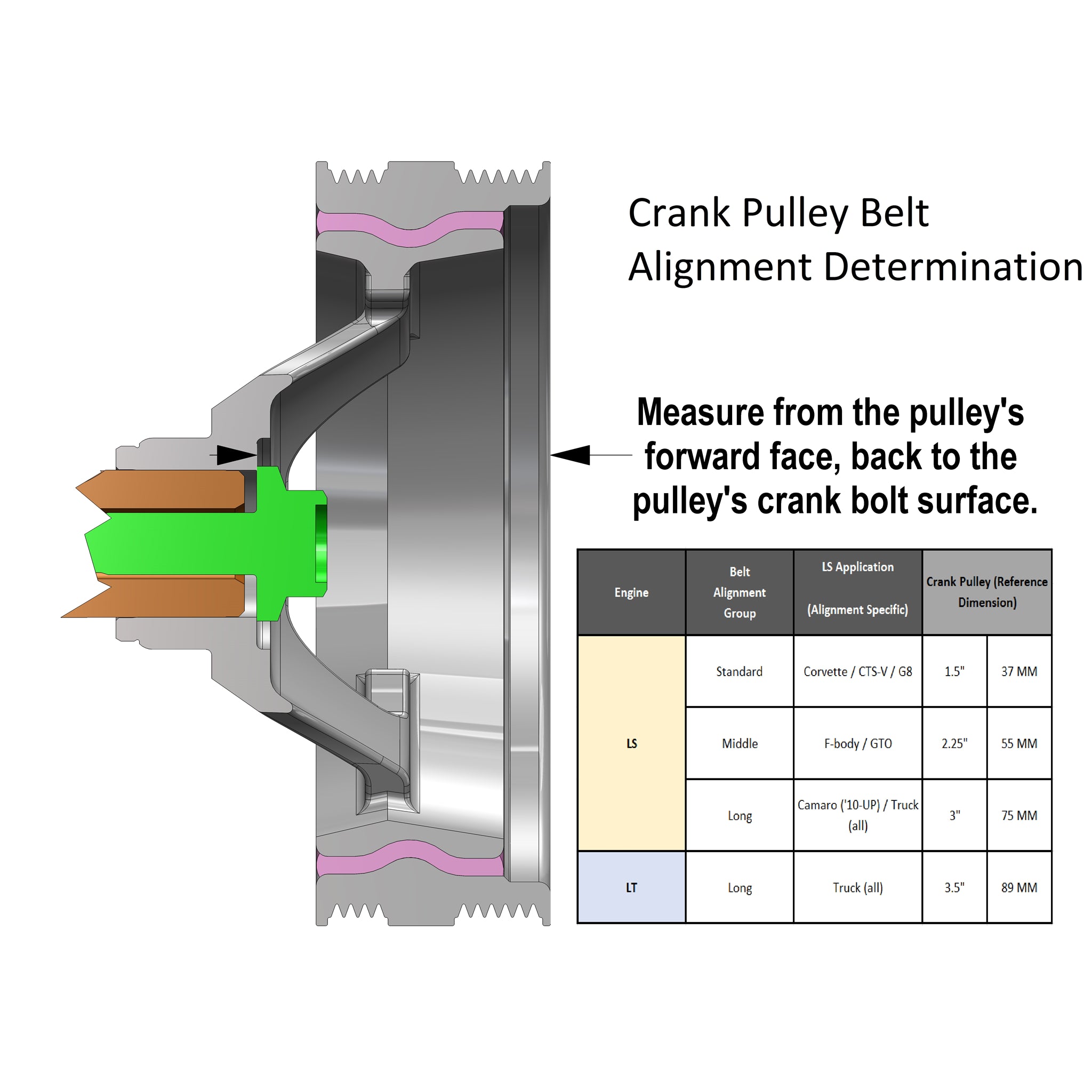

A Fitment And Required Components Guide helps you locate and source components and provides other notes and helpful hints. Three easy steps will get you going. Step one is to determine your belt alignment based on your crank pulley position on the engine you have. Step two is to choose the Holley accessory drive brackets that you need (A/C, Alt & P/S or both). Step three is to see which Holley installation kit your set-up requires to line up your accessories with your crank pulley position. An application specific installation kit (part # 21-1, 21-2, or 21-3) is REQUIRED for most applications. |
| Description_INV |
HI PASS BKT KIT, LS/LT, WRKS W/R4-POLISH |
| Description_SHO |
AccessoryDriveCmpSet |
| Brand |
Holley |
| Accessory Drive Style |

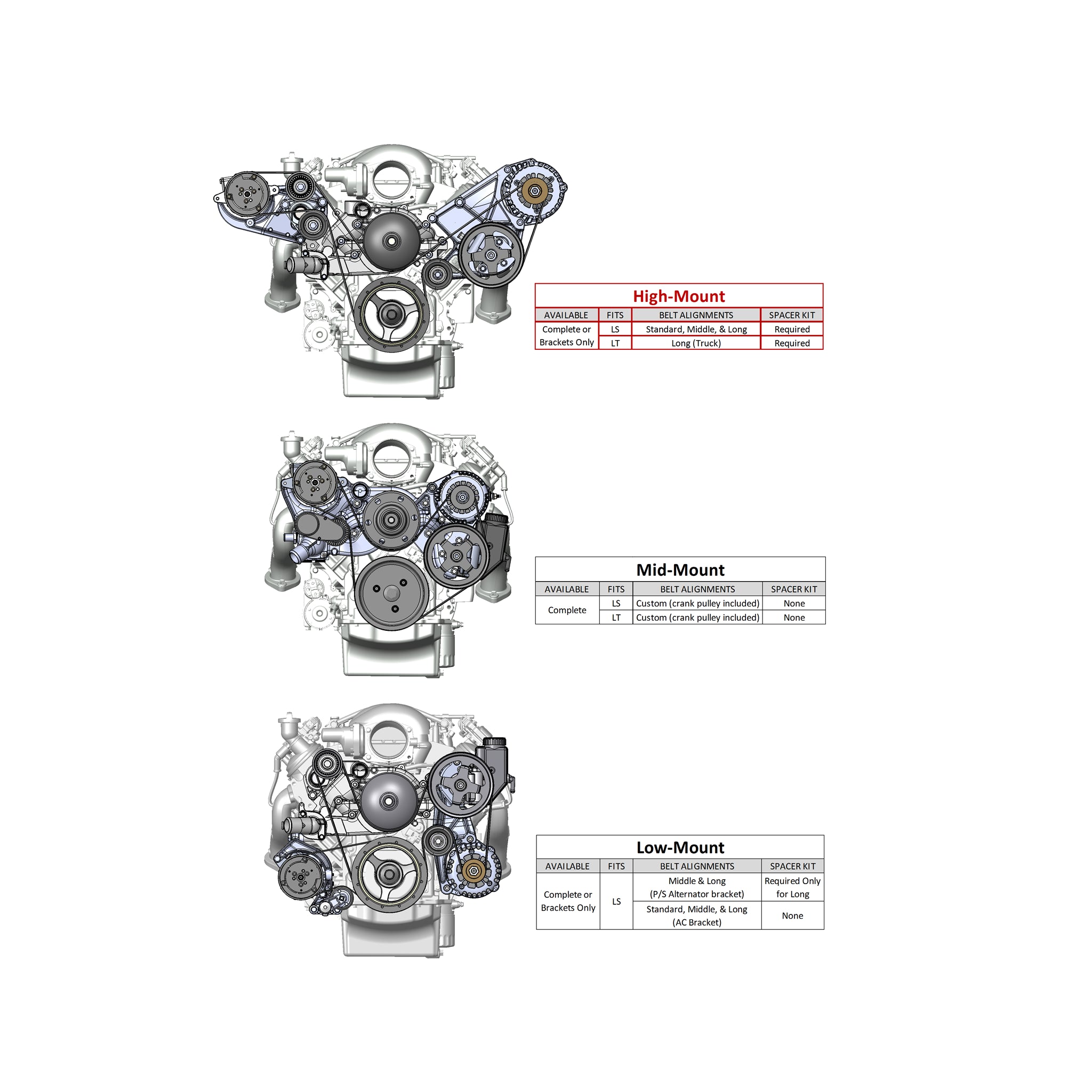

High Mount |
| A/C Compressor Type |
R4 |
| Belt Included |
No |
| Engine |
GM Gen III/IV (LS) |
| Engine Make/Size |
GM LS |
| WARNING CA Proposition 65 |
No |
| Alternator Included |
No |
| Choose Your Part |
Accessory Bracket |
| Damper Style |
Factory Standard Middle or Long |
| Emission Code |
5 |
| Finish |
Polished |
| Product Type |
Accessory Bracket |
| Material |
Cast Aluminum |
| A/C Compressor Included |
No |
| Application |
GM Gen V LT, GM LS |
| Power Steering Pump Included |
No |
| Warranty |
Limited 90 Day |
| Length |
6.0000 |
| Width |
10.0000 |
| Height |
23.0000 |
| Weight |
5.0000 |
