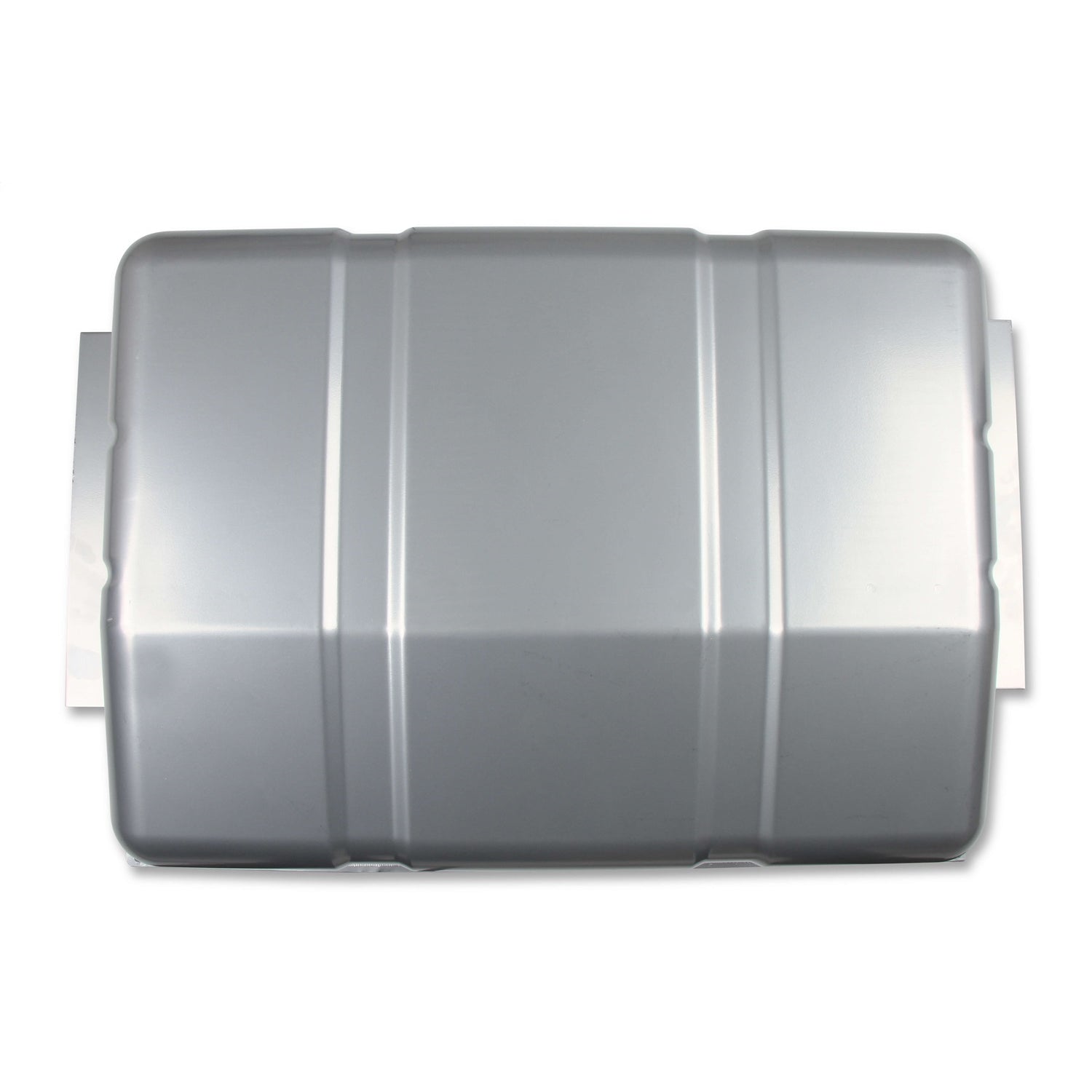

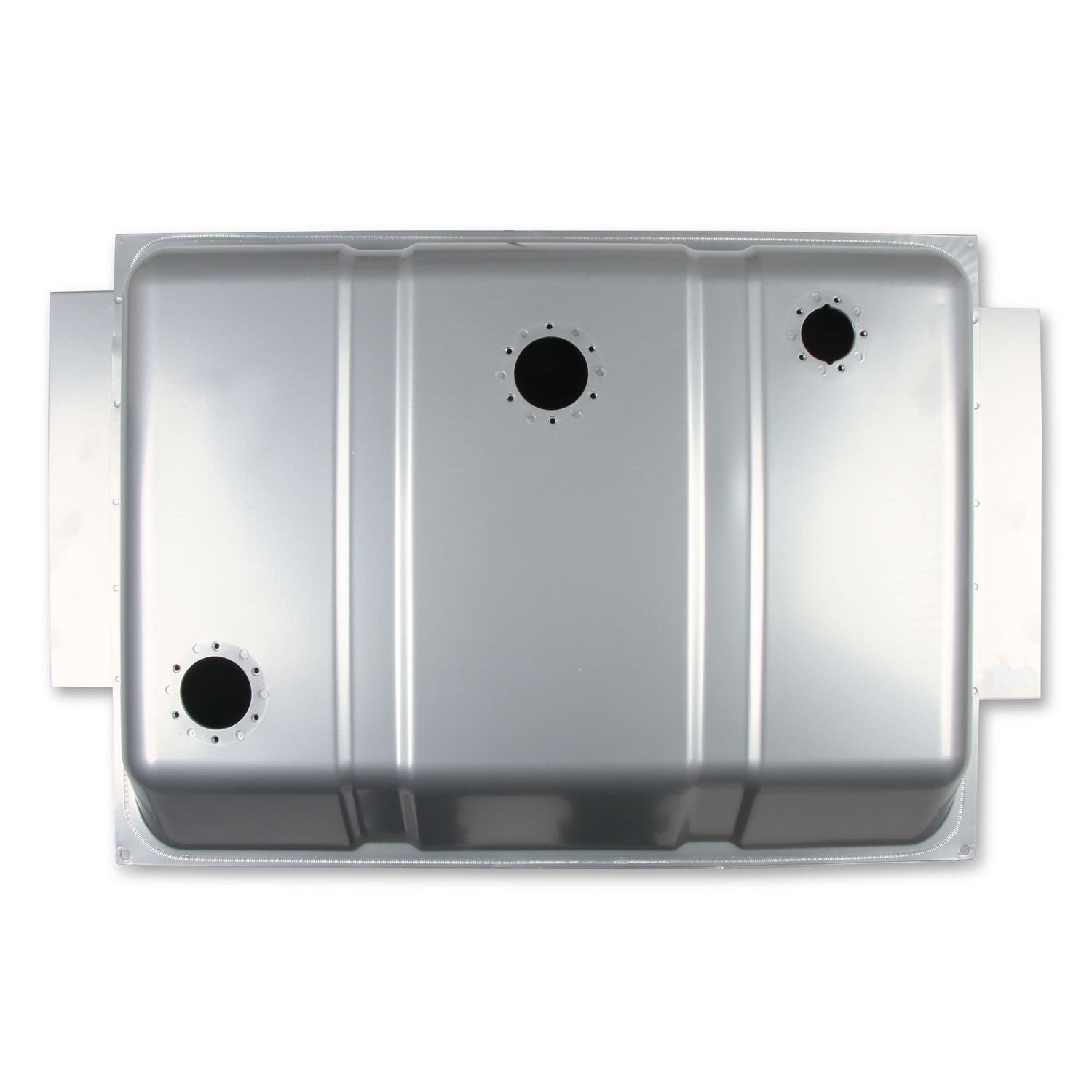

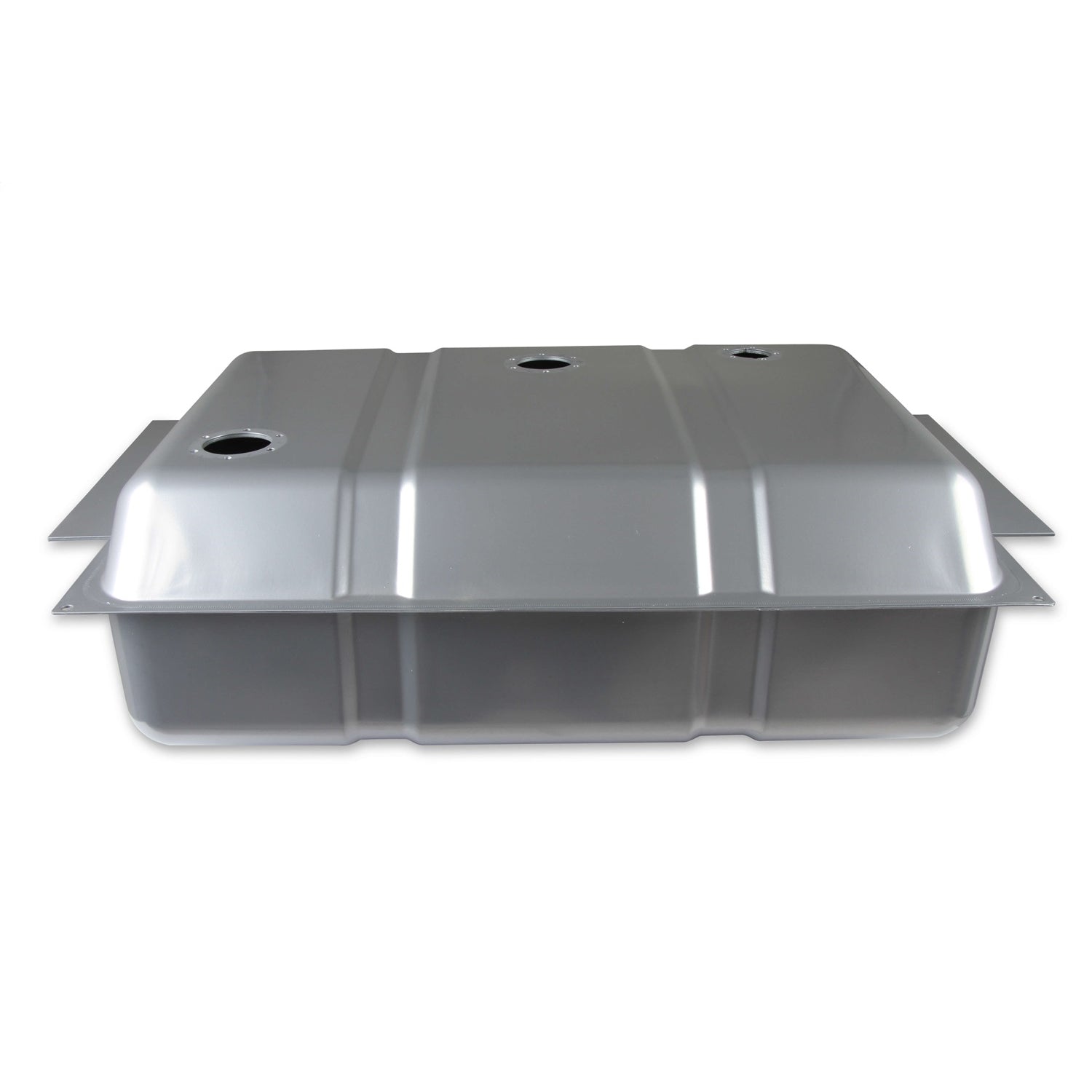

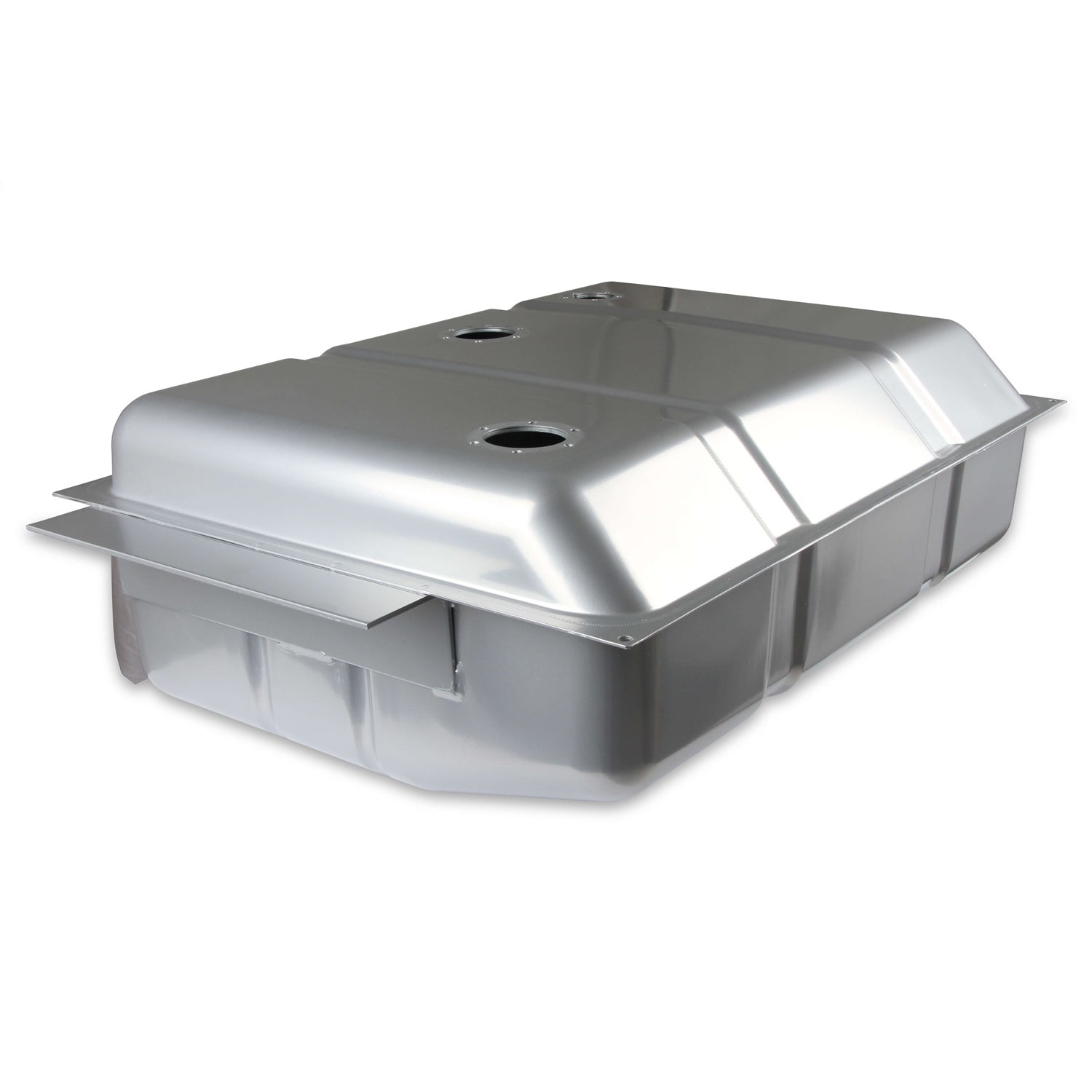

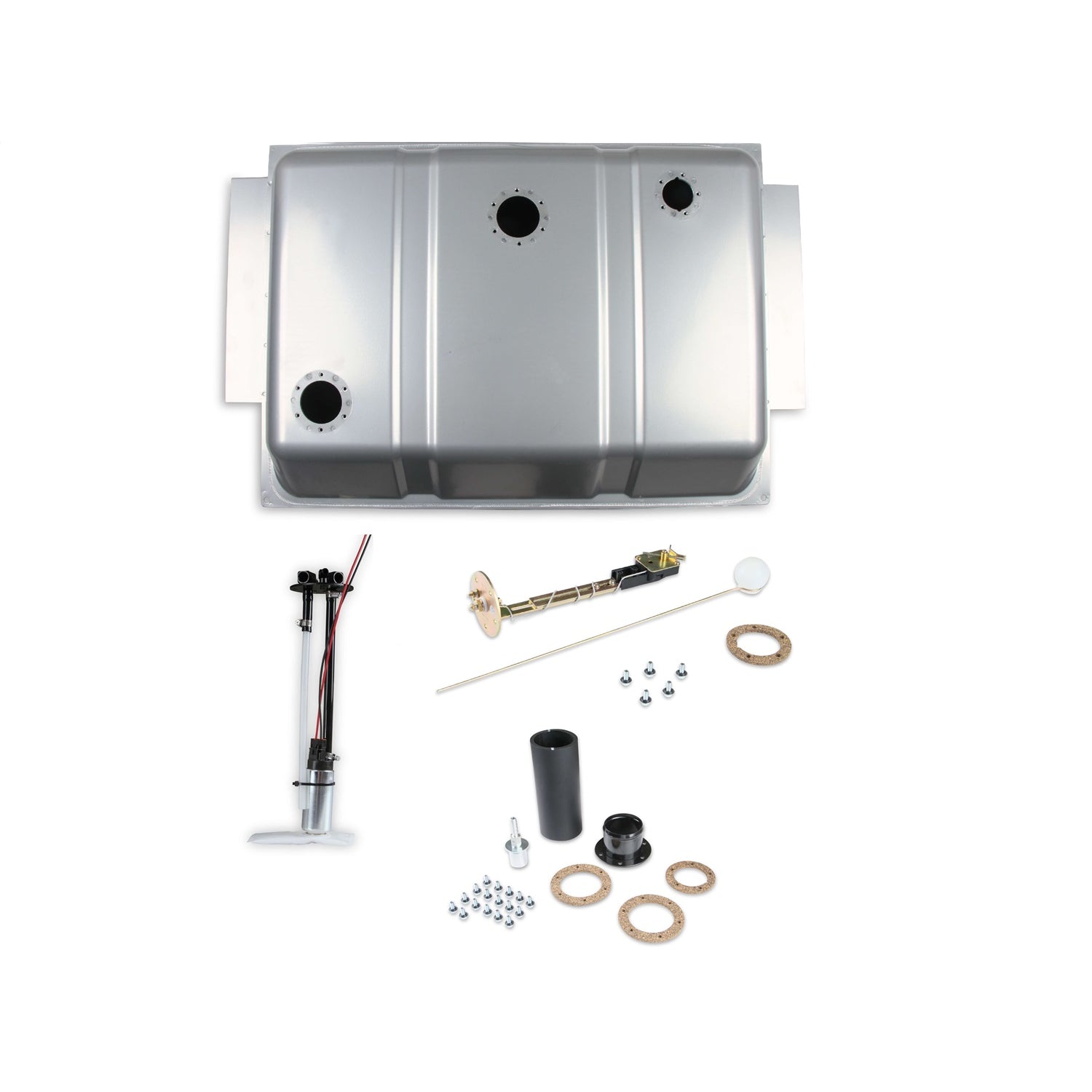

The 19-185 fuel system kit is designed for the 1967-72 Chevy/GMC trucks. This fuel tank mounts under the truck bed using the flanges to bolt in place. The tank is designed to bolt up to the bottom side of the frame rails but it can be mounted in different configurations including on top or even in-between the rails in some cases. It is up to the installer to drill and locate the mounting holes. Mounting hardware is not included. The fuel filler neck will go up through the bed floor. You can purchase the optional 19-186 Side Fill Kit to mount fuel filler on the bedside. The kit includes the tank, a 255 lph fuel pump, internal baffling, and a fuel level sender. The tank is powder coated for corrosion resistance and great looks. 18 gallon capacity Supports up to 550 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw)Size is 32-1/4 in. x 20-1/2 in. x 9-3/4 in. (including the mounting flange)Size is 28 in. x 20-1/2 in. x 9-3/4 in. (measured without the mounting flange)
Specifications:
| Description_DEF |
Fuel Tank and Pump Assembly Combination |
| Description_DES |
Sniper EFI Fuel Tank System |
| Description_EXT |

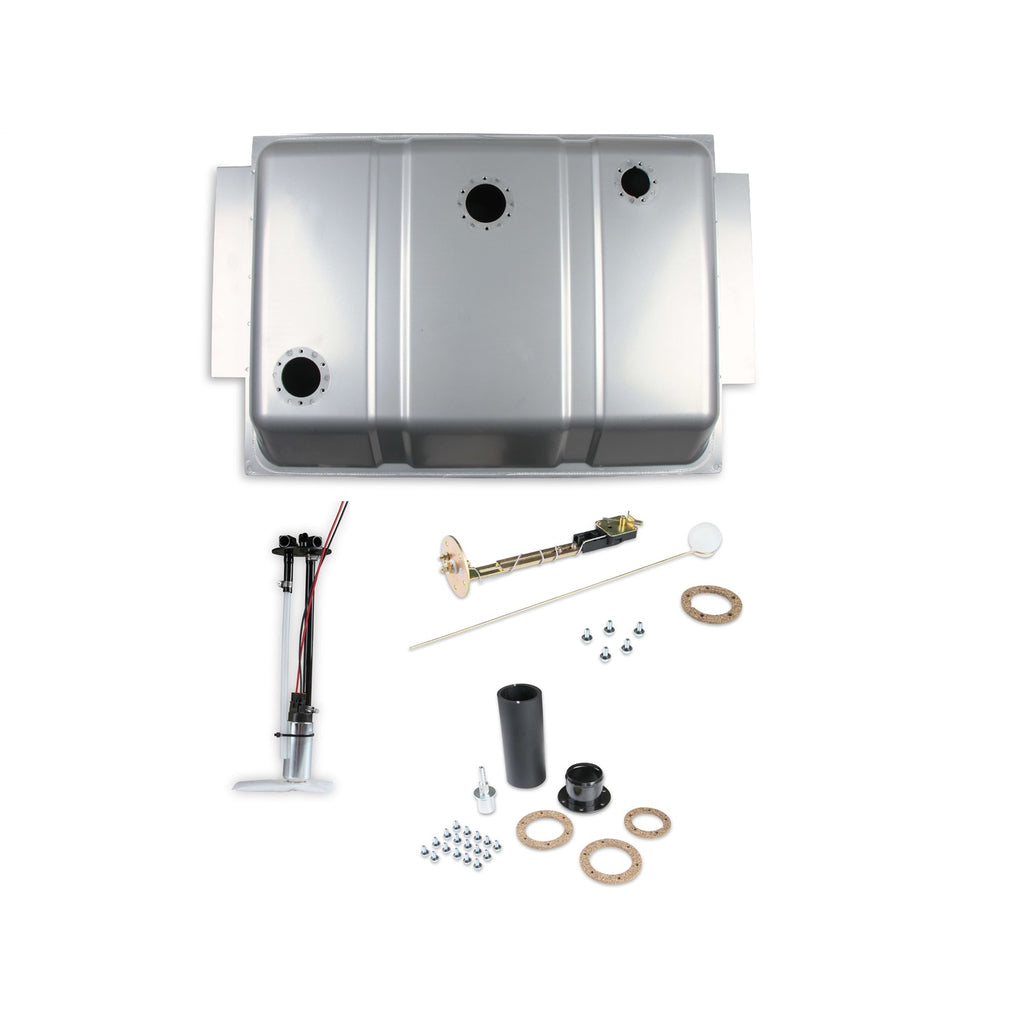

Sniper EFI Fuel Tank System; Incl. 18 Gallon Tank/255 LPH Fuel Pump/Internal Baffling/Sending Unit/Tank Straps; Galvanized Steel; Silver Powder Coat; |
| Description_INV |
1967-72 CHEVY/GMC TRUCK UNDER BED TANK |
| Description_FAB |
Powder Coated Silver For Total Corrosion Protection |
| Description_FAB |

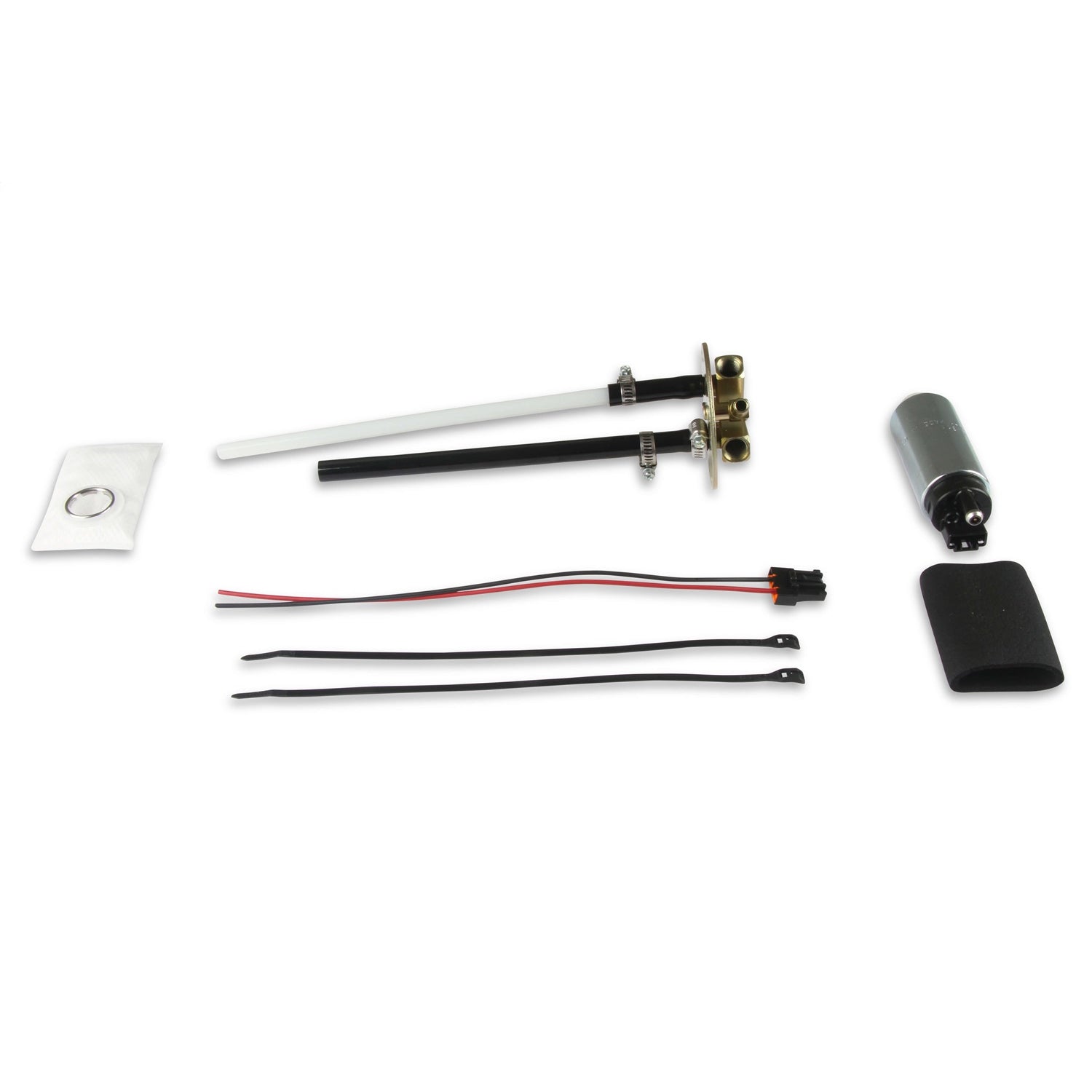

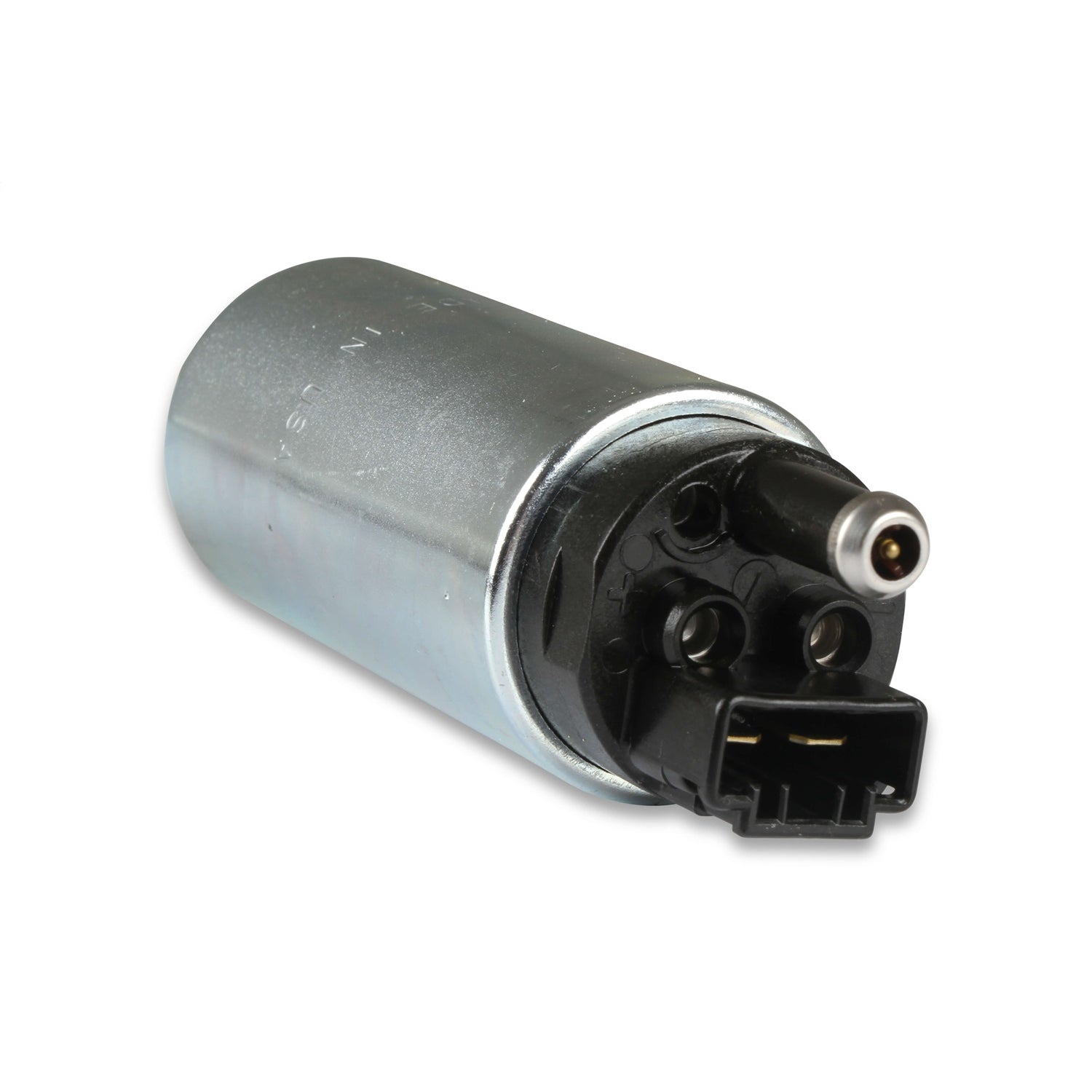

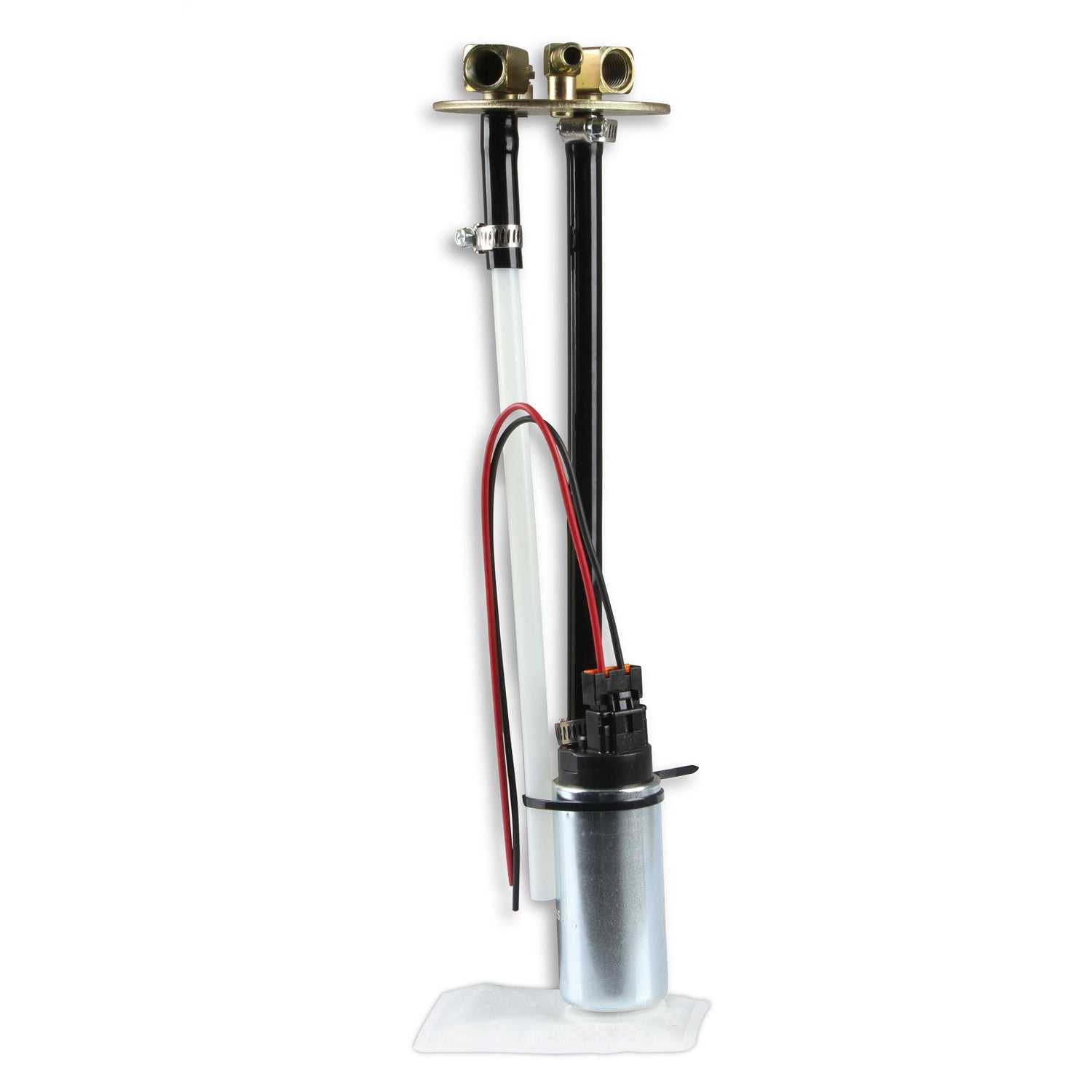

255 lph Fuel Pump w/Hanger Assembly |
| Description_FAB |

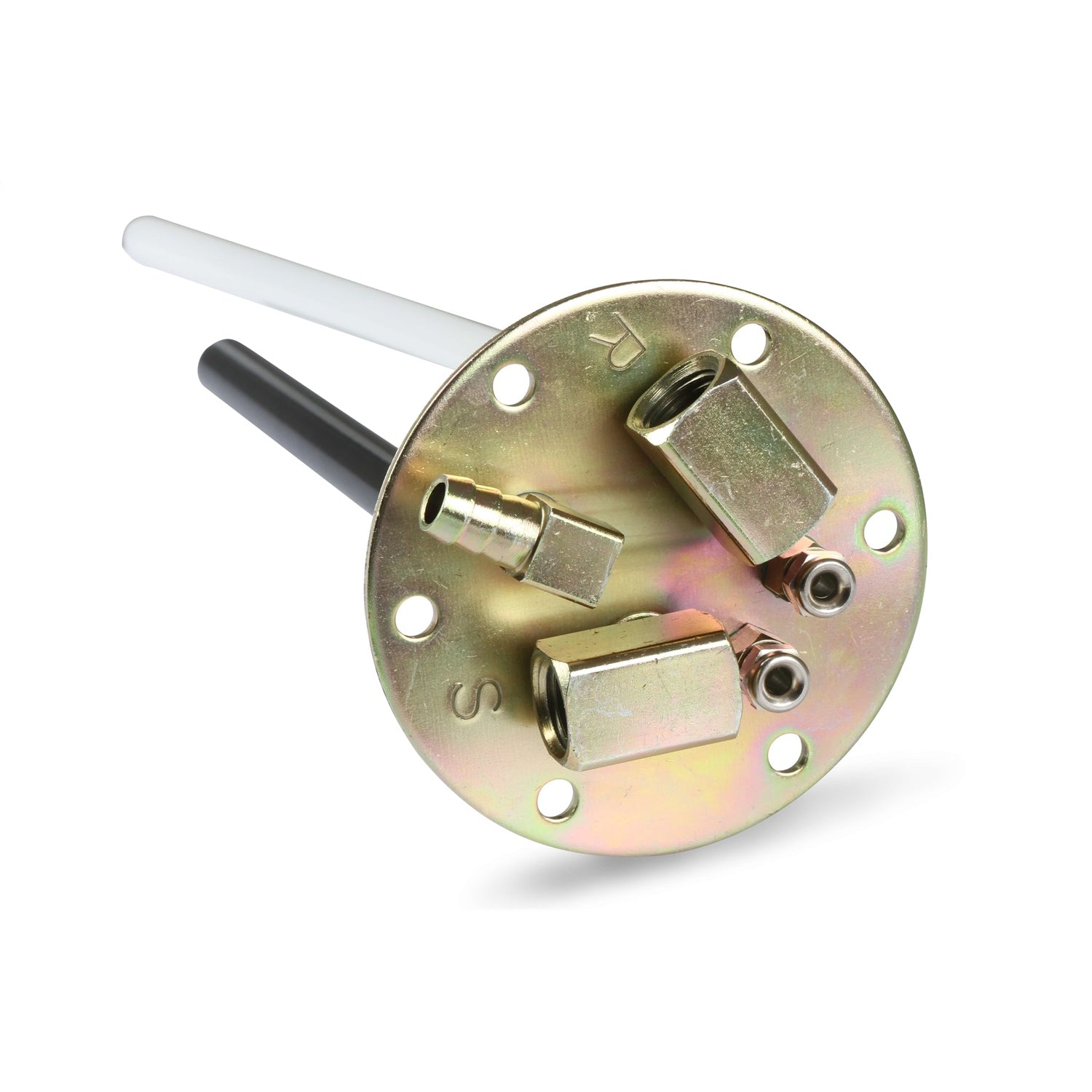

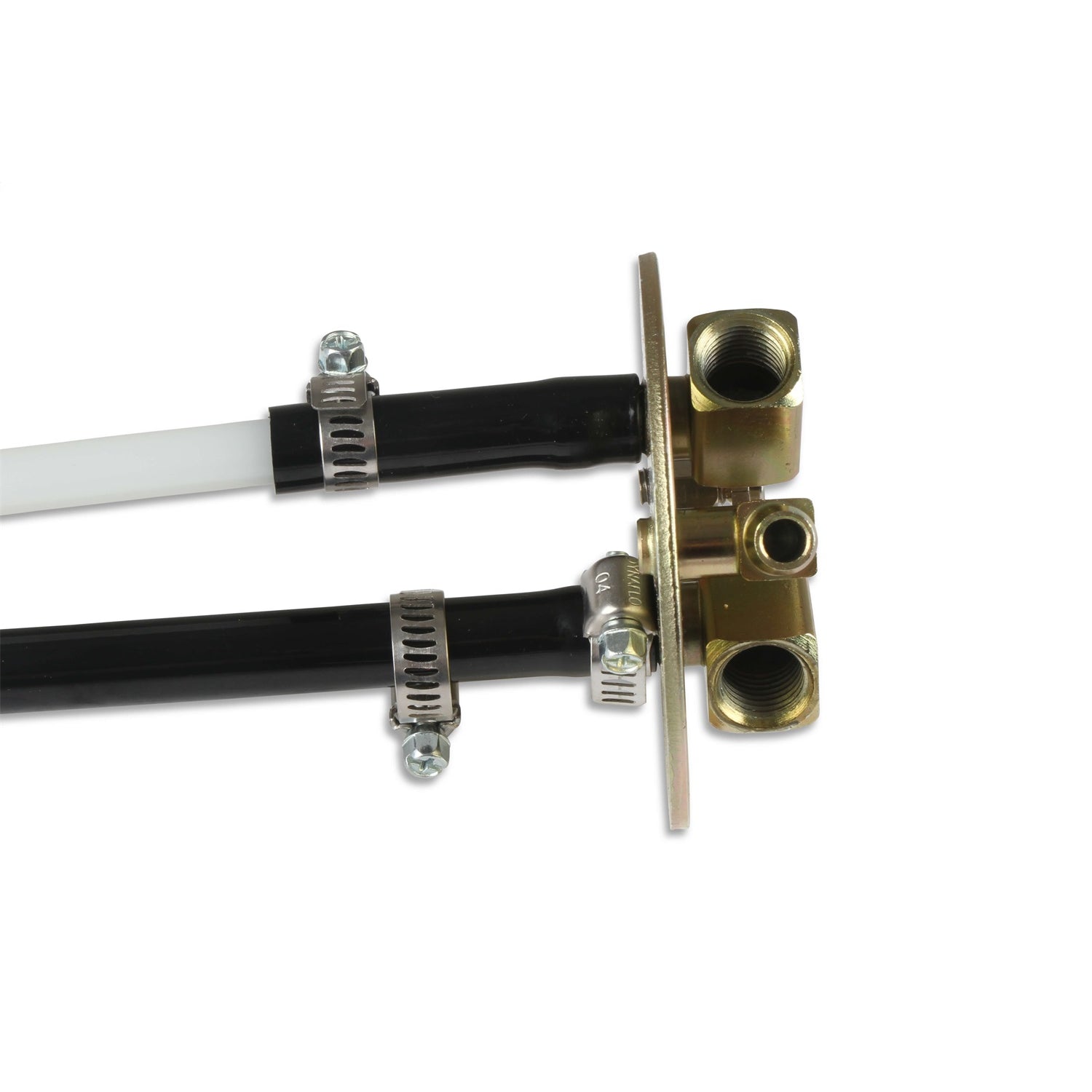

Sender Supply/Return Line Ports for Easy Fuel Line Connection |
| Description_FAB |

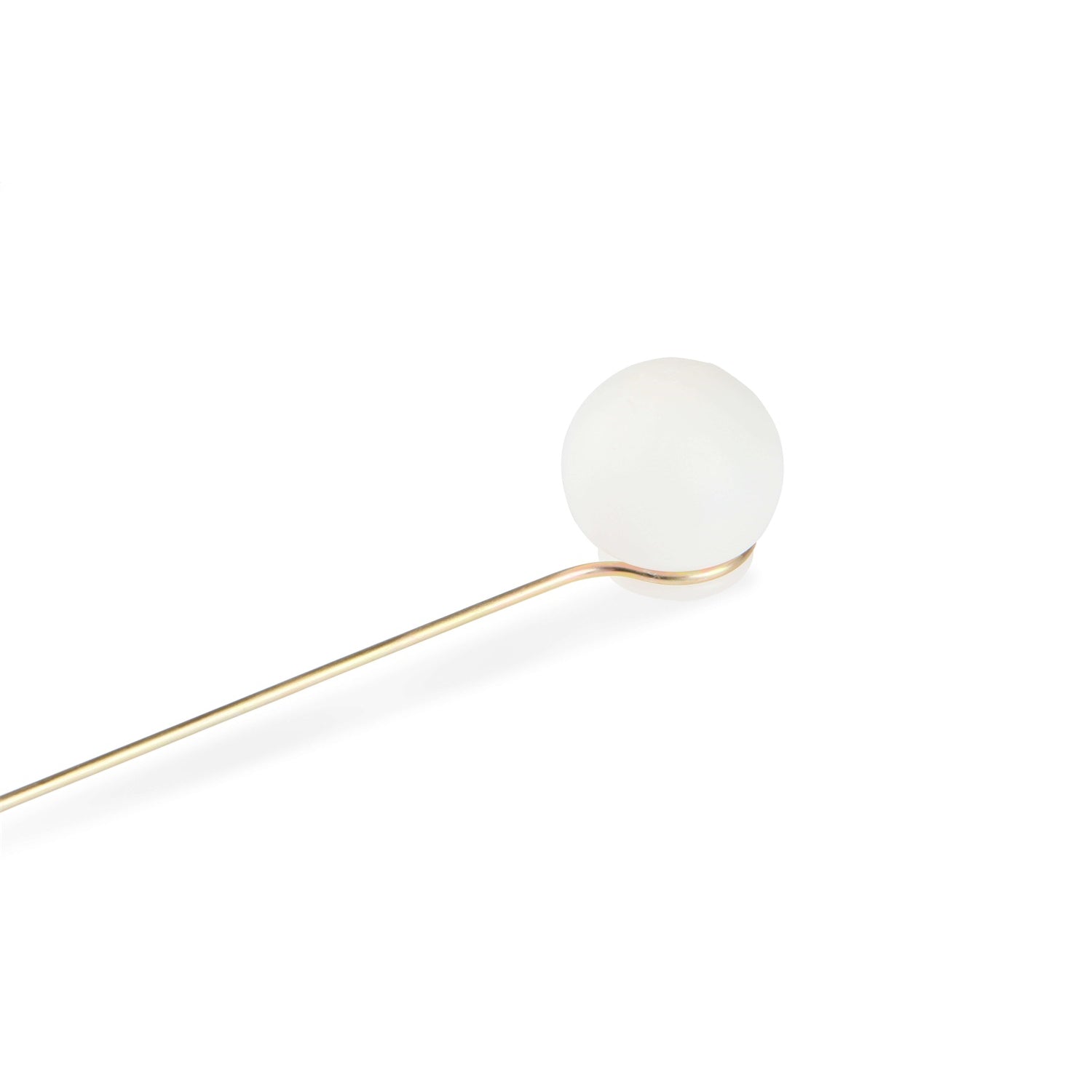

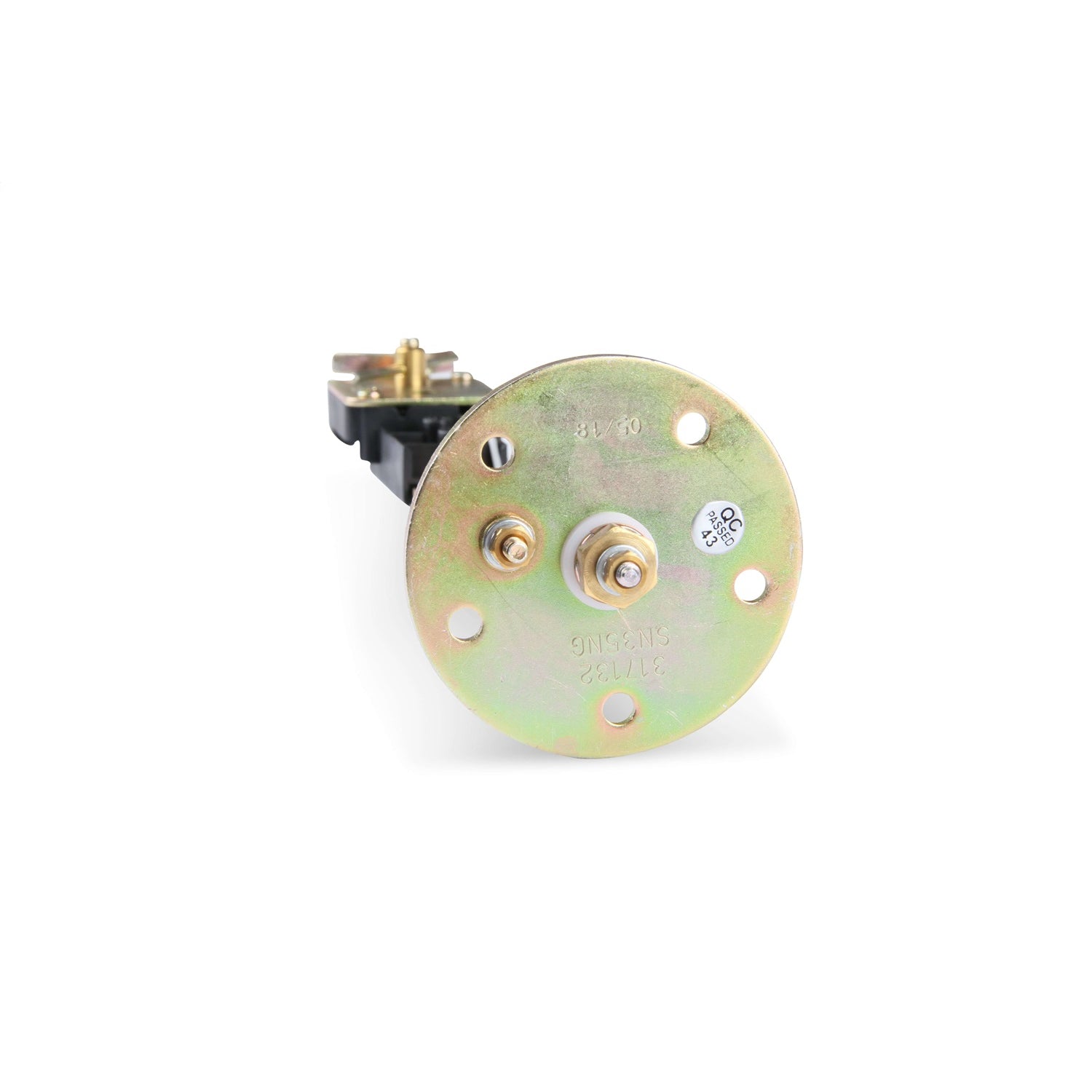

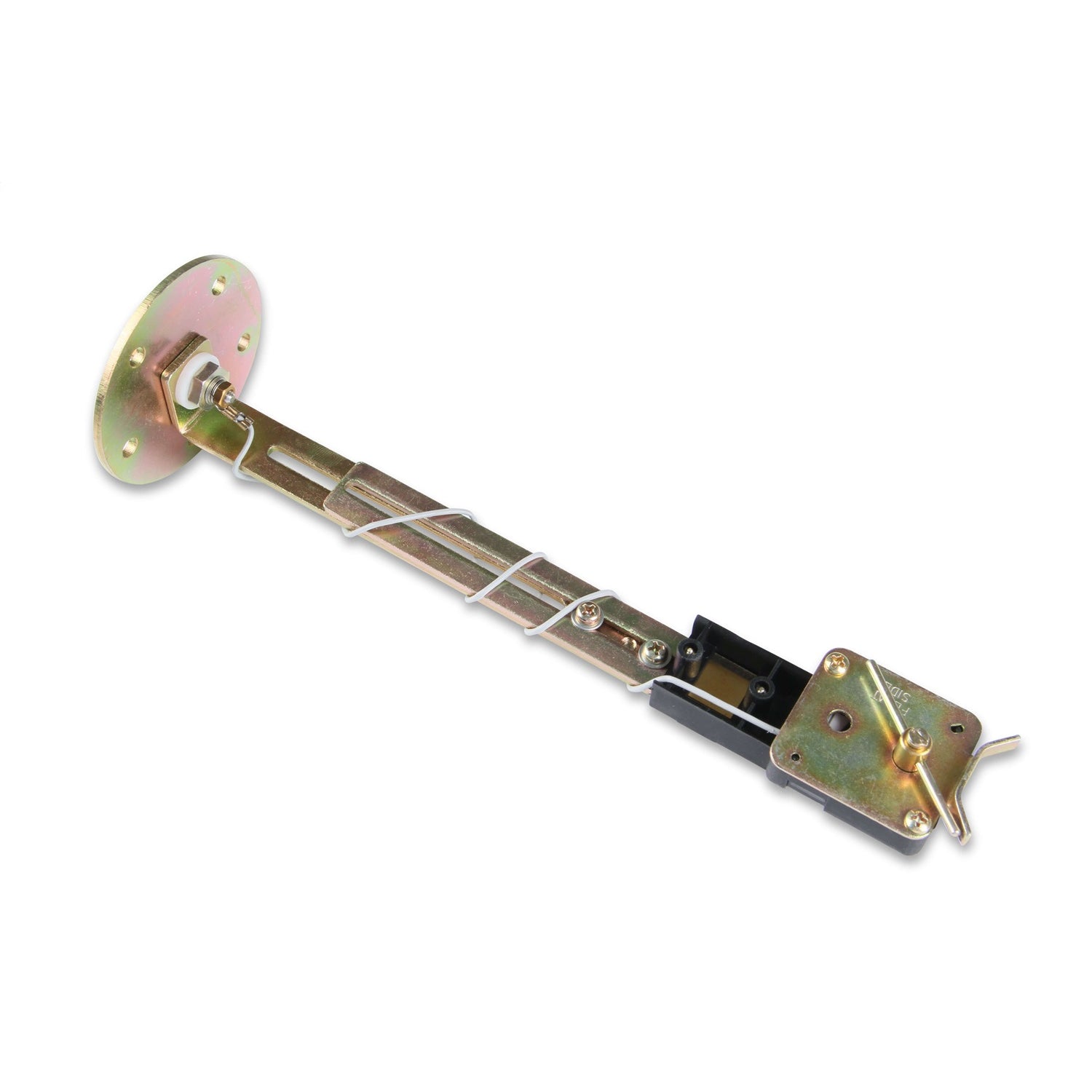

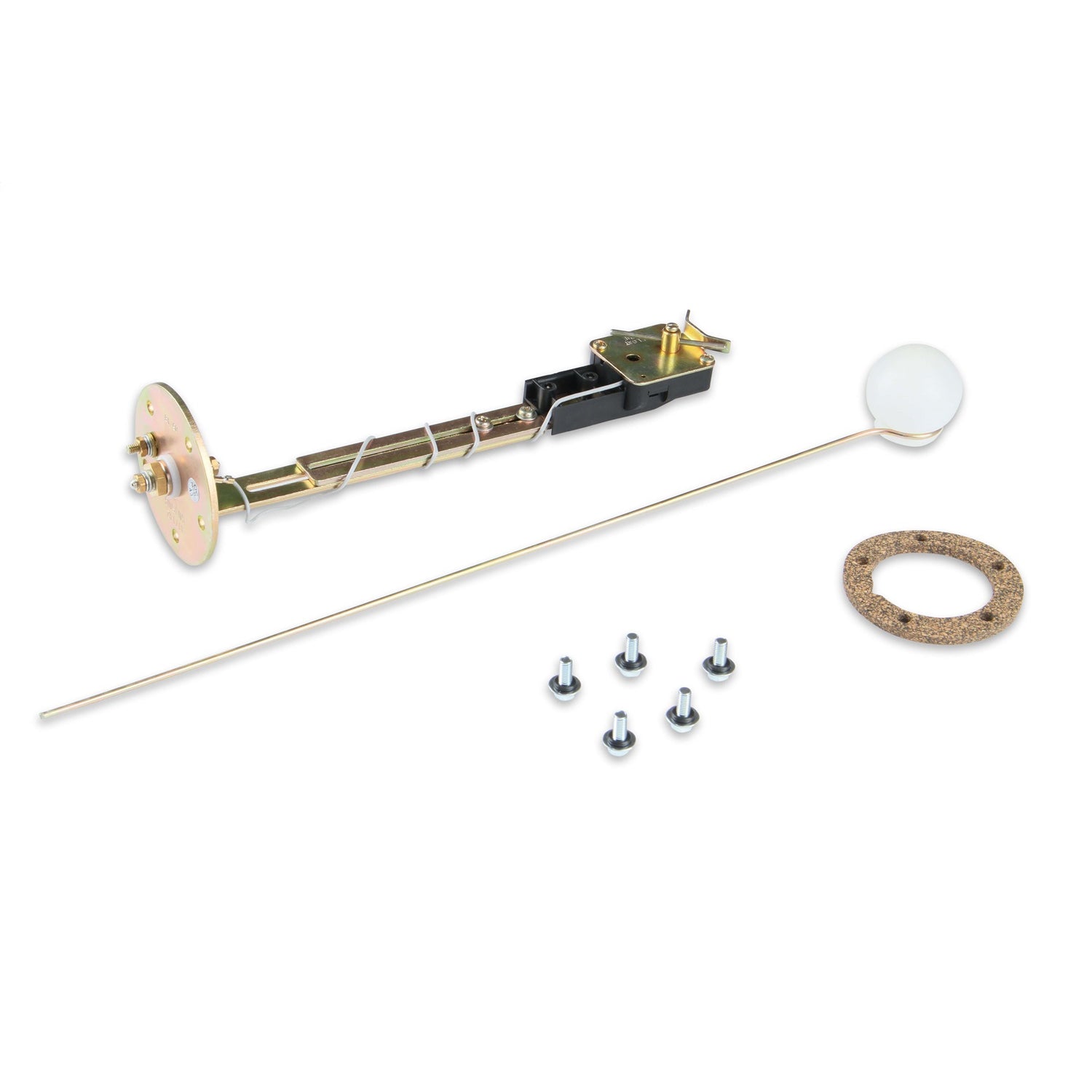

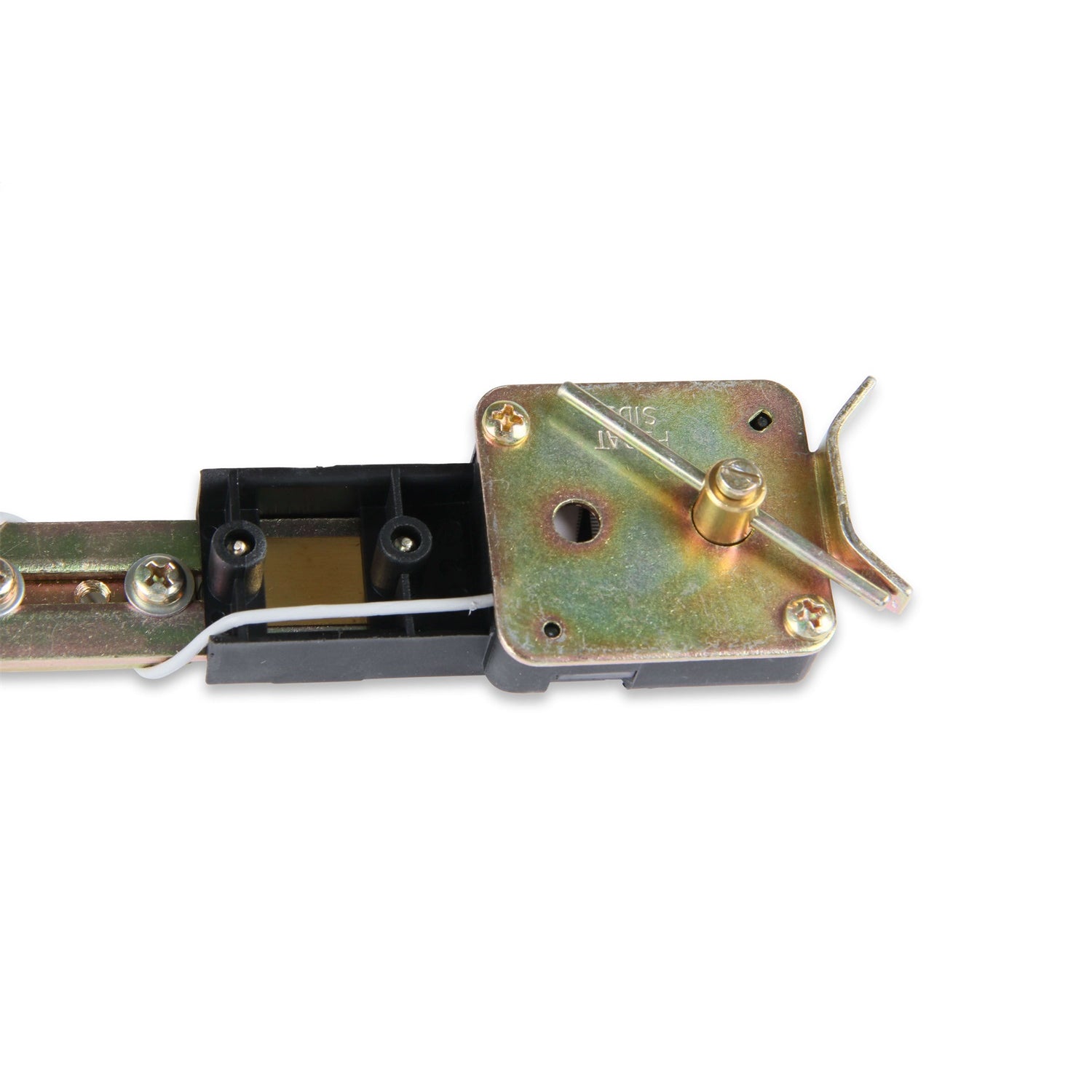

Fuel Level Sender Incl. w/Correct Ohm Range For Factory Gauges |
| Description_FAB |

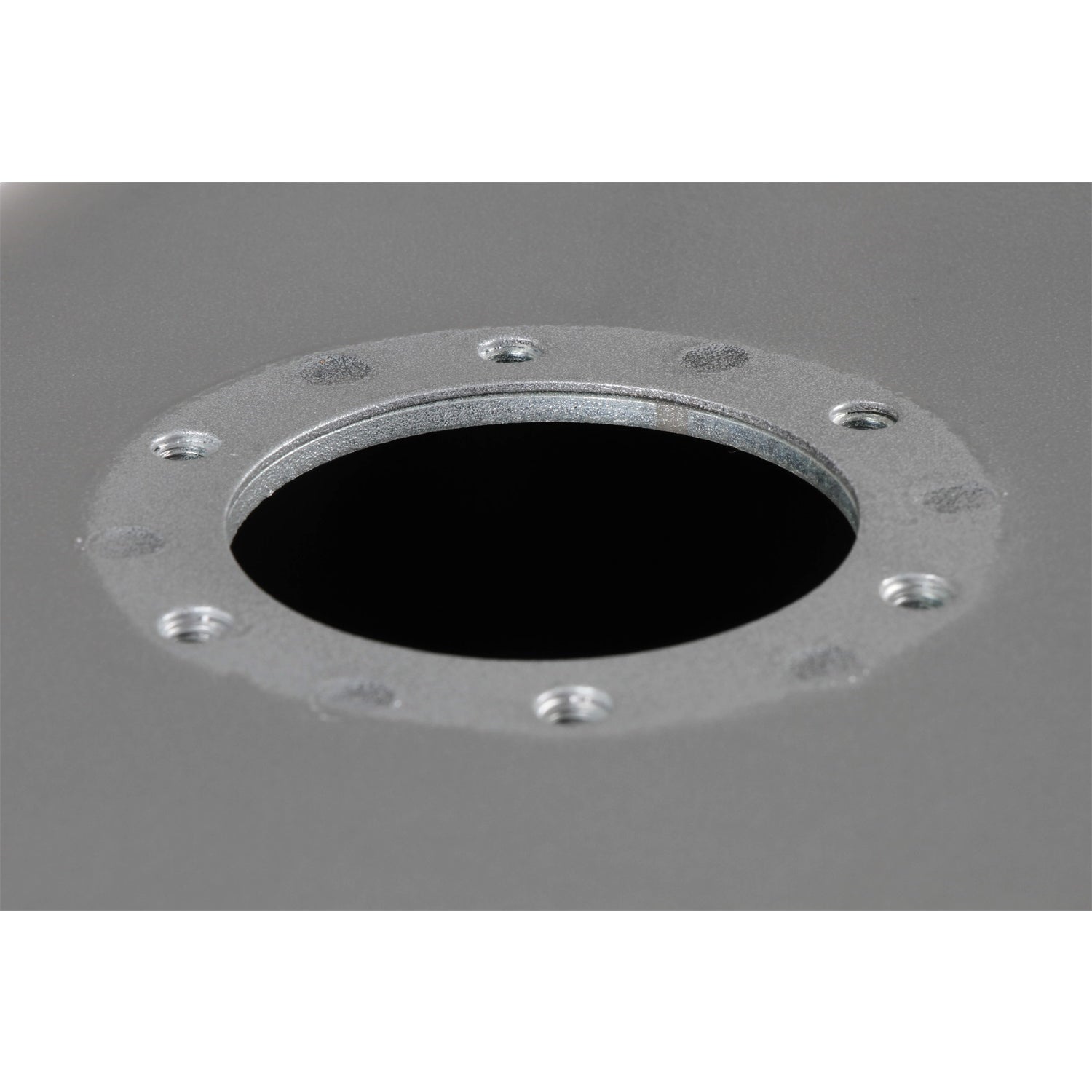

Fuel Pump/Sender Recessed In Tank To Provide Easy Installation |
| Description_FAB |
EFI Style Tank Baffling Incl. Large 4.3 Liter Internal Fuel Tray |
| Description_FAB |
Fits and Looks Like An OEM Tank When Installed |
| Description_FAB |
Complete Bolt In Solution For EFI Conversion |
| Description_SHO |
FuelTankandPumpAssy |
| Description_MKT |
The 19-185 fuel system kit is designed for the 1967-72 Chevy/GMC trucks. This fuel tank mounts under the truck bed using the flanges to bolt in place. The tank is designed to bolt up to the bottom side of the frame rails but it can be mounted in different configurations including on top or even in-between the rails in some cases. It is up to the installer to drill and locate the mounting holes. Mounting hardware is not included. The fuel filler neck will go up through the bed floor. You can purchase the optional 19-186 Side Fill Kit to mount fuel filler on the bedside. The kit includes the tank, a 255 lph fuel pump, internal baffling, and a fuel level sender. The tank is powder coated for corrosion resistance and great looks. 18 gallon capacity Supports up to 550 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw)Size is 32-1/4 in. x 20-1/2 in. x 9-3/4 in. (including the mounting flange)Size is 28 in. x 20-1/2 in. x 9-3/4 in. (measured without the mounting flange) |
| WARNING CA Proposition 65 |
No |
| Length |
14.2000 |
| Width |
26.1000 |
| Height |
34.3000 |
| Weight |
39.0850 |
