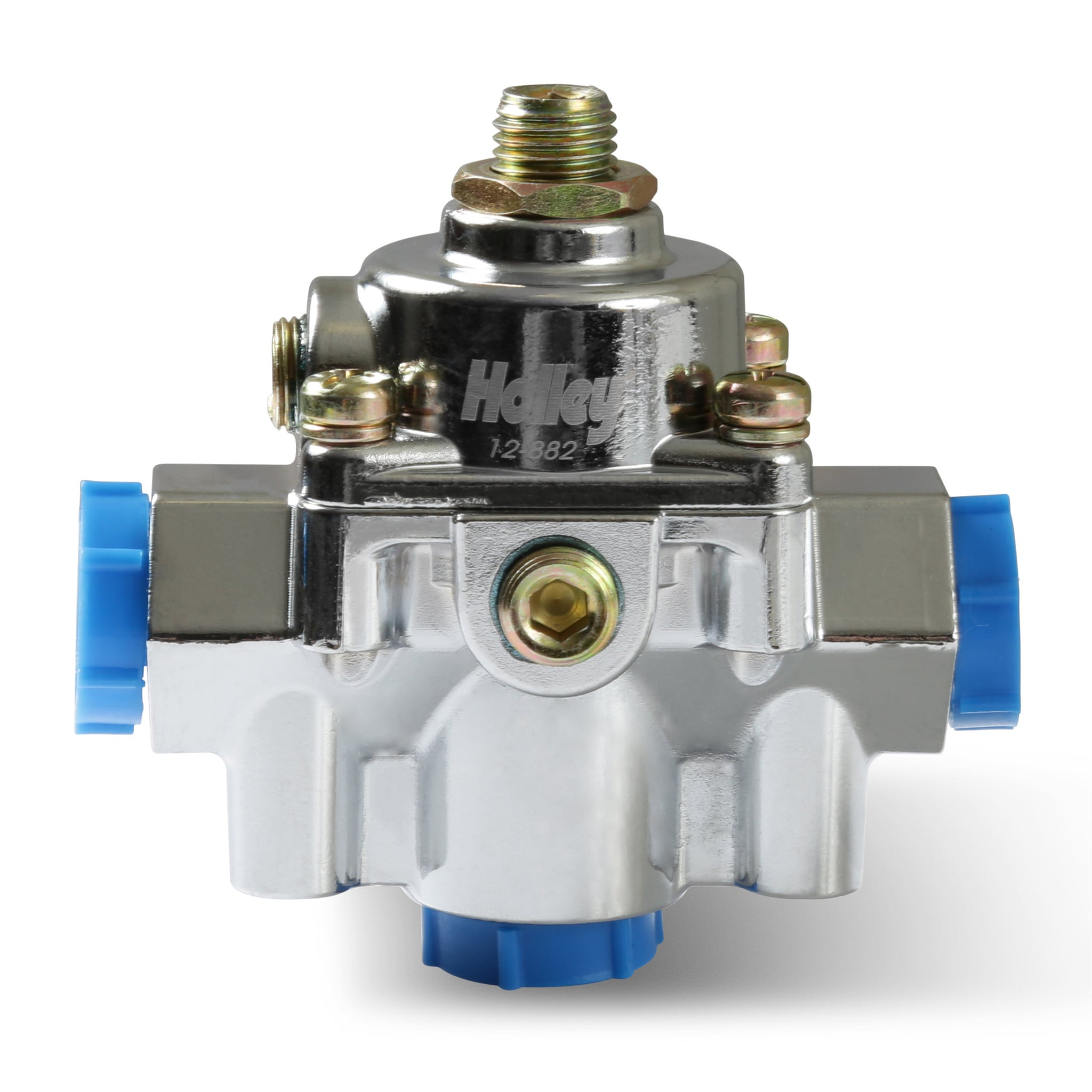

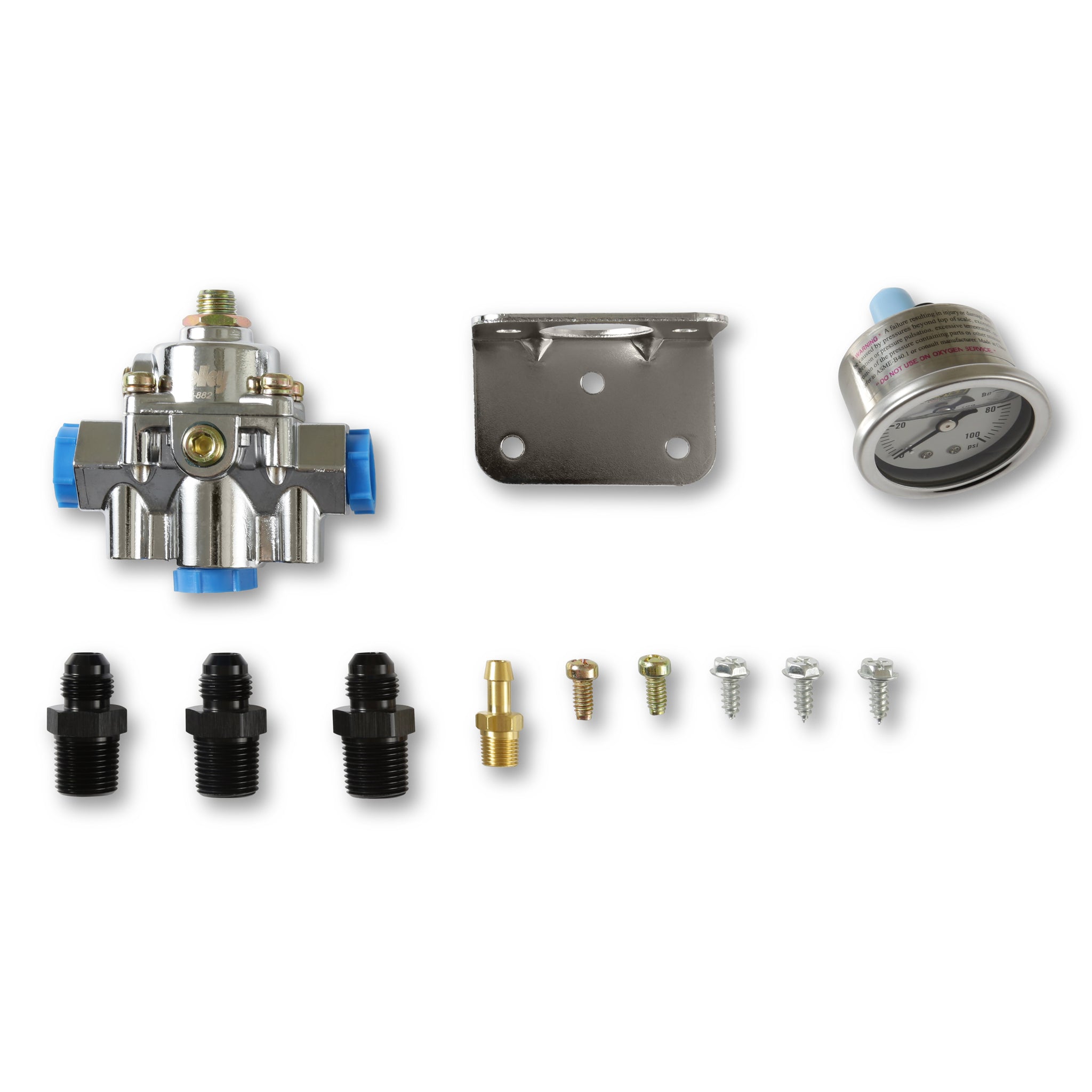

Holley Die Cast EFI Bypass Style Fuel Pressure Regulator Kits are part of a complete line of fuel system products from Holley. The included 12-882 regulator features a die cast aluminum body and a chrome top for corrosion resistance and good looks. The regulator contains 3/8" NPT in/out ports, a 3/8" NPT return port, a 1/8" NPT gauge port, and a 1/8" NPT vacuum port for Boost Reference (1:1). In addition, 3 Mr. Gasket 3/8" NPT to -6 AN fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included.
Specifications:
| Description_DES |
Holley Die Cast EFI Bypass Fuel Pressure Regulator Kit |
| Description_MKT |
Holley Die Cast EFI Bypass Style Fuel Pressure Regulator Kits are part of a complete line of fuel system products from Holley. The included 12-882 regulator features a die cast aluminum body and a chrome top for corrosion resistance and good looks. The regulator contains 3/8" NPT in/out ports, a 3/8" NPT return port, a 1/8" NPT gauge port, and a 1/8" NPT vacuum port for Boost Reference (1:1). In addition, 3 Mr. Gasket 3/8" NPT to -6 AN fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included. |
| Description_FAB |
Die Cast Aluminum Construction |
| Description_FAB |
Adjustable from 15-60 psi for precise fuel pressure adjustments |
| Description_FAB |
Used in return style systems with a line back to the fuel tank |
| Description_FAB |
3/8" NPT Inlet, Outlet, and Return Ports |
| Description_FAB |

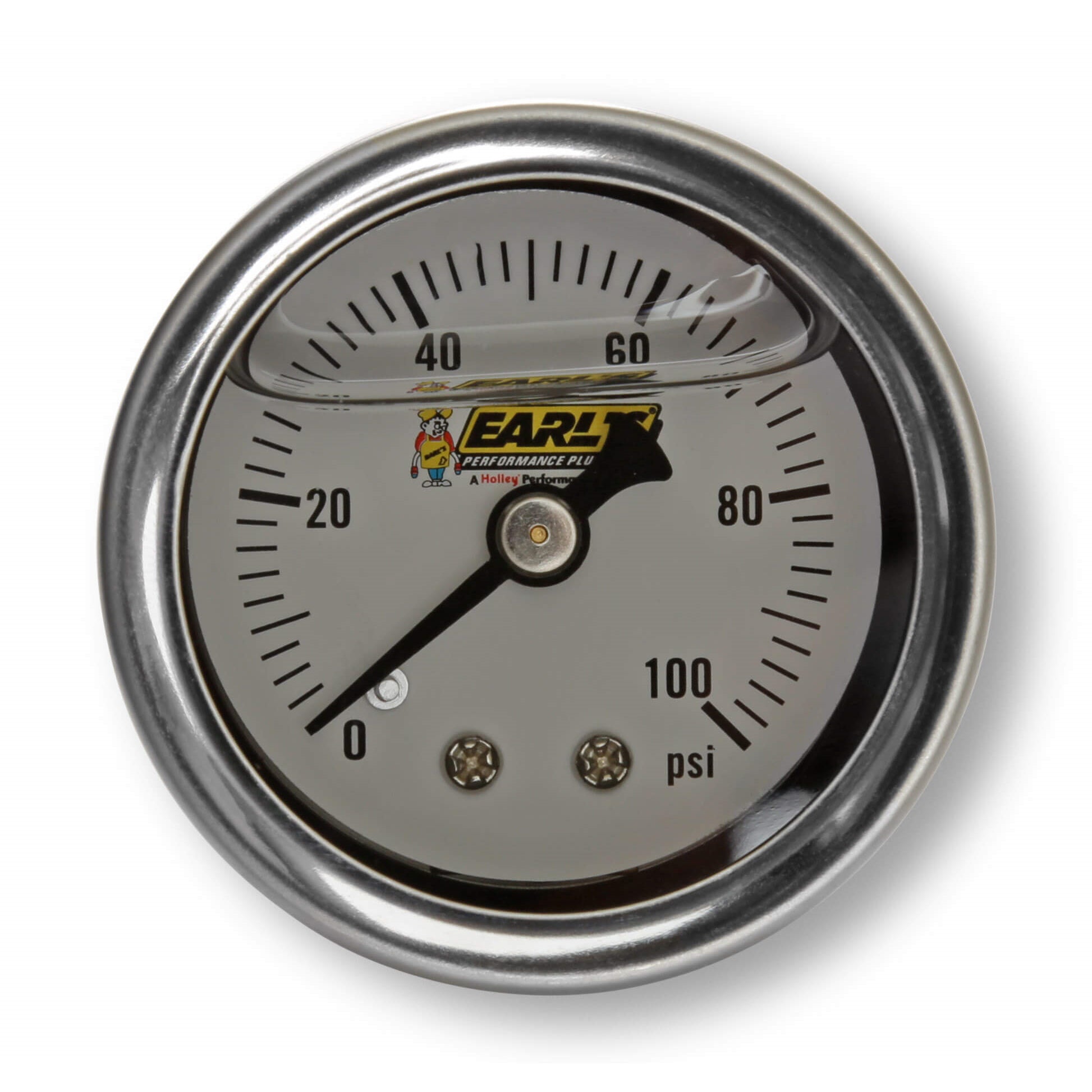

1/8" NPT Gauge Port and Earl's Fuel Pressure Gauge (100187ERL) |
| Description_FAB |
1/8" NPT Boost Reference (1:1) and Barbed Fitting |
| Description_FAB |
Mr. Gasket 3/8" NPT to -6 AN fittings (481666-BL x3) |
| Description_FAB |
Mounting Bracket Included |
| Description_KEY |
Fuel Pressure Regulator; bypass style regulator; regulator kit; boost reference; fuel pressure gauge; -6 AN |
| Description_EXT |
15-60 Psi - Fittings and Gauge Included |
| Description_INV |
12-882 REGULATOR KIT, GAUGE AND FITTINGS |
| Pressure Range |
15-60 PSI |
| Brand |
Holley EFI |
| Outlet Size |
3/8 inch NPT |
| Warning |
California Proposition 65 |
| Color |
Chrome |
| Fuel System |
EFI |
| Inlet Size |
3/8 inch NPT |
| Product Type |
Fuel Pressure Regulator |
| Warranty |
Limited 90 Day Warranty |
| Emission Code |
3, 5 |
| Fuel Type |
Gasoline |
| Material |
Aluminium |
| Return Size |
3/8 inch NPT |
| Style |
Bypass |
| Length |
5.6000 |
| Width |
6.6500 |
| Height |
7.0500 |
| Weight |
1.7000 |
