Fuel pulse dampers act in tandem with the fuel pressure regulator to further control the fuel pressure in an EFI system. They act to smooth out the pressure pulsations caused by the injectors opening and closing as well as the fuel pump operating. These pulsations happen so quickly that in many cases they can't be identified with an analog gauge but can cause issues with fuel delivery to the engine.
Specifications:
| Description_DES |

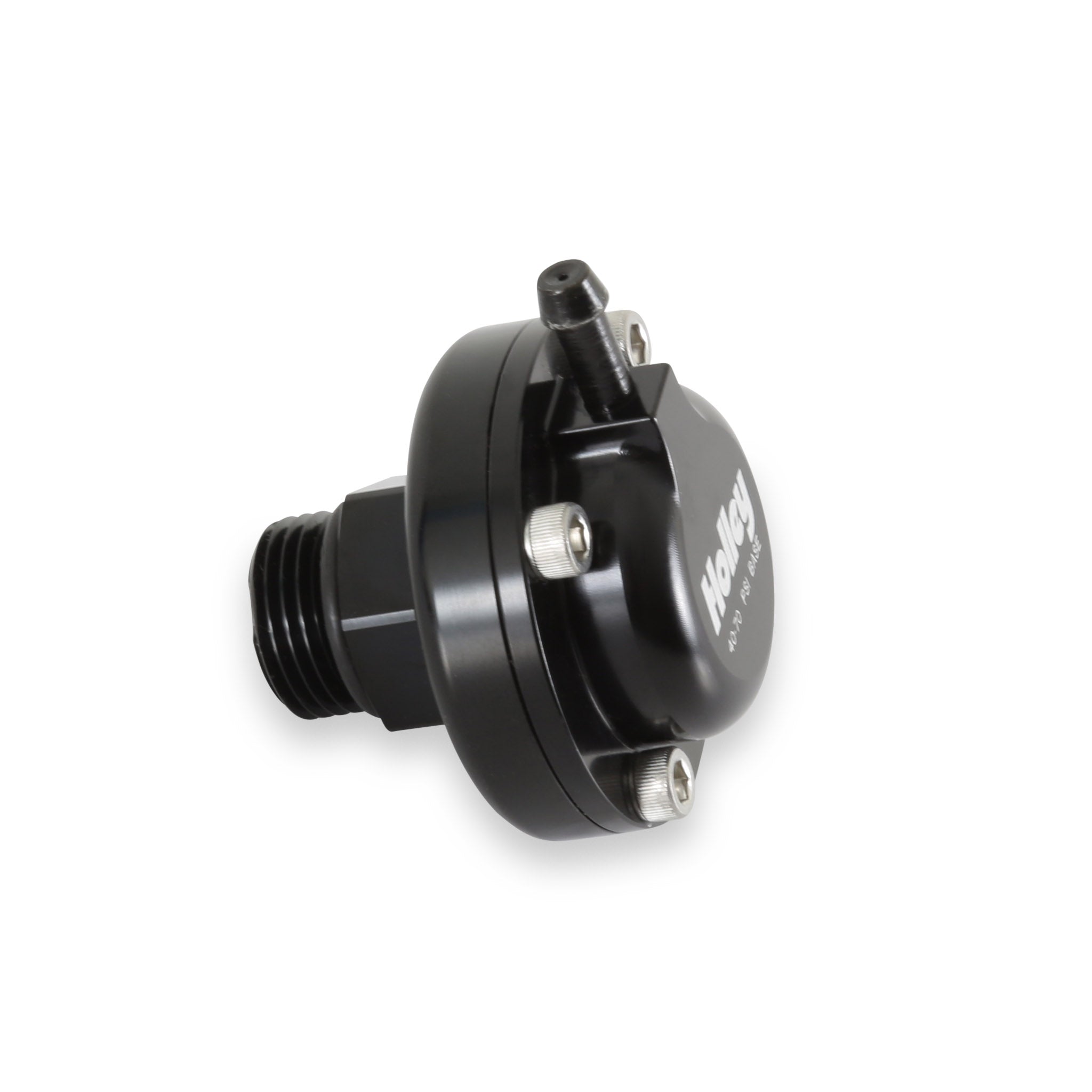

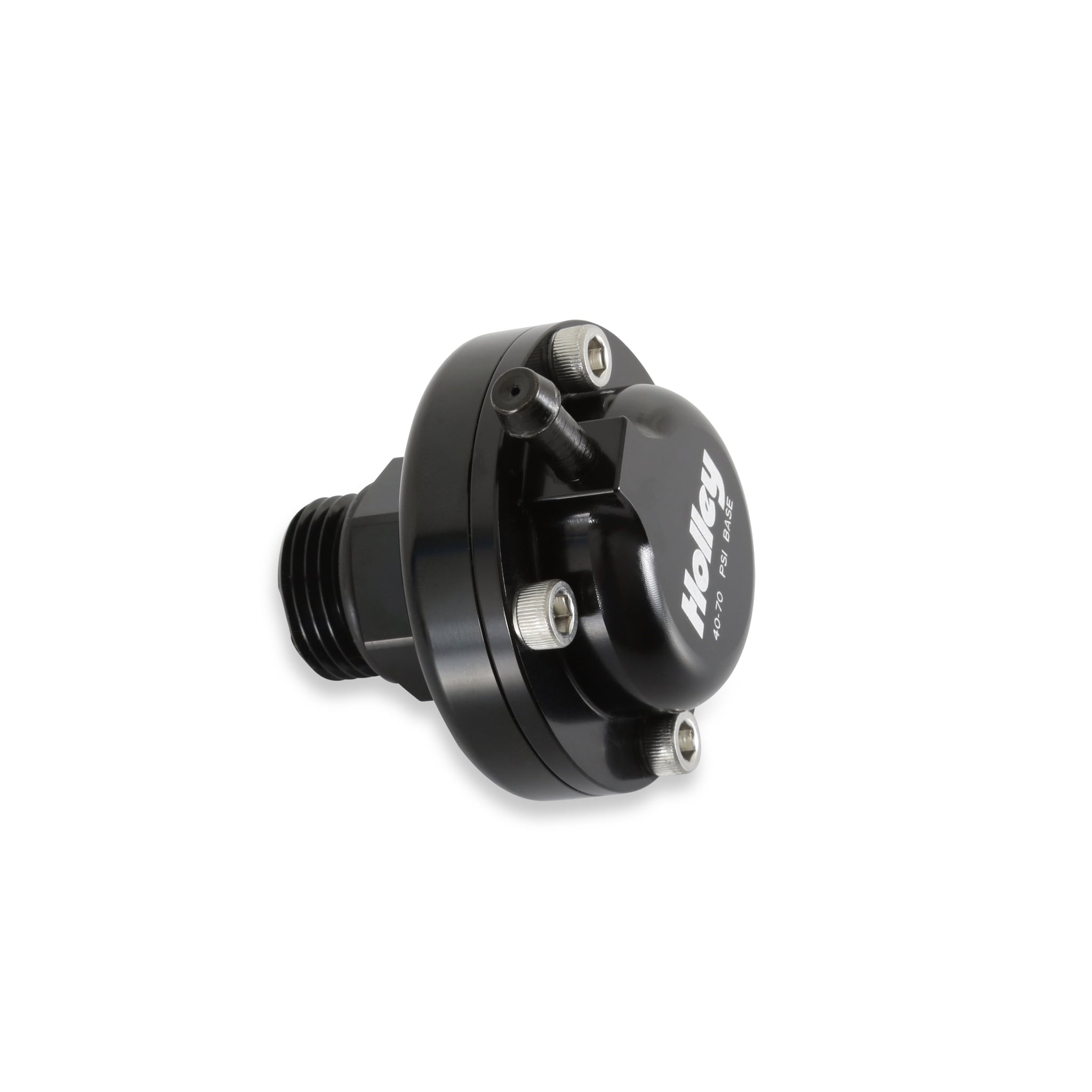

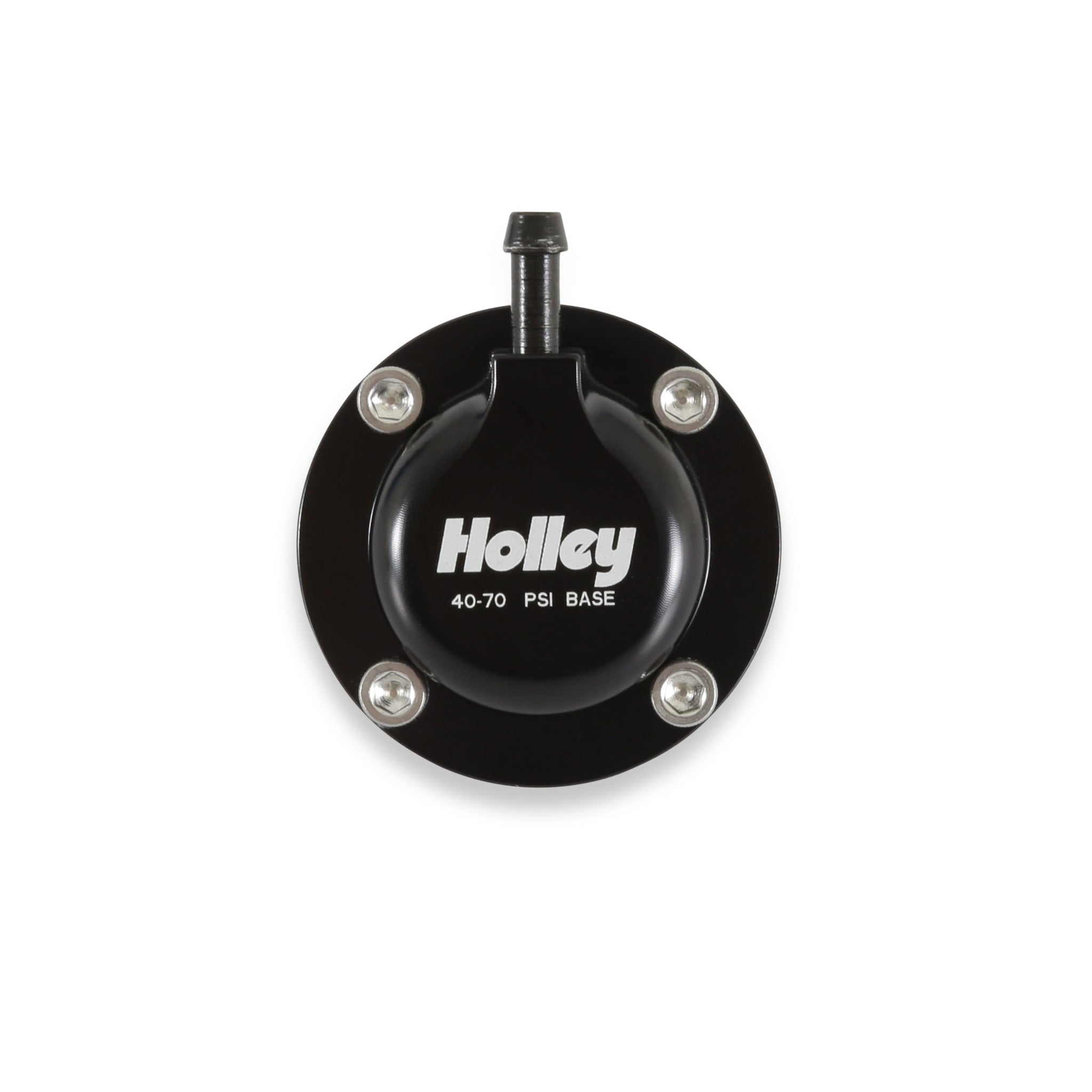

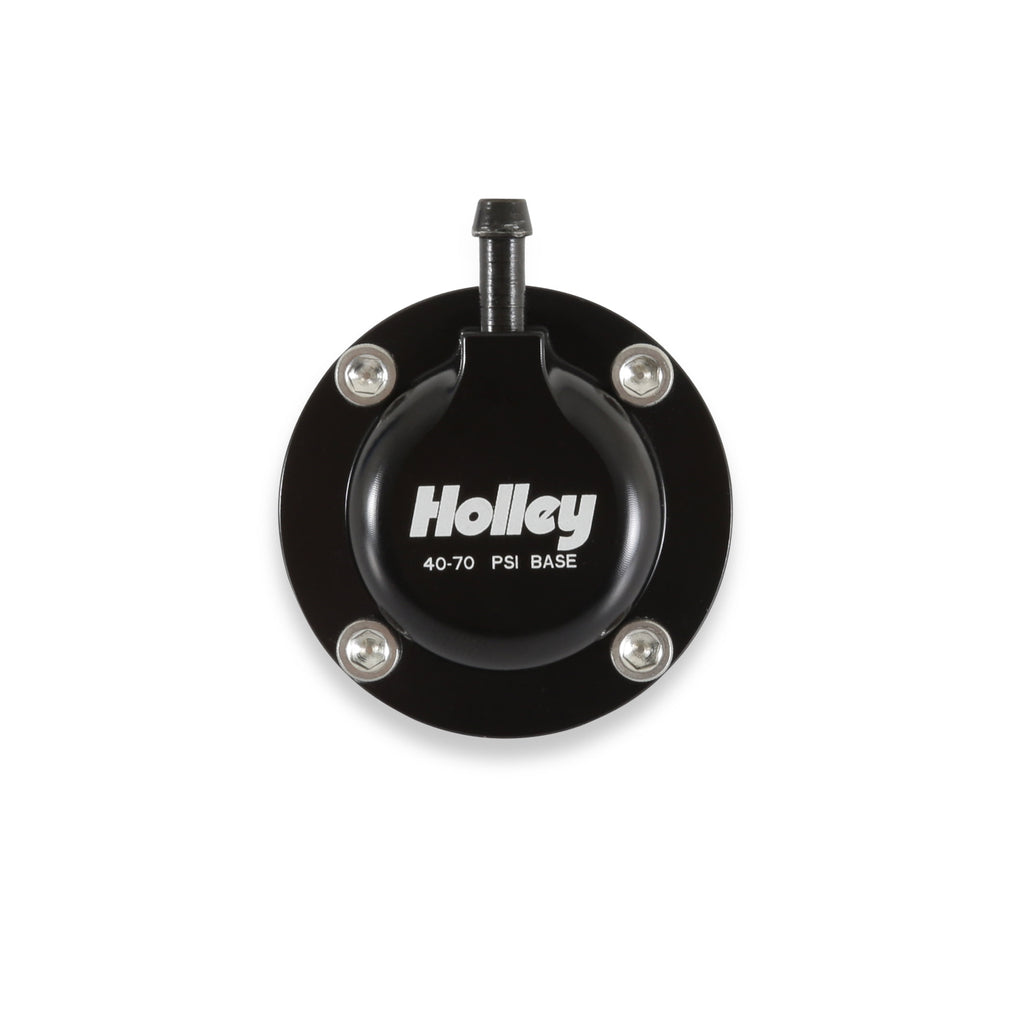

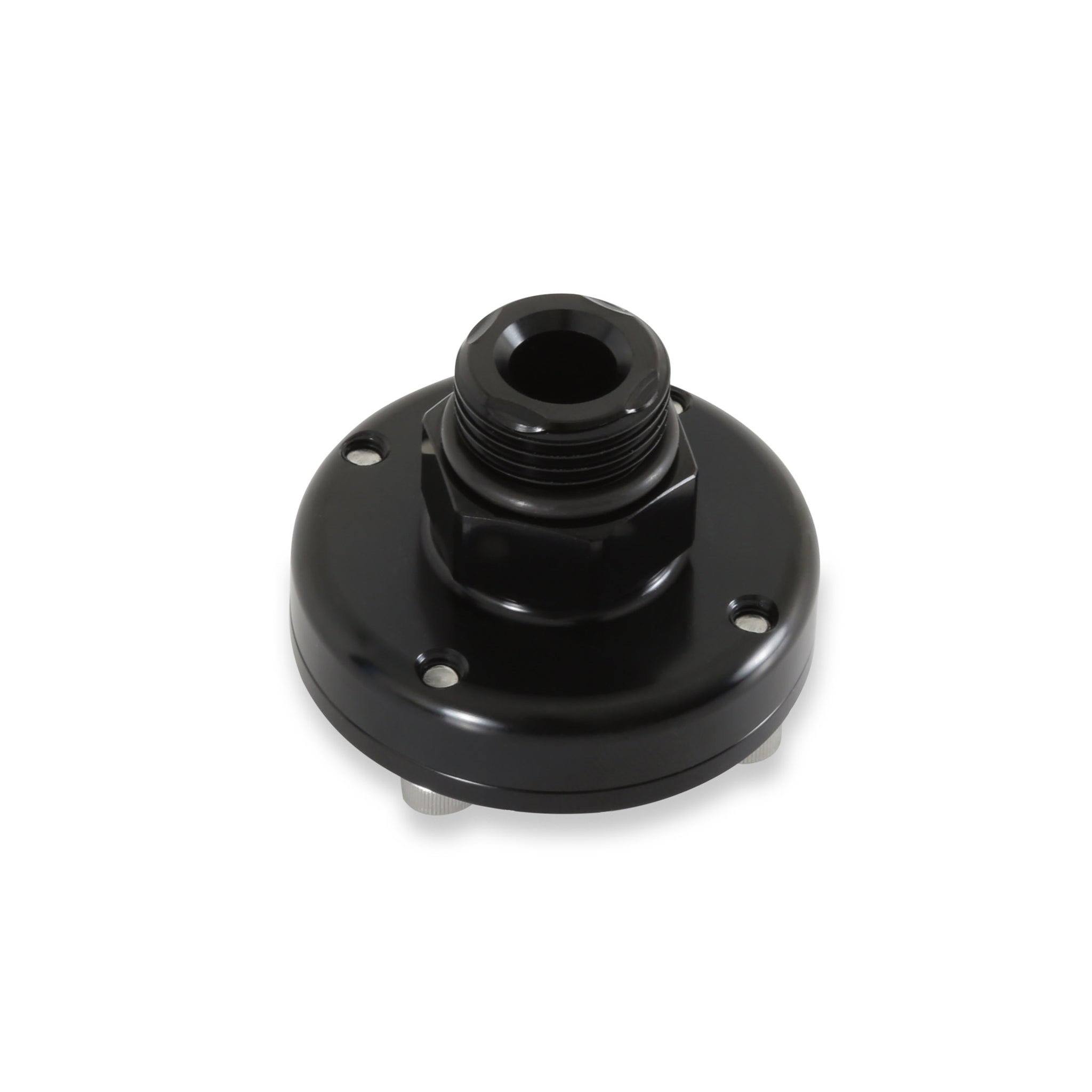

HOLLEY DIRECT MOUNT FUEL PULSE DAMPER |
| Description_KEY |
Regulator; Damper; pressure regulator |
| Description_FAB |
Engineered to stabilize pressure pulsations caused by the injectors opening, ideal for applications with large fuel injectors and high volume fuel pumps |
| Description_FAB |
Compatible with any fuel -- full anodized billet aluminum construction with stainless steel springs and fluorosilicone diaphragm |
| Description_FAB |
Fittings included for damper/regulator's and direct mount dampers |
| Description_FAB |
1/8" NPT port on body of damper/regulators and in-line dampers for easy installation of mechanical pressure gauge or pressure transducer |
| Description_FAB |

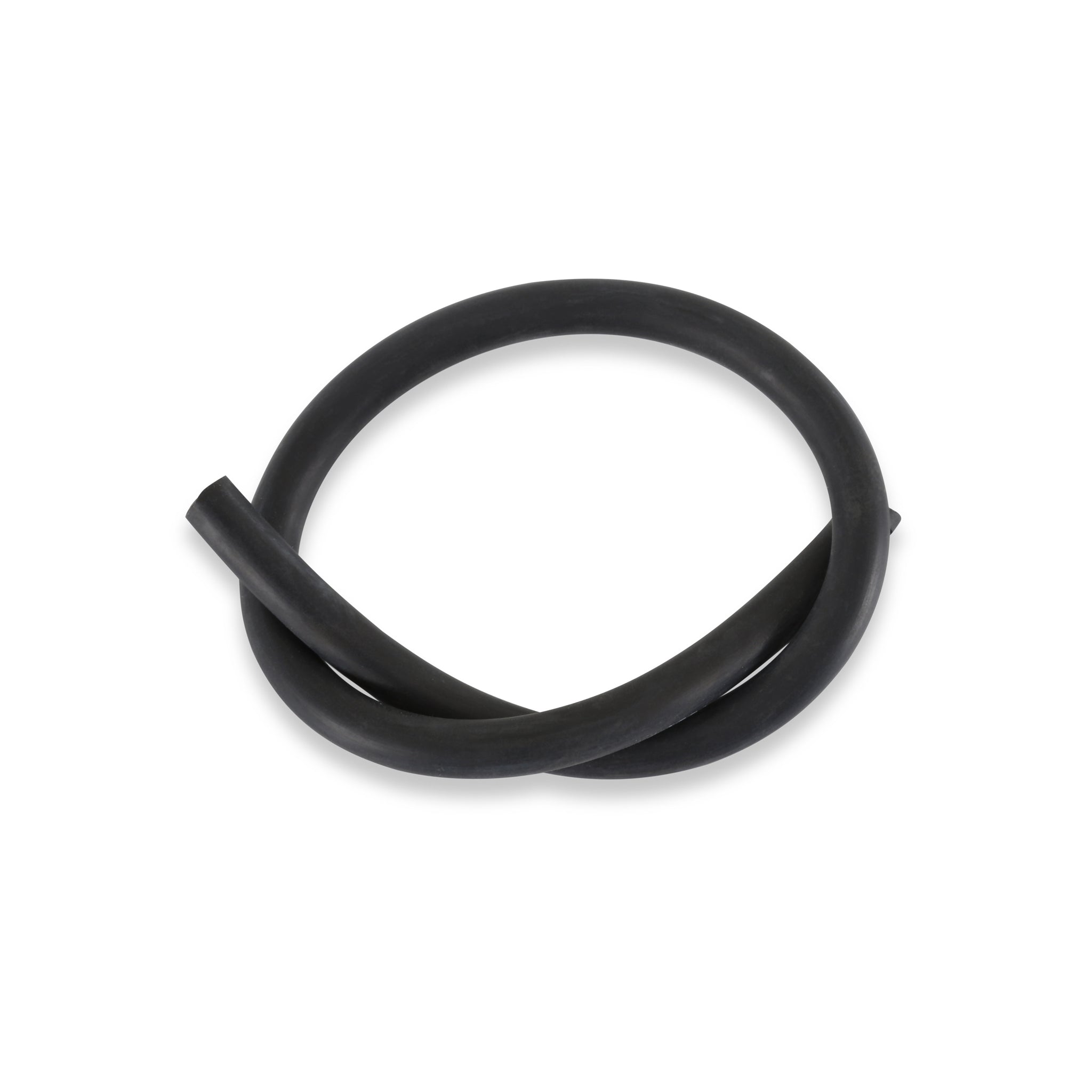

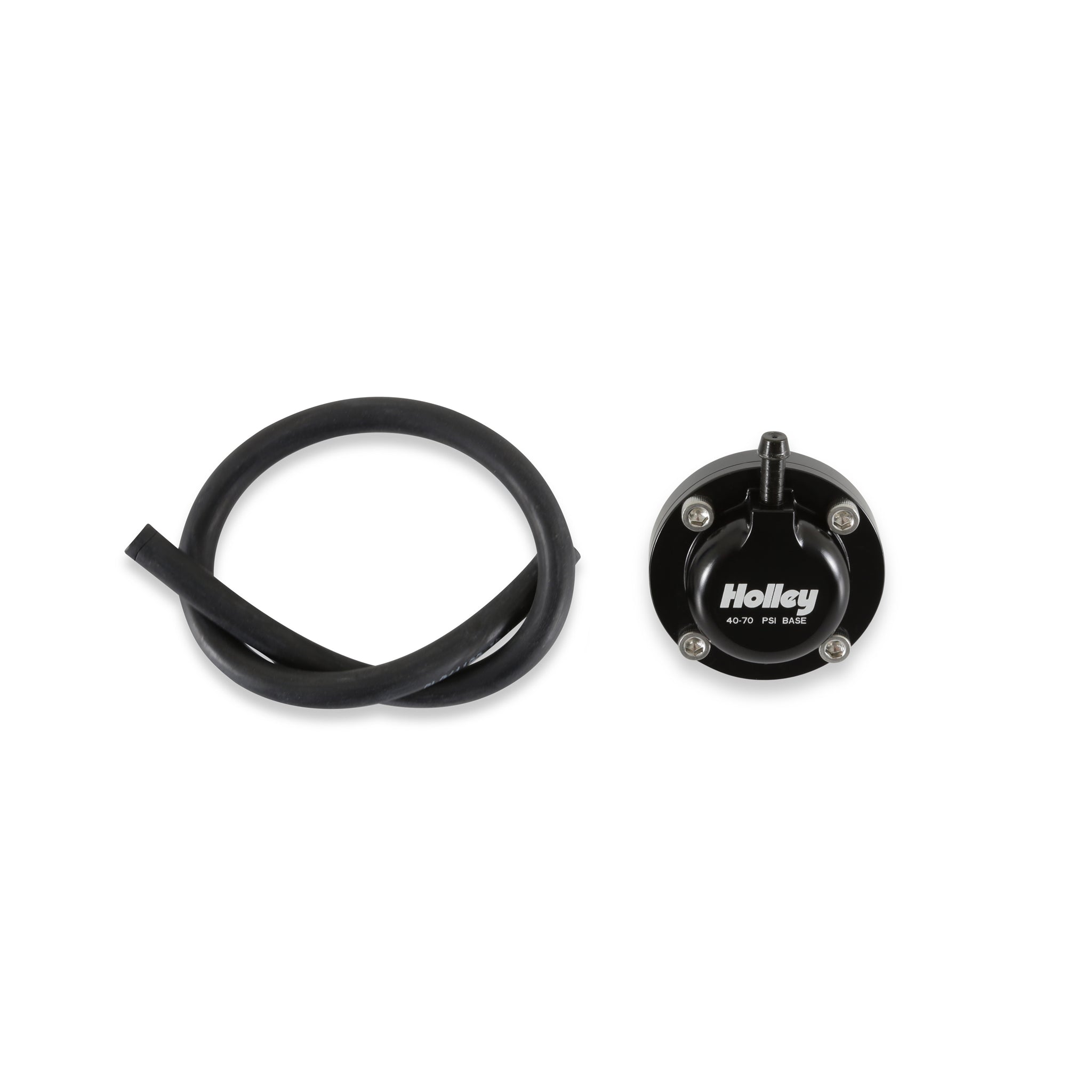

Vacuum fitting and one foot of hose included with all dampers for vacuum referencing |
| Description_FAB |
Assembled and tested in the USA |
| Description_INV |
AN8 ORB 40-70 PSI FUEL PULSE DAMPER |
| Description_EXT |
FUEL PULSE DAMPER, 8AN, STANDARD RANGE 40-70 PSI |
| Description_MKT |
Fuel pulse dampers act in tandem with the fuel pressure regulator to further control the fuel pressure in an EFI system. They act to smooth out the pressure pulsations caused by the injectors opening and closing as well as the fuel pump operating. These pulsations happen so quickly that in many cases they can't be identified with an analog gauge but can cause issues with fuel delivery to the engine. |
| Emission Code |
3 |
| Fuel Type |
Gasoline / Ethanol / Methanol / E85 |
| Style |
Billet Aluminum |
| Brand |
Holley |
| Finish |
Anodized Black |
| Pressure Range |
40-70 PSI |
| Product Type |
Fuel Pulse Damper |
| Thread |
3/4-16 Male O-Ring (8 AN) |
| Warranty |
Limited 90 Day |
| Length |
4.4000 |
| Width |
4.4000 |
| Height |
4.8500 |
| Weight |
0.4550 |
