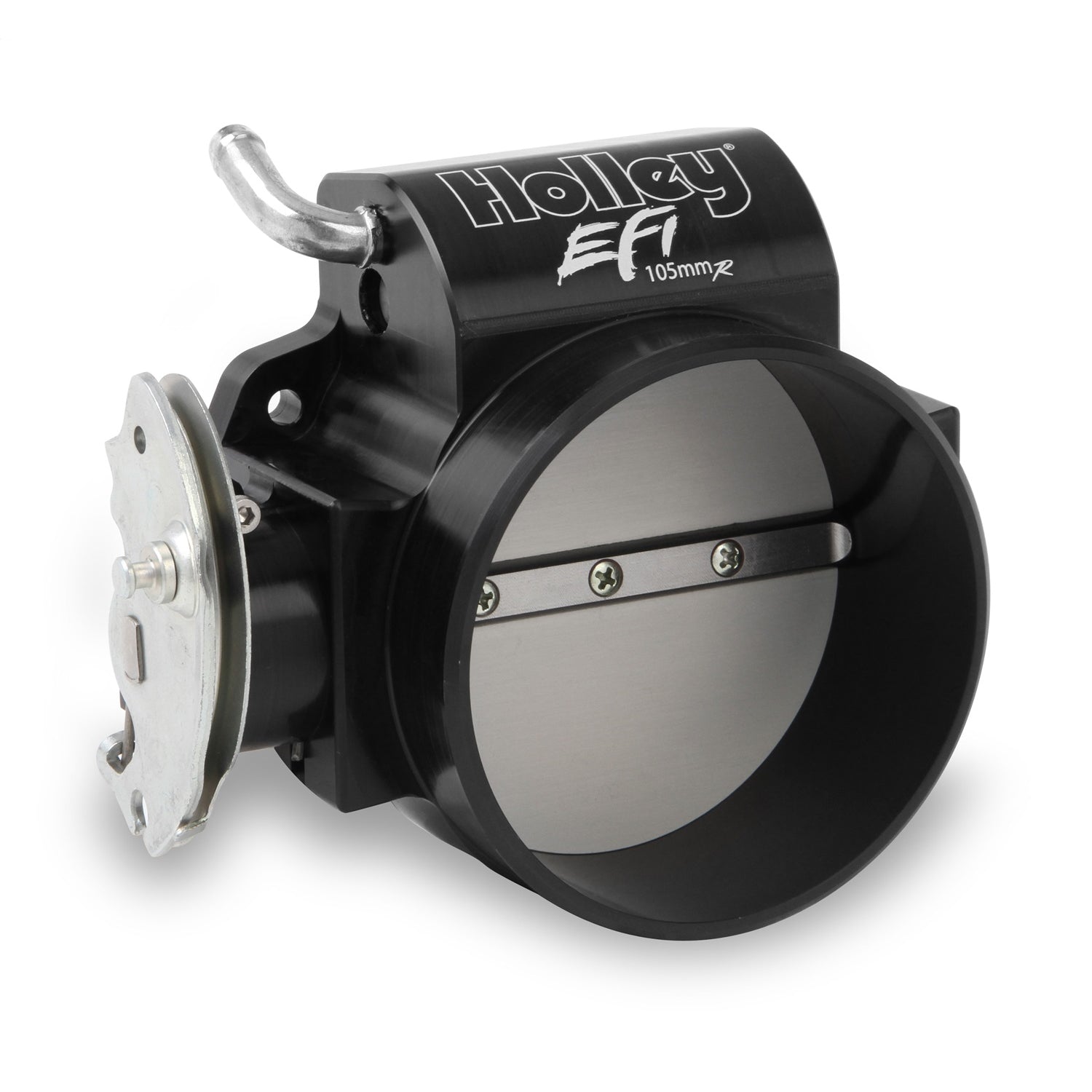

Holley's BILLET LS Throttle Bodies are the BIGGEST BORE - MOST FEATURE LOADED available. Holley went back to the drawing board and built the ultimate air valve for your LS engine! This all new design boasts a huge 105 millimeter bore for when WOT is all that matters. Innovative features like Idle Bleed Adjustment, TPS CLOCKER, and closable PCV Passage Valve, make them the ultimate throttle bodies for ease of installation and tuning. Regardless of whether you have a turbo, supercharger, or a big cam engine sucking gulps of air, Holley's throttle bodies are maximized for your application. The barrier protection of the BLACK ANODIZED finish also offers up a modern tech look!
Specifications:
| Description_DEF |
Fuel Injection Throttle Body |
| Description_EXT |
Throttle Body; LS 105mm w/Straight Bore; Idle Bleed Adjustment; TPS Clocker And PCV Passage Included.; Cable Driven; Black Anodized; |
| Description_DES |
BILLET 105mm LS Throttle Body w/straight bore |
| Description_MKT |
Holley's BILLET LS Throttle Bodies are the BIGGEST BORE - MOST FEATURE LOADED available. Holley went back to the drawing board and built the ultimate air valve for your LS engine! This all new design boasts a huge 105 millimeter bore for when WOT is all that matters. Innovative features like Idle Bleed Adjustment, TPS CLOCKER, and closable PCV Passage Valve, make them the ultimate throttle bodies for ease of installation and tuning. Regardless of whether you have a turbo, supercharger, or a big cam engine sucking gulps of air, Holley's throttle bodies are maximized for your application. The barrier protection of the BLACK ANODIZED finish also offers up a modern tech look! |
| Description_FAB |
TPS CLOCKER allows the TPS to be rotated back into the ECU's required idle voltage range. Modified engines no longer suffer from problems related to TPS voltage! |
| Description_FAB |

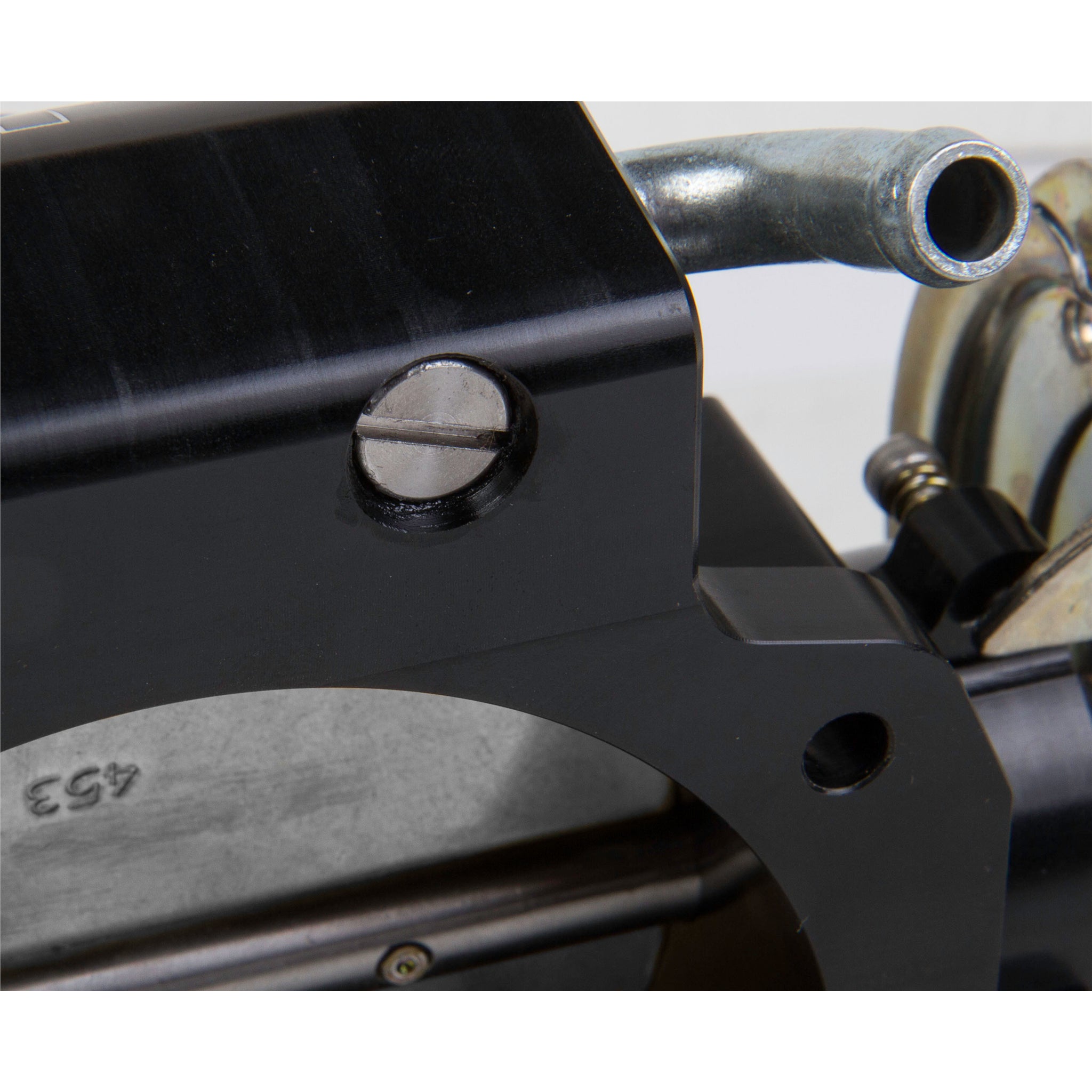

IDLE BLEED allows adjustment of your idle without affecting throttle position or TPS voltages at idle! |
| Description_FAB |

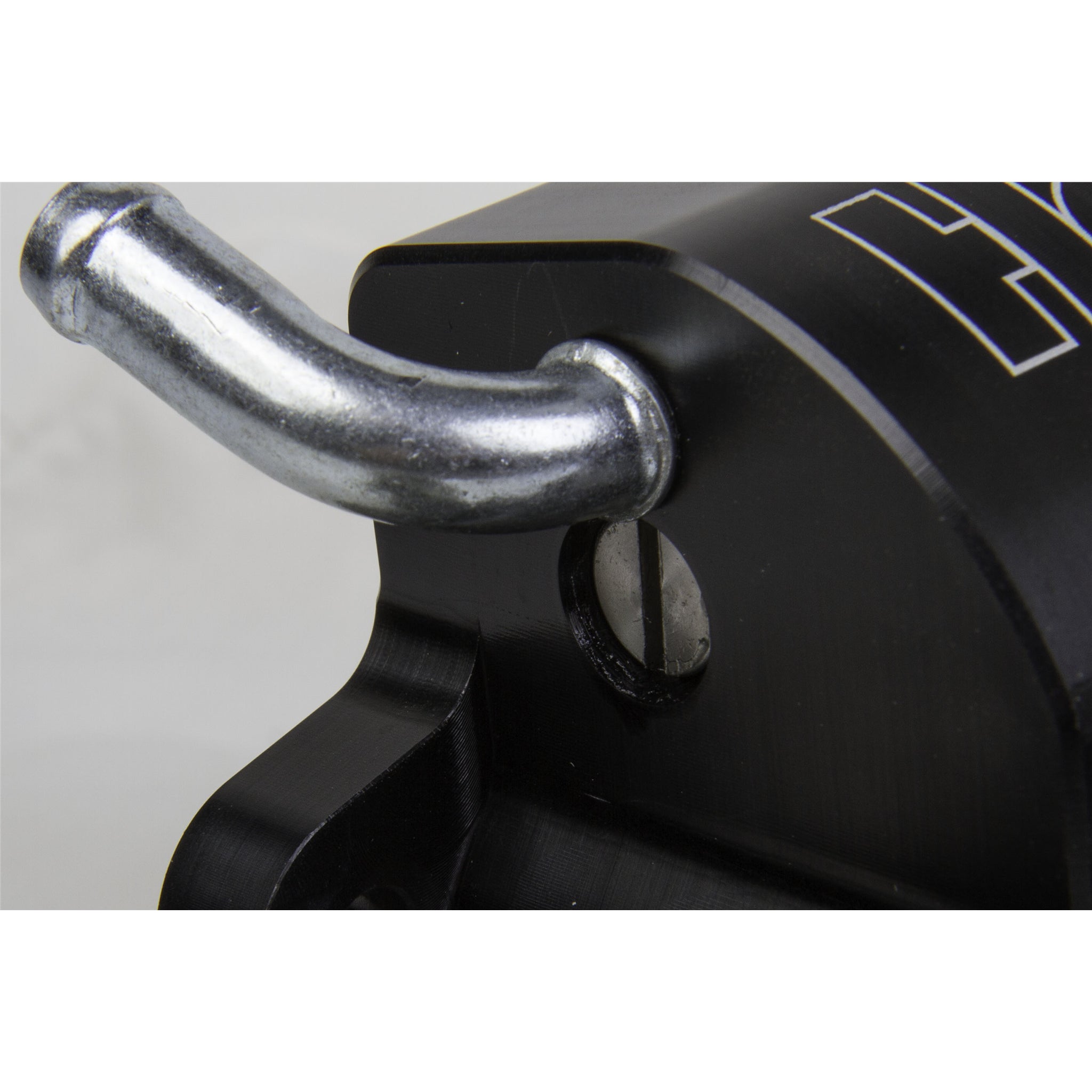

PCV PASSAGE VALVE closes to accommodate forced induction applications! No more plugging to block off PCV! |
| Description_FAB |
OVERSIZED BORE compared to other LS throttle bodies |
| Description_FAB |
STRAIGHT BORE (no taper) minimizes turbulence and maximizes airflow for race applications |
| Description_FAB |
PREMIUM BILLET BODY supports the high tolerance design and look your performance engine deserves! |
| Description_FAB |
BLACK ANODIZED FINISH for superior corrosion resistance and serious good looks |
| Description_FAB |
CRUISE CONTROL provision built in for cruise control cable |
| Description_FAB |
CABLE DRIVEN APPLICATION |
| Description_FAB |
Fits the following intake manifolds: Holley 105mm Hi-Ram, Fast (TM) LSXR & LSXRT, MSD (R) Atomic AirForce, Most other 102 through 105mm LS intakes using 4 bolt TBs |
| Description_KEY |
holley; efi throttle bodies; throttle bodies; 105mm; 105; billet; holley efi; |
| Description_INV |
LS THROTTLE BODY, 105MM W/O TAPERED BORE |
| Description_SHO |
TBdyAssy |
| Billet Color |
Black |
| Emission Code |
8 |
| Throttle Bore |
105mm |
| Material |
Billet Aluminum |
| WARNING CA Proposition 65 |
No |
| Brand |
Holley EFI |
| Product Type |
Throttle Body |
| Throttle Diameter (mm) |
105mm |
| Sale Category |
Air and Fuel Delivery |
| Length |
5.0000 |
| Width |
6.0000 |
| Height |
10.0000 |
| Weight |
2.0000 |
