Extreme performance and extreme durability. That's what Pro Series billet fuel pumps are all about. Built for the most demanding drag racing applications, Pro Series pumps feature hard anodized billet aluminum housings, a rugged six-vane pump, all armatures are epoxy coated to secure windings and extend motor life. The pump base is integrated as bottom end cap of motor promoting better pump sealing and shaft alignment. An integrated adjustable bypass valves eliminate pump cavitation and stabilizes fuel flow, and stainless steel armatures enhance corrosion resistance. Available in 230-, 260-, 300-, and 427 GPH models, Pro Series pumps support 800-2,500 horsepower and are compatible with gasoline, E85 and alcohol.ΓÇó230 GPH Flow @ 7 PSI; Continuous dutyΓÇóDesigned for street performance vehicles; Supports up to 1200 HP.ΓÇóComes with 30-1900 Bypass Regulator included.ΓÇóMotor draws 6 Amps @ 7 PSI.ΓÇó1/8" NPT Gauge Port.ΓÇóHighly efficient 6-vane design.ΓÇóHard coat anodized billet aluminum housing.ΓÇó#10 AN Inlets and Outlets.ΓÇóLower pump body is machined with a bearing pocket to receive the motor shaft bearing. This significantly improves the shaft alignment, reducing current draw and improving flow.ΓÇóNew rotor designed of hardened sintered iron compound to improve wear.ΓÇóUpper wear plate is integrated into the one-piece eccentric bushing for improved alignment and reduced friction.ΓÇóCompatible with all fuels (Gas, Alcohol, E85).ΓÇóFlow, pressure, and leak tested prior to shipment.
Specifications:
| Description_DES |

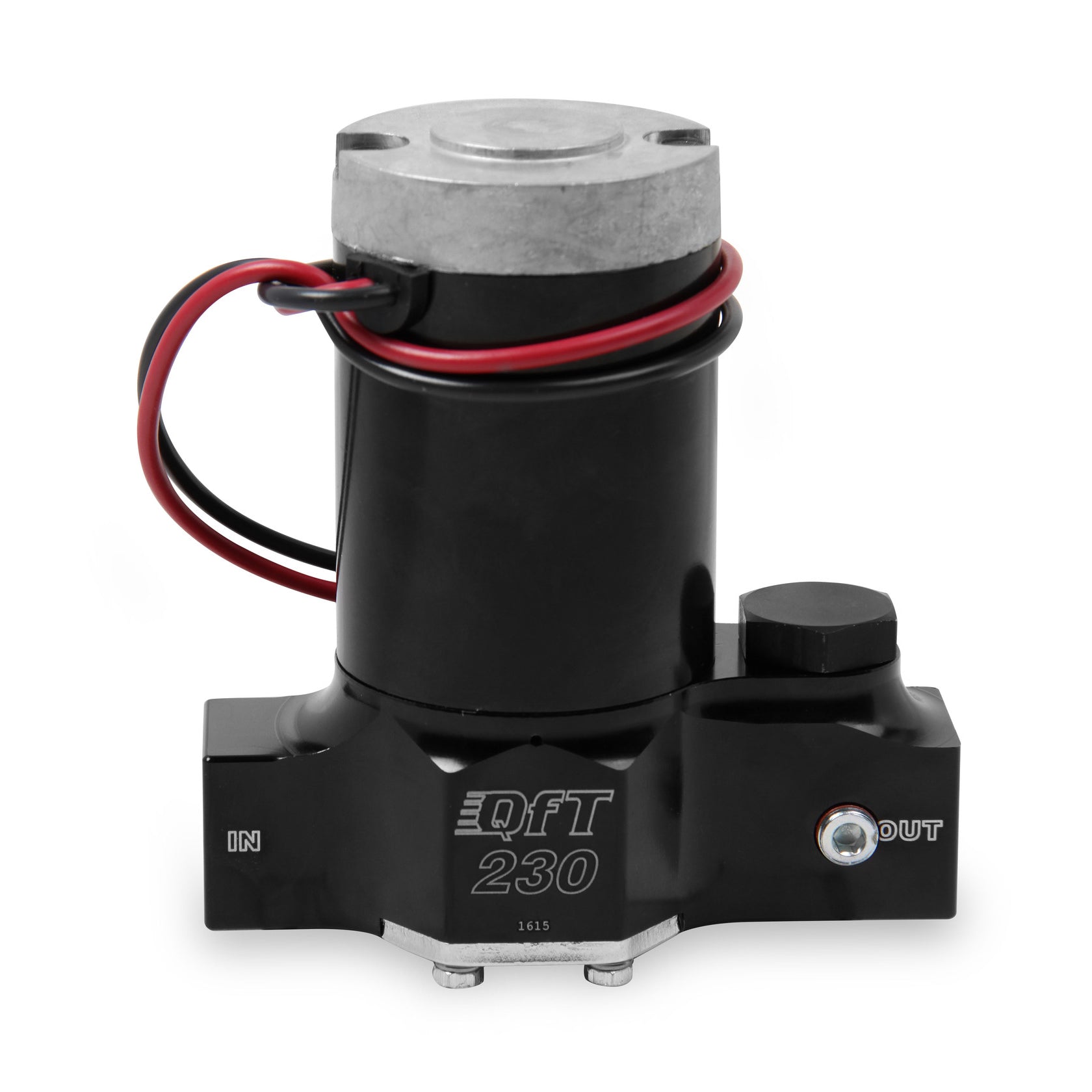

230 GPH High-Output Electric Fuel Pump |
| Description_FAB |
230 GPH Flow @ 7 PSI; Continuous duty |
| Description_FAB |
Designed for street performance vehicles; Supports up to 1200 HP. |
| Description_FAB |
Comes with 30-1900 Bypass Regulator included. |
| Description_FAB |
Motor draws 6 Amps @ 7 PSI. |
| Description_FAB |
1/8" NPT Gauge Port. |
| Description_FAB |
Highly efficient 6-vane design. |
| Description_FAB |
Hard coat anodized billet aluminum housing. |
| Description_FAB |
#10 AN Inlets and Outlets. |
| Description_FAB |
Lower pump body is machined with a bearing pocket to receive the motor shaft bearing. This significantly improves the shaft alignment, reducing current draw and impr flow. |
| Description_FAB |
New rotor designed of hardened sintered iron compound to improve wear. |
| Description_FAB |
Upper wear plate is integrated into the one-piece eccentric bushing for improved alignment and reduced friction. |
| Description_FAB |
Compatible with all fuels (Gas, Alcohol, E85). |
| Description_FAB |
Flow, pressure, and leak tested prior to shipment. |
| Description_MKT |
Extreme performance and extreme durability. That's what Pro Series billet fuel pumps are all about. Built for the most demanding drag racing applications, Pro Series pumps feature hard anodized billet aluminum housings, a rugged six-vane pump, all armatures are epoxy coated to secure windings and extend motor life. The pump base is integrated as bottom end cap of motor promoting better pump sealing and shaft alignment. An integrated adjustable bypass valves eliminate pump cavitation and stabilizes fuel flow, and stainless steel armatures enhance corrosion resistance. Available in 230-, 260-, 300-, and 427 GPH models, Pro Series pumps support 800-2,500 horsepower and are compatible with gasoline, E85 and alcohol.ΓÇó230 GPH Flow @ 7 PSI; Continuous dutyΓÇóDesigned for street performance vehicles; Supports up to 1200 HP.ΓÇóComes with 30-1900 Bypass Regulator included.ΓÇóMotor draws 6 Amps @ 7 PSI.ΓÇó1/8" NPT Gauge Port.ΓÇóHighly efficient 6-vane design.ΓÇóHard coat anodized billet aluminum housing.ΓÇó#10 AN Inlets and Outlets.ΓÇóLower pump body is machined with a bearing pocket to receive the motor shaft bearing. This significantly improves the shaft alignment, reducing current draw and improving flow.ΓÇóNew rotor designed of hardened sintered iron compound to improve wear.ΓÇóUpper wear plate is integrated into the one-piece eccentric bushing for improved alignment and reduced friction.ΓÇóCompatible with all fuels (Gas, Alcohol, E85).ΓÇóFlow, pressure, and leak tested prior to shipment. |
| Description_INV |
LTS QFT 230 Fuel Pump |
| Length |
3.8000 |
| Width |
7.7000 |
| Height |
8.3000 |
| Weight |
4.1000 |
