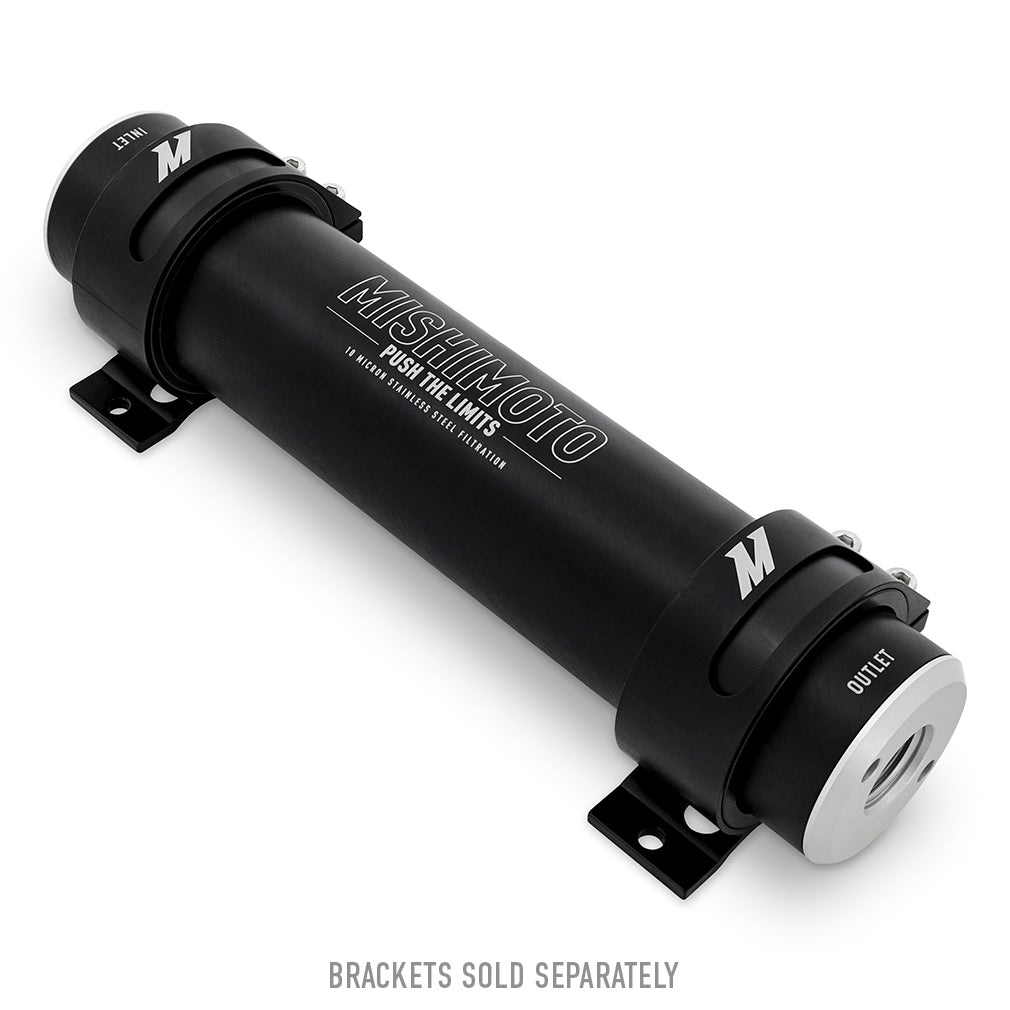

Mishimoto MMFF-HF-S010 High-Flow-10An Fuel Filter, 10-Micron Stainless-Steel Insert

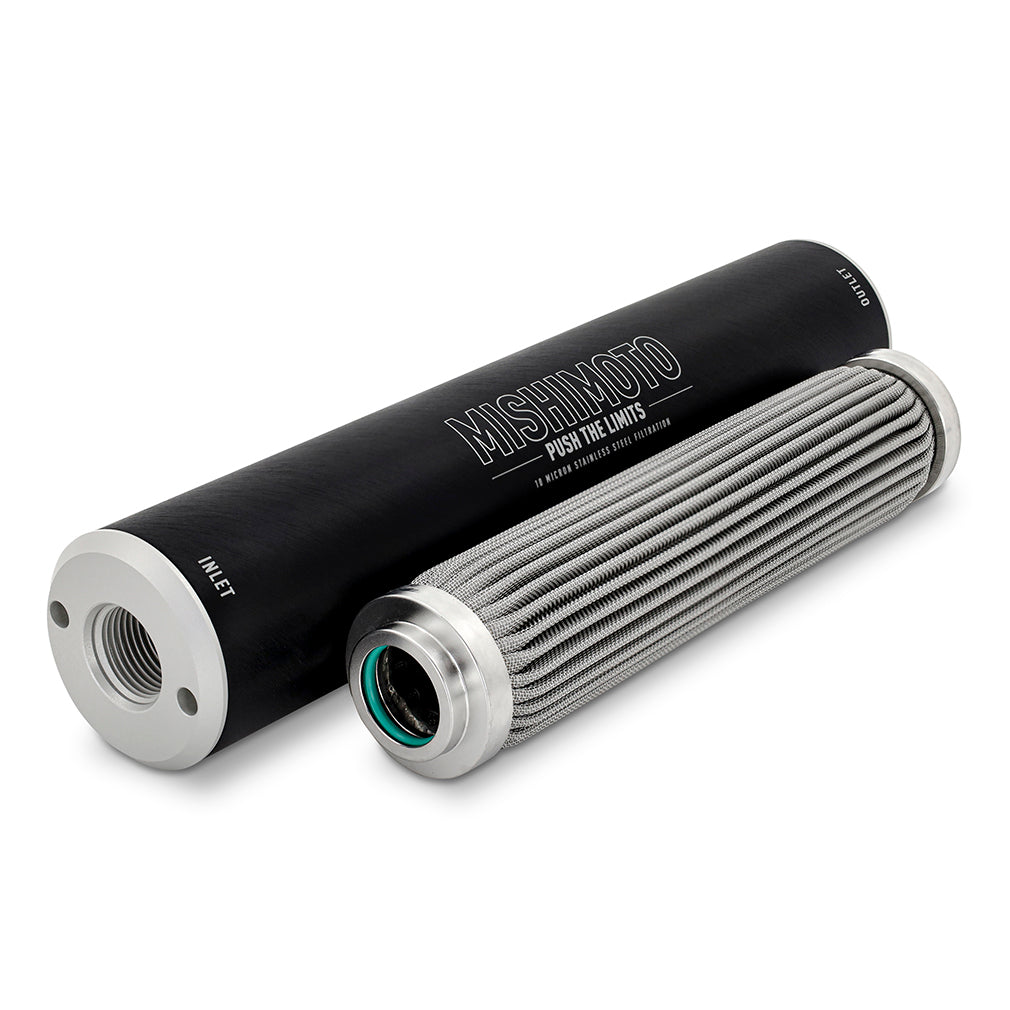

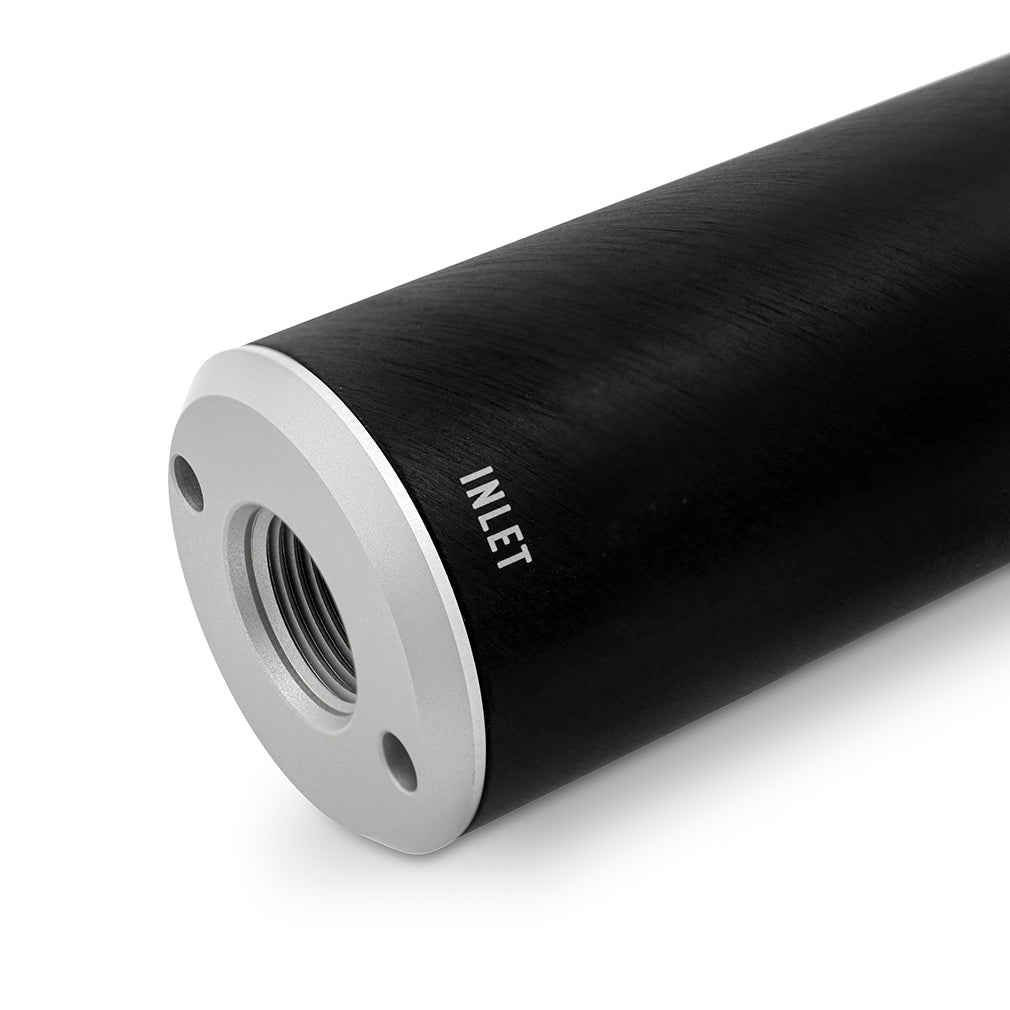

When horsepower exceeds the 4-digit mark, one oversight can cause catastrophic failure. Each vehicle system needs to be running at peak performance, but no other system can cause thousands of dollars of damage faster than fuel. An undersized or clogged fuel injector, pump, or filter can cause too little fuel flow to the engine, resulting in not only a loss of power, but also excessive heat. Even short periods of high cylinder temps can lead to detonation, melted pistons, or a seized engine and thousands of dollars in repairs. The best way to prevent fueling issues is to install the best quality components from tank to injector, and this Mishimoto high-flow fuel filter fits the bill. This high-flow performance fuel filter utilizes an extruded-aluminum body with -10 ORB inlets and outlets to provide up to 475 GPH (1,800 LPH) and support for up to 1,500 horsepower. This fuel filter features an easy to replace welded stainless-steel filter for use with gasoline, diesel, or alcohol-based fuels. This filter is rated to filter out particles down to 10-microns for use between the pump and fuel rail. Our filter inserts feature high-quality Viton O-rings and are rated to withstand up to 116 PSI for reliable performance on even the most demanding vehicles. Over 150 sq. in. of filter surface area protects valuable fuel pumps and injectors while allowing minimal pressure drop. Like all Mishimoto products, this high-performance fuel filter is backed by our Mishimoto Lifetime Warranty for a lifetime of performance.

Specifications:
