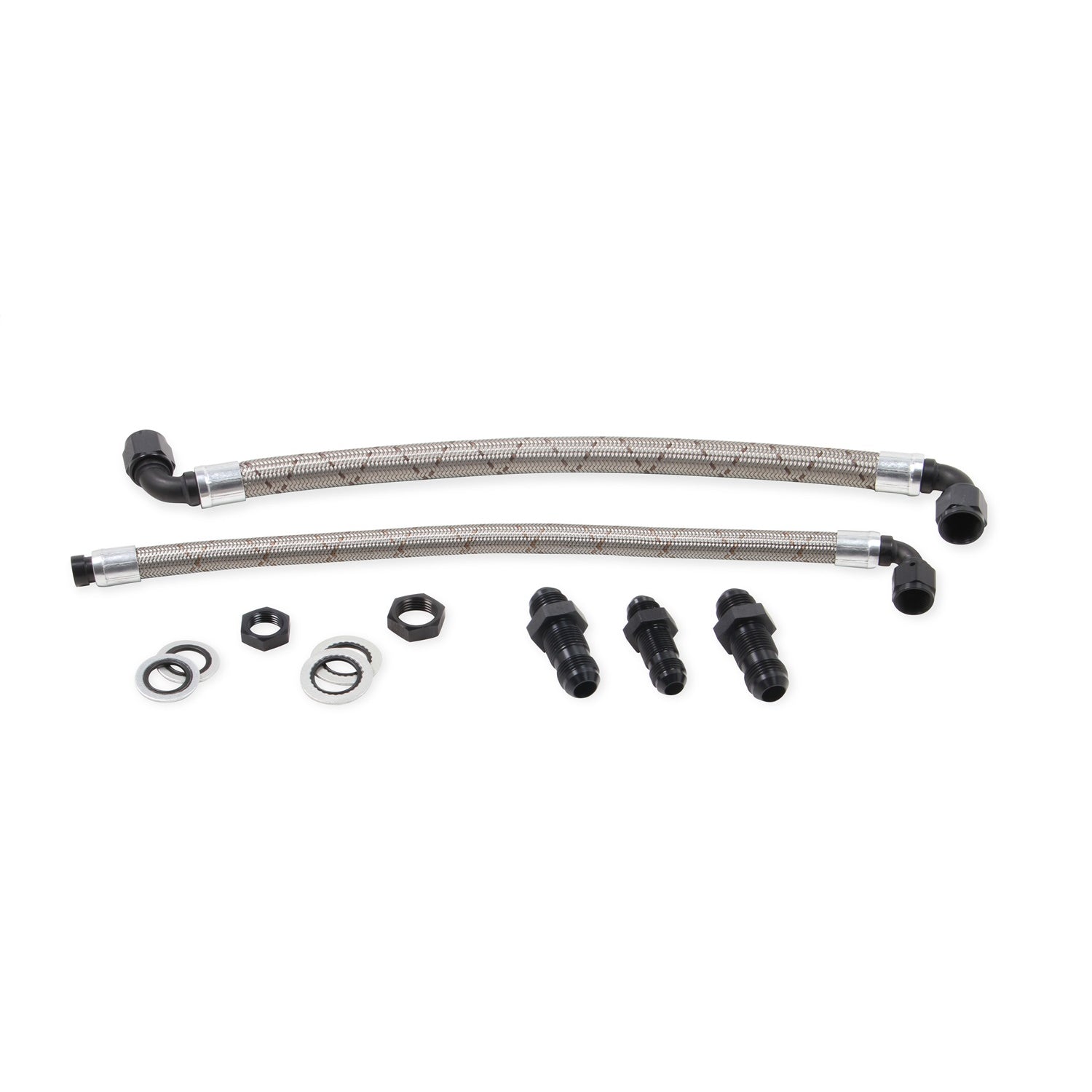

This kit contains a -10 AN supply line and -8 AN return line with bulkheads for the fuel cell fill plate and Stat-O-Seal washers to seal the bulkheads. This kit is all that is needed to plumb the inside of an ATL 22 gallon fuel cell from the HydraMat to the fuel cell fill plate. The supply line is 18" center to center on the fittings and utilizes -10 AN 90 degrees hose ends. The return line is 18" in length and utilizes a 90 degrees hose end on one end and a nipple on the other to disperse the return fuel. Constructed from Earl's Ultra Flex hose and fittings, this fuel line kit is the perfect solution you your HydraMat installation needs. Ultra-Flex Hose Features:ΓÇó Covered in aircraft quality 304 grade stainless steel wireΓÇó High-Temp. Smooth bore PTFE tubingΓÇó Maximum Pressure Rating of 995 PSIΓÇó Convoluted outer wall of inner tube for incredible flexibilityΓÇó Remains Flexible at Temperatures Between -94 degreesF and +510 degreesFΓÇó Clean and Fast FlowingUltra-Flex Hose ends feature:ΓÇó Black AnodizedΓÇó Lightweight Aircraft Aluminum
Specifications:
| Description_DEF |
Fuel Line |
| Description_EXT |
Fuel Line; HydraMat Fuel Line Kit For ATL Cells; Incl. -10AN Supply Line/-8AN Return Line/Hardware; |
| Description_DES |
HYDRAMAT (R) FUEL LINE KIT |
| Description_INV |
LTS HYDRAMAT FUEL LINE KIT FOR ATL CELLS |
| Description_MKT |
This kit contains a -10 AN supply line and -8 AN return line with bulkheads for the fuel cell fill plate and Stat-O-Seal washers to seal the bulkheads. This kit is all that is needed to plumb the inside of an ATL 22 gallon fuel cell from the HydraMat to the fuel cell fill plate. The supply line is 18" center to center on the fittings and utilizes -10 AN 90 degrees hose ends. The return line is 18" in length and utilizes a 90 degrees hose end on one end and a nipple on the other to disperse the return fuel. Constructed from Earl's Ultra Flex hose and fittings, this fuel line kit is the perfect solution you your HydraMat installation needs. Ultra-Flex Hose Features:ΓÇó Covered in aircraft quality 304 grade stainless steel wireΓÇó High-Temp. Smooth bore PTFE tubingΓÇó Maximum Pressure Rating of 995 PSIΓÇó Convoluted outer wall of inner tube for incredible flexibilityΓÇó Remains Flexible at Temperatures Between -94 degreesF and +510 degreesFΓÇó Clean and Fast FlowingUltra-Flex Hose ends feature:ΓÇó Black AnodizedΓÇó Lightweight Aircraft Aluminum |
| Description_FAB |
Supply and return hose are pre-assembled for ease of installation |
| Description_FAB |
Includes bulkhead fittings and Stat-O-Seals |
| Description_SHO |
Fuel Line |
| Brand |
Holley |
| WARNING CA Proposition 65 |
No |
| Clearance Category |
Fuel System Components |
| Warranty |
Limited 90 Day |
| Size |
-10AN/-8AN |
| Emission Code |
5 |
| Product Type |
HydraMat Components |
| Hose Clamps Included |
0 |
| Position |
N/A |
| Material |
Stainless Steel |
| Length |
4.3000 |
| Width |
4.3000 |
| Height |
24.6000 |
| Weight |
1.7000 |
