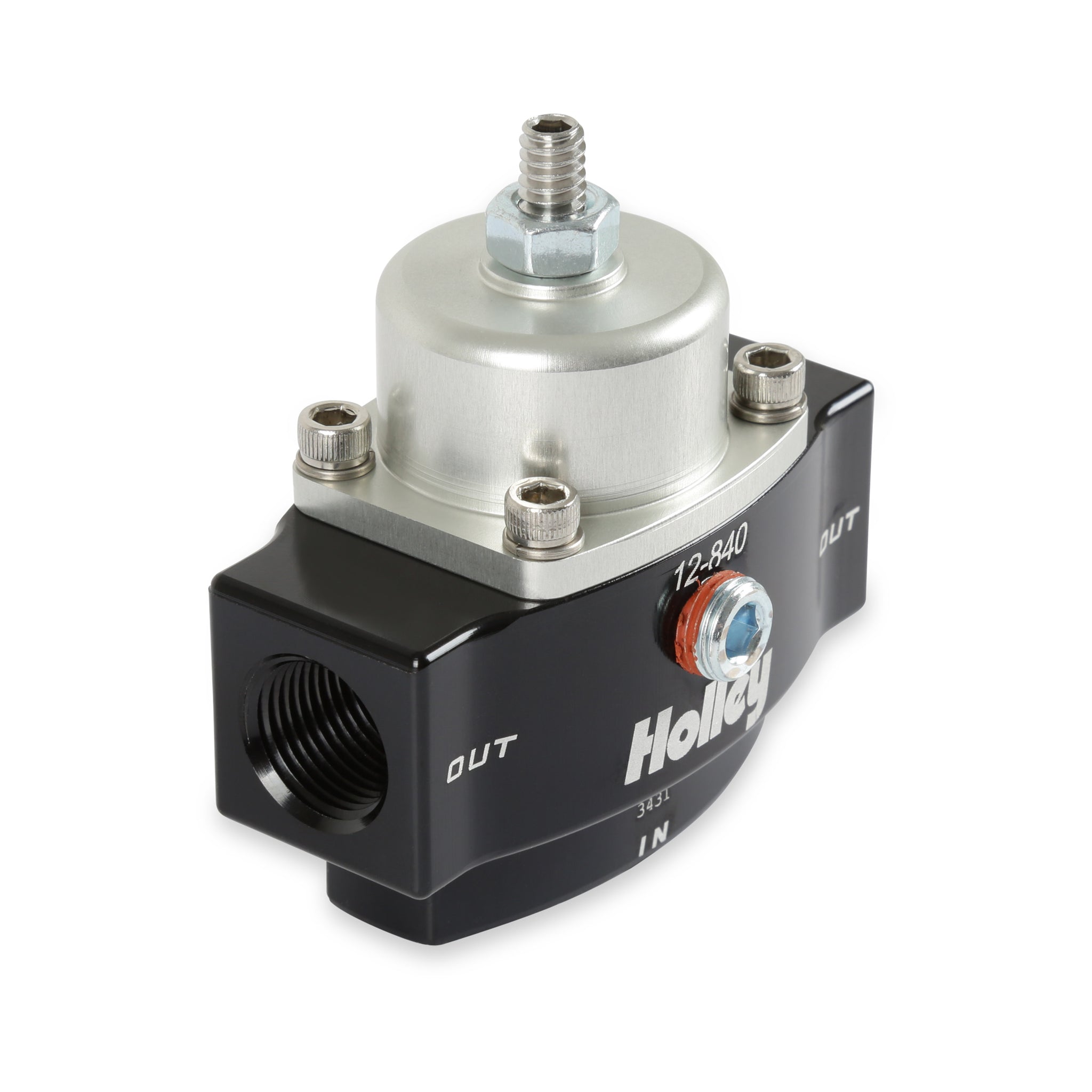

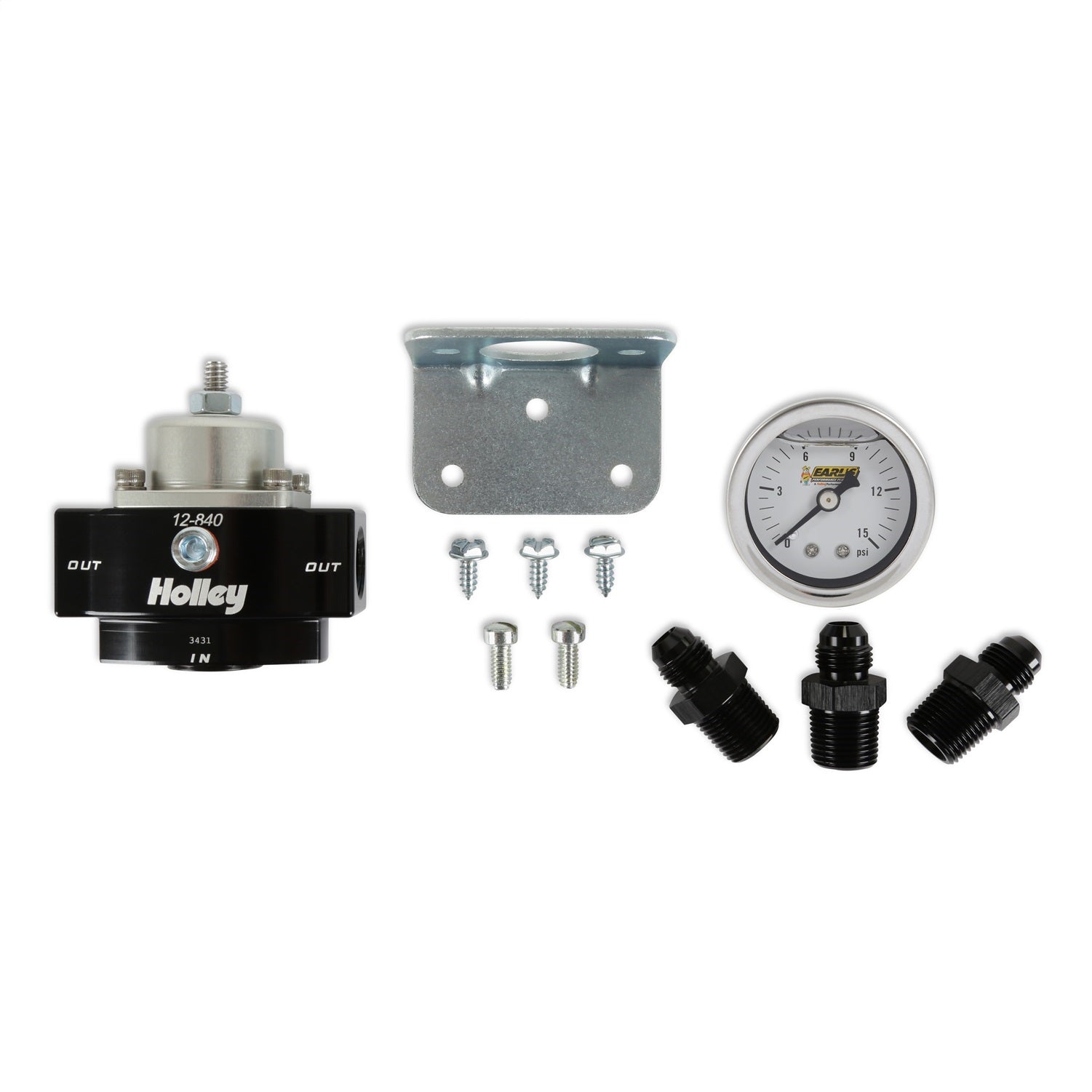

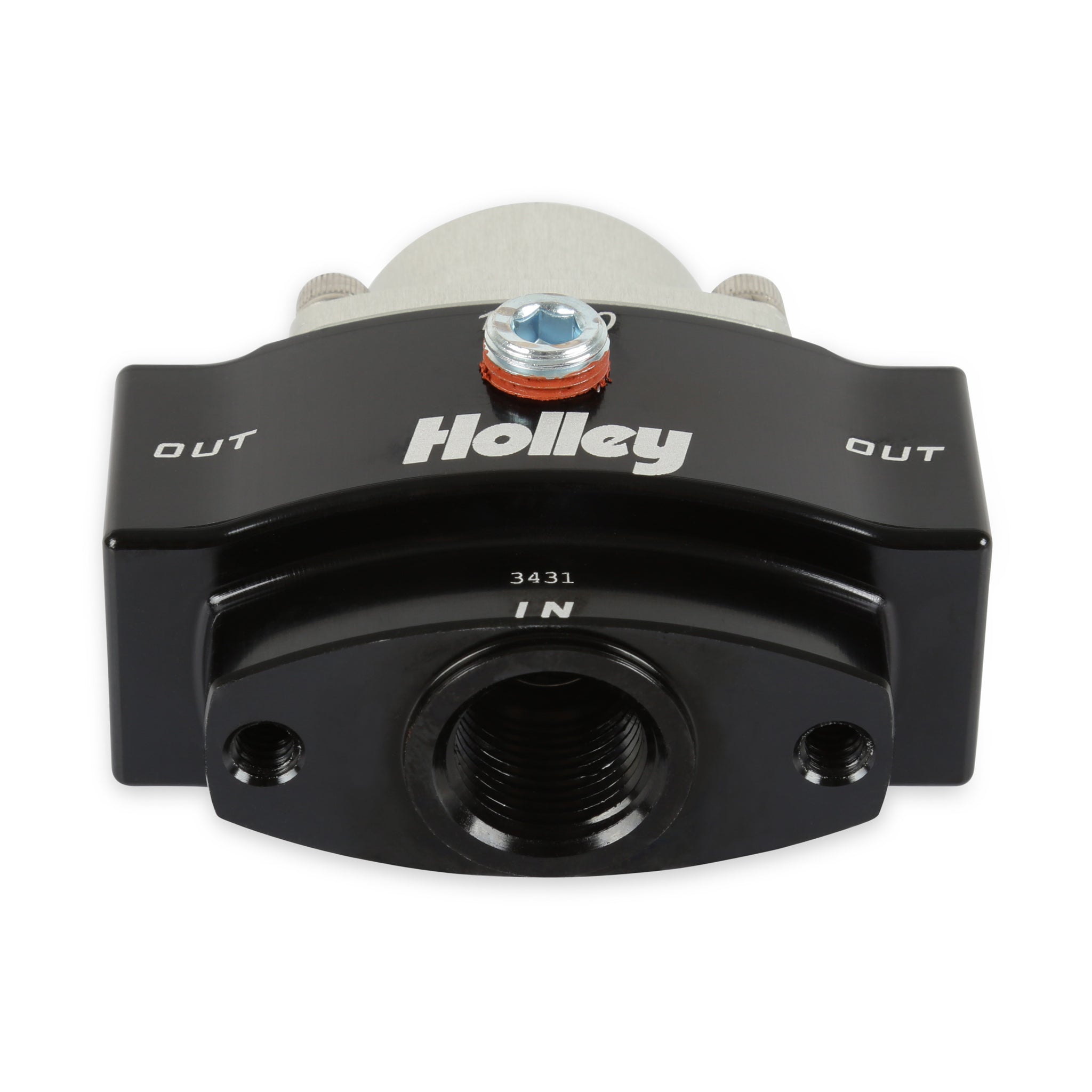

Holley Billet Bypass Style Fuel Pressure Regulator Kits are part of a complete line of fuel system products from Holley. The included 12-840 regulator features a billet aluminum body and a black finish for corrosion resistance and good looks. The regulator contains 3/8 in. NPT in/out ports, a 1/8 in. NPT gauge port. In addition, 3 Mr. Gasket 3/8 in. NPT to -6 AN fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included.
Specifications:
| Description_DEF |
Fuel Injection Pressure Regulator |
| Description_DES |
Holley Billet Bypass Fuel Pressure Regulator Kit |
| Description_INV |
12-840 REGULATOR KIT, GAUGE AND FITTINGS |
| Description_MKT |
Holley Billet Bypass Style Fuel Pressure Regulator Kits are part of a complete line of fuel system products from Holley. The included 12-840 regulator features a billet aluminum body and a black finish for corrosion resistance and good looks. The regulator contains 3/8 in. NPT in/out ports, a 1/8 in. NPT gauge port. In addition, 3 Mr. Gasket 3/8 in. NPT to -6 AN fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included. |
| Description_EXT |
Billet By-Pass Fuel Regulator Kit; 4.5-9 psi.; 15-60 psi Pressure Range; 3/8 in. NPT Inlet/Outlet; Black; Aluminum; |
| Description_FAB |
Die Cast Aluminum Construction |
| Description_FAB |
Adjustable from 4.5-9 psi for precise fuel pressure adjustments |
| Description_FAB |
3/8" NPT Inlet, Outlet Ports |
| Description_FAB |

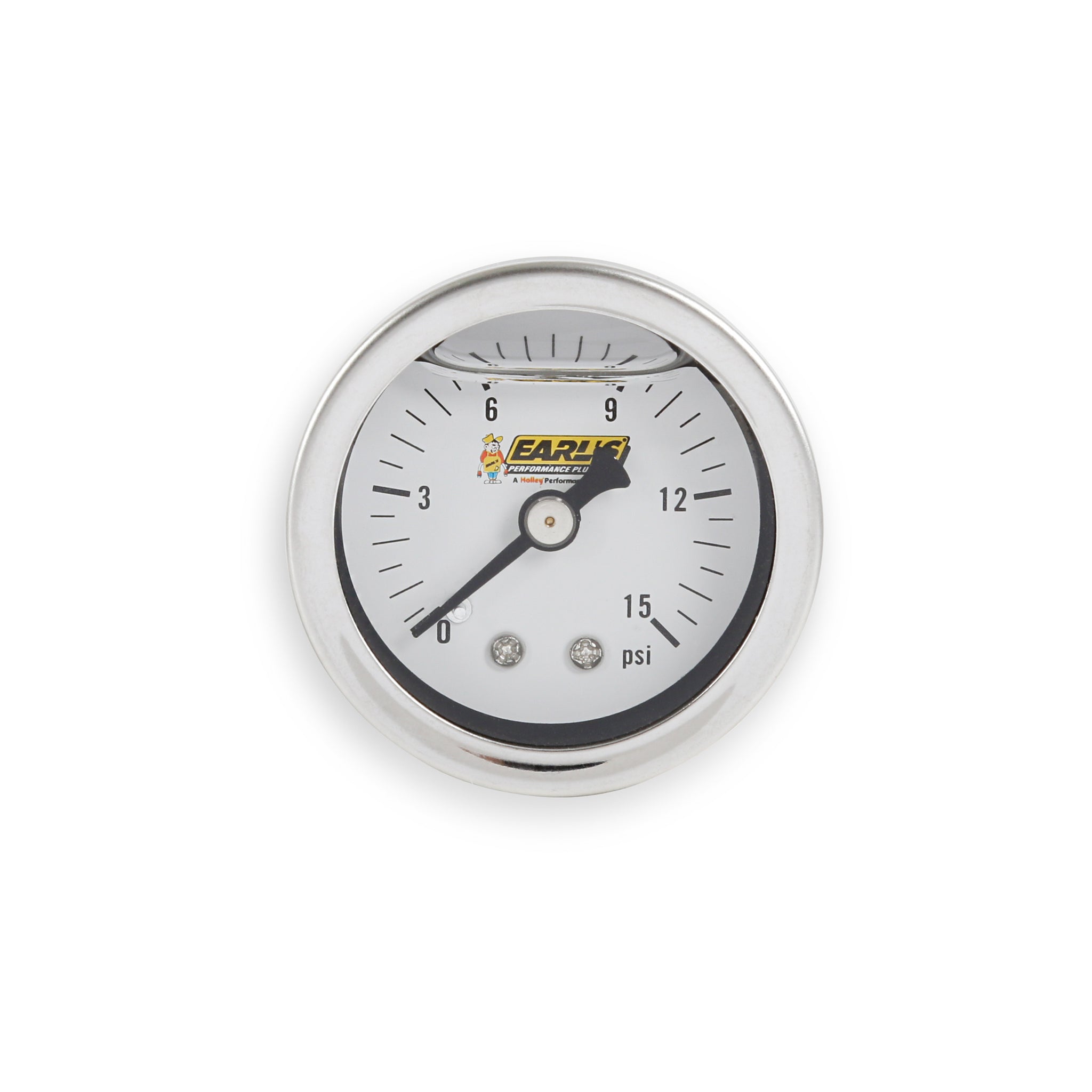

1/8" NPT Gauge Port and Earl's Fuel Pressure Gauge (100187ERL) |
| Description_FAB |
Mr. Gasket 3/8" NPT to -6 AN fittings (481666-BL x3) |
| Description_FAB |
Mounting Bracket Included |
| Description_KEY |
Fuel Pressure Regulator; bypass style regulator; regulator kit; boost reference; fuel pressure gauge; -6 AN |
| Description_SHO |
FuelInjPresrRgultr |
| Fuel Type |
Gasoline |
| Outlet Size |
3/8 inch NPT |
| Brand |
Holley |
| Fuel System |
Carbureted |
| Pressure |
15-60 PSI |
| Emission Code |
3, 5 |
| Style |
Non-Return |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| WARNING CA Proposition 65 |
Yes |
| Color |
Black |
| Inlet Size |
3/8 inch NPT |
| Material |
Aluminium |
| Pressure Range |
15-60 PSI |
| Product Type |
Fuel Pressure Regulator |
| Warning |
California Proposition 65 |
| Warranty |
Limited 90 Day Warranty |
| Length |
6.0000 |
| Width |
7.0000 |
| Height |
7.0000 |
| Weight |
1.0000 |
