Holley 12-148 Fuel Cell Efi Pump Module Assembly 12 Bolt Flange With Vr Series Brushless Fuel Pump

2 sold in last 8 days

Brand: Holley

SKU: ds_BBVL_12-148

Stock:

Product Code: Fuel Pump Module Assembly

$2,066.73

Quantity

Quantity must be 1 or more

I agree to the Terms & Conditions, including Refund and Shipping Policies.

0 customers are viewing this product

Holley 12-148 Fuel Cell Efi Pump Module Assembly 12 Bolt Flange With Vr Series Brushless Fuel Pump

Details
Reviews

Details

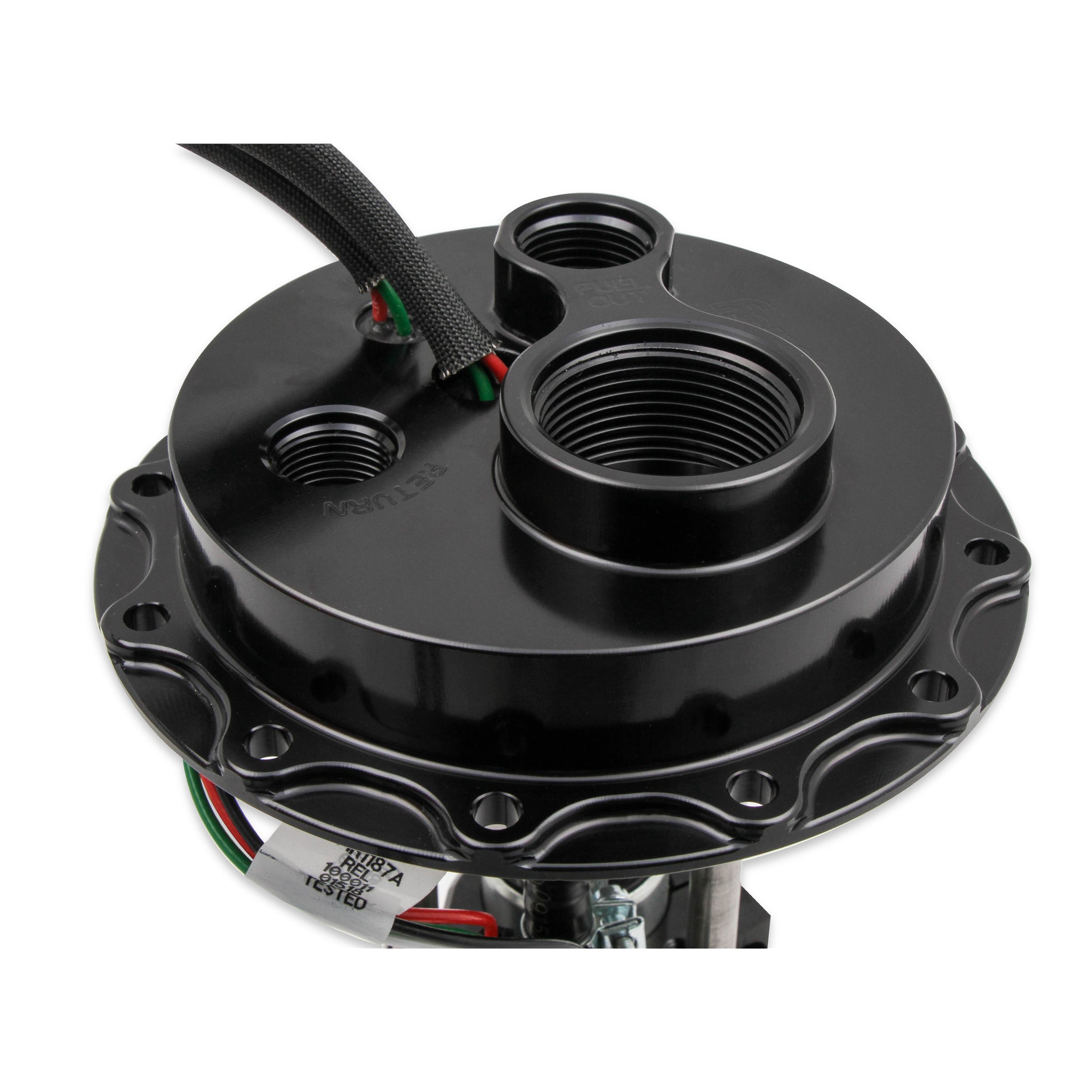

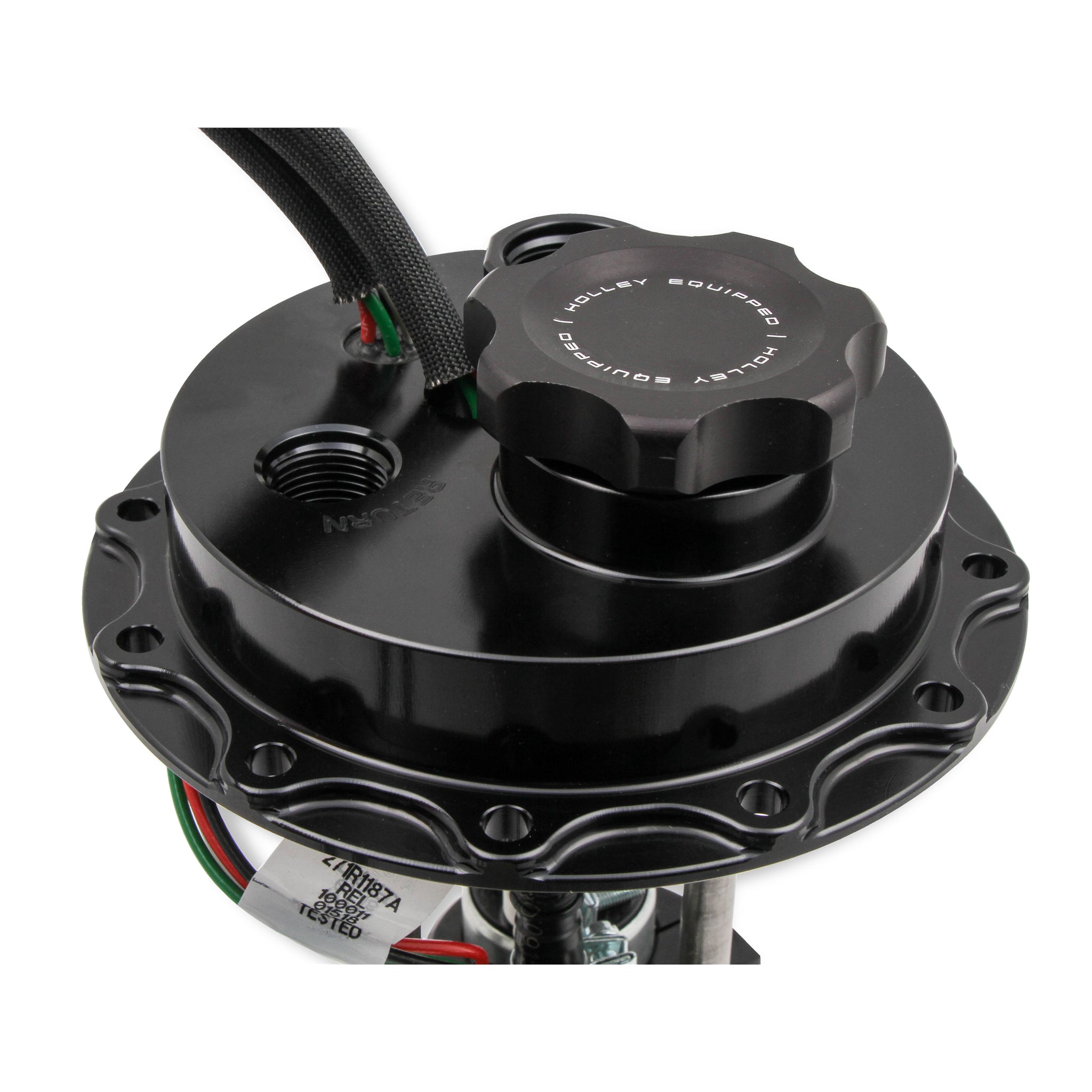

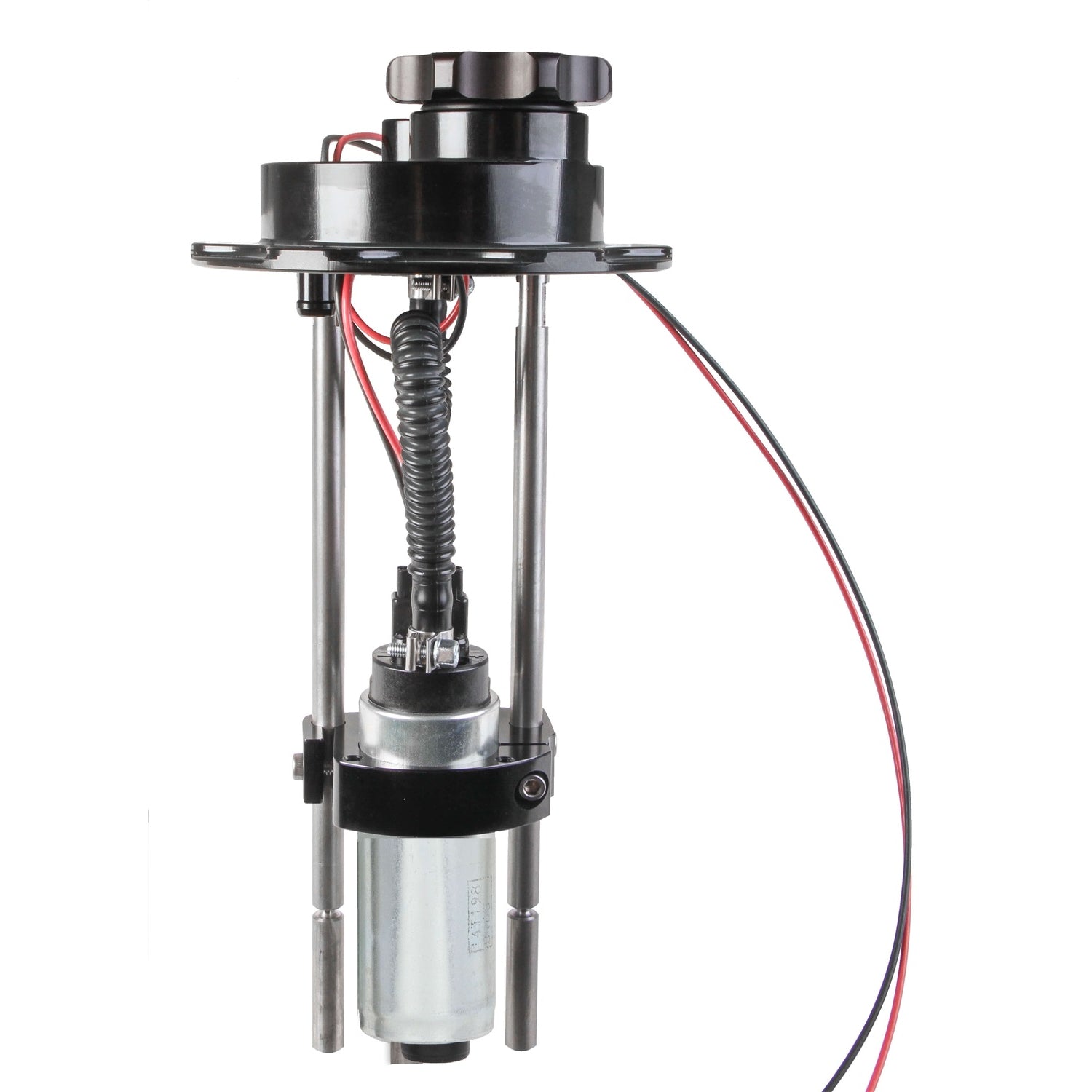

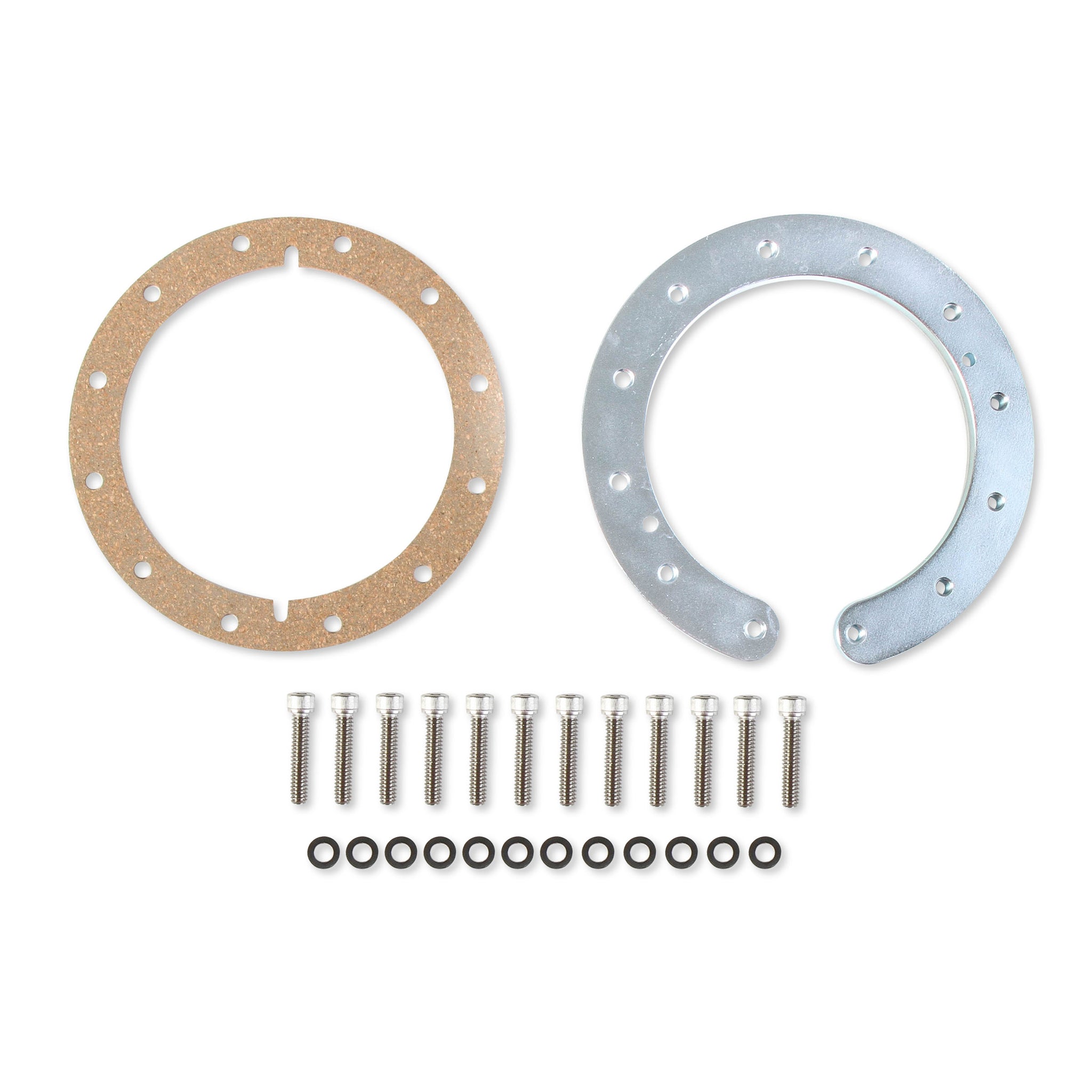

Holley Fuel Cell EFI Pump Modules with a VR Series Brushless Fuel Pump. These drop in modules come with one controller and harness to give you VR fuel pump power inside your fuel cell. While the name includes EFI, these modules can be used as an upgrade for carbureted systems as well with the proper regulator. The modules were designed to drop in as a direct replacement for your existing 12 bolt flange fuel cell cap assembly. The billet top flange includes an 8AN inlet port, a 10AN outlet port, and a fuel filler cap. The fuel pump depth is fully adjustable from 7.5 in. to 12 in. deep. The module kits include all the hardware to install into your existing fuel cell. All that you need to add is your fuel line.***Assembly fits common RJS, Jaz, Summit, Jegs, RCI, Speedmaster and Speedway fuel cells. Designed to work on high boosted race cars as well as your daily driven weekend endurance car, these pumps work with gasoline, methanol, and E-85* (Compatible for methanol and E85 for competitive drag race use only- when draining and flushing after each race event) and can maintain pressures of 130 PSI and up to 170 GPH flow**. Fueled by TI Automotive. The pumps include a 2 step controller for pump speed control. The pumps can be ran in one of two different speeds. A low speed control for low fuel consumption requirements or at full speed for high fuel consumption requirements. The VR1 includes one controller for precise control of the pump. Both the VR1 and VR2 pumps are proven for 18.5V compatibility. **At 13.8V* Overall pump dimensions: 9.5 in. Long; 4.75 in. Wide; 2.75 in. Tall

Specifications:

Description_ASC	Fill cap thread is 1 1/2"-12
Description_DEF	Fuel Pump Module Assembly
Description_EXT	Fuel Cell EFI Pump Module Assembly; w/Single VR Series Brushless Fuel Pump; 12 Bolt Flange; 170 GPH; 8AN O-Ring Inlet/10AN O-Ring Outlet; Street/Strip Carb Or EFI Apps;
Description_DES	Holley Fuel Cell EFI Pump Module Assembly 12 Bolt Flange with VR Series Brushless Fuel Pump

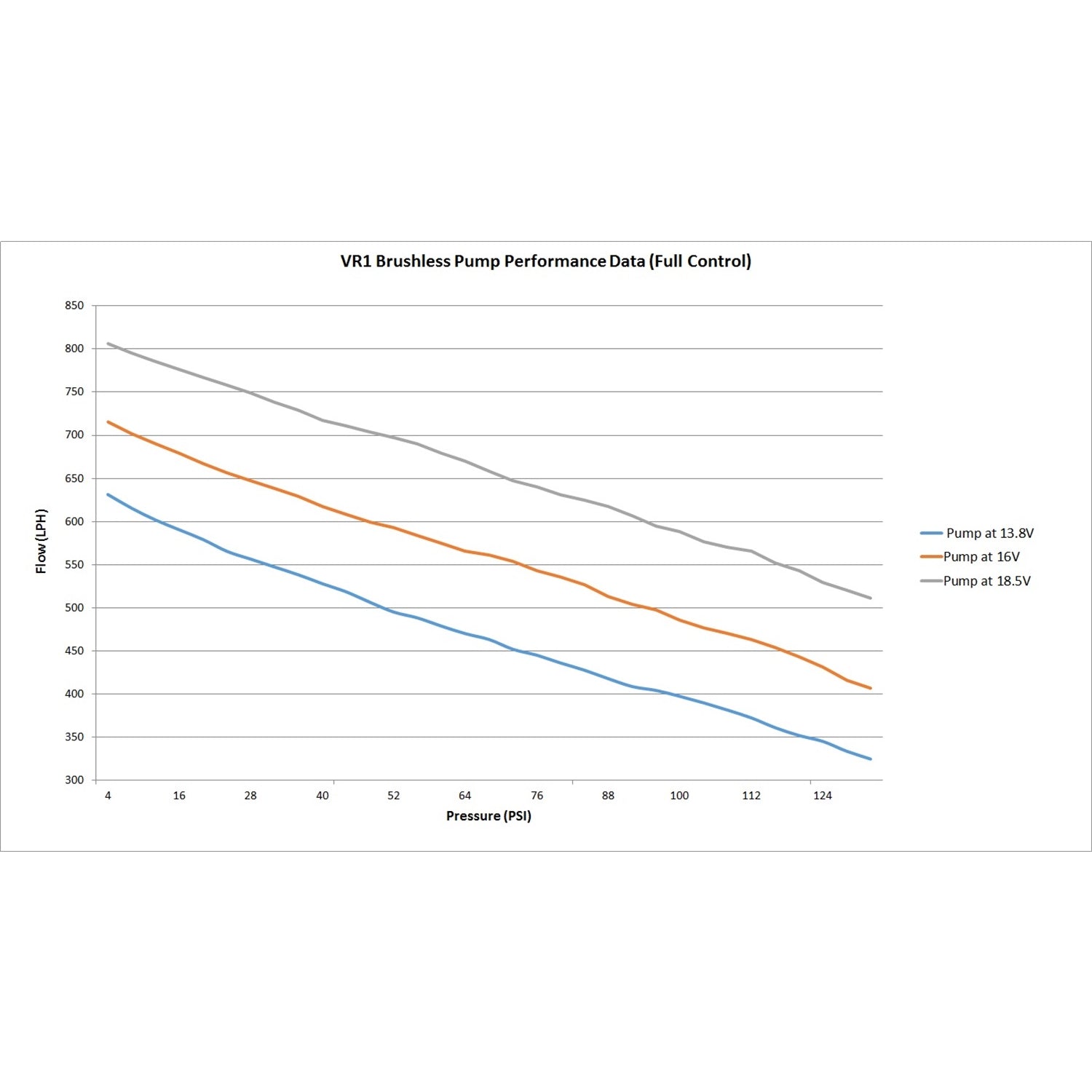

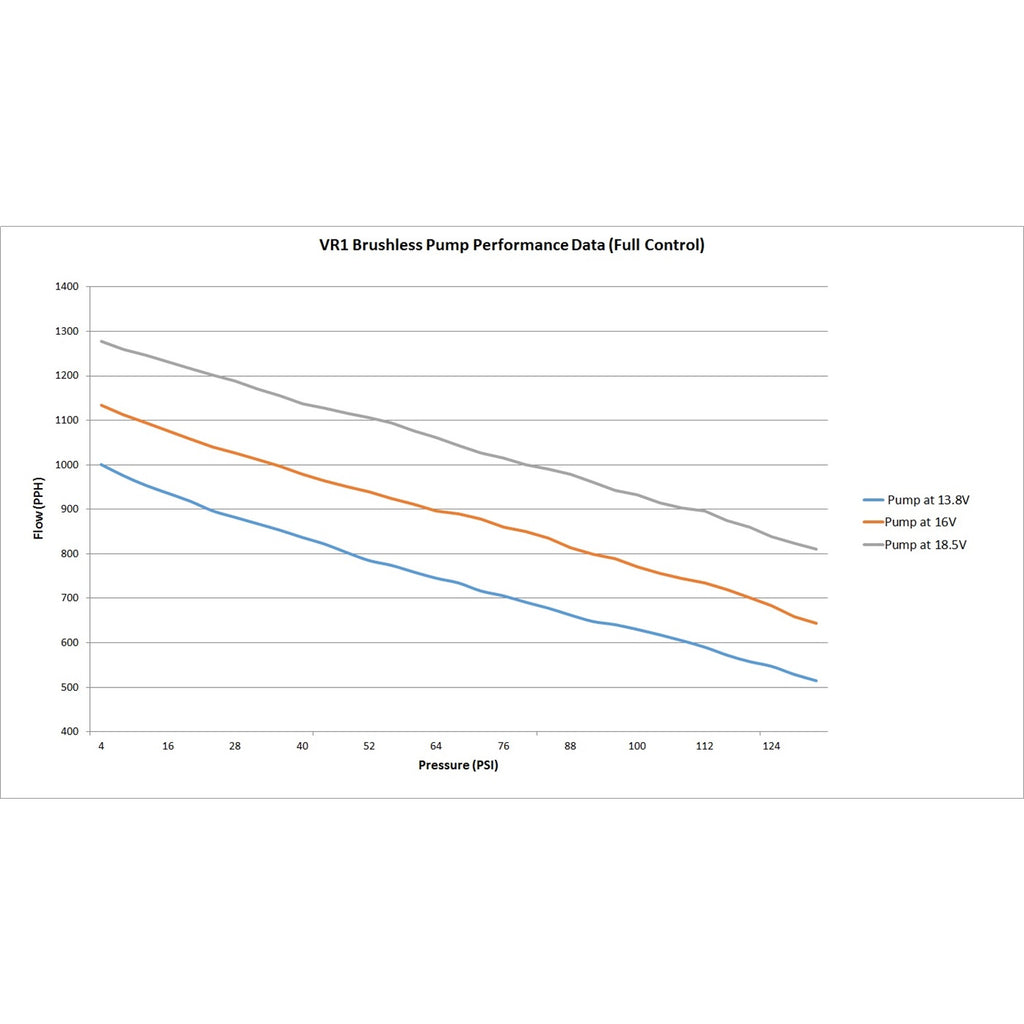

Description_FAB	Capable of 130 PSI while providing significant flow for forced induction applications where belt driven pumps are normally used.
Description_FAB	Unlike other pumps, the VR Series are built for continuous duty if needed.
Description_FAB	Billet aluminum construction for durability and good looks
Description_FAB	Designed to drop right into your existing 12 bolt flange fuel cell
Description_FAB	High flow and high pressure with low amperage draw
Description_FAB	Can be fully submerged in the fuel cell or chassis mounted
Description_FAB	Maximum amp draw of 38 AMPS for the VR1

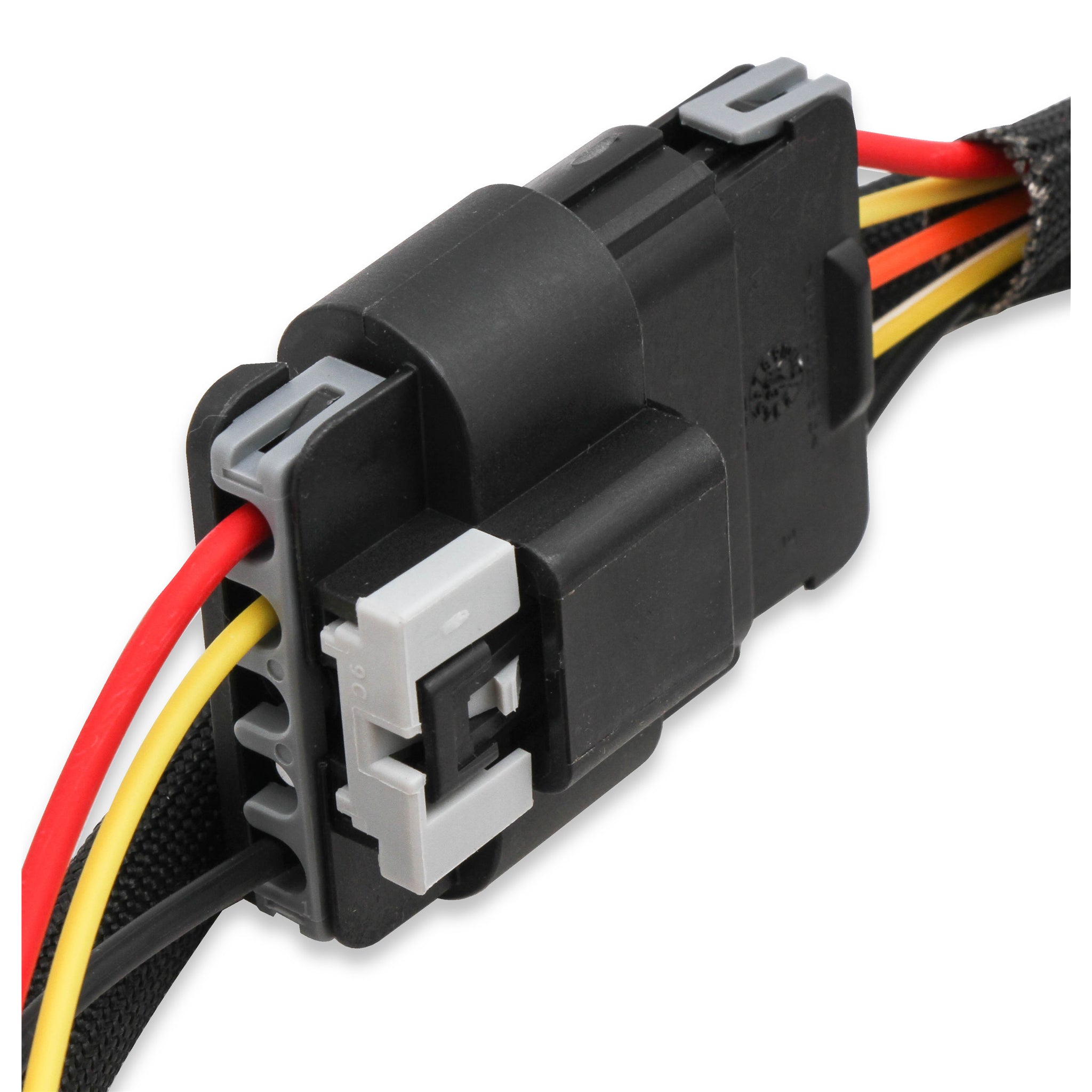

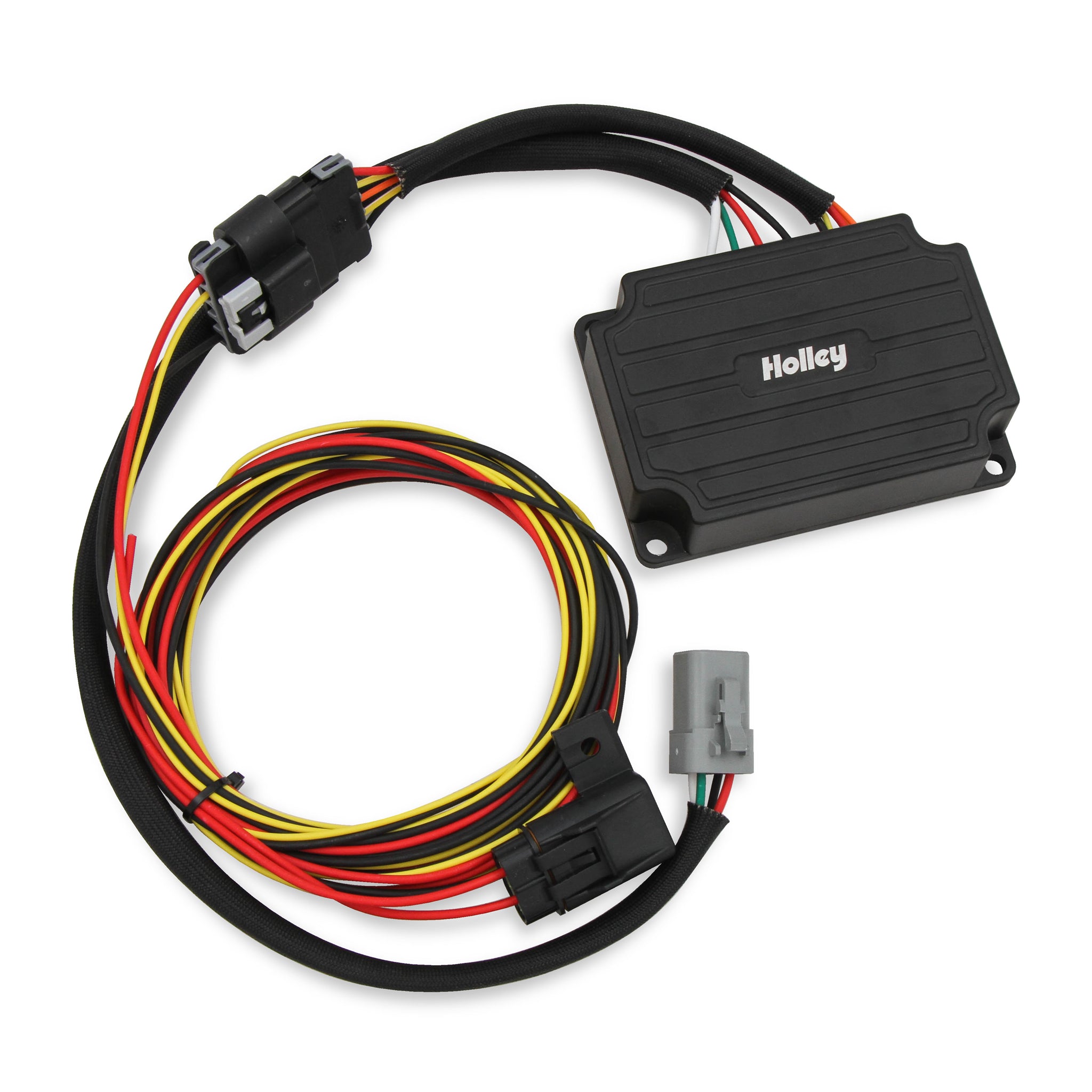

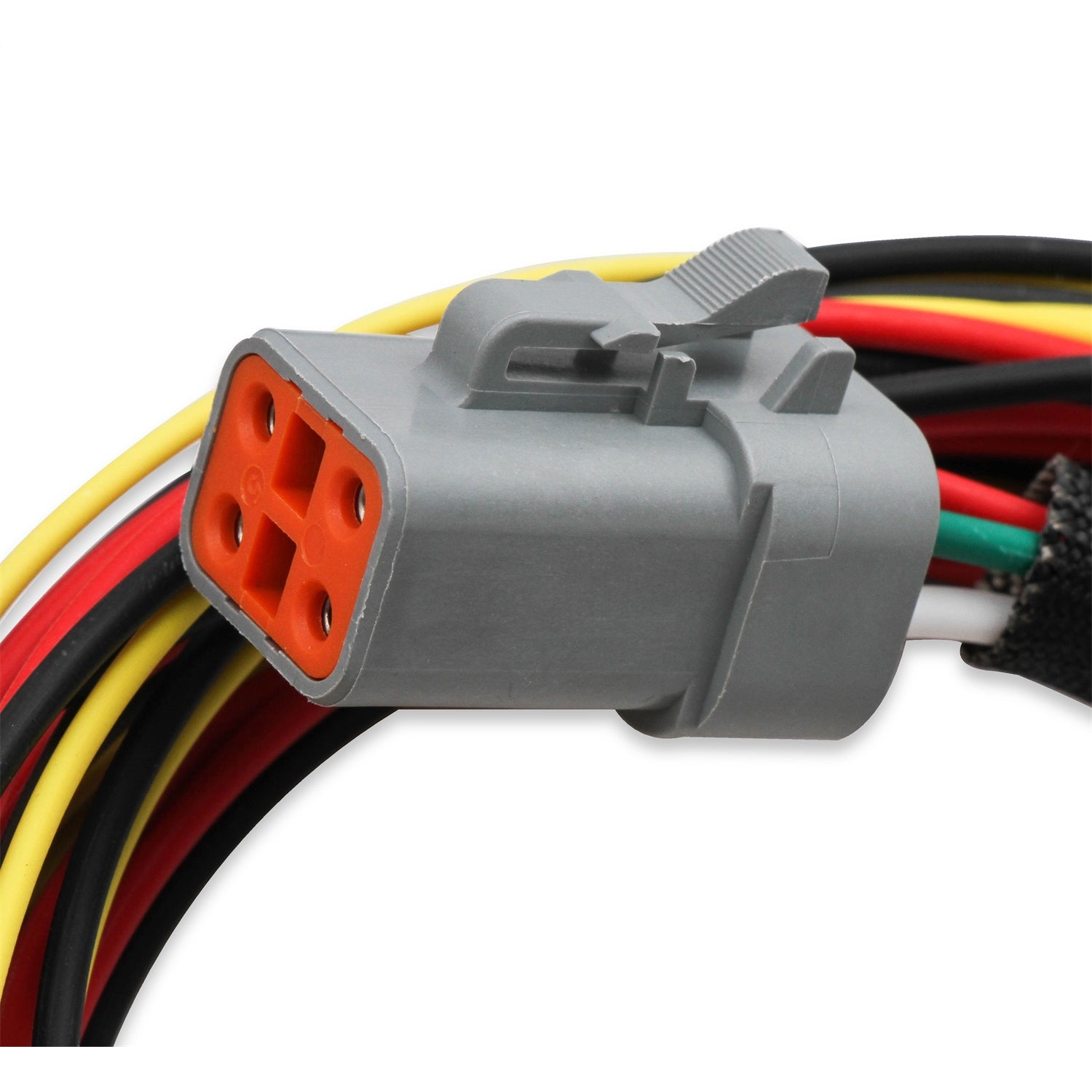

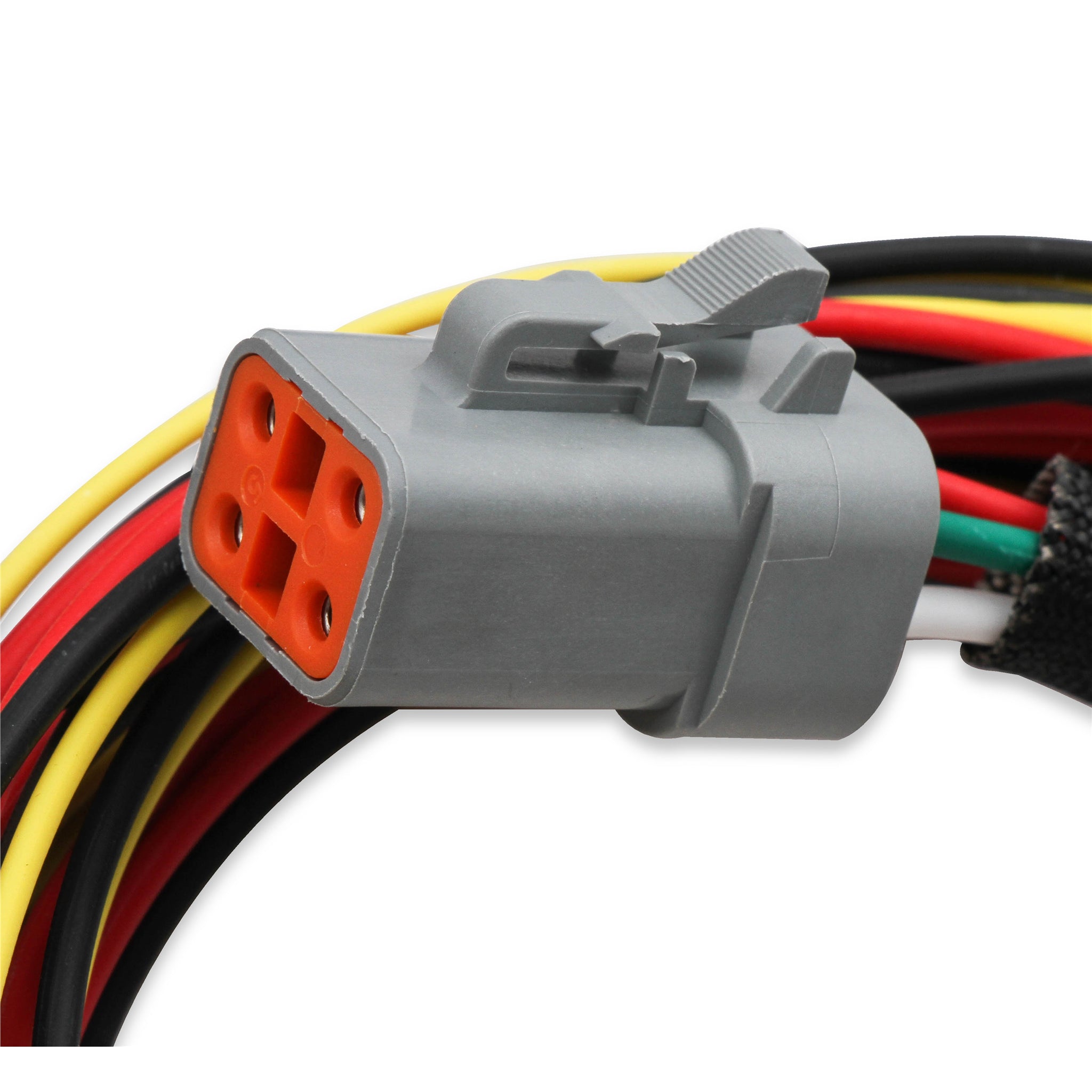

Description_FAB	Modules include a single VR Series Brushless fuel pump with two step controllers and harnesses.
Description_INV	12 BOLT FLANGE VR PUMP SINGLE
Description_MKT	Holley Fuel Cell EFI Pump Modules with a VR Series Brushless Fuel Pump. These drop in modules come with one controller and harness to give you VR fuel pump power inside your fuel cell. While the name includes EFI, these modules can be used as an upgrade for carbureted systems as well with the proper regulator. The modules were designed to drop in as a direct replacement for your existing 12 bolt flange fuel cell cap assembly. The billet top flange includes an 8AN inlet port, a 10AN outlet port, and a fuel filler cap. The fuel pump depth is fully adjustable from 7.5 in. to 12 in. deep. The module kits include all the hardware to install into your existing fuel cell. All that you need to add is your fuel line.**Assembly fits common RJS, Jaz, Summit, Jegs, RCI, Speedmaster and Speedway fuel cells. Designed to work on high boosted race cars as well as your daily driven weekend endurance car, these pumps work with gasoline, methanol, and E-85 (Compatible for methanol and E85 for competitive drag race use only- when draining and flushing after each race event) and can maintain pressures of 130 PSI and up to 170 GPH flow. Fueled by TI Automotive. The pumps include a 2 step controller for pump speed control. The pumps can be ran in one of two different speeds. A low speed control for low fuel consumption requirements or at full speed for high fuel consumption requirements. The VR1 includes one controller for precise control of the pump. Both the VR1 and VR2 pumps are proven for 18.5V compatibility. At 13.8V* Overall pump dimensions: 9.5 in. Long; 4.75 in. Wide; 2.75 in. Tall
Description_SHO	FuelPmpModAssy
Outlet Size	10 AN O-ring
Pump Body Color	Black
Warning	California Proposition 65
WARNING CA Proposition 65 Message	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Housing Color	Black
Free Flow GPH	170
Brand	Holley
Flange Style	12 Bolt
Inlet Size	8 AN O-Ring
Product Type	Brushless Fuel Pump
WARNING CA Proposition 65	Yes
Emission Code	5
Free Flow LPH	644
Fuel System	Carbureted, EFI
Fuel Type	E85, Gas, Gasoline, Methanol
Single Or Dual Pump	Single
Warranty	Limited 90 Day
Fully Open	644
Material	Aluminum
Body Color	Black
Flange Type	12 Bolt
Fuel System Type	Carbureted
Application	Universal
Length	9.0000
Width	9.0000
Height	22.0000
Weight	6.0000
