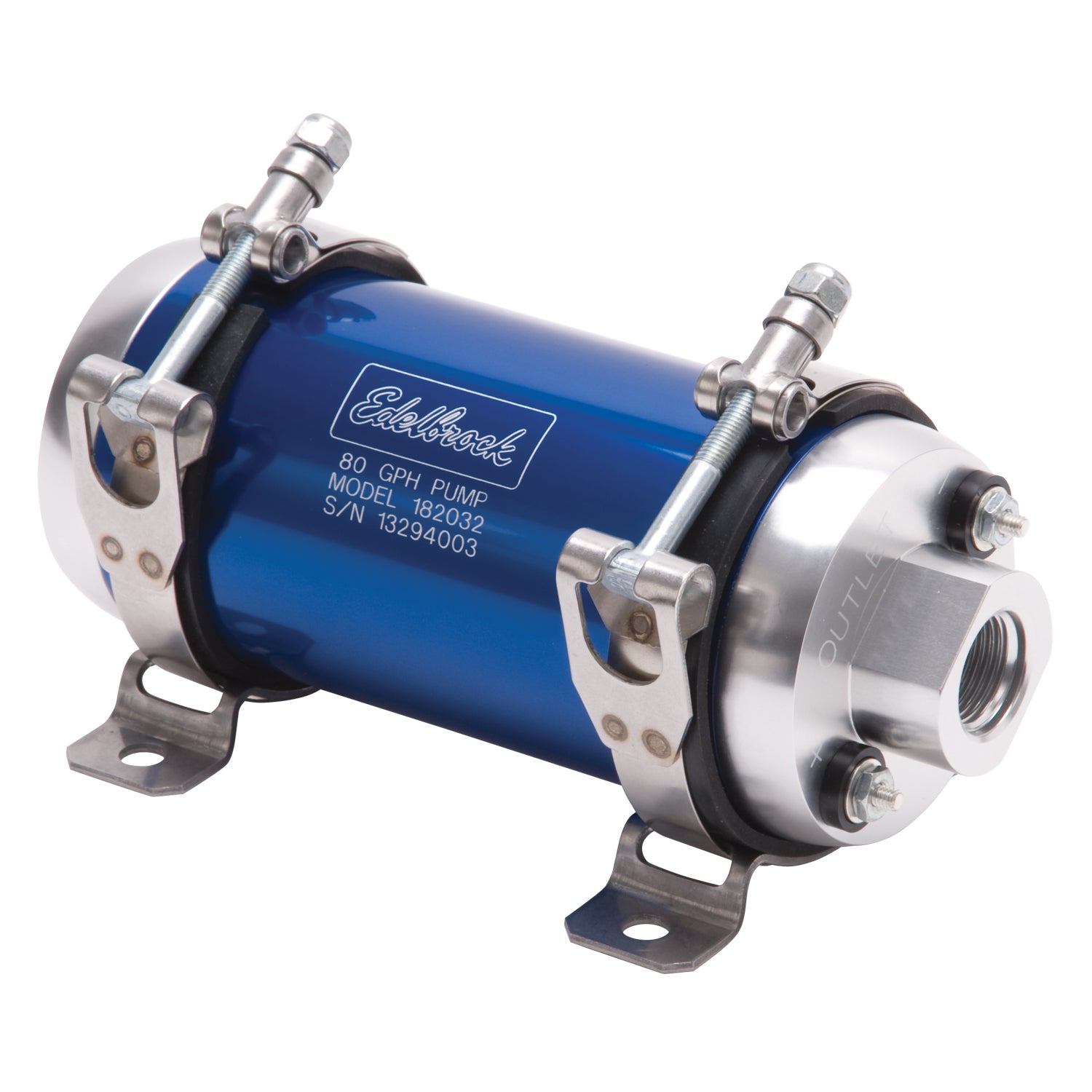

Edelbrock part #182032 is a 80GPH In-Line Electric fuel pump featuring a blue anodized aluminum housing and high-quality internals, resulting in both a strong and durable design. The in-line design keeps the pump motor and components cool even under harsh conditions. Compatible with all grades of gasoline and methanol type fuels only. Each pump is factory-tested and includes mounting brackets.
Specifications:
| Description_ABR |
ElecFuelPump |
| Description_DEF |
Electric Fuel Pump |
| Description_INV |
Edelbrock Electric Fuel Pump #182032 |
| Description_EXT |
Edelbrock part #182032 is a 80GPH In-Line Electric fuel pump featuring a blue anodized aluminum housing and high-quality internals, resulting in both a strong and durable design. |
| Description_MKT |
Edelbrock part #182032 is a 80GPH In-Line Electric fuel pump featuring a blue anodized aluminum housing and high-quality internals, resulting in both a strong and durable design. The in-line design keeps the pump motor and components cool even under harsh conditions. Compatible with all grades of gasoline and methanol type fuels only. Each pump is factory-tested and includes mounting brackets. |
| Description_TRA |
80GPH @ 45 psi |
| Description_TRA |
Inlet Port: -10 (SAE) |
| Description_TRA |
Outlet Port: -10 (SAE) |
| Description_TRA |
Pump must be gravity fed |
| Description_TRA |
Call for more information. |
| Description_LAB |
In-Line Blue Electric Fuel Pump - 80 GPH |
| Terminal Type |
Threaded |
| In Tank or External |
External |
| Regulator Included |
No |
| Voltage |
12 |
| Inlet Fitting Thread Size |
10 an |
| Pump Type |
Electric |
| Connector Gender |
Male |
| Terminal Gender |
Male |
| Terminal Quantity |
2 |
| Fuel Pump Inlet Type |
an |
| Outlet Quantity |
1 |
| Internal Or External |
External |
| Inlet Type |
an |
| Wire Quantity |
2 |
| Mounting Hardware Included |
Yes |
| Outlet Type |
an |
| Gasket Or Seal Included |
No |
| Wiring Harness Included |
No |
| Fuel Sending Unit Included |
No |
| Fuel Type |
Gas |
| Strainer Included |
No |
| Seal And Lock Ring Included |
No |
| Negative Ground |
Yes |
| Pump Design |
In-line Electric Fuel Pump |
| Maximum Pressure |
90.0 |
| Inlet Thread Diameter |
0.875 |
| Outlet Fitting Thread Size |
10 an |
| Outlet Thread Diameter |
0.875 |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Connector Shape |
Round |
| Mounting Bracket Included |
Yes |
| Universal Or Specific Fit |
Universal |
| Maximum Amperage Draw |
19 |
| Compatible Fuel Type |
Gas |
| Length |
5.0000 |
| Width |
7.0000 |
| Height |
9.0000 |
| Weight |
6.0000 |
