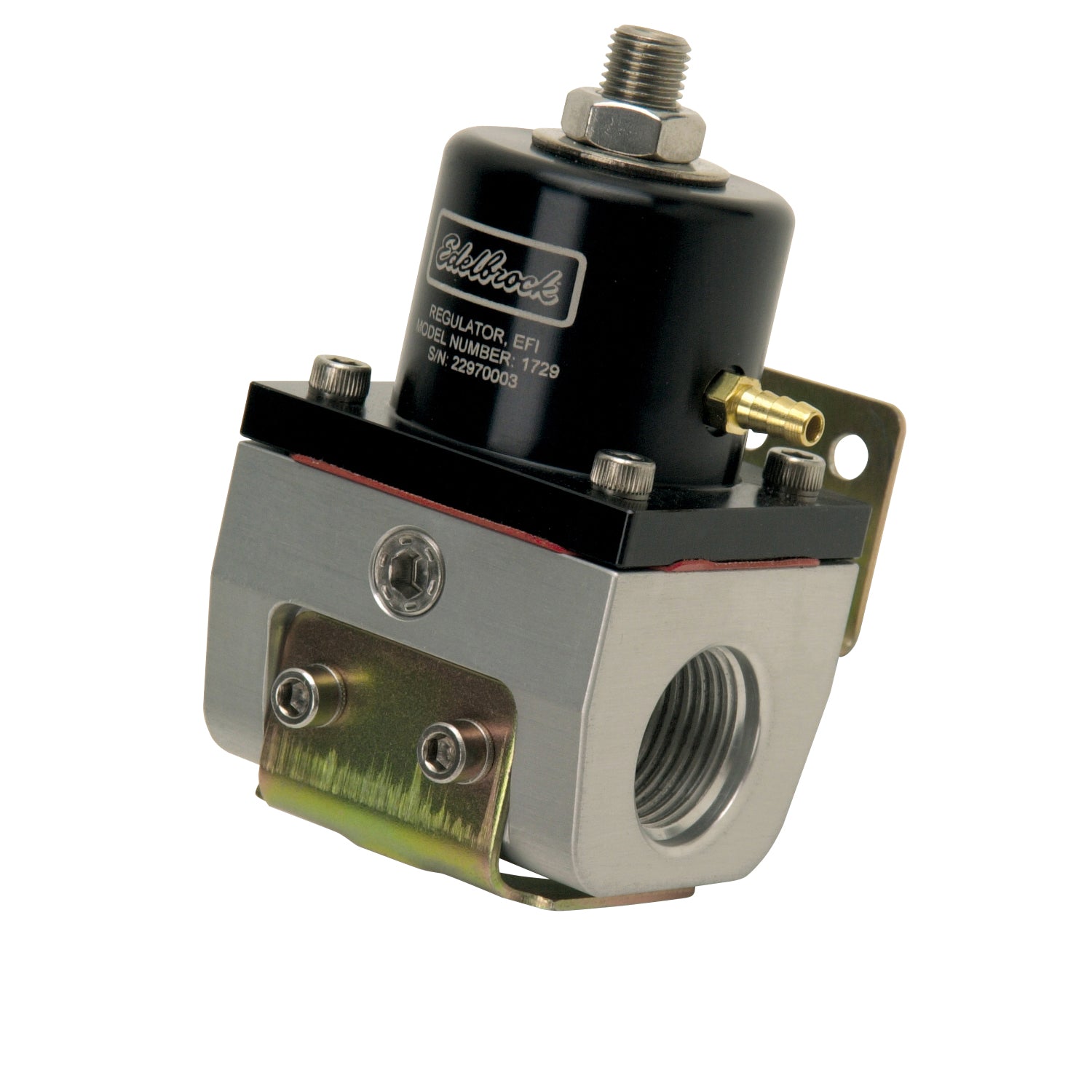

The Edelbrock 1729 fuel pressure regulator is machined from aircraft quality aluminum for those who demand the best. Edelbrock EFI fuel pressure regulators have an internal diaphragm made of fluorosilicone to ensure high temperature protection resulting in an extended life. They are compatible with all grades of gasoline, ethanol, methanol and E85 fuels. These regulators will hold fuel system pressure for at least 20 minutes after pump shutdown. Mounting bracket and hardware are included. Each regulator features a vacuum/boost compensating port for a supercharger, turbo or intake manifold vacuum connection. Regulator part #1729 has a black and clear finish with -10 inlet and outlet ports with -6 return.
Specifications:
| Description_ABR |
EFI |
| Description_DEF |
Fuel Injection Pressure Regulator |
| Description_EXT |
The Edelbrock 1729 fuel pressure regulator is machined from high quality aluminum. They are compatible with all grades of gasoline, ethanol, methanol and E85 fuels. Features a black and clear finish with -10 inlet and outlet ports with -6R. |
| Description_INV |
EFI Fuel Pressure Regulator |
| Description_MKT |
The Edelbrock 1729 fuel pressure regulator is machined from aircraft quality aluminum for those who demand the best. Edelbrock EFI fuel pressure regulators have an internal diaphragm made of fluorosilicone to ensure high temperature protection resulting in an extended life. They are compatible with all grades of gasoline, ethanol, methanol and E85 fuels. These regulators will hold fuel system pressure for at least 20 minutes after pump shutdown. Mounting bracket and hardware are included. Each regulator features a vacuum/boost compensating port for a supercharger, turbo or intake manifold vacuum connection. Regulator part #1729 has a black and clear finish with -10 inlet and outlet ports with -6 return. |
| Description_LAB |
Fuel Injection Pressure Regulator #1729 Return Style, 80 gph |
| Maximum Pressure |
35-90 |
| End 2 Attachment Type |
Threaded |
| End 1 Attachment Type |
Threaded |
| End 2 Connector Quantity |
1 |
| End 2 Size |
-10 an |
| Type |
Return Style |
| End 1 Diameter |
-10 an |
| End 1 Gender |
Female |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Fuel Type |
Gas, Ethanol, Methanol, E85 |
| Bypass Size |
-6 an |
| Flow Rate |
80 |
| End 1 Connector Quantity |
2 |
| End 2 Gender |
Female |
| Quantity |
Sold Individually |
| Length |
3.0000 |
| Width |
5.0000 |
| Height |
4.0000 |
| Weight |
1.0000 |
