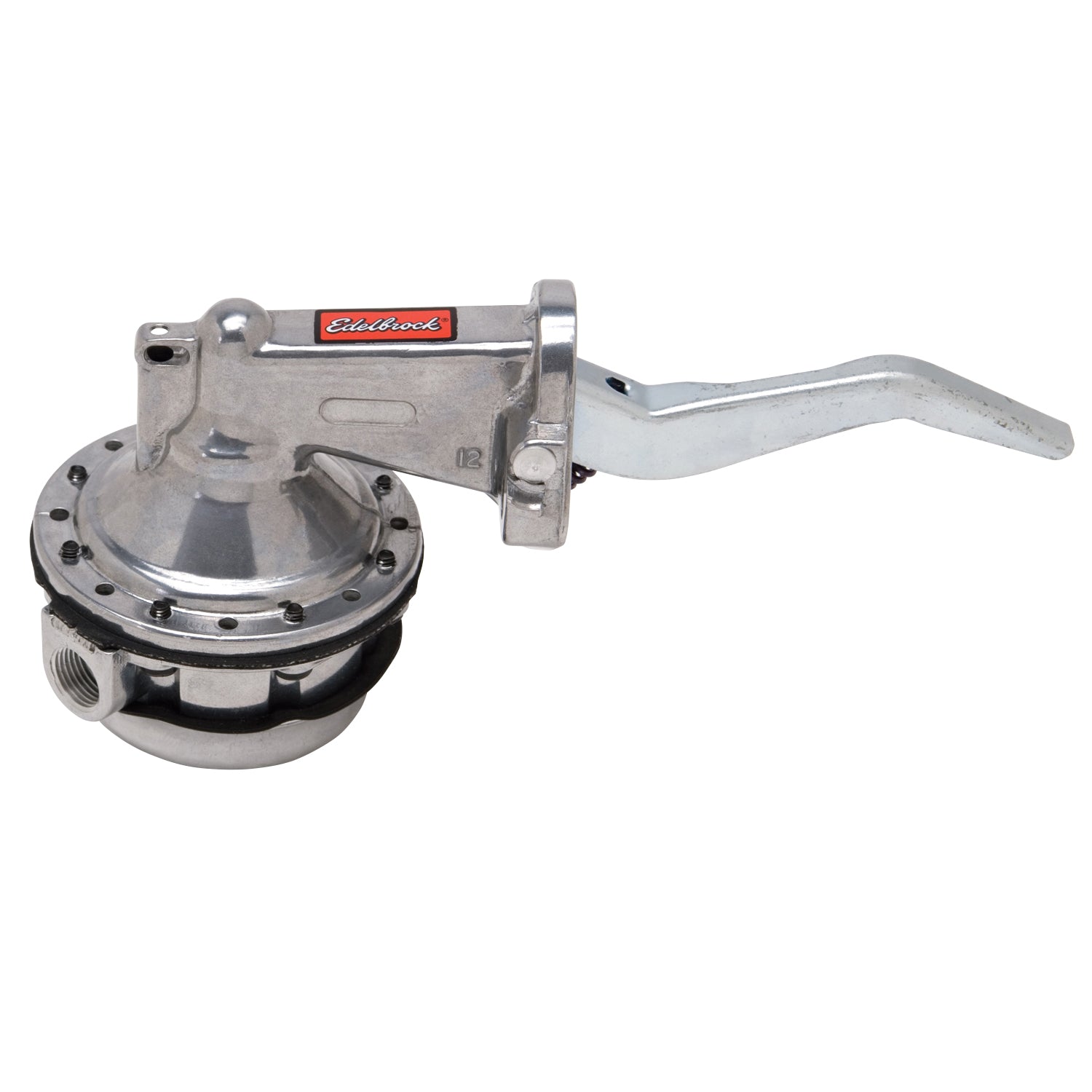

Edelbrock part #1720 Performer RPM Series fuel pump is for Small-Block Chrysler designed for use with all Edelbrock carburetors used in Performer or Performer RPM applications. These high-performance's street Fuel Pumps feature a high quality three stage polished finish. The unique valve design improves flow quantity and quality, and will support engines up to 600 hp. High-volume, 3/8" NPT inlet and outlet surpasses the capacity of conventional models. Produces 6 psi and does not require a regulator. Use with gasoline only. Clockable lower housing can be rotated in 60 Deg Increments for best inlet/outlet alignment.
Specifications:
| Description_ABR |
MECH FU PUMP |
| Description_ASM |
Chrysler:Small-Block LA-Series:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L) |
| Description_DEF |
Mechanical Fuel Pump |
| Description_MKT |
Edelbrock part #1720 Performer RPM Series fuel pump is for Small-Block Chrysler designed for use with all Edelbrock carburetors used in Performer or Performer RPM applications. These high-performance's street Fuel Pumps feature a high quality three stage polished finish. The unique valve design improves flow quantity and quality, and will support engines up to 600 hp. High-volume, 3/8" NPT inlet and outlet surpasses the capacity of conventional models. Produces 6 psi and does not require a regulator. Use with gasoline only. Clockable lower housing can be rotated in 60 Deg Increments for best inlet/outlet alignment. |
| Description_LAB |
Edelbrock Performer RPM Series fuel pump is for Small-Block Chrysler |
| Description_INV |
Performer RPM Mechanical Fuel Pump SBChr |
| Description_EXT |
Edelbrock part #1720 Performer RPM Series fuel pump is for Small-Block Chrysler designed for use with all Edelbrock carburetors used in Performer or Performer RPM applications |
| Description_TRA |
Do not over tighten Inlet/Outlet fittings, overtightening fittings may damage the fuel pump housing. |
| Description_TRA |
Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Outlet Quantity |
1 |
| Inlet Fitting Thread Size |
3/8" NPT |
| Pump Type |
Mechanical |
| Housing Material |
Aluminum |
| Inlet Quantity |
1 |
| Mounting Hardware Included |
Yes |
| Inlet Thread Diameter |
0.675 |
| Maximum Pressure |
6.0 |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Fuel Type |
Gas |
| Connection Type |
Female |
| Outlet Thread Diameter |
0.675 |
| Outlet Fitting Thread Size |
3/8" NPT |
| Outlet Type |
Female |
| Gasket Or Seal Included |
Yes |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
10.0000 |
| Weight |
2.0000 |
