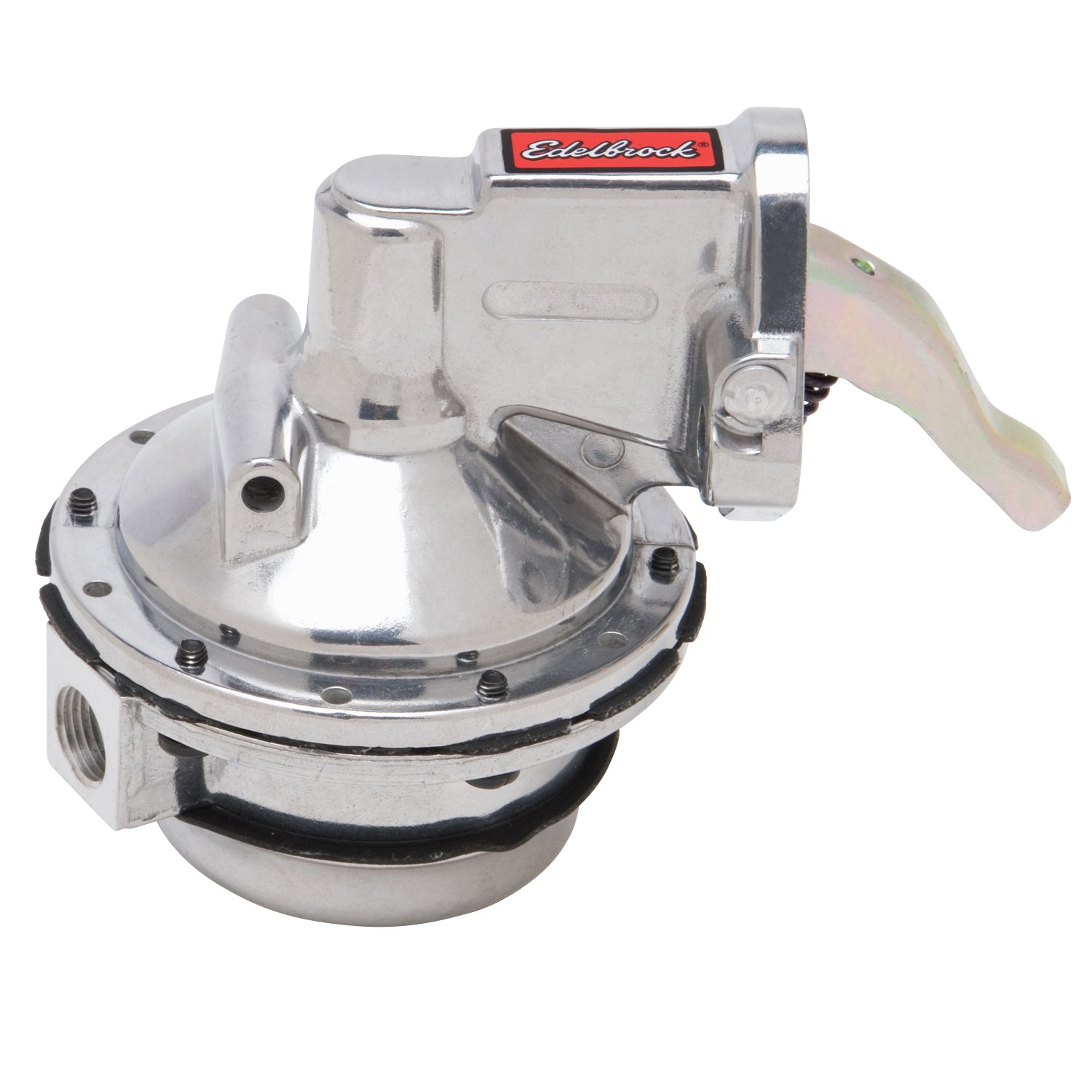

Edelbrock part #1712 Victor Series fuel pump is for Big-Block Chevrolet. The Edelbrock Victor Series fuel pump is a must for drag racing, circle track racing, street machines or any application that demands a high-volume fuel delivery, these fuel pumps feature a high quality three stage polished finish. High-volume 3/8" NPT inlet and outlet orifices surpass the capacity of conventional models. Produces 10 psi and must be used with an external fuel pressure regulator such as our Fuel Pressure Regulator #8190 or #1727. For gasoline only. Clockable lower housing can be rotated in 60 Deg Increments for best inlet/outlet alignment.
Specifications:
| Description_ABR |
Fuel Pum SBC |
| Description_ASM |
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF |
Mechanical Fuel Pump |
| Description_EXT |
Edelbrock part #1712 Victor Series fuel pump is for Big-Block Chevrolet. The Edelbrock Victor Series fuel pump is a must for drag racing, circle track racing, street machines |
| Description_LAB |
Edelbrock Victor Series fuel pump is for Big-Block Chevrolet |
| Description_MKT |
Edelbrock part #1712 Victor Series fuel pump is for Big-Block Chevrolet. The Edelbrock Victor Series fuel pump is a must for drag racing, circle track racing, street machines or any application that demands a high-volume fuel delivery, these fuel pumps feature a high quality three stage polished finish. High-volume 3/8" NPT inlet and outlet orifices surpass the capacity of conventional models. Produces 10 psi and must be used with an external fuel pressure regulator such as our Fuel Pressure Regulator #8190 or #1727. For gasoline only. Clockable lower housing can be rotated in 60 Deg Increments for best inlet/outlet alignment. |
| Description_INV |
Victor Series Mechanical Fuel Pump BBC |
| Description_TRA |
Do not over tighten Inlet/Outlet fittings, overtightening fittings may damage the fuel pump housing. |
| Description_TRA |
Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Connection Type |
Female |
| Housing Material |
Aluminum |
| Outlet Type |
Female |
| Maximum Pressure |
10.0 |
| Fuel Type |
Gas |
| Pump Type |
Mechanical |
| Inlet Quantity |
1 |
| Outlet Fitting Thread Size |
3/8" NPT |
| Inlet Fitting Thread Size |
3/8" NPT |
| Inlet Thread Diameter |
0.675 |
| Mounting Hardware Included |
Yes |
| Outlet Quantity |
1 |
| Gasket Or Seal Included |
Yes |
| Outlet Thread Diameter |
0.675 |
| Length |
5.0000 |
| Width |
4.0000 |
| Height |
10.0000 |
| Weight |
2.0000 |
