Modern day high performance vehicles require a plumbing system designed to withstand today's fuids, harsh environments, brutal vibration, flow requirements & extreme pressures. UltraPro from Earl's was engineered as a system to exceed the rigorous demands of even the most extreme forms of racing. Don't settle for good enough. Go UltraPro!
Specifications:
| Description_ASC |
Note: All UltraPro Hose Ends must be crimped using the Earl's D105M1101ERL Crimping Machine and D10034BERL Crimp Die. All UltraPro hose assemblies must be pressure tested prior to use. |
| Description_DES |

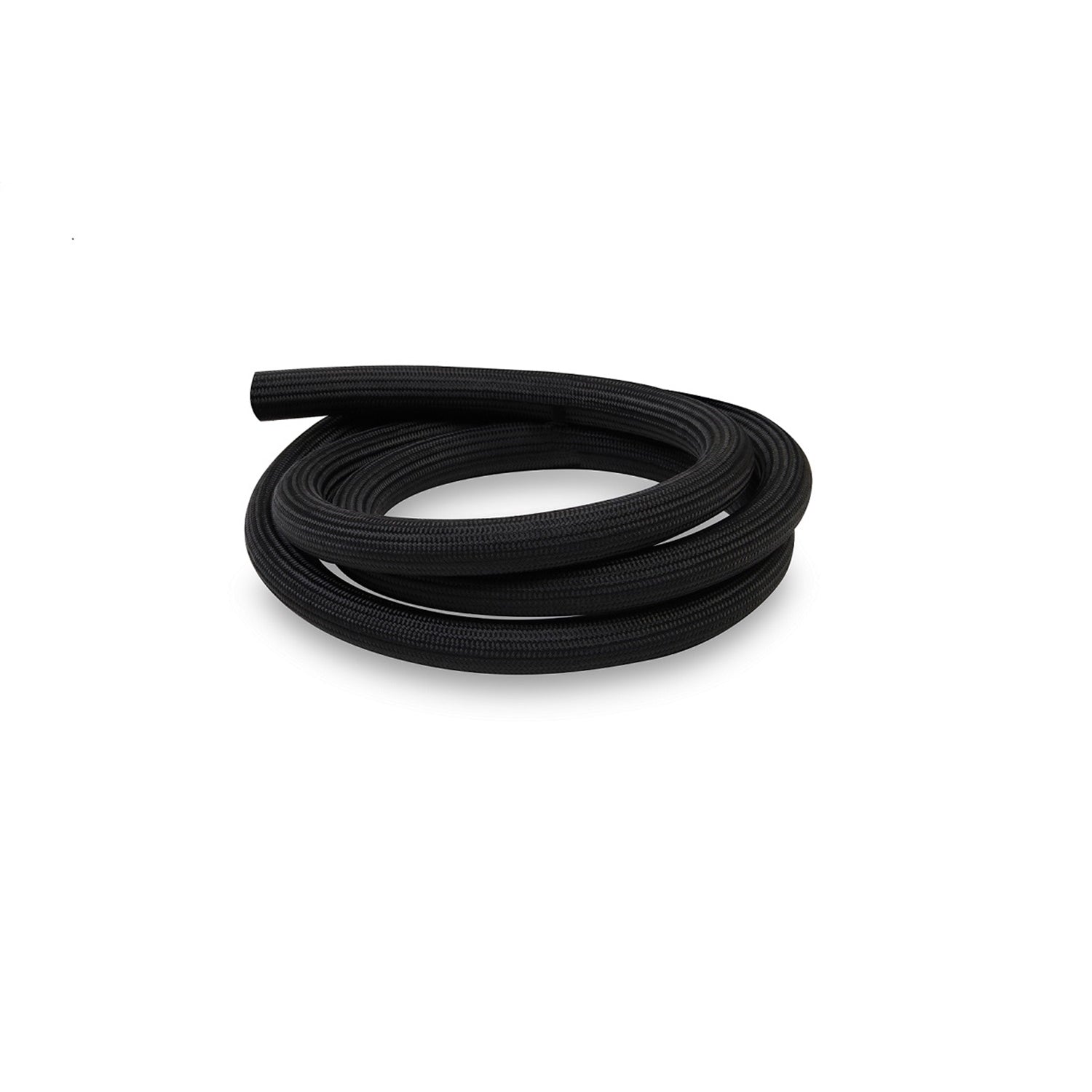

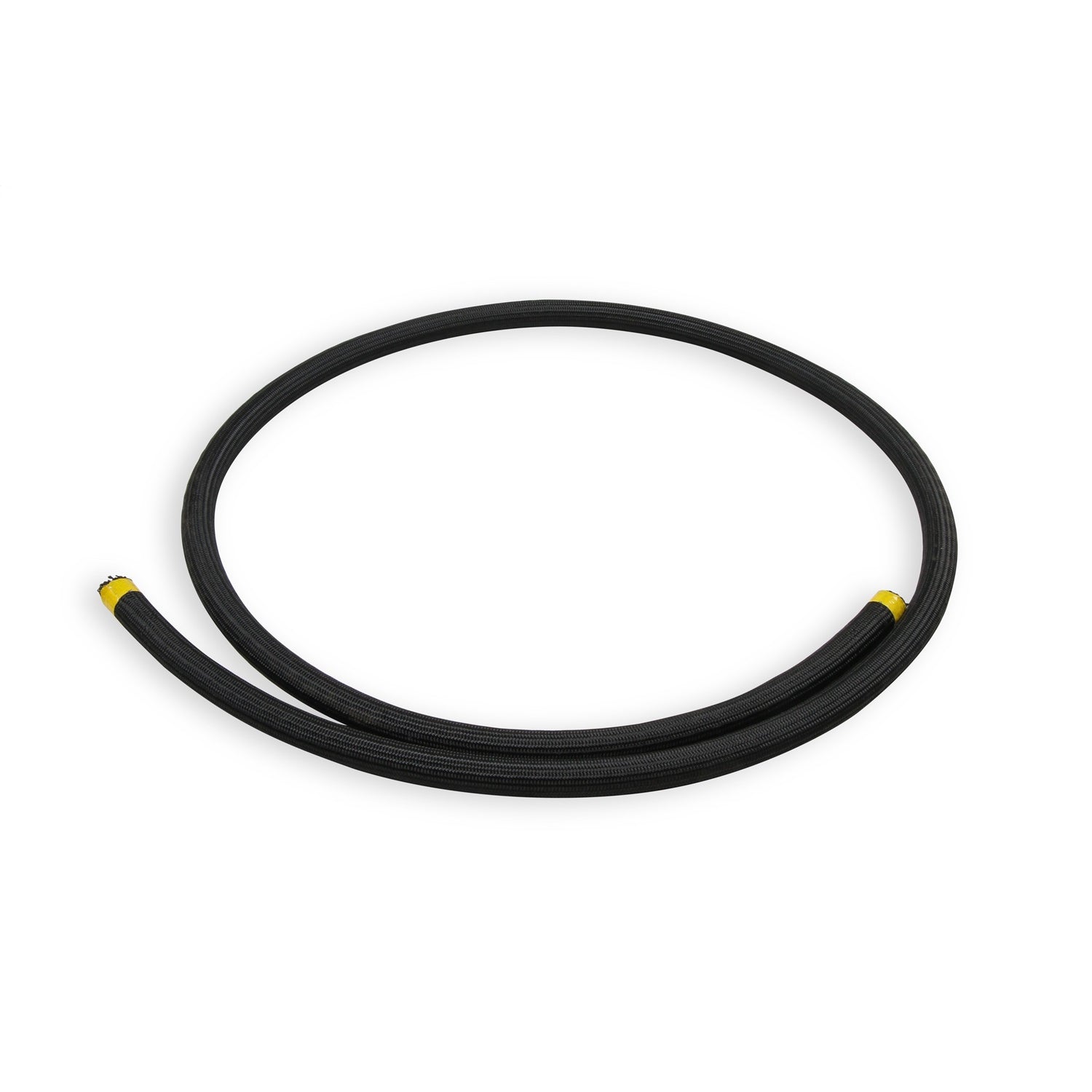

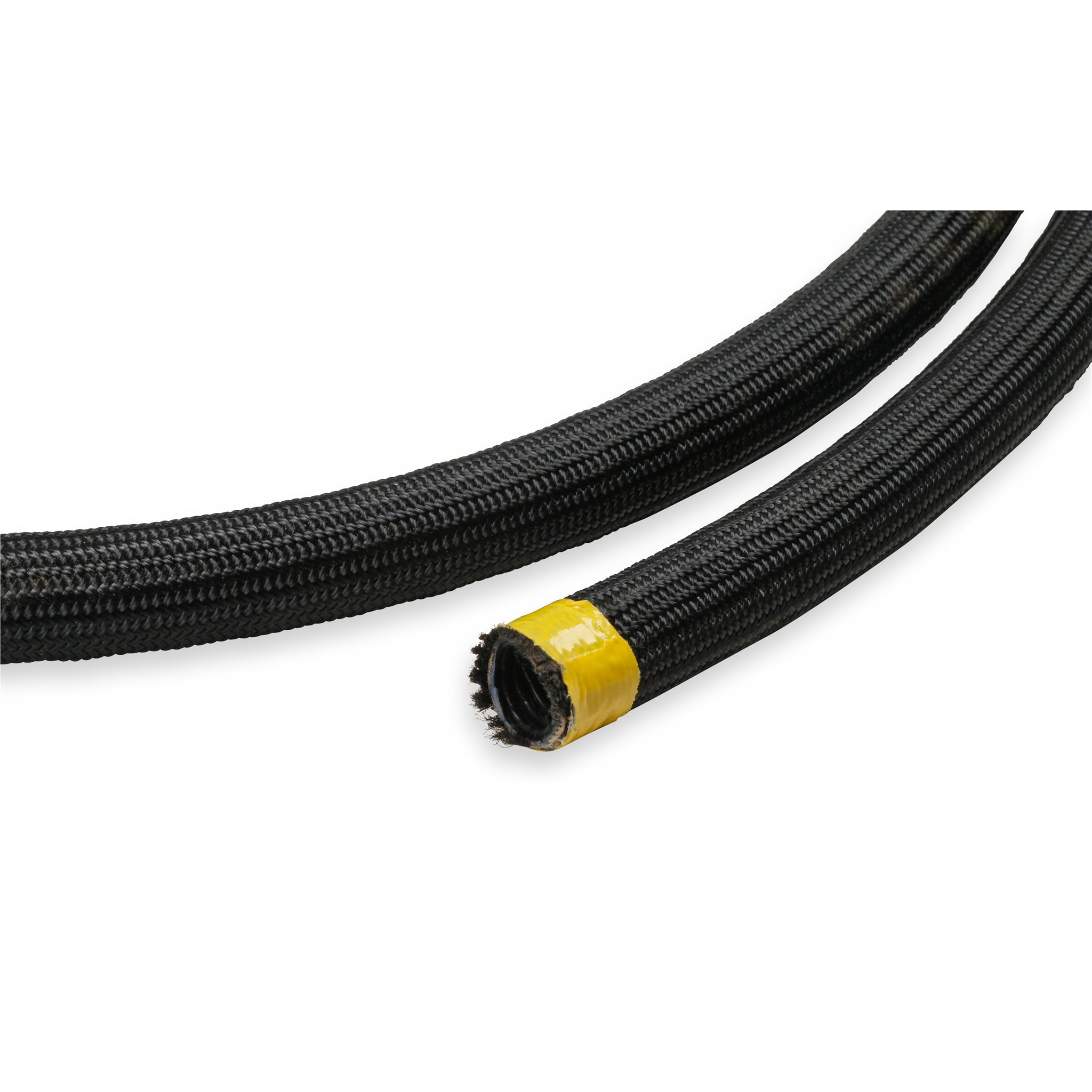

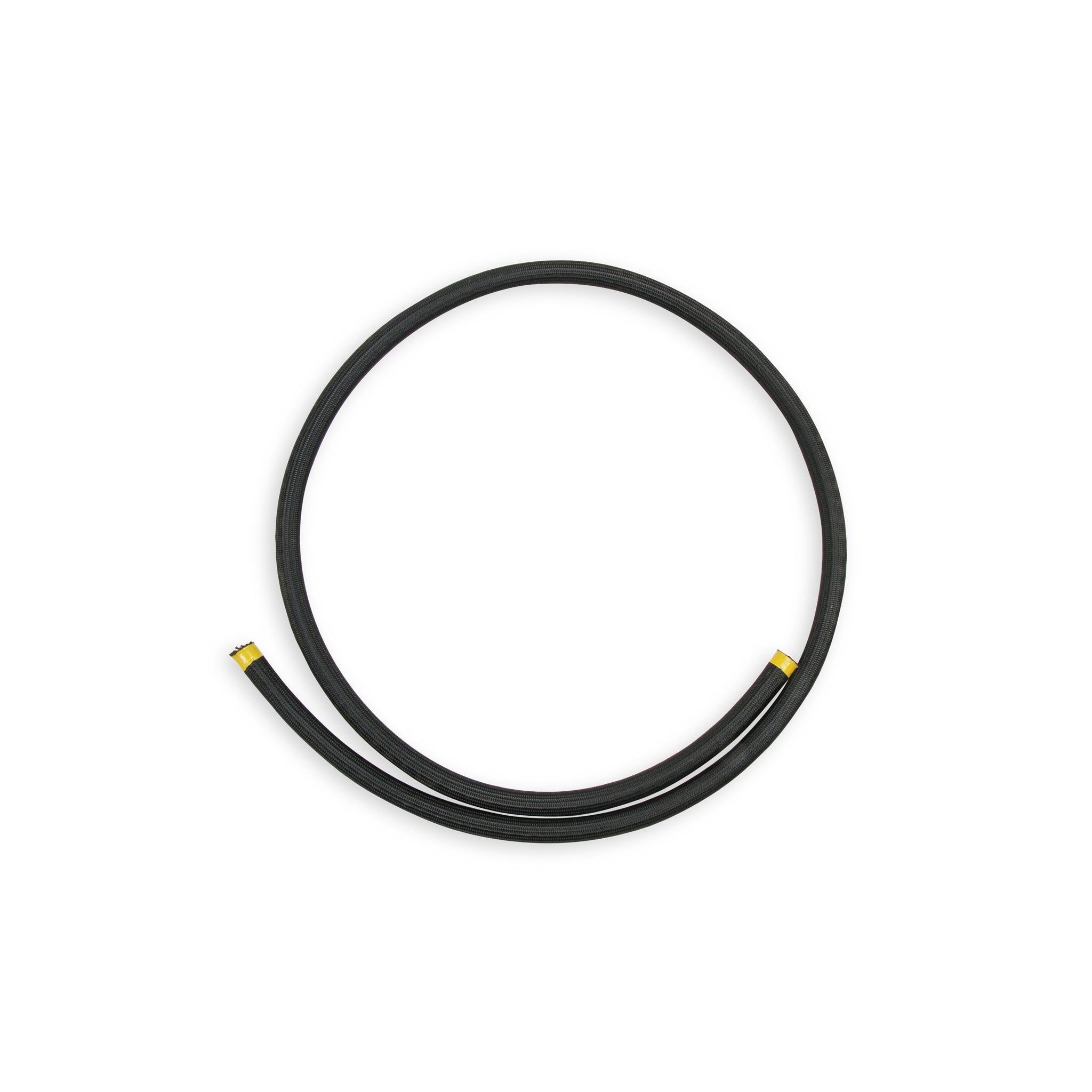

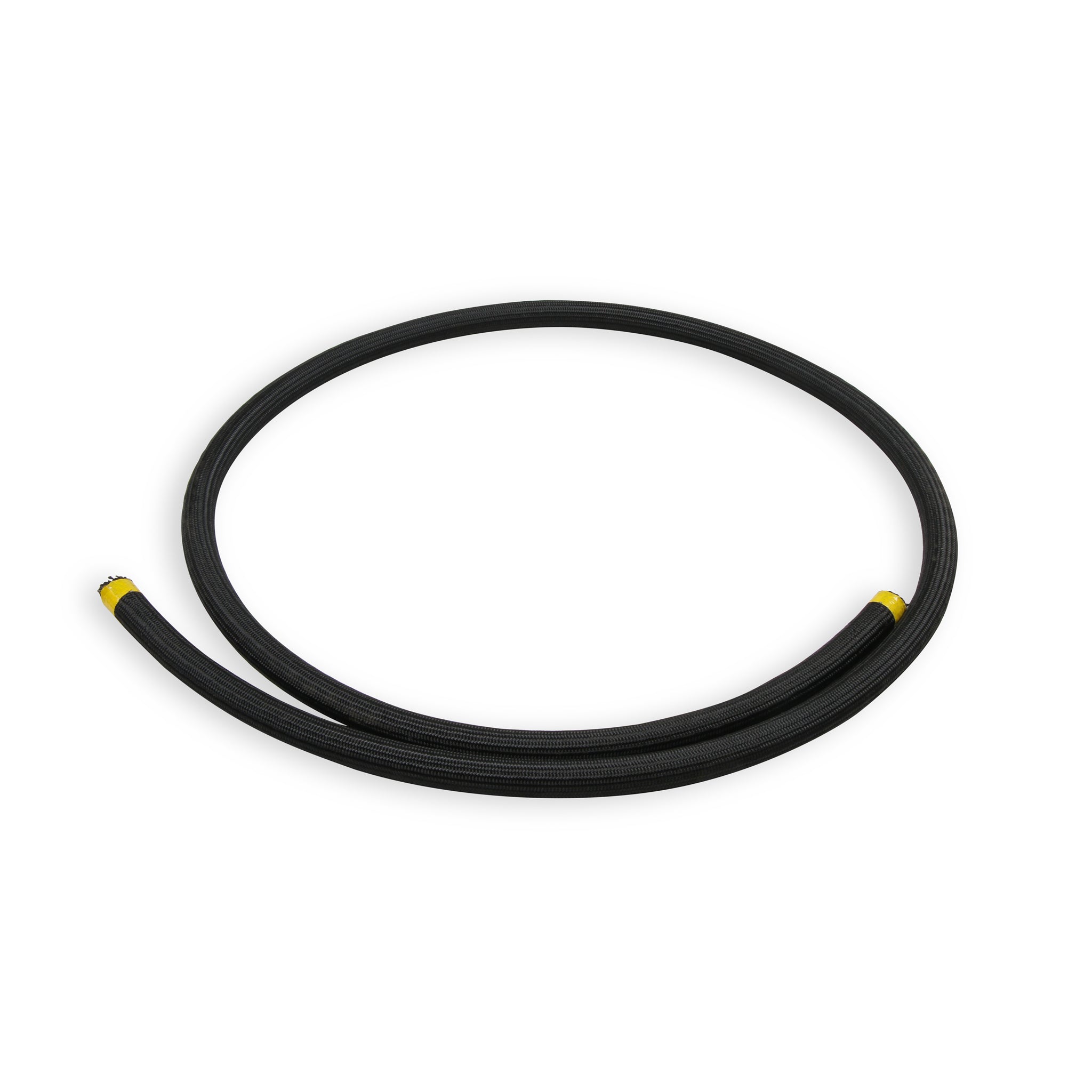

Earl's UltraPro Series Hose - Size 20 - 10 Ft |
| Description_DEF |
Fuel Hose |
| Description_INV |
LTS 10 FT -20 ULTRAPRO POLYESTER BRAIDED |
| Description_EXT |
UltraPro Polyester Braid Hose; Hose Size: -20AN; Hose I.D.: 1.155 in.; Hose O.D.: 1.441 in.; Max PSI: 150; Max Vacuum: 10 in. HG; Bulk; Length: 10 ft.; |
| Description_FAB |
PTFE inner liner impervious to all known fuels, oils and coolants used in automotive applications |
| Description_FAB |
Designed to withstand harsh environments, brutal vibrations, high flow requirements and extreme pressures |
| Description_FAB |
Double-helix ribbed inner hose liner offers extreme flexibility and full flow making tough plumbing jobs a snap with less hard connections! |
| Description_FAB |
Liner is reinforced with an outside glass-fiber wrap for additional strength and integrity! |
| Description_FAB |
PTFE inner liner is carbon infused for static dissipation |
| Description_FAB |
PTFE inner liner has ultra low coefficient of friction to promote maximum flow |
| Description_FAB |
Assembled with an olive that threads onto the double-helix ribbed inner liner of the hose for positive engagement and retention of the hose-ends |
| Description_FAB |
Available in popular -6, -8, -10, -12, -16, and -20 sizes in both woven polyester braid and stainless steel braid |
| Description_FAB |
UltraPro Polyester Braid hose is up to 67% lighter than traditional rubber hose with stainless steel braid |
| Description_FAB |
UltraPro Stainless Steel Braid is up to 37% lighter than traditional rubber hose with stainless steel braid |
| Description_MKT |
Modern day high performance vehicles require a plumbing system designed to withstand today's fuids, harsh environments, brutal vibration, flow requirements & extreme pressures. UltraPro from Earl's was engineered as a system to exceed the rigorous demands of even the most extreme forms of racing. Don't settle for good enough. Go UltraPro! |
| Description_SHO |
Hose |
| Final Crimp O.D. Range |
1.513 in. - 1.517 in. |
| Product Length |
10 ft. |
| Submersible in Fuel |
Yes |
| Size |
-20AN |
| Compatible Hose End |
UltraPro |
| Hose Outer Material |
Black Monofilament |
| Crimping Die |
34MM - D10034BERL |
| Maximum Working PSI |
150 |
| Minimum Bend Radius |
4.500 in. |
| Vacuum |
0-10 in. Hg |
| Color |
Black |
| Fluid Type |
Automatic Transmission Fluid |
| Hose Length |
10 ft. |
| Hose Size |
20AN |
| Inside Diameter |
1.155 in. |
| Material |
Braided Stainless Steel |
| Outside Diameter |
1.441 in. |
| Temperature |
-67-257 degrees F |
| WARNING CA Proposition 65 |
Yes |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Length |
7.0000 |
| Width |
15.0000 |
| Height |
16.0000 |
| Weight |
4.0000 |
