Modern day high performance vehicles require a plumbing system designed to withstand today's fuids, harsh environments, brutal vibration, flow requirements & extreme pressures. UltraPro from Earl's was engineered as a system to exceed the rigorous demands of even the most extreme forms of racing. Don't settle for good enough. Go UltraPro!
Specifications:
| Description_ASC |
Note: All UltraPro Hose Ends must be crimped using the Earl's D105M1101ERL Crimping Machine and D10029BERL Crimp Die. All UltraPro hose assemblies must be pressure tested prior to use. |
| Description_DEF |
Fuel Hose |
| Description_DES |

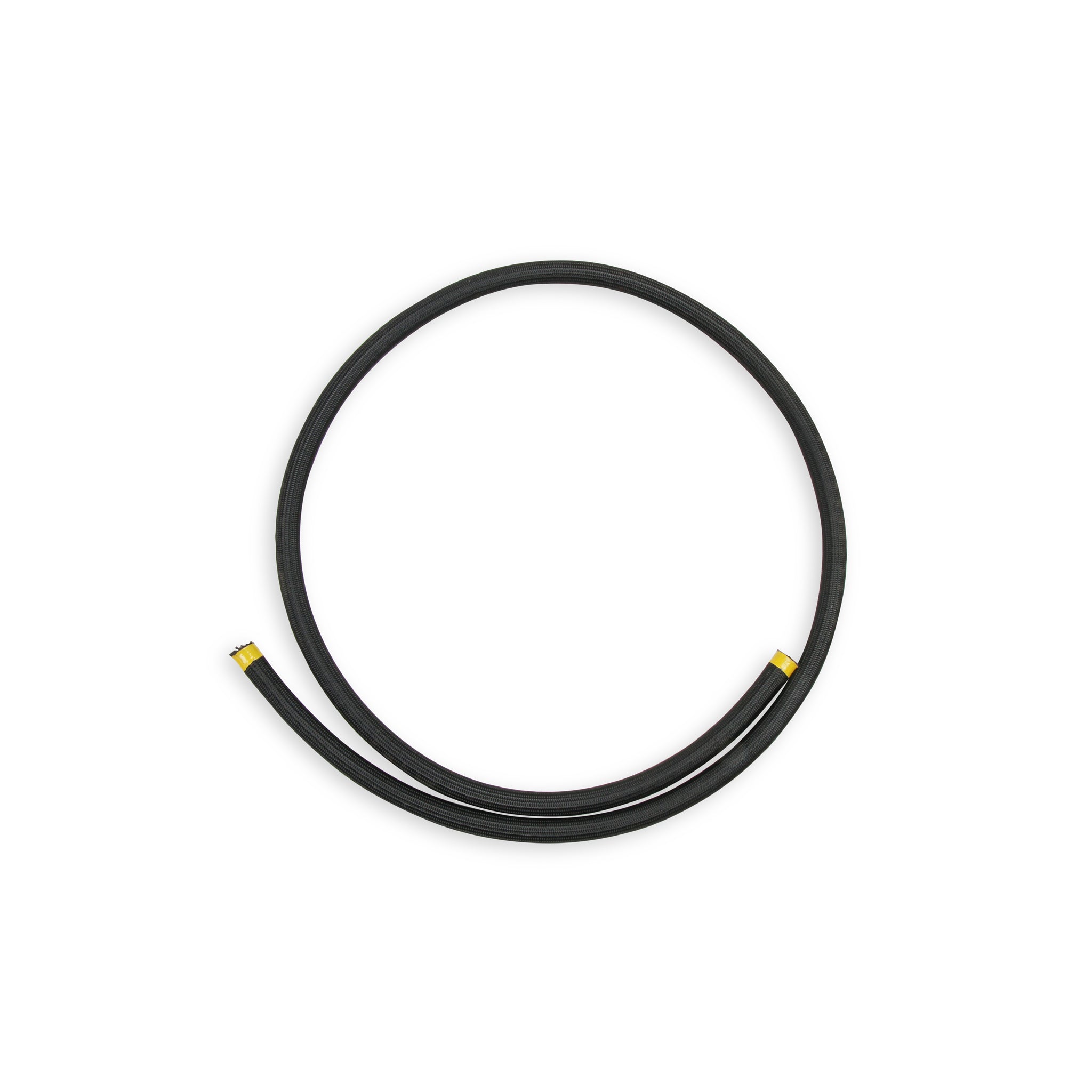

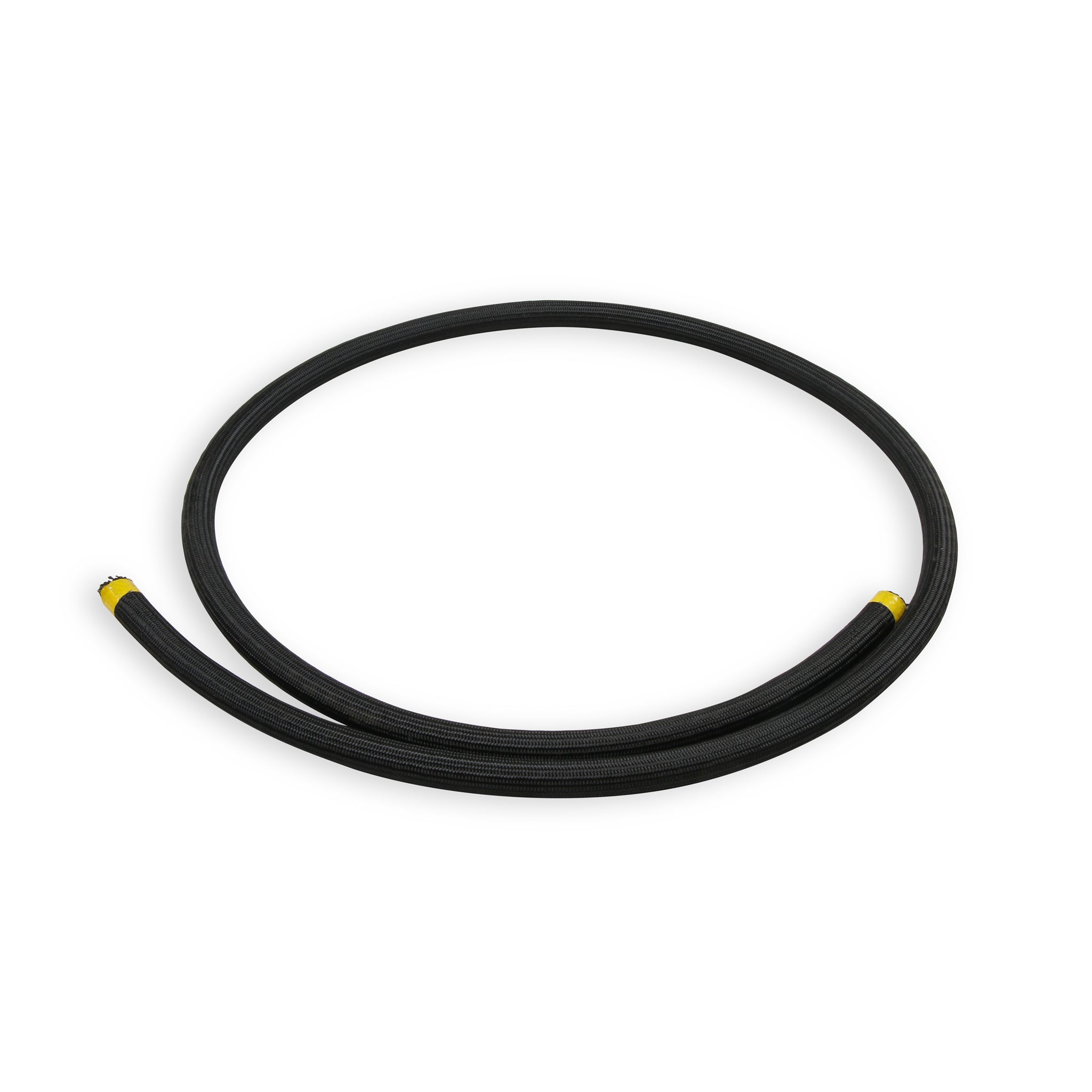

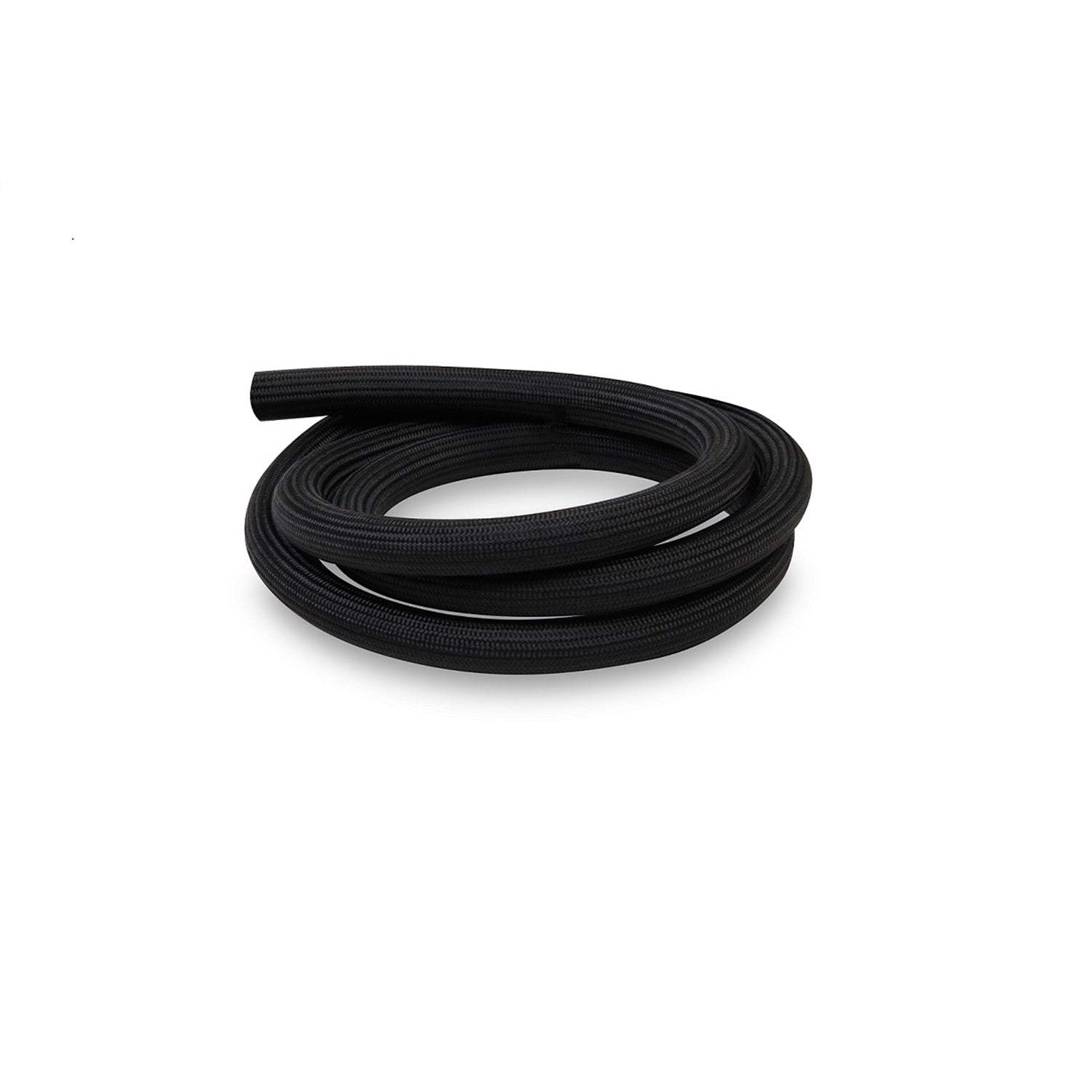

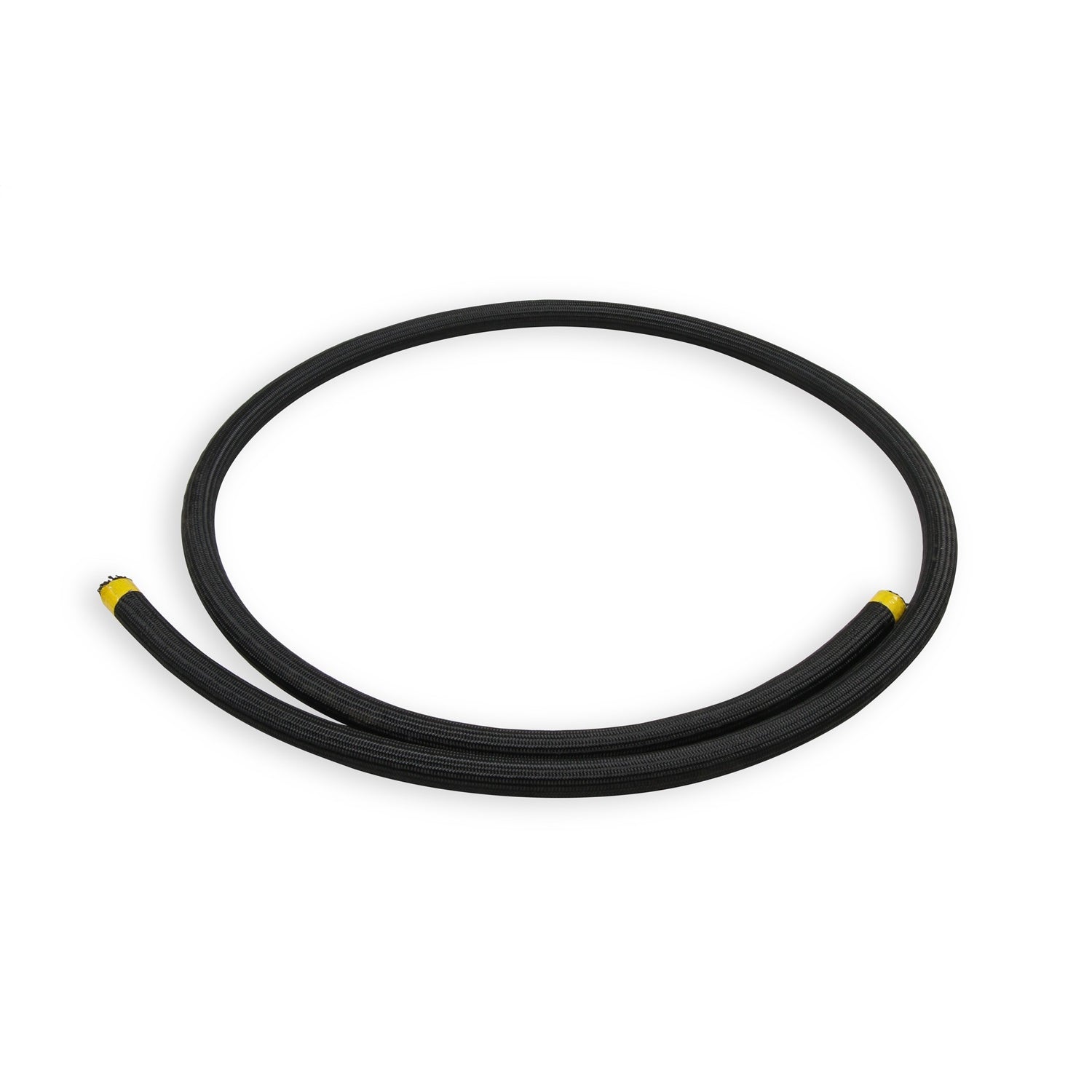

Earl's UltraPro Series Hose - Size 16 - 6 Ft |
| Description_FAB |
PTFE inner liner impervious to all known fuels, oils and coolants used in automotive applications |
| Description_FAB |
Designed to withstand harsh environments, brutal vibrations, high flow requirements and extreme pressures |
| Description_FAB |

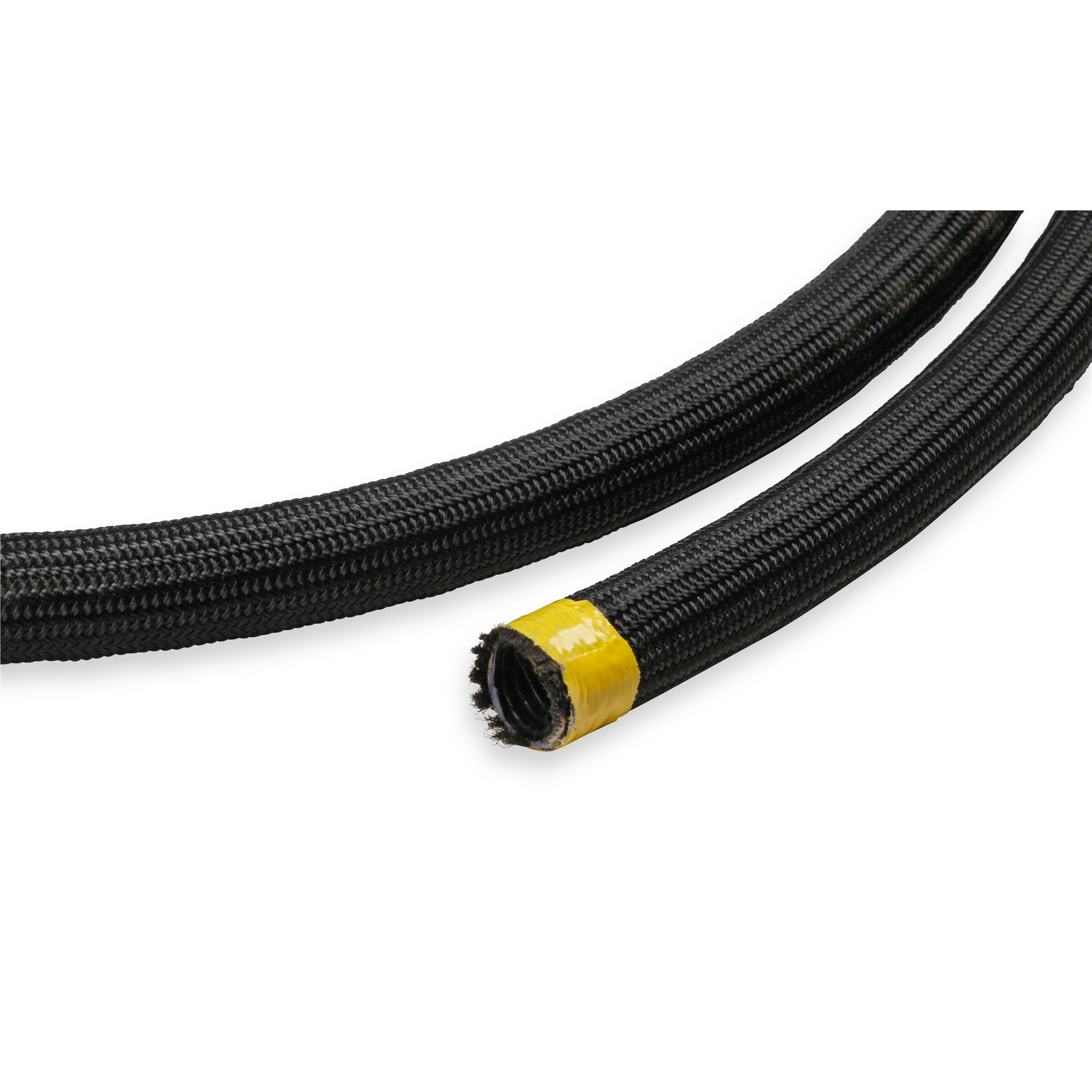

Double-helix ribbed inner hose liner offers extreme flexibility and full flow making tough plumbing jobs a snap with less hard connections! |
| Description_FAB |
Liner is reinforced with an outside glass-fiber wrap for additional strength and integrity! |
| Description_FAB |
PTFE inner liner is carbon infused for static dissipation |
| Description_FAB |
PTFE inner liner has ultra low coefficient of friction to promote maximum flow |
| Description_FAB |
Assembled with an olive that threads onto the double-helix ribbed inner liner of the hose for positive engagement and retention of the hose-ends |
| Description_FAB |
Available in popular -6, -8, -10, -12, -16, and -20 sizes in both woven polyester braid and stainless steel braid |
| Description_FAB |
UltraPro Polyester Braid hose is up to 67% lighter than traditional rubber hose with stainless steel braid |
| Description_FAB |
UltraPro Stainless Steel Braid is up to 37% lighter than traditional rubber hose with stainless steel braid |
| Description_EXT |
UltraPro Polyester Braid Hose; Hose Size: -16AN; Hose I.D.: 0.855 in.; Hose O.D.: 1.110 in.; Max PSI: 250; Max Vacuum: 10 in. HG; Bulk; Length: 6 ft.; |
| Description_INV |
6 FT. -16 ULTRAPRO POLYESTER BRAIDED HOS |
| Description_MKT |
Modern day high performance vehicles require a plumbing system designed to withstand today's fuids, harsh environments, brutal vibration, flow requirements & extreme pressures. UltraPro from Earl's was engineered as a system to exceed the rigorous demands of even the most extreme forms of racing. Don't settle for good enough. Go UltraPro! |
| Description_SHO |
Hose |
| Description_KEY |
hose; braided hose; speed flex; |
| Fluid Type Rating - Oil |
5 out of 5 Rating |
| Final Crimp O.D. Range |
1.179 in. - 1.183 in. |
| Temperature |
-67-257 degrees F |
| Fluid Type Rating - Methanol/Alcohol |
5 out of 5 Rating |
| Outside Diameter |
1.110 in. |
| Size |
-16AN |
| Brand |
Earl's |
| Fluid Type Rating - Diesel |
5 out of 5 Rating |
| Fluid Type Rating - Pump Gas |
5 out of 5 Rating |
| Max Vacuum |
10 in Hg |
| Min. Bend Radius |
3.5" |
| Compatible Hose End |
UltraPro |
| Minimum Bend Radius |
3.500 in. |
| Product Length |
6 ft. |
| Submersible in Fuel |
No |
| Vacuum |
0-10 in. Hg |
| Emission Code |
5 |
| Final Crimp O.D. Range |
1.179"-1.183" |
| Fluid Type |
Automatic Transmission Fluid, Bio-Fuels, Coolant, Diesel, E85, Methanol/Alcohol, Oil, Pump Gas, Race Gas |
| Fluid Type Rating - Bio-Fuels |
5 out of 5 Rating |
| Fluid Type Rating - E85 |
5 out of 5 Rating |
| Fluid Type Rating - Race Gas |
5 out of 5 Rating |
| Hose Length |
6 Feet |
| Max Working PSI |
250 PSI |
| Color |
Black |
| Crimping Die |
29MM - D10029BERL |
| Hose Outer Material |
Black Polyester |
| Inside Diameter |
0.855 in. |
| Material |
Braided Stainless Steel |
| Maximum Working PSI |
250 |
| WARNING CA Proposition 65 |
Yes |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Carbon Lined |
Yes |
| Compatible Hose Ends |
UltraPro - Crimp On, UltraPro - Twist On |
| Fluid Type Rating - Automatic Transmission Fluid |
5 out of 5 Rating |
| Fluid Type Rating - Coolant |
5 out of 5 Rating |
| Hose Family |
UltraPro |
| Hose Size |
16 AN |
| Product Type |
UltraPro Black Polyester Braided |
| Temperature Range |
-67 degrees F to 257 degrees F |
| Warning |
California Proposition 65 |
| Length |
2.1500 |
| Width |
14.2500 |
| Height |
14.3500 |
| Weight |
1.8100 |
