| Description_ASC |
Note: All UltraPro Hose Ends must be crimped using the Earl's D105M1101ERL Crimping Machine and D10022BERL Crimp Die. All UltraPro hose assemblies must be pressure tested prior to use.
Bulk hose takes about 3-4 days for processing. Each bulk order must be created, scheduled at the production facility, cut to length, packaged, shipped to the warehouse, and received by the warehouse (before it can be shipped to the customer). Pre-cut boxed hose (i.e. 3 to 33 foot lengths) ship directly from the warehouse. |
| Description_DES |

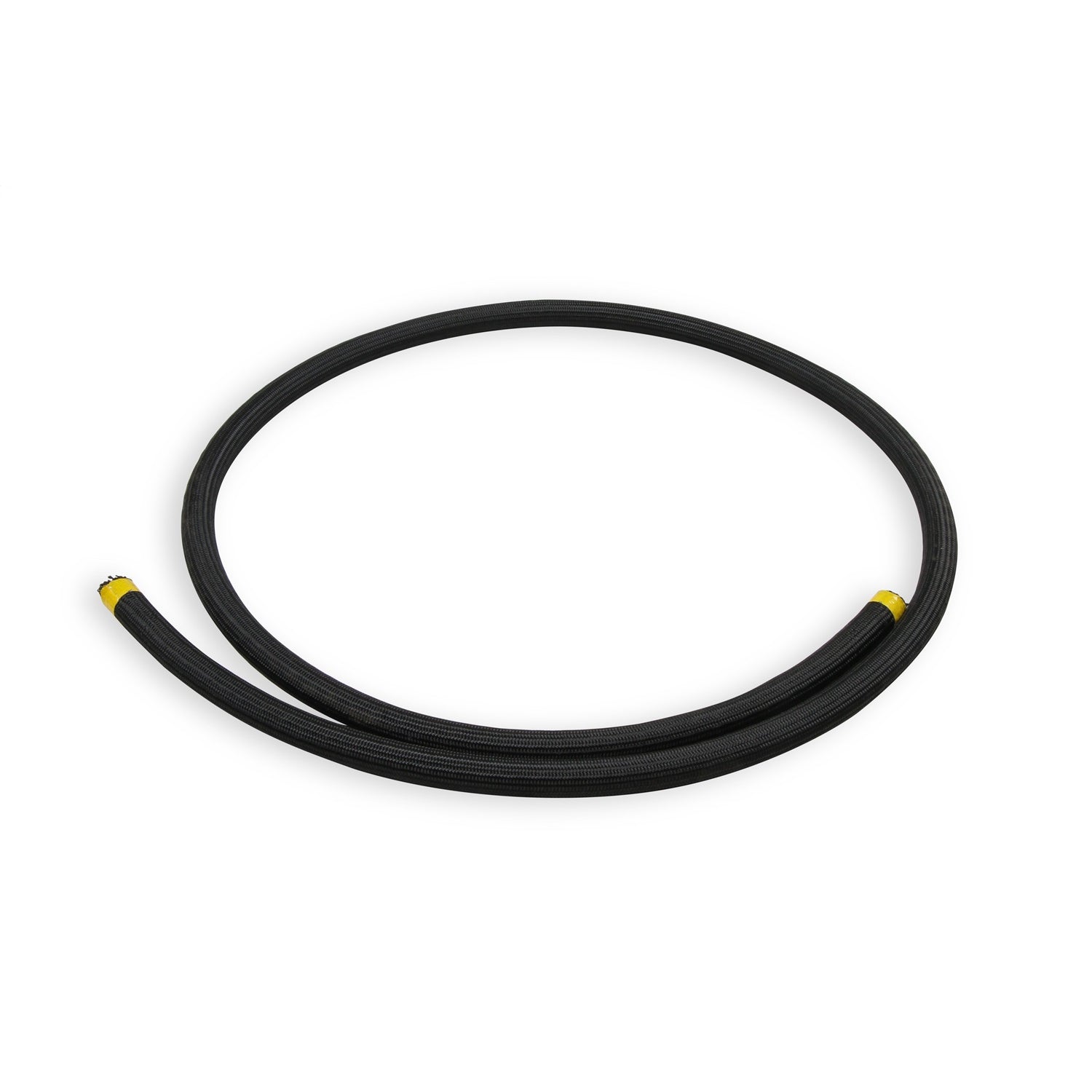

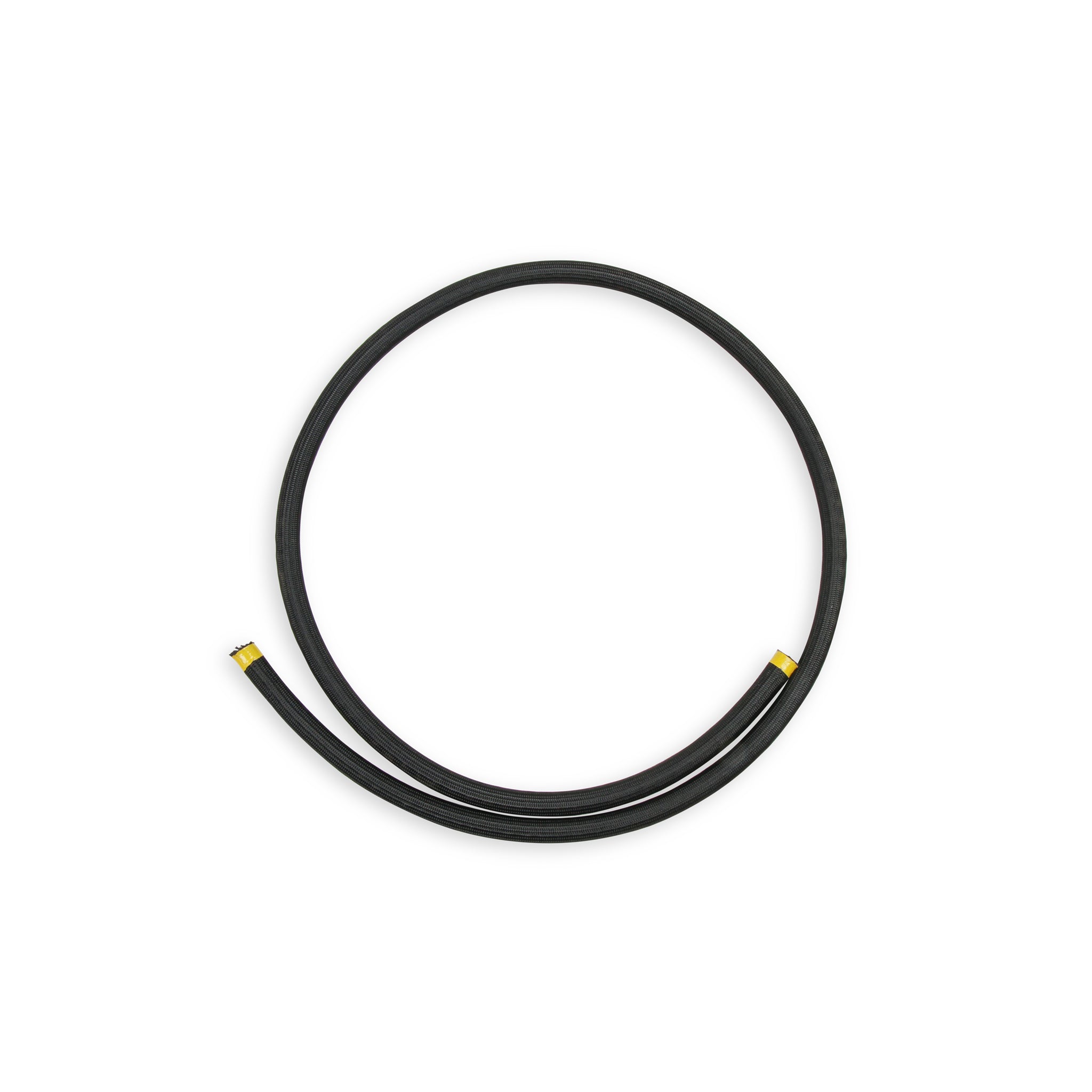

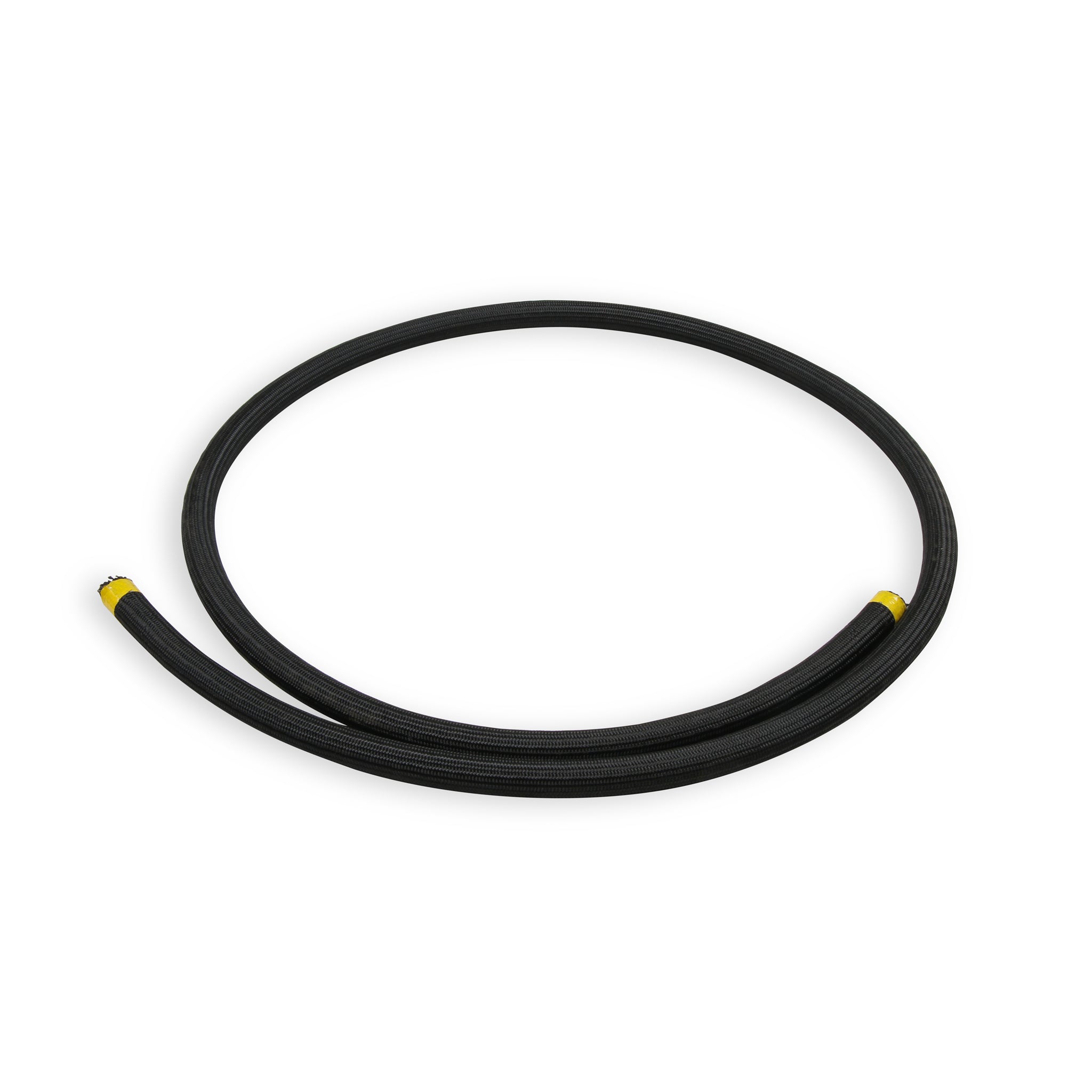

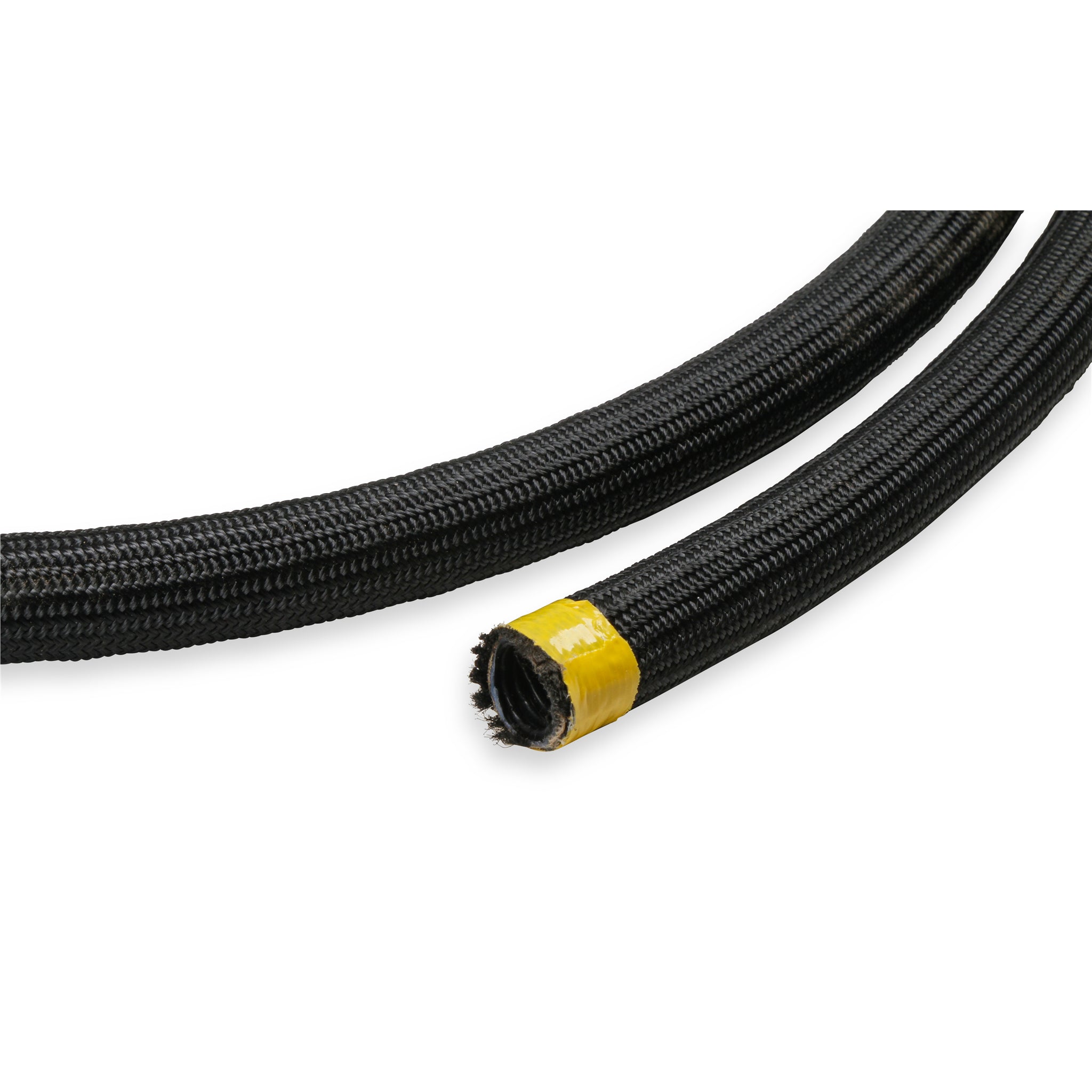

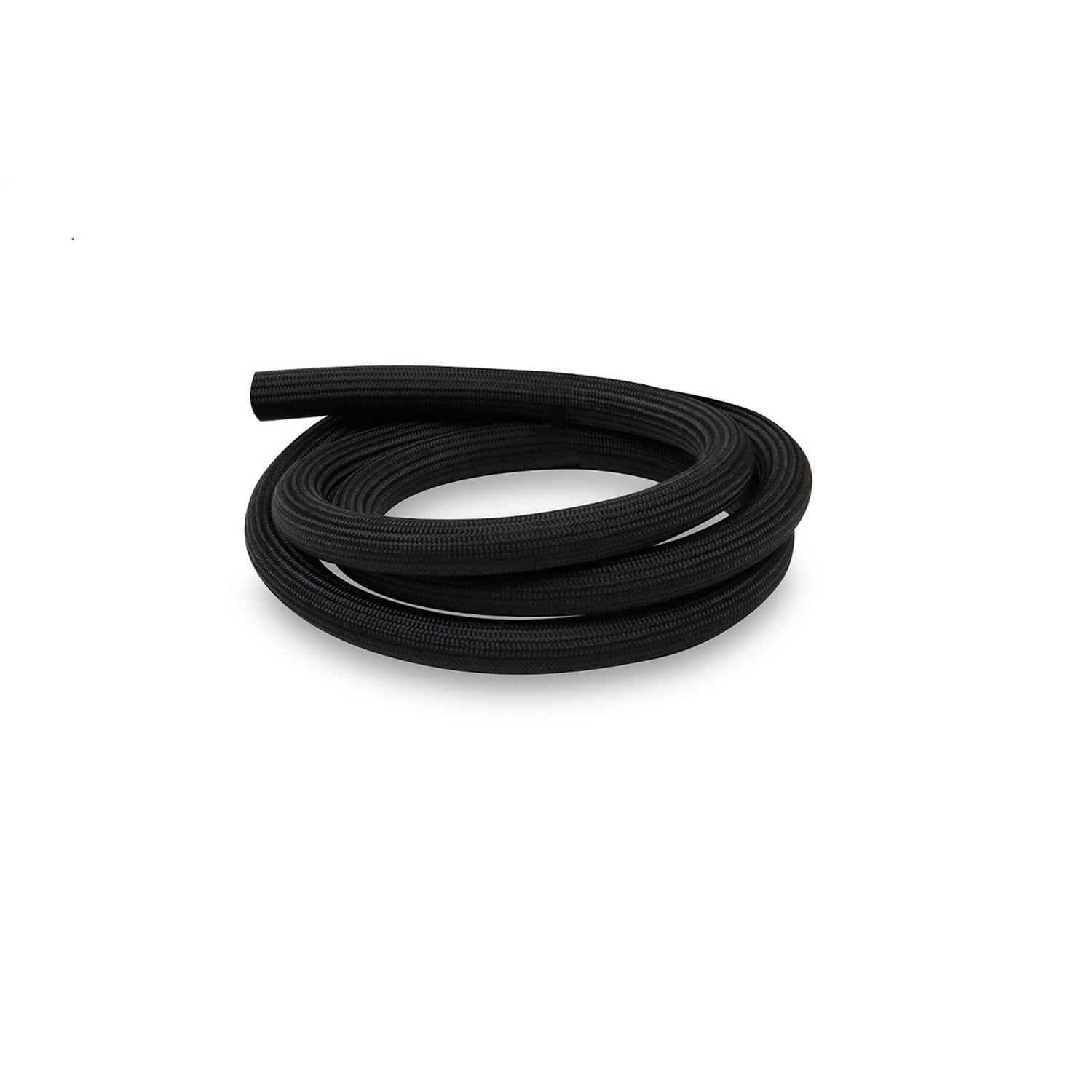

Earl's UltraPro Series Hose - Size 12 - Bulk Hose Sold by the Foot in Continuous Length up to 30' |
| Description_DEF |
Fuel Hose |
| Description_INV |
-12 ULTRAPRO POLYESTER BRAID HOSE BULK |
| Description_EXT |
UltraPro Polyester Braid Hose; Hose Size: -12AN; Hose I.D.: 0.646 in.; Hose O.D.: 0.905 in.; MaxPSI:250;MaxVacuum:20in.HG;BulkSold By The Foot In Continuous Length Up To 30 ft.; |
| Description_FAB |
PTFE inner liner impervious to all known fuels, oils and coolants used in automotive applications |
| Description_FAB |
Designed to withstand harsh environments, brutal vibrations, high flow requirements and extreme pressures |
| Description_FAB |
Double-helix ribbed inner hose liner offers extreme flexibility and full flow making tough plumbing jobs a snap with less hard connections! |
| Description_FAB |
Liner is reinforced with an outside glass-fiber wrap for additional strength and integrity! |
| Description_FAB |
PTFE inner liner is carbon infused for static dissipation |
| Description_FAB |
PTFE inner liner has ultra low coefficient of friction to promote maximum flow |
| Description_FAB |
Assembled with an olive that threads onto the double-helix ribbed inner liner of the hose for positive engagement and retention of the hose-ends |
| Description_FAB |
Available in popular -6, -8, -10, -12, -16, and -20 sizes in both woven polyester braid and stainless steel braid |
| Description_FAB |
UltraPro Polyester Braid hose is up to 67% lighter than traditional rubber hose with stainless steel braid |
| Description_FAB |
UltraPro Stainless Steel Braid is up to 37% lighter than traditional rubber hose with stainless steel braid |
| Description_FAB |
Sold per foot |
| Description_KEY |
hose; braided hose; speed flex; |
| Description_SHO |
Hose |
| Description_MKT |
Modern day high performance vehicles require a plumbing system designed to withstand today's fuids, harsh environments, brutal vibration, flow requirements & extreme pressures. UltraPro from Earl's was engineered as a system to exceed the rigorous demands of even the most extreme forms of racing. Don't settle for good enough. Go UltraPro! |
| Temperature Range |
-67 degrees F to 257 degrees F |
| Fluid Type Rating - E85 |
5 out of 5 Rating |
| Hose Length |
Bulk |
| Vacuum |
0-20 in. Hg |
| Emission Code |
5 |
| Final Crimp O.D. Range |
.982"-.986" |
| Hose Size |
12 AN |
| Hose Outer Material |
Black Polyester |
| Carbon Lined |
Yes |
| Fluid Type |
Automatic Transmission Fluid, Bio-Fuels, Coolant, Diesel, E85, Methanol/Alcohol, Oil, Pump Gas, Race Gas |
| Fluid Type Rating - Automatic Transmission Fluid |
5 out of 5 Rating |
| Fluid Type Rating - Pump Gas |
5 out of 5 Rating |
| Fluid Type Rating - Race Gas |
5 out of 5 Rating |
| Maximum Continuous Length |
30 Feet |
| Color |
Black |
| Compatible Hose End |
UltraPro |
| Crimping Die |
22MM - D10022BERL |
| Final Crimp O.D. Range |
0.982 in. - 0.986 in. |
| Inside Diameter |
0.646 in. |
| Material |
Braided Stainless Steel |
| Minimum Bend Radius |
2.500 in. |
| Outside Diameter |
0.905 in. |
| Temperature |
-67-257 degrees F |
| WARNING CA Proposition 65 |
Yes |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Brand |
Earl's |
| Compatible Hose Ends |
UltraPro - Crimp On, UltraPro - Twist On |
| Fluid Type Rating - Bio-Fuels |
5 out of 5 Rating |
| Fluid Type Rating - Coolant |
5 out of 5 Rating |
| Fluid Type Rating - Methanol/Alcohol |
5 out of 5 Rating |
| Fluid Type Rating - Oil |
5 out of 5 Rating |
| Hose Family |
UltraPro |
| Max Vacuum |
20 in Hg |
| Product Type |
UltraPro Black Polyester Braided |
| Warning |
California Proposition 65 |
| Maximum Working PSI |
250 |
| Product Length |
N/A |
| Size |
12AN |
| Submersible in Fuel |
No |
| Fluid Type Rating - Diesel |
5 out of 5 Rating |
| Max Working PSI |
250 PSI |
| Min. Bend Radius |
2.5" |
| Length |
7.0000 |
| Width |
16.0000 |
| Height |
16.0000 |
| Weight |
0.2560 |
