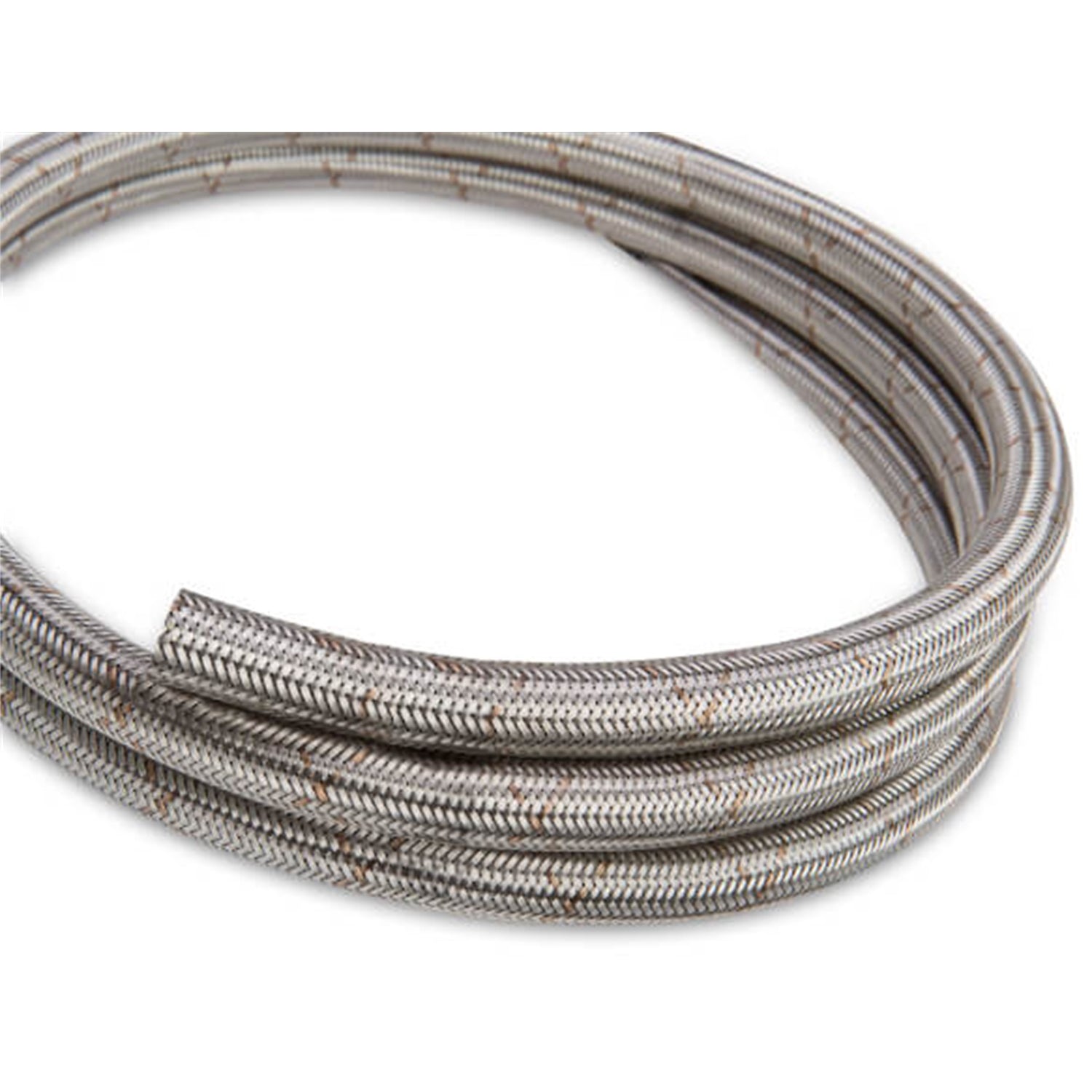

We have taken the same inner tubing of our Kevlar (R) hose, and covered it with a high tensile grade 304 stainless steel. You still get all of the same flow rate and flexibility advantages of the Kevlar (R) hose but with additional protection. The carbon lined inner tubing (for static dissipation) is smooth bore with large ID for maximum flow and convoluted exterior support for incredible flexibility. Ultra-Flex stainless is 40% lighter and has an average of 14% larger ID than our premium stainless braided rubber hose. Being made of PTFE resin, it has a large range of applications: Fuel, Oil, Water, Methanol, and Air as well as a very high vacuum rating - 29Hg. The new stainless hose also accepts all of the same hose ends and crimp collars made for the Kevlar (R) Ultra-Flex line. This means that the same crimper and dies used for the Kevlar (R) hose can be used with the new stainless, so your Earl's universal crimper and dies are all you need for all of your high end line assemblies.(All trademarks are property of their respective owners.)
Specifications:
| Description_DEF |
Fuel Hose |
| Description_EXT |
Ultra-light Stainless Steel Outer Braided hose, 40% lighter and has an average of 14% larger ID than our premium stainless braided rubber hose, Easy to Cut and Assemble. Designed for Ultra Flex Hose Ends. |
| Description_DES |
Earl's Ultra Flex Hose Size -10 Stainless Steel Braid - 33 Ft |
| Description_FAB |
Stainless Steel Outer Braid |
| Description_FAB |
High-Temp. Smooth bore PTFE tubing |
| Description_FAB |
Convoluted outer wall of inner tube for incredible flexibility |
| Description_FAB |
Remains Flexible at Temperatures Between -94 degreesF and +500 degreesF |
| Description_FAB |
Clean and Fast Flowing |
| Description_FAB |
Sold in Pre-Packaged Boxed Lengths |
| Description_INV |
33 FT. -10 ULTRA FLEX S.S. BRAIDED HOSE |
| Description_MKT |
We have taken the same inner tubing of our Kevlar (R) hose, and covered it with a high tensile grade 304 stainless steel. You still get all of the same flow rate and flexibility advantages of the Kevlar (R) hose but with additional protection. The carbon lined inner tubing (for static dissipation) is smooth bore with large ID for maximum flow and convoluted exterior support for incredible flexibility. Ultra-Flex stainless is 40% lighter and has an average of 14% larger ID than our premium stainless braided rubber hose. Being made of PTFE resin, it has a large range of applications: Fuel, Oil, Water, Methanol, and Air as well as a very high vacuum rating - 29Hg. The new stainless hose also accepts all of the same hose ends and crimp collars made for the Kevlar (R) Ultra-Flex line. This means that the same crimper and dies used for the Kevlar (R) hose can be used with the new stainless, so your Earl's universal crimper and dies are all you need for all of your high end line assemblies.(All trademarks are property of their respective owners.) |
| Description_KEY |
ultra flex; hose; earls; |
| Description_SHO |
Hose |
| Outside Diameter |
0.819 in. |
| Brand |
Earl's |
| Final Crimp O.D. Range |
0.925 in. - 0.937 in. |
| Fluid Type Rating - Oil |
5 out of 5 Rating |
| WARNING CA Proposition 65 |
Yes |
| Fluid Type Rating - Coolant |
5 out of 5 Rating |
| Fluid Type Rating - Methanol/Alcohol |
5 out of 5 Rating |
| Fluid Type Rating - Pump Gas |
5 out of 5 Rating |
| Sale Category |
Plumbing AN Fittings and Hose |
| Inside Diameter |
0.658 in. |
| Min. Bend Radius |
1.772" |
| Product Type |
Hose |
| Warning |
California Proposition 65 |
| Minimum Bend Radius |
1.772 in. |
| Product Length |
33 ft. |
| Size |
-4AN |
| Submersible in Fuel |
Yes |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Clearance Category |
Plumbing AN Fittings and Hose |
| Final Crimp O.D. Range |
.925"-.937" |
| Fluid Type Rating - Bio-Fuels |
5 out of 5 Rating |
| Fluid Type Rating - E85 |
5 out of 5 Rating |
| Fluid Type Rating - Vacuum |
5 out of 5 Rating |
| Max Vacuum |
29 in Hg |
| Max Working PSI |
955 PSI |
| Compatible Hose End |
Ultra Flex |
| Hose Outer Material |
Stainless Steel Braided |
| Maximum Working PSI |
955 |
| Vacuum |
0-29 in. Hg |
| Compatible Hose Ends |
Ultra-Flex |
| Emission Code |
5 |
| Fluid Type |
Automatic Transmission Fluid, Bio-Fuels, Coolant, Diesel, E85, Methanol/Alcohol, Oil, Pump Gas, Race Gas |
| Fluid Type Rating - Automatic Transmission Fluid |
5 out of 5 Rating |
| Fluid Type Rating - Diesel |
5 out of 5 Rating |
| Fluid Type Rating - Race Gas |
5 out of 5 Rating |
| Hose Length |
33 Feet |
| Hose Size |
10 AN |
| Color |
Black Anodized |
| Crimping Die |
22MM - D10022BERL |
| Material |
304 Stainless |
| Hose Family |
Ultra-Flex |
| Length |
11.4000 |
| Width |
15.0000 |
| Height |
15.9000 |
| Weight |
9.4050 |
