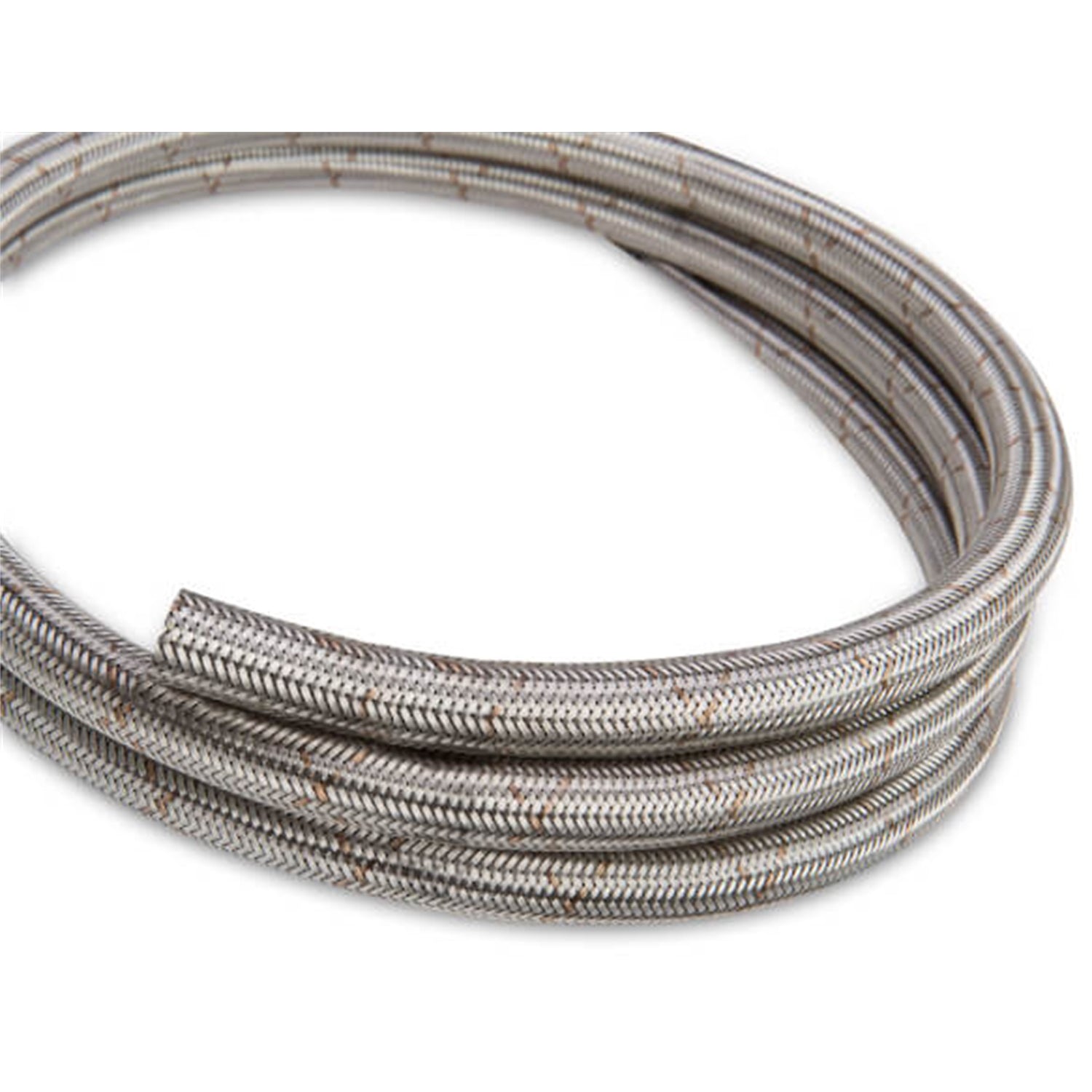

We have taken the same inner tubing of our Kevlar (R) hose, and covered it with a high tensile grade 304 stainless steel. You still get all of the same flow rate and flexibility advantages of the Kevlar (R) hose but with additional protection. The carbon lined inner tubing (for static dissipation) is smooth bore with large ID for maximum flow and convoluted exterior support for incredible flexibility. Ultra-Flex stainless is 40% lighter and has an average of 14% larger ID than our premium stainless braided rubber hose. Being made of PTFE resin, it has a large range of applications: Fuel, Oil, Water, Methanol, and Air as well as a very high vacuum rating - 29Hg. The new stainless hose also accepts all of the same hose ends and crimp collars made for the Kevlar (R) Ultra-Flex line. This means that the same crimper and dies used for the Kevlar (R) hose can be used with the new stainless, so your Earl's universal crimper and dies are all you need for all of your high end line assemblies.(All trademarks are property of their respective owners.)
Specifications:
| Description_DES |
Earl's Ultra Flex Hose Size -8 Stainless Steel Braid - 33 Ft |
| Description_DEF |
Fuel Hose |
| Description_INV |
33 FT. -8 ULTRA FLEX S.S. BRAIDED HOSE |
| Description_EXT |
Ultra-light Stainless Steel Outer Braided hose, 40% lighter and has an average of 14% larger ID than our premium stainless braided rubber hose, Easy to Cut and Assemble. Designed for Ultra Flex Hose Ends. |
| Description_FAB |
Stainless Steel Outer Braid |
| Description_FAB |
High-Temp. Smooth bore PTFE tubing |
| Description_FAB |
Convoluted outer wall of inner tube for incredible flexibility |
| Description_FAB |
Remains Flexible at Temperatures Between -94 degreesF and +500 degreesF |
| Description_FAB |
Clean and Fast Flowing |
| Description_FAB |
Sold in Pre-Packaged Boxed Lengths |
| Description_SHO |
Hose |
| Description_MKT |
We have taken the same inner tubing of our Kevlar (R) hose, and covered it with a high tensile grade 304 stainless steel. You still get all of the same flow rate and flexibility advantages of the Kevlar (R) hose but with additional protection. The carbon lined inner tubing (for static dissipation) is smooth bore with large ID for maximum flow and convoluted exterior support for incredible flexibility. Ultra-Flex stainless is 40% lighter and has an average of 14% larger ID than our premium stainless braided rubber hose. Being made of PTFE resin, it has a large range of applications: Fuel, Oil, Water, Methanol, and Air as well as a very high vacuum rating - 29Hg. The new stainless hose also accepts all of the same hose ends and crimp collars made for the Kevlar (R) Ultra-Flex line. This means that the same crimper and dies used for the Kevlar (R) hose can be used with the new stainless, so your Earl's universal crimper and dies are all you need for all of your high end line assemblies.(All trademarks are property of their respective owners.) |
| Description_KEY |
ultra flex; hose; earls; |
| Fluid Type Rating - Automatic Transmission Fluid |
5 out of 5 Rating |
| Maximum Working PSI |
1030 |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Fluid Type |
Automatic Transmission Fluid, Bio-Fuels, Coolant, Diesel, E85, Methanol/Alcohol, Oil, Pump Gas, Race Gas |
| Hose Length |
33 Feet |
| Crimping Die |
19MM - D10019BERL |
| Hose Outer Material |
Stainless Steel Braided |
| Inside Diameter |
0.536 in. |
| Material |
304 Stainless |
| Discount Percentage |
5-25% |
| Hose Size |
8 AN |
| Color |
Black Anodized |
| Outside Diameter |
0.650 in. |
| Size |
-8AN |
| WARNING CA Proposition 65 |
Yes |
| Brand |
Earl's |
| Clearance Category |
Plumbing AN Fittings and Hose |
| Compatible Hose Ends |
Ultra-Flex |
| Fluid Type Rating - Coolant |
5 out of 5 Rating |
| Fluid Type Rating - Diesel |
5 out of 5 Rating |
| Fluid Type Rating - Oil |
5 out of 5 Rating |
| Fluid Type Rating - Pump Gas |
5 out of 5 Rating |
| Hose Family |
Ultra-Flex |
| Max Vacuum |
29 in Hg |
| Min. Bend Radius |
1.496" |
| Product Type |
Hose |
| Warning |
California Proposition 65 |
| Compatible Hose End |
Ultra Flex |
| Final Crimp O.D. Range |
0.795 in. - 0.815 in. |
| Minimum Bend Radius |
1.496 in. |
| Product Length |
33 ft. |
| Submersible in Fuel |
Yes |
| Vacuum |
0-29 in. Hg |
| Emission Code |
5 |
| Final Crimp O.D. Range |
.795"-.815" |
| Fluid Type Rating - Bio-Fuels |
5 out of 5 Rating |
| Fluid Type Rating - E85 |
5 out of 5 Rating |
| Fluid Type Rating - Methanol/Alcohol |
5 out of 5 Rating |
| Fluid Type Rating - Race Gas |
5 out of 5 Rating |
| Fluid Type Rating - Vacuum |
5 out of 5 Rating |
| Max Working PSI |
1030 PSI |
| Sale Category |
Plumbing AN Fittings and Hose |
| Length |
7.0000 |
| Width |
16.0000 |
| Height |
17.0000 |
| Weight |
6.0000 |
