| Description_DEF |
Fuel Hose |
| Description_DES |

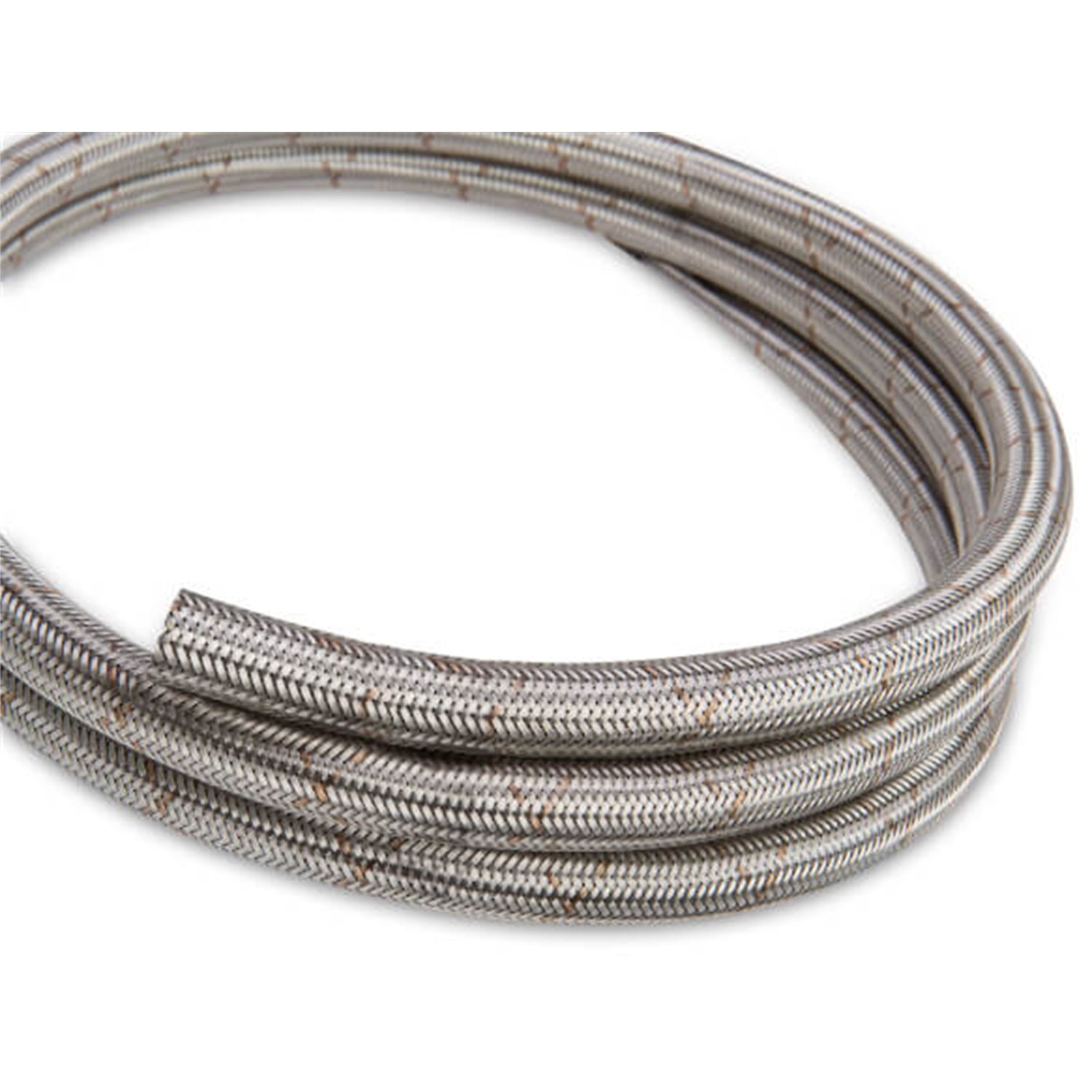

Earl's Ultra Flex Hose Size -16 Stainless Steel Braid - 6 Ft |
| Description_KEY |
ultra flex; hose; earls; |
| Description_INV |
6 FT. -16 ULTRA FLEX S.S. BRAIDED HOSE |
| Description_EXT |
Ultra-light Stainless Steel Outer Braided hose, 40% lighter and has an average of 14% larger ID than our premium stainless braided rubber hose, Easy to Cut and Assemble. Designed for Ultra Flex Hose Ends. |
| Description_FAB |
Stainless Steel Outer Braid |
| Description_FAB |
High-Temp. Smooth bore PTFE tubing |
| Description_FAB |
Convoluted outer wall of inner tube for incredible flexibility |
| Description_FAB |
Remains Flexible at Temperatures Between -94 degreesF and +500 degreesF |
| Description_FAB |
Clean and Fast Flowing |
| Description_FAB |
Sold in Pre-Packaged Boxed Lengths |
| Description_SHO |
Hose |
| Description_MKT |
We have taken the same inner tubing of our Kevlar (R) hose, and covered it with a high tensile grade 304 stainless steel. You still get all of the same flow rate and flexibility advantages of the Kevlar (R) hose but with additional protection. The carbon lined inner tubing (for static dissipation) is smooth bore with large ID for maximum flow and convoluted exterior support for incredible flexibility. Ultra-Flex stainless is 40% lighter and has an average of 14% larger ID than our premium stainless braided rubber hose. Being made of PTFE resin, it has a large range of applications: Fuel, Oil, Water, Methanol, and Air as well as a very high vacuum rating - 29Hg. The new stainless hose also accepts all of the same hose ends and crimp collars made for the Kevlar (R) Ultra-Flex line. This means that the same crimper and dies used for the Kevlar (R) hose can be used with the new stainless, so your Earl's universal crimper and dies are all you need for all of your high end line assemblies.(All trademarks are property of their respective owners.) |
| Size |
-16AN |
| Sale Category |
Plumbing AN Fittings and Hose |
| Fluid Type Rating - Diesel |
5 out of 5 Rating |
| Fluid Type Rating - Pump Gas |
5 out of 5 Rating |
| Min. Bend Radius |
2.756" |
| Vacuum |
0-29 in. Hg |
| Brand |
Earl's |
| Clearance Category |
Plumbing AN Fittings and Hose |
| Emission Code |
5 |
| Final Crimp O.D. Range |
1.335"-1.370" |
| Max Vacuum |
29 in Hg |
| Color |
Black Anodized |
| Compatible Hose End |
Ultra Flex |
| Crimping Die |
34MM - D10034BERL |
| Hose Outer Material |
Stainless Steel Braided |
| Material |
304 Stainless |
| Maximum Working PSI |
740 |
| Minimum Bend Radius |
2.756 in. |
| Product Length |
6 ft. |
| Submersible in Fuel |
Yes |
| WARNING CA Proposition 65 |
Yes |
| Compatible Hose Ends |
Ultra-Flex |
| Discount Percentage |
26-50% |
| Fluid Type |
Automatic Transmission Fluid, Bio-Fuels, Coolant, Diesel, E85, Methanol/Alcohol, Oil, Pump Gas, Race Gas |
| Fluid Type Rating - Automatic Transmission Fluid |
5 out of 5 Rating |
| Fluid Type Rating - E85 |
5 out of 5 Rating |
| Fluid Type Rating - Methanol/Alcohol |
5 out of 5 Rating |
| Fluid Type Rating - Race Gas |
5 out of 5 Rating |
| Fluid Type Rating - Vacuum |
5 out of 5 Rating |
| Hose Family |
Ultra-Flex |
| Max Working PSI |
740 PSI |
| Final Crimp O.D. Range |
1.335 in. - 1.370 in. |
| Inside Diameter |
1.0039 in. |
| Outside Diameter |
1.272 in. |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Fluid Type Rating - Bio-Fuels |
5 out of 5 Rating |
| Fluid Type Rating - Coolant |
5 out of 5 Rating |
| Fluid Type Rating - Oil |
5 out of 5 Rating |
| Hose Length |
6 Feet |
| Hose Size |
16 AN |
| Product Type |
Hose |
| Warning |
California Proposition 65 |
| Length |
7.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
3.0000 |
