Our factory assembled hoses are made from the same SPEED-FLEX stainless steel braid protected hose of extruded PTFE that is the world standard of the racing industry for flexible brake, clutch and instrument hoses. Hoses are assembled with Earl''s SPEED-FLEX crimp or swaged permanently installed hose ends. Each hose is pressure tested to 4,000 psi.
Specifications:
| Description_ASC |
We have independent test lab reports on file showing that prototype assemblies exceeded D.O.T. recommendations in all categories. The only continuing test program however, is a 4000 P.S.I. hydrostatic pressure test of every hose assembly that we make. We do not claim that any individual hose assembly is certifiable to D.O.T. standards, and we therefore must advise you that they are sold for off-road applications only. We make no claim of usability or suitability for highway or road use. PTFE brake hoses must be installed by an experienced professional mechanic. After installation each hose must be clean and free flowing. There must be no possibility that the installed hose assemblies can be stretched, crimped, or kinked under any conditions of wheel travel and steering angle. As with any hose installation, periodic inspection of hose condition is essential. |
| Description_DEF |
Fuel Hose |
| Description_DES |
Earl's Speed-Flex Hyperfirm (R) Pre-Made Hose |
| Description_MKT |
Our factory assembled hoses are made from the same SPEED-FLEX stainless steel braid protected hose of extruded PTFE that is the world standard of the racing industry for flexible brake, clutch and instrument hoses. Hoses are assembled with Earl''s SPEED-FLEX crimp or swaged permanently installed hose ends. Each hose is pressure tested to 4,000 psi. |
| Description_FAB |
Use Of Extruded Teflon (TM) Coating |
| Description_FAB |
Standard Of Racing Industry |
| Description_FAB |
For Flexible And Firmer Brake |
| Description_FAB |
For Flexible Clutch |
| Description_FAB |
For Instrument Hoses |
| Description_FAB |
Pressure Tested To 4000 psi |
| Description_INV |
-3 St./Banjo 32 Hose |
| Description_EXT |

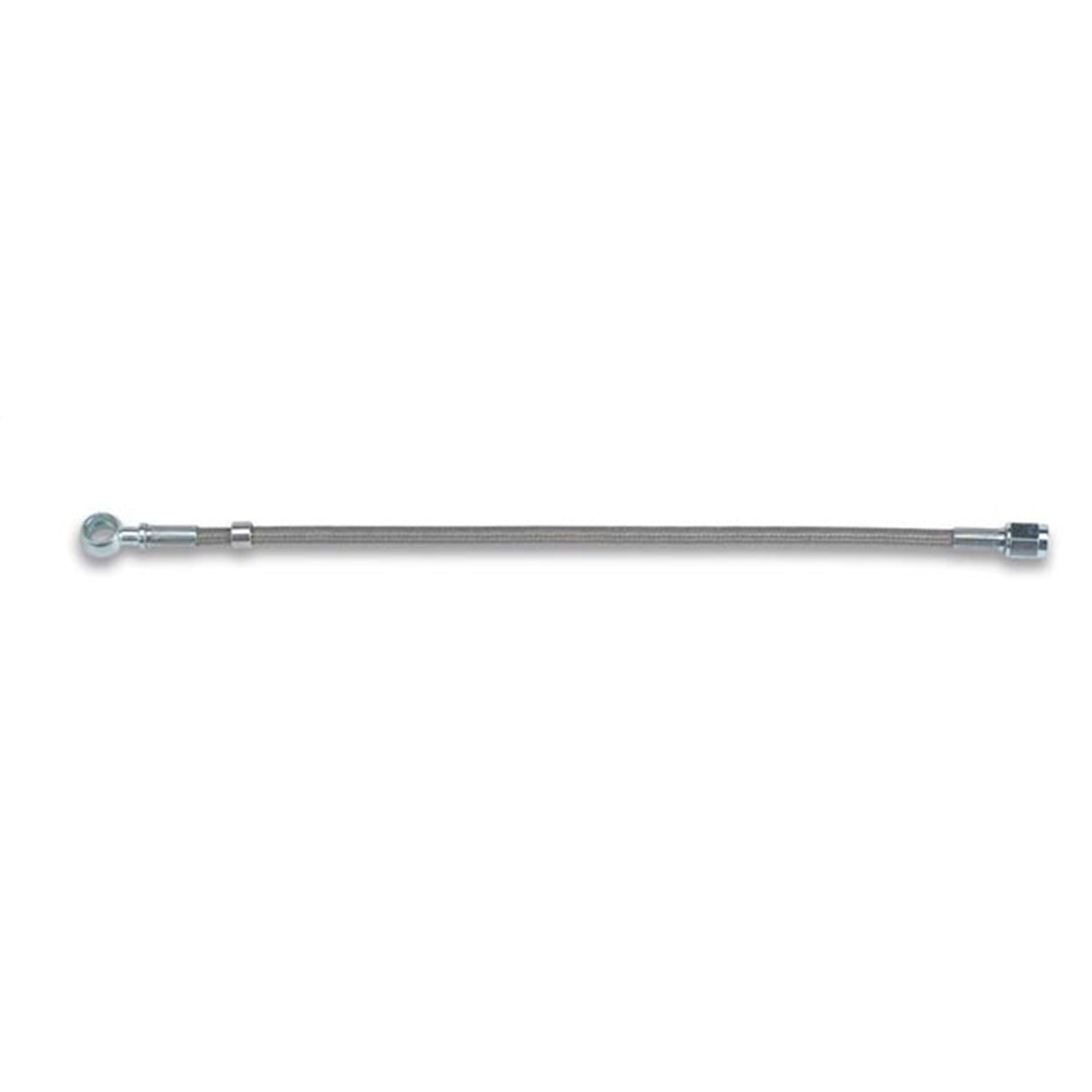

Speed-Flex (TM) Line; Bagged Packaging; -03AN Female Swivel To 10mm/3/8 Banjo; Hose Size -03AN; Length 32 in.; Straight; |
| Description_SHO |
Hose |
| Fluid Type Rating - E85 |
5 out of 5 Rating |
| Length |
32.000 in. |
| Clearance Category |
Plumbing AN Fittings and Hose |
| Product Length |
32.000 in. |
| Submersible in Fuel |
Yes |
| Fluid Type Rating - Vacuum |
1 out of 5 Rating |
| Hose End Finish |
Electroless Nickel Plated |
| Hose Outer Material |
Stainless Steel Braided |
| Wall Thickness |
0.430 in. |
| Brand |
Earl's |
| Emission Code |
5 |
| Fluid Type |
Automatic Transmission Fluid, Bio-Fuels, Brake Fluid, Coolant, Diesel, E85, Methanol/Alcohol, Oil, Pump Gas, Race Gas |
| Fluid Type Rating - Power Steering Fluid |
5 out of 5 Rating |
| Fluid Type Rating - Race Gas |
5 out of 5 Rating |
| Hose End #2 |
10 MM / 3/8" BANJO |
| PTFE Wall Thickness |
.040" |
| Color |
Silver |
| Material |
Braided Stainless Steel |
| Fluid Type Rating - Automatic Transmission Fluid |
5 out of 5 Rating |
| Fluid Type Rating - Bio-Fuels |
5 out of 5 Rating |
| Fluid Type Rating - Coolant |
5 out of 5 Rating |
| Fluid Type Rating - Diesel |
5 out of 5 Rating |
| Fluid Type Rating - Methanol/Alcohol |
5 out of 5 Rating |
| Fluid Type Rating - Oil |
5 out of 5 Rating |
| Fluid Type Rating - Pump Gas |
5 out of 5 Rating |
| Hose End Material |
Steel |
| Inside Diameter |
.120"-.143" |
| Max Working PSI |
2000 PSI |
| Product Type |
Hose Assembly |
| Sale Category |
Plumbing AN Fittings and Hose |
| Temperature Range |
-65⁰ to 450⁰ F |
| Warning |
California Proposition 65 |
| Size |
3AN |
| WARNING CA Proposition 65 |
Yes |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Fluid Type Rating - Brake Fluid |
5 out of 5 Rating |
| Hose End #1 |
3 AN FEMALE |
| Hose Size |
3 AN |
| Min. Bend Radius |
1.5" |
| Outside Diameter |
.214"-.258" |
| Length |
2.0000 |
| Width |
6.0000 |
| Height |
6.0000 |
