| Description_ASC |
We have independent test lab reports on file showing that prototype assemblies exceeded D.O.T. recommendations in all categories. The only continuing test program however, is a 4000 P.S.I. hydrostatic pressure test of every hose assembly that we make. We do not claim that any individual hose assembly is certifiable to D.O.T. standards, and we therefore must advise you that they are sold for off-road applications only. We make no claim of usability or suitability for highway or road use. PTFE brake hoses must be installed by an experienced professional mechanic. After installation each hose must be clean and free flowing. There must be no possibility that the installed hose assemblies can be stretched, crimped, or kinked under any conditions of wheel travel and steering angle. As with any hose installation, periodic inspection of hose condition is essential. |
| Description_DEF |
Fuel Hose |
| Description_DES |

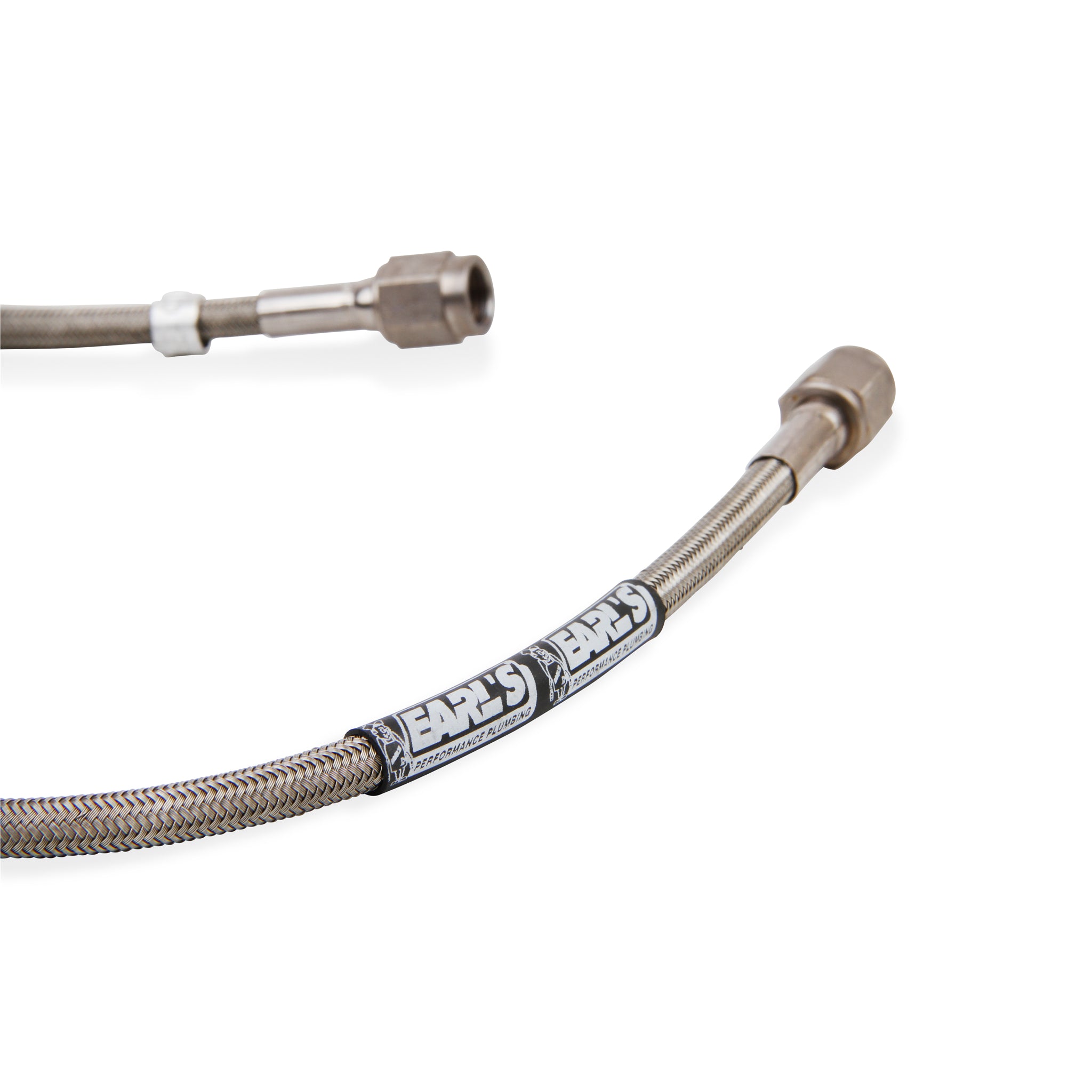

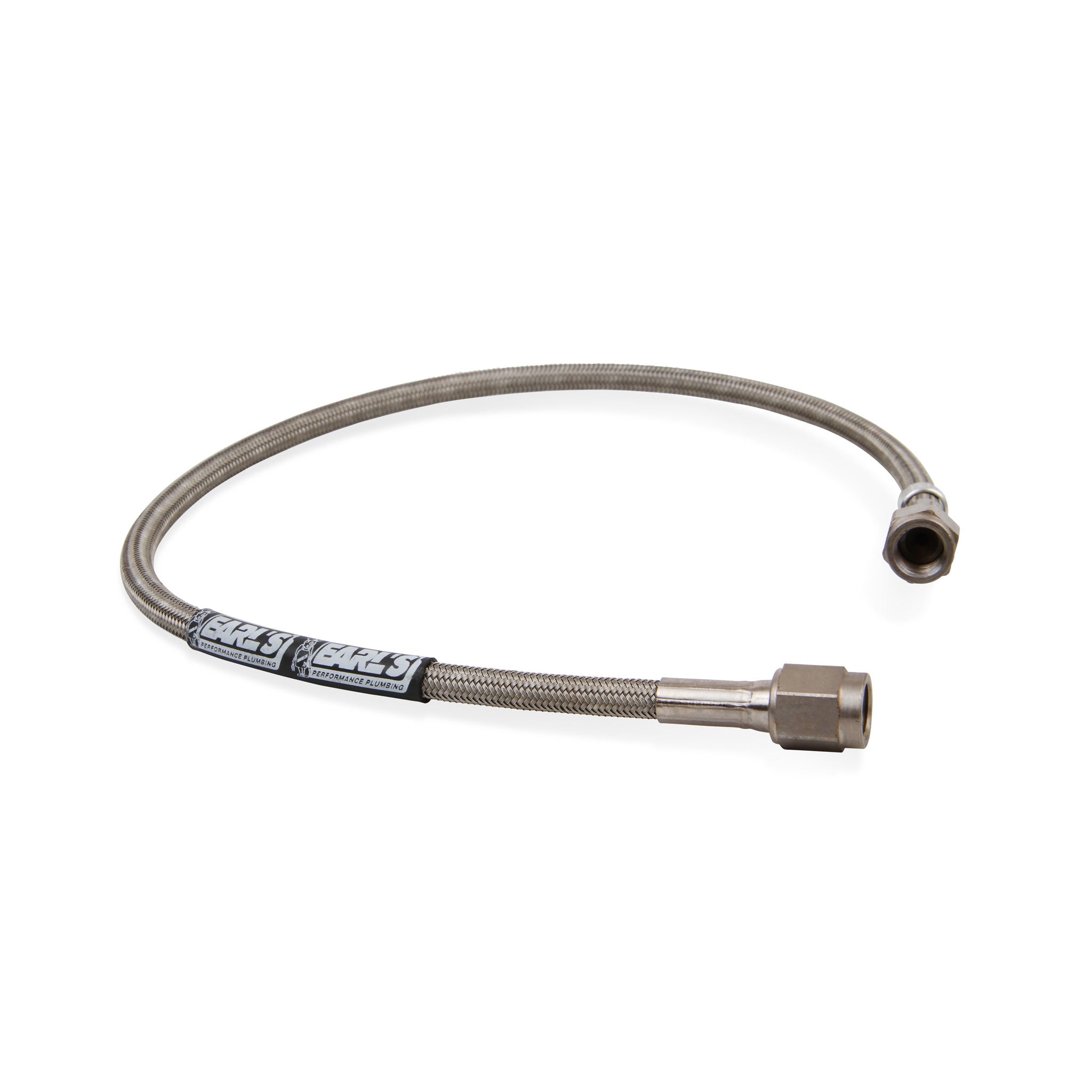

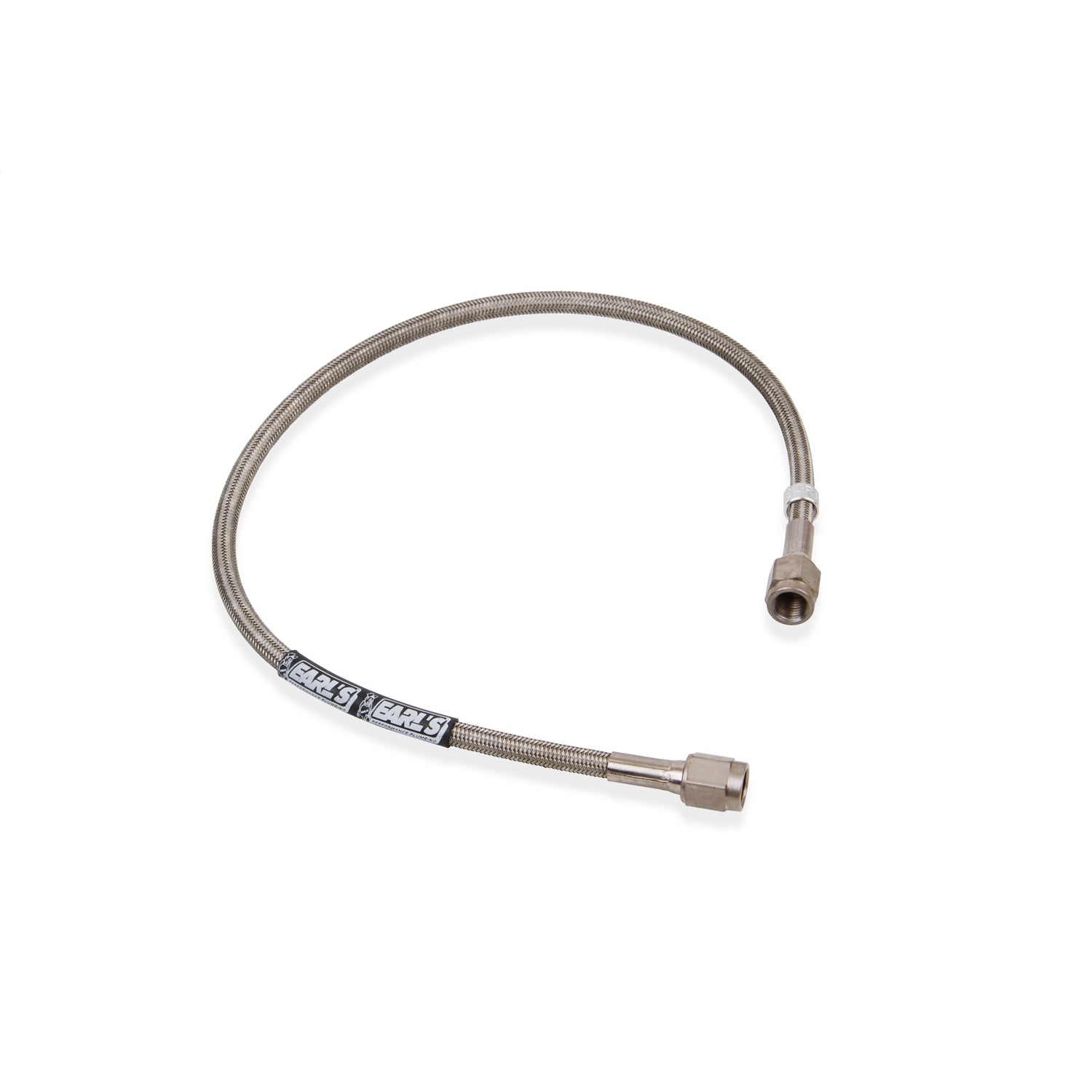

Earl's Speed-Flex Hyperfirm (R) Pre-Made Hose |
| Description_EXT |
Speed-Flex (TM) Hose; Pre-Made; Hose Size: -3AN; Fitting Size: -3AN Female Swivel Both Ends; Length: 132 in.; Stainless Steel Braid; PTFE Wall Thickness: .040 in.; |
| Description_INV |
-3 ST./ST. 132 Inch HOSE |
| Description_FAB |
Use Of Extruded Teflon (TM) Coating |
| Description_FAB |
Stainless Steel Outer Braid |
| Description_FAB |
Solves Pedal Travel Problem |
| Description_FAB |
Increased Brake Pedal Firmness |
| Description_FAB |
Modulate Brakes Efficiently |
| Description_FAB |
Improved Abrasion Resistance |
| Description_FAB |
Sold Per Foot (Bulk Only) |
| Description_FAB |
Impervious To Any Fuel Blend |
| Description_FAB |
-65 to +450 Degrees F Operating Temperature |
| Description_SHO |
Hose |
| Description_MKT |
Earl's factory assembled hose assemblies are made from the same SPEED-FLEX stainless steel braided hose(w/ .040 in. thick PTFE lining), that has become the standard of the racing industry. These hose assemblies include crimped style hose ends and are ideal for use in most flexible brake, clutch and instrument hoses. Each hose is pressure tested to 4,000 PSI (recommended maximum operating pressure 2,000 PSI). |
| Fluid Type Rating - Race Gas |
5 out of 5 Rating |
| Fluid Type Rating - Vacuum |
1 out of 5 Rating |
| Product Length |
OEM |
| Submersible in Fuel |
Yes |
| Hose End #1 |
3 AN FEMALE |
| Hose Size |
3 AN |
| Length |
132.000 in. |
| Fluid Type Rating - E85 |
5 out of 5 Rating |
| Hose End #2 |
3 AN FEMALE |
| Hose Outer Material |
Stainless Steel Braided |
| Wall Thickness |
0.430 in. |
| Brand |
Earl's |
| Emission Code |
5 |
| Fluid Type |
Automatic Transmission Fluid, Bio-Fuels, Brake Fluid, Coolant, Diesel, E85, Methanol/Alcohol, Oil, Pump Gas, Race Gas |
| Fluid Type Rating - Automatic Transmission Fluid |
5 out of 5 Rating |
| Fluid Type Rating - Power Steering Fluid |
5 out of 5 Rating |
| Fluid Type Rating - Pump Gas |
5 out of 5 Rating |
| Hose End Finish |
Electroless Nickel Plated |
| Hose End Material |
Steel |
| PTFE Wall Thickness |
.040" |
| Temperature Range |
-65⁰ to 450⁰ F |
| Color |
Cast Aluminum |
| Compatible Hose End |
Swivel-Seal |
| Material |
Stainless Steel |
| WARNING CA Proposition 65 |
Yes |
| Fluid Type Rating - Bio-Fuels |
5 out of 5 Rating |
| Fluid Type Rating - Brake Fluid |
5 out of 5 Rating |
| Fluid Type Rating - Coolant |
5 out of 5 Rating |
| Fluid Type Rating - Oil |
5 out of 5 Rating |
| Inside Diameter |
.120"-.143" |
| Max Working PSI |
2000 PSI |
| Min. Bend Radius |
1.5" |
| Product Type |
Hose Assembly |
| Warning |
California Proposition 65 |
| Size |
-3 AN |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Clearance Category |
Plumbing AN Fittings and Hose |
| Fluid Type Rating - Diesel |
5 out of 5 Rating |
| Fluid Type Rating - Methanol/Alcohol |
5 out of 5 Rating |
| Outside Diameter |
.214"-.258" |
| Sale Category |
Plumbing AN Fittings and Hose |
| Length |
3.0000 |
| Width |
4.0000 |
| Height |
6.0000 |
| Weight |
1.0000 |
