| Description_DEF |
Fuel Hose |
| Description_EXT |
Speed-Flex (TM) Hose; Hose Size 4; ID 3/16; Max 2000 PSI; Liner Wall Thickness 0.040; Min Bend Radius 1 - 0.50; Operating Temperature 65 - 450 deg. F; 20 ft.; |
| Description_DES |

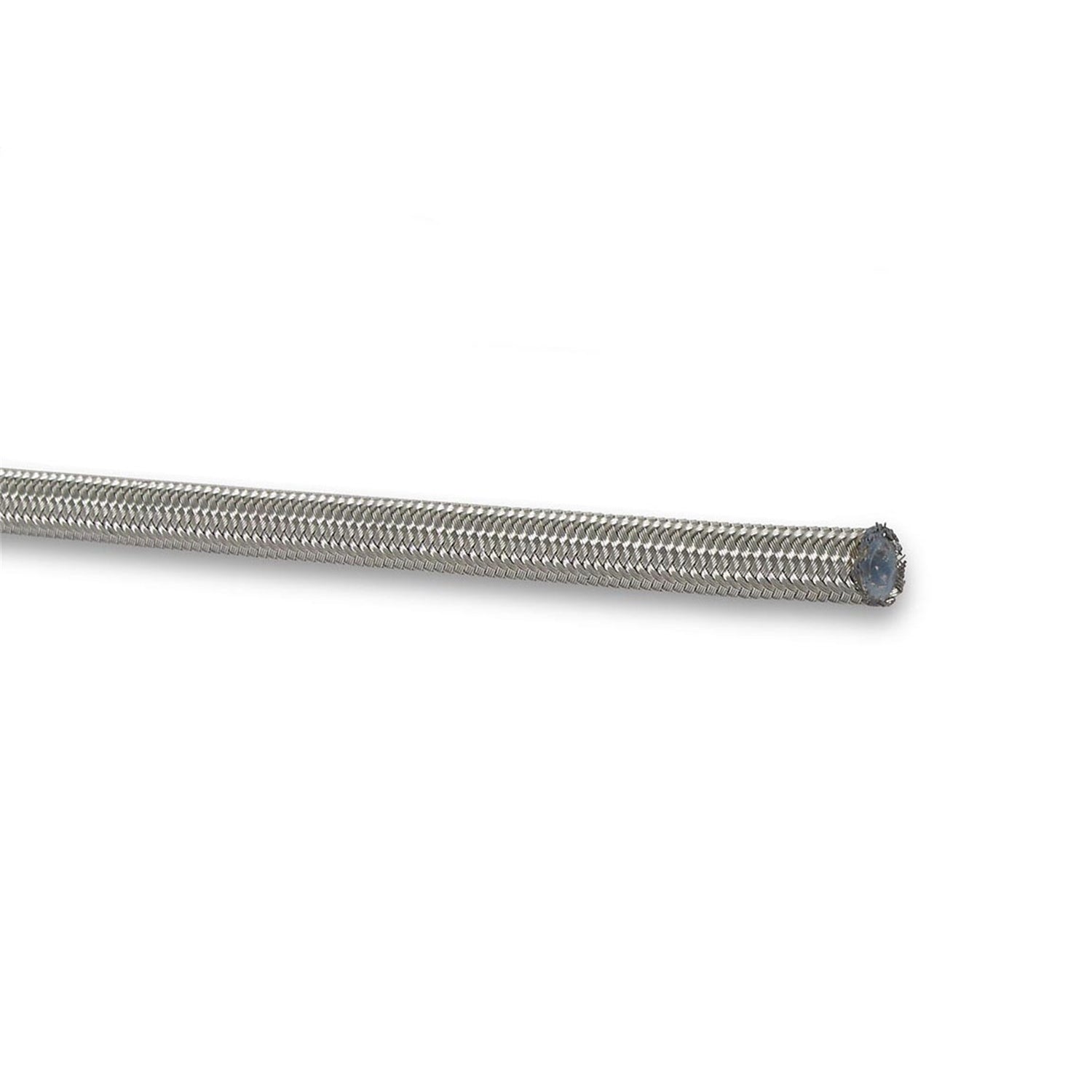

Earl's Speed-Flex Hose Size -4 Stainless Steel Braid - 20 FT |
| Description_INV |
20 Ft. -4 Speed-Flex CHCK 600004ERL FOR |
| Description_SHO |
Hose |
| Description_MKT |
Speed-Flex hose is intended for use with Speed-Seal hose ends only. No other Earl's hose end is intended for use with Speed-Flex hose. The use of other manufacturers hose ends is not recommended. The use of stainless braid protected PTFE lined brake hose assemblies will result in a firmer brake pedal, improved brake pedal 'feel' and better brake modulation. |
| Description_FAB |
Use Of Extruded Teflon (TM) Coating |
| Description_FAB |
Stainless Steel Outer Braid |
| Description_FAB |
Solves Pedal Travel Problem |
| Description_FAB |
Increased Brake Pedal Firmness |
| Description_FAB |
Modulate Brakes Efficiently |
| Description_FAB |
Improved Abrasion Resistance |
| Description_FAB |
Increased Temp. Capacity |
| Description_FAB |
Impervious To Any Fuel Blend |
| Description_FAB |
-65 deg to +450 deg Operating Temperature |
| Description_KEY |
earls; teflon hose; speed-flex; hose |
| Max Working PSI |
2000 PSI |
| Fluid Type Rating - Automatic Transmission Fluid |
5 out of 5 Rating |
| Hose Family |
Speed-Flex |
| Material |
Braided Stainless Steel |
| Compatible Hose Ends |
Speed-Seal |
| Fluid Type Rating - Brake Fluid |
5 out of 5 Rating |
| Color |
Silver |
| Temperature |
-65-450 degrees F |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Warning |
California Proposition 65 |
| Carbon Lined |
No |
| Product Length |
20 ft. |
| Size |
4AN |
| WARNING CA Proposition 65 |
Yes |
| Fluid Type Rating - Coolant |
5 out of 5 Rating |
| Fluid Type Rating - Diesel |
5 out of 5 Rating |
| Fluid Type Rating - Oil |
5 out of 5 Rating |
| Hose Length |
20 Feet |
| Hose Size |
4 AN |
| Inside Diameter |
.173"-.203" |
| Min. Bend Radius |
1.5" |
| Outside Diameter |
.304"-.343" |
| Product Type |
Hose |
| Compatible Hose End |
Speed-Seal |
| Hose Outer Material |
Stainless Steel Braided |
| Submersible in Fuel |
Yes |
| Wall Thickness |
0.430 in. |
| Brand |
Earl's |
| Emission Code |
5 |
| Fluid Type |
Automatic Transmission Fluid, Bio-Fuels, Brake Fluid, Coolant, Diesel, E85, Methanol/Alcohol, Oil, Pump Gas, Race Gas |
| Fluid Type Rating - Bio-Fuels |
5 out of 5 Rating |
| Fluid Type Rating - E85 |
5 out of 5 Rating |
| Fluid Type Rating - Methanol/Alcohol |
5 out of 5 Rating |
| Fluid Type Rating - Power Steering Fluid |
5 out of 5 Rating |
| Fluid Type Rating - Pump Gas |
5 out of 5 Rating |
| Fluid Type Rating - Race Gas |
5 out of 5 Rating |
| Fluid Type Rating - Vacuum |
1 out of 5 Rating |
| PTFE Wall Thickness |
.040" |
| Temperature Range |
-65 degrees to 450 degrees F |
| Length |
2.0000 |
| Width |
14.0000 |
| Height |
14.0000 |
| Weight |
2.0000 |
