| Description_ASC |
Speed-Flex hose is intended for use with Speed-Seal hose ends only. No other Earl's hose end is intended for use with Speed-Flex hose. The use of other manufacturers hose ends is not recommended. |
| Description_DEF |
Fuel Hose |
| Description_DES |

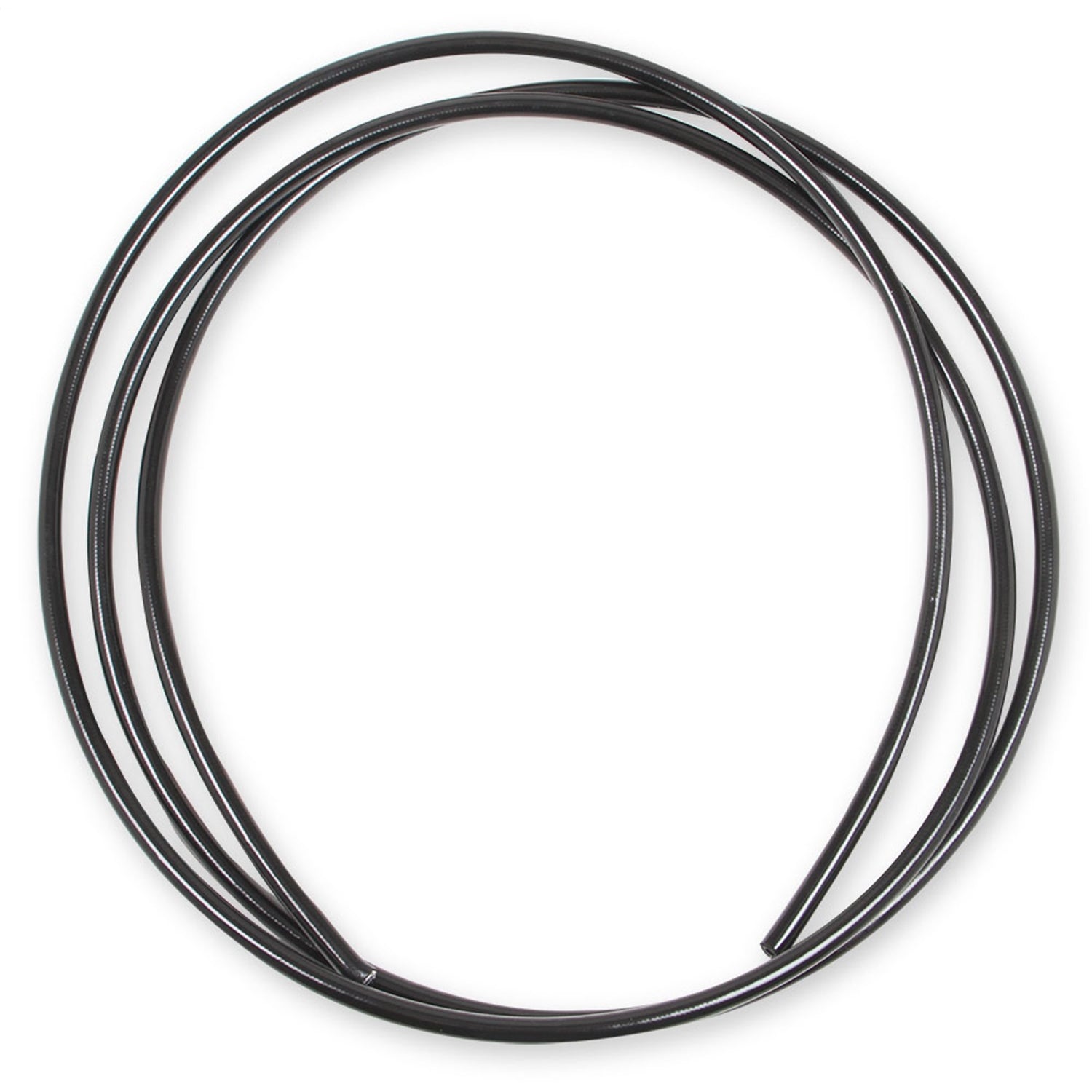

Earl's Speed-Flex Hose Size -3 Black PVC Coated - 10 FT |
| Description_FAB |
Use Of Extruded PTFE |
| Description_FAB |
Stainless Outer Braid w/ PVC Coating |
| Description_FAB |
Solves Pedal Travel Problem |
| Description_FAB |
Increased Brake Pedal Firmness |
| Description_FAB |
Modulate Brakes Efficiently |
| Description_FAB |
Improved Abrasion Resistance |
| Description_FAB |
Sold Per Foot (Bulk Only) |
| Description_FAB |
Impervious To Any Fuel Blend |
| Description_FAB |
-65 degrees to +450 degrees F Operating Temperature |
| Description_EXT |
PVC Covered High Pressure Hose. Easy to Cut and Assemble. Use with Speed-Seal Hose Ends Only. |
| Description_INV |
10 FT -3 SPEED-FLEX BLACK COAT CHCK 6000 |
| Description_SHO |
Hose |
| Description_MKT |
Earl's Speed-Flex Hose is now available with black PVC coating (hose sizes 3, 4, and 6). The smoke PVC coating has also been added to the size 3 hose. The PVC coating provides improved appearance and abrasion resistance as compared to the standard stainless braid. Although the coating color is new, the hose is Speed-Flex and has all the same features, benefits, and durability that customers have counted on for many years. |
| Description_KEY |
hose; speedflex; speed-flex; |
| Fluid Type Rating - Diesel |
5 out of 5 Rating |
| Fluid Type Rating - Vacuum |
1 out of 5 Rating |
| Size |
3AN |
| Product Length |
10 ft. |
| Submersible in Fuel |
No |
| Hose Outer Material |
PVC Black Coated Stainless |
| Brand |
Earl's |
| Fluid Type Rating - E85 |
5 out of 5 Rating |
| Max Pressure |
2000 psi |
| Compatible Hose End |
Speed-Seal |
| Maximum PSI |
2000 |
| Wall Thickness |
0.430 in. |
| Emission Code |
5 |
| Fluid Type |
Automatic Transmission Fluid, Bio-Fuels, Brake Fluid, Coolant, Diesel, E85, Methanol/Alcohol, Oil, Pump Gas, Race Gas |
| Fluid Type Rating - Bio-Fuels |
5 out of 5 Rating |
| Fluid Type Rating - Power Steering Fluid |
5 out of 5 Rating |
| Fluid Type Rating - Pump Gas |
5 out of 5 Rating |
| Fluid Type Rating - Race Gas |
5 out of 5 Rating |
| PTFE Wall Thickness |
.040" |
| Temperature Range |
-65 degrees to 450 degrees F |
| Carbon Lined |
No |
| Color |
Black |
| Material |
Braided Stainless Steel |
| Temperature |
-65-450 degrees F |
| WARNING CA Proposition 65 |
Yes |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Compatible Hose Ends |
Speed-Seal |
| Fluid Type Rating - Automatic Transmission Fluid |
5 out of 5 Rating |
| Fluid Type Rating - Brake Fluid |
5 out of 5 Rating |
| Fluid Type Rating - Coolant |
5 out of 5 Rating |
| Fluid Type Rating - Methanol/Alcohol |
5 out of 5 Rating |
| Fluid Type Rating - Oil |
5 out of 5 Rating |
| Hose Family |
Speed-Flex |
| Hose Length |
10 Feet |
| Hose Size |
3 AN |
| Inside Diameter |
.120"-.143" |
| Max Working PSI |
2000 PSI |
| Min. Bend Radius |
1.5" |
| Outside Diameter |
.284"-.300" |
| Product Type |
Hose |
| Warning |
California Proposition 65 |
| Length |
1.0000 |
| Width |
14.3000 |
| Height |
14.4000 |
| Weight |
1.3000 |
