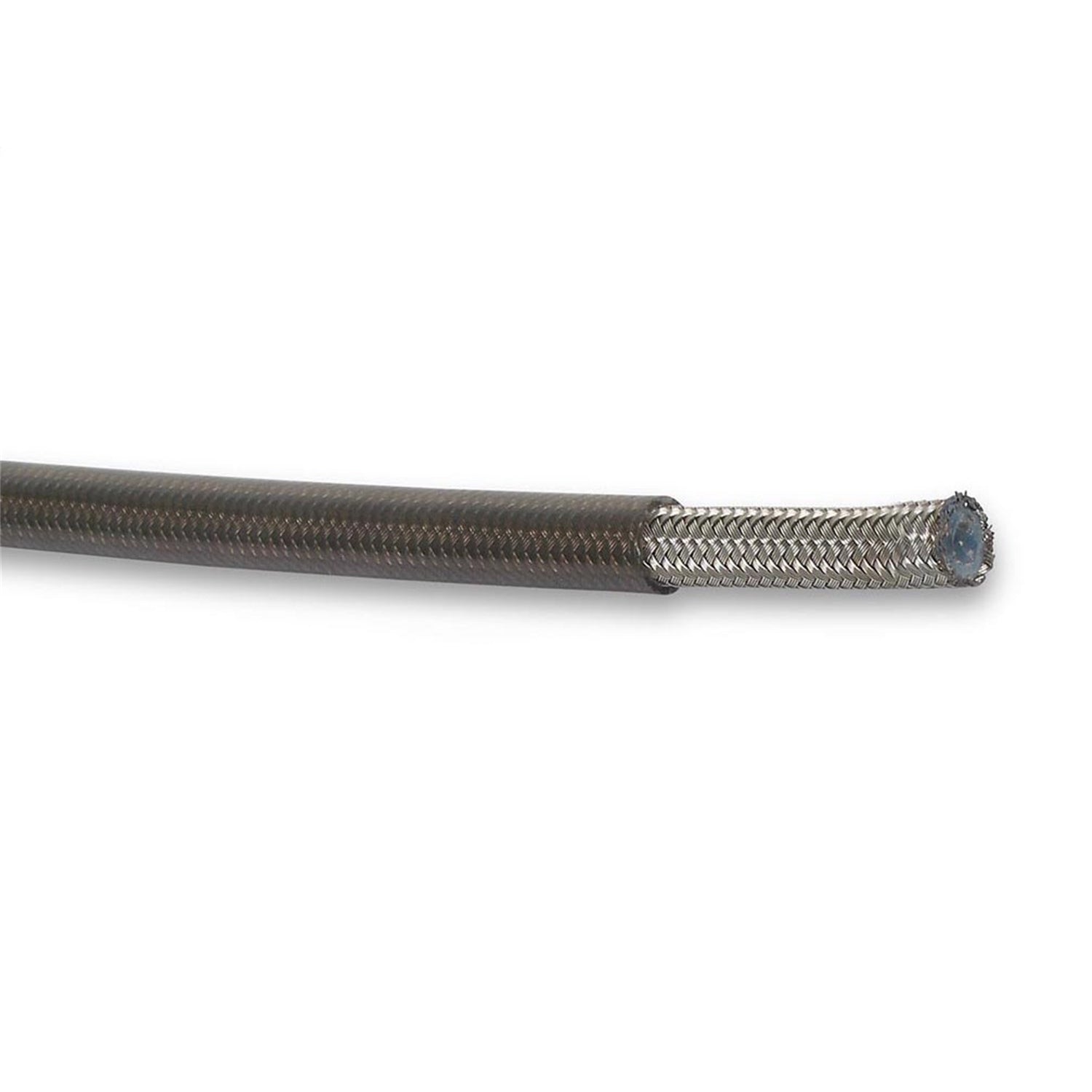

Earl's Speed-Flex Hose is now available with black PVC coating (hose sizes 3, 4, and 6). The smoke PVC coating has also been added to the size 3 hose. The PVC coating provides improved appearance and abrasion resistance as compared to the standard stainless braid. Although the coating color is new, the hose is Speed-Flex and has all the same features, benefits, and durability that customers have counted on for many years.
Specifications:
| Description_ASC |
Speed-Flex hose is intended for use with Speed-Seal hose ends only. No other Earl's hose end is intended for use with Speed-Flex hose. The use of other manufacturers hose ends is not recommended.
Bulk hose takes about 3-4 days for processing. Each bulk order must be created, scheduled at the production facility, cut to length, packaged, shipped to the warehouse, and received by the warehouse (before it can be shipped to the customer). Pre-cut boxed hose (i.e. 3 to 33 foot lengths) ship directly from the warehouse. |
| Description_DEF |
Fuel Hose |
| Description_DES |
Earl's Speed-Flex Hose Size -3 Smoke PVC Coated - Bulk Hose Sold By the Foot in Continuous Length up to 50' |
| Description_MKT |
Earl's Speed-Flex Hose is now available with black PVC coating (hose sizes 3, 4, and 6). The smoke PVC coating has also been added to the size 3 hose. The PVC coating provides improved appearance and abrasion resistance as compared to the standard stainless braid. Although the coating color is new, the hose is Speed-Flex and has all the same features, benefits, and durability that customers have counted on for many years. |
| Description_KEY |
hose; speedflex; speed-flex; |
| Description_EXT |
Speed-Flex (TM) Hose; Size3AN;2000PSIMax.;PVCSmkCoating;ForUsew/AutoTransFluid/Bio-Fuels/Brake/Coolant/Diesel/E85/Methanol/Alcohol/Oil/Pump/Race;SoldByTheFtInContinuousLngthUpTo50ft; |
| Description_FAB |
Use Of Extruded PTFE |
| Description_FAB |
Stainless Outer Braid w/ PVC Coating |
| Description_FAB |
Solves Pedal Travel Problem |
| Description_FAB |
Increased Brake Pedal Firmness |
| Description_FAB |
Modulate Brakes Efficiently |
| Description_FAB |
Improved Abrasion Resistance |
| Description_FAB |
Sold Per Foot (Bulk Only) |
| Description_FAB |
Impervious To Any Fuel Blend |
| Description_FAB |
-65 degrees to +450 degrees F Operating Temperature |
| Description_INV |
-3 SPEED-FLEX, SMOKE COATED 1 FT |
| Description_SHO |
Hose |
| Emission Code |
5 |
| Fluid Type Rating - Methanol/Alcohol |
5 out of 5 Rating |
| Fluid Type Rating - Oil |
5 out of 5 Rating |
| Size |
-3 AN |
| Fluid Type Rating - Diesel |
5 out of 5 Rating |
| Fluid Type Rating - Pump Gas |
5 out of 5 Rating |
| Min. Bend Radius |
1.5" |
| Outside Diameter |
.284"-.300" |
| Compatible Hose End |
Speed-Seal |
| Temperature |
-65-450 degrees F |
| Fluid Type Rating - E85 |
5 out of 5 Rating |
| Fluid Type Rating - Power Steering Fluid |
5 out of 5 Rating |
| Fluid Type Rating - Vacuum |
1 out of 5 Rating |
| Max Working PSI |
2000 PSI |
| Carbon Lined |
No |
| Color |
Smoke |
| Hose Length |
Bulk |
| Hose Outer Material |
PVC Smoke Coated Stainless |
| Material |
Flexible Braiding |
| Product Length |
N/A |
| Submersible in Fuel |
No |
| Wall Thickness |
0.430 in. |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Brand |
Earl's |
| Compatible Hose Ends |
Speed-Seal |
| Fluid Type |
Automatic Transmission Fluid, Bio-Fuels, Brake Fluid, Coolant, Diesel, E85, Methanol/Alcohol, Oil, Pump Gas, Race Gas |
| Fluid Type Rating - Automatic Transmission Fluid |
5 out of 5 Rating |
| Fluid Type Rating - Bio-Fuels |
5 out of 5 Rating |
| Fluid Type Rating - Brake Fluid |
5 out of 5 Rating |
| Fluid Type Rating - Coolant |
5 out of 5 Rating |
| Fluid Type Rating - Race Gas |
5 out of 5 Rating |
| Hose Family |
Speed-Flex |
| Max Pressure |
2000 psi |
| Maximum Continuous Length |
50 Feet |
| Product Type |
Hose |
| PTFE Wall Thickness |
.040" |
| Temperature Range |
-65 degrees to 450 degrees F |
| Warning |
California Proposition 65 |
| Maximum PSI |
2000 |
| WARNING CA Proposition 65 |
Yes |
| Hose Size |
3 AN |
| Inside Diameter |
.120"-.143" |
| Length |
6.0000 |
| Width |
16.0000 |
| Height |
16.0000 |
