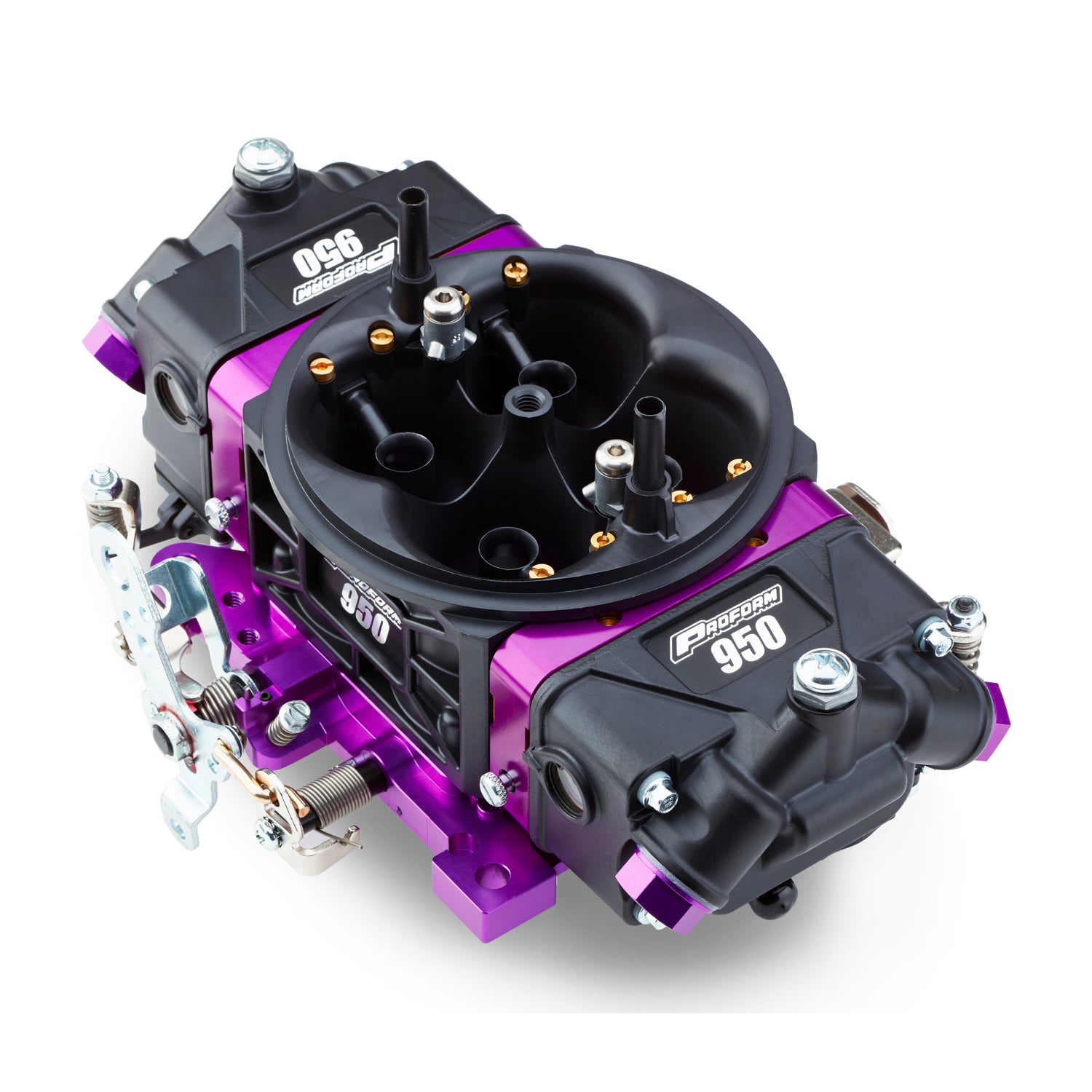

Based on the wildly popular original Race Series carburetors, PROFORM's Black Race Series Carburetors include a Black Diamond coating for enhanced fuel cooling. Each carburetor is hand assembled and tested in the U.S. utilizing the PROFORM High-Flow Carburetor Main Body, durable billet metering blocks, high performance billet throttle baseplate, and lightweight aluminum fuel bowls. PROFORM Black Race Series Carbs include: (1) Adjustable High-Flow Aluminum Main Body with Screw-In Air Bleeds, Maximum Air Flow: No Air Horn, Choke Tower, or Choke Control, Uses standard service and tuning components! (2) Billet Throttle Base Plates: Adjustable Secondary Air Flow Cam Bracket, Solid Billet Construction, Manufactured in the U.S.A., Timed and Full Vacuum Tubes for Accessories and Tuning, Button Torx Head Throttle Plate Screws, Power Valve Blow Out Protection, Progressive Slip Link Mechanical Secondary Linkage, Serviceable Throttle Levers, and Ford Kickdown! (3) Billet Metering Blocks: Solid Billet Construction, Durable, No Warping or Porosity Problems, Changeable Idle Feed Restriction, Manufactured in the U.S.A.! (4) Aluminum Fuel Bowls: Lightweight Aluminum, Sight Glass Windows for easy float adjustment!
Specifications:
| Description_ABR |
Carburetor |
| Description_ASC |
Black Race Series Carburetor; 950 CFM, Mechanical Secondary, Black & Purple |
| Description_DES |
Black Race Series Carburetor; 950 CFM, Mechanical Secondary, Black & Purple |
| Description_DEF |
Carburetor |
| Description_INV |
Carb; Blk Race Series; 950 CFM; Mech Sec |
| Description_EXT |
Engine Carburetor; Black Race Series Model; 950 CFM Dual Inlet 4-Barrel With Mechanical Secondaries; Square Type Bore Mount; Features Down-Leg Boosters and Black Diamond Finish; No Choke; Assembled With 100% New Components; Sold Each |
| Description_LAB |
PROFORM Black Race Series Carburetor, 950 CFM, Aluminum, Mechanical Secondary |
| Description_MKT |
Based on the wildly popular original Race Series carburetors, PROFORM's Black Race Series Carburetors include a Black Diamond coating for enhanced fuel cooling. Each carburetor is hand assembled and tested in the U.S. utilizing the PROFORM High-Flow Carburetor Main Body, durable billet metering blocks, high performance billet throttle baseplate, and lightweight aluminum fuel bowls. PROFORM Black Race Series Carbs include: (1) Adjustable High-Flow Aluminum Main Body with Screw-In Air Bleeds, Maximum Air Flow: No Air Horn, Choke Tower, or Choke Control, Uses standard service and tuning components! (2) Billet Throttle Base Plates: Adjustable Secondary Air Flow Cam Bracket, Solid Billet Construction, Manufactured in the U.S.A., Timed and Full Vacuum Tubes for Accessories and Tuning, Button Torx Head Throttle Plate Screws, Power Valve Blow Out Protection, Progressive Slip Link Mechanical Secondary Linkage, Serviceable Throttle Levers, and Ford Kickdown! (3) Billet Metering Blocks: Solid Billet Construction, Durable, No Warping or Porosity Problems, Changeable Idle Feed Restriction, Manufactured in the U.S.A.! (4) Aluminum Fuel Bowls: Lightweight Aluminum, Sight Glass Windows for easy float adjustment! |
| Description_SHO |
Carburetor - 950 CFM |
| Part Type |
Carburetor |
| Emissions |
49 State Legal |
| Throttle Linkage |
Universal |
| Fuel Inlet |
Dual |
| Fuel Line Inlet Distance |
9-11/16 inch |
| Air Bleed Size (Inner High Speed) |
33 / 33 |
| Color |
Black Diamond Finish |
| Metering Block Material |
Billet Aluminum |
| Flange Style |
Square Bore |
| Category |
Carbs |
| CFM |
950 CFM |
| Choke |
No Choke |
| Main Body Material |
Lightweight Aluminum |
| Air Bleeds Included |
Yes |
| Height (IN) |
3.25 inch |
| Feature/Benefit |
Lightweight Aluminum Construction |
| Series |
Black Race Series |
| Finish |
Black Diamond Finish |
| Air Bleed Size (Outer Idle) |
70 / 70 |
| Base Plate Material |
Billet Aluminum |
| Primary Main Jet Size |
79 / .086 |
| Needle & Seat |
120 |
| Material |
Aluminum |
| Secondary Main Jet Size |
88 / .100 |
| Idle/High Speed Air Bleed Sizes |
70 / 33 |
| Secondaries |
Mechanical Secondaries |
| Fuel Inlet Thread |
7/8-in. x20 |
| Primary Power Valve (Hg) |
4.5 |
| Number of Barrels |
4 |
| Discharge Nozzle Size (Primary / Secondary) |
.033 in. / .033 in. |
| Booster Style |
Down-Leg Boosters |
| Air Bleed Material |
Brass |
| Ford Kickdown Bracket Included |
Yes |
| Calibration |
Universal |
| Fuel |
Gasoline |
| EGR |
Without EGR |
| Length |
8.0000 |
| Width |
11.0000 |
| Height |
14.0000 |
| Weight |
10.0000 |
