NOS have addressed the need for a reliable, rugged and affordable relay for controlling various electrical equipment on a race car. Originally designed to control the high current switching loads of nitrous solenoids, this solid state relay can also be used to control other high current devices such as electric water pumps, trans brakes & line locks. It has an ultra-low activation/release time of less than 16 microseconds to ensure no delays in reaction times.
Specifications:
| Description_ASC |
WARNING; CONNECTING BATTERY VOLTAGE TO THE BLUE WIRE WILL DAMAGE THE RELAY. VERIFY CONNECTIONS BEFORE APPLYING POWER
40amp maximum continuous load
20amp maximum Pulsed (PWM) load |
| Description_DEF |
Carburetor |
| Description_DES |
Solid State Relay Nitrous Solenoid Driver |
| Description_EXT |

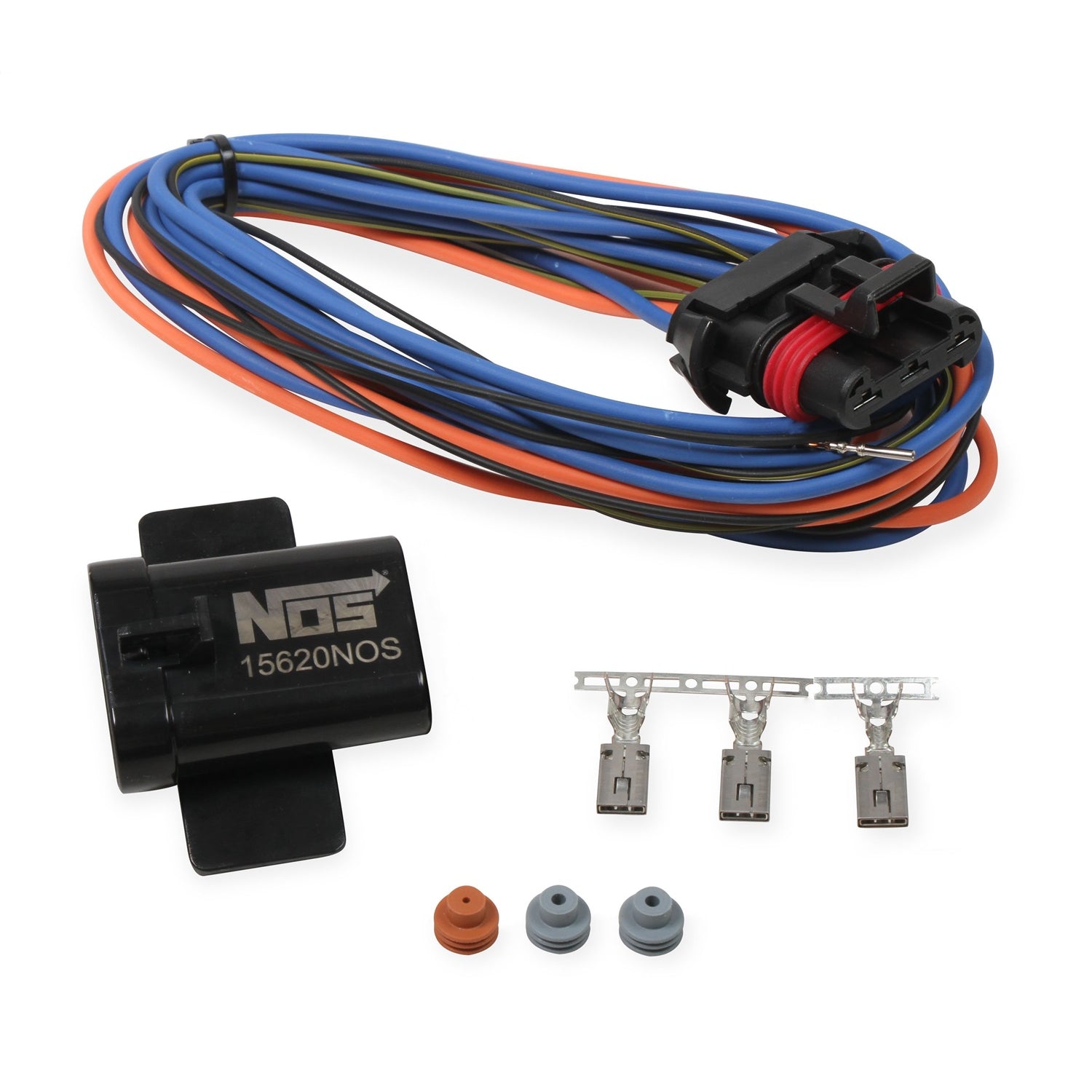

Solid State Relay Nitrous Solenoid Driver; High Current Relay; For Use w/On/Off Load; Incl. Wiring Harness; |
| Description_INV |
NITROUS SOLENOID DRIVER |
| Description_FAB |
5-20 volt DC Operation |
| Description_FAB |
Rugged Solid State Circuitry |
| Description_FAB |
Easy 3-Wire Connection |
| Description_FAB |
Included Terminated Pigtail |
| Description_FAB |
Included Extra Contacts for "Build-Your-OwnΓÇ£ Wiring |
| Description_FAB |
Ultra-fast activation <16 microseconds |
| Description_FAB |
Pulse Width Modulation (PWM) Compatible |
| Description_FAB |
PWM 0-100% |
| Description_FAB |
Up to 1000hz frequency |
| Description_FAB |
Vibration Resistant |
| Description_FAB |
Maximum Continuous Current = 40amps |
| Description_FAB |
Maximum Switching Current = 20amps |
| Description_KEY |
Nitrous; Nitrous Oxide; Solenoid; NOS; Cheater; Driver; Solid State; Relay; Solid State Relay; PWM; Pulse Width Modulated; Wiring; Electrical; |
| Description_MKT |
NOS have addressed the need for a reliable, rugged and affordable relay for controlling various electrical equipment on a race car. Originally designed to control the high current switching loads of nitrous solenoids, this solid state relay can also be used to control other high current devices such as electric water pumps, trans brakes & line locks. It has an ultra-low activation/release time of less than 16 microseconds to ensure no delays in reaction times. |
| Description_MKT |
This relay can also be Pulse Width Modulated (PWM) with no minimum duty cycle at frequencies up to 1000hz. |
| Description_SHO |
Fuel/N2OSolDrvr |
| Brand |
NOS |
| Pack Qty |
1 |
| Maximum Amperage Draw |
40 |
| Package Quantity |
1 |
| Emission Code |
4 |
| Max Amp Load |
40 |
| Pigtail Length |
24.000 in. |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| WARNING CA Proposition 65 |
Yes |
| Pig Tail Length |
24" |
| Product Type |
Relay |
| Warning |
California Proposition 65 |
| Sale Category |
Nitrous |
| Length |
2.2000 |
| Width |
3.3000 |
| Height |
5.5000 |
| Weight |
0.5500 |
