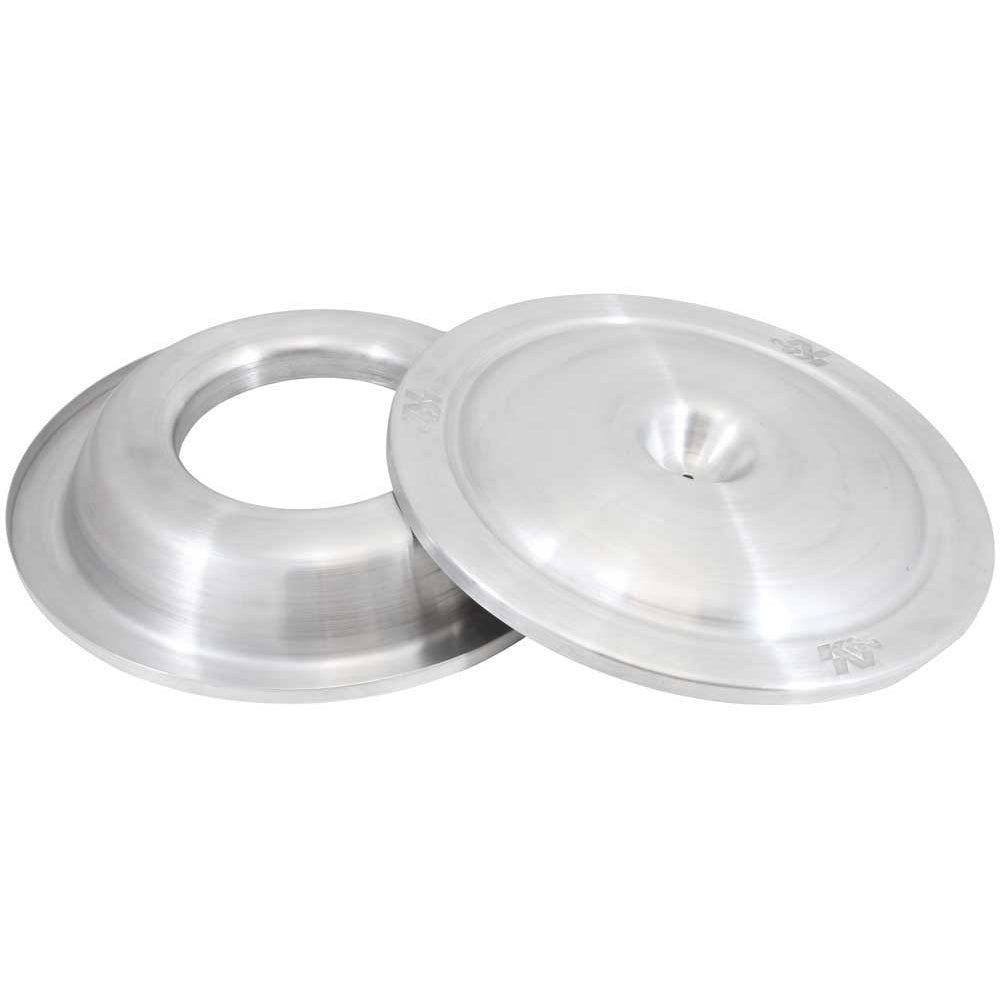

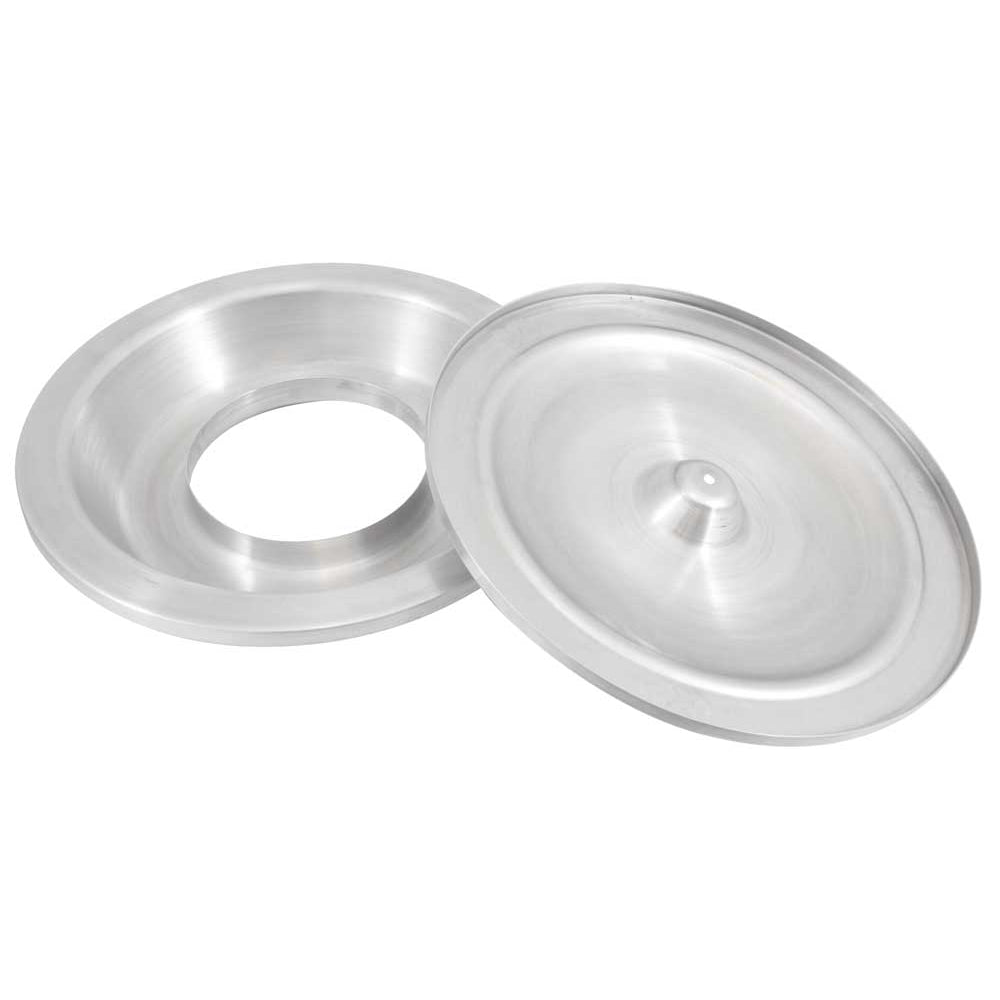

The oversized K&N 16 inch air filter top and base plates can be paired with a variety of 16 inch K&N air filters for boosting the performance in carbureted race cars. The plates are made from lightweight aluminum with a spun aluminum finish featuring K&N logos embossed on the outer edge of the top plate. The base plate fits carburetors with a 7-5/16 inch air horn flange and drops the filter 1-1/2 inches below the carb flange. The drop base design helps to maximize air filter height while still clearing the hood in many custom racing applications. These K&N 16 inch top and base plates will work with various heights of 16 inch diameter K&N high-flow air filters such as the 3 inch tall air filter E-3022R, 3-1/4 inch tall air filter E-3023R, 3-1/2 inch tall air filter E-3024R, 3-3/4 inch tall air filter E-3025R, 4 inch tall air filter E-3026R and several other variations meant for off-road racing use.
Specifications:
| Description_DEF |
Carburetor Base Plate |
| Description_EXT |
The K&N 16 inch air filter top and base plates fit any round 14 inch K&N air filter. The plates are made from lightweight aluminum with a spun aluminum finish. |
| Description_DES |
Top & Base Plate |
| Description_SHO |
Top & Base Plate |
| Description_MKT |
The oversized K&N 16 inch air filter top and base plates can be paired with a variety of 16 inch K&N air filters for boosting the performance in carbureted race cars. The plates are made from lightweight aluminum with a spun aluminum finish featuring K&N logos embossed on the outer edge of the top plate. The base plate fits carburetors with a 7-5/16 inch air horn flange and drops the filter 1-1/2 inches below the carb flange. The drop base design helps to maximize air filter height while still clearing the hood in many custom racing applications. These K&N 16 inch top and base plates will work with various heights of 16 inch diameter K&N high-flow air filters such as the 3 inch tall air filter E-3022R, 3-1/4 inch tall air filter E-3023R, 3-1/2 inch tall air filter E-3024R, 3-3/4 inch tall air filter E-3025R, 4 inch tall air filter E-3026R and several other variations meant for off-road racing use. |
| Description_INV |
Top & Base Plate |
| Title |
K&N 85-6852 Top & Base Plate |
| Top Style |
Metal |
| Package Contents |
1 Top Plate, 1 Base Plate |
| Prop 65 Warning Label |
https://www.knfilters.com/images/l/prop65.jpg |
| Warranty |
1 Year Limited |
| Outside Diameter |
16 in (406 mm) |
| Product Style |
Accessories |
| Prop 65 (C, R or CR) |
CR |
| Package Type |
Box |
| Style |
1-1/2" Drop Base |
| Neck Flange |
7.313 in (186 mm) |
| Package Quantity |
1 |
| Finish |
None |
| Package Material |
Paperboard |
| Prop 65 - Short Label |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Height |
1.5 in (38 mm) |
| Prop 65 Yes/No |
Yes |
| Weight |
2.2 lb (1 kg) |
| Item Type |
High Performance |
| Length |
5.0000 |
| Width |
18.0000 |
| Height |
18.0000 |
| Weight |
2.0000 |
