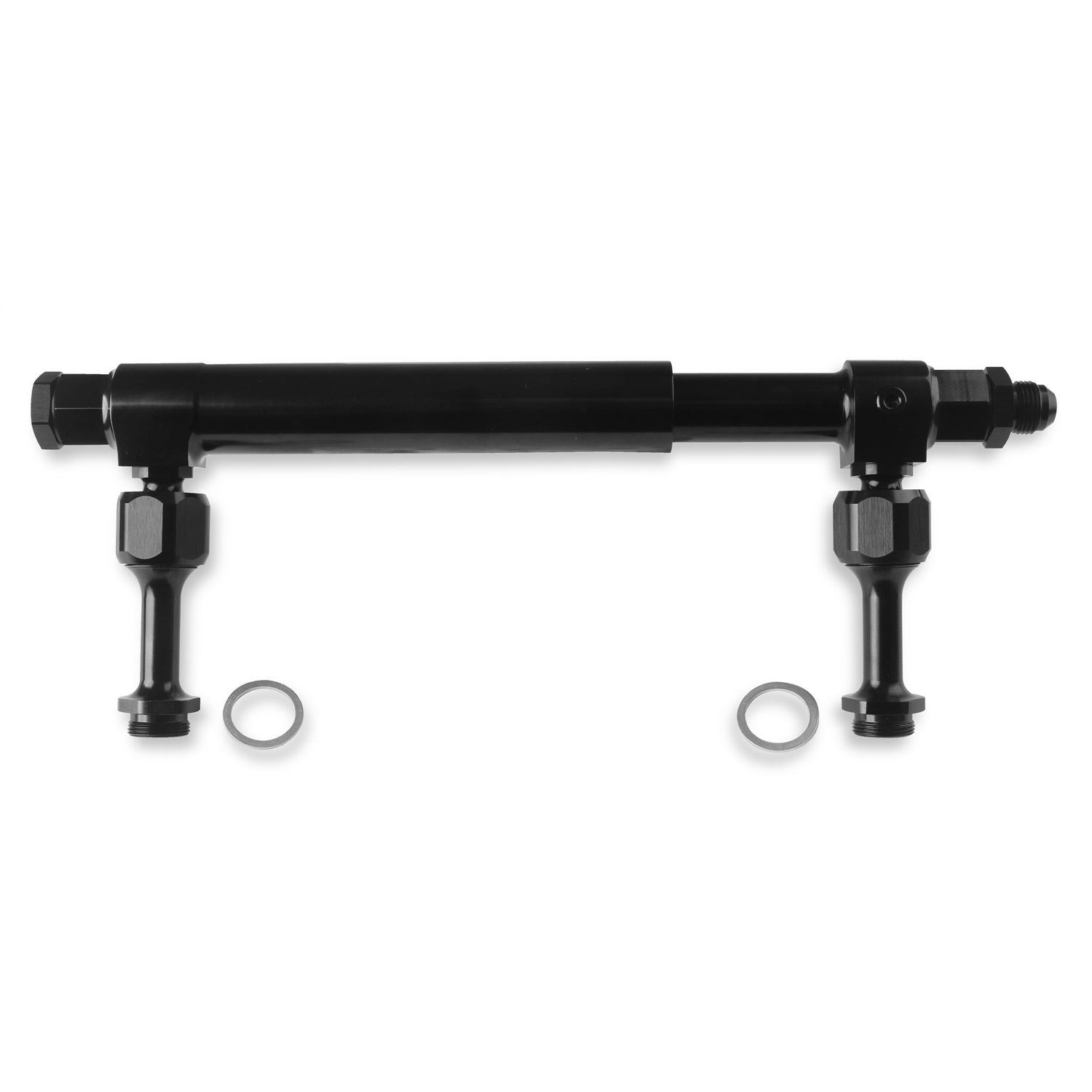

Earl's adjustable fuel log is designed for use with most dual inlet Holley carburetors w/ 7/8 in.-20 threads on the fuel bowls. The bowl extension adapters pivot at the fuel log end and this provides extra clearance & easier assembly. Includes fuel rail assembly w/ -8 AN Male Flare Inlet adapter, -10 AN O-ring plug, (2) 1/8 in. NPT Plugs, and sealing washers for the fuel bowls. Black anodized finish.
Specifications:
| Description_ASC |
Compatible with Pump Gas, Race Gas, and E85. |
| Description_DEF |
Carburetor Fuel Log |
| Description_EXT |
Earls Billet Adjustable Pivoting Fuel Log - Fits Most Holley Carburetors w/ 7/8"-20 Threads on the fuel bowls. Adjustable length from 8-1/2" to 11-3/4" c/l to c/l. Fuel Inlet -8 AN Male Flare. |
| Description_DES |
Earl's Billet Fuel Log |
| Description_MKT |
Earl's adjustable fuel log is designed for use with most dual inlet Holley carburetors w/ 7/8 in.-20 threads on the fuel bowls. The bowl extension adapters pivot at the fuel log end and this provides extra clearance & easier assembly. Includes fuel rail assembly w/ -8 AN Male Flare Inlet adapter, -10 AN O-ring plug, (2) 1/8 in. NPT Plugs, and sealing washers for the fuel bowls. Black anodized finish. |
| Description_INV |
FUEL LOG BLACK W/ 7/8-20 SWIVEL -8 AN |
| Description_FAB |

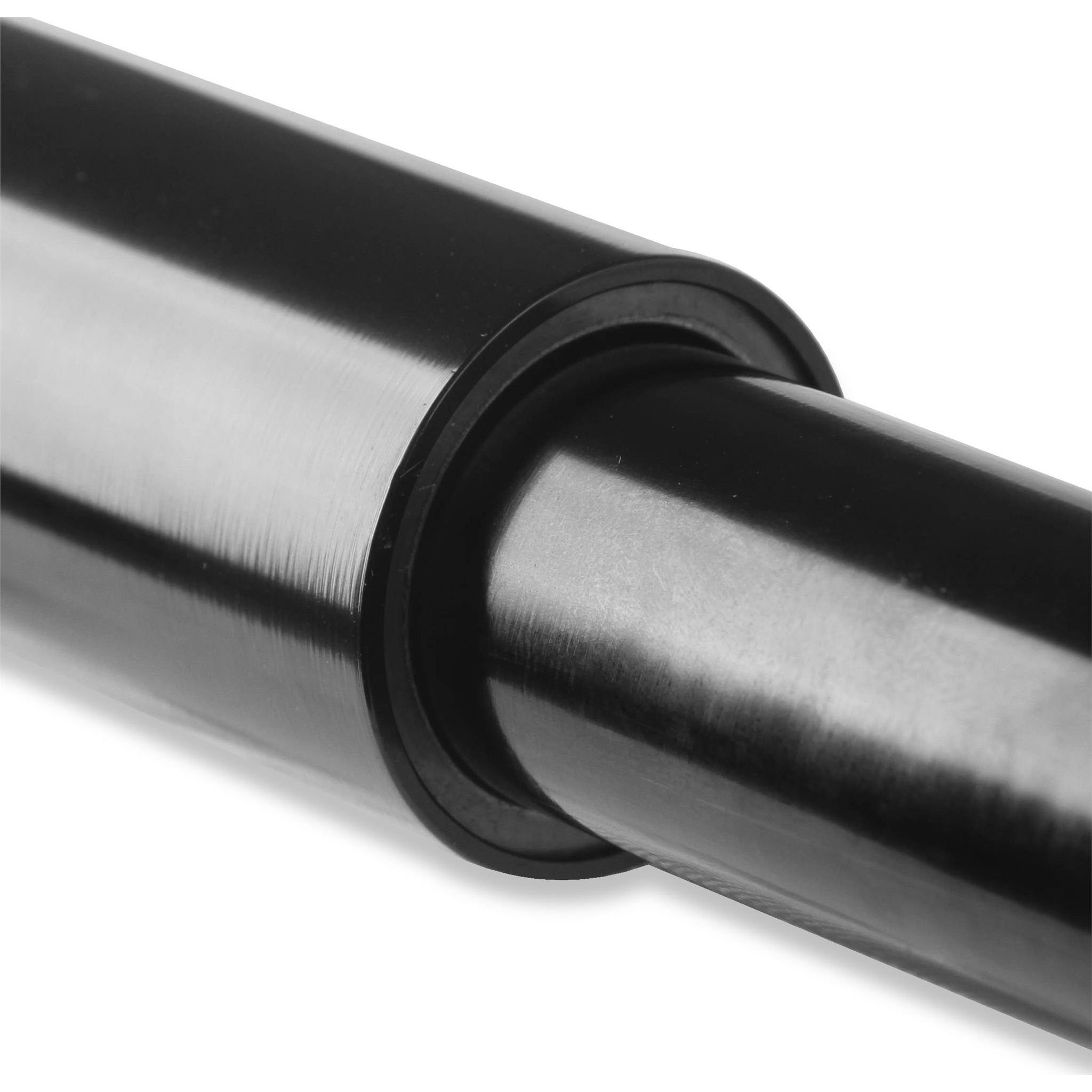

Adjustable Billet Aluminum Fuel Log - 8-1/2" to 11-3/4" Length c/l to c/l |
| Description_FAB |
Fits Most Holley Dual Inlet Carburetors w/ 7/8"-20 threads on Fuel Bowls |
| Description_FAB |
Swivel Extensions - Allow Adjustment & Easier Assembly |
| Description_FAB |
Adjustable Length Fits All Dual Inlet Holley Carburetors (up to 4500 Series) |
| Description_FAB |
Fuel Log Inlets & Outlets: -10 AN O-Ring Female on Each End of Fuel Log |
| Description_FAB |

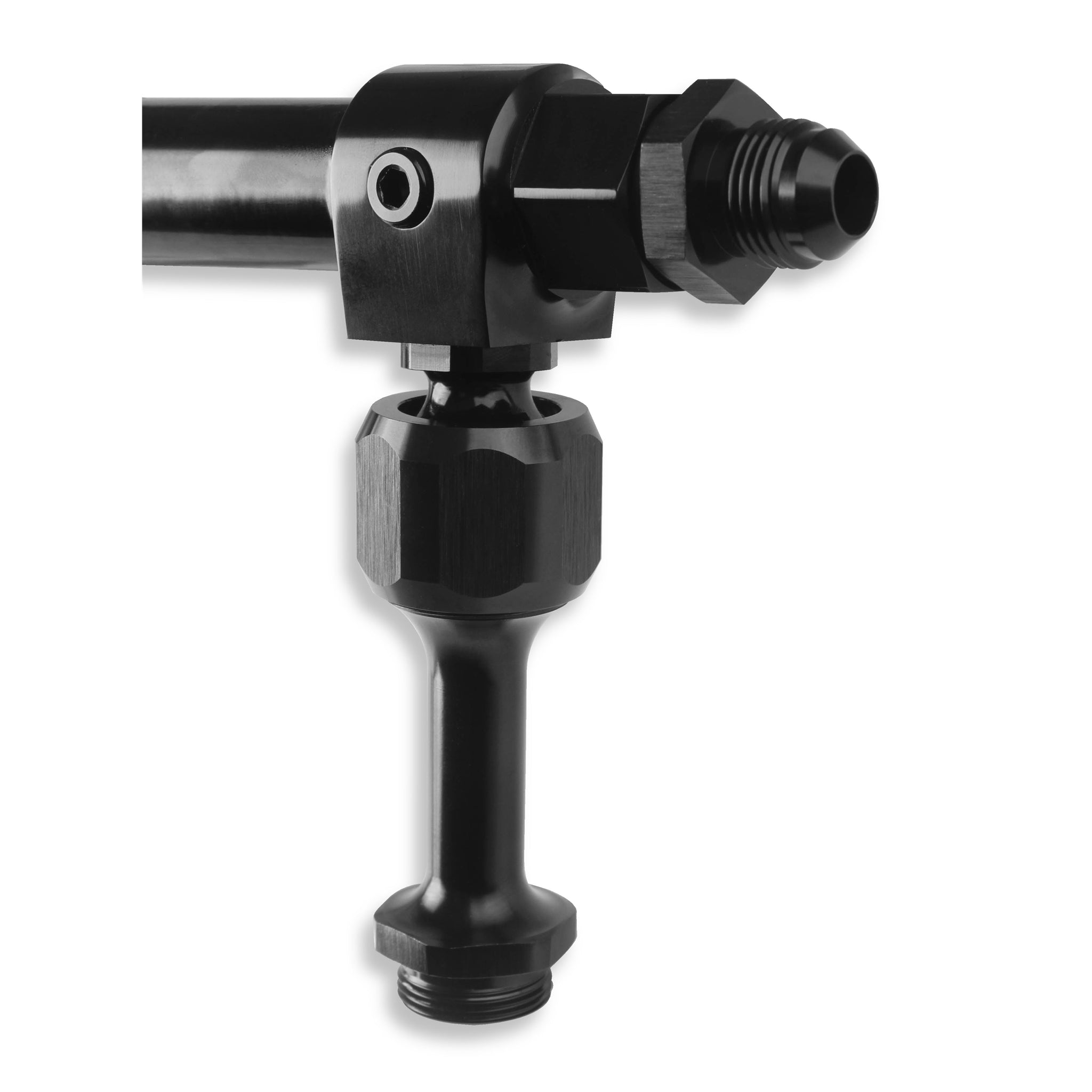

Fuel Inlet Fitting: -8 AN Male to -10 AN O-Ring Port |
| Description_FAB |

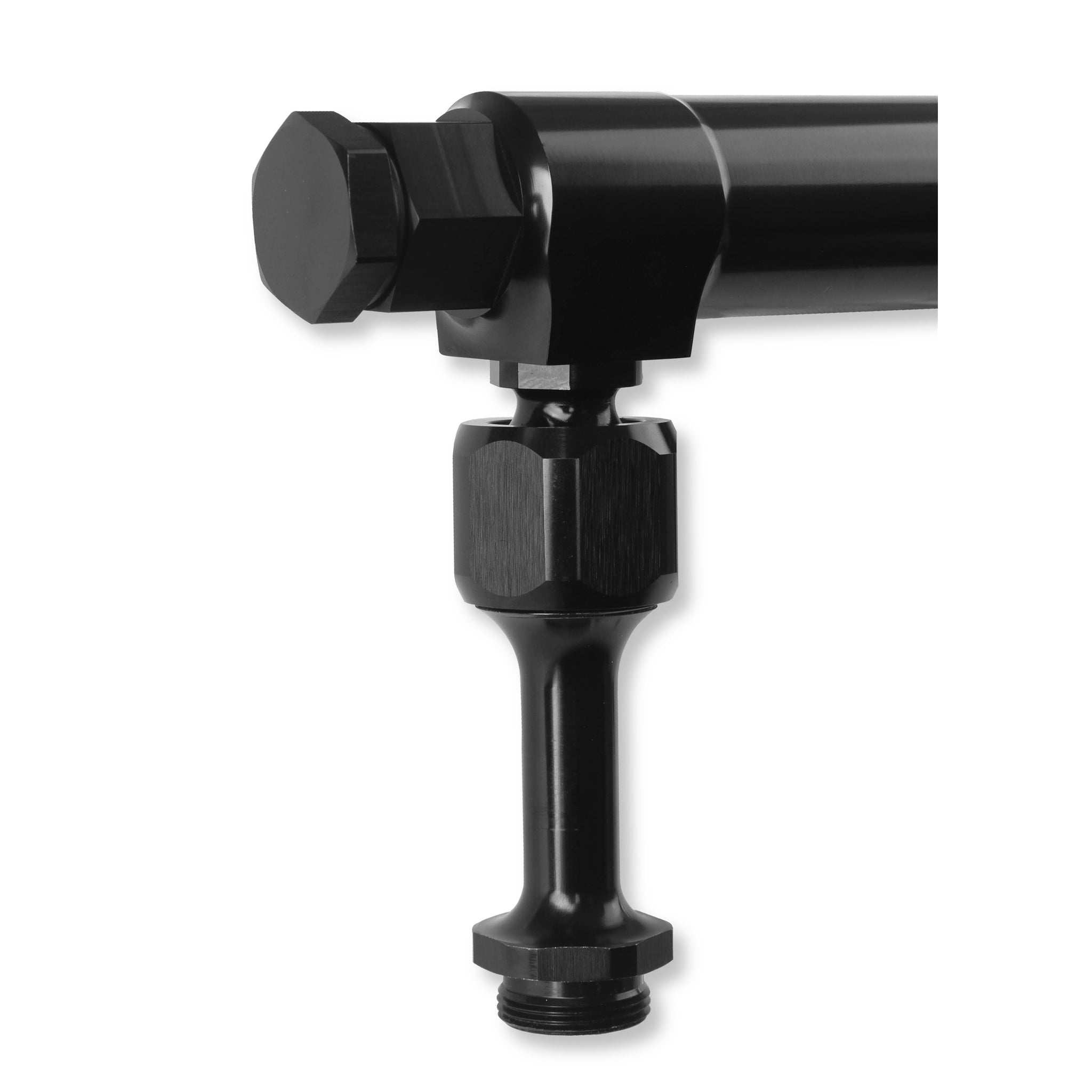

Fuel Log Outlet: -10 O-Ring Port Plug |
| Description_FAB |
Plug Can be Removed for use w/ Return Style Fuel Pressure Regulator |
| Description_FAB |

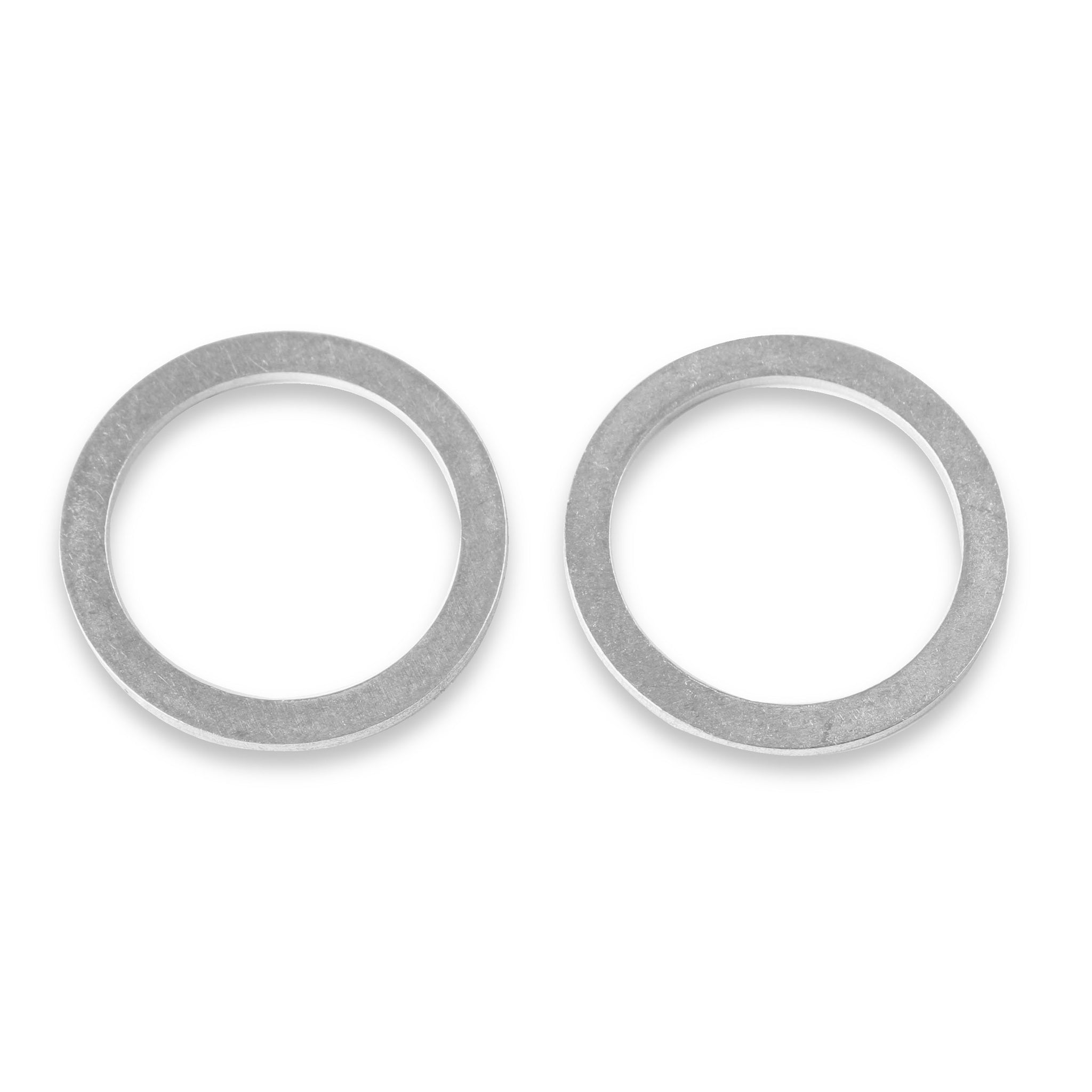

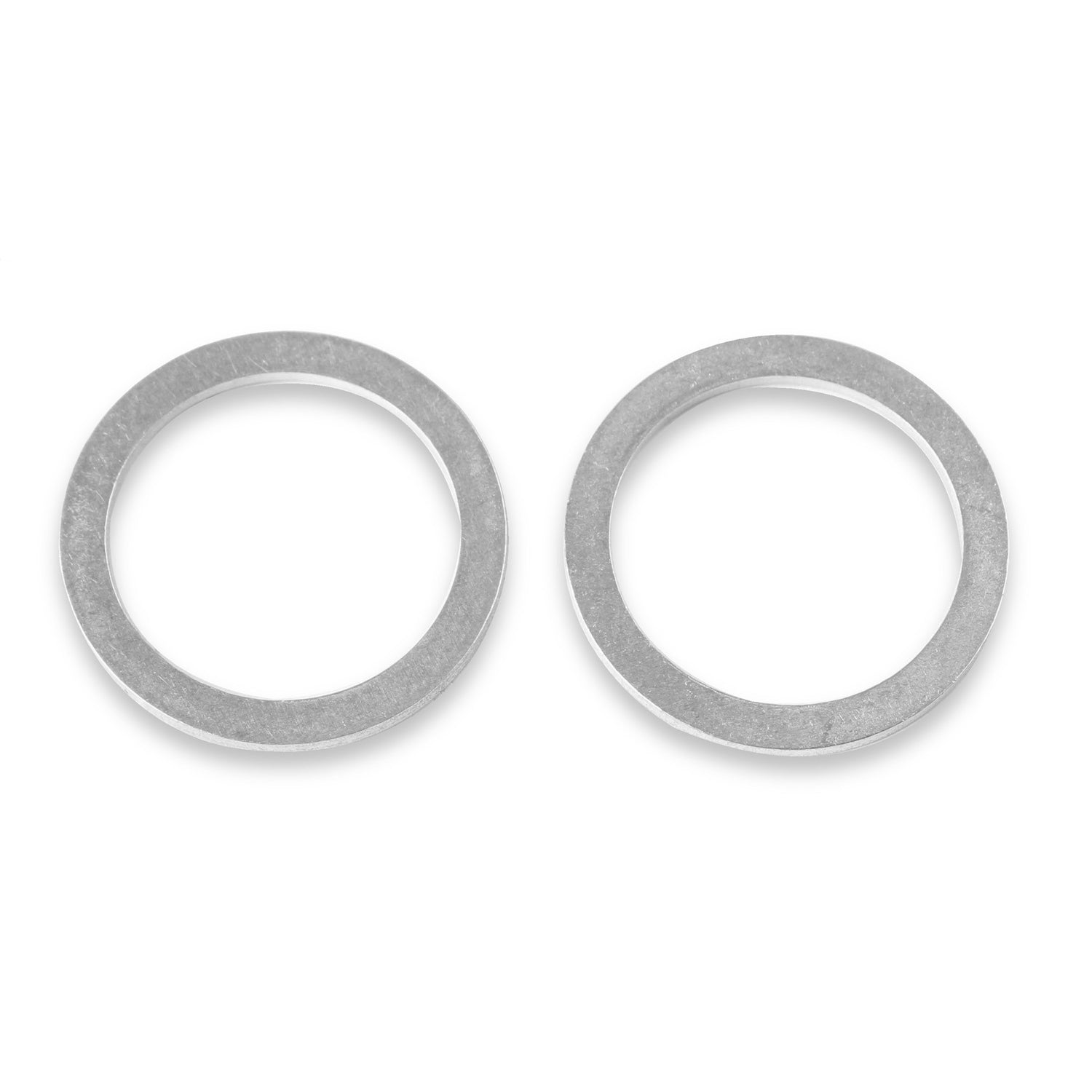

(2) Sealing Washers for Fuel Bowls |
| Description_FAB |
(2) 1/8" NPT Ports for Fuel Pressure Gauge |
| Description_FAB |
Black Anodized Finish |
| Description_FAB |
Fits Holley 4150, 4160 & 4500 Carburetors |
| Description_SHO |
Fuel Log |
| Max Working PSI |
250 PSI |
| Finish |
Anodized Black |
| Inlet Size |
8 AN Male |
| Adapter AN Size ( B ) |
10 AN FEMALE |
| Material |
Aluminum |
| WARNING CA Proposition 65 |
No |
| Adapter NPT Size ( C ) |
1/8 NPT FEMALE |
| Model |
4150, 4160, 4500 |
| Outlet Thread |

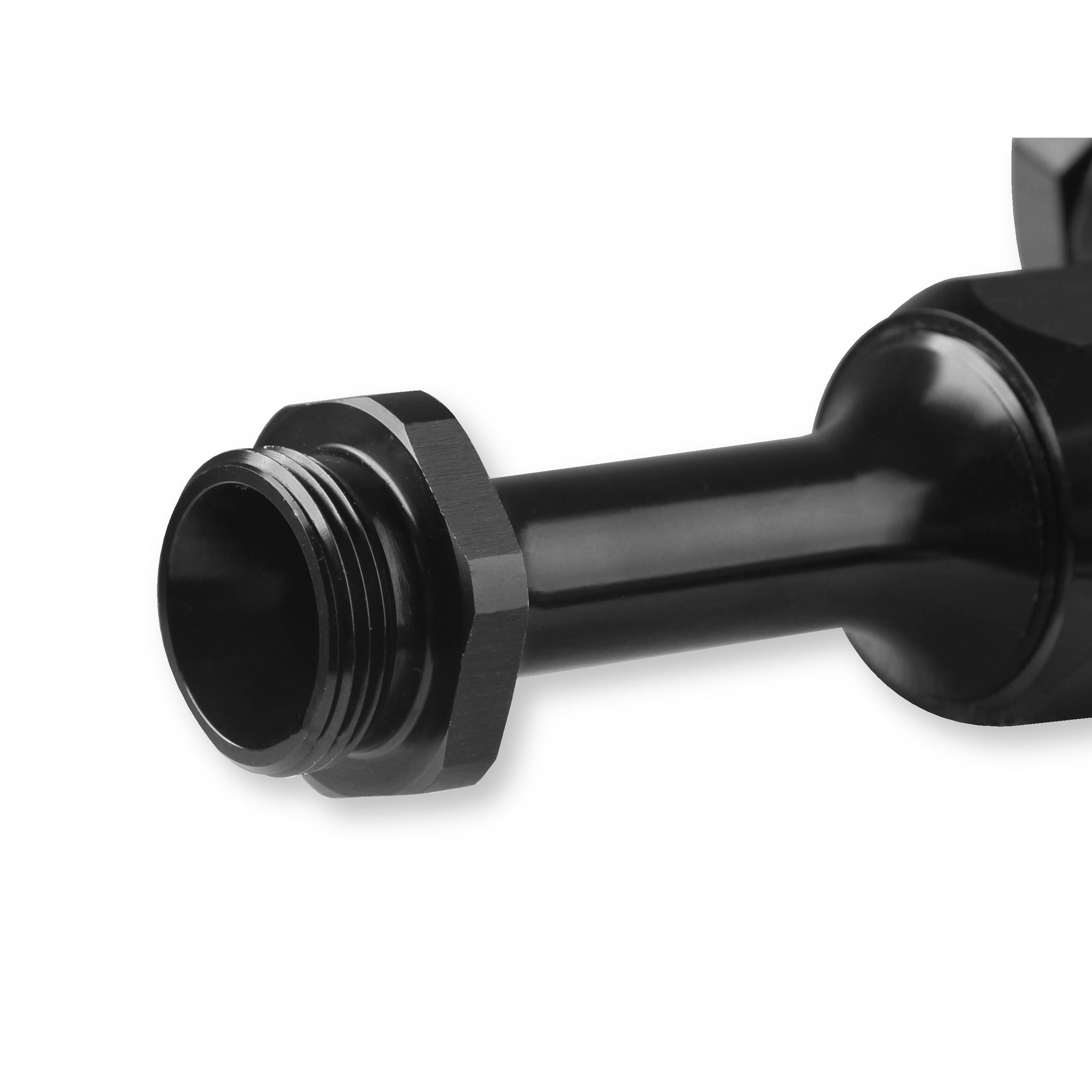

7/8"-20 |
| Product Type |
Fuel Log |
| Warranty |
Limited 90 Day |
| Adapter AN Size ( A ) |
10 AN FEMALE |
| Brand |
Earl's |
| Emission Code |
5 |
| Length |
2.4000 |
| Width |
6.9000 |
| Height |
17.9000 |
| Weight |
1.6300 |
